Isuzu WW
▶
TRUCKS
▶
NPS
▶
51136 - NPS-RHD
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#35344) — 18 parça
◀

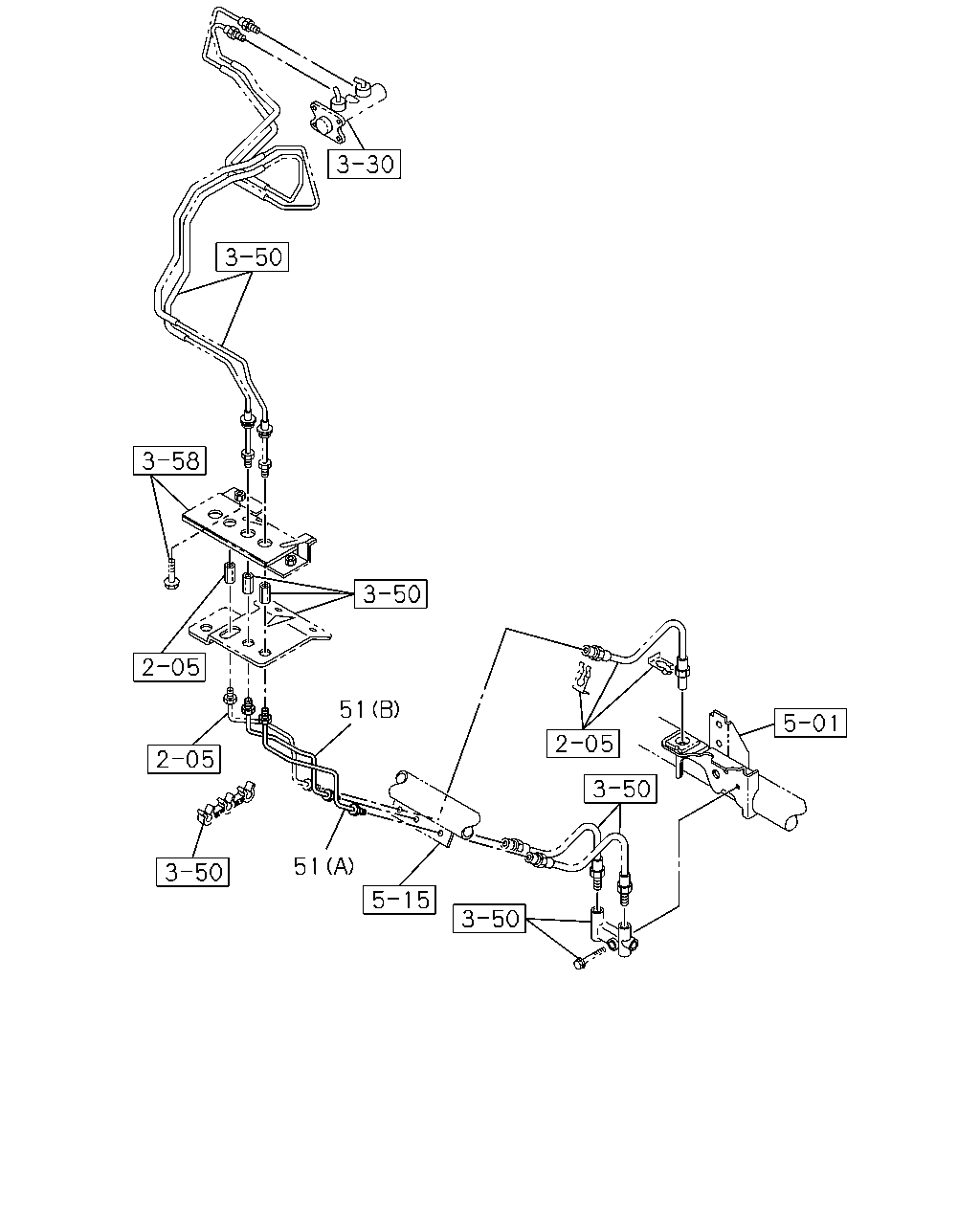

[352A] CAB SIDE (2 parça)
[352A] FRAME SIDE;REAR (4 parça)

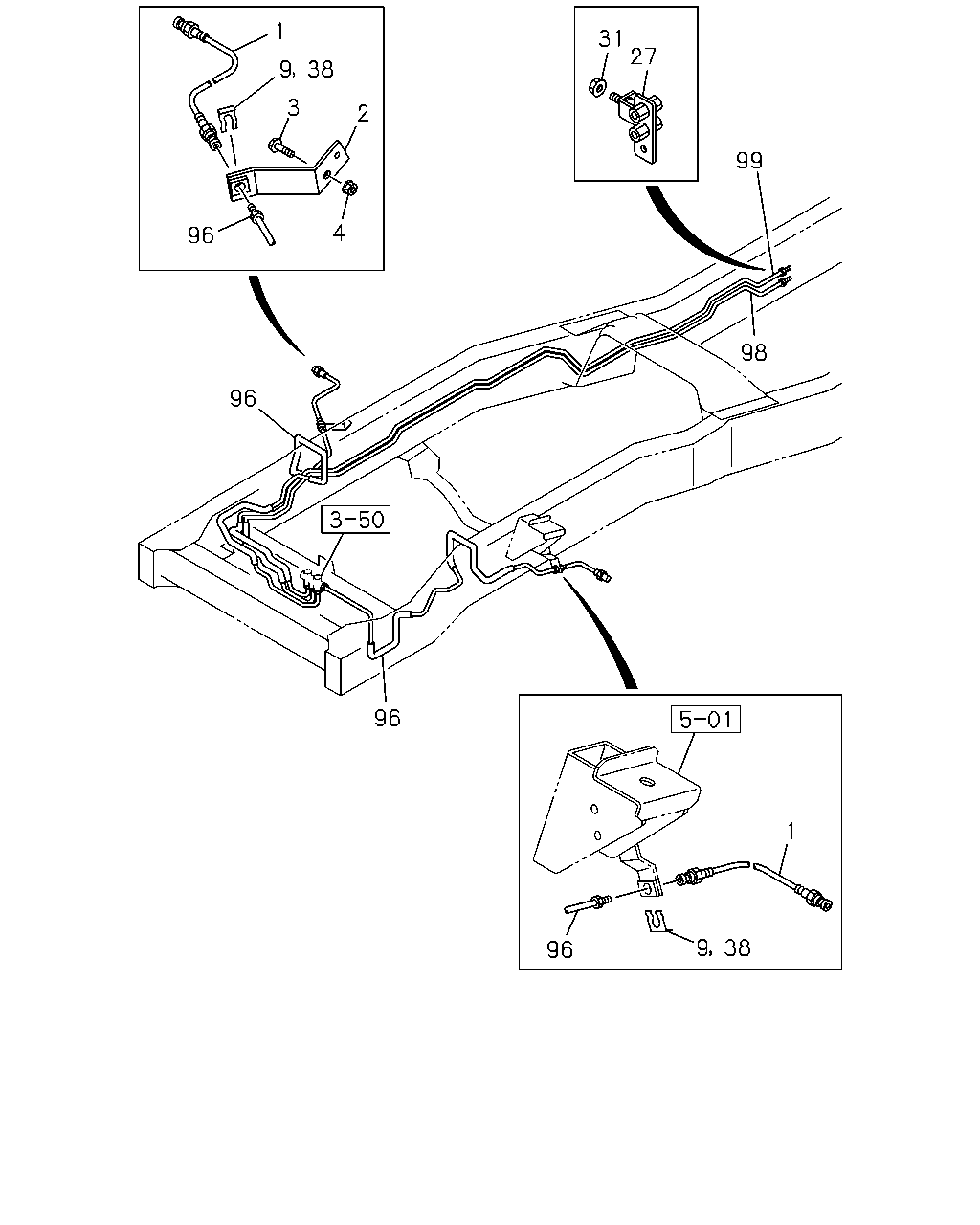

[352A] FRAME SIDE;FRONT (12 parça)
▶
51
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
51
04.685 PIPE; BRK
(A) FRONT
8-97209-514-0
01
1
0612-
51
04.685 PIPE; BRK
(B) REAR
8-97209-515-0
01
1
0612-
50
98
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
04.685 PIPE; BRK,UNION TO VLV
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRONT
8-97373-731-0
01
1
0612-
50
04.685 PIPE; BRK,UNION TO VLV
4HK1-TCN ENG(RDQ) FRONT
8-97325-783-2
01
1
0612-
98
04.686 PIPE ASM; 4/6 WAY
FRONT
8-97325-774-3
01
1
0612-
99
04.686 PIPE ASM; 4/5/6 WAY
REAR
8-97325-775-3
01
1
0612-
1
31
27
9
38
3
2
99
4
96
98
96
96
1
9
38
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.680 HOSE; FLEX,FRT BRK
8-97039-543-1
02
1
0612-
2
04.681 BRACKET; FLEX HOSE,FRT BRK
8-94310-121-2
01
1
0612-
3
04.686 BOLT; BRKT,FLEX HOSE,FRT BRK
00.029 M10X25 FLANGE
0-28651-025-0
01
1
0612-
4
04.686 NUT; FLEX HOSE BRKT,FRT BRK
03.162 M10 FLANGE
0-91180-110-0
01
1
0612-
9
04.686 CLIP; FLEX HOSE,FRT BRK
8-97360-054-0
02
1
0612-
27
04.686 UNION; BRK PIPE
8-97352-980-1
01
1
0612-
31
04.686 NUT; UNION CLIP
01.062 M6 FLANGE
0-91180-106-0
01
1
0612-
38
04.686 CLIP
8-97360-054-0
02
1
0612-
96
04.686 PIPE ASM; 6 WAY
8-97374-189-0
01
1
0612-
96
04.686 PIPE ASM; 6 WAY
8-97325-763-2
01
1
0612-
98
04.686 PIPE ASM; 4/6 WAY
FRONT
8-97325-774-3
01
1
0612-
99
04.686 PIPE ASM; 4/5/6 WAY
REAR
8-97325-775-3
01
1
0612-
