Isuzu WW
▶
TRUCKS
▶
NPS
▶
51136 - NPS-RHD
▶
3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶

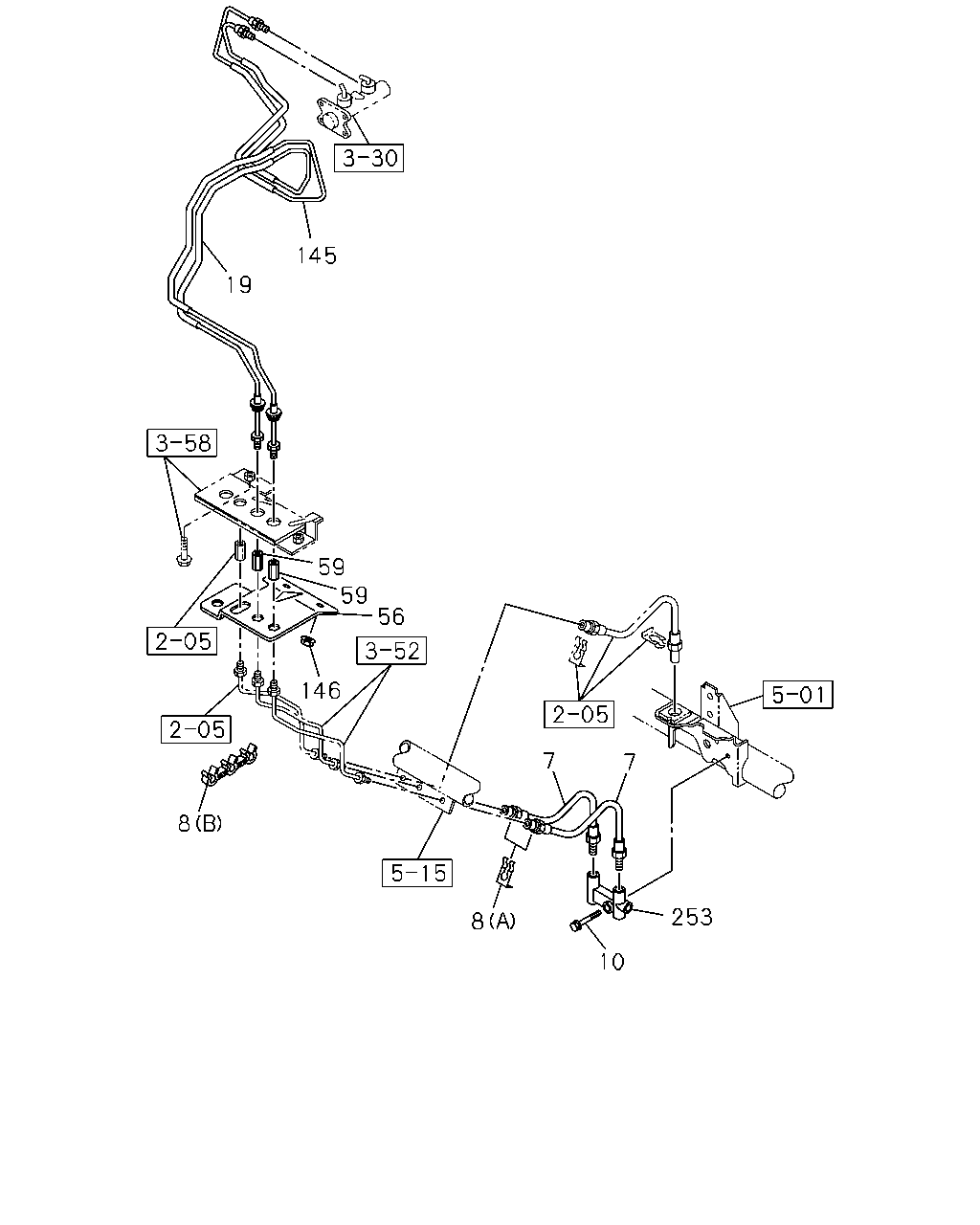

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#35343) — 14 parça
◀
[350A] FRONT (12 parça)
[350A] REAR (2 parça)
▶
145
19
59
59
56
146
7
7
8
253
8
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
8-97171-031-0
02
1
0612-
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
(A)
8-97365-304-0
02
1
0612-
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B)
8-97076-471-0
01
1
0612-
10
04.686 BOLT; JOINT
00.685 M6X40 FLANGE
0-28650-640-0
01
1
0612-
19
04.685 PIPE; BRK,M/CYL TO UNION
4HG1-T ENG(RDP),4HG1 ENG(RJH) REAR
8-97314-592-0
01
1
0612-
19
04.685 PIPE; BRK,M/CYL TO UNION
4HK1-TCN ENG(RDQ) REAR
8-97287-278-0
01
1
0612-
56
04.686 BRACKET; UNION,BRK
8-97149-604-1
01
1
0612-
59
04.686 UNION; BRK PIPE
M10 STRAIGHT
0-92107-005-0
02
1
0612-
145
04.685 PIPE; BRK,METERING VLV TO UNION
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRONT
8-97314-585-0
01
1
0612-
145
04.685 PIPE; BRK,METERING VLV TO UNION
4HK1-TCN ENG(RDQ) FRONT
8-97168-506-1
01
1
0612-
146
04.685 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
02
1
0612-
253
04.840 JOINT
04.686
8-97120-033-2
01
1
0612-
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
55
04.686 PIPE; BRK,VLV TO UNION
4HG1-T ENG(RDP),4HG1 ENG(RJH)
8-97373-732-0
01
1
0612-
55
04.686 PIPE; BRK,VLV TO UNION
4HK1-TCN ENG(RDQ)
8-97325-787-2
01
1
0612-
