3-11 — PARKING BRAKE CONTROL (#35338) — 67 parça

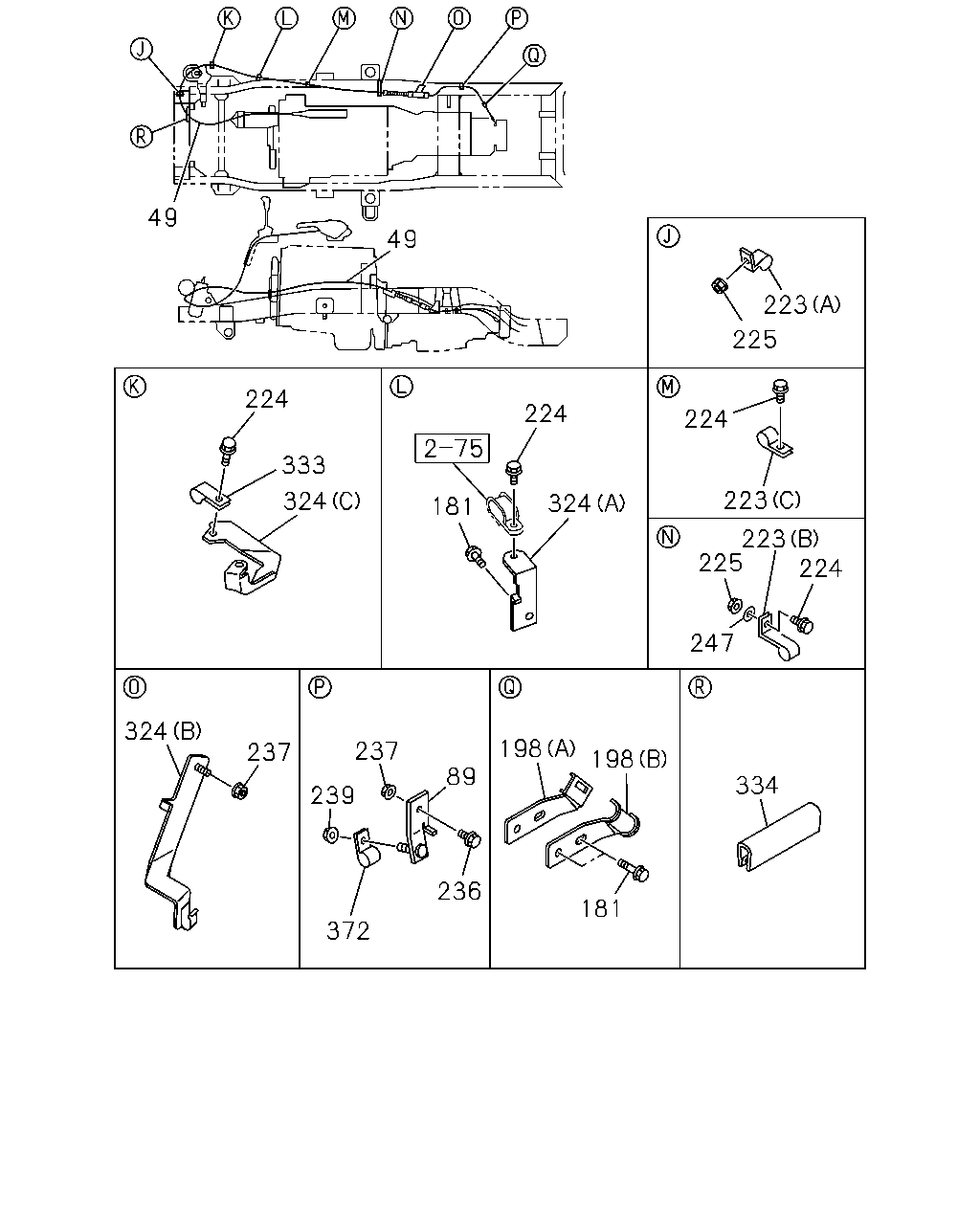

49 49 223 225 224 224 224 333 223 324 324 181 223 225 224 247 324 198 237 237 198 89 334 239 236 181 372

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	04.779 CABLE; PARKING BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97373-721-0	01	1	0612-
49	04.779 CABLE; PARKING BRK 4HK1-TCN ENG(RDQ)	8-97350-541-1	01	1	0612-
89	04.785 BRACKET; CLIP	8-97100-738-1	01	1	0612-
181	04.785 BOLT; BRKT 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0612-
181	04.785 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
198	04.785 BRACKET; CABLE (A)	8-97303-973-0	01	1	0612-
198	04.785 BRACKET; CABLE (B)	8-97303-974-0	01	1	0612-
198	04.785 BRACKET; CABLE 4HK1-TCN ENG(RDQ) (C)	8-97350-543-0	01	1	0612-
223	04.785 CLIP; PARKING BRK CABLE (A) ID=19 L=39 H=21	1-09700-972-1	01	1	0612-
223	04.785 CLIP; PARKING BRK CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) ID=13 L=50	0-95235-286-0	01	1	0612-
223	04.785 CLIP; PARKING BRK CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.559 (B) ID=19 H=70 L=25	1-09700-773-0	01	1	0612-
224	04.785 BOLT; CABLE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
224	04.785 BOLT; CABLE CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
224	04.785 BOLT; CABLE CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
225	04.785 NUT; CABLE CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-
225	04.785 NUT; CABLE CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
236	04.785 BOLT; BRKT TO FRAME 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0612-
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-
237	04.785 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-
239	04.785 NUT; CLIP TO BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-
239	04.785 NUT; CLIP TO BRKT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-
247	04.595 WASHER; PL 4HG1-T ENG(RDP),4HG1 ENG(RJH) ID=8.4 OD=22	0-91610-708-0	01	1	0612-
324	04.785 BRACKET 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97042-771-0	01	1	0612-
324	04.785 BRACKET 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97210-934-0	01	1	0612-
324	04.785 BRACKET 4HG1-T ENG(RDP),4HG1 ENG(RJH) 00.854 (C)	8-97288-446-0	01	1	0612-
324	04.785 BRACKET 4HK1-TCN ENG(RDQ) (D)	8-97350-542-1	01	1	0612-
333	04.785 CLIP; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.559 ID=11 L=28	0-95235-055-0	01	1	0612-
334	04.785 PROTECTOR; EDGE L=200	8-97096-423-0	01	1	0612-
372	04.785 CLIP; CABLE 06.672 ID=16 L=28	0-95235-556-0	01	1	0612-

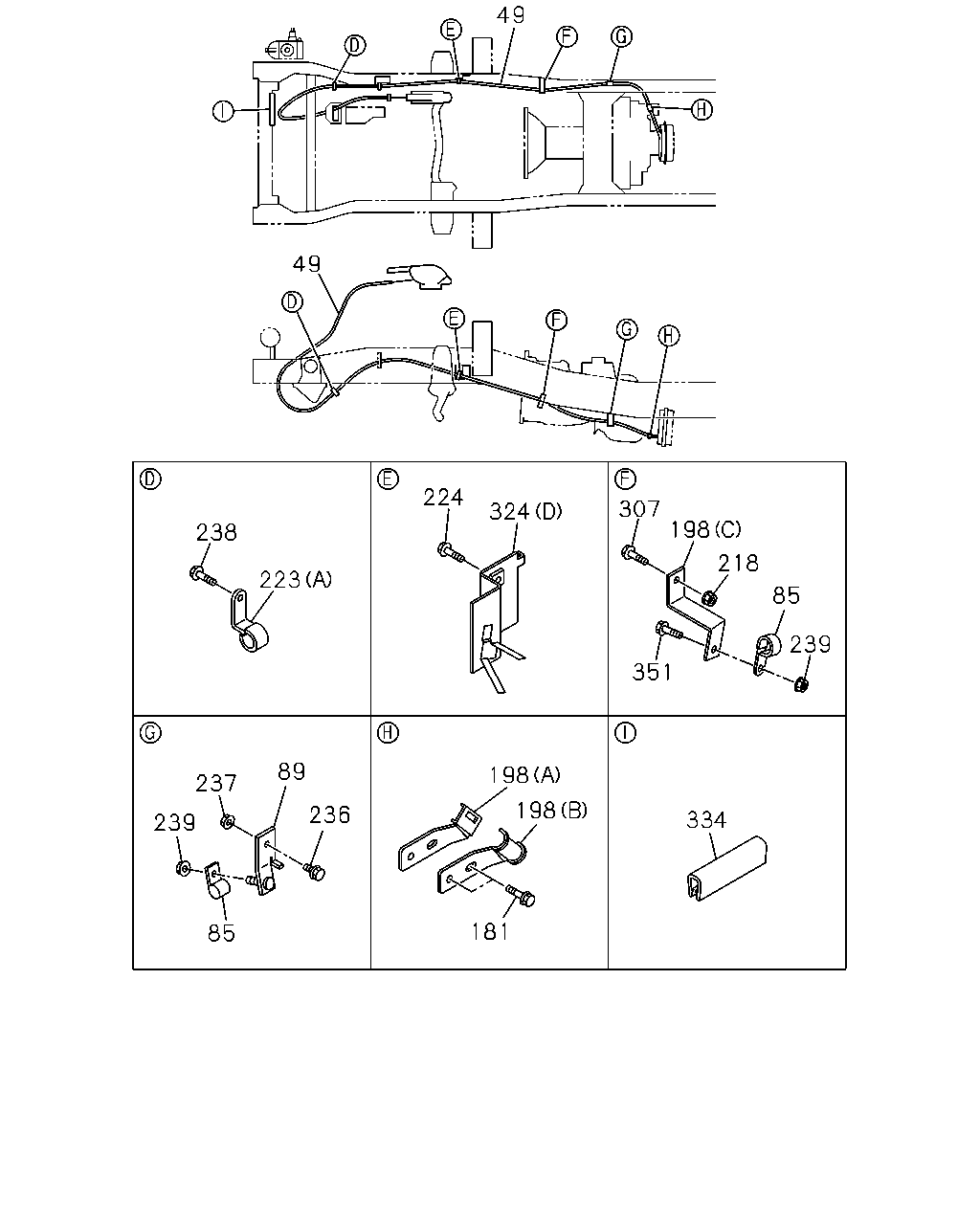

49 49 224 307 324 198 238 218 223 85 239 351 89 198 237 198 236 334 239 181 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	04.779 CABLE; PARKING BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97373-721-0	01	1	0612-
49	04.779 CABLE; PARKING BRK 4HK1-TCN ENG(RDQ)	8-97350-541-1	01	1	0612-
85	04.785 CLIP; BRKT 4HK1-TCN ENG(RDQ) 06.672 ID=16 L=28	0-95235-556-0	01	1	0612-
89	04.785 BRACKET; CLIP	8-97100-738-1	01	1	0612-
181	04.785 BOLT; BRKT 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0612-
181	04.785 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
198	04.785 BRACKET; CABLE (A)	8-97303-973-0	01	1	0612-
198	04.785 BRACKET; CABLE (B)	8-97303-974-0	01	1	0612-
198	04.785 BRACKET; CABLE 4HK1-TCN ENG(RDQ) (C)	8-97350-543-0	01	1	0612-
218	04.785 NUT; BRKT,PARKING BRK CABLE 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-
223	04.785 CLIP; PARKING BRK CABLE (A) ID=19 L=39 H=21	1-09700-972-1	01	1	0612-
223	04.785 CLIP; PARKING BRK CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) ID=13 L=50	0-95235-286-0	01	1	0612-
223	04.785 CLIP; PARKING BRK CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.559 (B) ID=19 H=70 L=25	1-09700-773-0	01	1	0612-
224	04.785 BOLT; CABLE CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
224	04.785 BOLT; CABLE CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
224	04.785 BOLT; CABLE CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
236	04.785 BOLT; BRKT TO FRAME 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0612-
237	04.785 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-
237	04.785 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	01	1	0612-
238	04.785 BOLT; CLIP TO BRKT 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-
239	04.785 NUT; CLIP TO BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-
239	04.785 NUT; CLIP TO BRKT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-
307	04.651 BOLT; BRKT,PARKING BRK CABLE 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0612-
324	04.785 BRACKET 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97042-771-0	01	1	0612-
324	04.785 BRACKET 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-97210-934-0	01	1	0612-
324	04.785 BRACKET 4HG1-T ENG(RDP),4HG1 ENG(RJH) 00.854 (C)	8-97288-446-0	01	1	0612-
324	04.785 BRACKET 4HK1-TCN ENG(RDQ) (D)	8-97350-542-1	01	1	0612-
334	04.785 PROTECTOR; EDGE L=200	8-97096-423-0	01	1	0612-
351	04.785 BOLT; CLIP 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-

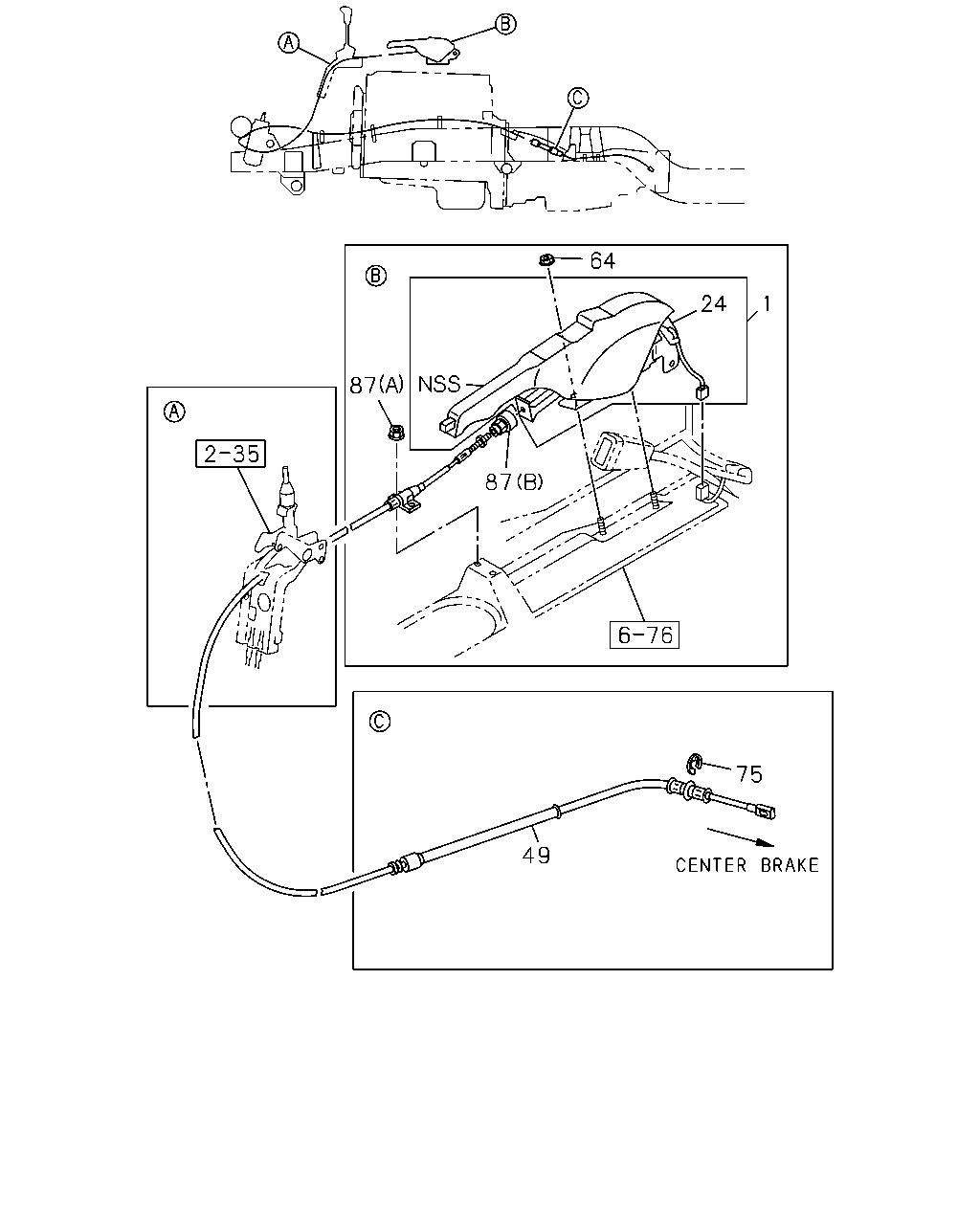

64 24 1 87 87 75 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.592 STEM ASM; PARKING BRK GRAY	8-97409-386-0	01	1	0612-
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0612-
49	04.779 CABLE; PARKING BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97373-721-0	01	1	0612-
49	04.779 CABLE; PARKING BRK 4HK1-TCN ENG(RDQ)	8-97350-541-1	01	1	0612-
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	0612-
75	04.790 RING; SNAP,HAND BRK CABLE ID=12	0-91805-512-0	01	1	0612-
87	04.785 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0612-
87	04.785 NUT (B) M6	1-71996-312-0	01	1	0612-0612
87	04.785 NUT (B) M6	8-98034-313-1	01	1	0612-
