Isuzu WW
▶
TRUCKS
▶
NPS
▶
51136 - NPS-RHD
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

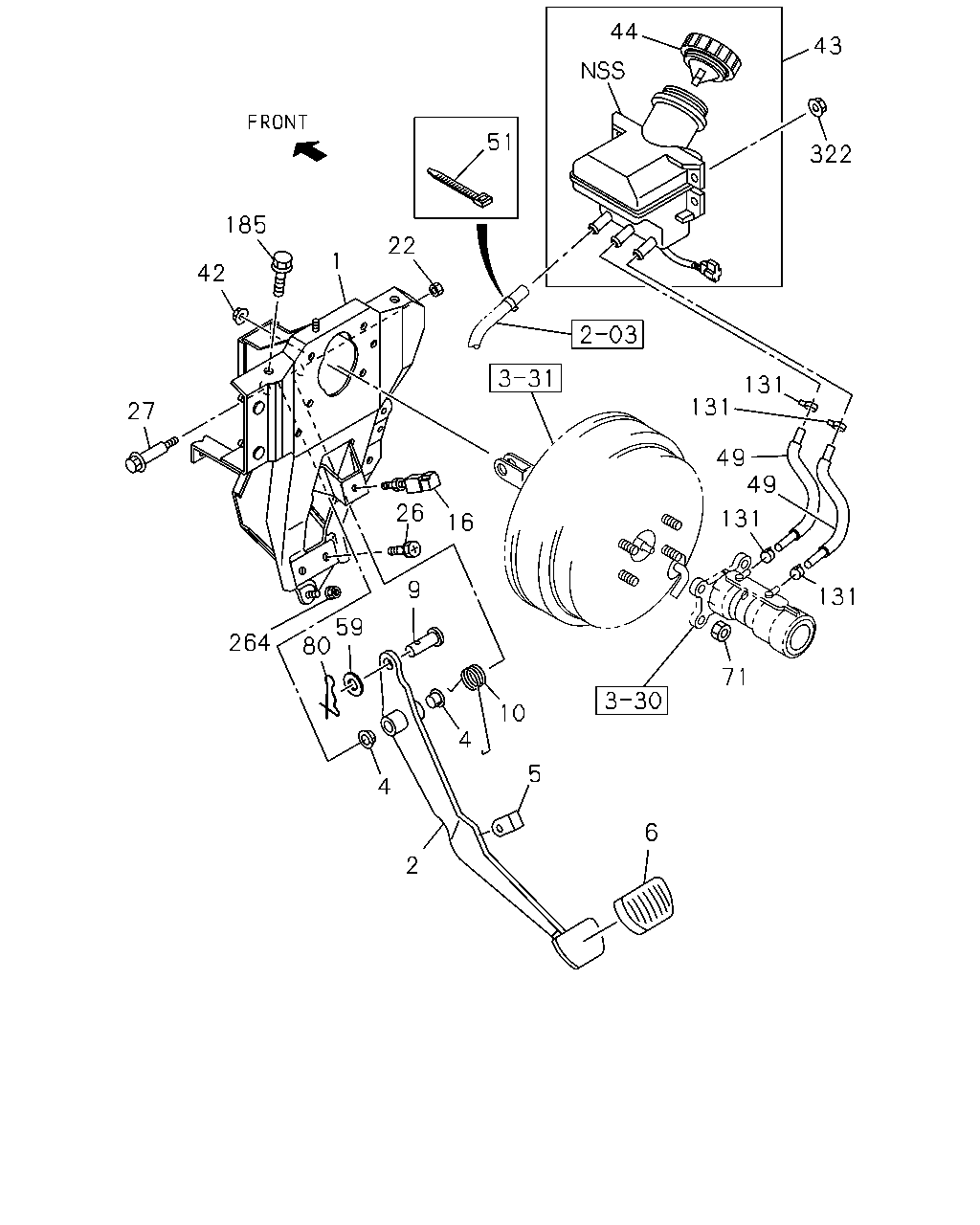

3-10 — BRAKE PEDAL AND CONTROL
(#35337) — 23 parça
44
43
51
322
185
22
1
42
27
49
49
26
131
16
9
131
59
80
264
71
10
4
5
4
6
2
131
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.634 BRACKET ASM; PEDAL
8-97896-968-5
01
1
0612-
2
04.625 PEDAL; BRK
8-97853-210-3
01
1
0612-
4
04.634 BUSHING; BRK PEDAL
04.792
8-94238-596-0
02
1
0612-
5
04.634 STOPPER; BRK PEDAL
8-97853-602-1
01
1
0612-
6
04.630 COVER; BRK PEDAL
00.829
8-97853-413-2
01
1
0612-
9
04.634 PIN; JAW JOINT
8-94410-276-0
01
1
0612-
10
04.639 SPRING; RETURN,BRK PEDAL
8-97853-212-1
01
1
0612-
16
02.447 SWITCH; STOP LAMP
8-97855-187-0
01
1
0612-
22
04.634 NUT; SHAFT
00.833 M10 FLANGE
1-09440-022-0
01
1
0612-
26
04.634 BOLT; PEDAL
00.833 M10X22 W/PL WASHER
8-97313-188-0
02
1
0612-
27
04.634 SHAFT; BRK PEDAL
8-97866-667-0
01
1
0612-
42
04.898 NUT; BRK PEDAL
00.777 M8 W/LK WASHER
8-94279-050-0
04
1
0612-
43
04.651 TANK ASM; OIL
8-97179-813-1
01
1
0612-
44
04.651 CAP; OIL TANK
8-97178-291-1
01
1
0612-
49
04.680 HOSE; OIL TANK TO BRK M/CYL
8-97129-583-0
02
1
0612-
51
04.681 CLIP; HOSE,OIL TANK
03.162 L=140
5-09707-031-1
01
1
0612-
59
04.634 WASHER; PL,JAW JOINT
ID=15
0-91610-514-0
01
1
0612-
71
04.650 NUT; BRK M/CYL
00.777 M8 W/LK WASHER
8-94279-050-0
04
1
0612-
80
04.634 PIN; SNAP,BRK PEDAL
8-94279-912-0
01
1
0612-
131
04.681 CLIP; RUBBER HOSE,OIL TANK TO BR
8-97130-480-0
04
1
0612-
185
04.634 BOLT; BRKT
07.833 M10X25 FLANGE
0-28661-025-0
02
1
0612-
264
04.634 NUT; BRKT,COLUMN SUPT TO B.PDL
01.840 M8 W/DISHED WASHER
8-97329-625-0
01
1
0612-
322
04.651 NUT; OIL TANK
01.062 M6 FLANGE
0-91180-106-0
02
1
0612-
