0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶

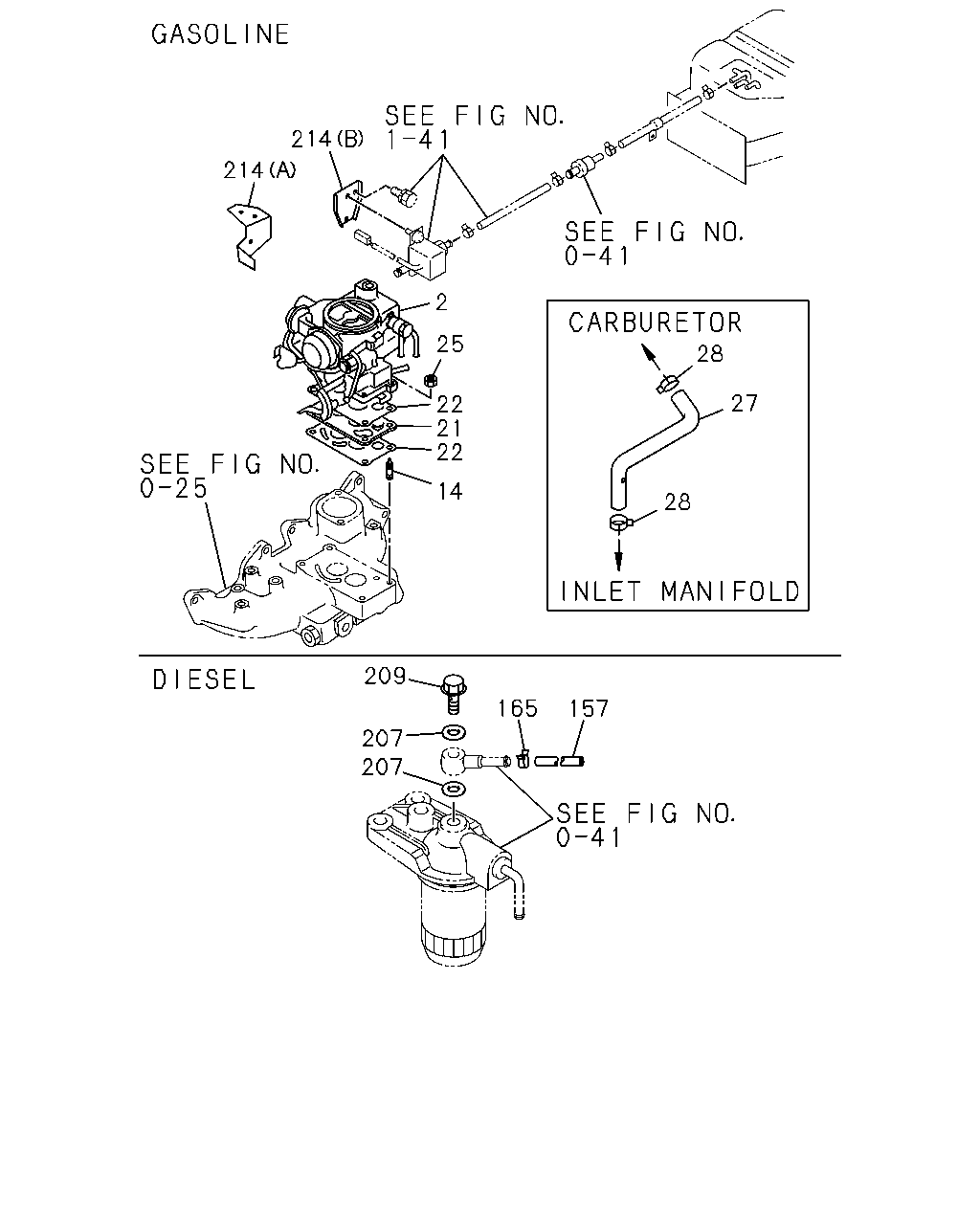

0-42 — FUEL PUMP AND PIPE
(#35330) — 21 parça
Tümü
A - 4ZC1 ENG
B - 4FG1 ENG
214
214
2
28
25
22
21
22
27
14
28
209
165
157
207
207
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
CARBURETOR ASM
SEE FIG-NO 0-70 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1)
8-94419-994-1
01
1
9307-
●
2
CARBURETOR ASM
SEE FIG-NO 0-70 FOR COMPONENT. EXC. HONG KONG EQUIPMENT(PQ1),SOUTH AFRICA EQUIPMENT(SW2),SINGAPORE EQUIPMENT(S9Y)
8-94178-217-1
01
1
9307-
●
2
CARBURETOR ASM
SEE FIG-NO 0-70 FOR COMPONENT. LONG(WFB5VF) SINGAPORE EQUIPMENT(S9Y)
8-94419-995-1
01
1
9307-
●
2
CARBURETOR ASM
SEE FIG-NO 0-70 FOR COMPONENT. LONG(WFB5VF) SOUTH AFRICA EQUIPMENT(SW2)
8-94344-385-1
01
1
9307-
●
14
STUD; CARB TO INL MANIF
M8X27 L=39
8-94202-304-0
04
1
9307-
●
21
INSULATOR; HEAT
8-94235-502-1
01
1
9307-
●
22
GASKET; HEAT INSULATION
8-94329-391-0
02
1
9307-
●
25
NUT; CARB TO INL MANIF
M8 W/LK WASHER
8-94279-050-0
04
1
9307-
●
27
HOSE; CARB TO MANIF
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)
8-94412-404-2
01
1
9307-
●
28
CLIP; HOSE,MANIF
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) ID=12 WO/PVC COATING
8-94123-526-0
02
1
9307-
●
157
HOSE; FUEL FILTER TO INJ PUMP
L=630 SERVICED BY L=3000
0-01258-300-0
01
1
9307-9307
●
157
HOSE; FUEL FILTER TO INJ PUMP
L=640 SERVICED BY L=3000
0-01258-300-0
01
1
9308-9406
●
157
HOSE; FUEL FILTER TO INJ PUMP
EXC. TURBOCHARGER(K51) L=640 SERVICED BY L=3000
0-01258-300-0
01
1
9407-
●
165
CLIP; HOSE,RUBBER
ID=14
8-94238-572-0
04
1
9307-9406
●
165
CLIP; HOSE,RUBBER
EXC. TURBOCHARGER(K51) ID=14
8-94238-572-0
04
1
9407-
●
207
GASKET; EYE BOLT
ID=14.2 OD=23.0
9-09572-014-0
02
1
9307-9406
●
207
GASKET; EYE BOLT
EXC. TURBOCHARGER(K51) ID=14.2 OD=23.0
9-09572-014-0
02
1
9407-
●
209
BOLT; EYE,FUEL FILTER
M14X29 EYE BOLT
9-09906-325-1
01
1
9307-9406
●
209
BOLT; EYE,FUEL FILTER
EXC. TURBOCHARGER(K51) M14X29 EYE BOLT
9-09906-325-1
01
1
9407-
●
214
BRACKET; FUEL PUMP
STANDARD(WFB5VC) (B)
8-94293-871-0
01
1
9307-
●
214
BRACKET; FUEL PUMP
LONG(WFB5VF) (A)
8-94251-179-0
01
1
9307-
●
