0-32 — WATER PIPING; ENGINE (#35324) — 28 parça

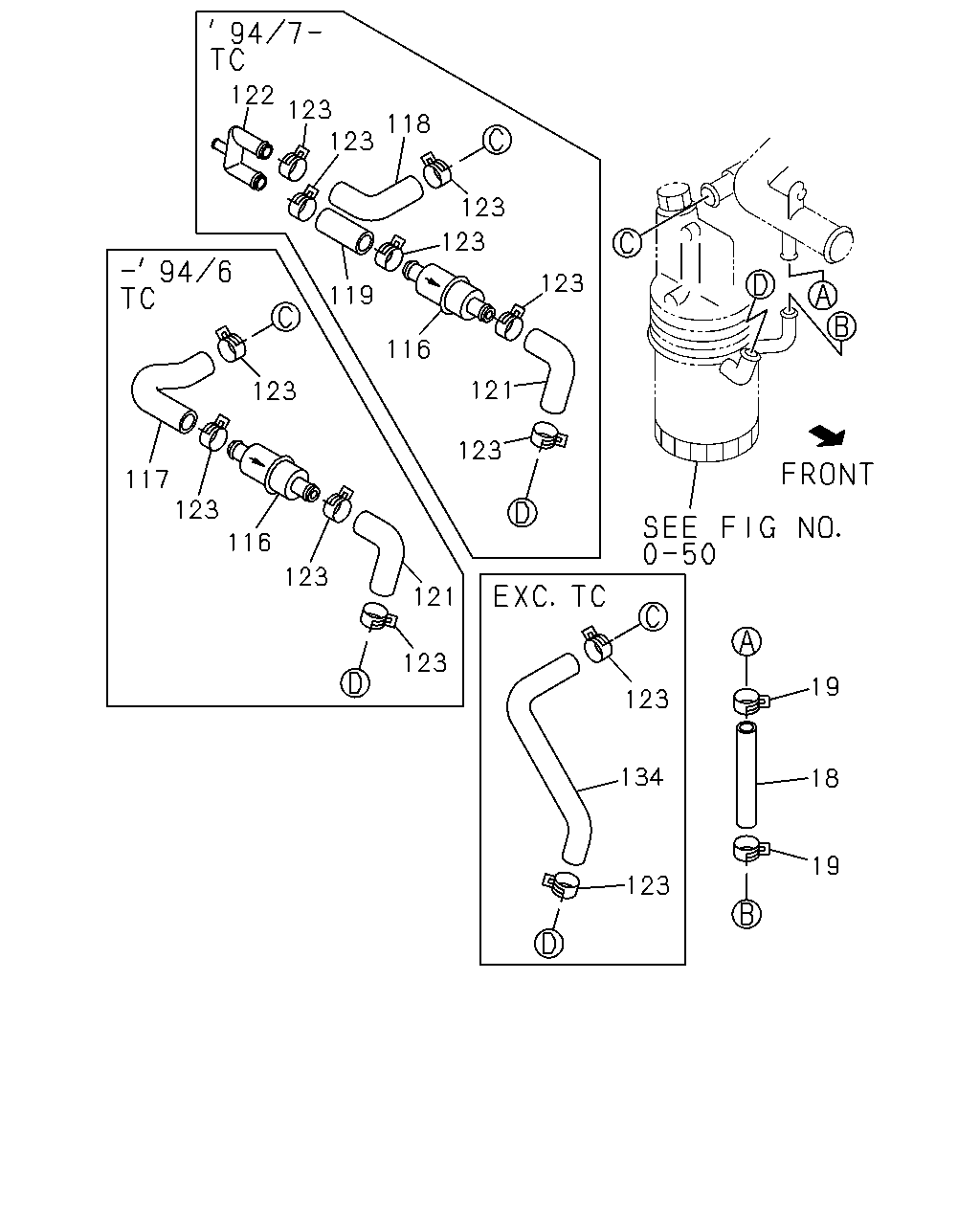

122 123 118 123 123 123 123 119 116 121 123 123 117 123 116 123 121 123 19 123 134 18 19 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
18	HOSE; RUBBER,COOLER TO INL PIPE L=110 SERVICED BY L=3000	0-03266-300-0	01	1	9307-	●
19	CLIP; OIL COOLER HOSE ID=20.8	8-94125-862-0	02	1	9307-	●
116	VALVE ASM; THERMO,OIL COOLER LONG(WFB5VF) IRISH EQUIPMENT(6CU) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	5-21770-001-1	01	1	9307-9406	●
116	VALVE ASM; THERMO,OIL COOLER LONG(WFB5VF) IRISH EQUIPMENT(6CU) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2), TORRID ZONE<S6C>	5-21770-001-2	01	1	9407-	●
117	HOSE; RUBBER,OIL COOLER TO THERMO VLV LONG(WFB5VF) IRISH EQUIPMENT(6CU) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94341-406-0	01	1	9307-9406	●
117	HOSE; RUBBER,OIL COOLER TO THERMO VLV LONG(WFB5VF) IRISH EQUIPMENT(6CU) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2), TORRID ZONE<S6C>	8-94341-406-0	01	1	9407-	●
118	HOSE; RUBBER,OIL COOLER TO CONNECTOR LONG(WFB5VF) TURBOCHARGER(K51)	8-94341-405-0	01	1	9407-	●
119	HOSE; RUBBER,THERMO VLV TO CONN LONG(WFB5VF) TURBOCHARGER(K51) L=55 SERVICED BY L=3000	0-03266-300-0	01	1	9407-	●
121	HOSE; THERMO VLV TO OIL COOLER LONG(WFB5VF) IRISH EQUIPMENT(6CU) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94341-405-0	01	1	9307-9406	●
121	HOSE; THERMO VLV TO OIL COOLER LONG(WFB5VF) IRISH EQUIPMENT(6CU) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2), TORRID ZONE<S6C>	8-94341-405-0	01	1	9407-	●
122	CONNECTOR; OIL COOLER IRISH EQUIPMENT(6CU) TURBOCHARGER(K51) EXC. HIGH ALTITUDE COMPENSATOR<EE2>	8-97026-408-0	01	1	9407-	●
123	CLIP; RUBBER,HOSE,OIL COOLER EXC. IRISH EQUIPMENT(6CU) ID=20.8	8-94125-862-0	02	1	9307-	●
123	CLIP; RUBBER,HOSE,OIL COOLER LONG(WFB5VF) IRISH EQUIPMENT(6CU) EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2), TORRID ZONE<S6C> ID=20.8	8-94125-862-0	04	1	9307-	●
123	CLIP; RUBBER,HOSE,OIL COOLER LONG(WFB5VF) TURBOCHARGER(K51) ID=20.8	8-94125-862-0	06	1	9407-	●
134	HOSE; OIL COOLER DELIVERY EXC. IRISH EQUIPMENT(6CU)	8-94341-408-0	01	1	9307-	●

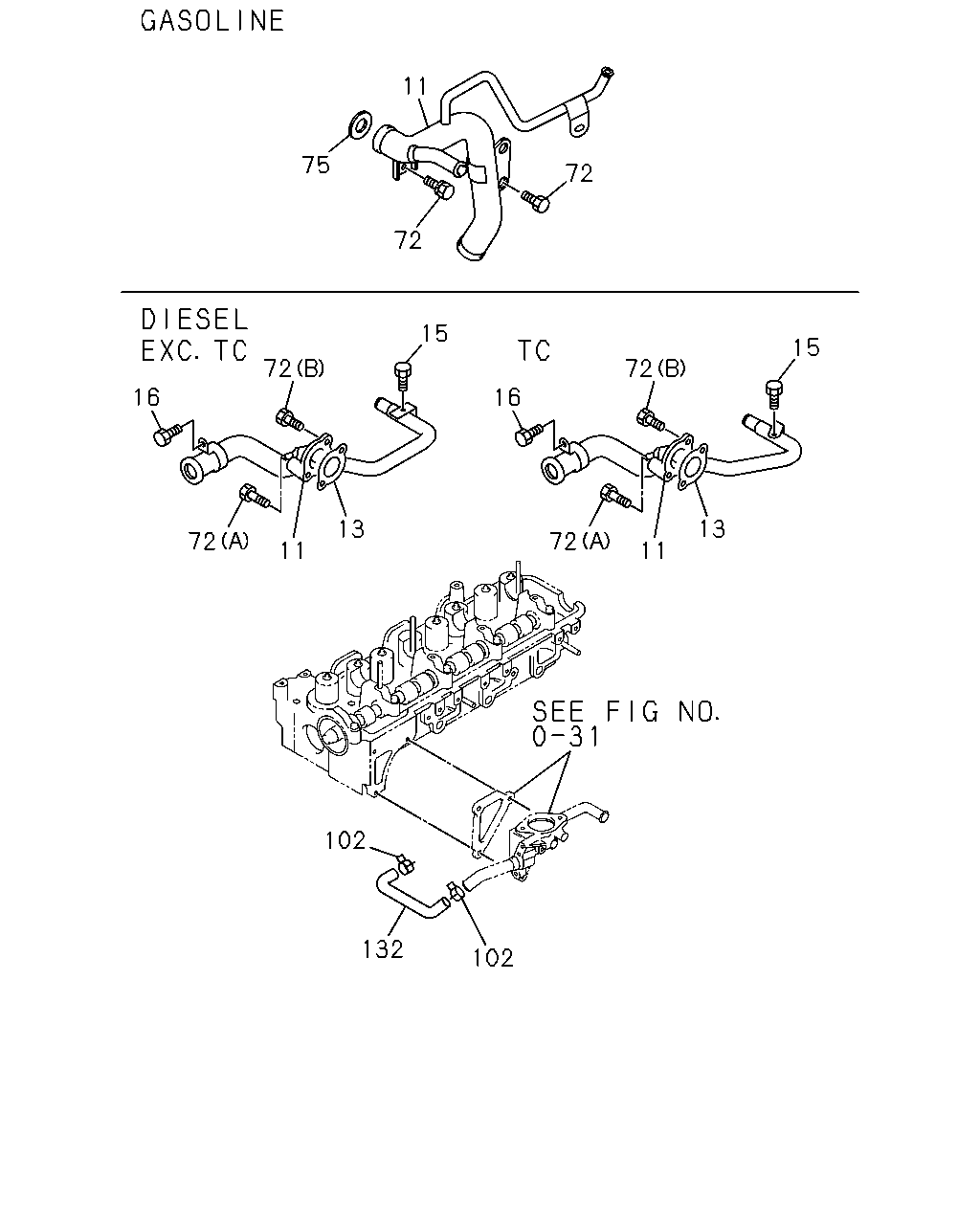

11 75 72 72 72 15 15 72 16 16 13 13 72 72 11 11 102 132 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	PIPE; INL,WATER PUMP	8-94412-134-6	01	1	9307-		●
11	PIPE; INL,WATER PUMP	8-94340-040-1	01	1	9307-9406	●
11	PIPE; INL,WATER PUMP EXC. TURBOCHARGER(K51)	8-94340-040-1	01	1	9407-	●
11	PIPE; INL,WATER PUMP LONG(WFB5VF) TURBOCHARGER(K51)	8-94340-039-1	01	1	9407-	●
13	GASKET; SUCTION PIPE	8-94334-332-0	01	1	9307-	●
15	BOLT; RETURN PIPE,WATER M8X18 W/LK WASHER	0-50040-818-0	01	1	9307-	●
16	BOLT; INL PIPE M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9307-	●
72	BOLT; WATER PIPE M8X14 W/LK WASHER	0-50040-814-0	02	1	9307-		●
72	BOLT; WATER PIPE (A) M8X40 HEX-HOLE-HEAD	8-94225-551-0	01	1	9307-	●
72	BOLT; WATER PIPE (B) M8X22 HEX-HOLE-HEAD	8-94225-552-0	01	1	9307-	●
75	GASKET; INL PIPE TO WATER PUMP	8-94235-013-0	01	1	9307-		●
102	CLIP; WATER HOSE ID=20.8	8-94125-862-0	02	1	9307-	●
132	HOSE; WATER PIPE	8-94109-909-1	01	1	9307-	●
