Isuzu WW
▶
SUV
▶
WFR
▶
50685 - WFR-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶

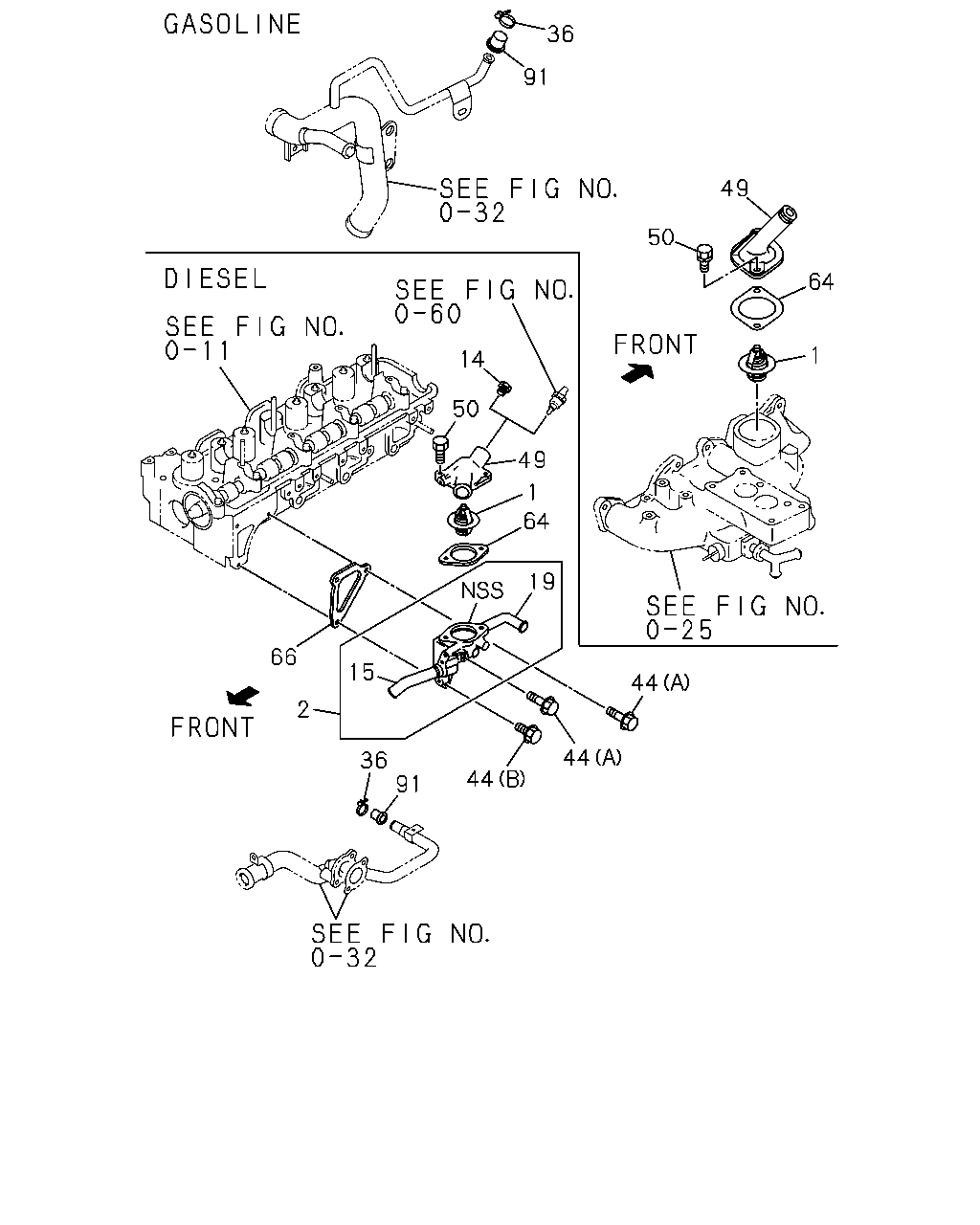

0-31 — THERMOSTAT AND HOUSING
(#35323) — 26 parça
Tümü
A - 4ZC1 ENG
B - 4FG1 ENG
36
91
49
50
64
1
14
50
49
1
64
19
66
15
44
2
44
36
91
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
THERMOSTAT
82?C
8-94336-069-0
01
1
9307-
●
1
THERMOSTAT
82?C
8-94214-962-0
01
1
9307-9404
●
1
THERMOSTAT
82?C
8-97089-891-0
01
1
9405-
●
2
HOUSING; THERMOSTAT
8-94449-077-0
01
1
9307-9406
●
2
HOUSING; THERMOSTAT
EXC. TURBOCHARGER(K51)
8-94449-077-0
01
1
9407-
●
2
HOUSING; THERMOSTAT
LONG(WFB5VF) TURBOCHARGER(K51)
8-97100-668-0
01
1
9407-
●
14
PLUG; SW
EXC. AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M16X12
9-99202-316-0
01
1
9307-
●
15
PIPE; BYPASS
8-94457-754-0
01
1
9307-
●
19
PIPE; HSG TO HTR
8-94457-755-0
01
1
9307-9406
●
19
PIPE; HSG TO HTR
EXC. TURBOCHARGER(K51)
8-94457-755-0
01
1
9407-
●
19
PIPE; HSG TO HTR
LONG(WFB5VF) TURBOCHARGER(K51)
8-97100-690-0
01
1
9407-
●
36
CLIP; PLUG,HTR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=25
9-09915-642-2
02
1
9307-9312
●
36
CLIP; PLUG,HTR
ID=25
9-09915-642-2
02
1
9307-9312
●
36
CLIP; PLUG,HTR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=25
9-09915-642-2
02
1
9401-
●
●
44
BOLT; HSG TO HD
(B) M8X20 W/LK WASHER
0-50040-820-0
01
1
9307-
●
44
BOLT; HSG TO HD
(A) M10X60 W/LK WASHER
0-50041-060-0
02
1
9307-
●
49
PIPE; WATER OUTLET
8-94207-351-1
01
1
9307-
●
49
PIPE; WATER OUTLET
8-94142-363-0
01
1
9307-
●
50
BOLT; OUTLET PIPE
M8X25 W/LK WASHER
0-50040-825-0
02
1
9307-
●
50
BOLT; OUTLET PIPE
M8X22 W/LK WASHER
0-50040-822-0
02
1
9307-
●
64
GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94324-197-0
01
1
9307-
●
64
GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94334-333-0
01
1
9307-
●
66
GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94334-334-0
01
1
9307-
●
91
PLUG; RUBBER,HTR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
8-94107-793-0
02
1
9307-9312
●
91
PLUG; RUBBER,HTR
8-94107-793-0
02
1
9307-9312
●
91
PLUG; RUBBER,HTR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)
8-94107-793-0
02
1
9401-
●
●
