0-30 — WATER PUMP AND CORROSION RESISTOR (#35322) — 60 parça

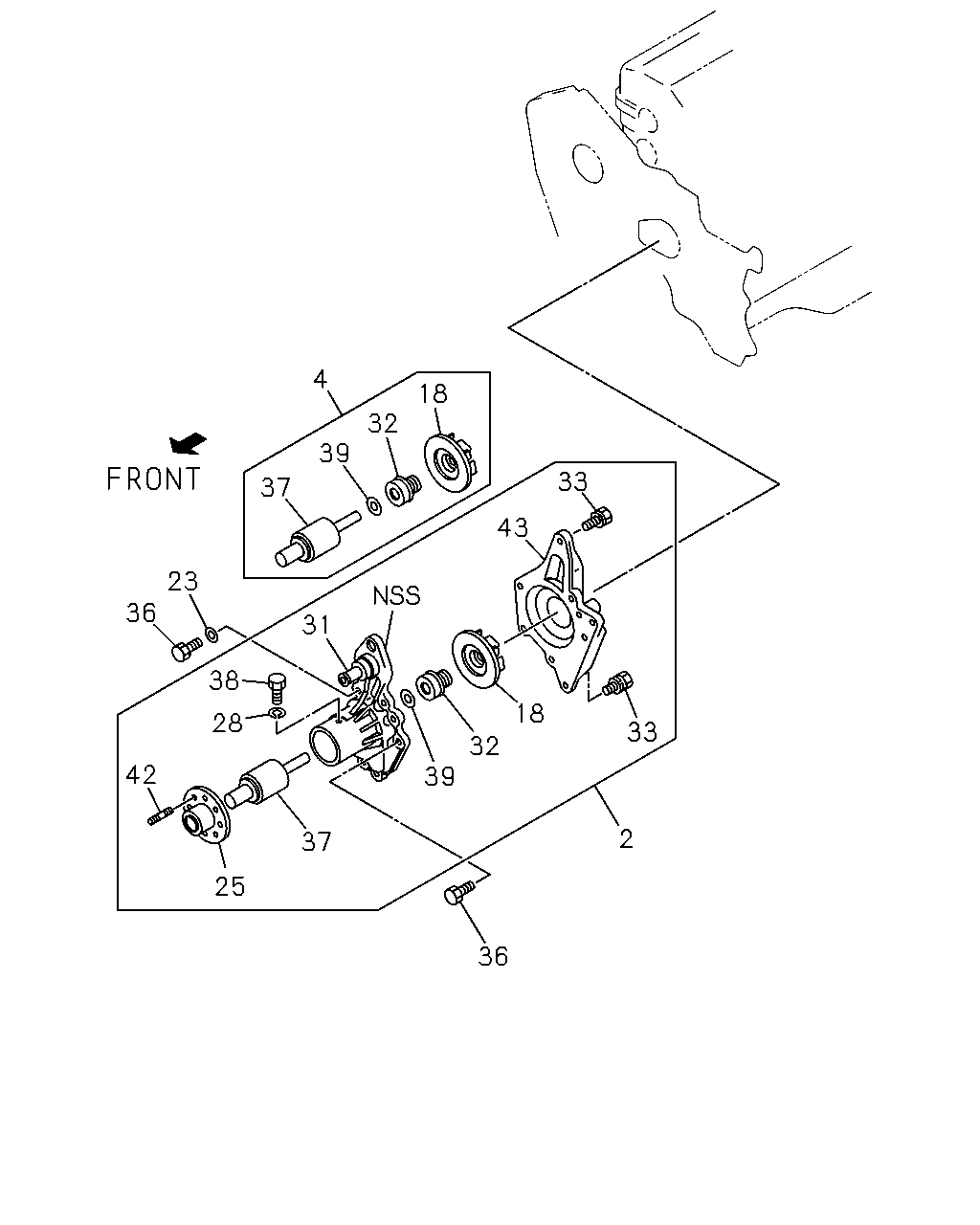

4 18 32 39 33 37 43 23 36 31 18 32 39 38 28 33 42 2 37 25 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	PUMP ASM; WATER	8-94387-613-0	01	1	9307-9406	●
2	PUMP ASM; WATER EXC. TURBOCHARGER(K51)	8-94387-613-0	01	1	9407-	●
2	PUMP ASM; WATER LONG(WFB5VF) TURBOCHARGER(K51)	8-94471-470-0	01	1	9407-	●
4	REPAIR KIT; WATER PUMP	8-97084-506-0	01	1	9307-		●
4	REPAIR KIT; WATER PUMP	8-94319-694-0	01	1	9307-	●
18	IMPELLER; WATER PUMP D=68	8-94153-754-0	01	1	9307-		●
18	IMPELLER; WATER PUMP D=78	8-94411-904-0	01	1	9307-	●
23	WASHER; PL,WATER PUMP ID=8.4	9-09160-508-0	01	1	9307-	●
25	CENTER; WATER PUMP	8-94146-330-0	01	1	9307-		●
25	CENTER; WATER PUMP	8-94224-490-0	01	1	9307-	●
28	WASHER; WATER PUMP ID=8.2	9-09150-508-0	01	1	9307-9411	●	●
28	WASHER; WATER PUMP ID=8.2	9-09150-508-0	01	1	9412-	●
31	PIPE; SUCTION,INL	8-94111-615-0	01	1	9307-	●
32	SEAL UNIT; WATER PUMP	8-94311-754-0	01	1	9307-9307		●
32	SEAL UNIT; WATER PUMP '930719-	8-97080-691-0	01	1	9307-		●
32	SEAL UNIT; WATER PUMP	8-94422-326-0	01	1	9307-	●
33	BOLT; WATER PUMP M8X25 W/LK WASHER	9-01910-825-0	06	1	9307-	●
36	BOLT; WATER PUMP TO C/BL M8X22 W/LK WASHER	0-50040-822-0	03	1	9307-		●
36	BOLT; WATER PUMP TO C/BL M8X35 W/LK WASHER	0-50040-835-0	01	1	9307-		●
36	BOLT; WATER PUMP TO C/BL M8X25 W/LK WASHER	0-50040-825-0	06	1	9307-	●
36	BOLT; WATER PUMP TO C/BL M8X50 W/LK&PL WASHER	0-50140-850-0	04	1	9307-	●
36	BOLT; WATER PUMP TO C/BL M8X55 W/LK WASHER	5-09000-084-1	01	1	9307-	●
37	BEARING UNIT; WATER PUMP	8-97080-690-0	01	1	9307-		●
37	BEARING UNIT; WATER PUMP	8-94149-521-0	01	1	9307-	●
38	SCREW; WATER PUMP	9-09814-014-1	01	1	9307-9411	●	●
38	SCREW; WATER PUMP	9-09814-014-1	01	1	9412-	●
39	THROWER; WATER PUMP	9-13639-002-0	01	1	9307-		●
39	THROWER; WATER PUMP	9-13639-001-0	01	1	9307-	●
42	STUD; WATER PUMP M8X25 L=36	1-09300-050-0	01	1	9307-		●
42	STUD; WATER PUMP LONG(WFB5VF) TURBOCHARGER(K51) M6X19 L=27	8-94343-896-0	04	1	9407-	●
43	BODY; WATER PUMP	8-94476-002-0	01	1	9307-	●

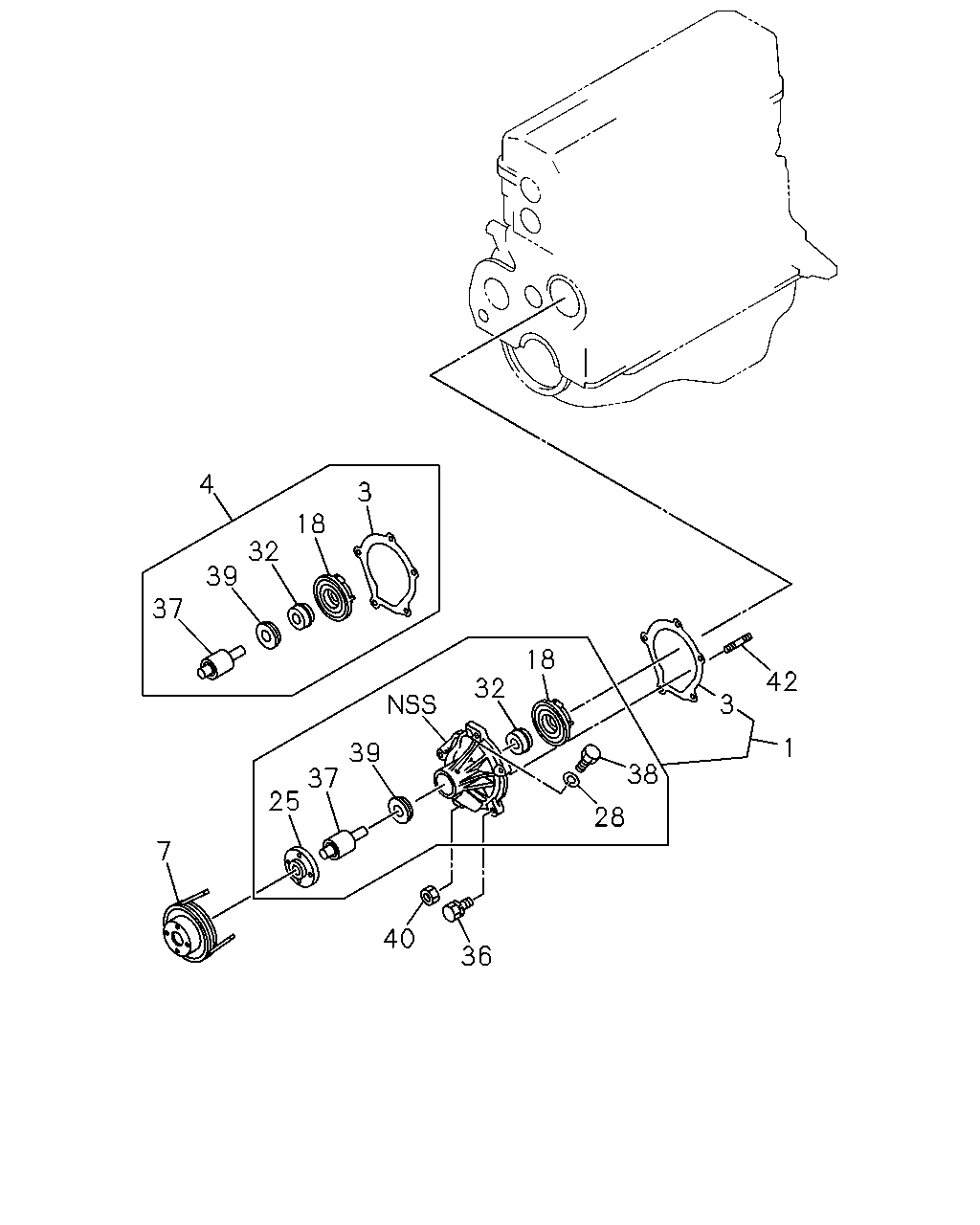

4 3 18 32 39 37 18 42 32 3 1 39 37 25 38 28 7 40 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; WATER,W/GASKET	8-94332-922-0	01	1	9307-9307		●
1	PUMP ASM; WATER,W/GASKET '930719-	8-97084-505-0	01	1	9307-		●
3	GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94328-251-3	01	1	9307-		●
4	REPAIR KIT; WATER PUMP	8-97084-506-0	01	1	9307-		●
4	REPAIR KIT; WATER PUMP	8-94319-694-0	01	1	9307-	●
7	PULLEY; WATER PUMP	8-94472-589-0	01	1	9307-		●
18	IMPELLER; WATER PUMP D=68	8-94153-754-0	01	1	9307-		●
18	IMPELLER; WATER PUMP D=78	8-94411-904-0	01	1	9307-	●
25	CENTER; WATER PUMP	8-94146-330-0	01	1	9307-		●
25	CENTER; WATER PUMP	8-94224-490-0	01	1	9307-	●
28	WASHER; WATER PUMP ID=8.2	9-09150-508-0	01	1	9307-9411	●	●
28	WASHER; WATER PUMP ID=8.2	9-09150-508-0	01	1	9412-	●
32	SEAL UNIT; WATER PUMP	8-94311-754-0	01	1	9307-9307		●
32	SEAL UNIT; WATER PUMP '930719-	8-97080-691-0	01	1	9307-		●
32	SEAL UNIT; WATER PUMP	8-94422-326-0	01	1	9307-	●
36	BOLT; WATER PUMP TO C/BL M8X22 W/LK WASHER	0-50040-822-0	03	1	9307-		●
36	BOLT; WATER PUMP TO C/BL M8X35 W/LK WASHER	0-50040-835-0	01	1	9307-		●
36	BOLT; WATER PUMP TO C/BL M8X25 W/LK WASHER	0-50040-825-0	06	1	9307-	●
36	BOLT; WATER PUMP TO C/BL M8X50 W/LK&PL WASHER	0-50140-850-0	04	1	9307-	●
36	BOLT; WATER PUMP TO C/BL M8X55 W/LK WASHER	5-09000-084-1	01	1	9307-	●
37	BEARING UNIT; WATER PUMP	8-97080-690-0	01	1	9307-		●
37	BEARING UNIT; WATER PUMP	8-94149-521-0	01	1	9307-	●
38	SCREW; WATER PUMP	9-09814-014-1	01	1	9307-9411	●	●
38	SCREW; WATER PUMP	9-09814-014-1	01	1	9412-	●
39	THROWER; WATER PUMP	9-13639-002-0	01	1	9307-		●
39	THROWER; WATER PUMP	9-13639-001-0	01	1	9307-	●
40	NUT; WATER PUMP M8 FLANGE	5-09440-005-0	01	1	9307-		●
42	STUD; WATER PUMP M8X25 L=36	1-09300-050-0	01	1	9307-		●
42	STUD; WATER PUMP LONG(WFB5VF) TURBOCHARGER(K51) M6X19 L=27	8-94343-896-0	04	1	9407-	●
