Isuzu WW
▶
SUV
▶
WFR
▶
50685 - WFR-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

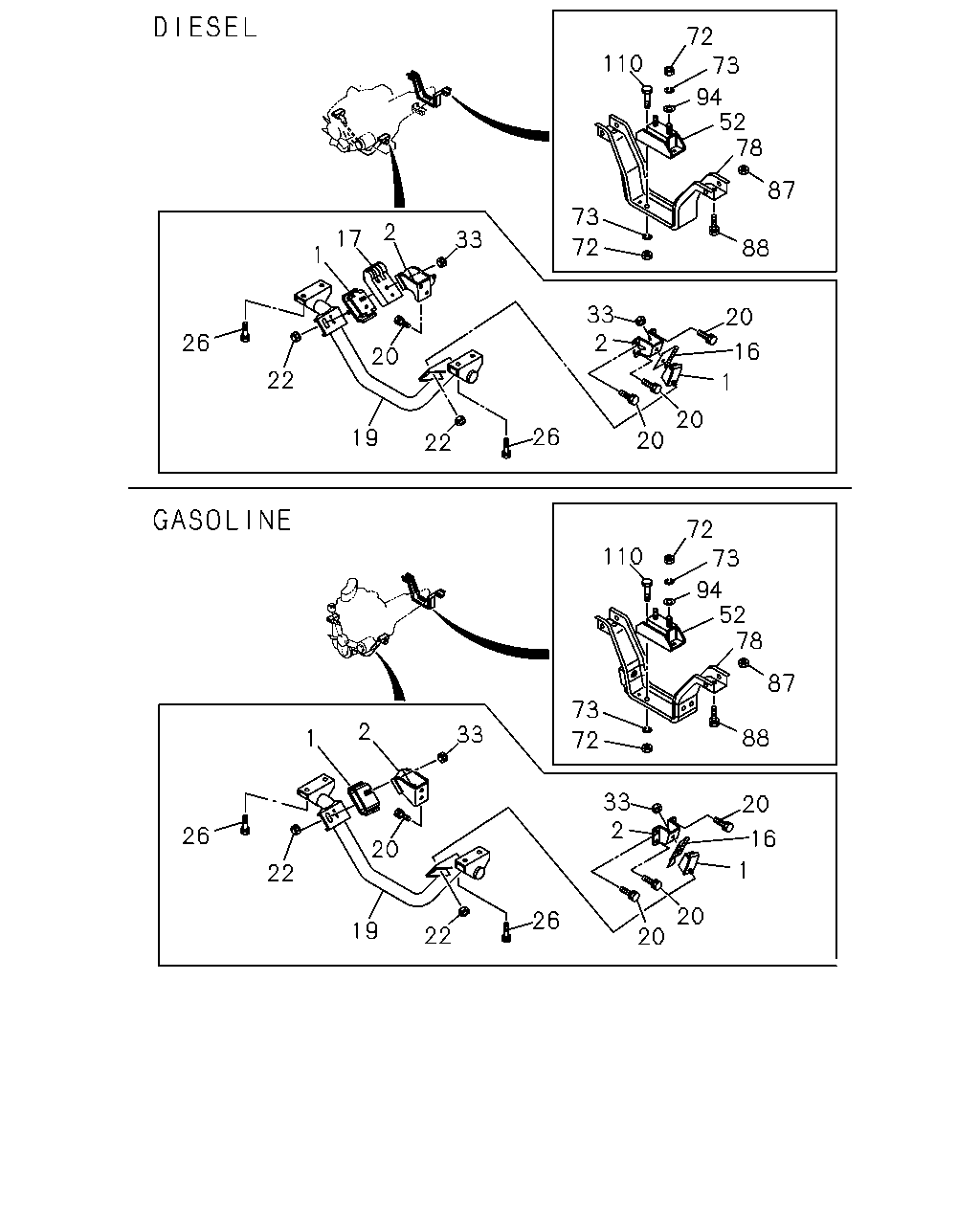

0-22 — ENGINE MOUNTING
(#35318) — 32 parça
Tümü
A - 4ZC1 ENG
B - 4FG1 ENG
72
73
94
52
78
110
87
73
72
2
17
33
88
1
33
2
20
16
1
20
26
22
22
20
20
26
19
72
73
94
52
78
110
87
73
72
2
33
88
1
20
33
2
20
26
16
1
22
20
20
26
19
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RUBBER; ENG FOOT,FRT
8-94177-241-1
01
1
9307-
●
1
RUBBER; ENG FOOT,FRT
8-94177-240-1
01
1
9307-
●
1
RUBBER; ENG FOOT,FRT
8-94332-275-1
01
1
9307-
●
1
RUBBER; ENG FOOT,FRT
8-94332-274-1
01
1
9307-
●
2
FOOT; ENG
8-94433-418-3
01
1
9307-
●
2
FOOT; ENG
8-94430-349-1
01
1
9307-
●
2
FOOT; ENG
8-94339-909-0
01
1
9307-
●
2
FOOT; ENG
8-94339-908-0
01
1
9307-
●
16
PROTECTOR; HEAT,ENG MTG,FRT
8-94241-561-0
01
1
9307-
●
16
PROTECTOR; HEAT,ENG MTG,FRT
8-94226-678-1
01
1
9307-
●
17
COVER; CUSHION RUBBER,FRT
8-94226-677-0
01
1
9307-
●
19
MEMBER; ENG MTG CROSS
8-94458-026-0
01
1
9307-
●
19
MEMBER; ENG MTG CROSS
8-94454-812-1
01
1
9307-
●
20
BOLT; ENG FOOT
M12X25 W/LK WASHER
0-50041-225-0
04
1
9307-
●
20
BOLT; ENG FOOT
M10X22 W/LK WASHER
0-50041-022-0
01
1
9307-
●
●
20
BOLT; ENG FOOT
M14X25 W/LK&PL WASHER
0-50141-425-0
01
1
9307-
●
●
20
BOLT; ENG FOOT
M12X25 W/LK WASHER
0-50041-225-0
05
1
9307-
●
22
NUT; CUSHION RUBBER TO BRKT
M10 FLANGE
8-94126-973-0
02
1
9307-
●
●
26
BOLT; CUSHION RUBBER TO MTG BRKT
M12X30 W/LK&PL WASHER
0-50141-230-0
04
1
9307-
●
●
33
NUT; CUSHION RUBBER TO BRKT
M10 FLANGE
8-94126-973-0
02
1
9307-
●
●
52
RUBBER; CUSHION,ENG MTG,RR
8-94463-310-0
01
1
9307-
●
●
72
NUT; SUPPORT RUBBER TO TRANS
M10
9-09110-510-0
02
1
9307-9406
●
●
72
NUT; SUPPORT RUBBER TO TRANS
M10
9-09110-410-0
02
1
9407-
●
●
73
WASHER; LK,CUSHION RUBBER TO FRAME
ID=10.2
9-09150-810-0
02
1
9307-
●
●
78
BRACKET; ENG MTG,RR
8-94226-681-6
01
1
9307-
●
●
87
NUT; ENG MTG RR
M6
9-09110-506-0
01
1
9307-9406
●
●
87
NUT; ENG MTG RR
M6
9-09110-406-0
01
1
9407-
●
●
88
BOLT; MTG BRKT TO BODY
M10X25 FLANGE
0-28081-025-0
04
1
9307-
●
●
94
WASHER; PL,BRKT
ID=10.5
9-09164-510-0
02
1
9307-
●
●
110
BOLT; SUPPORT RUBBER TO BRKT
M10X22 W/LK&PL WASHER
0-50141-022-0
02
1
9307-9406
●
●
110
BOLT; SUPPORT RUBBER TO BRKT
M10X22 W/LK&PL WASHER
0-50141-022-0
02
1
9407-9408
●
110
BOLT; SUPPORT RUBBER TO BRKT
M10X22 W/LK&PL WASHER
0-50141-022-0
02
1
9409-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
