0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#35317) — 95 parça

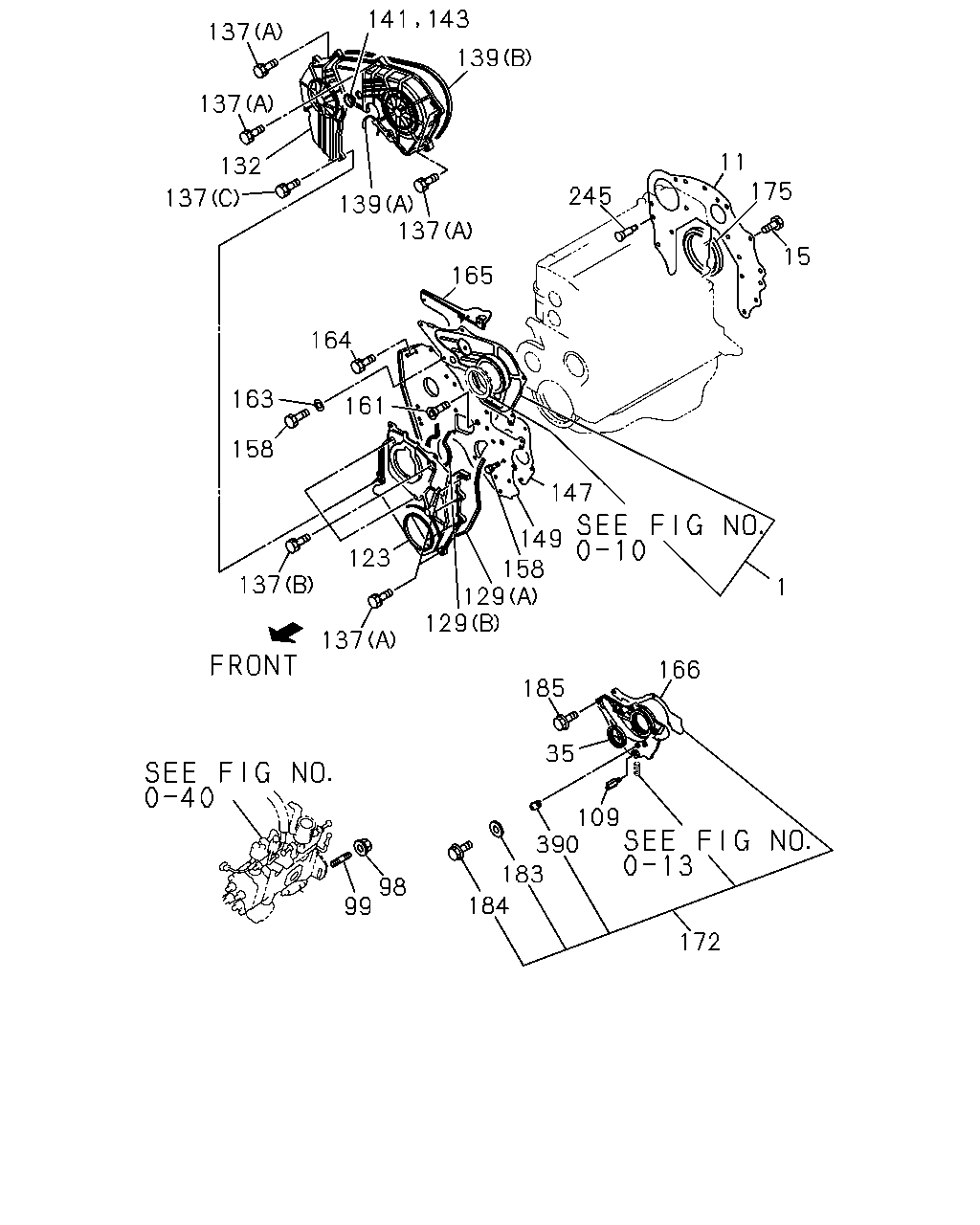

143 141 137 139 137 11 175 132 137 245 139 137 15 161 165 164 163 158 147 149 158 129 129 123 137 1 137 166 185 35 109 390 183 184 98 99 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TIMING GEAR	8-94220-548-1	01	1	9307-	●
1	CASE; TIMING GEAR	8-94227-908-0	01	1	9307-		●
11	PLATE; RR,C/BL	8-94218-559-3	01	1	9307-	●	●
15	BOLT; RR PLATE TO C/BL M10X18	8-94214-903-1	02	1	9307-	●
15	BOLT; RR PLATE TO C/BL M10X18	8-94214-903-1	03	1	9307-		●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=56 T=6.5	8-94339-997-0	01	1	9307-9404	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=56 T=6.5	8-94339-997-0	01	1	9405-	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=56 T=7.0	8-97080-562-0	01	1	9307-9404		●
98	NUT; STUD,INJ PUMP M8	9-09110-508-0	02	1	9307-		●
99	STUD; INJ PUMP M8X28 L=44	9-04020-828-0	02	1	9307-		●
109	POINTER; TIMING POWER STEERING<N40> L=21	9-11327-602-0	01	1	9307-		●
109	POINTER; TIMING EXC. POWER STEERING<N40> L=35	8-94223-638-2	01	1	9307-		●
123	COVER; TIMING,LWR	8-94452-870-0	01	1	9307-	●
123	COVER; TIMING,LWR	8-97073-855-0	01	1	9307-		●
129	GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (A) L=555	8-94217-017-1	01	1	9307-		●
129	GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (B) L=340	8-94235-574-0	01	1	9307-		●
132	COVER; TIMING,UPR	8-94452-421-0	01	1	9307-	●
132	COVER; TIMING,UPR	8-97073-853-0	01	1	9307-		●
137	BOLT; FRT PLATE (A) M6X25 W/LK WASHER	0-50040-625-0	11	1	9307-		●
137	BOLT; FRT PLATE (B) M6X32 W/LK WASHER	0-50040-632-0	04	1	9307-		●
137	BOLT; FRT PLATE (C) M6X14 W/LK&PL WASHER	0-50140-614-0	03	1	9307-		●
139	GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). (A) L=97	8-94217-410-1	01	1	9307-		●
139	GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). (B) L=830	8-94221-302-1	01	1	9307-		●
141	GROMMET; TIMING COVER EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) OD=25	8-94225-442-0	01	1	9307-		●
143	GROMMET; ADJ PULLEY,DUST COVER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=23	8-94225-443-0	01	1	9307-		●
147	GASKET; FRT PLATE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94334-331-0	01	1	9307-		●
149	PLATE; FRT,C/BL	8-94172-543-2	01	1	9307-	●
149	PLATE; FRT,C/BL	8-94238-844-0	01	1	9307-9406		●
149	PLATE; FRT,C/BL EXC. TURBOCHARGER(K51)	8-94238-844-0	01	1	9407-		●
149	PLATE; FRT,C/BL LONG(WFB5VF) TURBOCHARGER(K51)	8-94250-260-1	01	1	9407-		●
158	BOLT; FRT PLATE M6X12	0-20800-612-0	03	1	9307-	●
158	BOLT; FRT PLATE M8X12	0-20800-812-0	01	1	9307-	●
158	BOLT; FRT PLATE M6X8	0-20800-608-0	03	1	9307-		●
158	BOLT; FRT PLATE M8X18 W/LK WASHER	0-50040-818-0	03	1	9307-		●
161	SCREW; FRT PLATE M8X16	8-94220-984-1	02	1	9307-		●
163	WASHER; LK,PLATE TO CYL HD ID=8.2	9-09150-508-0	01	1	9307-	●
163	WASHER; LK,PLATE TO CYL HD ID=6.1	9-09150-506-0	03	1	9307-	●	●
164	BOLT; STAY TO FRT PLATE M8X22 W/LK&PL WASHER	0-50140-822-0	02	1	9307-		●
165	STAY; FRT PLATE	8-97025-556-0	01	1	9307-		●
166	GASKET; RET TO C/BL	8-94214-914-0	01	1	9307-9405	●
166	GASKET; RET TO C/BL	8-94214-914-0	01	1	9406-	●	●
166	GASKET; RET TO C/BL	8-97086-419-0	01	1	9307-9405		●
172	RETAINER; CR/SHF	8-94244-646-2	01	1	9307-9403	●
172	RETAINER; CR/SHF	8-94153-864-3	01	1	9404-	●
172	RETAINER; CR/SHF	8-94367-540-2	01	1	9307-		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9307-9404	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9405-	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-146-0	01	1	9307-9404		●
183	WASHER; LK,HOLDER ID=6.1	9-09150-506-0	02	1	9307-		●
184	BOLT; HOLDER M6X10	0-20800-610-0	02	1	9407-		●
185	BOLT; RET TO C/BL M8X25 W/LK WASHER	0-50040-825-0	02	1	9307-	●
185	BOLT; RET TO C/BL M8X32 W/LK WASHER	0-50040-832-0	02	1	9307-	●
185	BOLT; RET TO C/BL M8X32 W/LK WASHER	0-50040-832-0	04	1	9307-		●
245	BOLT; C/BL TO TRANS CASE M10X50 REAMER	8-94215-044-1	01	1	9307-	●	●
390	HOLDER; TIMING BELT	8-94220-882-0	01	1	9307-		●

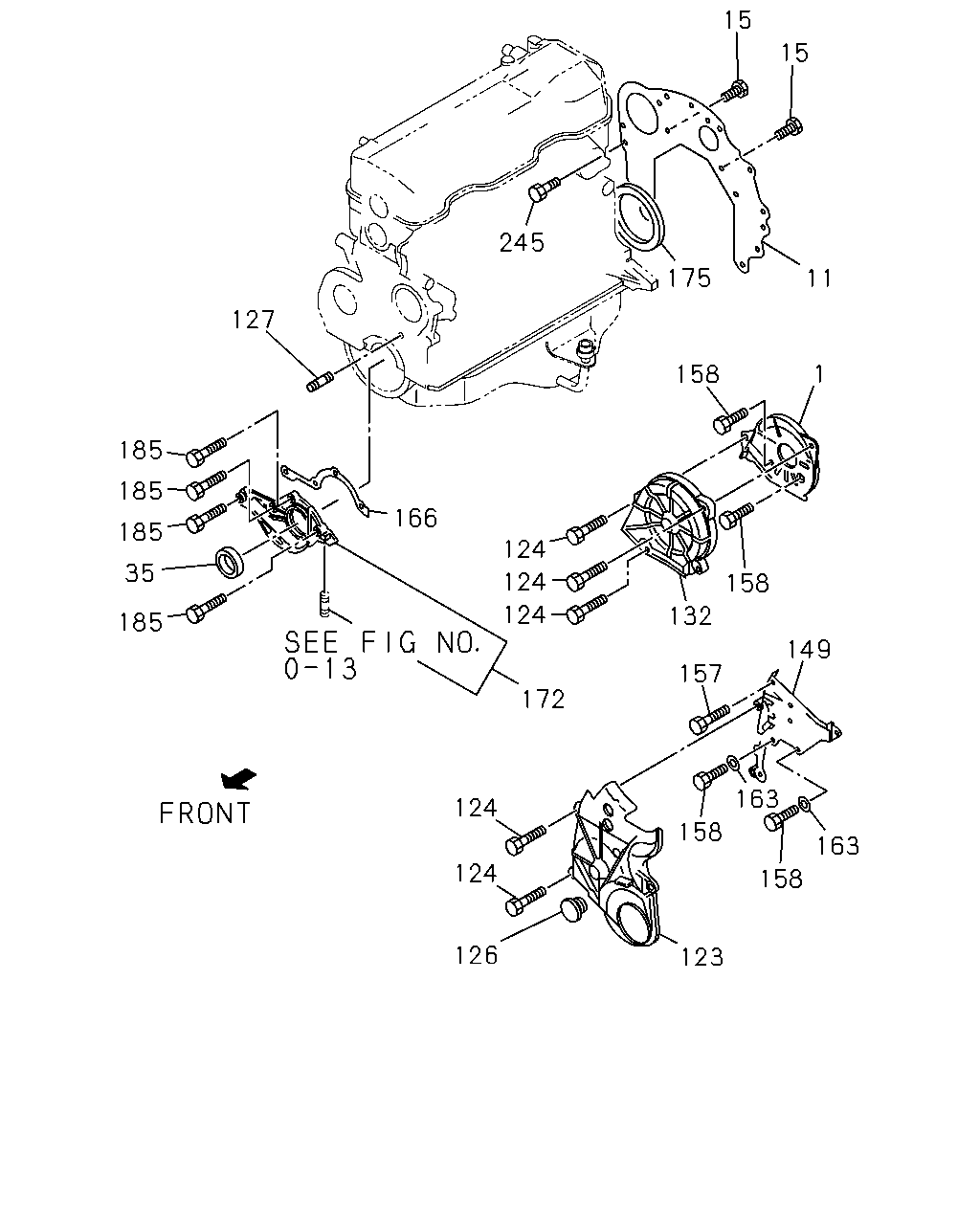

15 15 245 175 11 127 158 1 185 185 166 185 124 124 124 35 158 132 185 149 157 163 158 172 124 163 158 124 126 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TIMING GEAR	8-94220-548-1	01	1	9307-	●
1	CASE; TIMING GEAR	8-94227-908-0	01	1	9307-		●
11	PLATE; RR,C/BL	8-94218-559-3	01	1	9307-	●	●
15	BOLT; RR PLATE TO C/BL M10X18	8-94214-903-1	02	1	9307-	●
15	BOLT; RR PLATE TO C/BL M10X18	8-94214-903-1	03	1	9307-		●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=56 T=6.5	8-94339-997-0	01	1	9307-9404	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=56 T=6.5	8-94339-997-0	01	1	9405-	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=56 T=7.0	8-97080-562-0	01	1	9307-9404		●
123	COVER; TIMING,LWR	8-94452-870-0	01	1	9307-	●
123	COVER; TIMING,LWR	8-97073-855-0	01	1	9307-		●
124	BOLT; TIMING COVER M6X16 W/LK WASHER	0-50040-616-0	07	1	9307-	●
124	BOLT; TIMING COVER M6X45 W/LK WASHER	0-50040-645-0	01	1	9307-	●
126	GROMMET; TIMING COVER,LWR	8-94235-030-0	01	1	9307-	●
127	STUD; TENSIONER M8X50 L=62	9-04110-850-0	01	1	9307-	●
132	COVER; TIMING,UPR	8-94452-421-0	01	1	9307-	●
132	COVER; TIMING,UPR	8-97073-853-0	01	1	9307-		●
149	PLATE; FRT,C/BL	8-94172-543-2	01	1	9307-	●
149	PLATE; FRT,C/BL	8-94238-844-0	01	1	9307-9406		●
149	PLATE; FRT,C/BL EXC. TURBOCHARGER(K51)	8-94238-844-0	01	1	9407-		●
149	PLATE; FRT,C/BL LONG(WFB5VF) TURBOCHARGER(K51)	8-94250-260-1	01	1	9407-		●
157	BOLT; FRT PLATE M6X12 W/LK WASHER	0-50040-612-0	01	1	9307-	●
158	BOLT; FRT PLATE M6X12	0-20800-612-0	03	1	9307-	●
158	BOLT; FRT PLATE M8X12	0-20800-812-0	01	1	9307-	●
158	BOLT; FRT PLATE M6X8	0-20800-608-0	03	1	9307-		●
158	BOLT; FRT PLATE M8X18 W/LK WASHER	0-50040-818-0	03	1	9307-		●
163	WASHER; LK,PLATE TO CYL HD ID=8.2	9-09150-508-0	01	1	9307-	●
163	WASHER; LK,PLATE TO CYL HD ID=6.1	9-09150-506-0	03	1	9307-	●	●
166	GASKET; RET TO C/BL	8-94214-914-0	01	1	9307-9405	●
166	GASKET; RET TO C/BL	8-94214-914-0	01	1	9406-	●	●
166	GASKET; RET TO C/BL	8-97086-419-0	01	1	9307-9405		●
172	RETAINER; CR/SHF	8-94244-646-2	01	1	9307-9403	●
172	RETAINER; CR/SHF	8-94153-864-3	01	1	9404-	●
172	RETAINER; CR/SHF	8-94367-540-2	01	1	9307-		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9307-9404	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9405-	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-146-0	01	1	9307-9404		●
185	BOLT; RET TO C/BL M8X25 W/LK WASHER	0-50040-825-0	02	1	9307-	●
185	BOLT; RET TO C/BL M8X32 W/LK WASHER	0-50040-832-0	02	1	9307-	●
185	BOLT; RET TO C/BL M8X32 W/LK WASHER	0-50040-832-0	04	1	9307-		●
245	BOLT; C/BL TO TRANS CASE M10X50 REAMER	8-94215-044-1	01	1	9307-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
