0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#35316) — 127 parça

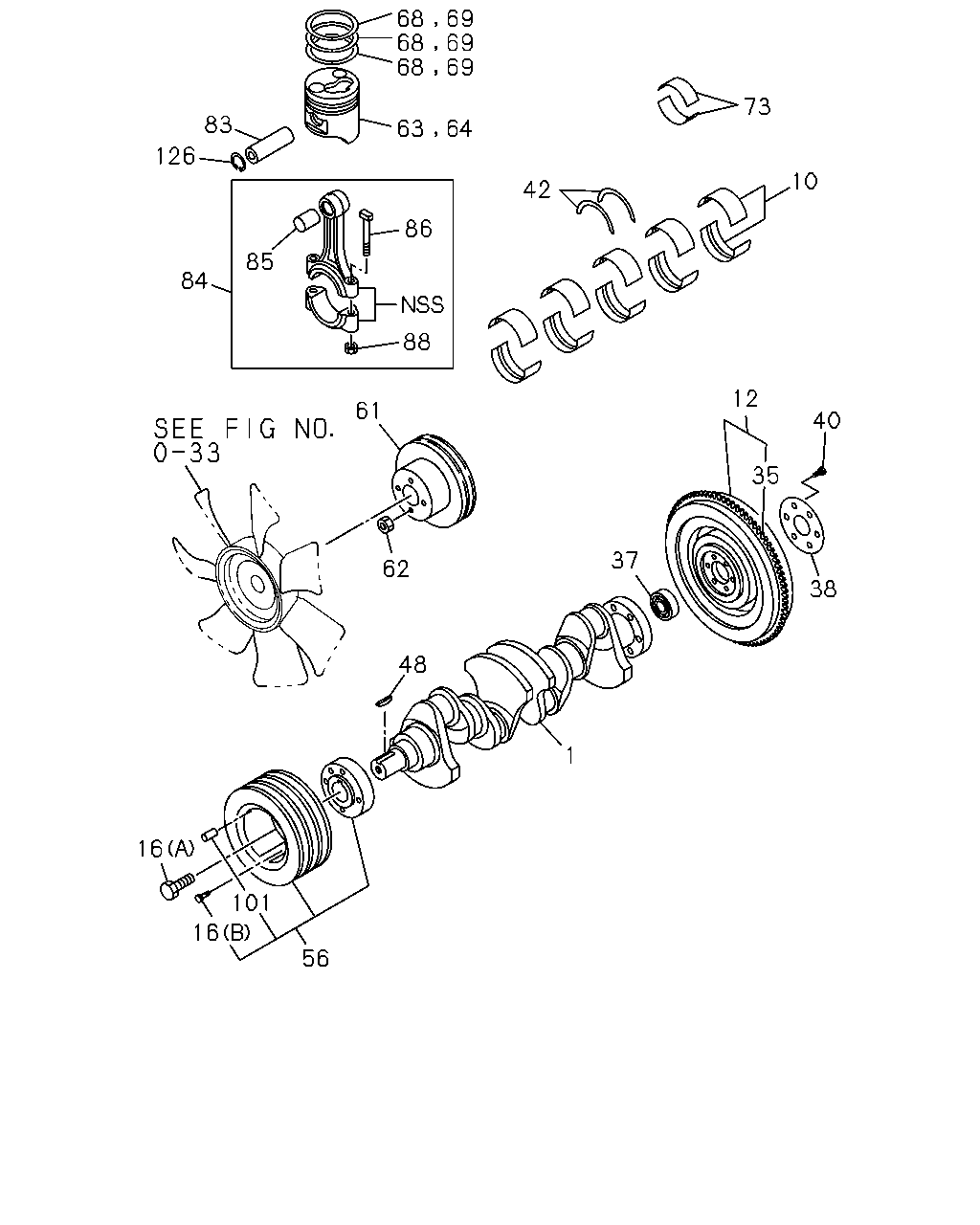

çizim 67112
68 68 68 69 69 69 73 83 126 63 64 10 42 86 85 84 88 12 61 40 35 37 62 38 48 1 16 101 16 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 CRANKSHAFT 8-94251-729-1 01 1 9307- ●
1 CRANKSHAFT 8-94449-066-0 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97063-243-0 05 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97063-244-0 05 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97063-245-0 05 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
PINK NO.1 		8-97063-246-0 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
PINK NO.2,4,5 		8-97063-247-0 03 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
PINK NO.3 		8-97063-248-0 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW NO.1 		8-97063-249-0 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW NO.2,4,5 		8-97063-250-0 03 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW NO.3 		8-97063-251-0 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN NO.1 		8-97063-252-0 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN NO.2,4,5 		8-97063-253-0 03 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN NO.3 		8-97063-254-0 01 1 9307- ●
12 FLYWHEEL 8-94425-192-0 01 1 9307- ●
12 FLYWHEEL 8-94327-361-0 01 1 9307- ●
16 BOLT; PULLEY TO CENTER
M6X16 W/LK WASHER 		0-50040-616-0 08 1 9307- ●
16 BOLT; PULLEY TO CENTER
(A) M16X36 		8-94449-170-0 01 1 9307- ●
16 BOLT; PULLEY TO CENTER
POWER STEERING<N40> (B) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9307- ●
16 BOLT; PULLEY TO CENTER
EXC. POWER STEERING<N40> (B) M8X55 W/LK WASHER 		5-09000-084-1 04 1 9307- ●
35 GEAR; RING 9-12333-032-1 01 1 9307- ●
35 GEAR; RING
W/YELLOW MARK 		8-94327-362-0 01 1 9307- ●
37 BEARING; PILOT,TOP GEAR SHAFT 9-00090-679-0 01 1 9307- ● ●
38 WASHER; FLYWHEEL
T=1.2 		8-94250-274-1 01 1 9307-9403 ●
38 WASHER; FLYWHEEL
T=1.2 		8-94250-274-1 01 1 9404- ● ●
38 WASHER; FLYWHEEL
T=0.8 		8-94235-325-1 01 1 9307-9403 ●
40 BOLT; FLYWHEEL
M10X36 		8-94479-034-0 08 1 9307- ● ●
42 WASHER; THRUST,CR/SHF 8-94481-907-0 02 1 9307- ●
42 WASHER; THRUST,CR/SHF 8-94250-265-0 02 1 9307- ●
48 KEY; WOODRUFF,CR/SHF 5-09737-003-0 01 1 9307- ● ●
56 PULLEY; CR/SHF DAMPER
POWER STEERING<N40> 3-GROOVE 		8-94315-463-1 01 1 9307- ●
56 PULLEY; CR/SHF DAMPER
EXC. POWER STEERING<N40> 2-GROOVE 		8-94122-980-4 01 1 9307- ●
61 PULLEY; FAN DRIVE 8-94222-082-1 01 1 9307- ●
62 NUT; FAN PULLEY
LONG(WFB5VF) TURBOCHARGER(K51) M6 FLANGE 		5-09440-004-0 04 1 9407- ●
63 PISTON 8-94175-087-2 04 1 9307- ●
63 PISTON 8-94454-813-0 04 1 9307-9403 ●
63 PISTON 8-97073-851-0 04 1 9404- ●
64 PISTON; O/S=0.50 8-94414-055-1 04 1 9307- ●
64 PISTON; O/S=0.50 8-94329-493-0 04 1 9307-9403 ●
64 PISTON; O/S=0.50 8-97115-172-0 04 1 9404- ●
68 RING SET; PISTON,STANDARD 8-94119-545-0 04 1 9307- ●
68 RING SET; PISTON,STANDARD 8-94469-634-0 04 1 9307- ●
69 RING SET; PISTON,O/S=0.50 8-94143-049-0 04 1 9307- ●
69 RING SET; PISTON,O/S=0.50 8-94329-626-0 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
BLACK 		8-94251-266-1 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
BROWN 		8-94414-305-0 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
BLUE 		8-94414-306-0 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
GREEN 		8-94329-497-0 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
YELLOW 		8-94329-498-0 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
PINK 		8-94329-499-0 04 1 9307- ●
83 PIN; PISTON 5-12211-011-0 04 1 9307- ●
83 PIN; PISTON 5-12211-017-0 04 1 9307- ●
84 ROD ASM; CONN 8-94215-643-3 04 1 9307- ●
84 ROD ASM; CONN 8-94449-073-0 04 1 9307- ●
85 BUSHING; CONNROD 8-94247-838-0 04 1 9307- ●
86 BOLT; CONNROD 9-12235-068-2 08 1 9307- ●
86 BOLT; CONNROD 8-94216-206-4 08 1 9307- ●
88 NUT; CONNROD 9-09840-238-0 08 1 9307- ●
88 NUT; CONNROD 8-94224-236-2 08 1 9307- ●
101 PIN; CR/SHF
POWER STEERING<N40> OD=4 L=16 		9-08160-416-0 01 1 9307- ●
101 PIN; CR/SHF
EXC. POWER STEERING<N40> OD=4 L=12 		9-08160-412-0 01 1 9307- ●
126 RING; SNAP,PISTON PIN 5-09587-001-0 08 1 9307- ●

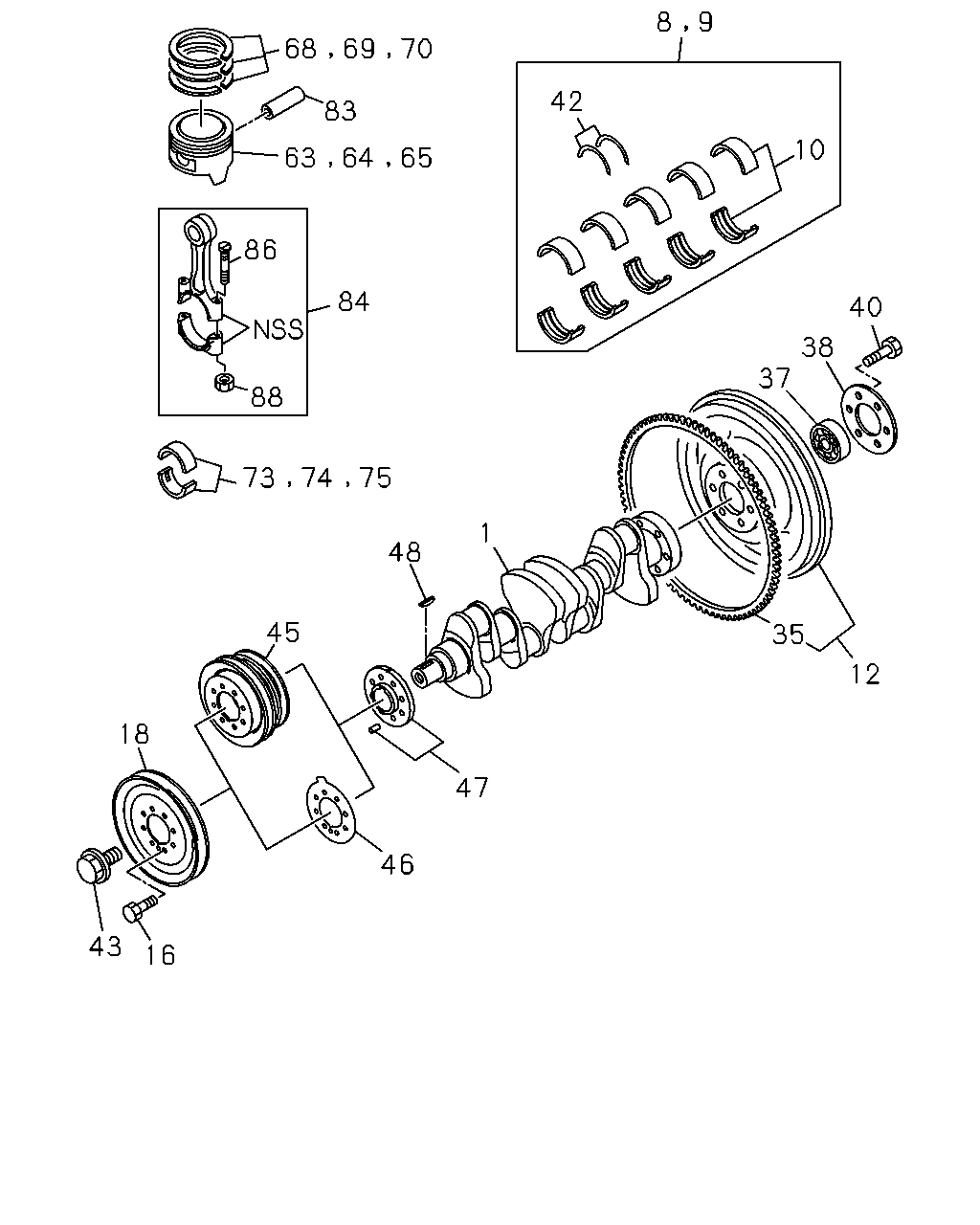

çizim 67639
8 9 68 69 70 42 83 10 63 64 65 86 84 40 38 37 88 73 74 75 1 48 45 35 12 18 47 46 43 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 CRANKSHAFT 8-94251-729-1 01 1 9307- ●
1 CRANKSHAFT 8-94449-066-0 01 1 9307- ●
8 METAL KIT; CRANKSHAFT,U/S=0.25
UNSI=0.25 		8-94133-028-1 01 1 9307- ●
9 METAL KIT; CRANKSHAFT,U/S=0.50
UNSI=0.50 		8-94133-029-1 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97063-243-0 05 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97063-244-0 05 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97063-245-0 05 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
PINK NO.1 		8-97063-246-0 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
PINK NO.2,4,5 		8-97063-247-0 03 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
PINK NO.3 		8-97063-248-0 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW NO.1 		8-97063-249-0 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW NO.2,4,5 		8-97063-250-0 03 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW NO.3 		8-97063-251-0 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN NO.1 		8-97063-252-0 01 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN NO.2,4,5 		8-97063-253-0 03 1 9307- ●
10 METAL SET; CRANKSHAFT,STANDARD
GREEN NO.3 		8-97063-254-0 01 1 9307- ●
12 FLYWHEEL 8-94425-192-0 01 1 9307- ●
12 FLYWHEEL 8-94327-361-0 01 1 9307- ●
16 BOLT; PULLEY TO CENTER
M6X16 W/LK WASHER 		0-50040-616-0 08 1 9307- ●
16 BOLT; PULLEY TO CENTER
(A) M16X36 		8-94449-170-0 01 1 9307- ●
16 BOLT; PULLEY TO CENTER
POWER STEERING<N40> (B) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9307- ●
16 BOLT; PULLEY TO CENTER
EXC. POWER STEERING<N40> (B) M8X55 W/LK WASHER 		5-09000-084-1 04 1 9307- ●
18 PULLEY; CR/SHF 8-94178-773-0 01 1 9307- ●
35 GEAR; RING 9-12333-032-1 01 1 9307- ●
35 GEAR; RING
W/YELLOW MARK 		8-94327-362-0 01 1 9307- ●
37 BEARING; PILOT,TOP GEAR SHAFT 9-00090-679-0 01 1 9307- ● ●
38 WASHER; FLYWHEEL
T=1.2 		8-94250-274-1 01 1 9307-9403 ●
38 WASHER; FLYWHEEL
T=1.2 		8-94250-274-1 01 1 9404- ● ●
38 WASHER; FLYWHEEL
T=0.8 		8-94235-325-1 01 1 9307-9403 ●
40 BOLT; FLYWHEEL
M10X36 		8-94479-034-0 08 1 9307- ● ●
42 WASHER; THRUST,CR/SHF 8-94481-907-0 02 1 9307- ●
42 WASHER; THRUST,CR/SHF 8-94250-265-0 02 1 9307- ●
43 BOLT; CR/SHF PULLEY
M16X30 		8-94108-479-0 01 1 9307- ●
45 PULLEY ASM; CR/SHF,P/S & A/C
2-GROOVE 		8-94411-793-1 01 1 9307- ●
46 PLATE; PULLEY,CR/SHF
EXC. POWER STEERING<N40> 		8-94159-197-1 01 1 9307- ●
47 BOSS; CR/SHF PULLEY 8-97073-079-0 01 1 9307- ●
48 KEY; WOODRUFF,CR/SHF 5-09737-003-0 01 1 9307- ● ●
63 PISTON 8-94175-087-2 04 1 9307- ●
63 PISTON 8-94454-813-0 04 1 9307-9403 ●
63 PISTON 8-97073-851-0 04 1 9404- ●
64 PISTON; O/S=0.50 8-94414-055-1 04 1 9307- ●
64 PISTON; O/S=0.50 8-94329-493-0 04 1 9307-9403 ●
64 PISTON; O/S=0.50 8-97115-172-0 04 1 9404- ●
65 PISTON; O/S=1.00 8-94414-056-1 04 1 9307- ●
68 RING SET; PISTON,STANDARD 8-94119-545-0 04 1 9307- ●
68 RING SET; PISTON,STANDARD 8-94469-634-0 04 1 9307- ●
69 RING SET; PISTON,O/S=0.50 8-94143-049-0 04 1 9307- ●
69 RING SET; PISTON,O/S=0.50 8-94329-626-0 04 1 9307- ●
70 RING SET; PISTON,O/S=1.00 8-94143-050-0 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
BLACK 		8-94251-266-1 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
BROWN 		8-94414-305-0 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
BLUE 		8-94414-306-0 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
GREEN 		8-94329-497-0 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
YELLOW 		8-94329-498-0 04 1 9307- ●
73 METAL SET; CONN ROD,STANDARD
PINK 		8-94329-499-0 04 1 9307- ●
74 METAL SET; CONN ROD,U/S=0.25
UNSI=0.25 		8-94133-026-0 04 1 9307- ●
75 METAL SET; CONN ROD,U/S=0.50 8-94133-027-0 04 1 9307- ●
83 PIN; PISTON 5-12211-011-0 04 1 9307- ●
83 PIN; PISTON 5-12211-017-0 04 1 9307- ●
84 ROD ASM; CONN 8-94215-643-3 04 1 9307- ●
84 ROD ASM; CONN 8-94449-073-0 04 1 9307- ●
86 BOLT; CONNROD 9-12235-068-2 08 1 9307- ●
86 BOLT; CONNROD 8-94216-206-4 08 1 9307- ●
88 NUT; CONNROD 9-09840-238-0 08 1 9307- ●
88 NUT; CONNROD 8-94224-236-2 08 1 9307- ●
