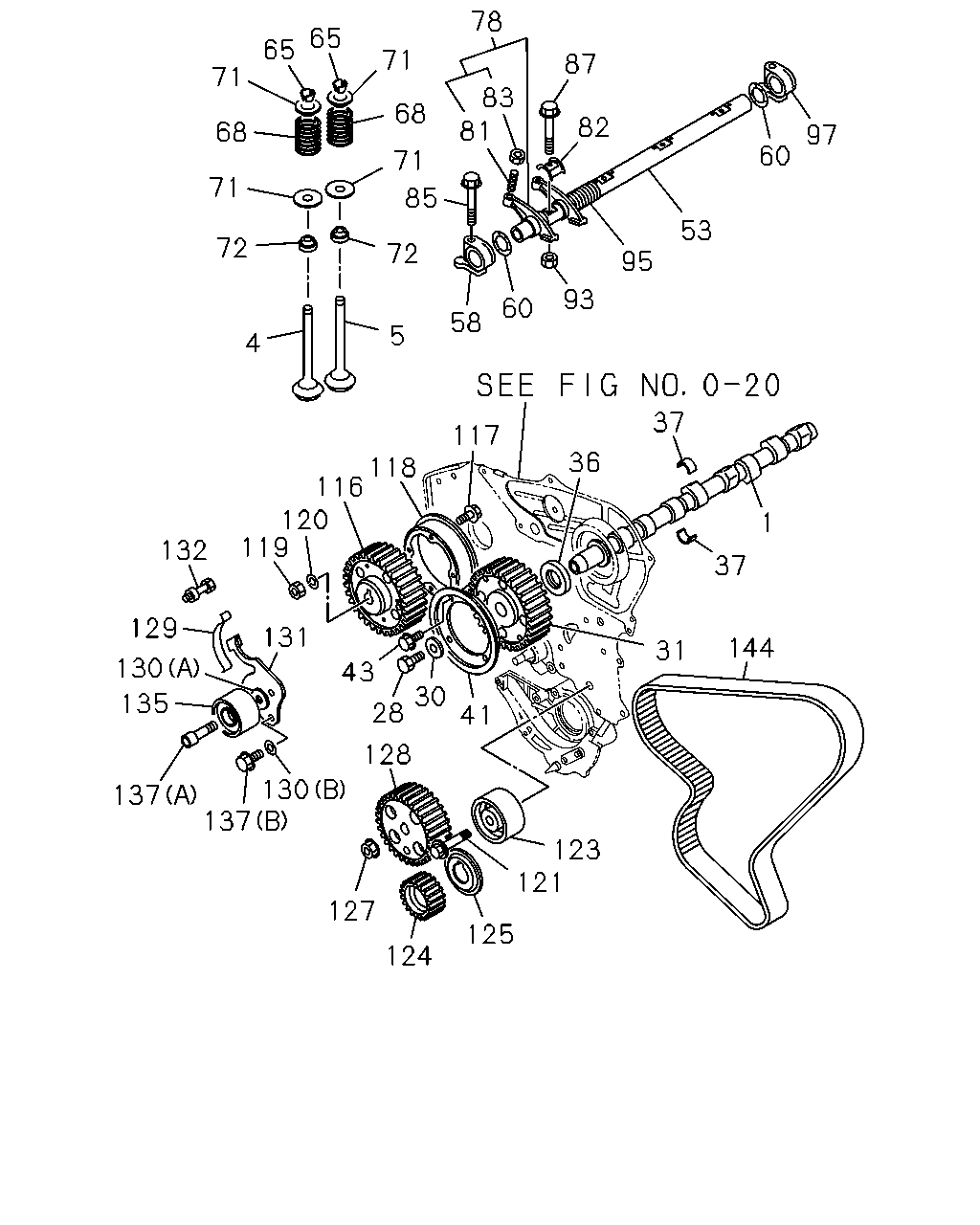

0-14 — CAMSHAFT AND VALVE (#35315) — 135 parça

78 65 65 71 87 71 83 81 68 82 68 97 60 71 85 71 53 72 72 95 93 60 58 5 4 37 117 36 118 116 120 119 1 132 37 129 130 135 131 144 31 43 30 28 41 128 137 130 137 123 121 127 125 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-94136-784-1	01	1	9307-	●
1	CAMSHAFT	8-94449-046-0	01	1	9307-		●
4	VALVE; INL	8-94251-275-0	04	1	9307-	●
4	VALVE; INL	8-94449-047-0	04	1	9307-		●
5	VALVE; EXH	8-94441-074-0	04	1	9307-9410	●
5	VALVE; EXH	8-97119-751-0	04	1	9411-	●
5	VALVE; EXH	8-94449-048-0	04	1	9307-		●
28	BOLT; CAM PULLEY M10X35	9-02061-035-0	01	1	9307-	●
28	BOLT; CAM PULLEY M12X32	9-92061-232-0	01	1	9307-		●
30	WASHER; PULLEY ID=10.5	8-94174-283-1	01	1	9307-	●
30	WASHER; PULLEY ID=12.5	5-12519-001-0	01	1	9307-		●
31	SPROCKET; CM/SHF Z=44	8-94231-167-4	01	1	9307-	●
31	SPROCKET; CM/SHF Z=42	8-94220-897-4	01	1	9307-		●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=45	8-94334-845-0	01	1	9307-	●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=47	5-09625-053-2	01	1	9307-		●
37	METAL; CM/SHF	5-11611-010-0	05	1	9307-		●
41	FLANGE; CAM PULLEY	8-94221-333-3	01	1	9307-		●
43	BOLT; PULLEY M6X12 W/LK WASHER	0-50040-612-0	04	1	9307-		●
53	SHAFT; ROCKER ARM INLET	8-94110-646-1	01	1	9307-	●
53	SHAFT; ROCKER ARM EXHAUST	8-94129-227-0	01	1	9307-	●
53	SHAFT; ROCKER ARM	8-94139-343-0	01	1	9307-		●
58	BRACKET; ROCKER SHAFT,FRT	5-12628-009-2	01	1	9307-		●
60	SPRING; BRKT	8-94220-054-0	02	1	9307-		●
65	COLLAR; SPLIT	8-94200-714-0	16	1	9307-	●
65	COLLAR; SPLIT	5-12565-004-0	16	1	9307-		●
68	SPRING; VLV	8-94259-483-0	08	1	9307-	●
68	SPRING; VLV OD=35	8-94449-173-1	08	1	9307-		●
71	SEAT; SPR UPPER OD=32	8-94233-232-1	08	1	9307-	●
71	SEAT; SPR LOWER OD=34	8-94200-749-0	08	1	9307-	●	●
71	SEAT; SPR UPPER OD=32	5-12563-022-1	08	1	9307-		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94208-522-0	08	1	9307-		●
78	ARM; ROCKER NPR	8-94102-413-0	08	1	9307-	●
78	ARM; ROCKER JBK	8-94102-416-0	08	1	9307-	●
78	ARM; ROCKER	8-94449-049-0	08	1	9307-		●
81	SCREW; ADJ,ROCKER ARM M8X27	8-94200-786-0	16	1	9307-	●
81	SCREW; ADJ,ROCKER ARM M8X27	8-94200-786-0	08	1	9307-		●
82	CAP; ROCKER SHAFT	5-12618-006-2	04	1	9307-		●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	16	1	9307-	●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	08	1	9307-		●
85	BOLT; BRKT M8X60	8-94224-284-0	02	1	9307-		●
87	BOLT; ROCKER SHAFT M8X55	8-94224-283-0	01	1	9307-		●
93	NUT; BRKT M8 FLANGE	9-09844-190-0	01	1	9307-		●
95	SPRING; ROCKER SHAFT L=57.0	8-94200-814-1	04	1	9307-	●
95	SPRING; ROCKER SHAFT L=38.0	8-94200-815-1	04	1	9307-	●
95	SPRING; ROCKER SHAFT L=47.0	8-94139-384-0	03	1	9307-		●
97	BRACKET; ROCKER SHAFT,RR	5-12628-010-2	01	1	9307-		●
116	PULLEY; TIMING,INJ PUMP Z=42	8-94124-591-1	01	1	9307-9406		●
116	PULLEY; TIMING,INJ PUMP EXC. TURBOCHARGER(K51) Z=42	8-94124-591-1	01	1	9407-		●
116	PULLEY; TIMING,INJ PUMP LONG(WFB5VF) TURBOCHARGER(K51) Z=42	8-94119-581-1	01	1	9407-		●
117	BOLT; FLANGE M6X12 W/LK WASHER	0-50040-612-0	04	1	9307-		●
118	FLANGE; INJ PUMP PULLEY	8-94221-332-3	01	1	9307-		●
119	NUT; PULLEY M14	8-94226-565-0	01	1	9307-		●
120	WASHER; LK,PULLEY,INJ PUMP	8-94226-554-0	01	1	9307-		●
121	BOLT; IDLE PULLEY M12X57 FLANGE	8-94433-408-0	01	1	9307-		●
123	PULLEY; IDLE,TIMING	8-94123-972-0	01	1	9307-		●
124	PULLEY; TIMING,CR/SHF Z=22	8-94231-165-1	01	1	9307-	●
124	PULLEY; TIMING,CR/SHF Z=21	8-94224-637-2	01	1	9307-		●
125	PLATE; GUIDE,TIMING BELT	8-94215-184-0	01	1	9307-	●
125	PLATE; GUIDE,TIMING BELT	8-94221-742-1	01	1	9307-		●
127	NUT; PULLEY M12	8-94221-051-0	01	1	9307-	●	●
128	PULLEY; TIMING,OIL PUMP Z=38	8-94231-166-2	01	1	9307-	●
128	PULLEY; TIMING,OIL PUMP Z=38	8-94239-176-2	01	1	9307-		●
129	SPRING; TENSIONER L=47.4	8-94225-389-0	01	1	9307-	●
129	SPRING; TENSIONER L=89.5	8-94223-818-2	01	1	9307-		●
130	WASHER; PL,TENSIONER (A) ID=12.5 T=5.8	8-94217-363-0	01	1	9307-		●
130	WASHER; PL,TENSIONER (B) ID=8.4 OD=18	9-09164-608-0	02	1	9307-		●
131	PLATE; TENSION PULLEY	8-94223-812-3	01	1	9307-		●
132	STOPPER; TENSIONER	8-94217-011-1	02	1	9307-		●
135	PULLEY; TENSIONER	8-94215-197-1	01	1	9307-	●
135	PULLEY; TENSIONER	8-94220-900-2	01	1	9307-		●
137	BOLT; TENSIONER M8 L=46	8-94214-934-2	01	1	9307-	●
137	BOLT; TENSIONER (B) M8X20	0-20800-820-0	02	1	9307-		●
137	BOLT; TENSIONER (A) M12X41.5	8-94217-207-1	01	1	9307-		●
144	BELT; TIMING	8-97066-863-0	01	1	9307-	●
144	BELT; TIMING	8-97086-153-0	01	1	9307-		●

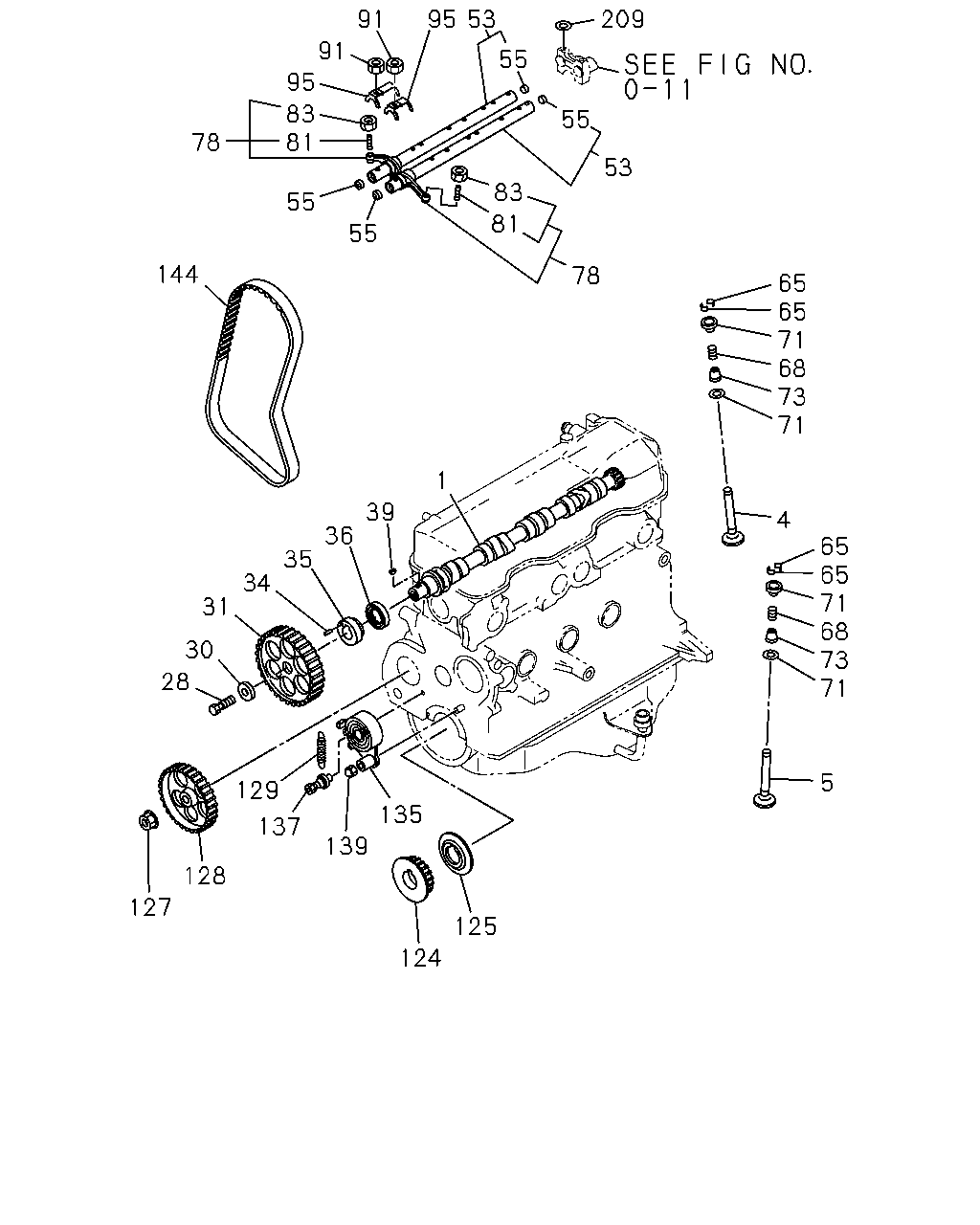

91 91 95 83 81 209 55 55 78 53 83 81 55 55 144 78 65 65 71 68 73 71 1 39 36 35 34 4 65 65 71 68 73 71 31 30 28 5 129 135 139 137 128 127 125 124 95 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-94136-784-1	01	1	9307-	●
1	CAMSHAFT	8-94449-046-0	01	1	9307-		●
4	VALVE; INL	8-94251-275-0	04	1	9307-	●
4	VALVE; INL	8-94449-047-0	04	1	9307-		●
5	VALVE; EXH	8-94441-074-0	04	1	9307-9410	●
5	VALVE; EXH	8-97119-751-0	04	1	9411-	●
5	VALVE; EXH	8-94449-048-0	04	1	9307-		●
28	BOLT; CAM PULLEY M10X35	9-02061-035-0	01	1	9307-	●
28	BOLT; CAM PULLEY M12X32	9-92061-232-0	01	1	9307-		●
30	WASHER; PULLEY ID=10.5	8-94174-283-1	01	1	9307-	●
30	WASHER; PULLEY ID=12.5	5-12519-001-0	01	1	9307-		●
31	SPROCKET; CM/SHF Z=44	8-94231-167-4	01	1	9307-	●
31	SPROCKET; CM/SHF Z=42	8-94220-897-4	01	1	9307-		●
34	PIN; CM/SHF	9-08160-512-0	01	1	9307-	●
35	BOSS; CM/SHF	8-94251-272-1	01	1	9307-	●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=45	8-94334-845-0	01	1	9307-	●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=47	5-09625-053-2	01	1	9307-		●
39	KEY; WOODRUFF,BOSS	9-08055-516-0	01	1	9307-	●
53	SHAFT; ROCKER ARM INLET	8-94110-646-1	01	1	9307-	●
53	SHAFT; ROCKER ARM EXHAUST	8-94129-227-0	01	1	9307-	●
53	SHAFT; ROCKER ARM	8-94139-343-0	01	1	9307-		●
55	PLUG; ROCKER SHAFT END INLET	8-94116-940-0	02	1	9307-	●
55	PLUG; ROCKER SHAFT END EXHAUST	8-94116-941-0	02	1	9307-	●
65	COLLAR; SPLIT	8-94200-714-0	16	1	9307-	●
65	COLLAR; SPLIT	5-12565-004-0	16	1	9307-		●
68	SPRING; VLV	8-94259-483-0	08	1	9307-	●
68	SPRING; VLV OD=35	8-94449-173-1	08	1	9307-		●
71	SEAT; SPR UPPER OD=32	8-94233-232-1	08	1	9307-	●
71	SEAT; SPR LOWER OD=34	8-94200-749-0	08	1	9307-	●	●
71	SEAT; SPR UPPER OD=32	5-12563-022-1	08	1	9307-		●
73	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97033-673-0	08	1	9307-	●
78	ARM; ROCKER NPR	8-94102-413-0	08	1	9307-	●
78	ARM; ROCKER JBK	8-94102-416-0	08	1	9307-	●
78	ARM; ROCKER	8-94449-049-0	08	1	9307-		●
81	SCREW; ADJ,ROCKER ARM M8X27	8-94200-786-0	16	1	9307-	●
81	SCREW; ADJ,ROCKER ARM M8X27	8-94200-786-0	08	1	9307-		●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	16	1	9307-	●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	08	1	9307-		●
91	NUT; ROCKER SHAFT M8	9-09110-508-0	10	1	9307-	●
95	SPRING; ROCKER SHAFT L=57.0	8-94200-814-1	04	1	9307-	●
95	SPRING; ROCKER SHAFT L=38.0	8-94200-815-1	04	1	9307-	●
95	SPRING; ROCKER SHAFT L=47.0	8-94139-384-0	03	1	9307-		●
124	PULLEY; TIMING,CR/SHF Z=22	8-94231-165-1	01	1	9307-	●
124	PULLEY; TIMING,CR/SHF Z=21	8-94224-637-2	01	1	9307-		●
125	PLATE; GUIDE,TIMING BELT	8-94215-184-0	01	1	9307-	●
125	PLATE; GUIDE,TIMING BELT	8-94221-742-1	01	1	9307-		●
127	NUT; PULLEY M12	8-94221-051-0	01	1	9307-	●	●
128	PULLEY; TIMING,OIL PUMP Z=38	8-94231-166-2	01	1	9307-	●
128	PULLEY; TIMING,OIL PUMP Z=38	8-94239-176-2	01	1	9307-		●
129	SPRING; TENSIONER L=47.4	8-94225-389-0	01	1	9307-	●
129	SPRING; TENSIONER L=89.5	8-94223-818-2	01	1	9307-		●
135	PULLEY; TENSIONER	8-94215-197-1	01	1	9307-	●
135	PULLEY; TENSIONER	8-94220-900-2	01	1	9307-		●
137	BOLT; TENSIONER M8 L=46	8-94214-934-2	01	1	9307-	●
137	BOLT; TENSIONER (B) M8X20	0-20800-820-0	02	1	9307-		●
137	BOLT; TENSIONER (A) M12X41.5	8-94217-207-1	01	1	9307-		●
139	NUT; TENSIONER M8	9-09110-508-0	01	1	9307-	●
144	BELT; TIMING	8-97066-863-0	01	1	9307-	●
144	BELT; TIMING	8-97086-153-0	01	1	9307-		●
209	WASHER; LK,ROCKER ARM BRKT ID=8.4	9-09160-508-0	02	1	9307-	●
