0-11 — CYLINDER HEAD (#35312) — 122 parça

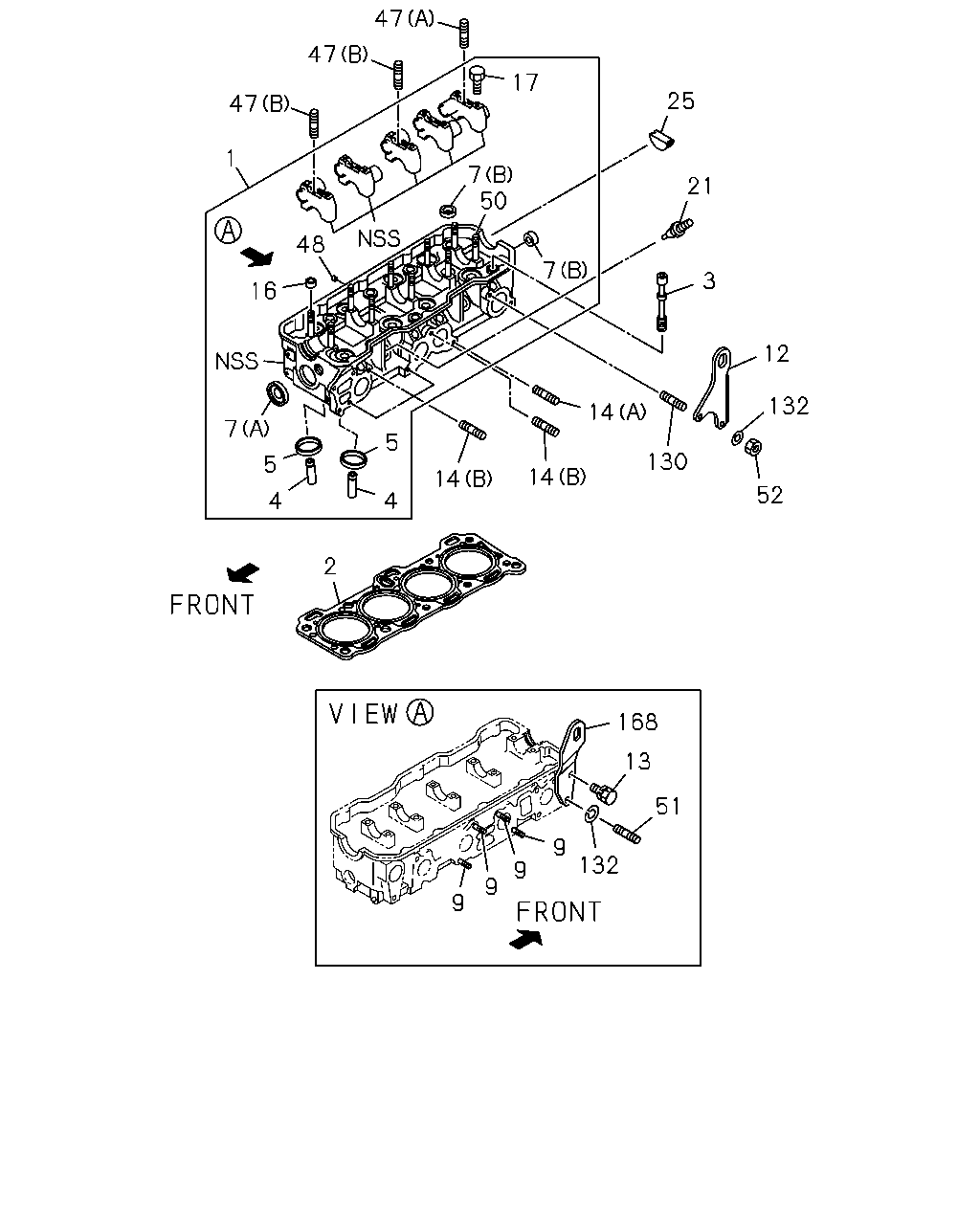

47 47 17 25 47 1 7 50 21 48 7 3 16 12 132 14 7 5 130 5 14 14 52 4 4 2 168 13 51 9 132 9 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEAD ASM; CYL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-94403-239-3	01	1	9307-9410	●
1	HEAD ASM; CYL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-97119-759-0	01	1	9411-	●
1	HEAD ASM; CYL EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-94403-227-3	01	1	9307-9410	●
1	HEAD ASM; CYL EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-97119-758-0	01	1	9411-	●
1	HEAD ASM; CYL	8-94311-945-0	01	1	9307-9406		●
1	HEAD ASM; CYL EXC. TURBOCHARGER(K51)	8-94311-945-0	01	1	9407-		●
1	HEAD ASM; CYL LONG(WFB5VF) TURBOCHARGER(K51)	8-97073-847-0	01	1	9407-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94328-112-0	01	1	9307-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.50 NO NOTCH	8-97100-545-0	01	1	9307-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.55 1-NOTCH	8-97100-547-0	01	1	9307-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 2-NOTCH	8-97100-549-0	01	1	9307-		●
3	BOLT; CYL HD TO BLOCK M12X102 HEX SOCKET	8-94200-751-0	10	1	9307-	●
3	BOLT; CYL HD TO BLOCK M13X103 SERRATED-HEAD	8-94217-144-0	10	1	9307-		●
4	GUIDE; VLV INLET	8-94206-762-0	04	1	9307-	●
4	GUIDE; VLV EXHAUST	8-94206-763-0	04	1	9307-9409	●
4	GUIDE; VLV EXHAUST	8-97112-882-0	04	1	9410-	●
4	GUIDE; VLV	5-11721-015-1	08	1	9307-		●
5	SEAT; VLV INSERT INLET	8-97022-816-0	04	1	9307-9410	●
5	SEAT; VLV INSERT INLET	8-97112-566-0	04	1	9411-	●
5	SEAT; VLV INSERT EXHAUST	8-97022-817-0	04	1	9307-9410	●
5	SEAT; VLV INSERT EXHAUST	8-97119-752-0	04	1	9411-	●
5	SEAT; VLV INSERT INLET	8-94105-292-0	04	1	9307-		●
5	SEAT; VLV INSERT EXHAUST	8-94139-976-0	04	1	9307-		●
7	CUP; SEALING,CYL HEAD (B) OD=25	9-11129-079-0	02	1	9307-	●
7	CUP; SEALING,CYL HEAD (A) OD=40	9-11219-309-0	01	1	9307-	●
7	CUP; SEALING,CYL HEAD (A) OD=45	1-09600-005-1	02	1	9307-		●
7	CUP; SEALING,CYL HEAD (B) OD=22	1-09600-011-2	07	1	9307-		●
7	CUP; SEALING,CYL HEAD (C) OD=16	5-11129-006-0	03	1	9307-		●
7	CUP; SEALING,CYL HEAD (D) OD=12	9-11129-083-0	04	1	9307-		●
9	STUD; INL MANIF M8X27 L=39	8-94202-304-0	04	1	9307-	●
9	STUD; INL MANIF M10X28 L=42	8-94224-200-0	02	1	9307-		●
12	HANGER; ENG,RR	8-94446-468-0	01	1	9307-	●
12	HANGER; ENG,RR	8-94434-869-0	01	1	9307-		●
13	BOLT; HANGER POWER STEERING<N40> M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-	●
13	BOLT; HANGER EXC. POWER STEERING<N40> M8X16 W/LK WASHER	0-50040-816-0	02	1	9307-	●
13	BOLT; HANGER M8X16 W/LK WASHER	0-50040-816-0	02	1	9307-		●
14	STUD; EXH MANIF (A) M8X42 L=58	8-97061-462-0	01	1	9307-9409	●
14	STUD; EXH MANIF (A) M8X42 L=58	8-97118-447-0	01	1	9410-	●
14	STUD; EXH MANIF (B) M8X30 L=46	9-04010-830-0	04	1	9307-	●
14	STUD; EXH MANIF M8X50 L=61	8-94109-890-0	02	1	9307-		●
16	DOWEL; ROCKER SHAFT BRKT	8-94108-075-1	10	1	9307-	●
16	DOWEL; ROCKER SHAFT BRKT OD=11 L=8	9-11229-058-1	10	1	9307-		●
17	BOLT; ROCKER SHAFT BRKT M6X25 W/LK WASHER	0-50040-625-0	02	1	9307-	●
21	PLUG; SPARK EXC. SOUTH AFRICA EQUIPMENT(SW2) DENSO	5-81380-008-0	04	1	9307-9410	●
21	PLUG; SPARK EXC. SOUTH AFRICA EQUIPMENT(SW2) BP6ES NGK	9-82513-103-0	04	1	9307-	●
21	PLUG; SPARK LONG(WFB5VF) SOUTH AFRICA EQUIPMENT(SW2) BPR6ES NGK	8-94219-943-0	04	1	9307-	●
25	PLUG; CYL HD	8-94220-423-1	01	1	9307-	●
25	PLUG; CYL HD	8-94220-107-1	01	1	9307-		●
47	STUD; CYL HD (A) M8X33 L=44	8-94232-311-0	01	1	9307-	●
47	STUD; CYL HD (B) M8X18 L=29	8-94232-312-0	02	1	9307-	●
47	STUD; CYL HD (A) M8X64 L=79	8-94152-544-2	01	1	9307-		●
47	STUD; CYL HD (B) M8X55 L=67	9-04110-855-0	01	1	9307-		●
48	PLUG; CYL HD,INL SIDE OD=6.3	8-94200-790-2	01	1	9307-	●
50	STUD; ROCKER SHAFT BRKT M8X65 L=81	9-04020-865-0	10	1	9307-	●
51	STUD; HANGER POWER STEERING<N40> M8X60 L=72	9-04110-860-0	01	1	9307-	●
52	NUT; ENG HANGER,RR M8 FLANGE	0-91150-108-0	02	1	9307-	●
130	STUD; HANGER,HD SIDE M8X42 L=58	8-97061-462-0	02	1	9307-9409	●
130	STUD; HANGER,HD SIDE M8X42 L=58	8-97118-447-0	02	1	9410-	●
132	WASHER; PL,ENG HANGER ID=8.4 OD=18	9-09164-608-0	02	1	9307-	●
168	HANGER; ENG,FRT	8-94472-343-0	01	1	9307-	●
168	HANGER; ENG,FRT EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94216-994-0	01	1	9307-		●

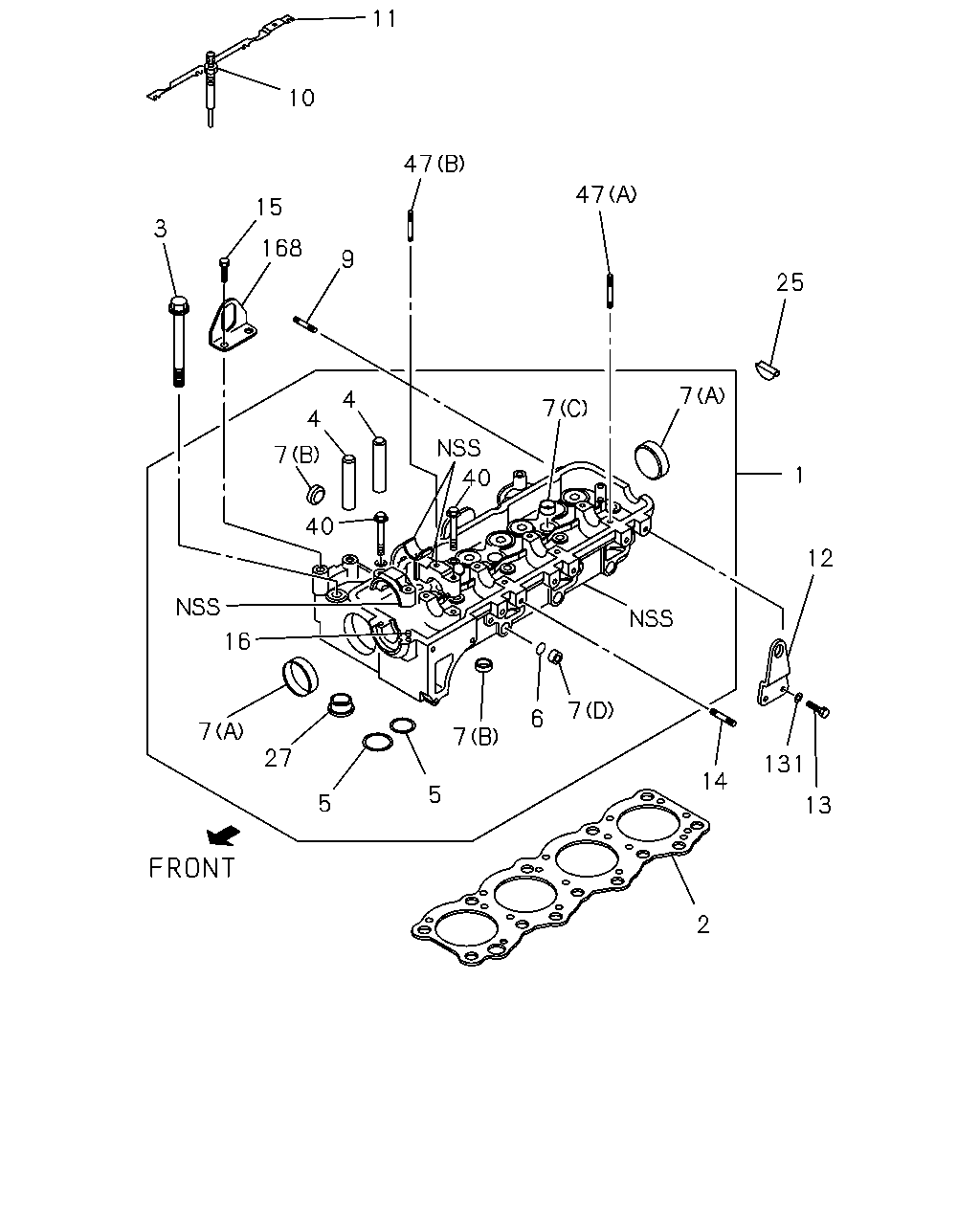

11 10 47 47 15 3 168 9 25 7 4 7 4 40 7 1 40 12 16 7 6 7 7 27 131 14 5 5 13 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEAD ASM; CYL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-94403-239-3	01	1	9307-9410	●
1	HEAD ASM; CYL HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-97119-759-0	01	1	9411-	●
1	HEAD ASM; CYL EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-94403-227-3	01	1	9307-9410	●
1	HEAD ASM; CYL EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y)	8-97119-758-0	01	1	9411-	●
1	HEAD ASM; CYL	8-94311-945-0	01	1	9307-9406		●
1	HEAD ASM; CYL EXC. TURBOCHARGER(K51)	8-94311-945-0	01	1	9407-		●
1	HEAD ASM; CYL LONG(WFB5VF) TURBOCHARGER(K51)	8-97073-847-0	01	1	9407-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94328-112-0	01	1	9307-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.50 NO NOTCH	8-97100-545-0	01	1	9307-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.55 1-NOTCH	8-97100-547-0	01	1	9307-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 2-NOTCH	8-97100-549-0	01	1	9307-		●
3	BOLT; CYL HD TO BLOCK M12X102 HEX SOCKET	8-94200-751-0	10	1	9307-	●
3	BOLT; CYL HD TO BLOCK M13X103 SERRATED-HEAD	8-94217-144-0	10	1	9307-		●
4	GUIDE; VLV INLET	8-94206-762-0	04	1	9307-	●
4	GUIDE; VLV EXHAUST	8-94206-763-0	04	1	9307-9409	●
4	GUIDE; VLV EXHAUST	8-97112-882-0	04	1	9410-	●
4	GUIDE; VLV	5-11721-015-1	08	1	9307-		●
5	SEAT; VLV INSERT INLET	8-97022-816-0	04	1	9307-9410	●
5	SEAT; VLV INSERT INLET	8-97112-566-0	04	1	9411-	●
5	SEAT; VLV INSERT EXHAUST	8-97022-817-0	04	1	9307-9410	●
5	SEAT; VLV INSERT EXHAUST	8-97119-752-0	04	1	9411-	●
5	SEAT; VLV INSERT INLET	8-94105-292-0	04	1	9307-		●
5	SEAT; VLV INSERT EXHAUST	8-94139-976-0	04	1	9307-		●
6	PLUG; PLATE OD=11.9	9-09860-522-0	04	1	9307-		●
7	CUP; SEALING,CYL HEAD (B) OD=25	9-11129-079-0	02	1	9307-	●
7	CUP; SEALING,CYL HEAD (A) OD=40	9-11219-309-0	01	1	9307-	●
7	CUP; SEALING,CYL HEAD (A) OD=45	1-09600-005-1	02	1	9307-		●
7	CUP; SEALING,CYL HEAD (B) OD=22	1-09600-011-2	07	1	9307-		●
7	CUP; SEALING,CYL HEAD (C) OD=16	5-11129-006-0	03	1	9307-		●
7	CUP; SEALING,CYL HEAD (D) OD=12	9-11129-083-0	04	1	9307-		●
9	STUD; INL MANIF M8X27 L=39	8-94202-304-0	04	1	9307-	●
9	STUD; INL MANIF M10X28 L=42	8-94224-200-0	02	1	9307-		●
10	PLUG; GLOW JKC 11V G02	8-94387-612-1	04	1	9307-		●
11	CONNECTOR; GLOW PLUG	8-97025-551-0	01	1	9307-		●
12	HANGER; ENG,RR	8-94446-468-0	01	1	9307-	●
12	HANGER; ENG,RR	8-94434-869-0	01	1	9307-		●
13	BOLT; HANGER POWER STEERING<N40> M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-	●
13	BOLT; HANGER EXC. POWER STEERING<N40> M8X16 W/LK WASHER	0-50040-816-0	02	1	9307-	●
13	BOLT; HANGER M8X16 W/LK WASHER	0-50040-816-0	02	1	9307-		●
14	STUD; EXH MANIF (A) M8X42 L=58	8-97061-462-0	01	1	9307-9409	●
14	STUD; EXH MANIF (A) M8X42 L=58	8-97118-447-0	01	1	9410-	●
14	STUD; EXH MANIF (B) M8X30 L=46	9-04010-830-0	04	1	9307-	●
14	STUD; EXH MANIF M8X50 L=61	8-94109-890-0	02	1	9307-		●
15	BOLT; HANGER,FRT AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M8X70	0-10805-870-0	02	1	9307-		●
15	BOLT; HANGER,FRT EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) M8X22 W/LK WASHER	0-50040-822-0	02	1	9307-		●
16	DOWEL; ROCKER SHAFT BRKT	8-94108-075-1	10	1	9307-	●
16	DOWEL; ROCKER SHAFT BRKT OD=11 L=8	9-11229-058-1	10	1	9307-		●
25	PLUG; CYL HD	8-94220-423-1	01	1	9307-	●
25	PLUG; CYL HD	8-94220-107-1	01	1	9307-		●
27	PLUG; HOT	8-94463-010-0	04	1	9307-9406		●
27	PLUG; HOT EXC. TURBOCHARGER(K51)	8-94463-010-0	04	1	9407-		●
27	PLUG; HOT LONG(WFB5VF) TURBOCHARGER(K51)	8-97073-849-0	04	1	9407-		●
40	BOLT; BRG CAP M8X49 W/WASHER	8-94139-089-0	03	1	9307-		●
40	BOLT; BRG CAP M8X35 W/WASHER	8-94139-229-0	02	1	9307-		●
47	STUD; CYL HD (A) M8X33 L=44	8-94232-311-0	01	1	9307-	●
47	STUD; CYL HD (B) M8X18 L=29	8-94232-312-0	02	1	9307-	●
47	STUD; CYL HD (A) M8X64 L=79	8-94152-544-2	01	1	9307-		●
47	STUD; CYL HD (B) M8X55 L=67	9-04110-855-0	01	1	9307-		●
131	WASHER; LK,RR HANGER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2) ID=8.2	9-09150-508-0	02	1	9307-		●
168	HANGER; ENG,FRT	8-94472-343-0	01	1	9307-	●
168	HANGER; ENG,FRT EXC. AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER MANUAL CONT FRT&RR(EM2)	8-94216-994-0	01	1	9307-		●
