Isuzu WW
▶
SUV
▶
WFR
▶
50685 - WFR-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶
0-10 — CYLINDER HEAD COVER
(#35311) — 41 parça
Tümü

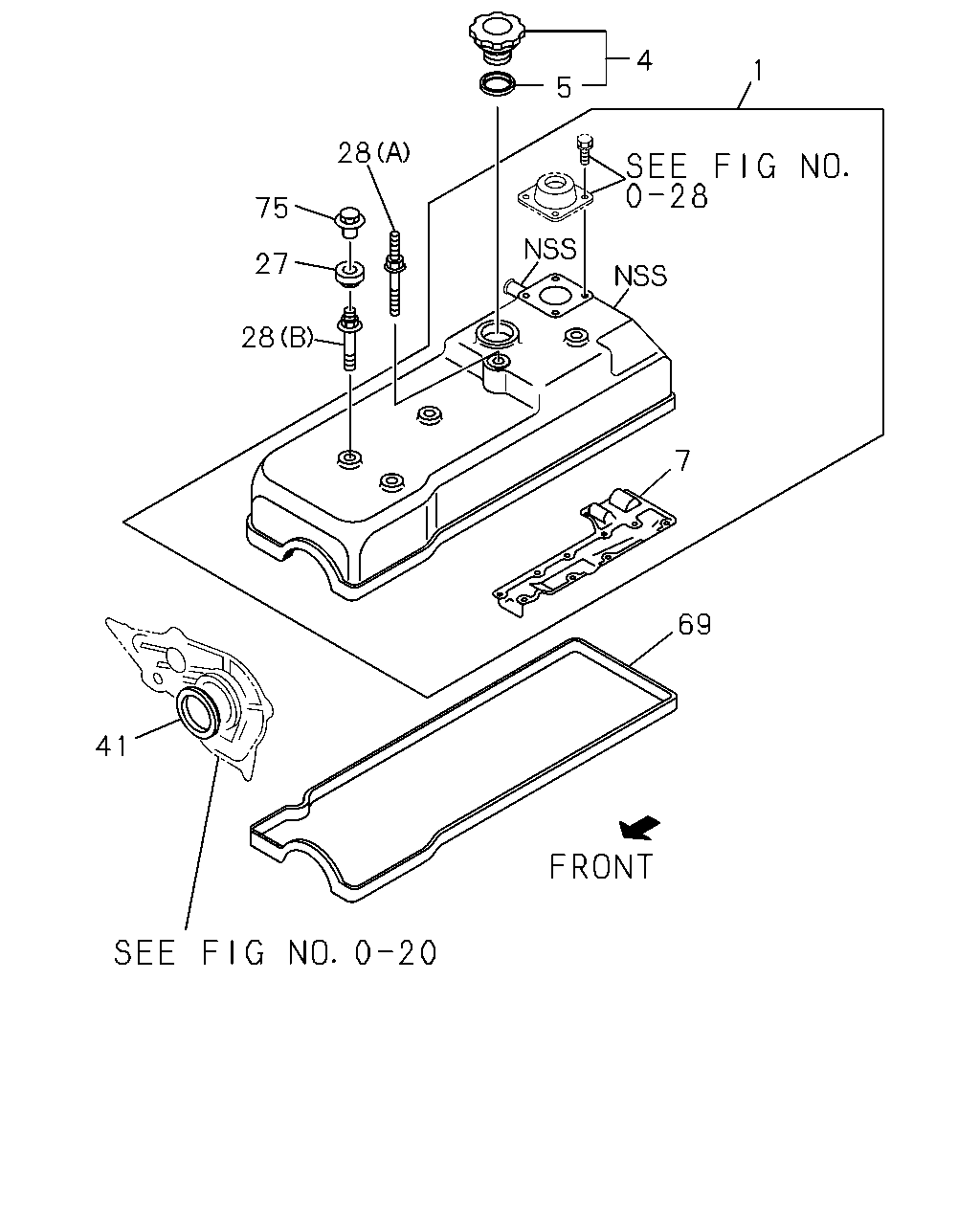

A - 4ZC1 ENG

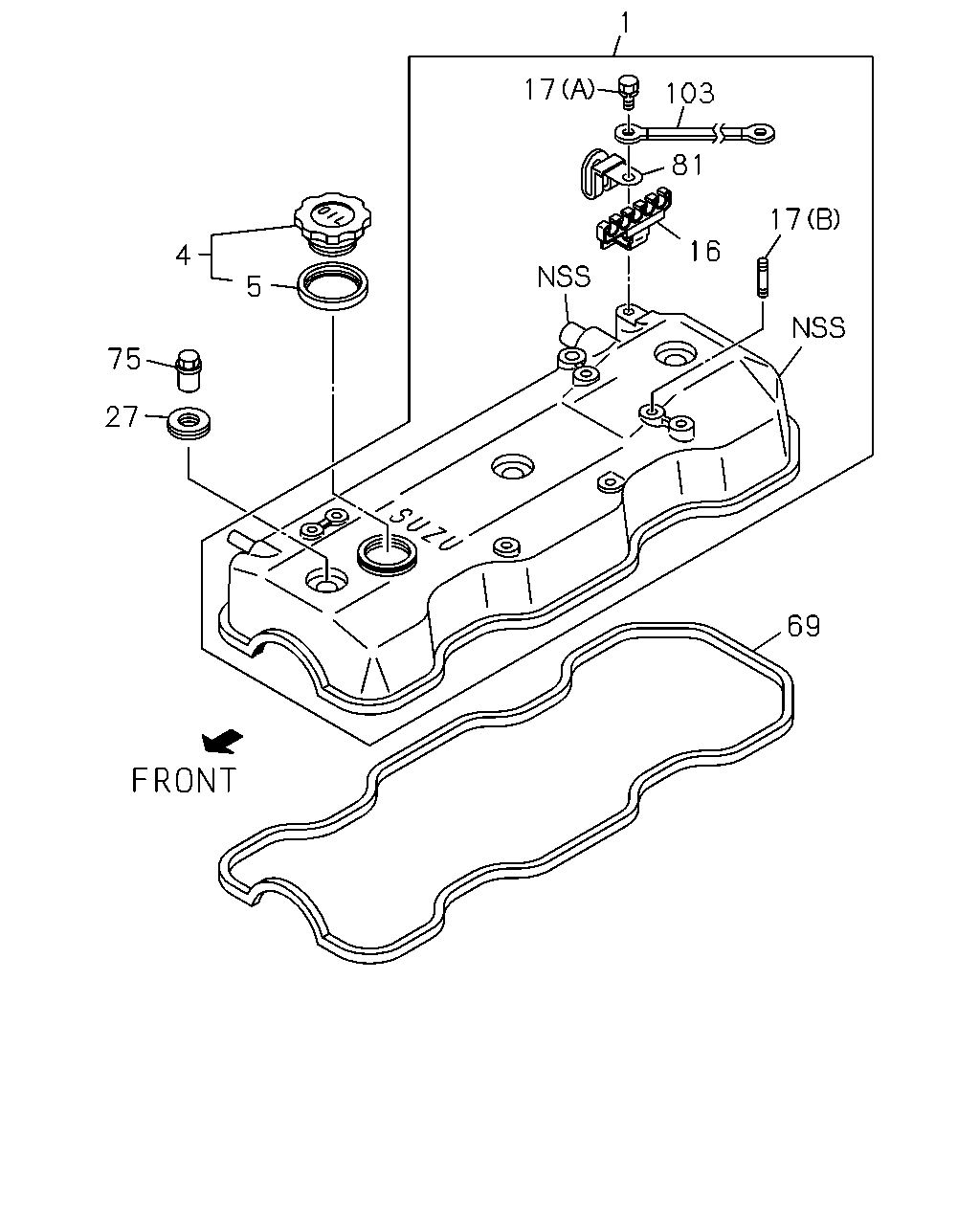

B - 4FG1 ENG
◀
[010A] DIESEL (20 parça)
[010A] GASOLINE (21 parça)
▶
4
1
5
28
75
28
27
7
69
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COVER; CYL HD
8-94360-533-0
01
1
9307-
●
1
COVER; CYL HD
8-97073-860-0
01
1
9307-
●
4
CAP; OIL FILLER
8-94133-207-5
01
1
9307-
●
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40
8-94123-623-1
01
1
9307-
●
●
7
PLATE; BREATHER,HD COVER
8-94424-064-2
01
1
9307-
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5
8-94202-456-3
03
1
9307-9407
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=20.0
8-94153-051-0
03
1
9408-9501
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5
8-94202-456-3
03
1
9502-
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5
8-94202-456-3
05
1
9307-9411
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=20.0
8-94153-051-0
05
1
9412-9501
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5
8-94202-456-3
05
1
9502-
●
28
BOLT; HD COVER
(A) M8X101
8-94407-288-0
01
1
9307-
●
28
BOLT; HD COVER
(B) M8X78.5
8-94418-011-2
02
1
9307-
●
41
GROMMET; HD COVER,OUTER
8-94217-125-1
01
1
9307-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94214-985-0
01
1
9307-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97085-826-0
01
1
9307-
●
75
NUT; CAP,HD COVER
M8 OD=24
8-94173-430-0
03
1
9307-9407
●
75
NUT; CAP,HD COVER
M8 OD=19
8-94158-108-0
03
1
9408-
●
75
NUT; CAP,HD COVER
M8 OD=24
8-94173-430-0
05
1
9307-9411
●
75
NUT; CAP,HD COVER
M8 OD=19
8-94158-108-0
05
1
9412-
●
1
17
103
81
17
16
4
5
75
27
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COVER; CYL HD
8-94360-533-0
01
1
9307-
●
1
COVER; CYL HD
8-97073-860-0
01
1
9307-
●
4
CAP; OIL FILLER
8-94133-207-5
01
1
9307-
●
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40
8-94123-623-1
01
1
9307-
●
●
16
CLIP; CABLE
8-94152-503-0
01
1
9307-
●
17
BOLT; CLIP TO HD COVER
(A) M6X14 W/LK WASHER
0-50040-614-0
01
1
9307-
●
17
BOLT; CLIP TO HD COVER
(B) M6X16 L=25
9-04110-616-0
01
1
9307-
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5
8-94202-456-3
03
1
9307-9407
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=20.0
8-94153-051-0
03
1
9408-9501
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5
8-94202-456-3
03
1
9502-
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5
8-94202-456-3
05
1
9307-9411
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=20.0
8-94153-051-0
05
1
9412-9501
●
27
GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5
8-94202-456-3
05
1
9502-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94214-985-0
01
1
9307-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97085-826-0
01
1
9307-
●
75
NUT; CAP,HD COVER
M8 OD=24
8-94173-430-0
03
1
9307-9407
●
75
NUT; CAP,HD COVER
M8 OD=19
8-94158-108-0
03
1
9408-
●
75
NUT; CAP,HD COVER
M8 OD=24
8-94173-430-0
05
1
9307-9411
●
75
NUT; CAP,HD COVER
M8 OD=19
8-94158-108-0
05
1
9412-
●
81
CLIP; HARNESS
8-94154-026-0
01
1
9307-
●
103
CABLE; BONDING
8-94112-860-0
01
1
9307-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
