Sayfa 8-90 - Isuzu EPC

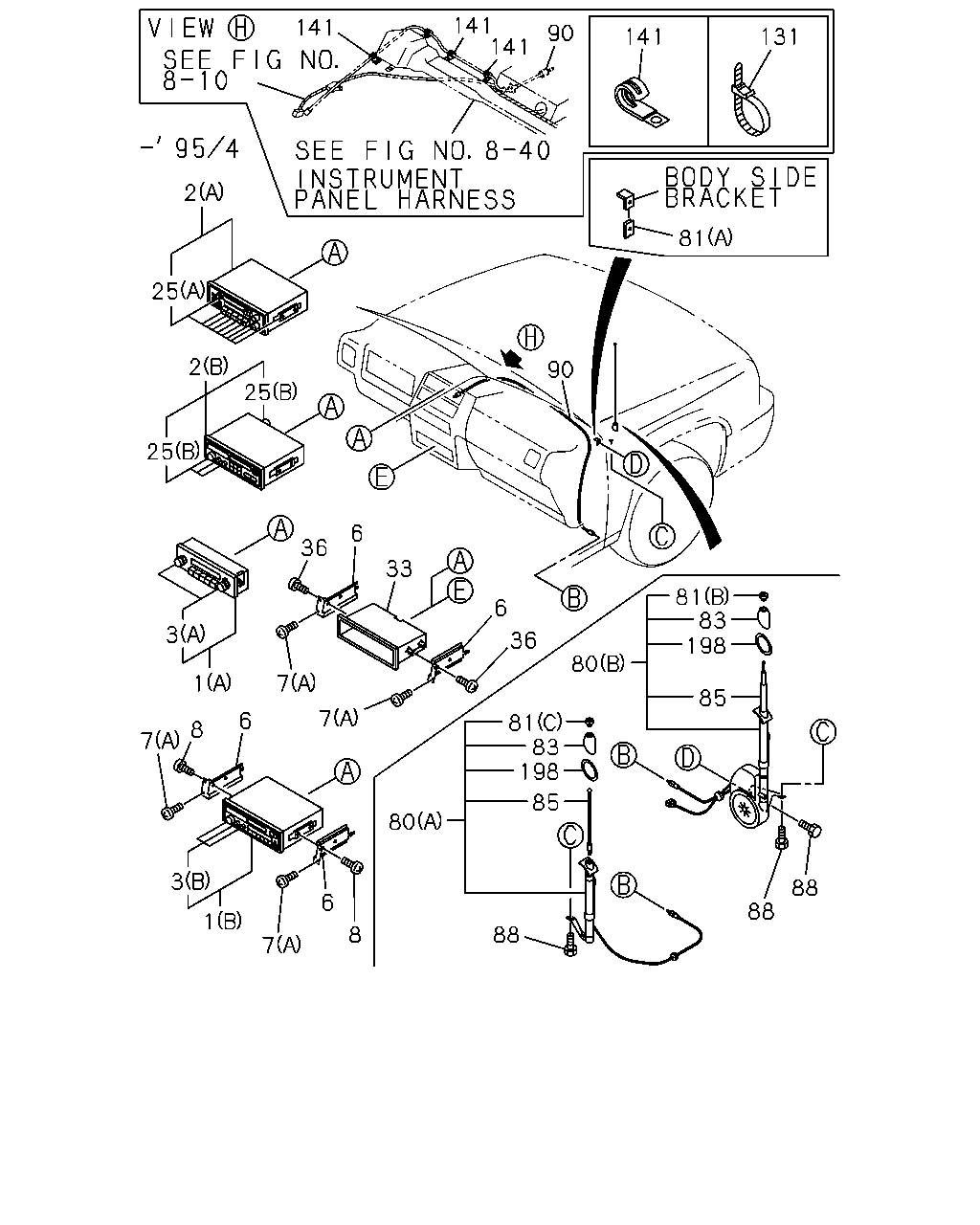

8-90 — RADIO AND TV (#35307) — 137 parça

141 141 141 90 141 131 81 90 2 25 2 25 25 6 36 33 3 1 7 7 6 8 7 3 1 7 6 8 80 88 81 83 198 85 80 6 36 81 83 198 85 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RADIO AM RADIO(U63) (A) NATIONAL	8-94474-070-0	01	1	9112-9208	●	●
1	RADIO AM/FM CASSETTE W/TRAFFIC DECODER(S4R) (A) CLARION	8-97069-109-2	01	1	9112-9504	●	●
2	RADIO & CASSETTE DECK ASM AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B)	8-97070-493-0	01	1	9309-9504	●	●
2	RADIO & CASSETTE DECK ASM AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (C)	8-97125-188-0	01	1	9505-	●	●
2	RADIO & CASSETTE DECK ASM AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3) (A)	8-97018-459-0	01	1	9112-9205	●	●
2	RADIO & CASSETTE DECK ASM AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3) (B)	8-97082-108-0	01	1	9206-9208	●	●
2	RADIO & CASSETTE DECK ASM AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B)	8-97070-493-0	01	1	9209-9308	●	●
2	RADIO & CASSETTE DECK ASM AM/FM W/CASSETTE 4 SPEAKERS(UM6) (B)	8-97069-108-1	01	1	9209-9504	●	●
2	RADIO & CASSETTE DECK ASM AM/FM W/CASSETTE 4 SPEAKERS(UM6) (C)	8-97103-558-0	01	1	9505-	●	●
3	ATTACH KIT; AM/FM RADIO AM RADIO(U63) (A)	8-94326-268-0	01	1	9112-9208	●	●
3	ATTACH KIT; AM/FM RADIO AM/FM CASSETTE W/TRAFFIC DECODER(S4R) (B)	8-97069-221-0	01	1	9112-9504	●	●
6	BRACKET; RADIO TO PANEL	8-94359-616-3	02	1	9112-9504	●	●
6	BRACKET; RADIO TO PANEL CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97102-092-1	01	1	9505-	●	●
6	BRACKET; RADIO TO PANEL EXC. CLUSTER AUDIO DIN 'E' FORM<7LG>	8-97102-092-1	01	1	9505-	●	●
6	BRACKET; RADIO TO PANEL	8-97102-092-1	01	1	9505-	●	●
6	BRACKET; RADIO TO PANEL	8-94359-615-3	02	1	9112-9504	●	●
6	BRACKET; RADIO TO PANEL CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97085-169-1	01	1	9505-	●	●
6	BRACKET; RADIO TO PANEL EXC. CLUSTER AUDIO DIN 'E' FORM<7LG>	8-97085-169-1	01	1	9505-	●	●
6	BRACKET; RADIO TO PANEL	8-97085-169-1	01	1	9505-	●	●
7	SCREW; RADIO (A) M5X16 TAPPING	9-09829-323-1	08	1	9112-9504	●	●
7	SCREW; RADIO CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. 4 SPEAKERS WO/RADIO TYPE<7DX> (A) M5X16 TAPPING	9-09829-323-1	02	1	9505-	●	●
7	SCREW; RADIO EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> (A) M5X16 TAPPING	9-09829-323-1	02	1	9505-	●	●
7	SCREW; RADIO (A) M5X16 TAPPING	9-09829-323-1	02	1	9505-	●	●
7	SCREW; RADIO AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9505-	●	●
8	BOLT; RADIO TO BRKT AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3),AM RADIO(U63) M5X8	8-94182-728-0	04	1	9112-9208	●	●
8	BOLT; RADIO TO BRKT AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) M5X8	8-94182-728-0	04	1	9209-9504	●	●
25	ATTACH KIT; CASSETTE DECK AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B)	8-94381-132-0	01	1	9209-9209	●	●
25	ATTACH KIT; CASSETTE DECK AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B)	8-94381-132-0	01	1	9210-9504	●	●
25	ATTACH KIT; CASSETTE DECK AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (C)	8-97130-980-0	01	1	9505-	●	●
25	ATTACH KIT; CASSETTE DECK AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3) (A)	8-94167-958-0	01	1	9112-9205	●	●
33	COVER; RADIO EXC. AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3),AM RADIO(U63) 44X184	8-94435-504-2	01	1	9112-9208	●	●
33	COVER; RADIO EXC. AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) 44X184	8-94435-504-2	01	1	9209-9504	●	●
33	COVER; RADIO EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),4 SPEAKERS WO/RADIO TYPE<7DX>	8-97066-253-2	01	1	9505-	●	●
33	COVER; RADIO	8-97066-253-2	01	1	9505-	●	●
36	SCREW; COVER EXC. AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3),AM RADIO(U63) M5X14 TAPPING	9-09829-322-1	04	1	9112-9208	●	●
36	SCREW; COVER M5X14 TAPPING	9-09829-322-1	04	1	9112-9208	●	●
36	SCREW; COVER EXC. AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) M5X14 TAPPING	9-09829-322-1	04	1	9209-9504	●	●
36	SCREW; COVER M5X14 TAPPING	9-09829-322-1	04	1	9209-9504	●	●
36	SCREW; COVER EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),4 SPEAKERS WO/RADIO TYPE<7DX> M5X10	8-94428-816-0	04	1	9505-	●	●
36	SCREW; COVER M5X10	8-94428-816-0	04	1	9505-	●	●
80	ANTENNA ANTENNA<U73> (A)	8-97069-106-1	01	1	9112-	●	●
80	ANTENNA POWER ANTENNA<U75> (B)	8-97068-837-2	01	1	9112-9304	●	●
80	ANTENNA POWER ANTENNA<U75> (B)	8-97092-572-1	01	1	9305-9510	●	●
80	ANTENNA POWER ANTENNA<U75> (B)	8-97136-821-0	01	1	9511-9607	●	●
80	ANTENNA POWER ANTENNA<U75> (B)	8-97092-572-1	01	1	9608-9610	●	●
80	ANTENNA POWER ANTENNA<U75> (B)	8-97136-821-0	01	1	9611-	●	●
81	NUT; ANTENNA POLE (A)	8-94334-769-0	01	1	9112-9302	●	●
81	NUT; ANTENNA POLE POWER ANTENNA<U75> (A)	8-94334-769-0	01	1	9303-	●	●
81	NUT; ANTENNA POLE ANTENNA<U73> (C)	8-97072-734-0	01	1	9112-	●	●
81	NUT; ANTENNA POLE POWER ANTENNA<U75> (B)	8-97072-733-0	01	1	9112-	●	●
83	GROMMET; BASE,ANTENNA POLE INNER ANTENNA<U73>	8-97072-729-0	01	1	9112-9304	●	●
83	GROMMET; BASE,ANTENNA POLE INNER POWER ANTENNA<U75>	8-97072-728-0	01	1	9112-9304	●	●
83	GROMMET; BASE,ANTENNA POLE INNER ANTENNA<U73>,POWER ANTENNA<U75>	8-97072-728-0	01	1	9305-	●	●
85	POLE; ANTENNA ANTENNA<U73>	8-97072-735-0	01	1	9112-	●	●
85	POLE; ANTENNA POWER ANTENNA<U75>	8-97087-198-0	01	1	9112-	●	●
88	BOLT; ANTENNA EARTH ANTENNA<U73>,POWER ANTENNA<U75> M6X14	8-94153-946-0	01	1	9112-9209	●	●
88	BOLT; ANTENNA EARTH ANTENNA<U73>,POWER ANTENNA<U75> M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-	●	●
88	BOLT; ANTENNA EARTH POWER ANTENNA<U75> M6X20	8-97025-797-0	01	1	9112-	●	●
90	CABLE; ANTENNA,FEEDER	8-97036-954-5	01	1	9112-9309	●	●
90	CABLE; ANTENNA,FEEDER ANTENNA<U73>,POWER ANTENNA<U75>	8-97036-954-5	01	1	9310-9411	●	●
90	CABLE; ANTENNA,FEEDER ANTENNA<U73>,POWER ANTENNA<U75>	8-97125-244-0	01	1	9412-9504	●	●
90	CABLE; ANTENNA,FEEDER ANTENNA<U73>,POWER ANTENNA<U75>	8-97126-797-2	01	1	9505-	●	●
131	CLIP ANTENNA<U73>,POWER ANTENNA<U75> L=140	5-09707-031-0	02	1	9505-	●	●
141	CLIP; ANTENNA CABLE L=80	5-09700-307-1	03	1	9112-9309	●	●
141	CLIP; ANTENNA CABLE ANTENNA<U73>,POWER ANTENNA<U75> L=80	5-09700-307-1	03	1	9310-9504	●	●
198	SHEET; ANTENNA ANTENNA<U73>	8-97072-732-0	01	1	9112-9304	●	●
198	SHEET; ANTENNA POWER ANTENNA<U75>	8-97072-731-0	01	1	9112-9304	●	●
198	SHEET; ANTENNA ANTENNA<U73>,POWER ANTENNA<U75>	8-97072-731-0	01	1	9305-	●	●

55 221 221 49 59 48 49 55 49 48 49 171 52 52 52 52 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

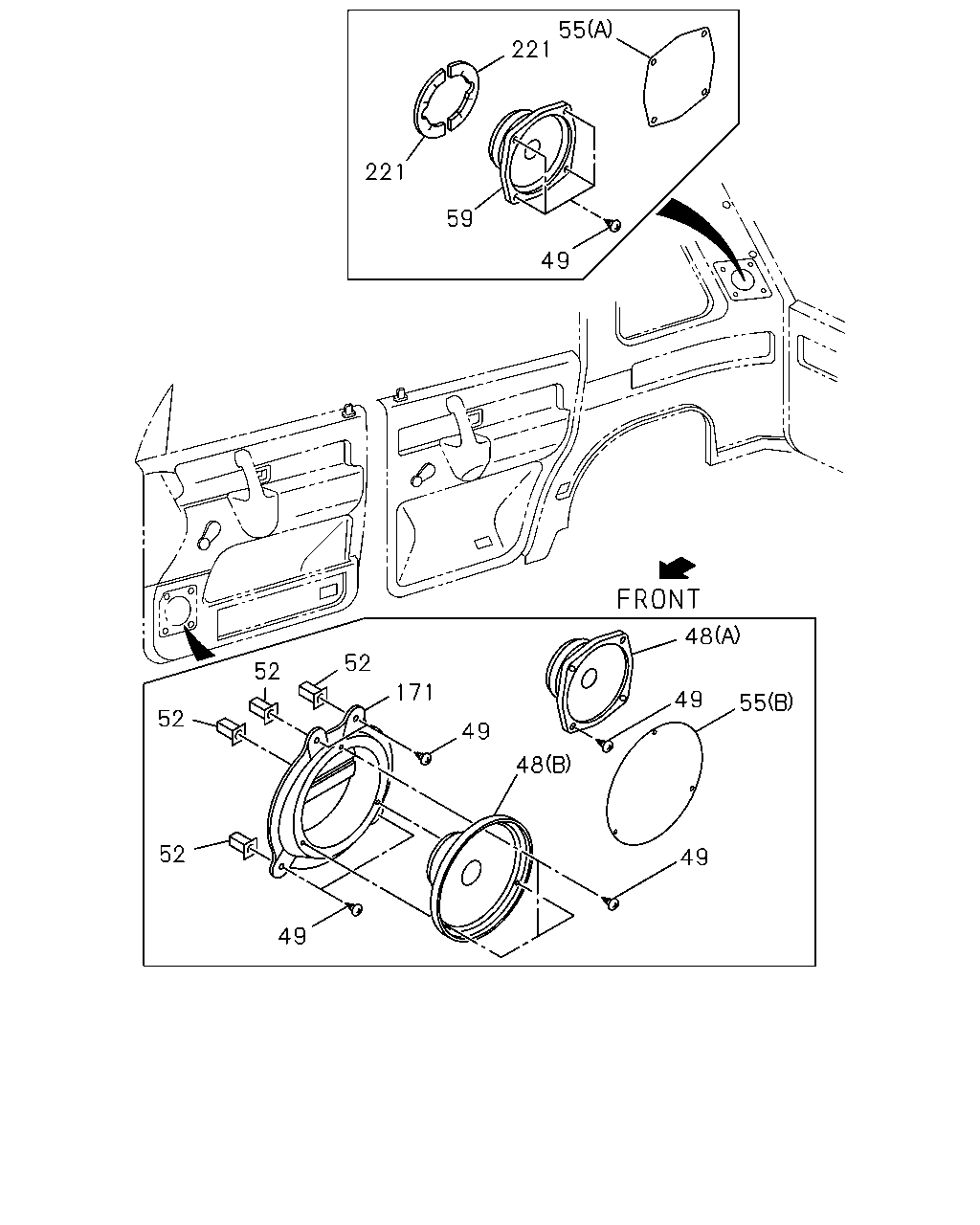

48	SPEAKER; AUDIO AM RADIO(U63) (A)	8-94434-600-0	01	1	9112-9208	●	●
48	SPEAKER; AUDIO AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3) (B)	8-94376-084-1	02	1	9112-9208	●	●
48	SPEAKER; AUDIO AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B)	8-94376-084-1	02	1	9209-9308	●	●
48	SPEAKER; AUDIO AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B)	8-94376-084-1	02	1	9309-9504	●	●
48	SPEAKER; AUDIO 4 SPEAKERS WO/RADIO TYPE<7DX> (B)	8-94376-084-1	02	1	9309-9504	●	●
48	SPEAKER; AUDIO AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B)	8-97109-483-0	02	1	9505-9508	●	●
48	SPEAKER; AUDIO 4 SPEAKERS WO/RADIO TYPE<7DX> (B)	8-97109-483-0	02	1	9505-9508	●	●
48	SPEAKER; AUDIO AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B)	8-97132-159-0	02	1	9509-	●	●
48	SPEAKER; AUDIO 4 SPEAKERS WO/RADIO TYPE<7DX> (B)	8-97132-159-0	02	1	9509-	●	●
49	SCREW; SPEAKER M5X16 TAPPING	9-09829-323-1	22	1	9112-9305	●	●
49	SCREW; SPEAKER M5X16 TAPPING	9-09829-323-1	20	1	9306-9607	●	●
49	SCREW; SPEAKER M5X16 TAPPING	9-09829-323-1	14	1	9608-	●	●
49	SCREW; SPEAKER M5X16 TAPPING	9-09829-323-1	06	1	9608-	●	●
49	SCREW; SPEAKER AM RADIO(U63) M4X12 TAPPING	9-07066-412-0	04	1	9112-9206	●	●
49	SCREW; SPEAKER AM RADIO(U63) M5X12 TAPPING	9-07066-512-0	04	1	9207-9208	●	●
52	GROMMET; SCREW,SPEAKER D=7.8X7.8 L=18 NATURAL	8-94279-043-0	08	1	9112-9305	●	●
52	GROMMET; SCREW,SPEAKER D=7.8X7.8 L=18 NATURAL	8-94279-043-0	06	1	9306-	●	●
55	COVER; SPEAKER HOLE EXC. AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3) (B)	8-94372-840-0	02	1	9112-9208	●	●
55	COVER; SPEAKER HOLE EXC. AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B)	8-94372-840-0	02	1	9209-9308	●	●
55	COVER; SPEAKER HOLE EXC. AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),4 SPEAKERS WO/RADIO TYPE<7DX> (B)	8-94372-840-0	02	1	9309-9504	●	●
55	COVER; SPEAKER HOLE EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),4 SPEAKERS WO/RADIO TYPE<7DX> (B)	8-94372-840-0	02	1	9505-	●	●
55	COVER; SPEAKER HOLE EXC. AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3) (A)	8-97035-686-0	02	1	9112-9208	●	●
55	COVER; SPEAKER HOLE EXC. AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (A)	8-97035-686-0	02	1	9209-9308	●	●
55	COVER; SPEAKER HOLE EXC. AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),4 SPEAKERS WO/RADIO TYPE<7DX> (A)	8-97035-686-0	02	1	9309-9504	●	●
55	COVER; SPEAKER HOLE EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),4 SPEAKERS WO/RADIO TYPE<7DX> (A)	8-97035-686-0	02	1	9505-	●	●
59	SPEAKER; AUDIO AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3)	8-97033-278-1	02	1	9112-9208	●	●
59	SPEAKER; AUDIO AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4)	8-97033-278-1	02	1	9209-9308	●	●
59	SPEAKER; AUDIO AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4)	8-97033-278-1	02	1	9309-9504	●	●
59	SPEAKER; AUDIO 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97033-278-1	02	1	9309-9504	●	●
59	SPEAKER; AUDIO AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4)	8-97109-484-0	02	1	9505-	●	●
59	SPEAKER; AUDIO 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97109-484-0	02	1	9505-	●	●
171	COVER; SPEAKER	8-94376-087-2	02	1	9112-9502	●	●
171	COVER; SPEAKER	8-97130-328-0	02	1	9503-	●	●
221	SEAL; SPEAKER PANEL DUST PROTECTION PACKAGE<7HQ>	8-97811-261-0	04	1	9410-	●	●

103 7 6 7 25 2 7 6 7 36 6 6 36 7 33 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

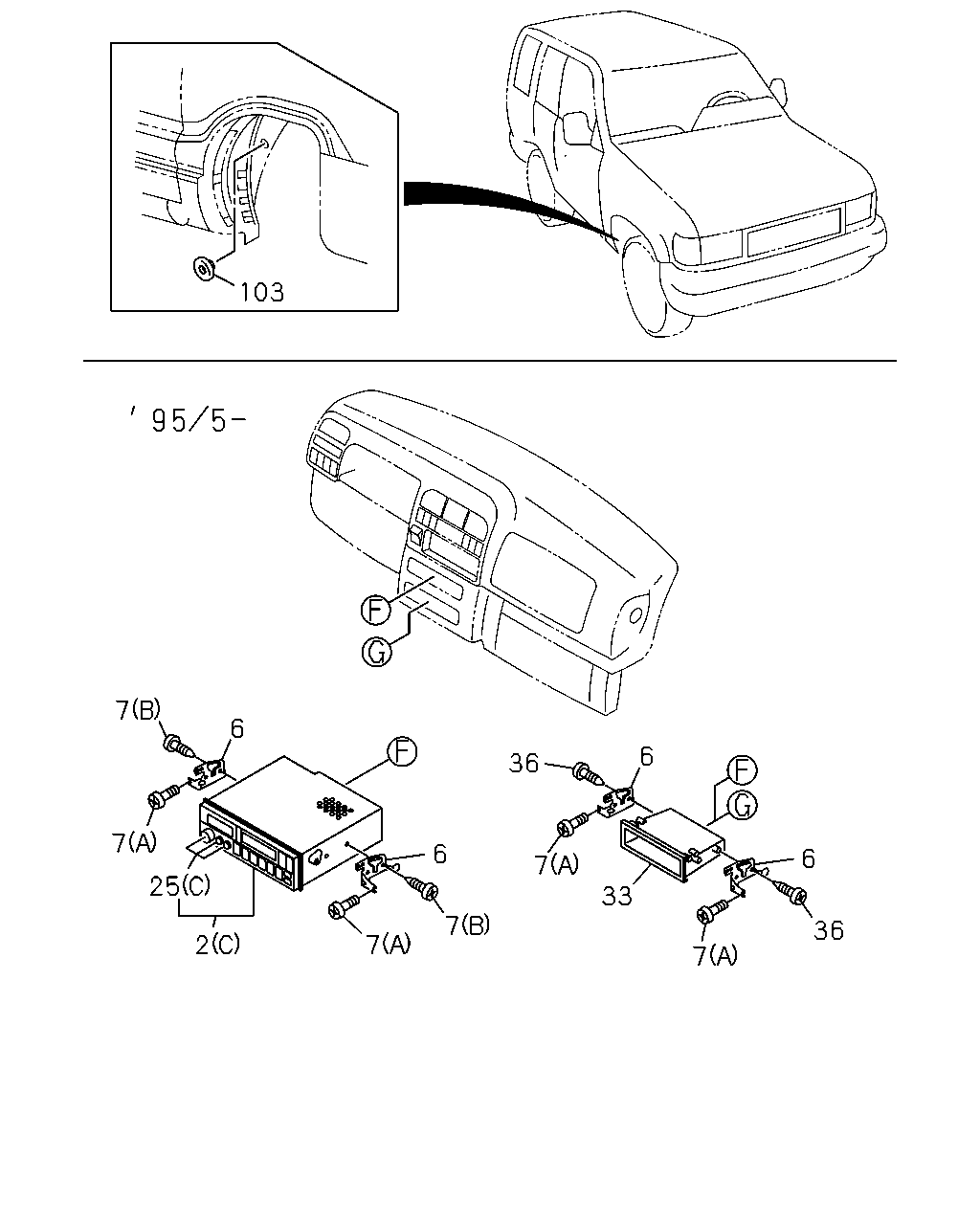

2	RADIO & CASSETTE DECK ASM AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B)	8-97070-493-0	01	1	9309-9504	●	●
2	RADIO & CASSETTE DECK ASM AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (C)	8-97125-188-0	01	1	9505-	●	●
2	RADIO & CASSETTE DECK ASM AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3) (A)	8-97018-459-0	01	1	9112-9205	●	●
2	RADIO & CASSETTE DECK ASM AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3) (B)	8-97082-108-0	01	1	9206-9208	●	●
2	RADIO & CASSETTE DECK ASM AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B)	8-97070-493-0	01	1	9209-9308	●	●
2	RADIO & CASSETTE DECK ASM AM/FM W/CASSETTE 4 SPEAKERS(UM6) (B)	8-97069-108-1	01	1	9209-9504	●	●
2	RADIO & CASSETTE DECK ASM AM/FM W/CASSETTE 4 SPEAKERS(UM6) (C)	8-97103-558-0	01	1	9505-	●	●
6	BRACKET; RADIO TO PANEL	8-94359-616-3	02	1	9112-9504	●	●
6	BRACKET; RADIO TO PANEL CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97102-092-1	01	1	9505-	●	●
6	BRACKET; RADIO TO PANEL EXC. CLUSTER AUDIO DIN 'E' FORM<7LG>	8-97102-092-1	01	1	9505-	●	●
6	BRACKET; RADIO TO PANEL	8-97102-092-1	01	1	9505-	●	●
6	BRACKET; RADIO TO PANEL	8-94359-615-3	02	1	9112-9504	●	●
6	BRACKET; RADIO TO PANEL CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97085-169-1	01	1	9505-	●	●
6	BRACKET; RADIO TO PANEL EXC. CLUSTER AUDIO DIN 'E' FORM<7LG>	8-97085-169-1	01	1	9505-	●	●
6	BRACKET; RADIO TO PANEL	8-97085-169-1	01	1	9505-	●	●
7	SCREW; RADIO (A) M5X16 TAPPING	9-09829-323-1	08	1	9112-9504	●	●
7	SCREW; RADIO CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. 4 SPEAKERS WO/RADIO TYPE<7DX> (A) M5X16 TAPPING	9-09829-323-1	02	1	9505-	●	●
7	SCREW; RADIO EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> (A) M5X16 TAPPING	9-09829-323-1	02	1	9505-	●	●
7	SCREW; RADIO (A) M5X16 TAPPING	9-09829-323-1	02	1	9505-	●	●
7	SCREW; RADIO AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9505-	●	●
25	ATTACH KIT; CASSETTE DECK AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B)	8-94381-132-0	01	1	9209-9209	●	●
25	ATTACH KIT; CASSETTE DECK AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B)	8-94381-132-0	01	1	9210-9504	●	●
25	ATTACH KIT; CASSETTE DECK AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (C)	8-97130-980-0	01	1	9505-	●	●
25	ATTACH KIT; CASSETTE DECK AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3) (A)	8-94167-958-0	01	1	9112-9205	●	●
33	COVER; RADIO EXC. AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3),AM RADIO(U63) 44X184	8-94435-504-2	01	1	9112-9208	●	●
33	COVER; RADIO EXC. AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) 44X184	8-94435-504-2	01	1	9209-9504	●	●
33	COVER; RADIO EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),4 SPEAKERS WO/RADIO TYPE<7DX>	8-97066-253-2	01	1	9505-	●	●
33	COVER; RADIO	8-97066-253-2	01	1	9505-	●	●
36	SCREW; COVER EXC. AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3),AM RADIO(U63) M5X14 TAPPING	9-09829-322-1	04	1	9112-9208	●	●
36	SCREW; COVER M5X14 TAPPING	9-09829-322-1	04	1	9112-9208	●	●
36	SCREW; COVER EXC. AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) M5X14 TAPPING	9-09829-322-1	04	1	9209-9504	●	●
36	SCREW; COVER M5X14 TAPPING	9-09829-322-1	04	1	9209-9504	●	●
36	SCREW; COVER EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),4 SPEAKERS WO/RADIO TYPE<7DX> M5X10	8-94428-816-0	04	1	9505-	●	●
36	SCREW; COVER M5X10	8-94428-816-0	04	1	9505-	●	●
103	GROMMET; ANTENNA HOLE,FRT EXC. ANTENNA<U73>,POWER ANTENNA<U75>	8-94111-420-0	01	1	9112-	●	●
