8-85 — REAR WIPER AND WASHER (#35306) — 53 parça

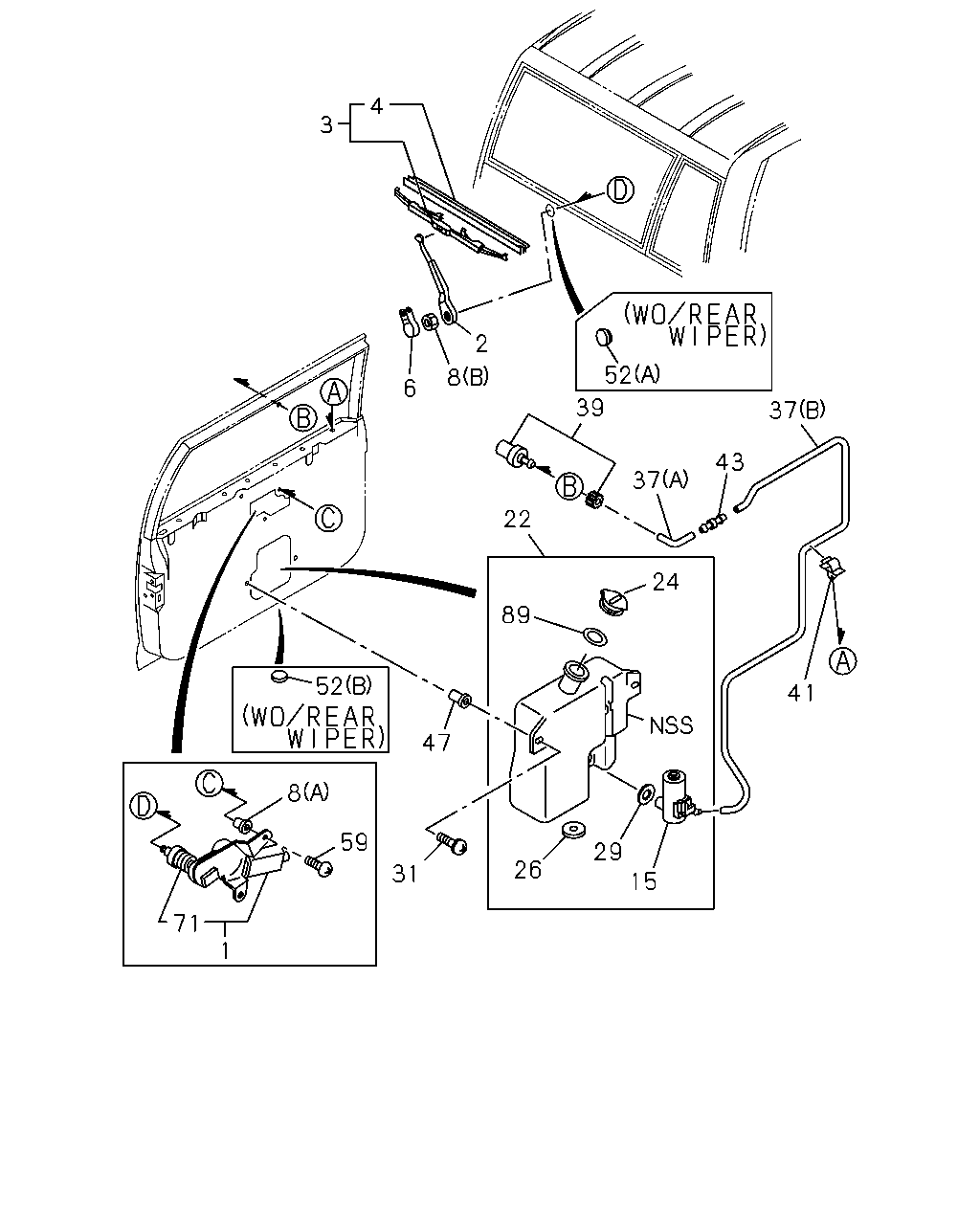

çizim 65628
4 3 2 8 6 52 37 39 43 37 22 24 41 89 47 29 26 15 31 59 8 71 52 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 MOTOR ASM; RR WIPER
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> 		8-94358-870-5 01 1 9112-9504 ● ●
1 MOTOR ASM; RR WIPER
RR WIPER W/INTERMITTENT<6WJ> 		8-94358-870-5 01 1 9505-9605 ● ●
1 MOTOR ASM; RR WIPER
RR WIPER W/INTERMITTENT<6WJ> 		8-97147-216-0 01 1 9606- ● ●
2 ARM ASM; REAR WIPER
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> 		8-94358-865-0 01 1 9112-9208 ● ●
2 ARM ASM; REAR WIPER
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> 		8-97808-697-0 01 1 9209-9504 ● ●
2 ARM ASM; REAR WIPER
RR WIPER W/INTERMITTENT<6WJ> 		8-97808-697-0 01 1 9505- ● ●
3 BLADE ASM; REAR WIPER
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> 		8-94358-867-0 01 1 9112-9504 ● ●
3 BLADE ASM; REAR WIPER
RR WIPER W/INTERMITTENT<6WJ> L=394 		8-97121-982-0 01 1 9505- ● ●
4 RUBBER; BLADE,RR WIPER
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> 		8-97807-716-0 01 1 9112-9504 ● ●
4 RUBBER; BLADE,RR WIPER
RR WIPER W/INTERMITTENT<6WJ> L=378 		8-97122-718-0 01 1 9505- ● ●
6 CLIP; COVER
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> 		8-94358-866-0 01 1 9112-9504 ● ●
6 CLIP; COVER
RR WIPER W/INTERMITTENT<6WJ> 		8-94358-866-0 01 1 9505- ● ●
8 NUT; RR WIPER ARM TO WIPER MOTOR
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> (A) WELL NUT 		8-94311-999-0 02 1 9112-9305 ● ●
8 NUT; RR WIPER ARM TO WIPER MOTOR
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> (A) M6 RUBBER NUT 		8-97023-281-0 02 1 9306-9504 ● ●
8 NUT; RR WIPER ARM TO WIPER MOTOR
RR WIPER W/INTERMITTENT<6WJ> (A) M6 RUBBER NUT 		8-97023-281-0 02 1 9505- ● ●
8 NUT; RR WIPER ARM TO WIPER MOTOR
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> (B) M6 		9-09110-406-0 01 1 9112-9208 ● ●
8 NUT; RR WIPER ARM TO WIPER MOTOR
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> (B) M6 M6 		9-09110-506-0 01 1 9209-9504 ● ●
8 NUT; RR WIPER ARM TO WIPER MOTOR
RR WIPER W/INTERMITTENT<6WJ> (B) M6 		9-09110-406-0 01 1 9505- ● ●
15 MOTOR ASM; RR,WASHER TANK
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> 		8-97016-545-0 01 1 9112-9504 ● ●
15 MOTOR ASM; RR,WASHER TANK
RR WIPER W/INTERMITTENT<6WJ> 		8-97016-545-0 01 1 9505- ● ●
22 TANK ASM; RR WASHER
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> 		8-97807-508-0 01 1 9112-9504 ● ●
22 TANK ASM; RR WASHER
RR WIPER W/INTERMITTENT<6WJ> 		8-97807-508-0 01 1 9505- ● ●
24 CAP; WASHER TANK,RR
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> 		8-97807-504-0 01 1 9112-9504 ● ●
24 CAP; WASHER TANK,RR
RR WIPER W/INTERMITTENT<6WJ> 		8-97807-504-0 01 1 9505- ● ●
26 RUBBER; CUSHION,RR WASHER TANK
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> 		8-97807-503-0 01 1 9112-9504 ● ●
26 RUBBER; CUSHION,RR WASHER TANK
RR WIPER W/INTERMITTENT<6WJ> 		8-97807-503-0 01 1 9505- ● ●
29 GASKET; TANK TO MOTOR
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> 		8-97807-502-0 01 1 9112-9504 ● ●
29 GASKET; TANK TO MOTOR
RR WIPER W/INTERMITTENT<6WJ> 		8-97807-502-0 01 1 9505- ● ●
31 SCREW; RR WASHER TANK TO BODY
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> M6X25 W/PL WASHER 		9-03900-625-0 02 1 9112-9504 ● ●
31 SCREW; RR WASHER TANK TO BODY
RR WIPER W/INTERMITTENT<6WJ> M6X25 W/PL WASHER 		9-03900-625-0 02 1 9505- ● ●
37 HOSE; WASHER TANK,RR
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> (B) L=1550 SERVICED BY L=10000 		8-94389-303-0 01 1 9112-9504 ● ●
37 HOSE; WASHER TANK,RR
RR WIPER W/INTERMITTENT<6WJ> (B) L=1550 SERVICED BY L=10000 		8-94389-303-0 01 1 9505- ● ●
37 HOSE; WASHER TANK,RR
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> (A) 		8-97807-507-0 01 1 9112-9504 ● ●
37 HOSE; WASHER TANK,RR
RR WIPER W/INTERMITTENT<6WJ> (A) 		8-97807-507-0 01 1 9505- ● ●
39 NOZZLE; RR WINDSHIELD,WASHER
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> 		8-94358-869-0 01 1 9112-9504 ● ●
39 NOZZLE; RR WINDSHIELD,WASHER
RR DEFOGGER W/AUTO CANCEL<S4Y> RR WIPER W/INTERMITTENT<6WJ> 		8-94358-869-0 01 1 9505- ● ●
41 CLIP; RR WASHER TANK HOSE
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> EXC. REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97804-783-0 01 1 9112-9504 ● ●
41 CLIP; RR WASHER TANK HOSE
RR WIPER W/INTERMITTENT<6WJ> EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97804-783-0 01 1 9505- ● ●
43 VALVE; CHECK,RR WASHER TANK HOSE
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> 		8-97807-506-0 01 1 9112-9504 ● ●
43 VALVE; CHECK,RR WASHER TANK HOSE
RR WIPER W/INTERMITTENT<6WJ> 		8-97807-506-0 01 1 9505- ● ●
47 NUT; HANGER,RR WIPER
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> WELL NUT 		8-94311-999-0 02 1 9112-9305 ● ●
47 NUT; HANGER,RR WIPER
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> M6 RUBBER NUT 		8-97023-281-0 02 1 9306-9504 ● ●
47 NUT; HANGER,RR WIPER
RR WIPER W/INTERMITTENT<6WJ> M6 RUBBER NUT 		8-97023-281-0 02 1 9505- ● ●
52 PLUG; RR WASHER
EXC. RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> (B) 		8-94186-614-0 01 1 9112-9504 ● ●
52 PLUG; RR WASHER
EXC. RR WIPER W/INTERMITTENT<6WJ> (B) 		8-94186-614-0 01 1 9505- ● ●
52 PLUG; RR WASHER
EXC. RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> (A) 		8-97800-739-0 01 1 9112-9504 ● ●
52 PLUG; RR WASHER
EXC. RR WIPER W/INTERMITTENT<6WJ> (A) 		8-97800-739-0 01 1 9505- ● ●
59 SCREW; REAR WIPER MOTOR
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> M6X25 W/PL WASHER 		9-03900-625-0 02 1 9112-9504 ● ●
59 SCREW; REAR WIPER MOTOR
RR WIPER W/INTERMITTENT<6WJ> M6X25 W/PL WASHER 		9-03900-625-0 02 1 9505- ● ●
71 PARTS ASM; FIXING KITS,RR WIPER PIVOT
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> 		8-97807-635-0 01 1 9112-9504 ● ●
71 PARTS ASM; FIXING KITS,RR WIPER PIVOT
RR WIPER W/INTERMITTENT<6WJ> 		8-97807-635-0 01 1 9505- ● ●
89 GASKET; TANK CAP
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> 		8-97807-505-0 01 1 9112-9504 ● ●
89 GASKET; TANK CAP
RR WIPER W/INTERMITTENT<6WJ> 		8-97807-505-0 01 1 9505- ● ●
