Isuzu WW
▶
SUV
▶
UBS
▶
50659 - UBS-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶
8-80 — WINDSHIELD WIPER AND WASHER
(#35305) — 87 parça
Tümü
A - UBS6VC
B - UBS6VF
◀

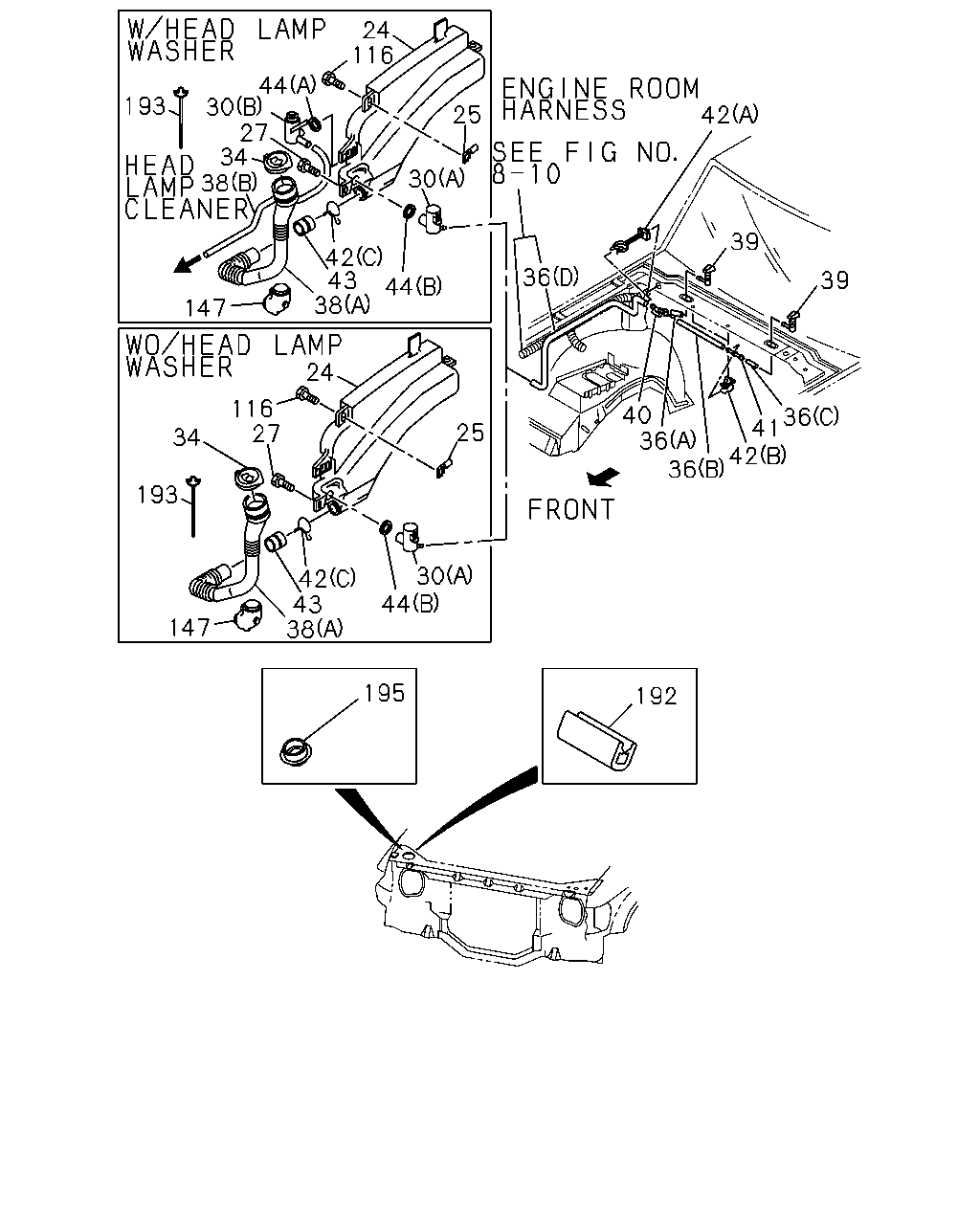

[880A] NO.2 FRONT WIPER (33 parça)
[880A] NO.1 FRONT WASHER (52 parça)
[880A] NO.3 (2 parça)
▶
24
116
44
27
34
30
38
193
25
30
42
43
44
38
147
24
116
25
27
34
193
42
43
38
147
195
44
30
192
40
36
36
42
41
36
39
39
36
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
TANK ASM; WASHER
HEADLAMP WASHER<CE3>
8-97807-517-3
01
1
9112-
●
●
24
TANK ASM; WASHER
EXC. HEADLAMP WASHER<CE3>
8-97807-510-3
01
1
9112-
●
●
25
BRACKET; WASHER TANK
8-97807-513-0
01
1
9112-
●
●
27
BOLT; WASHER TANK
M6X14 W/LK&PL WASHER
8-94382-066-1
02
1
9112-
●
●
30
MOTOR ASM; FRT WASHER TANK
(A)
8-97807-511-0
01
1
9112-
●
●
30
MOTOR ASM; FRT WASHER TANK
HEADLAMP WASHER<CE3> (B)
8-97807-538-0
01
1
9112-9201
●
●
30
MOTOR ASM; FRT WASHER TANK
HEADLAMP WASHER<CE3> (B)
8-97801-456-1
01
1
9202-9208
●
●
30
MOTOR ASM; FRT WASHER TANK
HEADLAMP WASHER<CE3> (B)
8-97807-538-0
01
1
9209-9504
●
●
30
MOTOR ASM; FRT WASHER TANK
HEADLAMP WASHER<CE3> (B)
8-97807-538-0
01
1
9505-
●
●
34
CAP; WASHER TANK
8-97807-514-0
01
1
9112-
●
●
36
HOSE; WASHER
(A) L=155 (B) L=650 (C) L=80 SERVICED BY L=10000
8-94389-303-0
01
1
9112-
●
●
36
HOSE; WASHER
(D) L=1260
8-97808-066-0
01
1
9112-9504
●
●
36
HOSE; WASHER
(D) L=1260
8-97118-916-0
01
1
9505-9607
●
●
36
HOSE; WASHER
(D) L=1260
8-97130-714-0
01
1
9608-
●
●
38
HOSE; JOINT,TANK
(A)
8-94358-854-0
01
1
9112-
●
●
38
HOSE; JOINT,TANK
HEADLAMP WASHER<CE3> (B)
8-97807-636-0
01
1
9112-
●
●
39
NOZZLE; WINDSHIELD WASHER
8-97802-674-0
01
1
9112-
●
●
39
NOZZLE; WINDSHIELD WASHER
8-94358-853-0
01
1
9112-
●
●
40
JOINT; WASHER HOSE
8-97807-498-0
01
1
9112-
●
●
41
VALVE; CHECK,WASHER TANK
8-97807-499-0
01
1
9112-
●
●
42
CLIP; WASHER HOSE
(A) L=46
8-94154-654-1
01
1
9112-
●
●
42
CLIP; WASHER HOSE
(B) ID=5.8 L=8
8-94155-681-0
02
1
9112-
●
●
42
CLIP; WASHER HOSE
(C)
8-97807-516-3
01
1
9112-
●
●
43
RUBBER; GASKET,TANK
8-97807-515-0
01
1
9112-
●
●
44
GASKET; MOTOR TO TANK
(B)
8-97807-512-0
01
1
9112-
●
●
44
GASKET; MOTOR TO TANK
HEADLAMP WASHER<CE3> (A)
8-94352-050-0
01
1
9112-
●
●
116
SCREW; TANK TO BRKT
8-97807-451-0
01
1
9112-
●
●
147
PROTECTOR; WASHER TANK
8-97807-637-0
01
1
9112-
●
●
192
PROTECTOR; EDGE
L=30
8-94366-689-0
01
1
9112-9308
●
●
192
PROTECTOR; EDGE
L=30 L=65
8-94235-856-0
01
1
9309-9403
●
●
193
GAUGE; LEVEL,WASHER TANK
8-97807-982-0
01
1
9112-9504
●
●
195
PROTECTOR; FILLER NECK
8-97803-032-0
01
1
9112-9405
●
●
195
PROTECTOR; FILLER NECK
8-97114-362-0
01
1
9406-
●
●
82
7
10
9
11
9
7
46
5
48
135
135
73
137
56
33
74
111
2
12
12
2
12
3
16
10
10
5
10
11
16
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B

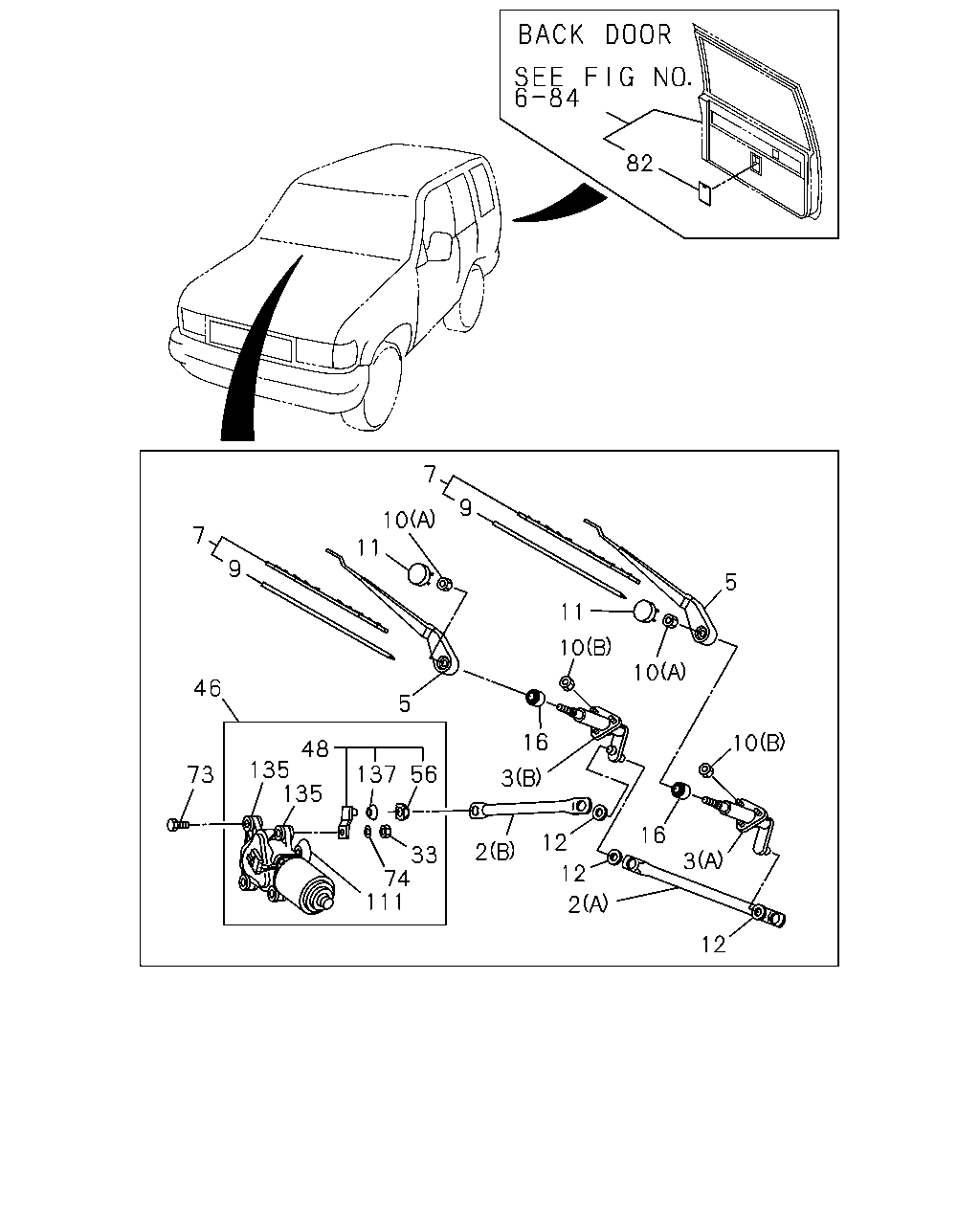

2
LINK; FRT WIPER
(A)
8-97807-519-0
01
1
9112-
●
●
2
LINK; FRT WIPER
(B)
8-97807-523-0
01
1
9112-
●
●
3
PIVOT ASM; FRT WIPER
(A)
8-97807-521-0
01
1
9112-
●
●
3
PIVOT ASM; FRT WIPER
(B)
8-97807-524-0
01
1
9112-
●
●
5
ARM; WIPER
8-94358-846-2
01
1
9112-9208
●
●
5
ARM; WIPER
8-97808-694-1
01
1
9209-9607
●
●
5
ARM; WIPER
EUROPE/CANARY EQUIPMENT(EK4)
8-97808-694-1
01
1
9608-
●
●
5
ARM; WIPER
EUROPE/CANARY EQUIPMENT(EK4)
8-97806-487-3
01
1
9112-9208
●
●
5
ARM; WIPER
EUROPE/CANARY EQUIPMENT(EK4)
8-97808-696-0
01
1
9209-9209
●
●
5
ARM; WIPER
EUROPE/CANARY EQUIPMENT(EK4)
8-97808-970-1
01
1
9210-
●
●
5
ARM; WIPER
EXC. EUROPE/CANARY EQUIPMENT(EK4)
8-94358-844-2
01
1
9112-9208
●
●
5
ARM; WIPER
EXC. EUROPE/CANARY EQUIPMENT(EK4)
8-97808-692-1
01
1
9209-9607
●
●
5
ARM; WIPER
EXC. EUROPE/CANARY EQUIPMENT(EK4)
8-97139-592-1
01
1
9608-
●
●
5
ARM; WIPER
EXC. EUROPE/CANARY EQUIPMENT(EK4)
8-97139-594-1
01
1
9608-
●
●
7
BLADE; WIPER
8-94358-842-2
01
1
9112-9403
●
●
7
BLADE; WIPER
8-97107-559-0
01
1
9404-9508
●
●
7
BLADE; WIPER
L=500
8-97134-560-0
01
1
9509-9607
●
●
7
BLADE; WIPER
EUROPE/CANARY EQUIPMENT(EK4) L=500
8-97134-560-0
01
1
9608-
●
●
7
BLADE; WIPER
8-94358-843-2
01
1
9112-9403
●
●
7
BLADE; WIPER
8-97107-560-0
01
1
9404-9508
●
●
7
BLADE; WIPER
L=500
8-97134-561-0
01
1
9509-9607
●
●
7
BLADE; WIPER
EUROPE/CANARY EQUIPMENT(EK4) L=500
8-97134-561-0
01
1
9608-
●
●
7
BLADE; WIPER
EXC. EUROPE/CANARY EQUIPMENT(EK4) L=500
8-97139-626-0
02
1
9608-
●
●
9
RUBBER; FRT WIPER BLADE
8-97804-039-1
01
1
9112-9403
●
●
9
RUBBER; FRT WIPER BLADE
L=500
8-97807-964-0
01
1
9404-9607
●
●
9
RUBBER; FRT WIPER BLADE
EUROPE/CANARY EQUIPMENT(EK4) L=500
8-97807-964-0
01
1
9608-
●
●
9
RUBBER; FRT WIPER BLADE
8-97804-040-1
01
1
9112-9403
●
●
9
RUBBER; FRT WIPER BLADE
L=500
8-97807-965-0
01
1
9404-9607
●
●
9
RUBBER; FRT WIPER BLADE
EUROPE/CANARY EQUIPMENT(EK4) L=500
8-97807-965-0
01
1
9608-
●
●
9
RUBBER; FRT WIPER BLADE
EXC. EUROPE/CANARY EQUIPMENT(EK4) L=500
8-97178-835-0
02
1
9608-
●
●
10
NUT; WIPER ARM TO WIPER PIVOT
(A) M10 FLANGE
8-94144-220-0
02
1
9112-
●
●
10
NUT; WIPER ARM TO WIPER PIVOT
(B)
8-94380-160-0
06
1
9112-9607
●
●
10
NUT; WIPER ARM TO WIPER PIVOT
(B) M6 W/DISHED WASHER
8-94423-325-0
06
1
9608-
●
●
11
COVER; WIPER ARM
8-94367-999-0
02
1
9112-9607
●
●
11
COVER; WIPER ARM
8-97148-349-0
02
1
9608-
●
●
12
RETAINER; BALL JOINT,FRT WIPER LINK
8-97025-889-0
03
1
9112-
●
●
16
SEAL; BALL JOINT
8-97807-525-0
02
1
9112-
●
●
33
NUT; MOTOR TO ARM
M8
9-09111-408-0
01
1
9112-
●
●
46
MOTOR ASM; FRT WINDSHIELD WIPER
8-97808-112-0
01
1
9112-
●
●
48
ARM; WIPER MOTOR
8-97807-638-0
01
1
9112-
●
●
56
JOINT; OUTER,WIPER MOTOR
8-94323-719-0
01
1
9112-
●
●
73
BOLT
M6X28 W/PL WASHER
8-94148-420-0
04
1
9112-9607
●
●
73
BOLT
M6X33 W/PL WASHER
8-97164-266-0
04
1
9608-
●
●
74
WASHER; ARM TO MOTOR
ID=8.2
9-09150-508-0
01
1
9112-
●
●
82
LID; WASHER TANK
INTERIOR COLOR BROWN(130) DARK BROWN
8-97804-236-2
01
1
9112-9504
●
●
82
LID; WASHER TANK
DARK GRAY
8-97098-644-2
01
1
9505-
●
●
82
LID; WASHER TANK
INTERIOR COLOR GRAY(153) DARK GRAY
8-97804-238-2
01
1
9112-9504
●
●
111
SEAL; FRT WIPER MOTOR TO BRKT
8-94387-086-0
01
1
9112-
●
●
135
RUBBER; CUSHION,WIPER MOTOR
8-97807-640-0
04
1
9112-9208
●
●
135
RUBBER; CUSHION,WIPER MOTOR
8-94387-088-0
01
1
9209-9607
●
●
135
RUBBER; CUSHION,WIPER MOTOR
8-94387-088-0
04
1
9608-
●
●
137
SEAL; JOINT,WIPER MOTOR
8-94167-624-0
01
1
9112-
●
●
194
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B

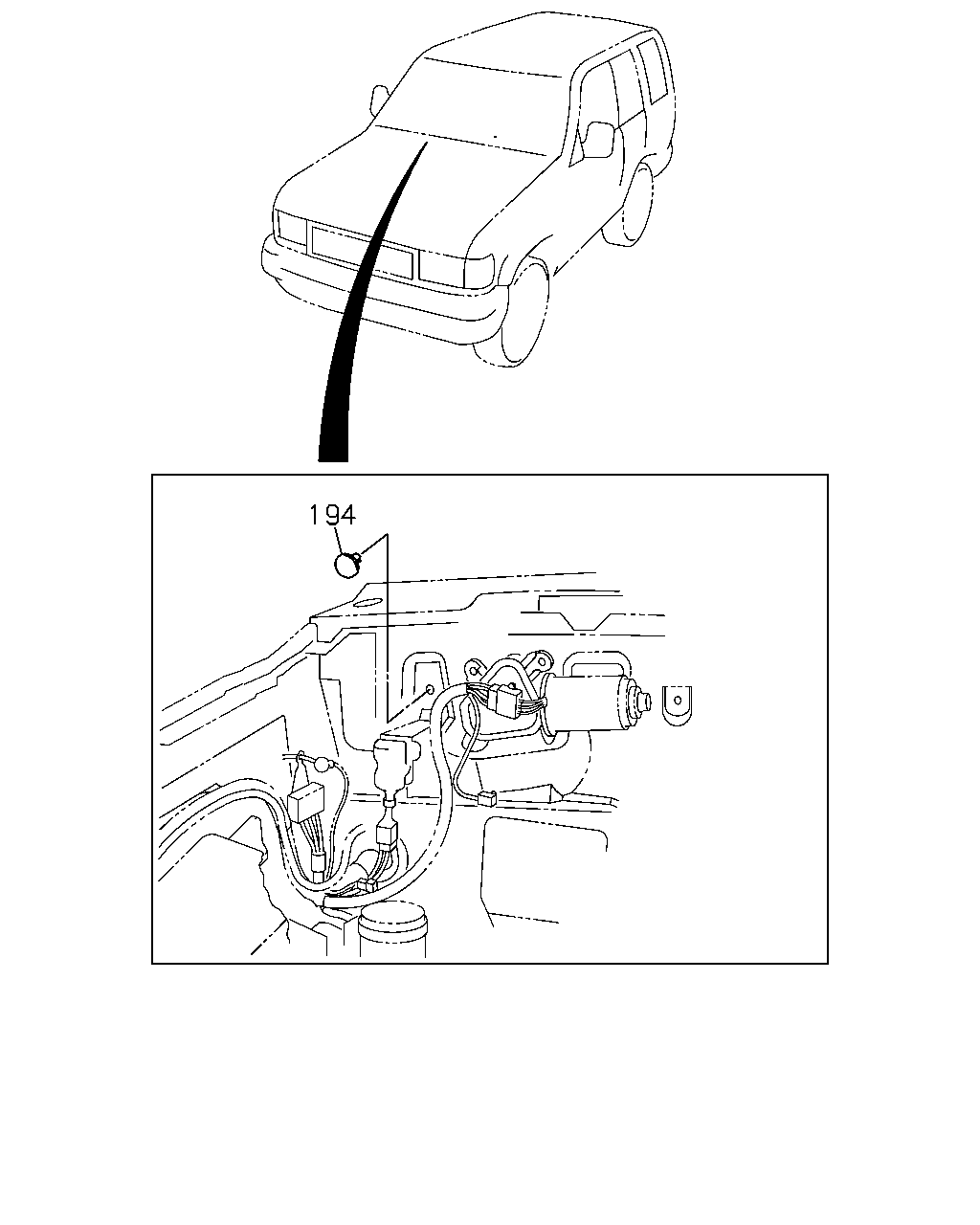

194
PLUG; HOLE,CLIP
6VD1 SOHC ENG(RLU) A/T THM(RMQ) EXC. ANTI THEFT<UA6>
8-97807-966-0
01
1
9112-
●
●
194
PLUG; HOLE,CLIP
ANTI THEFT<UA6>
8-97807-966-0
01
1
9112-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
