Sayfa 8-74 - Isuzu EPC

8-74 — EVAPORATOR (#35303) — 187 parça

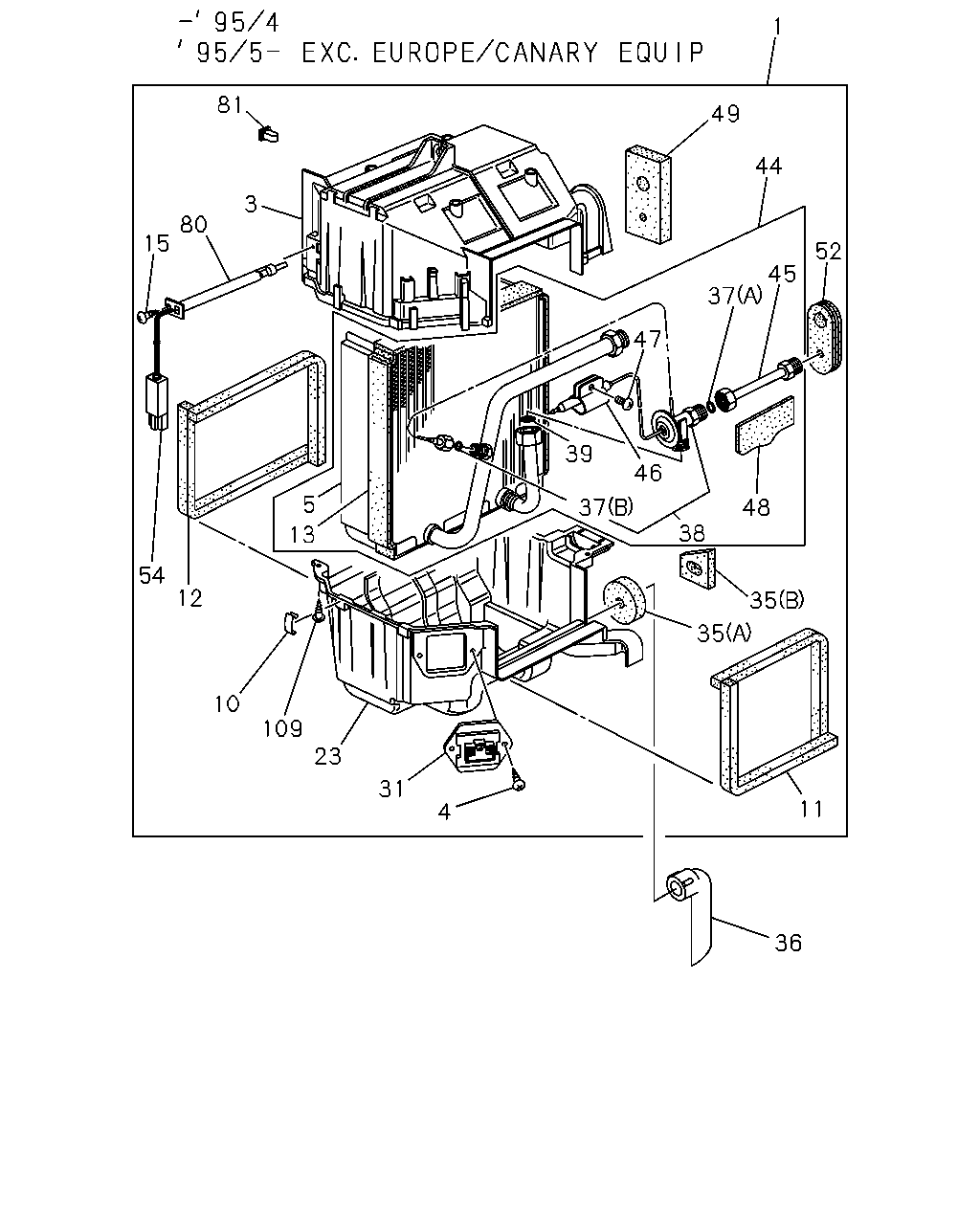

81 3 80 15 54 12 13 5 10 109 23 31 4 36 11 35 35 38 48 46 39 37 47 37 45 52 44 49 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97109-572-3	01	1	9505-	●	●
1	EVAPORATOR ASM 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94380-197-1	01	1	9112-9202	●	●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94380-197-1	01	1	9203-9303	●	●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-850-1	01	1	9304-9401	●	●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97102-682-2	01	1	9402-9410	●	●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97122-764-0	01	1	9411-9504	●	●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) "R-134A"	8-97122-764-1	01	1	9505-	●	●
1	EVAPORATOR ASM 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-093-1	01	1	9112-9202	●	●
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97111-780-2	01	1	9505-	●	●
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-485-0	01	1	9112-9401	●	●
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97107-603-1	01	1	9402-9504	●	●
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97107-603-1	01	1	9505-	●	●
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4) M4X16	8-94324-850-0	02	1	9505-9607	●	●
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4) M4X16	8-94324-850-0	02	1	9608-	●	●
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94248-807-0	02	1	9112-9504	●	●
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94248-807-0	02	1	9505-	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97124-434-0	01	1	9505-9602	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97143-353-0	01	1	9603-	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-488-0	01	1	9112-9504	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97046-488-0	01	1	9505-9602	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97143-352-0	01	1	9603-	●	●
10	CLIP; EVAP CASE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	1-83574-148-0	03	1	9112-9504	●	●
10	CLIP; EVAP CASE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4)	1-83574-148-0	03	1	9505-	●	●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-804-0	02	1	9112-9307	●	●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97105-793-0	01	1	9308-9401	●	●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97103-724-0	01	1	9402-9504	●	●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60)	8-97103-724-0	01	1	9505-	●	●
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-805-0	02	1	9112-9307	●	●
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97105-794-0	01	1	9308-9401	●	●
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97103-723-0	01	1	9402-9504	●	●
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-723-0	01	1	9505-	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97111-792-0	01	1	9505-	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4) (B) SERVICED BY L=665	8-97111-793-0	01	1	9505-	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) T=5.0	8-97069-402-0	01	1	9112-9504	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) T=5.0	8-97069-402-0	01	1	9505-	●	●
15	SCREW; BRKT TO CASE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M4X16	8-94324-850-0	01	1	9112-9307	●	●
15	SCREW; BRKT TO CASE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M4X16	8-94324-850-0	04	1	9308-9308	●	●
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97111-799-0	01	1	9505-	●	●
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-486-1	01	1	9112-9504	●	●
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97046-486-1	01	1	9505-	●	●
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97083-136-1	01	1	9505-	●	●
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97078-452-0	01	1	9112-9504	●	●
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97078-452-1	01	1	9505-	●	●
35	GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97069-405-1	01	1	9112-9504	●	●
35	GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60) (A)	8-97069-405-2	01	1	9505-	●	●
35	GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97069-407-0	01	1	9112-9307	●	●
36	HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97034-121-1	01	1	9112-9504	●	●
36	HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97034-121-1	01	1	9505-9511	●	●
36	HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97140-076-0	01	1	9512-	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) ID=4.5	8-94248-212-0	01	1	9112-9308	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) ID=6	8-94481-700-0	01	1	9112-9504	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) ID=6	8-94481-700-0	01	1	9505-	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94327-421-0	01	1	9112-9303	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-275-0	01	1	9304-9401	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97112-753-0	01	1	9402-9504	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97112-753-0	01	1	9505-9602	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-97143-242-0	01	1	9603-	●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94481-717-0	01	1	9112-9504	●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9505-	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97127-461-0	01	1	9505-9602	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97143-362-0	01	1	9603-	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-487-0	01	1	9209-9303	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97095-627-1	01	1	9304-9410	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97126-123-0	01	1	9411-9504	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) "R-134A"	8-97126-123-0	01	1	9505-9602	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97143-361-0	01	1	9603-	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97124-432-0	01	1	9505-	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-489-0	01	1	9112-9504	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97046-489-0	01	1	9505-	●	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4) ID=8X2	8-94344-881-1	01	1	9505-	●	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	1-83574-124-0	01	1	9112-9504	●	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4)	1-83574-124-1	01	1	9505-	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M5X14	8-94244-002-0	01	1	9112-9504	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9505-9602	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	9603-	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	5-83579-024-0	01	1	9112-9307	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97105-792-0	01	1	9308-9401	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97103-725-0	01	1	9402-9504	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-725-0	01	1	9505-	●	●
49	GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97069-404-1	01	1	9112-9504	●	●
49	GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	9505-	●	●
52	GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-801-0	01	1	9112-9504	●	●
52	GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60)	8-94324-801-0	01	1	9505-	●	●
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97125-393-0	01	1	9505-9602	●	●
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97123-946-0	01	1	9603-	●	●
54	THERMOSTAT; A/C 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-491-0	01	1	9112-9202	●	●
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-491-0	01	1	9203-9303	●	●
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97087-577-0	01	1	9304-9504	●	●
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) "R-134A"	8-97087-577-0	01	1	9505-	●	●
54	THERMOSTAT; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94387-717-0	01	1	9112-9202	●	●
80	BRACKET AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-494-0	01	1	9112-9307	●	●
81	CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94481-724-0	01	1	9308-9504	●	●
81	CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	9505-	●	●
109	BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4) M4X16	8-94324-850-0	06	1	9608-	●	●
109	BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M4X16	8-94324-850-0	04	1	9112-9307	●	●
109	BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M4X16	8-94324-850-0	04	1	9309-9504	●	●
109	BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) M4X16	8-94324-850-0	04	1	9505-	●	●

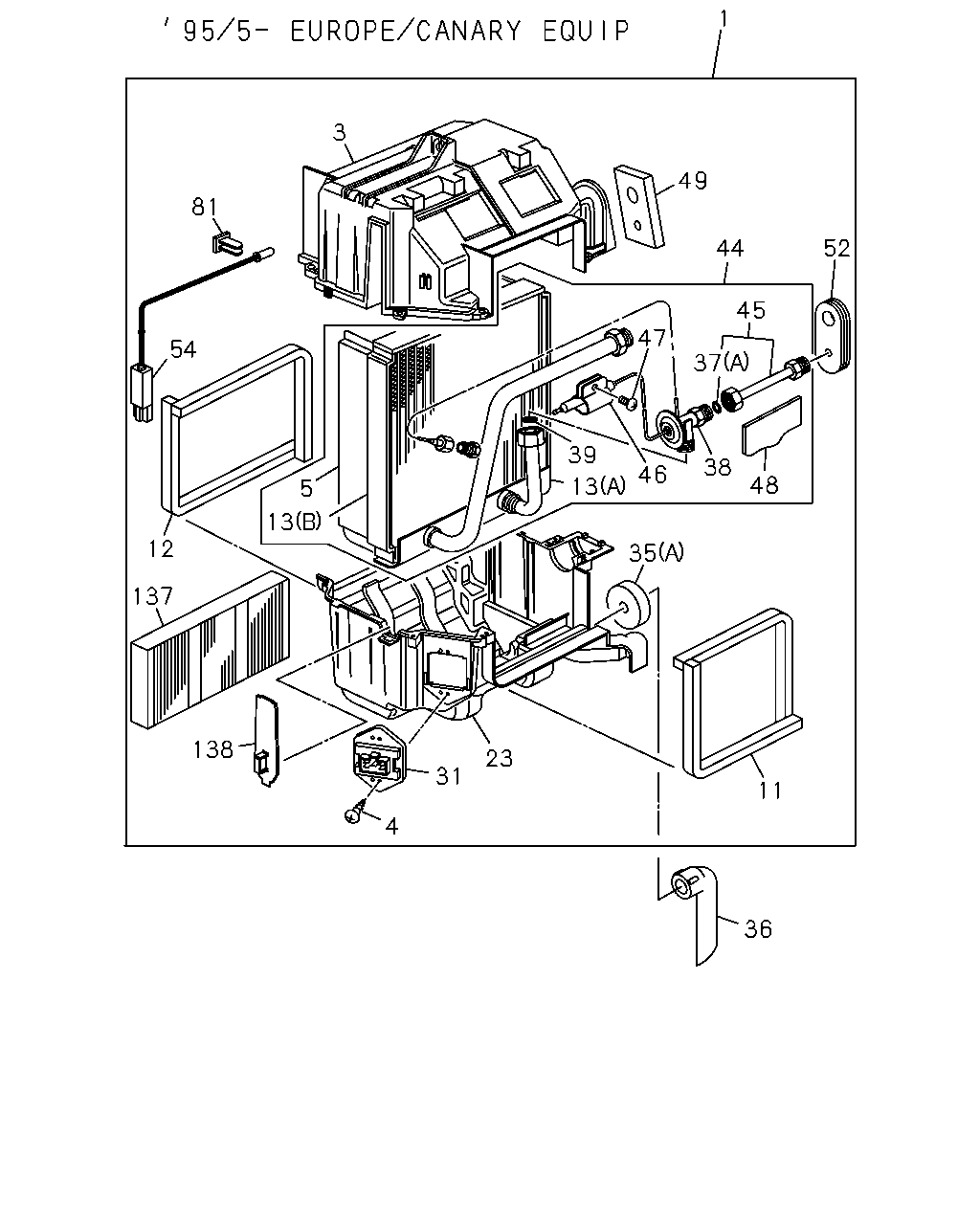

1 3 81 54 5 13 12 137 138 4 31 23 36 11 35 13 39 46 38 48 37 47 45 44 52 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97109-572-3	01	1	9505-	●	●
1	EVAPORATOR ASM 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94380-197-1	01	1	9112-9202	●	●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94380-197-1	01	1	9203-9303	●	●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-850-1	01	1	9304-9401	●	●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97102-682-2	01	1	9402-9410	●	●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97122-764-0	01	1	9411-9504	●	●
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) "R-134A"	8-97122-764-1	01	1	9505-	●	●
1	EVAPORATOR ASM 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-093-1	01	1	9112-9202	●	●
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97111-780-2	01	1	9505-	●	●
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-485-0	01	1	9112-9401	●	●
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97107-603-1	01	1	9402-9504	●	●
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97107-603-1	01	1	9505-	●	●
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4) M4X16	8-94324-850-0	02	1	9505-9607	●	●
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4) M4X16	8-94324-850-0	02	1	9608-	●	●
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94248-807-0	02	1	9112-9504	●	●
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94248-807-0	02	1	9505-	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97124-434-0	01	1	9505-9602	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97143-353-0	01	1	9603-	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-488-0	01	1	9112-9504	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97046-488-0	01	1	9505-9602	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97143-352-0	01	1	9603-	●	●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-804-0	02	1	9112-9307	●	●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97105-793-0	01	1	9308-9401	●	●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97103-724-0	01	1	9402-9504	●	●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60)	8-97103-724-0	01	1	9505-	●	●
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-805-0	02	1	9112-9307	●	●
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97105-794-0	01	1	9308-9401	●	●
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97103-723-0	01	1	9402-9504	●	●
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-723-0	01	1	9505-	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97111-792-0	01	1	9505-	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4) (B) SERVICED BY L=665	8-97111-793-0	01	1	9505-	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) T=5.0	8-97069-402-0	01	1	9112-9504	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) T=5.0	8-97069-402-0	01	1	9505-	●	●
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97111-799-0	01	1	9505-	●	●
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-486-1	01	1	9112-9504	●	●
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97046-486-1	01	1	9505-	●	●
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97083-136-1	01	1	9505-	●	●
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97078-452-0	01	1	9112-9504	●	●
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97078-452-1	01	1	9505-	●	●
35	GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97069-405-1	01	1	9112-9504	●	●
35	GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60) (A)	8-97069-405-2	01	1	9505-	●	●
35	GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97069-407-0	01	1	9112-9307	●	●
36	HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97034-121-1	01	1	9112-9504	●	●
36	HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97034-121-1	01	1	9505-9511	●	●
36	HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97140-076-0	01	1	9512-	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) ID=4.5	8-94248-212-0	01	1	9112-9308	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) ID=6	8-94481-700-0	01	1	9112-9504	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) ID=6	8-94481-700-0	01	1	9505-	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94327-421-0	01	1	9112-9303	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-275-0	01	1	9304-9401	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97112-753-0	01	1	9402-9504	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97112-753-0	01	1	9505-9602	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-97143-242-0	01	1	9603-	●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94481-717-0	01	1	9112-9504	●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9505-	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97127-461-0	01	1	9505-9602	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97143-362-0	01	1	9603-	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-487-0	01	1	9209-9303	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97095-627-1	01	1	9304-9410	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97126-123-0	01	1	9411-9504	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) "R-134A"	8-97126-123-0	01	1	9505-9602	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97143-361-0	01	1	9603-	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97124-432-0	01	1	9505-	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-489-0	01	1	9112-9504	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97046-489-0	01	1	9505-	●	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4) ID=8X2	8-94344-881-1	01	1	9505-	●	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	1-83574-124-0	01	1	9112-9504	●	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4)	1-83574-124-1	01	1	9505-	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M5X14	8-94244-002-0	01	1	9112-9504	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9505-9602	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	9603-	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	5-83579-024-0	01	1	9112-9307	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97105-792-0	01	1	9308-9401	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97103-725-0	01	1	9402-9504	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-725-0	01	1	9505-	●	●
49	GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97069-404-1	01	1	9112-9504	●	●
49	GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	9505-	●	●
52	GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-801-0	01	1	9112-9504	●	●
52	GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60)	8-94324-801-0	01	1	9505-	●	●
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97125-393-0	01	1	9505-9602	●	●
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97123-946-0	01	1	9603-	●	●
54	THERMOSTAT; A/C 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-491-0	01	1	9112-9202	●	●
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-491-0	01	1	9203-9303	●	●
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97087-577-0	01	1	9304-9504	●	●
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) "R-134A"	8-97087-577-0	01	1	9505-	●	●
54	THERMOSTAT; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94387-717-0	01	1	9112-9202	●	●
81	CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94481-724-0	01	1	9308-9504	●	●
81	CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	9505-	●	●
137	FILTER; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97111-788-0	02	1	9505-	●	●
138	COVER; CASE AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4)	8-97111-790-0	01	1	9505-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
