8-73 — BLOWER UNIT (#35302) — 88 parça

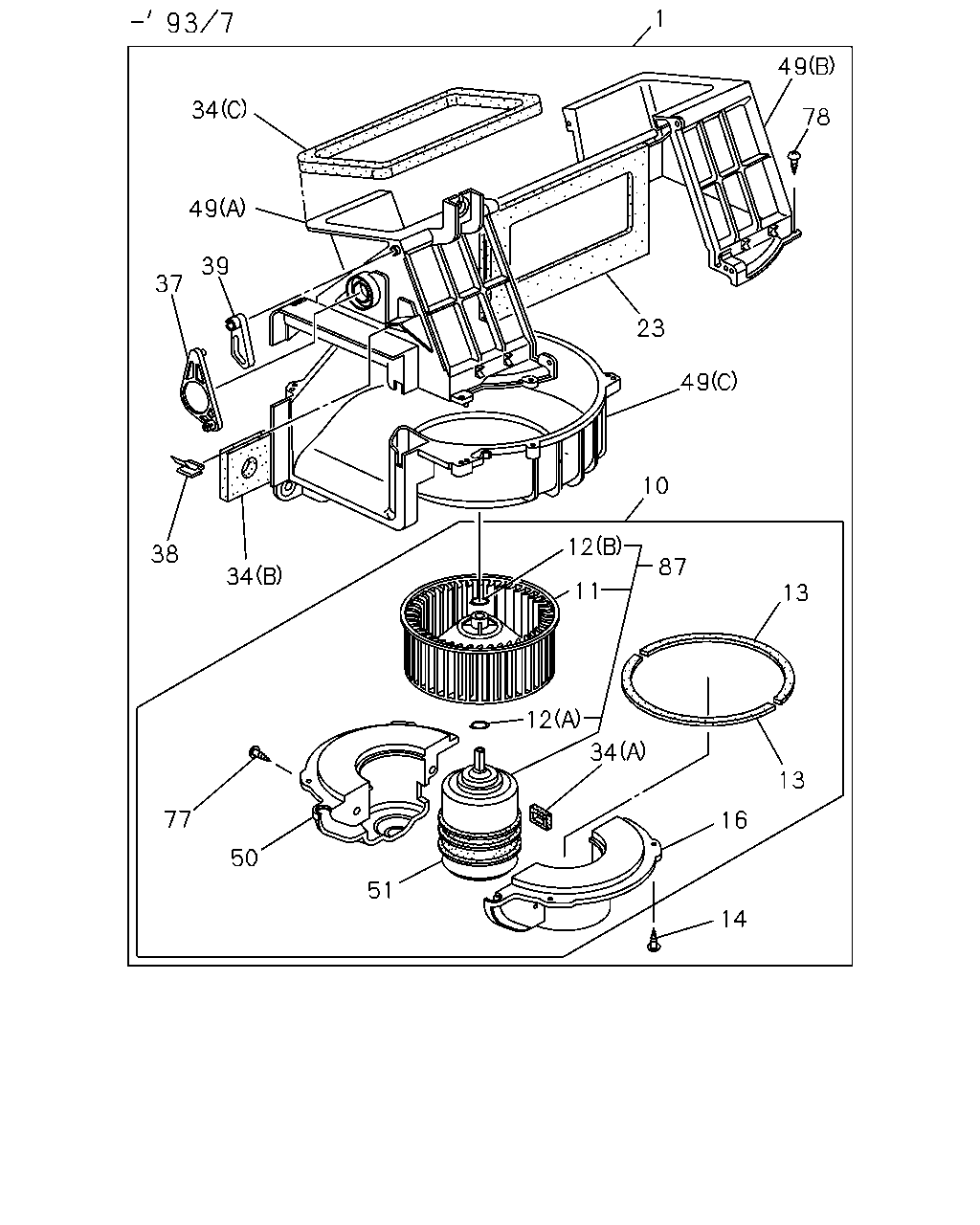

1 49 78 23 49 10 12 87 11 13 13 16 14 34 12 51 50 77 34 38 37 39 49 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOWER ASM HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-104-4	01	1	9112-9308	●	●
1	BLOWER ASM HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-104-4	01	1	9309-9401	●	●
1	BLOWER ASM HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97102-681-1	01	1	9402-9504	●	●
1	BLOWER ASM	8-97102-681-1	01	1	9505-	●	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-497-0	01	1	9112-9208	●	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-497-1	01	1	9209-9307	●	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97103-727-0	01	1	9308-9504	●	●
10	MOTOR ASM; FAN,BLOWER UNIT	8-97103-727-0	01	1	9505-	●	●
11	IMPELLER; FAN MOTOR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-812-0	01	1	9112-9302	●	●
11	IMPELLER; FAN MOTOR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97096-067-0	01	1	9303-9504	●	●
11	IMPELLER; FAN MOTOR	8-97096-067-0	01	1	9505-	●	●
12	RING; SNAP,FAN MOTOR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	5-83569-088-0	01	1	9112-9307	●	●
12	RING; SNAP,FAN MOTOR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-94243-962-0	01	1	9112-9504	●	●
12	RING; SNAP,FAN MOTOR (B)	8-94243-962-0	01	1	9505-	●	●
13	LINING; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-816-0	02	1	9112-9504	●	●
13	LINING; BLOWER UNIT	8-94324-816-0	02	1	9505-	●	●
14	SCREW; COVER TO CASE HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M5X16	8-94248-820-0	04	1	9112-9504	●	●
14	SCREW; COVER TO CASE M5X16	8-94248-820-0	04	1	9505-	●	●
16	COVER; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-814-0	01	1	9112-9307	●	●
23	SHUTTER; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97072-039-0	01	1	9112-9504	●	●
23	SHUTTER; BLOWER UNIT	8-97072-039-0	01	1	9505-	●	●
34	LINING; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97027-786-0	01	1	9112-9307	●	●
34	LINING; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C)	8-97069-409-0	01	1	9112-9307	●	●
34	LINING; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97069-410-0	01	1	9112-9307	●	●
34	LINING; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C)	8-94327-437-0	01	1	9308-9504	●	●
34	LINING; BLOWER UNIT (C)	8-94327-437-0	01	1	9505-	●	●
37	LEVER; MODE LEVER HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-819-1	01	1	9112-9504	●	●
37	LEVER; MODE LEVER	8-94324-819-1	01	1	9505-	●	●
38	CLIP; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94337-654-0	01	1	9112-9504	●	●
38	CLIP; BLOWER UNIT	8-94337-654-0	01	1	9505-	●	●
39	LEVER; SHUTTER,BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-820-0	01	1	9112-9504	●	●
39	LEVER; SHUTTER,BLOWER UNIT	8-94324-820-0	01	1	9505-	●	●
49	CASE; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-94324-808-4	01	1	9112-9504	●	●
49	CASE; BLOWER UNIT (A)	8-94324-808-4	01	1	9505-	●	●
49	CASE; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-94324-809-1	01	1	9112-9504	●	●
49	CASE; BLOWER UNIT (B)	8-94324-809-1	01	1	9505-	●	●
49	CASE; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C)	8-94324-810-4	01	1	9112-9504	●	●
49	CASE; BLOWER UNIT (C)	8-94324-810-4	01	1	9505-	●	●
50	COVER; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-813-0	01	1	9112-9307	●	●
51	ISOLATOR; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-815-0	01	1	9112-9307	●	●
77	SCREW; COVER TO COVER,BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M5X16	8-94248-820-0	02	1	9112-9307	●	●
78	SCREW; CASE TO CASE HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M4X16	8-94324-850-0	10	1	9112-9504	●	●
78	SCREW; CASE TO CASE M4X16	8-94324-850-0	10	1	9505-	●	●
87	MOTOR ASM; FAN HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97069-411-1	01	1	9112-9307	●	●
87	MOTOR ASM; FAN HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97106-492-0	01	1	9308-9504	●	●
87	MOTOR ASM; FAN	8-97106-492-0	01	1	9505-	●	●

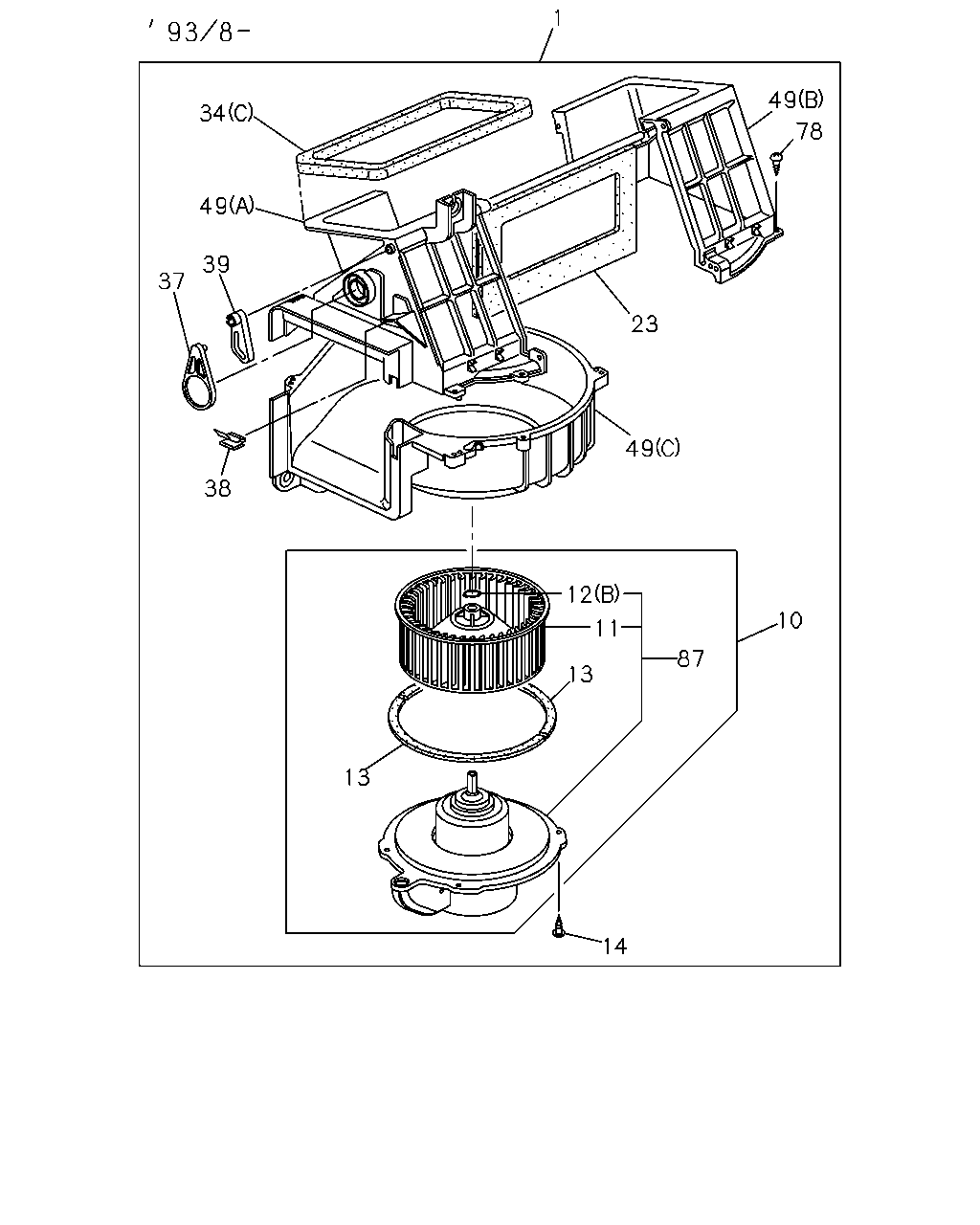

1 49 78 23 49 34 49 39 37 38 12 11 13 87 10 14 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOWER ASM HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-104-4	01	1	9112-9308	●	●
1	BLOWER ASM HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-104-4	01	1	9309-9401	●	●
1	BLOWER ASM HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97102-681-1	01	1	9402-9504	●	●
1	BLOWER ASM	8-97102-681-1	01	1	9505-	●	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-497-0	01	1	9112-9208	●	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-497-1	01	1	9209-9307	●	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97103-727-0	01	1	9308-9504	●	●
10	MOTOR ASM; FAN,BLOWER UNIT	8-97103-727-0	01	1	9505-	●	●
11	IMPELLER; FAN MOTOR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-812-0	01	1	9112-9302	●	●
11	IMPELLER; FAN MOTOR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97096-067-0	01	1	9303-9504	●	●
11	IMPELLER; FAN MOTOR	8-97096-067-0	01	1	9505-	●	●
12	RING; SNAP,FAN MOTOR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	5-83569-088-0	01	1	9112-9307	●	●
12	RING; SNAP,FAN MOTOR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-94243-962-0	01	1	9112-9504	●	●
12	RING; SNAP,FAN MOTOR (B)	8-94243-962-0	01	1	9505-	●	●
13	LINING; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-816-0	02	1	9112-9504	●	●
13	LINING; BLOWER UNIT	8-94324-816-0	02	1	9505-	●	●
14	SCREW; COVER TO CASE HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M5X16	8-94248-820-0	04	1	9112-9504	●	●
14	SCREW; COVER TO CASE M5X16	8-94248-820-0	04	1	9505-	●	●
23	SHUTTER; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97072-039-0	01	1	9112-9504	●	●
23	SHUTTER; BLOWER UNIT	8-97072-039-0	01	1	9505-	●	●
34	LINING; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97027-786-0	01	1	9112-9307	●	●
34	LINING; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C)	8-97069-409-0	01	1	9112-9307	●	●
34	LINING; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97069-410-0	01	1	9112-9307	●	●
34	LINING; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C)	8-94327-437-0	01	1	9308-9504	●	●
34	LINING; BLOWER UNIT (C)	8-94327-437-0	01	1	9505-	●	●
37	LEVER; MODE LEVER HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-819-1	01	1	9112-9504	●	●
37	LEVER; MODE LEVER	8-94324-819-1	01	1	9505-	●	●
38	CLIP; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94337-654-0	01	1	9112-9504	●	●
38	CLIP; BLOWER UNIT	8-94337-654-0	01	1	9505-	●	●
39	LEVER; SHUTTER,BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-820-0	01	1	9112-9504	●	●
39	LEVER; SHUTTER,BLOWER UNIT	8-94324-820-0	01	1	9505-	●	●
49	CASE; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-94324-808-4	01	1	9112-9504	●	●
49	CASE; BLOWER UNIT (A)	8-94324-808-4	01	1	9505-	●	●
49	CASE; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-94324-809-1	01	1	9112-9504	●	●
49	CASE; BLOWER UNIT (B)	8-94324-809-1	01	1	9505-	●	●
49	CASE; BLOWER UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C)	8-94324-810-4	01	1	9112-9504	●	●
49	CASE; BLOWER UNIT (C)	8-94324-810-4	01	1	9505-	●	●
78	SCREW; CASE TO CASE HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M4X16	8-94324-850-0	10	1	9112-9504	●	●
78	SCREW; CASE TO CASE M4X16	8-94324-850-0	10	1	9505-	●	●
87	MOTOR ASM; FAN HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97069-411-1	01	1	9112-9307	●	●
87	MOTOR ASM; FAN HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97106-492-0	01	1	9308-9504	●	●
87	MOTOR ASM; FAN	8-97106-492-0	01	1	9505-	●	●
