◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-70 - AIR CONDITIONING VENTILATION UNIT ▶
8-70 — AIR CONDITIONING VENTILATION UNIT (#35300) — 47 parça

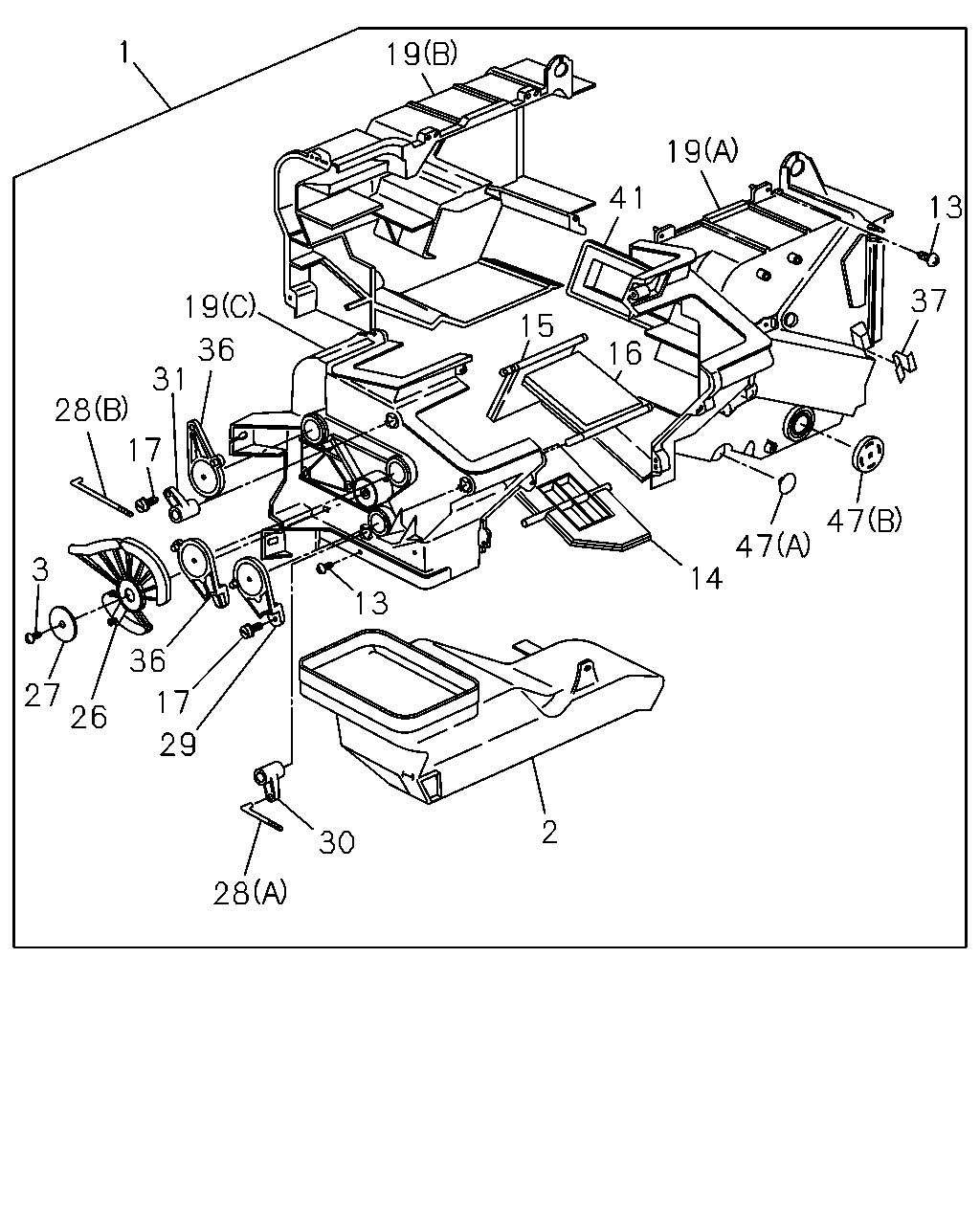

çizim 67113
1 19 19 41 13 37 47 47 14 16 15 19 36 31 28 17 3 27 26 36 17 29 30 28 13 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94473-796-3 01 1 9112-9504 ● ●
1 VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94473-796-3 01 1 9505- ● ●
2 DUCT; VENTILATOR
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94324-831-1 01 1 9112-9504 ● ●
2 DUCT; VENTILATOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-831-1 01 1 9505- ● ●
3 SCREW; LEVER
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) M5X16 		8-94248-820-0 01 1 9112-9504 ● ●
3 SCREW; LEVER
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-94248-820-0 01 1 9505- ● ●
13 SCREW; CASE
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) M4X16 		8-94324-850-0 14 1 9112-9308 ● ●
13 SCREW; CASE
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) M4X16 		8-94324-850-0 13 1 9309-9504 ● ●
13 SCREW; CASE
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-94324-850-0 13 1 9505- ● ●
14 DOOR; MODE,VENTILATOR
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94324-836-0 01 1 9112-9504 ● ●
14 DOOR; MODE,VENTILATOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-836-0 01 1 9505- ● ●
15 DOOR; MIX,VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94324-837-0 01 1 9112-9504 ● ●
15 DOOR; MIX,VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-837-0 01 1 9505- ● ●
16 DOOR; MODE,VENTILATOR
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94324-835-0 01 1 9112-9504 ● ●
16 DOOR; MODE,VENTILATOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-835-0 01 1 9505- ● ●
17 CLIP; SHUTTER LEVER,VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94248-794-0 03 1 9112-9504 ● ●
17 CLIP; SHUTTER LEVER,VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94248-794-0 03 1 9505- ● ●
19 CASE; VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (A) 		8-94324-828-3 01 1 9112-9504 ● ●
19 CASE; VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94324-828-3 01 1 9505- ● ●
19 CASE; VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (B) 		8-94324-829-3 01 1 9112-9504 ● ●
19 CASE; VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94324-829-3 01 1 9505- ● ●
19 CASE; VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (C) 		8-94324-830-1 01 1 9112-9504 ● ●
19 CASE; VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-94324-830-1 01 1 9505- ● ●
26 LEVER; VENTILATOR
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94324-845-1 01 1 9112-9504 ● ●
26 LEVER; VENTILATOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-845-1 01 1 9505- ● ●
27 WASHER; LEVER
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94129-950-0 01 1 9112-9504 ● ●
27 WASHER; LEVER
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94129-950-0 01 1 9505- ● ●
28 ROD; SHUTTER LEVER,VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (A) 		8-94324-848-0 01 1 9112-9504 ● ●
28 ROD; SHUTTER LEVER,VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94324-848-0 01 1 9505- ● ●
28 ROD; SHUTTER LEVER,VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (B) 		8-94324-849-0 02 1 9112-9504 ● ●
28 ROD; SHUTTER LEVER,VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94324-849-0 02 1 9505- ● ●
29 LEVER; SHUTTER,VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94324-844-1 01 1 9112-9504 ● ●
29 LEVER; SHUTTER,VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-844-1 01 1 9505- ● ●
30 LEVER; VENTILATOR
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94324-842-0 01 1 9112-9504 ● ●
30 LEVER; VENTILATOR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-842-0 01 1 9505- ● ●
31 LEVER; VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94324-841-0 02 1 9112-9504 ● ●
31 LEVER; VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-841-0 02 1 9505- ● ●
36 LEVER; SHUTTER,VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94324-843-1 02 1 9112-9504 ● ●
36 LEVER; SHUTTER,VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-843-1 02 1 9505- ● ●
37 CLIP; CABLE,VENTILATION UNIT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94337-654-0 01 1 9112-9504 ● ●
37 CLIP; CABLE,VENTILATION UNIT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94337-654-0 01 1 9505- ● ●
41 COVER; CASE
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94328-659-0 01 1 9112-9504 ● ●
41 COVER; CASE
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94328-659-0 01 1 9505- ● ●
47 PLUG; CASE
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (A) 		8-94328-657-0 04 1 9112-9504 ● ●
47 PLUG; CASE
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94328-657-0 04 1 9505- ● ●
47 PLUG; CASE
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (B) 		8-94328-658-0 01 1 9112-9504 ● ●
47 PLUG; CASE
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94328-658-0 01 1 9505- ● ●
