Sayfa 2-39 - Isuzu EPC

2-39 — POWER ASSISTOR (#353) — 175 parça

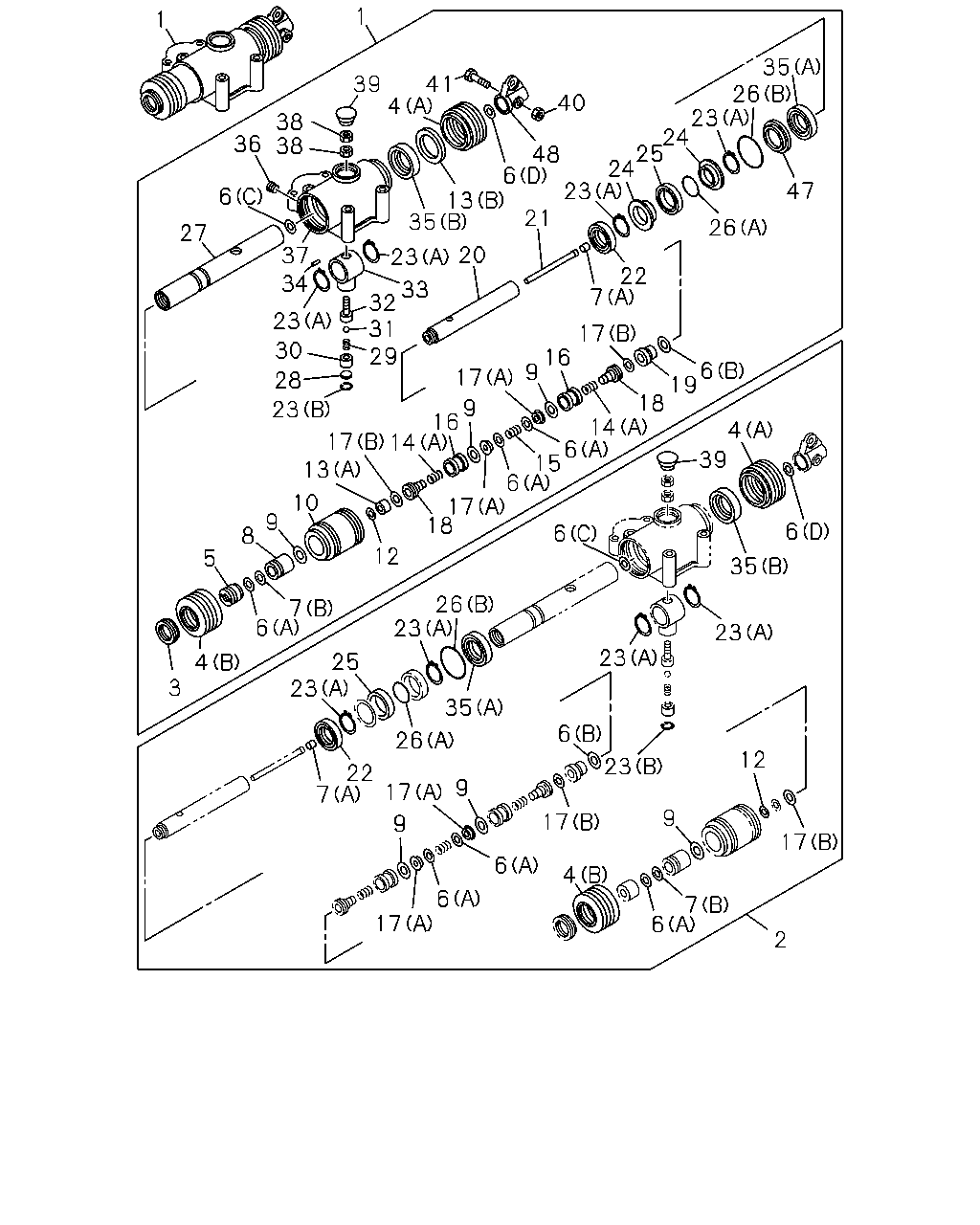

1 1 35 26 23 24 25 24 23 39 4 41 40 38 38 36 48 6 13 35 47 6 21 26 27 20 37 34 23 22 7 33 32 31 29 23 17 30 16 9 6 19 18 17 28 9 16 13 23 14 6 15 6 4 39 10 17 18 9 6 6 8 12 5 35 26 23 7 6 23 23 25 23 4 3 35 6 26 12 23 22 7 9 17 9 17 9 17 6 4 6 7 17 6 2 17 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ASSISTOR ASM; POWER,SHIFT ASSISTER SHIFT CONTROL<WX8>	1-33730-070-1	01	1	9202-9504	●	●
1	ASSISTOR ASM; POWER,SHIFT ASSISTER SHIFT CONTROL<WX8>	1-33730-137-0	01	1	9505-	●	●
2	REPAIR KIT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-498-0	01	1	9202-9504	●	●
2	REPAIR KIT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-774-0	01	1	9505-	●	●
3	NUT; LK,ROD ASSISTER SHIFT CONTROL<WX8>	1-33739-025-0	01	1	9202-	●	●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-030-0	01	1	9202-9504	●	●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-571-0	01	1	9505-	●	●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-038-0	01	1	9202-	●	●
5	CONNECTOR; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-017-0	01	1	9202-	●	●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-013-0	03	1	9202-	●	●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-070-0	01	1	9202-9504	●	●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (D)	1-33739-080-0	01	1	9202-9504	●	●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (C)	1-33739-365-0	01	1	9202-9504	●	●
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-032-0	01	1	9202-9504	●	●
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-033-0	01	1	9202-	●	●
8	TUBE ASSISTER SHIFT CONTROL<WX8>	1-33739-431-0	01	1	9202-9504	●	●
8	TUBE ASSISTER SHIFT CONTROL<WX8>	1-33739-560-0	02	1	9505-	●	●
9	RING; SQUARE ASSISTER SHIFT CONTROL<WX8>	1-33739-086-0	03	1	9202-9504	●	●
9	RING; SQUARE ASSISTER SHIFT CONTROL<WX8>	1-33739-086-0	04	1	9505-	●	●
10	CYLINDER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-421-0	01	1	9202-9504	●	●
10	CYLINDER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-772-0	01	1	9505-	●	●
12	RING; RET ASSISTER SHIFT CONTROL<WX8>	1-33739-016-0	01	1	9202-9504	●	●
12	RING; RET ASSISTER SHIFT CONTROL<WX8>	1-33739-016-0	02	1	9505-	●	●
13	RETAINER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-426-0	01	1	9202-9504	●	●
13	RETAINER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-429-0	01	1	9202-9504	●	●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-066-0	01	1	9202-9504	●	●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-347-0	01	1	9505-	●	●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-077-0	01	1	9202-9504	●	●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-354-0	01	1	9505-	●	●
15	SPRING; VALVE SEAL ASSISTER SHIFT CONTROL<WX8>	1-33739-014-0	01	1	9202-	●	●
16	SEAT; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-067-0	02	1	9202-	●	●
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-012-0	02	1	9202-	●	●
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8> (B)	9-83335-055-0	02	1	9202-	●	●
18	LIFTER; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-500-0	02	1	9202-9504	●	●
18	LIFTER; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-586-0	02	1	9505-	●	●
19	BUSHING; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-427-0	01	1	9202-9504	●	●
20	ROD ASM; W/CAP ASSISTER SHIFT CONTROL<WX8>	1-33739-083-0	01	1	9202-9504	●	●
20	ROD ASM; W/CAP ASSISTER SHIFT CONTROL<WX8>	1-33739-770-0	01	1	9505-	●	●
21	PIPE; AIR,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-048-0	01	1	9202-9504	●	●
21	PIPE; AIR,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-598-0	01	1	9505-	●	●
22	SEAL; OIL ASSISTER SHIFT CONTROL<WX8>	1-33739-353-0	01	1	9202-	●	●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-022-0	04	1	9202-	●	●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (B)	1-47819-109-0	01	1	9202-9504	●	●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	9505-	●	●
24	PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-422-0	02	1	9202-9504	●	●
24	PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-578-0	01	1	9505-	●	●
25	RING; "X",PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-420-0	01	1	9202-	●	●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-028-0	01	1	9202-9504	●	●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-573-0	01	1	9505-	●	●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-496-0	01	1	9202-	●	●
27	ROD; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-423-0	01	1	9202-9504	●	●
27	ROD; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-769-0	01	1	9505-	●	●
28	PLATE; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-094-0	01	1	9202-9504	●	●
29	SPRING; BALL ASSISTER SHIFT CONTROL<WX8>	1-33739-095-0	01	1	9202-9504	●	●
30	PLUG ASSISTER SHIFT CONTROL<WX8>	1-33739-273-0	01	1	9202-9504	●	●
31	BALL; STEEL ASSISTER SHIFT CONTROL<WX8>	1-33739-096-0	01	1	9202-9504	●	●
32	BOLT; STRIKER ASSISTER SHIFT CONTROL<WX8>	1-33739-269-0	01	1	9202-9504	●	●
33	STRIKER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-272-0	01	1	9202-9504	●	●
33	STRIKER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-577-0	01	1	9505-	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-271-0	01	1	9202-9504	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-575-0	01	1	9505-	●	●
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-073-0	01	1	9202-	●	●
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-075-0	01	1	9202-9504	●	●
36	SCREW; SET ASSISTER SHIFT CONTROL<WX8>	1-33739-040-0	01	1	9202-	●	●
37	HOUSING; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-334-0	01	1	9202-9504	●	●
37	HOUSING; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-771-0	01	1	9505-	●	●
38	NUT; STRIKER BOLT ASSISTER SHIFT CONTROL<WX8> M10	9-09110-510-0	02	1	9202-9504	●	●
39	COVER; RUBBER ASSISTER SHIFT CONTROL<WX8>	1-33739-031-0	01	1	9202-9504	●	●
40	NUT; LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-363-0	01	1	9202-	●	●
41	BOLT; SET,LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-339-0	01	1	9202-9503	●	●
41	BOLT; SET,LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-043-0	01	1	9504-9504	●	●
41	BOLT; SET,LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-339-0	01	1	9505-	●	●
47	BUSHING; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-333-0	01	1	9202-9504	●	●
48	LEVER; CONT,CABLE ASSISTER SHIFT CONTROL<WX8>	1-33739-054-0	01	1	9202-9504	●	●
48	LEVER; CONT,CABLE ASSISTER SHIFT CONTROL<WX8>	1-33739-775-0	01	1	9505-	●	●

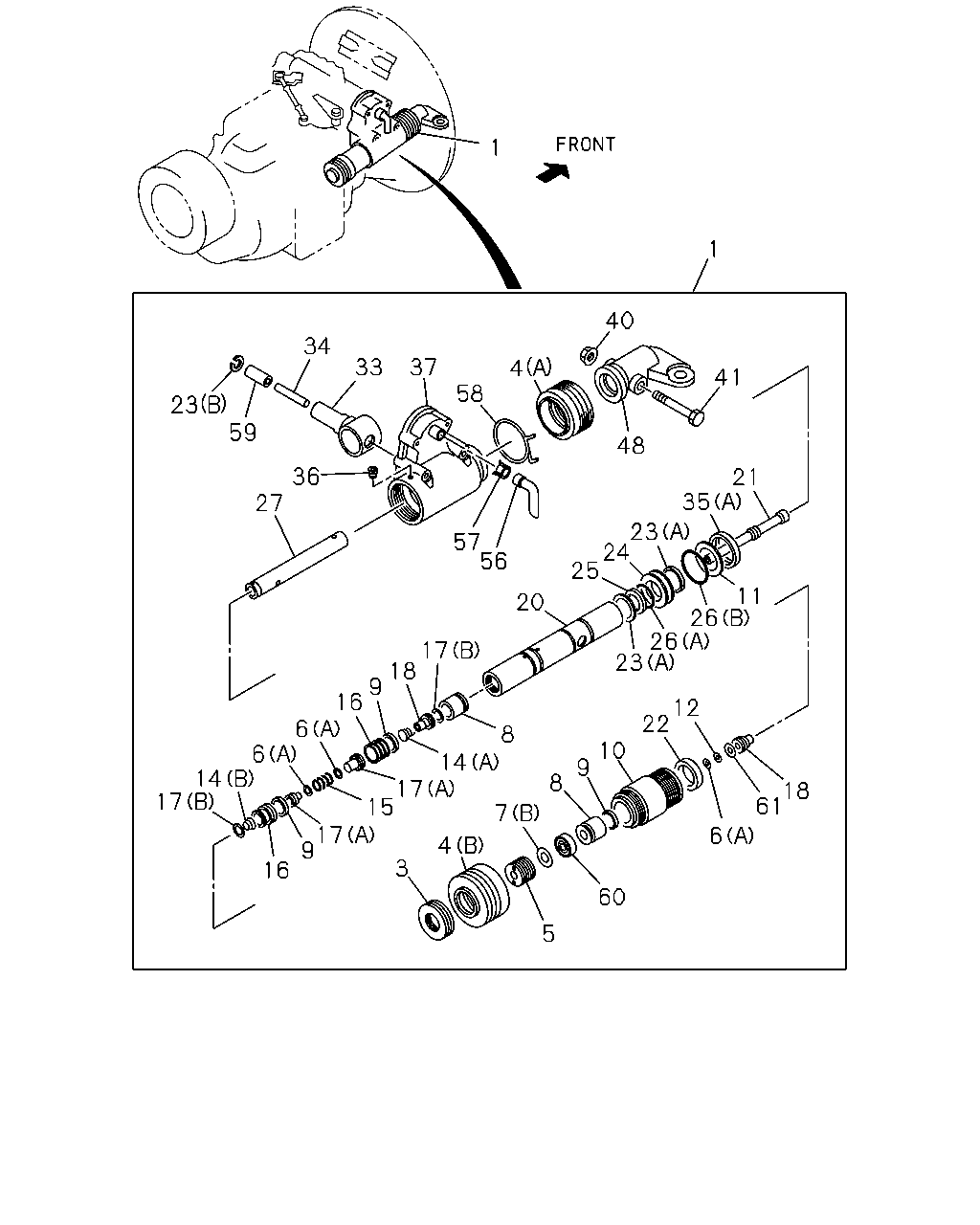

1 1 40 34 33 37 4 41 58 23 59 48 36 27 21 35 23 24 25 57 56 11 26 26 23 20 17 18 9 16 12 22 6 8 10 6 14 17 14 17 15 9 8 18 61 7 17 9 6 4 3 16 60 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ASSISTOR ASM; POWER,SHIFT ASSISTER SHIFT CONTROL<WX8>	1-33730-070-1	01	1	9202-9504	●	●
1	ASSISTOR ASM; POWER,SHIFT ASSISTER SHIFT CONTROL<WX8>	1-33730-137-0	01	1	9505-	●	●
3	NUT; LK,ROD ASSISTER SHIFT CONTROL<WX8>	1-33739-025-0	01	1	9202-	●	●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-030-0	01	1	9202-9504	●	●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-571-0	01	1	9505-	●	●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-038-0	01	1	9202-	●	●
5	CONNECTOR; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-017-0	01	1	9202-	●	●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-013-0	03	1	9202-	●	●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-070-0	01	1	9202-9504	●	●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (D)	1-33739-080-0	01	1	9202-9504	●	●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (C)	1-33739-365-0	01	1	9202-9504	●	●
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-032-0	01	1	9202-9504	●	●
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-033-0	01	1	9202-	●	●
8	TUBE ASSISTER SHIFT CONTROL<WX8>	1-33739-431-0	01	1	9202-9504	●	●
8	TUBE ASSISTER SHIFT CONTROL<WX8>	1-33739-560-0	02	1	9505-	●	●
9	RING; SQUARE ASSISTER SHIFT CONTROL<WX8>	1-33739-086-0	03	1	9202-9504	●	●
9	RING; SQUARE ASSISTER SHIFT CONTROL<WX8>	1-33739-086-0	04	1	9505-	●	●
10	CYLINDER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-421-0	01	1	9202-9504	●	●
10	CYLINDER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-772-0	01	1	9505-	●	●
11	PLATE; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-576-0	01	1	9505-	●	●
12	RING; RET ASSISTER SHIFT CONTROL<WX8>	1-33739-016-0	01	1	9202-9504	●	●
12	RING; RET ASSISTER SHIFT CONTROL<WX8>	1-33739-016-0	02	1	9505-	●	●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-066-0	01	1	9202-9504	●	●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-347-0	01	1	9505-	●	●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-077-0	01	1	9202-9504	●	●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-354-0	01	1	9505-	●	●
15	SPRING; VALVE SEAL ASSISTER SHIFT CONTROL<WX8>	1-33739-014-0	01	1	9202-	●	●
16	SEAT; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-067-0	02	1	9202-	●	●
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-012-0	02	1	9202-	●	●
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8> (B)	9-83335-055-0	02	1	9202-	●	●
18	LIFTER; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-500-0	02	1	9202-9504	●	●
18	LIFTER; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-586-0	02	1	9505-	●	●
20	ROD ASM; W/CAP ASSISTER SHIFT CONTROL<WX8>	1-33739-083-0	01	1	9202-9504	●	●
20	ROD ASM; W/CAP ASSISTER SHIFT CONTROL<WX8>	1-33739-770-0	01	1	9505-	●	●
21	PIPE; AIR,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-048-0	01	1	9202-9504	●	●
21	PIPE; AIR,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-598-0	01	1	9505-	●	●
22	SEAL; OIL ASSISTER SHIFT CONTROL<WX8>	1-33739-353-0	01	1	9202-	●	●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-022-0	04	1	9202-	●	●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (B)	1-47819-109-0	01	1	9202-9504	●	●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	9505-	●	●
24	PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-422-0	02	1	9202-9504	●	●
24	PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-578-0	01	1	9505-	●	●
25	RING; "X",PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-420-0	01	1	9202-	●	●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-028-0	01	1	9202-9504	●	●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-573-0	01	1	9505-	●	●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-496-0	01	1	9202-	●	●
27	ROD; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-423-0	01	1	9202-9504	●	●
27	ROD; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-769-0	01	1	9505-	●	●
33	STRIKER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-272-0	01	1	9202-9504	●	●
33	STRIKER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-577-0	01	1	9505-	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-271-0	01	1	9202-9504	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-575-0	01	1	9505-	●	●
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-073-0	01	1	9202-	●	●
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-075-0	01	1	9202-9504	●	●
36	SCREW; SET ASSISTER SHIFT CONTROL<WX8>	1-33739-040-0	01	1	9202-	●	●
37	HOUSING; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-334-0	01	1	9202-9504	●	●
37	HOUSING; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-771-0	01	1	9505-	●	●
40	NUT; LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-363-0	01	1	9202-	●	●
41	BOLT; SET,LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-339-0	01	1	9202-9503	●	●
41	BOLT; SET,LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-043-0	01	1	9504-9504	●	●
41	BOLT; SET,LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-339-0	01	1	9505-	●	●
48	LEVER; CONT,CABLE ASSISTER SHIFT CONTROL<WX8>	1-33739-054-0	01	1	9202-9504	●	●
48	LEVER; CONT,CABLE ASSISTER SHIFT CONTROL<WX8>	1-33739-775-0	01	1	9505-	●	●
56	HOSE; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-570-0	01	1	9505-	●	●
57	CLAMP; HOSE ASSISTER SHIFT CONTROL<WX8>	1-33739-569-0	01	1	9505-	●	●
58	CLAMP; BOOT ASSISTER SHIFT CONTROL<WX8>	1-33739-562-0	01	1	9505-	●	●
59	SHIM; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-563-0	01	1	9505-	●	●
60	COLLAR; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-773-0	01	1	9505-	●	●
61	PLATE; VLV LIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-581-0	02	1	9505-	●	●

44 49 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	NUT; BRKT,FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9202-	●	●
49	NUT; FLEX HOSE AUSTRALIA EQUIPMENT(RR3) ASSISTER SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	9202-	●
52	WASHER; LK,FLEX HOSE AUSTRALIA EQUIPMENT(RR3) ASSISTER SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	9202-	●

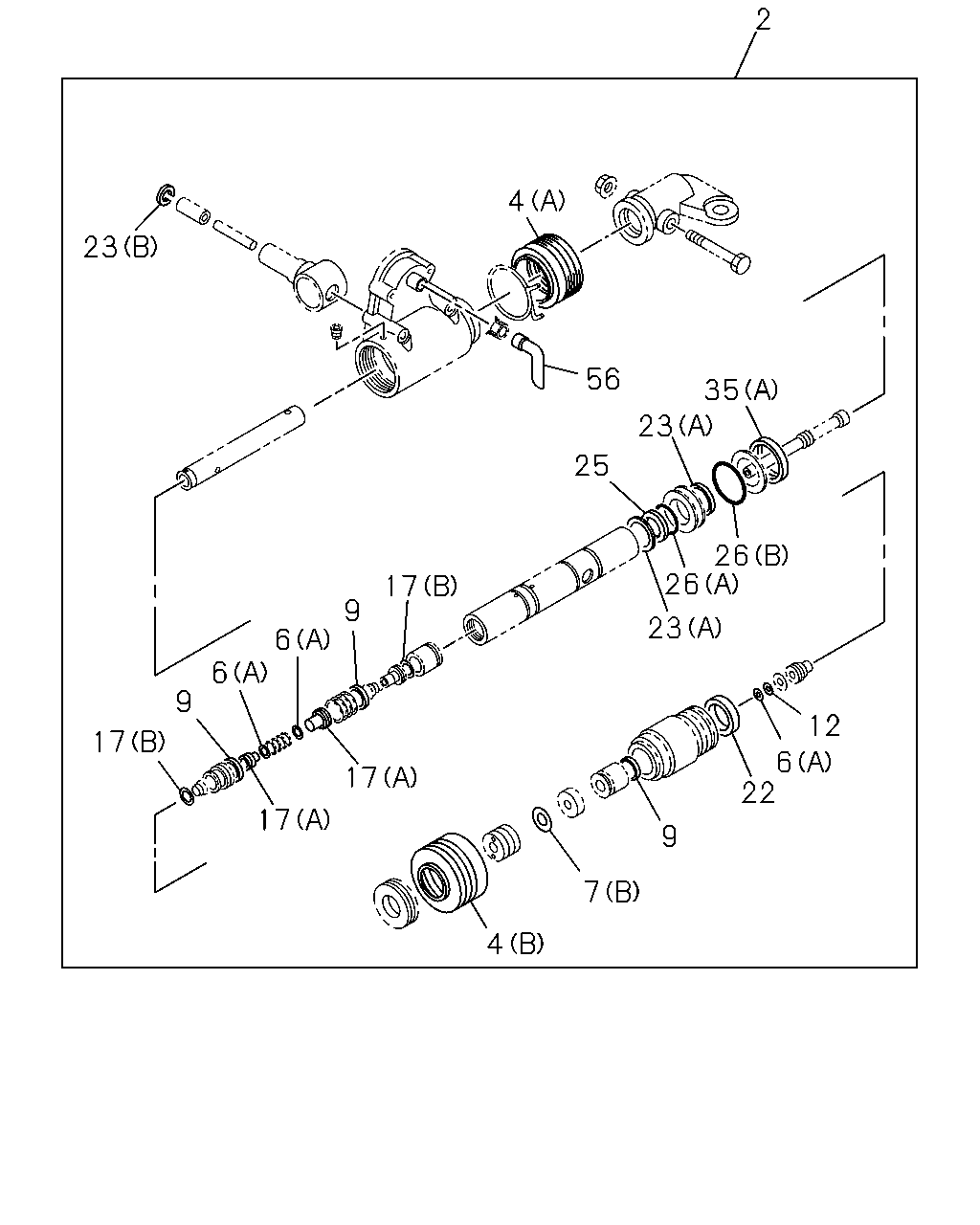

2 4 23 56 35 23 25 26 26 17 9 23 6 6 9 12 17 6 22 17 17 9 7 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-498-0	01	1	9202-9504	●	●
2	REPAIR KIT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-774-0	01	1	9505-	●	●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-030-0	01	1	9202-9504	●	●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-571-0	01	1	9505-	●	●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-038-0	01	1	9202-	●	●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-013-0	03	1	9202-	●	●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-070-0	01	1	9202-9504	●	●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (D)	1-33739-080-0	01	1	9202-9504	●	●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (C)	1-33739-365-0	01	1	9202-9504	●	●
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-032-0	01	1	9202-9504	●	●
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-033-0	01	1	9202-	●	●
9	RING; SQUARE ASSISTER SHIFT CONTROL<WX8>	1-33739-086-0	03	1	9202-9504	●	●
9	RING; SQUARE ASSISTER SHIFT CONTROL<WX8>	1-33739-086-0	04	1	9505-	●	●
12	RING; RET ASSISTER SHIFT CONTROL<WX8>	1-33739-016-0	01	1	9202-9504	●	●
12	RING; RET ASSISTER SHIFT CONTROL<WX8>	1-33739-016-0	02	1	9505-	●	●
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-012-0	02	1	9202-	●	●
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8> (B)	9-83335-055-0	02	1	9202-	●	●
22	SEAL; OIL ASSISTER SHIFT CONTROL<WX8>	1-33739-353-0	01	1	9202-	●	●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-022-0	04	1	9202-	●	●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (B)	1-47819-109-0	01	1	9202-9504	●	●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	9505-	●	●
25	RING; "X",PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-420-0	01	1	9202-	●	●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-028-0	01	1	9202-9504	●	●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-573-0	01	1	9505-	●	●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-496-0	01	1	9202-	●	●
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-073-0	01	1	9202-	●	●
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-075-0	01	1	9202-9504	●	●
56	HOSE; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-570-0	01	1	9505-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
