8-65 — CONTROL LEVER; HEATER AND AIR CON (#35299) — 37 parça

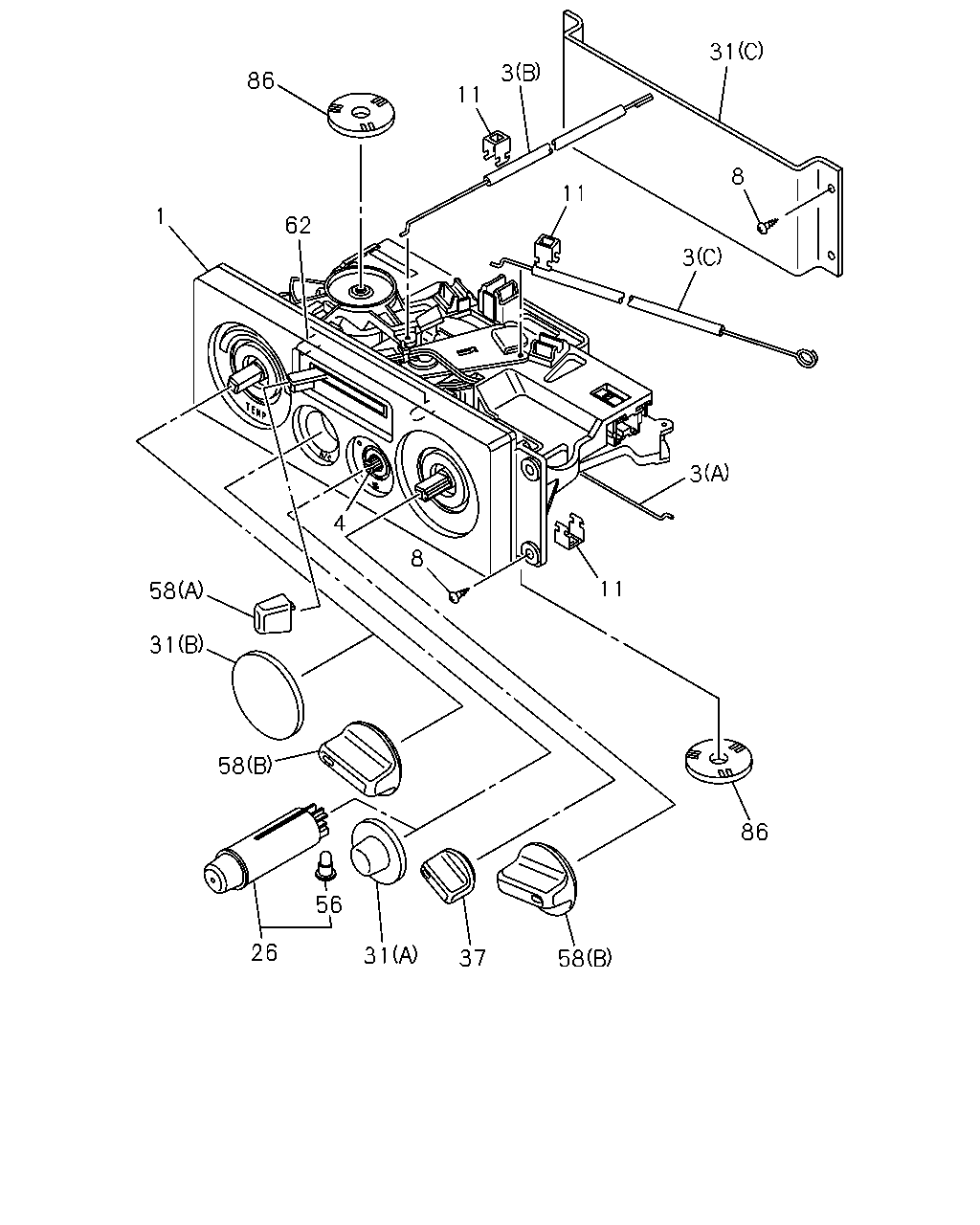

çizim 67601
1 62 86 11 3 31 8 3 11 3 11 8 4 58 31 58 56 26 31 37 58 86
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER SUB ASM; HTR CONT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-97062-822-3 01 1 9111-9504 ● ●
1 LEVER SUB ASM; HTR CONT
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97123-984-0 01 1 9505- ● ●
1 LEVER SUB ASM; HTR CONT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97061-921-3 01 1 9112-9504 ● ●
1 LEVER SUB ASM; HTR CONT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97116-766-1 01 1 9505- ● ●
3 CABLE; HTR CONT LVR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) TEMP 		8-97061-919-0 01 1 9112-9504 ● ●
3 CABLE; HTR CONT LVR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) TEMP 		8-97116-764-0 01 1 9505- ● ●
3 CABLE; HTR CONT LVR
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C) F/C 		8-97061-920-0 01 1 9112-9504 ● ●
3 CABLE; HTR CONT LVR
(C) F/C 		8-97116-765-0 01 1 9505- ● ●
3 CABLE; HTR CONT LVR
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) MODE 		8-97065-218-0 01 1 9112-9504 ● ●
3 CABLE; HTR CONT LVR
(A) MODE 		8-97116-763-1 01 1 9505- ● ●
4 SWITCH; FAN,HTR CONT LVR
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-97061-915-1 01 1 9112-9504 ● ●
4 SWITCH; FAN,HTR CONT LVR 8-97061-915-1 01 1 9505- ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING 		9-09829-323-1 04 1 9112- ● ●
11 CLIP; CABLE,HTR CONT LVR
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94325-471-0 02 1 9112-9504 ● ●
11 CLIP; CABLE,HTR CONT LVR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94325-471-0 02 1 9505- ● ●
11 CLIP; CABLE,HTR CONT LVR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94325-471-0 03 1 9112- ● ●
26 SWITCH; A/C,HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-97042-015-0 01 1 9112-9504 ● ●
26 SWITCH; A/C,HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) 		8-97042-015-1 01 1 9505- ● ●
31 COVER; HOLE,CONT LEVER
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (B) 		8-97062-821-0 01 1 9112-9504 ● ●
31 COVER; HOLE,CONT LEVER
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57) (A) 		8-97061-922-0 01 1 9112-9504 ● ●
31 COVER; HOLE,CONT LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97061-922-0 01 1 9505- ● ●
31 COVER; HOLE,CONT LEVER
EXC. HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C) 		8-97039-249-0 01 1 9112-9504 ● ●
31 COVER; HOLE,CONT LEVER
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97062-821-0 01 1 9505- ● ●
37 KNOB; SW,HTR CONT LVR
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-97061-917-0 01 1 9112-9504 ● ●
37 KNOB; SW,HTR CONT LVR 8-97061-917-0 01 1 9505- ● ●
56 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-97115-090-0 01 1 9309-9504 ● ●
56 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97115-090-0 01 1 9505- ● ●
58 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (B) MODE & TEMP 		8-97061-916-0 01 1 9112-9504 ● ●
58 KNOB; LVR,HTR CONT LVR
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MODE & TEMP 		8-97061-916-0 01 1 9505- ● ●
58 KNOB; LVR,HTR CONT LVR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MODE & TEMP 		8-97061-916-0 02 1 9112- ● ●
58 KNOB; LVR,HTR CONT LVR
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) F/C 		8-97061-913-0 01 1 9112-9504 ● ●
58 KNOB; LVR,HTR CONT LVR
(A) F/C 		8-97116-767-0 01 1 9505- ● ●
62 BULB; HTR CONT LVR
HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-97061-914-0 02 1 9112-9504 ● ●
62 BULB; HTR CONT LVR 8-97061-914-0 02 1 9505- ● ●
86 WASHER; CONT LEVER
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94129-950-0 01 1 9203-9504 ● ●
86 WASHER; CONT LEVER
EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94129-950-0 01 1 9505- ● ●
86 WASHER; CONT LEVER
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94129-950-0 02 1 9203- ● ●
