◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#35298) — 103 parça

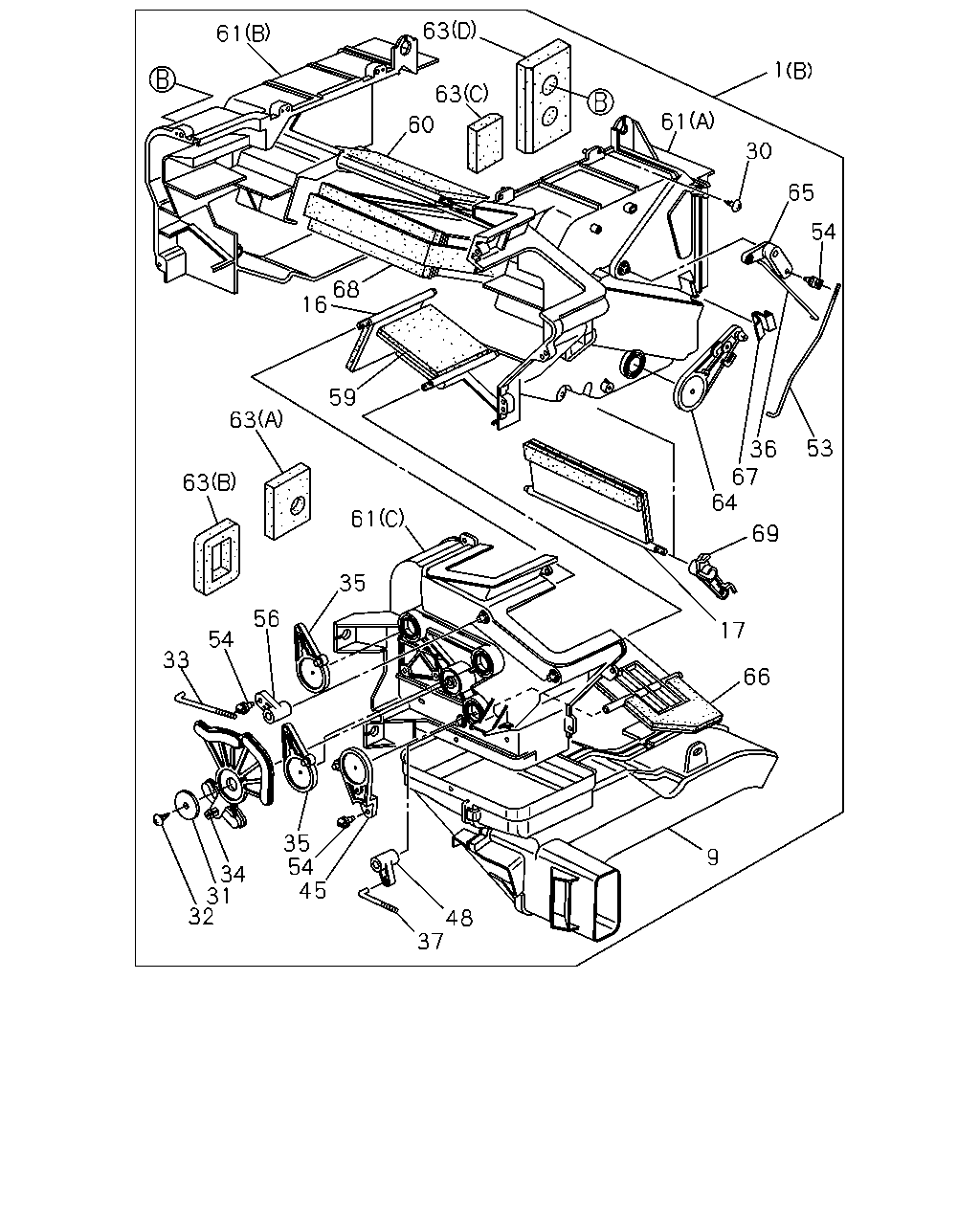

çizim 17794
61 63 63 60 61 1 30 65 54 53 36 54 67 69 17 66 9 48 37 45 54 35 34 31 32 33 56 54 35 61 63 63 59 16 68
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A) 		8-97035-219-5 01 1 9112-9401 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A) 		8-97108-211-0 01 1 9402-9607 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A) 		8-97176-455-0 01 1 9608- ● ●
1 HEATER UNIT
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (B) 		8-94376-099-4 01 1 9112-9401 ● ●
1 HEATER UNIT
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (B) 		8-97108-210-0 01 1 9402-9607 ● ●
1 HEATER UNIT
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (B) 		8-97176-434-0 01 1 9608- ● ●
1 HEATER UNIT
6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97035-217-5 01 1 9112-9401 ● ●
1 HEATER UNIT
6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97108-209-0 01 1 9402-9607 ● ●
1 HEATER UNIT
6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97176-433-0 01 1 9608- ● ●
9 DUCT; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-852-1 01 1 9112- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-837-0 01 1 9112-9607 ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97161-527-0 01 1 9608- ● ●
17 SHUTTER; HTR UNIT,CENTER
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-834-0 01 1 9112- ● ●
30 SCREW; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 14 1 9112-9308 ● ●
30 SCREW; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 13 1 9309- ● ●
30 SCREW; HTR UNIT
4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 17 1 9112-9308 ● ●
30 SCREW; HTR UNIT
4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 16 1 9309- ● ●
31 WASHER; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94129-950-0 01 1 9112- ● ●
32 SCREW; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-94248-820-0 01 1 9112-9607 ● ●
32 SCREW; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 		9-09829-324-1 01 1 9608- ● ●
33 ROD; SHUTTER LEVER
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-849-0 02 1 9112- ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-845-1 01 1 9112-9607 ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97142-572-0 01 1 9608- ● ●
35 LEVER; SHUTTER,HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-843-1 02 1 9112- ● ●
36 ROD; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-847-0 01 1 9112- ● ●
37 ROD; LEVER
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-848-0 01 1 9112- ● ●
45 LEVER; SHUTTER,HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-844-1 01 1 9112- ● ●
48 LEVER; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-842-0 01 1 9112- ● ●
53 ROD; SHUTTER LEVER
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-846-0 01 1 9112- ● ●
54 CLIP; SHUTTER LEVER
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94248-794-0 04 1 9112- ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-841-0 02 1 9112- ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-835-0 01 1 9112- ● ●
60 DOOR; MIX,HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-833-0 01 1 9112- ● ●
61 CASE; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A) 		8-94324-828-3 01 1 9112- ● ●
61 CASE; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94324-829-3 01 1 9112- ● ●
61 CASE; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-94324-830-1 01 1 9112- ● ●
61 CASE; HTR UNIT
4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A) 		8-97045-871-2 01 1 9112- ● ●
63 LINING; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97069-413-0 01 1 9112-9308 ● ●
63 LINING; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97069-416-1 01 1 9112- ● ●
63 LINING; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97069-417-0 01 1 9112-9308 ● ●
63 LINING; HTR UNIT
6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97081-291-1 01 1 9203-9401 ● ●
63 LINING; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (C) 		8-97081-291-1 01 1 9402-9607 ● ●
63 LINING; HTR UNIT
6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97081-291-1 01 1 9608- ● ●
65 LEVER; MIX,DOOR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-838-0 01 1 9112- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-836-0 01 1 9112- ● ●
67 CLIP; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94337-654-0 02 1 9112- ● ●
68 CORE; HTR UNIT
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94327-444-2 01 1 9112- ● ●
68 CORE; HTR UNIT
6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-918-0 01 1 9112- ● ●
69 LEVER; SHUTTER,HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-854-0 01 1 9112- ● ●

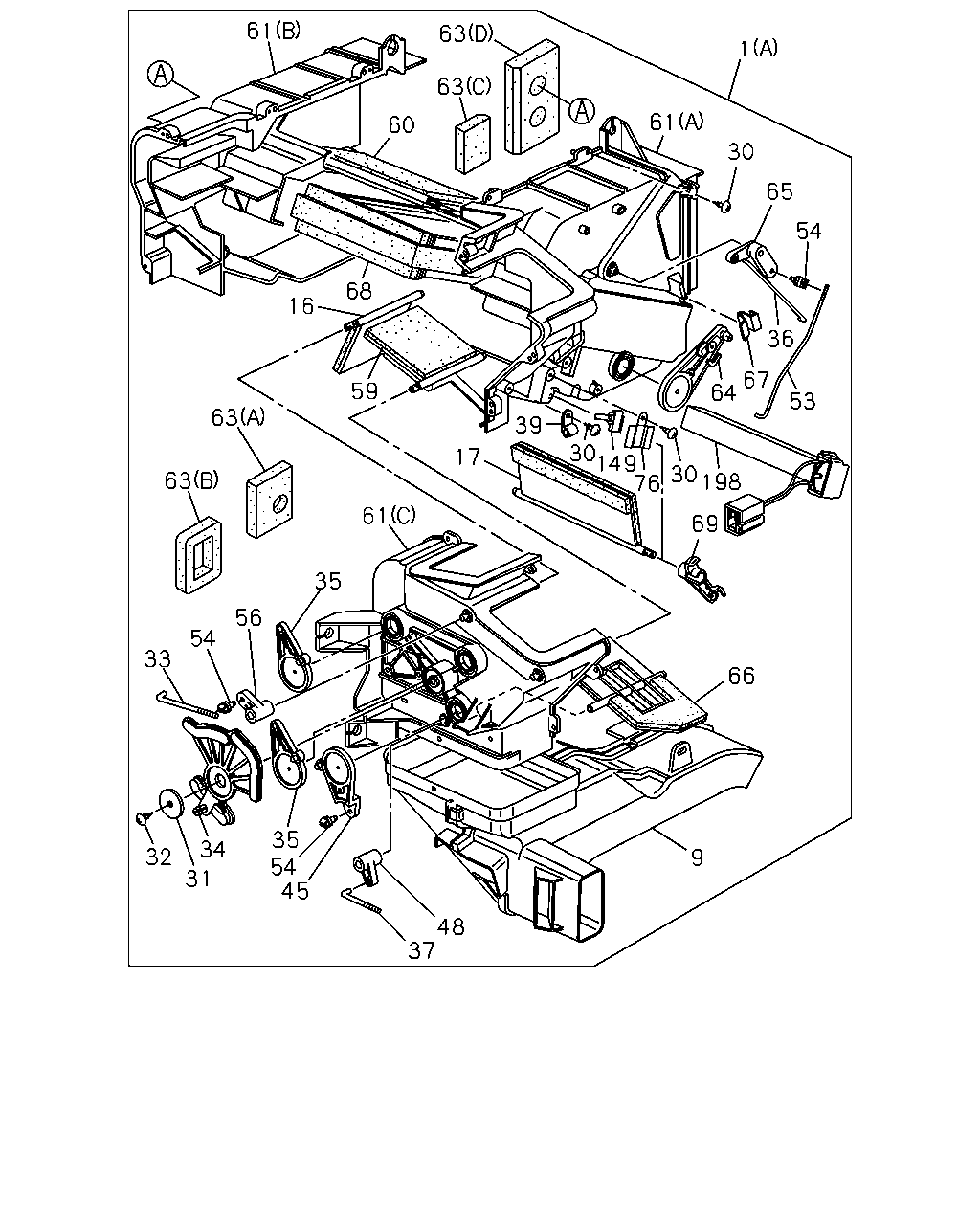

çizim 17795
61 63 63 60 61 1 30 65 54 36 53 67 64 198 30 76 149 30 39 69 66 9 48 37 45 54 35 34 31 32 35 56 54 33 63 63 61 17 59 68 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A) 		8-97035-219-5 01 1 9112-9401 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A) 		8-97108-211-0 01 1 9402-9607 ● ●
1 HEATER UNIT
4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A) 		8-97176-455-0 01 1 9608- ● ●
1 HEATER UNIT
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (B) 		8-94376-099-4 01 1 9112-9401 ● ●
1 HEATER UNIT
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (B) 		8-97108-210-0 01 1 9402-9607 ● ●
1 HEATER UNIT
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (B) 		8-97176-434-0 01 1 9608- ● ●
1 HEATER UNIT
6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97035-217-5 01 1 9112-9401 ● ●
1 HEATER UNIT
6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97108-209-0 01 1 9402-9607 ● ●
1 HEATER UNIT
6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97176-433-0 01 1 9608- ● ●
9 DUCT; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-852-1 01 1 9112- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-837-0 01 1 9112-9607 ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97161-527-0 01 1 9608- ● ●
17 SHUTTER; HTR UNIT,CENTER
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-834-0 01 1 9112- ● ●
30 SCREW; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 14 1 9112-9308 ● ●
30 SCREW; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 13 1 9309- ● ●
30 SCREW; HTR UNIT
4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 17 1 9112-9308 ● ●
30 SCREW; HTR UNIT
4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> M4X16 		8-94324-850-0 16 1 9309- ● ●
31 WASHER; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94129-950-0 01 1 9112- ● ●
32 SCREW; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-94248-820-0 01 1 9112-9607 ● ●
32 SCREW; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 		9-09829-324-1 01 1 9608- ● ●
33 ROD; SHUTTER LEVER
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-849-0 02 1 9112- ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-845-1 01 1 9112-9607 ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97142-572-0 01 1 9608- ● ●
35 LEVER; SHUTTER,HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-843-1 02 1 9112- ● ●
36 ROD; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-847-0 01 1 9112- ● ●
37 ROD; LEVER
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-848-0 01 1 9112- ● ●
39 CLIP; HTR UNIT
4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97032-616-0 02 1 9112- ● ●
45 LEVER; SHUTTER,HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-844-1 01 1 9112- ● ●
48 LEVER; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-842-0 01 1 9112- ● ●
53 ROD; SHUTTER LEVER
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-846-0 01 1 9112- ● ●
54 CLIP; SHUTTER LEVER
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94248-794-0 04 1 9112- ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-841-0 02 1 9112- ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-835-0 01 1 9112- ● ●
60 DOOR; MIX,HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-833-0 01 1 9112- ● ●
61 CASE; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A) 		8-94324-828-3 01 1 9112- ● ●
61 CASE; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94324-829-3 01 1 9112- ● ●
61 CASE; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-94324-830-1 01 1 9112- ● ●
61 CASE; HTR UNIT
4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A) 		8-97045-871-2 01 1 9112- ● ●
63 LINING; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97069-413-0 01 1 9112-9308 ● ●
63 LINING; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97069-416-1 01 1 9112- ● ●
63 LINING; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97069-417-0 01 1 9112-9308 ● ●
63 LINING; HTR UNIT
6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97081-291-1 01 1 9203-9401 ● ●
63 LINING; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (C) 		8-97081-291-1 01 1 9402-9607 ● ●
63 LINING; HTR UNIT
6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97081-291-1 01 1 9608- ● ●
64 LEVER; MIX,DOOR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-840-1 01 1 9112- ● ●
65 LEVER; MIX,DOOR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-838-0 01 1 9112- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-836-0 01 1 9112- ● ●
67 CLIP; HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94337-654-0 02 1 9112- ● ●
68 CORE; HTR UNIT
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94327-444-2 01 1 9112- ● ●
68 CORE; HTR UNIT
6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-918-0 01 1 9112- ● ●
69 LEVER; SHUTTER,HTR UNIT
HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-854-0 01 1 9112- ● ●
76 BRACKET; HTR UNIT
4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97045-869-0 01 1 9112- ● ●
149 SWITCH ASM; HTR UNIT
4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97045-870-2 01 1 9112- ● ●
198 HEATER; ELEC
4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97045-868-1 01 1 9112- ● ●
