Sayfa 8-52 - Isuzu EPC

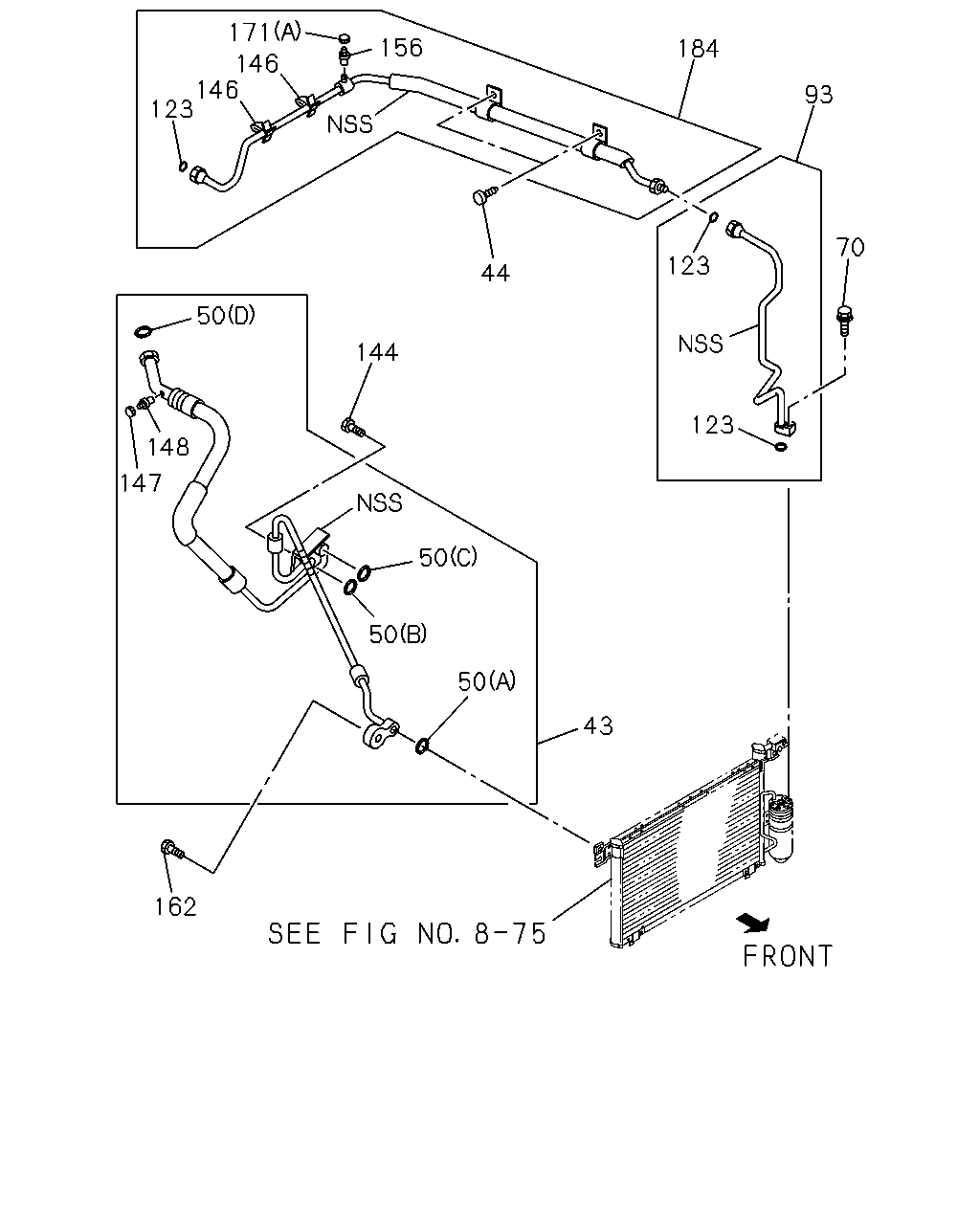

8-52 — PIPING; AIR CONDITIONING (#35297) — 245 parça

123 146 146 171 156 184 93 70 123 123 44 144 50 148 147 50 50 50 43 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-286-2	01	1	9112-9303	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97086-208-1	01	1	9304-9504	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97086-208-1	01	1	9505-	●	●
44	CLIP; FLEX HOSE 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) D6.8X12	8-94198-687-0	02	1	9112-9504	●	●
44	CLIP; FLEX HOSE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) D6.8X12	8-94198-687-0	02	1	9505-	●	●
44	CLIP; FLEX HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) D6.8X12	8-94198-687-0	01	1	9112-9504	●	●
44	CLIP; FLEX HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) D6.8X12	8-94198-687-0	01	1	9505-	●	●
50	GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (D) ID=13.9	8-94113-330-0	01	1	9112-9504	●	●
50	GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (D) ID=13.9	8-94113-330-0	01	1	9505-	●	●
50	GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) ID=10.8	8-94113-331-0	01	1	9112-9504	●	●
50	GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) ID=10.8	8-94113-331-0	01	1	9505-	●	●
50	GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) ID=11.0	8-94461-900-0	01	1	9112-9504	●	●
50	GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) ID=11.0	8-94461-900-0	01	1	9505-	●	●
50	GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C) ID=14.8	8-94461-901-0	01	1	9112-9504	●	●
50	GASKET; FLEX HOSE,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (C) ID=14.8	8-94461-901-0	01	1	9505-	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6X25	9-01960-625-0	01	1	9112-9204	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6X25 W/LK&PL WASHER	0-50140-625-0	01	1	9205-9208	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6X25 FLANGE	0-28080-625-0	01	1	9209-9504	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) M6X25 FLANGE	0-28080-625-0	01	1	9505-9702	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) M6X25 FLANGE	0-28680-625-0	01	1	9703-	●	●
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94380-199-0	01	1	9112-9303	●	●
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-843-0	01	1	9304-9504	●	●
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-843-0	01	1	9505-	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	01	1	9608-	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	03	1	9112-9504	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	03	1	9505-9607	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	02	1	9608-	●	●
144	BOLT; CONN TO CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M10X45	0-28011-045-0	01	1	9112-9204	●	●
144	BOLT; CONN TO CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M10X45 FLANGE	0-28081-045-0	01	1	9205-9504	●	●
144	BOLT; CONN TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M10X45 FLANGE	0-28081-045-0	01	1	9505-	●	●
144	BOLT; CONN TO CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M10X45	9-01961-045-0	01	1	9112-9204	●	●
144	BOLT; CONN TO CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M10X45 W/LK&PL WASHER	0-50141-045-0	01	1	9205-9504	●	●
144	BOLT; CONN TO CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) M10X45 W/LK&PL WASHER	0-50141-045-0	01	1	9505-	●	●
144	BOLT; CONN TO CMPR 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	9608-	●	●
146	CLIP; RECEIVER PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94457-163-0	02	1	9112-9308	●	●
146	CLIP; RECEIVER PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94457-163-0	02	1	9309-9504	●	●
146	CLIP; RECEIVER PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-94457-163-0	02	1	9505-	●	●
146	CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) ID=17 H=13.9 BLACK	8-97064-671-0	03	1	9112-9308	●	●
146	CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) ID=17 H=13.9 BLACK	8-97064-671-0	03	1	9309-9504	●	●
146	CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (A) ID=17 H=13.9 BLACK	8-97064-671-0	03	1	9505-	●	●
146	CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) ID=17 T=1.6 L=26.5 H=18.5	8-97064-672-0	01	1	9112-9303	●	●
146	CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) ID=17 T=1.6 L=26.5 H=18.5	8-97064-672-0	01	1	9309-9504	●	●
146	CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (B) ID=17 T=1.6 L=26.5 H=18.5	8-97064-672-0	01	1	9505-	●	●
147	CAP; FLEX HOSE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) CAP MARK L	8-97083-102-0	01	1	9304-9504	●	●
147	CAP; FLEX HOSE 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) CAP MARK L	8-97083-102-0	01	1	9505-	●	●
148	VALVE; FLEX HOSE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97083-100-0	01	1	9304-9504	●	●
148	VALVE; FLEX HOSE 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	01	1	9505-	●	●
156	VALVE; PIPE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94121-731-0	01	1	9209-9209	●	●
156	VALVE; PIPE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94121-731-0	01	1	9210-9303	●	●
156	VALVE; PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94121-731-0	01	1	9210-9303	●	●
156	VALVE; PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97083-100-0	01	1	9304-	●	●
156	VALVE; PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97083-100-0	01	1	9304-	●	●
162	BOLT; FLEX HOSE 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	01	1	9610-	●	●
162	BOLT; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	9610-	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9304-9308	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9309-9504	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H	8-97083-101-0	01	1	9505-	●	●
171	CAP; PIPE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-94324-069-0	01	1	9209-9303	●	●
171	CAP; PIPE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) CAP MARK L	8-97083-102-0	01	1	9304-9308	●	●
171	CAP; PIPE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) CAP MARK L	8-97083-102-0	01	1	9309-9504	●	●
171	CAP; PIPE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK L	8-97083-102-0	01	1	9505-	●	●
184	PIPE; PIPE TO EVAP 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97038-933-0	01	1	9112-9303	●	●
184	PIPE; PIPE TO EVAP 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-846-0	01	1	9304-9504	●	●
184	PIPE; PIPE TO EVAP 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-846-0	01	1	9505-9607	●	●
184	PIPE; PIPE TO EVAP 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97145-742-0	01	1	9608-	●	●
184	PIPE; PIPE TO EVAP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94382-419-3	01	1	9112-9209	●	●
184	PIPE; PIPE TO EVAP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97086-045-0	01	1	9210-9303	●	●
184	PIPE; PIPE TO EVAP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-844-1	01	1	9304-9504	●	●
184	PIPE; PIPE TO EVAP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-844-1	01	1	9505-	●	●

185 171 156 116 123 146 67 67 66 66 67 70 93 123 123 67 156 146 184 146 171 162 144 144 44 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	CLIP; FLEX HOSE 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) D6.8X12	8-94198-687-0	02	1	9112-9504	●	●
44	CLIP; FLEX HOSE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) D6.8X12	8-94198-687-0	02	1	9505-	●	●
44	CLIP; FLEX HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) D6.8X12	8-94198-687-0	01	1	9112-9504	●	●
44	CLIP; FLEX HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) D6.8X12	8-94198-687-0	01	1	9505-	●	●
66	HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (D)	8-97022-182-0	01	1	9112-9303	●	●
66	HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (D) "R-134A"	8-97086-223-1	01	1	9304-9504	●	●
66	HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (D) "R-134A"	8-97086-223-1	01	1	9505-9609	●	●
66	HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97167-165-0	01	1	9610-	●	●
66	HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C)	8-97038-813-1	01	1	9112-9301	●	●
66	HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C)	8-97086-204-1	01	1	9302-9504	●	●
66	HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97086-204-1	01	1	9505-	●	●
66	HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-94376-287-2	01	1	9112-9202	●	●
66	HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97074-711-0	01	1	9203-9208	●	●
66	HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97075-382-1	01	1	9209-9504	●	●
66	HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97075-382-1	01	1	9505-	●	●
66	HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-94376-291-1	01	1	9112-9301	●	●
66	HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97086-203-1	01	1	9302-9504	●	●
66	HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97086-203-1	01	1	9505-	●	●
67	GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (G) ID=10.8	8-94113-331-0	01	1	9112-9504	●	●
67	GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (G) ID=10.8	8-94113-331-0	01	1	9505-	●	●
67	GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (F) ID=7.80	8-94113-333-0	01	1	9112-9303	●	●
67	GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (F) ID=13.9	8-94113-330-0	01	1	9304-9504	●	●
67	GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (F) ID=13.9	8-94113-330-0	01	1	9505-	●	●
67	GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (D) ID=11.0	8-94461-900-0	01	1	9112-9504	●	●
67	GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (D) ID=11.0	8-94461-900-0	01	1	9505-	●	●
67	GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) ID=14.8	8-94461-901-0	01	1	9112-9504	●	●
67	GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (E) ID=14.8	8-94461-901-0	01	1	9505-	●	●
67	GASKET; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) ID=13.9	8-94113-330-0	01	1	9112-9208	●	●
67	GASKET; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C) ID=10.8	8-94113-331-0	02	1	9112-9504	●	●
67	GASKET; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (C) ID=10.8	8-94113-331-0	02	1	9505-	●	●
67	GASKET; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97061-337-0	01	1	9112-9208	●	●
67	GASKET; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) ID=13.9	8-94113-330-0	02	1	9209-9504	●	●
67	GASKET; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (B) ID=13.9	8-94113-330-0	02	1	9505-	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6X25	9-01960-625-0	01	1	9112-9204	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6X25 W/LK&PL WASHER	0-50140-625-0	01	1	9205-9208	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6X25 FLANGE	0-28080-625-0	01	1	9209-9504	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) M6X25 FLANGE	0-28080-625-0	01	1	9505-9702	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) M6X25 FLANGE	0-28680-625-0	01	1	9703-	●	●
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94380-199-0	01	1	9112-9303	●	●
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-843-0	01	1	9304-9504	●	●
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-843-0	01	1	9505-	●	●
116	GASKET; PIPE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=13.9	8-94113-330-0	01	1	9209-9504	●	●
116	GASKET; PIPE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) ID=13.9	8-94113-330-0	01	1	9505-	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	01	1	9608-	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	03	1	9112-9504	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	03	1	9505-9607	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	02	1	9608-	●	●
144	BOLT; CONN TO CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M10X45	0-28011-045-0	01	1	9112-9204	●	●
144	BOLT; CONN TO CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M10X45 FLANGE	0-28081-045-0	01	1	9205-9504	●	●
144	BOLT; CONN TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M10X45 FLANGE	0-28081-045-0	01	1	9505-	●	●
144	BOLT; CONN TO CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M10X45	9-01961-045-0	01	1	9112-9204	●	●
144	BOLT; CONN TO CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M10X45 W/LK&PL WASHER	0-50141-045-0	01	1	9205-9504	●	●
144	BOLT; CONN TO CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) M10X45 W/LK&PL WASHER	0-50141-045-0	01	1	9505-	●	●
144	BOLT; CONN TO CMPR 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	9608-	●	●
146	CLIP; RECEIVER PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94457-163-0	02	1	9112-9308	●	●
146	CLIP; RECEIVER PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94457-163-0	02	1	9309-9504	●	●
146	CLIP; RECEIVER PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-94457-163-0	02	1	9505-	●	●
146	CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) ID=17 H=13.9 BLACK	8-97064-671-0	03	1	9112-9308	●	●
146	CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) ID=17 H=13.9 BLACK	8-97064-671-0	03	1	9309-9504	●	●
146	CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (A) ID=17 H=13.9 BLACK	8-97064-671-0	03	1	9505-	●	●
146	CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) ID=17 T=1.6 L=26.5 H=18.5	8-97064-672-0	01	1	9112-9303	●	●
146	CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) ID=17 T=1.6 L=26.5 H=18.5	8-97064-672-0	01	1	9309-9504	●	●
146	CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (B) ID=17 T=1.6 L=26.5 H=18.5	8-97064-672-0	01	1	9505-	●	●
156	VALVE; PIPE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94121-731-0	01	1	9209-9209	●	●
156	VALVE; PIPE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94121-731-0	01	1	9210-9303	●	●
156	VALVE; PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94121-731-0	01	1	9210-9303	●	●
156	VALVE; PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97083-100-0	01	1	9304-	●	●
156	VALVE; PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97083-100-0	01	1	9304-	●	●
162	BOLT; FLEX HOSE 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	01	1	9610-	●	●
162	BOLT; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	9610-	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9304-9308	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9309-9504	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H	8-97083-101-0	01	1	9505-	●	●
171	CAP; PIPE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-94324-069-0	01	1	9209-9303	●	●
171	CAP; PIPE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) CAP MARK L	8-97083-102-0	01	1	9304-9308	●	●
171	CAP; PIPE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) CAP MARK L	8-97083-102-0	01	1	9309-9504	●	●
171	CAP; PIPE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK L	8-97083-102-0	01	1	9505-	●	●
184	PIPE; PIPE TO EVAP 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97038-933-0	01	1	9112-9303	●	●
184	PIPE; PIPE TO EVAP 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-846-0	01	1	9304-9504	●	●
184	PIPE; PIPE TO EVAP 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-846-0	01	1	9505-9607	●	●
184	PIPE; PIPE TO EVAP 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97145-742-0	01	1	9608-	●	●
184	PIPE; PIPE TO EVAP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94382-419-3	01	1	9112-9209	●	●
184	PIPE; PIPE TO EVAP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97086-045-0	01	1	9210-9303	●	●
184	PIPE; PIPE TO EVAP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-844-1	01	1	9304-9504	●	●
184	PIPE; PIPE TO EVAP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-844-1	01	1	9505-	●	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-092-1	01	1	9112-9208	●	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97075-367-0	01	1	9209-9303	●	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-848-1	01	1	9309-9504	●	●
185	PIPE; EVAP TO FLEX HOSE,PRESS LO 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-848-1	01	1	9505-	●	●

184 146 146 146 156 171 44 162 66 123 70 67 123 93 67 144 147 67 67 148 66 146 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	CLIP; FLEX HOSE 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) D6.8X12	8-94198-687-0	02	1	9112-9504	●	●
44	CLIP; FLEX HOSE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) D6.8X12	8-94198-687-0	02	1	9505-	●	●
44	CLIP; FLEX HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) D6.8X12	8-94198-687-0	01	1	9112-9504	●	●
44	CLIP; FLEX HOSE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) D6.8X12	8-94198-687-0	01	1	9505-	●	●
66	HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (D)	8-97022-182-0	01	1	9112-9303	●	●
66	HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (D) "R-134A"	8-97086-223-1	01	1	9304-9504	●	●
66	HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (D) "R-134A"	8-97086-223-1	01	1	9505-9609	●	●
66	HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (D)	8-97167-165-0	01	1	9610-	●	●
66	HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C)	8-97038-813-1	01	1	9112-9301	●	●
66	HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C)	8-97086-204-1	01	1	9302-9504	●	●
66	HOSE; FLEX,A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97086-204-1	01	1	9505-	●	●
66	HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-94376-287-2	01	1	9112-9202	●	●
66	HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97074-711-0	01	1	9203-9208	●	●
66	HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97075-382-1	01	1	9209-9504	●	●
66	HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97075-382-1	01	1	9505-	●	●
66	HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-94376-291-1	01	1	9112-9301	●	●
66	HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97086-203-1	01	1	9302-9504	●	●
66	HOSE; FLEX,A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97086-203-1	01	1	9505-	●	●
67	GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (G) ID=10.8	8-94113-331-0	01	1	9112-9504	●	●
67	GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (G) ID=10.8	8-94113-331-0	01	1	9505-	●	●
67	GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (F) ID=7.80	8-94113-333-0	01	1	9112-9303	●	●
67	GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (F) ID=13.9	8-94113-330-0	01	1	9304-9504	●	●
67	GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (F) ID=13.9	8-94113-330-0	01	1	9505-	●	●
67	GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (D) ID=11.0	8-94461-900-0	01	1	9112-9504	●	●
67	GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (D) ID=11.0	8-94461-900-0	01	1	9505-	●	●
67	GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) ID=14.8	8-94461-901-0	01	1	9112-9504	●	●
67	GASKET; FLEX HOSE 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (E) ID=14.8	8-94461-901-0	01	1	9505-	●	●
67	GASKET; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) ID=13.9	8-94113-330-0	01	1	9112-9208	●	●
67	GASKET; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C) ID=10.8	8-94113-331-0	02	1	9112-9504	●	●
67	GASKET; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (C) ID=10.8	8-94113-331-0	02	1	9505-	●	●
67	GASKET; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97061-337-0	01	1	9112-9208	●	●
67	GASKET; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) ID=13.9	8-94113-330-0	02	1	9209-9504	●	●
67	GASKET; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (B) ID=13.9	8-94113-330-0	02	1	9505-	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6X25	9-01960-625-0	01	1	9112-9204	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6X25 W/LK&PL WASHER	0-50140-625-0	01	1	9205-9208	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6X25 FLANGE	0-28080-625-0	01	1	9209-9504	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) M6X25 FLANGE	0-28080-625-0	01	1	9505-9702	●	●
70	BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) M6X25 FLANGE	0-28680-625-0	01	1	9703-	●	●
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94380-199-0	01	1	9112-9303	●	●
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-843-0	01	1	9304-9504	●	●
93	PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-843-0	01	1	9505-	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	01	1	9608-	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	03	1	9112-9504	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	03	1	9505-9607	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	02	1	9608-	●	●
144	BOLT; CONN TO CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M10X45	0-28011-045-0	01	1	9112-9204	●	●
144	BOLT; CONN TO CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M10X45 FLANGE	0-28081-045-0	01	1	9205-9504	●	●
144	BOLT; CONN TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) M10X45 FLANGE	0-28081-045-0	01	1	9505-	●	●
144	BOLT; CONN TO CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M10X45	9-01961-045-0	01	1	9112-9204	●	●
144	BOLT; CONN TO CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M10X45 W/LK&PL WASHER	0-50141-045-0	01	1	9205-9504	●	●
144	BOLT; CONN TO CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) M10X45 W/LK&PL WASHER	0-50141-045-0	01	1	9505-	●	●
144	BOLT; CONN TO CMPR 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	9608-	●	●
146	CLIP; RECEIVER PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94457-163-0	02	1	9112-9308	●	●
146	CLIP; RECEIVER PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94457-163-0	02	1	9309-9504	●	●
146	CLIP; RECEIVER PIPE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-94457-163-0	02	1	9505-	●	●
146	CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) ID=17 H=13.9 BLACK	8-97064-671-0	03	1	9112-9308	●	●
146	CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) ID=17 H=13.9 BLACK	8-97064-671-0	03	1	9309-9504	●	●
146	CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (A) ID=17 H=13.9 BLACK	8-97064-671-0	03	1	9505-	●	●
146	CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) ID=17 T=1.6 L=26.5 H=18.5	8-97064-672-0	01	1	9112-9303	●	●
146	CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) ID=17 T=1.6 L=26.5 H=18.5	8-97064-672-0	01	1	9309-9504	●	●
146	CLIP; RECEIVER PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (B) ID=17 T=1.6 L=26.5 H=18.5	8-97064-672-0	01	1	9505-	●	●
147	CAP; FLEX HOSE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) CAP MARK L	8-97083-102-0	01	1	9304-9504	●	●
147	CAP; FLEX HOSE 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) CAP MARK L	8-97083-102-0	01	1	9505-	●	●
148	VALVE; FLEX HOSE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97083-100-0	01	1	9304-9504	●	●
148	VALVE; FLEX HOSE 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-97083-100-0	01	1	9505-	●	●
156	VALVE; PIPE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94121-731-0	01	1	9209-9209	●	●
156	VALVE; PIPE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94121-731-0	01	1	9210-9303	●	●
156	VALVE; PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94121-731-0	01	1	9210-9303	●	●
156	VALVE; PIPE 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97083-100-0	01	1	9304-	●	●
156	VALVE; PIPE 4JG2 ENG(RJC),4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97083-100-0	01	1	9304-	●	●
162	BOLT; FLEX HOSE 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	01	1	9610-	●	●
162	BOLT; FLEX HOSE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28680-825-0	02	1	9610-	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9304-9308	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9309-9504	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H	8-97083-101-0	01	1	9505-	●	●
171	CAP; PIPE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-94324-069-0	01	1	9209-9303	●	●
171	CAP; PIPE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) CAP MARK L	8-97083-102-0	01	1	9304-9308	●	●
171	CAP; PIPE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) CAP MARK L	8-97083-102-0	01	1	9309-9504	●	●
171	CAP; PIPE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK L	8-97083-102-0	01	1	9505-	●	●
184	PIPE; PIPE TO EVAP 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97038-933-0	01	1	9112-9303	●	●
184	PIPE; PIPE TO EVAP 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-846-0	01	1	9304-9504	●	●
184	PIPE; PIPE TO EVAP 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-846-0	01	1	9505-9607	●	●
184	PIPE; PIPE TO EVAP 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-97145-742-0	01	1	9608-	●	●
184	PIPE; PIPE TO EVAP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94382-419-3	01	1	9112-9209	●	●
184	PIPE; PIPE TO EVAP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97086-045-0	01	1	9210-9303	●	●
184	PIPE; PIPE TO EVAP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-844-1	01	1	9304-9504	●	●
184	PIPE; PIPE TO EVAP 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97085-844-1	01	1	9505-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
