Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#35296) — 225 parça

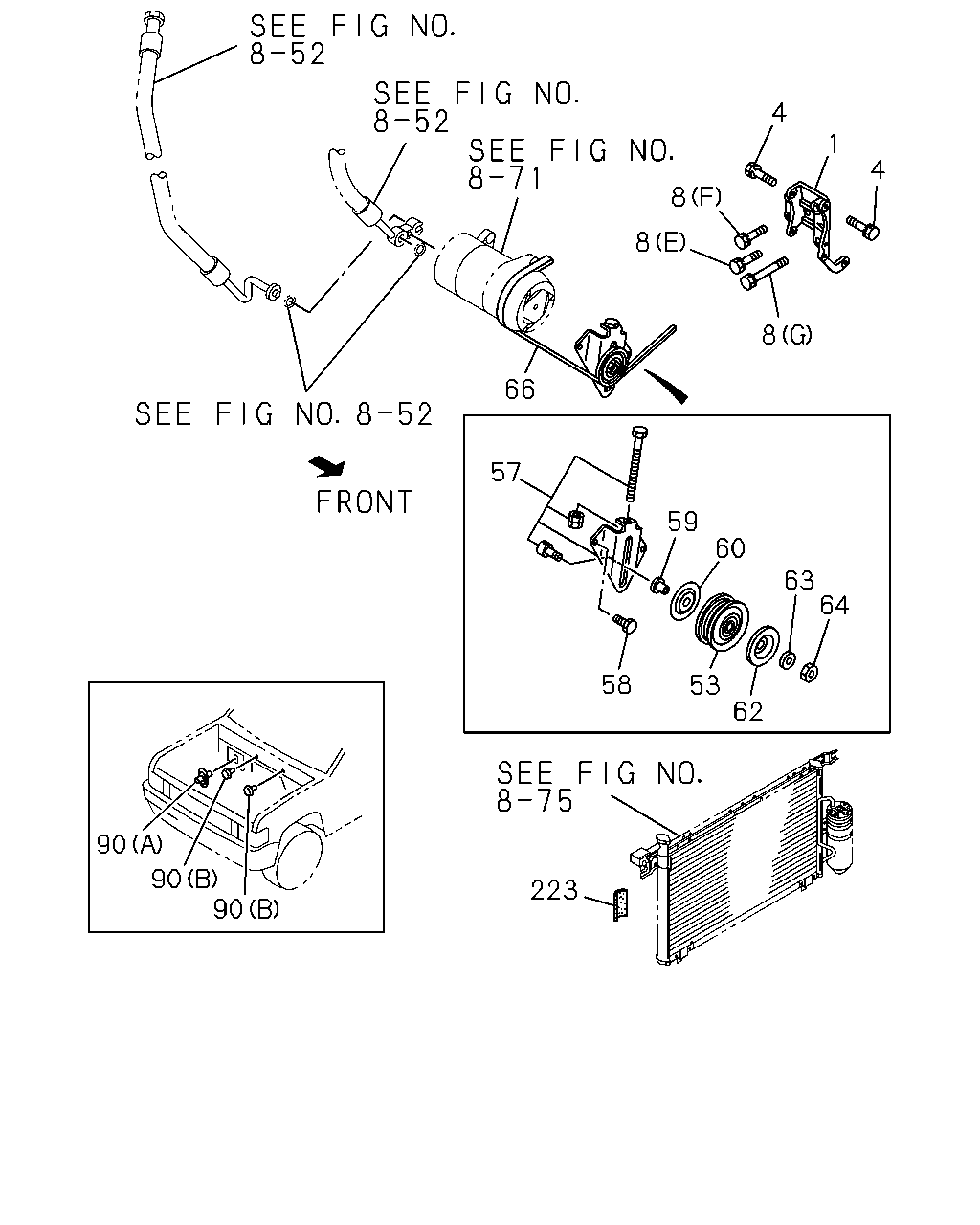

4 1 4 8 8 8 66 57 59 60 63 64 63 58 53 223 90 90 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; A/C 4ZE1 ENG(RLJ)	8-94441-552-4	01	1	9112-9504	●	●
1	BRACKET; A/C 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-94441-552-4	01	1	9505-	●	●
4	BOLT; A/C CMPR BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) M10X32 W/LK WASHER	0-50041-032-0	02	1	9112-9308	●	●
4	BOLT; A/C CMPR BRKT 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) M10X32 W/LK WASHER	0-50041-032-0	02	1	9112-9308	●	●
4	BOLT; A/C CMPR BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) M10X32 W/LK WASHER	0-50041-032-0	02	1	9309-9504	●	●
4	BOLT; A/C CMPR BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) M10X32 W/LK WASHER	0-50041-032-0	02	1	9505-	●	●
4	BOLT; A/C CMPR BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9112-9308	●	●
4	BOLT; A/C CMPR BRKT 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9112-9308	●	●
4	BOLT; A/C CMPR BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9309-9504	●	●
4	BOLT; A/C CMPR BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9505-	●	●
4	BOLT; A/C CMPR BRKT 4ZE1 ENG(RLJ) M10X35 W/LK WASHER	0-50041-035-0	04	1	9112-9504	●	●
4	BOLT; A/C CMPR BRKT 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) M10X35 W/LK WASHER	0-50041-035-0	04	1	9505-	●	●
8	BOLT; BRKT 4JG1 ENG(RLT) M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9112-9504	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL> (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9505-	●	●
8	BOLT; BRKT 4JG1 ENG(RLT) M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) M10X45 W/LK WASHER	0-50041-045-0	01	1	9112-9412	●	●
8	BOLT; BRKT 4JG1 ENG(RLT) M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) M10X40 W/LK WASHER	0-50041-040-0	01	1	9501-9504	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL> (A) M10X40 W/LK WASHER	0-50041-040-0	01	1	9505-	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) M8X40 W/LK WASHER	0-50040-840-0	01	1	9112-	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) M10X50	5-09000-243-1	01	1	9112-9204	●	●
8	BOLT; BRKT 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) M10X50	5-09000-243-1	01	1	9112-9204	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) M10X50 W/LK WASHER	0-50041-050-0	01	1	9205-9207	●	●
8	BOLT; BRKT 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) M10X50 W/LK WASHER	0-50041-050-0	01	1	9205-9207	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9208-9308	●	●
8	BOLT; BRKT 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9208-9308	●	●
8	BOLT; BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9309-9504	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9505-	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (C) M10X55	5-09030-038-1	01	1	9208-9308	●	●
8	BOLT; BRKT 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C) M10X55	5-09030-038-1	01	1	9208-9308	●	●
8	BOLT; BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C) M10X55	5-09030-038-1	01	1	9309-9504	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (C) M10X55	5-09030-038-1	01	1	9505-	●	●
8	BOLT; BRKT 4ZE1 ENG(RLJ) (E) M10X25 W/LK WASHER	0-50041-025-0	01	1	9112-9504	●	●
8	BOLT; BRKT 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (E) M10X25 W/LK WASHER	0-50041-025-0	01	1	9505-	●	●
8	BOLT; BRKT 4ZE1 ENG(RLJ) (F) M10X35 W/LK WASHER	0-50041-035-0	01	1	9112-9504	●	●
8	BOLT; BRKT 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (F) M10X35 W/LK WASHER	0-50041-035-0	01	1	9505-	●	●
8	BOLT; BRKT 4ZE1 ENG(RLJ) (G) M10X55	5-09030-038-1	02	1	9112-9504	●	●
8	BOLT; BRKT 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (G) M10X55	5-09030-038-1	02	1	9505-	●	●
8	BOLT; BRKT 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (D) M10X16 FLANGE	0-28181-016-0	01	1	9112-9504	●	●
8	BOLT; BRKT 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) M10X16 FLANGE	0-28181-016-0	01	1	9505-	●	●
53	PULLEY; IDLER WITH COVER 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94160-544-0	01	1	9112-9504	●	●
53	PULLEY; IDLER WITH COVER 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-94160-544-0	01	1	9505-	●	●
53	PULLEY; IDLER WITH COVER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97061-667-0	01	1	9112-9504	●	●
53	PULLEY; IDLER WITH COVER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97061-667-0	01	1	9505-	●	●
57	BRACKET; IDLER PULLEY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94160-543-0	01	1	9112-9504	●	●
57	BRACKET; IDLER PULLEY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-94160-543-0	01	1	9505-	●	●
57	BRACKET; IDLER PULLEY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97061-670-0	01	1	9112-9504	●	●
57	BRACKET; IDLER PULLEY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97061-670-0	01	1	9505-	●	●
58	BOLT; IDLER PULLEY TO BODY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M8X20 W/LK WASHER	0-50040-820-0	02	1	9112-9504	●	●
58	BOLT; IDLER PULLEY TO BODY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) M8X20 W/LK WASHER	0-50040-820-0	02	1	9505-	●	●
59	COLLAR; IDLER PULLEY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94161-805-0	01	1	9112-9504	●	●
59	COLLAR; IDLER PULLEY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-94161-805-0	01	1	9505-	●	●
59	COLLAR; IDLER PULLEY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97061-669-0	01	1	9112-9504	●	●
59	COLLAR; IDLER PULLEY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97061-669-0	01	1	9505-	●	●
60	COVER; IDLER PULLEY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) REAR	8-94161-804-0	01	1	9112-9504	●	●
60	COVER; IDLER PULLEY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) REAR	8-94161-804-0	01	1	9505-	●	●
63	WASHER; SHAFT,IDLER PULLEY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94172-502-0	01	1	9112-9504	●	●
63	WASHER; SHAFT,IDLER PULLEY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-94172-502-0	01	1	9505-	●	●
63	WASHER; SHAFT,IDLER PULLEY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97061-672-0	01	1	9112-9504	●	●
63	WASHER; SHAFT,IDLER PULLEY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97061-672-0	01	1	9505-	●	●
64	NUT; SHAFT,IDLER PULLEY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94160-678-0	01	1	9112-9504	●	●
64	NUT; SHAFT,IDLER PULLEY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-94160-678-0	01	1	9505-	●	●
64	NUT; SHAFT,IDLER PULLEY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97061-668-0	01	1	9112-9504	●	●
64	NUT; SHAFT,IDLER PULLEY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97061-668-0	01	1	9505-	●	●
66	BELT; A/C CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) L=999	8-94478-173-1	01	1	9112-9504	●	●
66	BELT; A/C CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) L=999	8-94478-173-1	01	1	9505-	●	●
66	BELT; A/C CMPR 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94382-107-1	01	1	9112-9504	●	●
66	BELT; A/C CMPR 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-94382-107-1	01	1	9505-	●	●
90	PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-94222-310-1	01	1	9112-9504	●	●
90	PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94222-310-1	01	1	9505-	●	●
90	PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) OD=12	9-09956-122-0	02	1	9112-9504	●	●
90	PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) (B) OD=12	9-09956-122-0	02	1	9505-	●	●
223	INSULATOR; HEAT,CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97077-716-0	02	1	9202-9303	●	●
223	INSULATOR; HEAT,CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97077-716-0	02	1	9304-9308	●	●

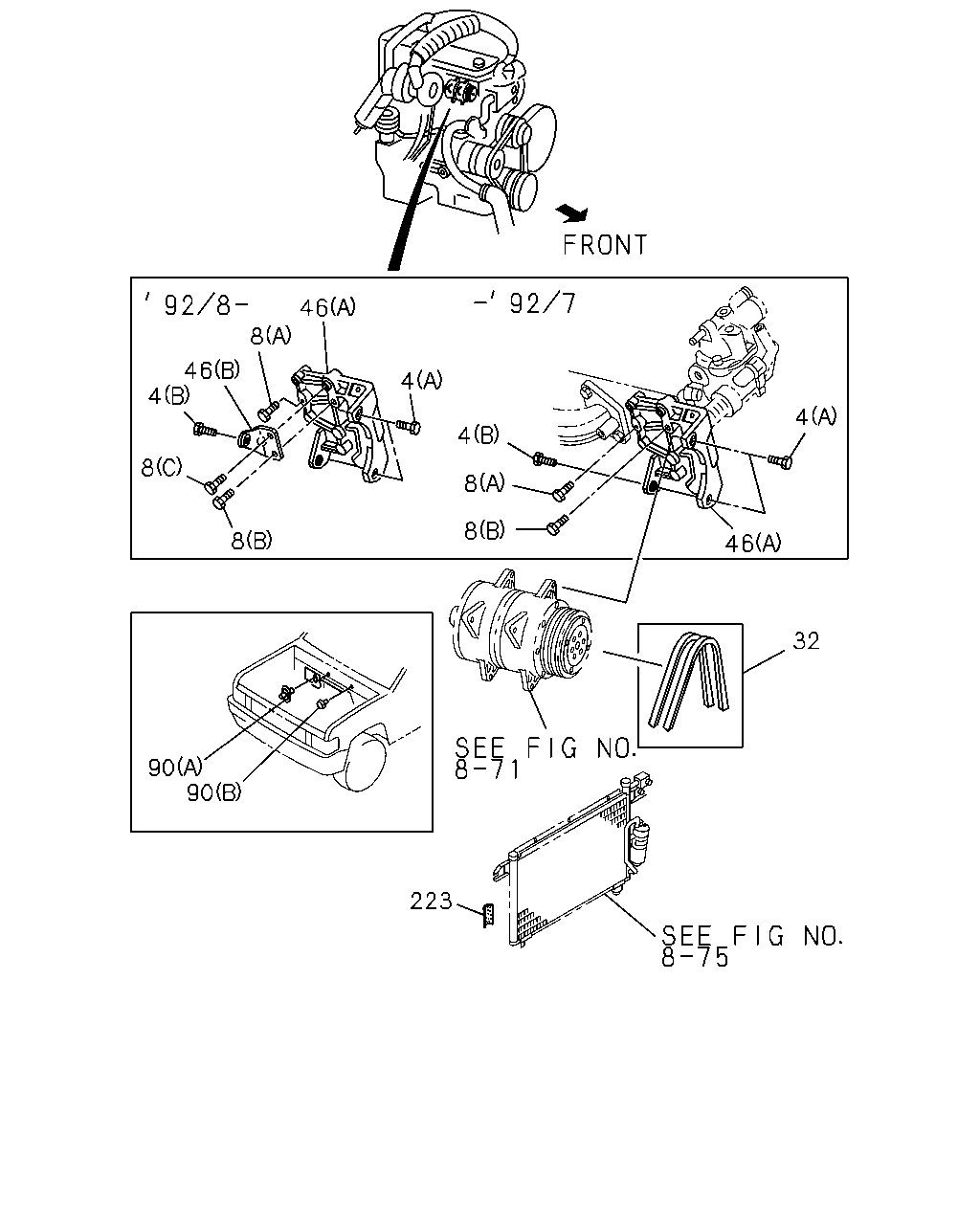

46 8 46 4 8 8 4 4 8 8 4 46 32 223 90 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOLT; A/C CMPR BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) M10X32 W/LK WASHER	0-50041-032-0	02	1	9112-9308	●	●
4	BOLT; A/C CMPR BRKT 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) M10X32 W/LK WASHER	0-50041-032-0	02	1	9112-9308	●	●
4	BOLT; A/C CMPR BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) M10X32 W/LK WASHER	0-50041-032-0	02	1	9309-9504	●	●
4	BOLT; A/C CMPR BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) M10X32 W/LK WASHER	0-50041-032-0	02	1	9505-	●	●
4	BOLT; A/C CMPR BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9112-9308	●	●
4	BOLT; A/C CMPR BRKT 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9112-9308	●	●
4	BOLT; A/C CMPR BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9309-9504	●	●
4	BOLT; A/C CMPR BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9505-	●	●
4	BOLT; A/C CMPR BRKT 4ZE1 ENG(RLJ) M10X35 W/LK WASHER	0-50041-035-0	04	1	9112-9504	●	●
4	BOLT; A/C CMPR BRKT 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) M10X35 W/LK WASHER	0-50041-035-0	04	1	9505-	●	●
8	BOLT; BRKT 4JG1 ENG(RLT) M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9112-9504	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL> (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9505-	●	●
8	BOLT; BRKT 4JG1 ENG(RLT) M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) M10X45 W/LK WASHER	0-50041-045-0	01	1	9112-9412	●	●
8	BOLT; BRKT 4JG1 ENG(RLT) M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) M10X40 W/LK WASHER	0-50041-040-0	01	1	9501-9504	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL> (A) M10X40 W/LK WASHER	0-50041-040-0	01	1	9505-	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) M8X40 W/LK WASHER	0-50040-840-0	01	1	9112-	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) M10X50	5-09000-243-1	01	1	9112-9204	●	●
8	BOLT; BRKT 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) M10X50	5-09000-243-1	01	1	9112-9204	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) M10X50 W/LK WASHER	0-50041-050-0	01	1	9205-9207	●	●
8	BOLT; BRKT 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) M10X50 W/LK WASHER	0-50041-050-0	01	1	9205-9207	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9208-9308	●	●
8	BOLT; BRKT 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9208-9308	●	●
8	BOLT; BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9309-9504	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9505-	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (C) M10X55	5-09030-038-1	01	1	9208-9308	●	●
8	BOLT; BRKT 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C) M10X55	5-09030-038-1	01	1	9208-9308	●	●
8	BOLT; BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C) M10X55	5-09030-038-1	01	1	9309-9504	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (C) M10X55	5-09030-038-1	01	1	9505-	●	●
8	BOLT; BRKT 4ZE1 ENG(RLJ) (E) M10X25 W/LK WASHER	0-50041-025-0	01	1	9112-9504	●	●
8	BOLT; BRKT 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (E) M10X25 W/LK WASHER	0-50041-025-0	01	1	9505-	●	●
8	BOLT; BRKT 4ZE1 ENG(RLJ) (F) M10X35 W/LK WASHER	0-50041-035-0	01	1	9112-9504	●	●
8	BOLT; BRKT 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (F) M10X35 W/LK WASHER	0-50041-035-0	01	1	9505-	●	●
8	BOLT; BRKT 4ZE1 ENG(RLJ) (G) M10X55	5-09030-038-1	02	1	9112-9504	●	●
8	BOLT; BRKT 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (G) M10X55	5-09030-038-1	02	1	9505-	●	●
8	BOLT; BRKT 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (D) M10X16 FLANGE	0-28181-016-0	01	1	9112-9504	●	●
8	BOLT; BRKT 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) M10X16 FLANGE	0-28181-016-0	01	1	9505-	●	●
32	BELT; A/C CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-94434-926-0	01	1	9112-9308	●	●
32	BELT; A/C CMPR 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94434-926-0	01	1	9112-9308	●	●
32	BELT; A/C CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94434-926-0	01	1	9309-9504	●	●
32	BELT; A/C CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60)	8-94434-926-0	01	1	9505-	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94421-543-1	01	1	9112-9202	●	●
46	BRACKET; CMPR 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-94421-543-1	01	1	9112-9202	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97074-766-0	01	1	9203-9207	●	●
46	BRACKET; CMPR 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97074-766-0	01	1	9203-9207	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-063-0	01	1	9208-9308	●	●
46	BRACKET; CMPR 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97085-063-0	01	1	9208-9308	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97085-063-0	01	1	9309-9410	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97114-780-0	01	1	9411-9504	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97114-780-0	01	1	9505-	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-065-0	01	1	9208-9308	●	●
46	BRACKET; CMPR 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97085-065-0	01	1	9208-9308	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97085-065-0	01	1	9309-9410	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97114-782-0	01	1	9411-9504	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97114-782-0	01	1	9505-	●	●
46	BRACKET; CMPR 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94374-507-5	01	1	9112-9504	●	●
46	BRACKET; CMPR 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-94374-507-5	01	1	9505-	●	●
90	PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-94222-310-1	01	1	9112-9504	●	●
90	PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94222-310-1	01	1	9505-	●	●
90	PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) OD=12	9-09956-122-0	02	1	9112-9504	●	●
90	PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) (B) OD=12	9-09956-122-0	02	1	9505-	●	●
223	INSULATOR; HEAT,CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97077-716-0	02	1	9202-9303	●	●
223	INSULATOR; HEAT,CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97077-716-0	02	1	9304-9308	●	●

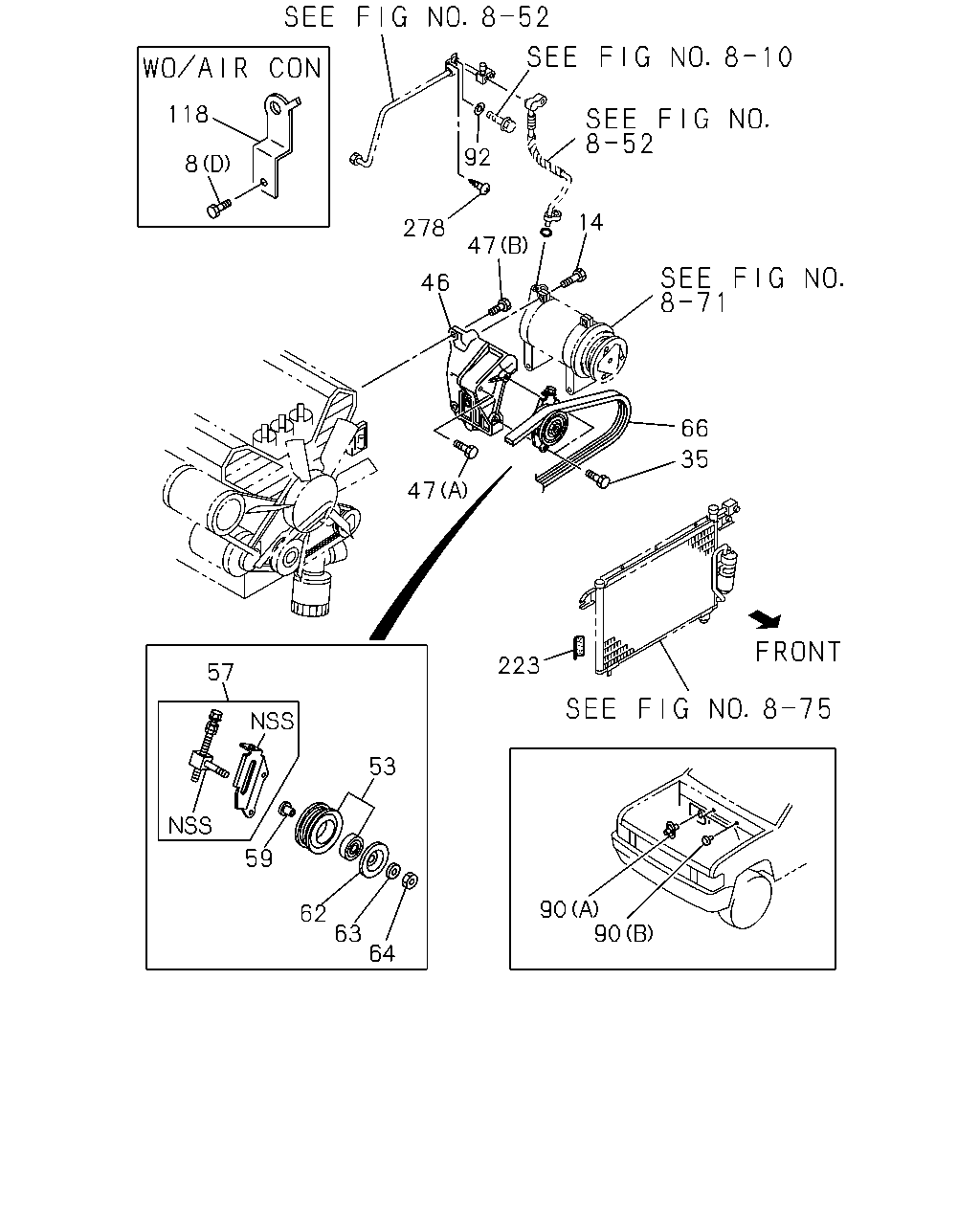

118 92 8 14 278 47 46 66 35 47 223 57 53 59 90 90 62 63 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BOLT; BRKT 4JG1 ENG(RLT) M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9112-9504	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL> (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9505-	●	●
8	BOLT; BRKT 4JG1 ENG(RLT) M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) M10X45 W/LK WASHER	0-50041-045-0	01	1	9112-9412	●	●
8	BOLT; BRKT 4JG1 ENG(RLT) M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) M10X40 W/LK WASHER	0-50041-040-0	01	1	9501-9504	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51>,CHARGE AIR COOLER<6PL> (A) M10X40 W/LK WASHER	0-50041-040-0	01	1	9505-	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) M8X40 W/LK WASHER	0-50040-840-0	01	1	9112-	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) M10X50	5-09000-243-1	01	1	9112-9204	●	●
8	BOLT; BRKT 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) M10X50	5-09000-243-1	01	1	9112-9204	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) M10X50 W/LK WASHER	0-50041-050-0	01	1	9205-9207	●	●
8	BOLT; BRKT 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) M10X50 W/LK WASHER	0-50041-050-0	01	1	9205-9207	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9208-9308	●	●
8	BOLT; BRKT 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9208-9308	●	●
8	BOLT; BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9309-9504	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9505-	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (C) M10X55	5-09030-038-1	01	1	9208-9308	●	●
8	BOLT; BRKT 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C) M10X55	5-09030-038-1	01	1	9208-9308	●	●
8	BOLT; BRKT 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C) M10X55	5-09030-038-1	01	1	9309-9504	●	●
8	BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (C) M10X55	5-09030-038-1	01	1	9505-	●	●
8	BOLT; BRKT 4ZE1 ENG(RLJ) (E) M10X25 W/LK WASHER	0-50041-025-0	01	1	9112-9504	●	●
8	BOLT; BRKT 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (E) M10X25 W/LK WASHER	0-50041-025-0	01	1	9505-	●	●
8	BOLT; BRKT 4ZE1 ENG(RLJ) (F) M10X35 W/LK WASHER	0-50041-035-0	01	1	9112-9504	●	●
8	BOLT; BRKT 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (F) M10X35 W/LK WASHER	0-50041-035-0	01	1	9505-	●	●
8	BOLT; BRKT 4ZE1 ENG(RLJ) (G) M10X55	5-09030-038-1	02	1	9112-9504	●	●
8	BOLT; BRKT 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) (G) M10X55	5-09030-038-1	02	1	9505-	●	●
8	BOLT; BRKT 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (D) M10X16 FLANGE	0-28181-016-0	01	1	9112-9504	●	●
8	BOLT; BRKT 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) M10X16 FLANGE	0-28181-016-0	01	1	9505-	●	●
14	BOLT; CMPR 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M8X65	8-94158-393-1	02	1	9112-9402	●	●
14	BOLT; CMPR 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M8X65 FLANGE	1-09044-072-0	02	1	9403-9504	●	●
14	BOLT; CMPR 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) M8X65 FLANGE	1-09044-072-1	02	1	9505-	●	●
14	BOLT; CMPR 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M8X75	8-94239-147-0	02	1	9112-9504	●	●
14	BOLT; CMPR 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) M8X75	8-94239-147-0	02	1	9505-	●	●
35	BOLT; IDLER PULLEY TO C/BL 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M8X16 FLANGE	0-28080-816-0	02	1	9112-9504	●	●
35	BOLT; IDLER PULLEY TO C/BL 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) M8X16 FLANGE	0-28080-816-0	02	1	9505-	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94421-543-1	01	1	9112-9202	●	●
46	BRACKET; CMPR 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-94421-543-1	01	1	9112-9202	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97074-766-0	01	1	9203-9207	●	●
46	BRACKET; CMPR 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97074-766-0	01	1	9203-9207	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97085-063-0	01	1	9208-9308	●	●
46	BRACKET; CMPR 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97085-063-0	01	1	9208-9308	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97085-063-0	01	1	9309-9410	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97114-780-0	01	1	9411-9504	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97114-780-0	01	1	9505-	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97085-065-0	01	1	9208-9308	●	●
46	BRACKET; CMPR 4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97085-065-0	01	1	9208-9308	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97085-065-0	01	1	9309-9410	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97114-782-0	01	1	9411-9504	●	●
46	BRACKET; CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97114-782-0	01	1	9505-	●	●
46	BRACKET; CMPR 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94374-507-5	01	1	9112-9504	●	●
46	BRACKET; CMPR 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-94374-507-5	01	1	9505-	●	●
47	BOLT; BRKT TO BODY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) M10X25 FLANGE	0-28181-025-0	03	1	9112-9504	●	●
47	BOLT; BRKT TO BODY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (B) M10X25 FLANGE	0-28181-025-0	03	1	9505-	●	●
47	BOLT; BRKT TO BODY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) M10X75 FLANGE	8-94399-669-1	01	1	9112-9504	●	●
47	BOLT; BRKT TO BODY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) (A) M10X75 FLANGE	8-94399-669-1	01	1	9505-	●	●
53	PULLEY; IDLER WITH COVER 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94160-544-0	01	1	9112-9504	●	●
53	PULLEY; IDLER WITH COVER 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-94160-544-0	01	1	9505-	●	●
53	PULLEY; IDLER WITH COVER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97061-667-0	01	1	9112-9504	●	●
53	PULLEY; IDLER WITH COVER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97061-667-0	01	1	9505-	●	●
57	BRACKET; IDLER PULLEY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94160-543-0	01	1	9112-9504	●	●
57	BRACKET; IDLER PULLEY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-94160-543-0	01	1	9505-	●	●
57	BRACKET; IDLER PULLEY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97061-670-0	01	1	9112-9504	●	●
57	BRACKET; IDLER PULLEY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97061-670-0	01	1	9505-	●	●
59	COLLAR; IDLER PULLEY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94161-805-0	01	1	9112-9504	●	●
59	COLLAR; IDLER PULLEY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-94161-805-0	01	1	9505-	●	●
59	COLLAR; IDLER PULLEY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97061-669-0	01	1	9112-9504	●	●
59	COLLAR; IDLER PULLEY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97061-669-0	01	1	9505-	●	●
62	COVER; IDLER PULLEY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) FRONT	8-94160-545-0	01	1	9112-9504	●	●
62	COVER; IDLER PULLEY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) FRONT	8-94160-545-0	01	1	9505-	●	●
62	COVER; IDLER PULLEY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97061-671-0	01	1	9112-9504	●	●
62	COVER; IDLER PULLEY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97061-671-0	01	1	9505-	●	●
63	WASHER; SHAFT,IDLER PULLEY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94172-502-0	01	1	9112-9504	●	●
63	WASHER; SHAFT,IDLER PULLEY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-94172-502-0	01	1	9505-	●	●
63	WASHER; SHAFT,IDLER PULLEY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97061-672-0	01	1	9112-9504	●	●
63	WASHER; SHAFT,IDLER PULLEY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97061-672-0	01	1	9505-	●	●
64	NUT; SHAFT,IDLER PULLEY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94160-678-0	01	1	9112-9504	●	●
64	NUT; SHAFT,IDLER PULLEY 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-94160-678-0	01	1	9505-	●	●
64	NUT; SHAFT,IDLER PULLEY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97061-668-0	01	1	9112-9504	●	●
64	NUT; SHAFT,IDLER PULLEY 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97061-668-0	01	1	9505-	●	●
66	BELT; A/C CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) L=999	8-94478-173-1	01	1	9112-9504	●	●
66	BELT; A/C CMPR 4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) L=999	8-94478-173-1	01	1	9505-	●	●
66	BELT; A/C CMPR 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94382-107-1	01	1	9112-9504	●	●
66	BELT; A/C CMPR 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-94382-107-1	01	1	9505-	●	●
90	PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-94222-310-1	01	1	9112-9504	●	●
90	PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94222-310-1	01	1	9505-	●	●
90	PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) OD=12	9-09956-122-0	02	1	9112-9504	●	●
90	PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) (B) OD=12	9-09956-122-0	02	1	9505-	●	●
92	WASHER; PL 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94407-333-0	01	1	9112-9303	●	●
118	BRACKET; HARNESS CLIP,A/C 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97039-000-0	01	1	9112-9504	●	●
118	BRACKET; HARNESS CLIP,A/C 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97039-000-0	01	1	9505-	●	●
223	INSULATOR; HEAT,CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97077-716-0	02	1	9202-9303	●	●
223	INSULATOR; HEAT,CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97077-716-0	02	1	9304-9308	●	●
278	SCREW; CLIP 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94470-854-1	01	1	9112-9309	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
