8-45 — HEATER PIPING (#35295) — 92 parça

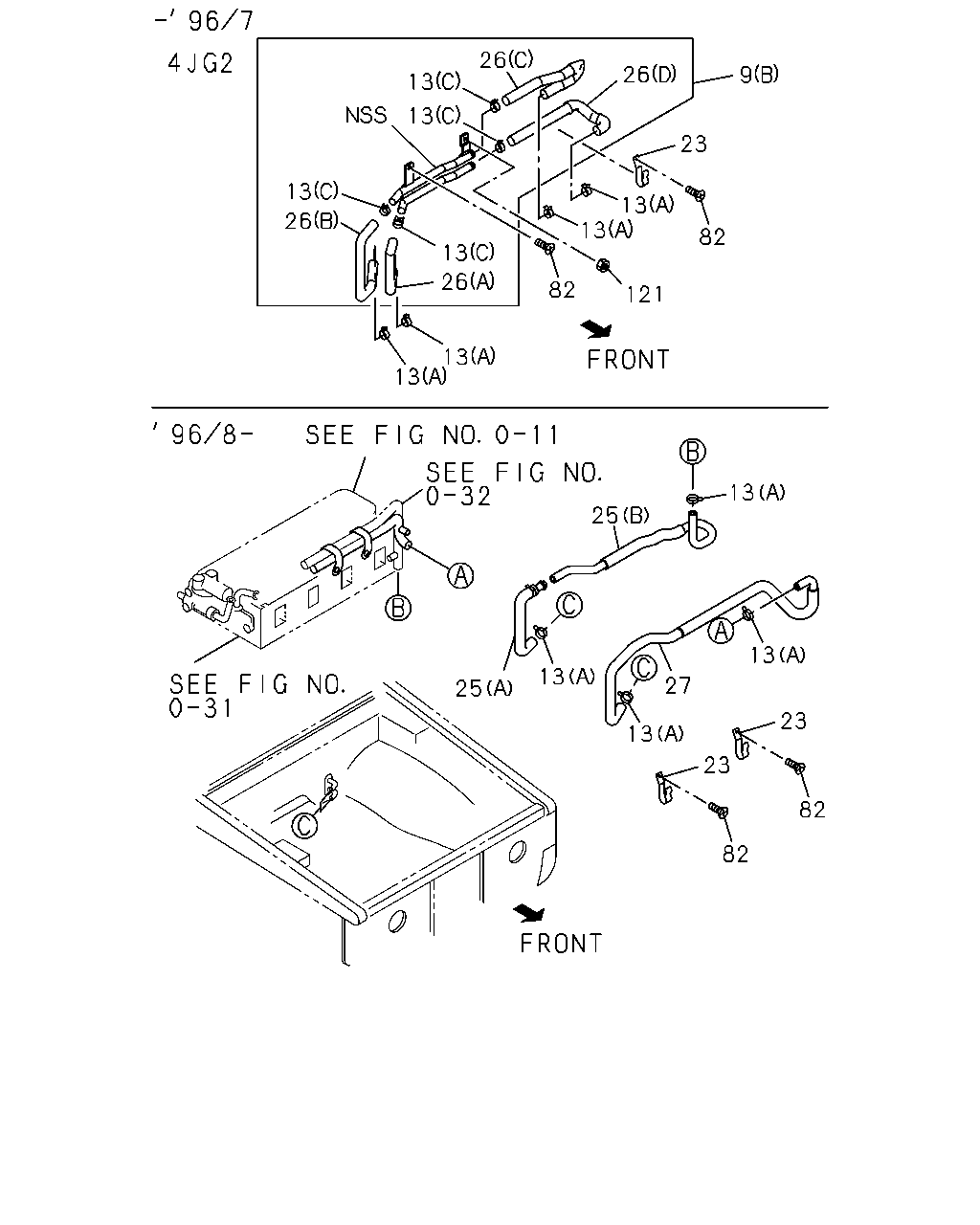

26 13 13 13 26 26 9 23 82 13 13 13 26 82 121 13 13 25 13 13 27 13 25 13 23 23 82 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	PIPE; HTR 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97063-054-2	01	1	9112-9607	●	●
9	PIPE; HTR 4ZE1 ENG(RLJ) (A)	8-94474-073-2	01	1	9112-	●	●
13	CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97713-822-0	04	1	9112-9607	●	●
13	CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	05	1	9608-	●	●
13	CLIP; HTR HOSE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	04	1	9112-9607	●	●
13	CLIP; HTR HOSE 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	04	1	9608-	●	●
13	CLIP; HTR HOSE 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	02	1	9112-	●	●
13	CLIP; HTR HOSE 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	02	1	9112-	●	●
23	CLIP; WATER HOSE,DASH LWR 4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94338-298-0	02	1	9112-9504	●	●
23	CLIP; WATER HOSE,DASH LWR 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94338-298-0	01	1	9112-9607	●	●
23	CLIP; WATER HOSE,DASH LWR 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94338-298-0	02	1	9608-	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97039-293-0	01	1	9112-9504	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97081-556-1	01	1	9608-	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97176-376-0	01	1	9608-	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94435-212-3	01	1	9112-9503	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97078-644-0	01	1	9504-	●	●
25	HOSE; WATER,ENG TO HTR UNIT 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94376-339-1	01	1	9112-	●	●
26	HOSE; HTR 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97064-560-0	01	1	9112-9607	●	●
26	HOSE; HTR 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97064-561-0	01	1	9112-9607	●	●
26	HOSE; HTR 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97064-562-0	01	1	9112-9607	●	●
26	HOSE; HTR 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-97064-563-0	01	1	9112-9607	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97039-290-0	01	1	9112-9504	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97176-375-0	01	1	9608-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94435-209-3	01	1	9112-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94376-341-1	01	1	9112-	●	●
82	SCREW; HTR HOSE CLIP TO DASH 4JG2 ENG(RJC),4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94470-854-1	02	1	9112-9607	●	●
82	SCREW; HTR HOSE CLIP TO DASH 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94470-854-1	02	1	9608-	●	●
121	NUT; PIPE 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE	8-97022-131-0	01	1	9112-9307	●	●
121	NUT; PIPE 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE	8-97063-399-0	01	1	9308-9607	●	●

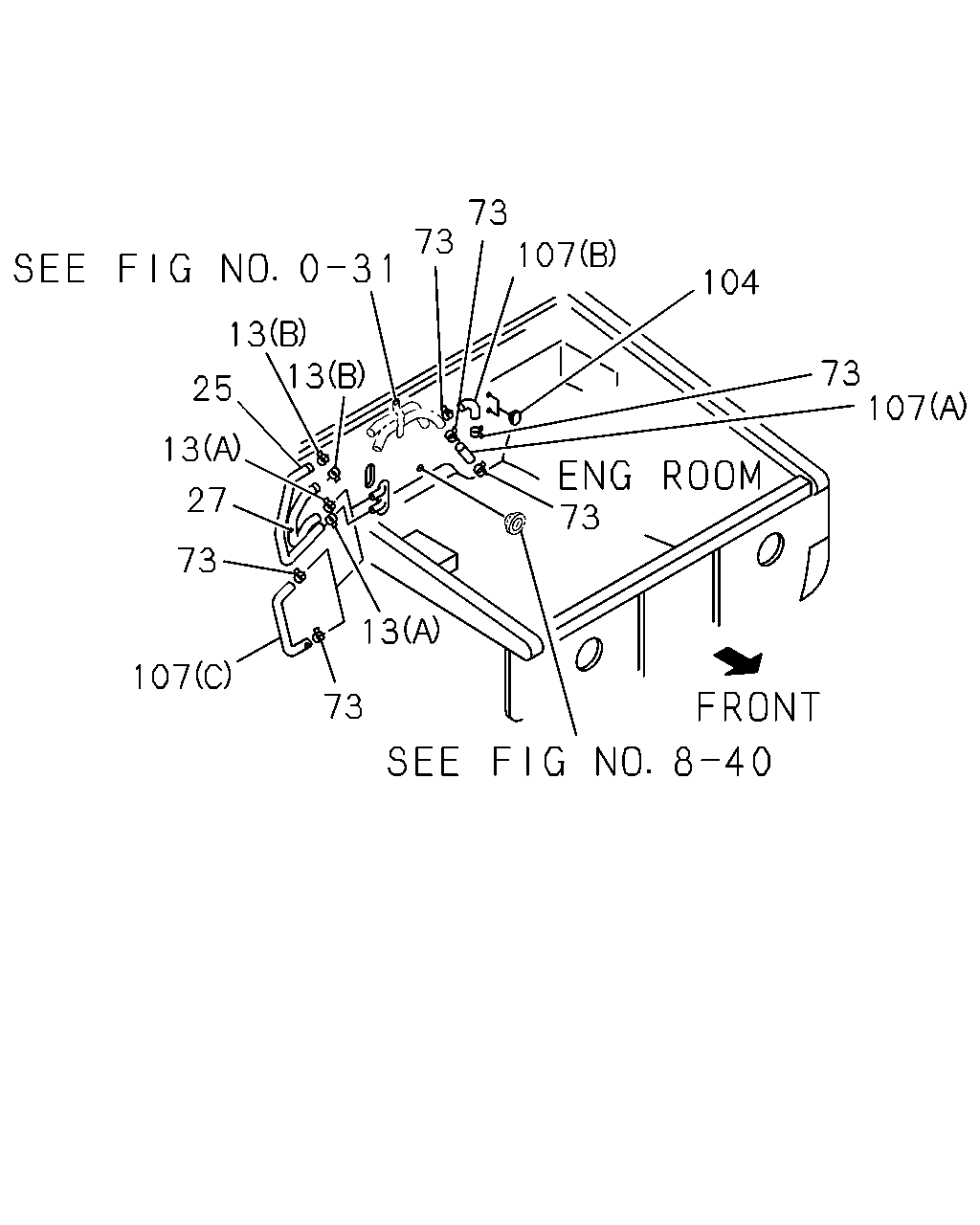

73 27 13 25 13 13 73 73 107 104 73 107 73 13 73 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97713-822-0	04	1	9112-9607	●	●
13	CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	05	1	9608-	●	●
13	CLIP; HTR HOSE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	04	1	9112-9607	●	●
13	CLIP; HTR HOSE 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	04	1	9608-	●	●
13	CLIP; HTR HOSE 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	02	1	9112-	●	●
13	CLIP; HTR HOSE 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	02	1	9112-	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97039-293-0	01	1	9112-9504	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97081-556-1	01	1	9608-	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97176-376-0	01	1	9608-	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94435-212-3	01	1	9112-9503	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97078-644-0	01	1	9504-	●	●
25	HOSE; WATER,ENG TO HTR UNIT 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94376-339-1	01	1	9112-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97039-290-0	01	1	9112-9504	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97176-375-0	01	1	9608-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94435-209-3	01	1	9112-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94376-341-1	01	1	9112-	●	●
73	CLIP; HTR HOSE 6VD1 SOHC ENG(RLU) COOLER WO/HEATER(YL1) EXC. EUROPE/CANARY EQUIPMENT(EK4) ID=24	8-97010-605-0	02	1	9112-9209	●	●
73	CLIP; HTR HOSE 6VD1 SOHC ENG(RLU) EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=24	8-97010-605-0	02	1	9210-9211	●	●
73	CLIP; HTR HOSE 6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4),COOLER WO/HEATER(YL1) ID=24	8-97010-605-0	04	1	9112-9209	●	●
73	CLIP; HTR HOSE 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) ID=24	8-97010-605-0	04	1	9112-9209	●	●
73	CLIP; HTR HOSE 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=24	8-97010-605-0	04	1	9210-	●	●
73	CLIP; HTR HOSE 6VD1 SOHC ENG(RLU) EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=24	8-97010-605-0	02	1	9212-	●	●
104	PLUG; RUBBER,HTR HOSE HOLE EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94435-192-0	02	1	9112-9501	●	●
104	PLUG; RUBBER,HTR HOSE HOLE EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97125-023-0	02	1	9502-	●	●
107	HOSE; WATER,HTR 6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4),COOLER WO/HEATER(YL1) (B)	8-97018-914-2	01	1	9112-9209	●	●
107	HOSE; WATER,HTR 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97018-914-2	01	1	9112-9209	●	●
107	HOSE; WATER,HTR 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97018-914-2	01	1	9210-	●	●
107	HOSE; WATER,HTR 6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4),COOLER WO/HEATER(YL1) (A)	8-97071-865-1	01	1	9112-9209	●	●
107	HOSE; WATER,HTR 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97071-865-1	01	1	9112-9209	●	●
107	HOSE; WATER,HTR 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97071-865-1	01	1	9210-	●	●
107	HOSE; WATER,HTR 6VD1 SOHC ENG(RLU) EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-94384-325-1	01	1	9112-	●	●

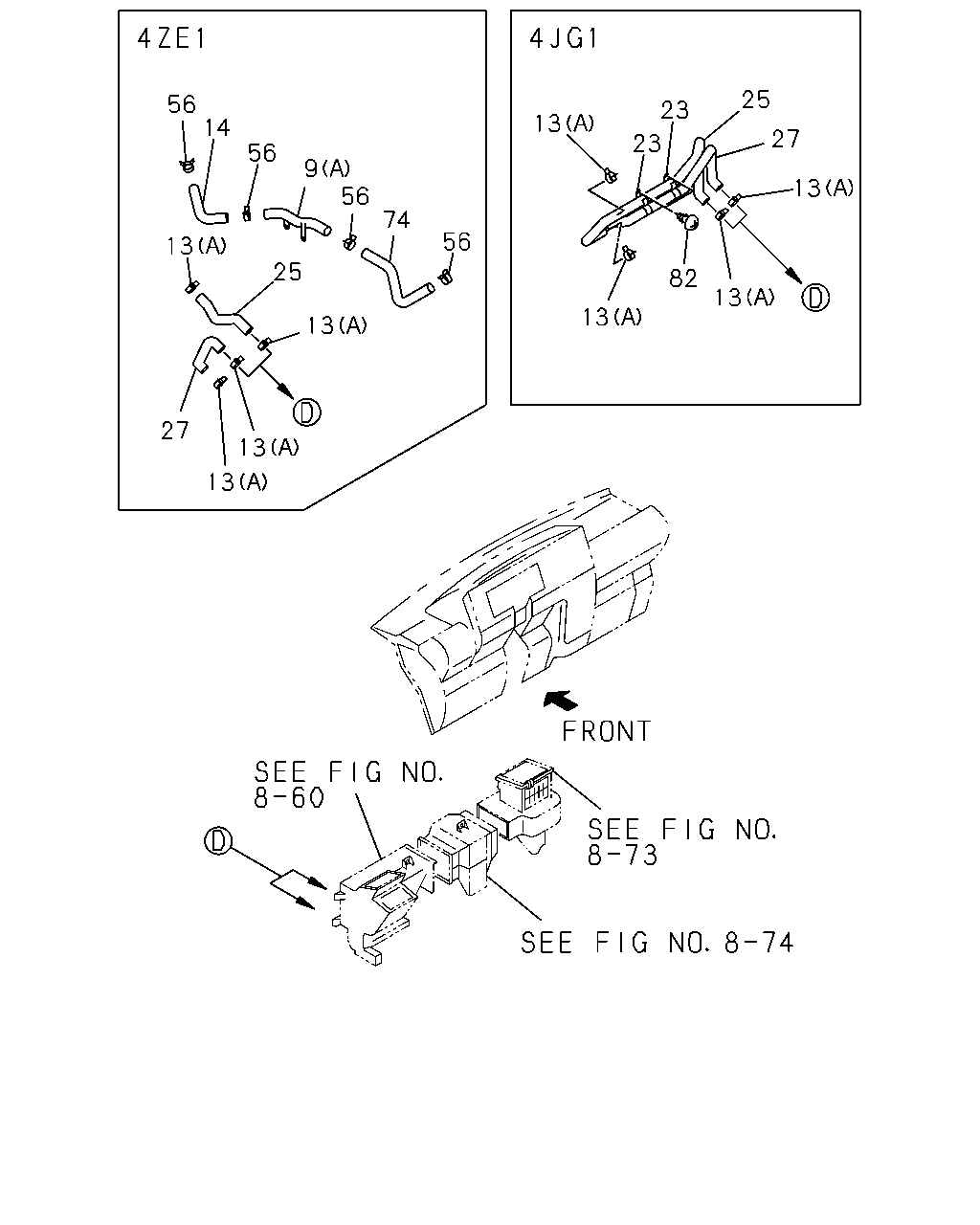

56 14 56 56 74 56 9 13 25 13 13 13 27 13 23 23 25 27 13 13 82 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	PIPE; HTR 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97063-054-2	01	1	9112-9607	●	●
9	PIPE; HTR 4ZE1 ENG(RLJ) (A)	8-94474-073-2	01	1	9112-	●	●
13	CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97713-822-0	04	1	9112-9607	●	●
13	CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	05	1	9608-	●	●
13	CLIP; HTR HOSE 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	04	1	9112-9607	●	●
13	CLIP; HTR HOSE 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	04	1	9608-	●	●
13	CLIP; HTR HOSE 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	02	1	9112-	●	●
13	CLIP; HTR HOSE 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	02	1	9112-	●	●
14	HOSE; WATER,CONN TO PIPE 4ZE1 ENG(RLJ)	8-94381-104-1	01	1	9112-	●	●
23	CLIP; WATER HOSE,DASH LWR 4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94338-298-0	02	1	9112-9504	●	●
23	CLIP; WATER HOSE,DASH LWR 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94338-298-0	01	1	9112-9607	●	●
23	CLIP; WATER HOSE,DASH LWR 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94338-298-0	02	1	9608-	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97039-293-0	01	1	9112-9504	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97081-556-1	01	1	9608-	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97176-376-0	01	1	9608-	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94435-212-3	01	1	9112-9503	●	●
25	HOSE; WATER,ENG TO HTR UNIT 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97078-644-0	01	1	9504-	●	●
25	HOSE; WATER,ENG TO HTR UNIT 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94376-339-1	01	1	9112-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97039-290-0	01	1	9112-9504	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97176-375-0	01	1	9608-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94435-209-3	01	1	9112-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6VD1 SOHC ENG(RLU) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94376-341-1	01	1	9112-	●	●
56	CLAMP; HTR HOSE 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=25	9-09915-642-2	02	1	9112-9204	●	●
56	CLAMP; HTR HOSE 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=25	8-94369-726-0	02	1	9205-9209	●	●
56	CLAMP; HTR HOSE 4ZE1 ENG(RLJ) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	9210-	●	●
56	CLAMP; HTR HOSE 4ZE1 ENG(RLJ) EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=25	9-09915-642-2	04	1	9112-9204	●	●
56	CLAMP; HTR HOSE 4ZE1 ENG(RLJ) EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=25	8-94369-726-0	04	1	9205-9209	●	●
56	CLAMP; HTR HOSE 4ZE1 ENG(RLJ) EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	9210-	●	●
74	HOSE; WATER,ENG TO PIPE 4ZE1 ENG(RLJ) EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ELECTRIC FUEL INJECTION<6GG>	8-94474-076-2	01	1	9112-9504	●	●
74	HOSE; WATER,ENG TO PIPE 4ZE1 ENG(RLJ) EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94474-076-2	01	1	9505-	●	●
82	SCREW; HTR HOSE CLIP TO DASH 4JG2 ENG(RJC),4JG1 ENG(RLT) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94470-854-1	02	1	9112-9607	●	●
82	SCREW; HTR HOSE CLIP TO DASH 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94470-854-1	02	1	9608-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
