Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#35293) — 135 parça

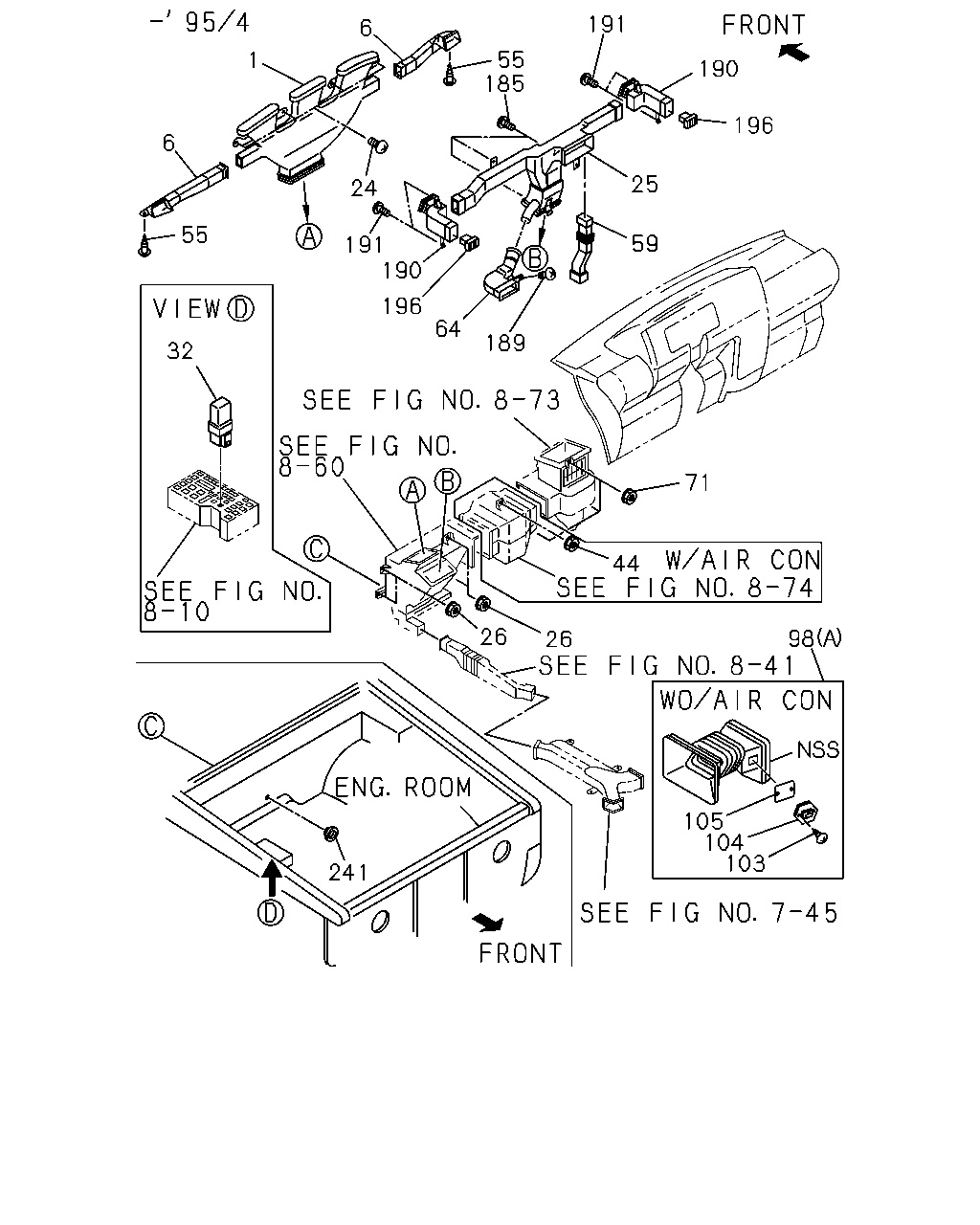

32 55 6 1 6 55 185 191 190 196 25 59 189 64 196 190 191 24 71 44 26 26 105 104 103 241 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	NOZZLE; DEFROSTER,INST PNL HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-108-4	01	1	9112-9211	●	●
1	NOZZLE; DEFROSTER,INST PNL HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97089-624-0	01	1	9212-9504	●	●
1	NOZZLE; DEFROSTER,INST PNL	8-97102-691-2	01	1	9505-	●	●
6	DUCT; SIDE DEFROSTER HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-111-1	01	1	9112-9504	●	●
6	DUCT; SIDE DEFROSTER	8-97102-689-1	01	1	9505-	●	●
6	DUCT; SIDE DEFROSTER HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-110-1	01	1	9112-9504	●	●
6	DUCT; SIDE DEFROSTER	8-97102-688-1	01	1	9505-	●	●
24	SCREW; NOZZLE TO INST PNL HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M5X16 W/LK&PL WASHER	9-03920-516-0	04	1	9112-9504	●	●
24	SCREW; NOZZLE TO INST PNL M5X16 W/LK&PL WASHER	9-03920-516-0	04	1	9505-	●	●
25	DUCT; CENTER HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-112-4	01	1	9112-9504	●	●
25	DUCT; CENTER	8-97102-683-1	01	1	9505-	●	●
26	NUT; HTR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6 FLANGE	8-97022-131-0	04	1	9112-9307	●	●
26	NUT; HTR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6 FLANGE	8-97063-399-0	04	1	9308-9504	●	●
26	NUT; HTR M6 FLANGE	8-97063-399-0	04	1	9505-	●	●
26	NUT; HTR EXC. HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6 FLANGE	8-97022-131-0	01	1	9112-9307	●	●
26	NUT; HTR EXC. HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6 FLANGE	8-97063-399-0	01	1	9308-9504	●	●
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 12V 20A	8-97048-665-0	01	1	9112-9201	●	●
32	RELAY; A/C 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 12V 20A	8-97048-665-0	01	1	9202-9303	●	●
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 12V 20A	8-97048-665-0	01	1	9202-9303	●	●
32	RELAY; A/C 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 12V 20A	8-97093-910-1	01	1	9304-9504	●	●
32	RELAY; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 12V 20A	8-97093-910-1	01	1	9304-9504	●	●
44	NUT; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6 FLANGE	8-97022-131-0	02	1	9112-9307	●	●
44	NUT; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6 FLANGE	8-97063-399-0	02	1	9308-9504	●	●
44	NUT; EVAP AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE	8-97063-399-0	02	1	9505-	●	●
44	NUT; EVAP EUROPE/CANARY EQUIPMENT(EK4) EXC. AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE	8-97063-399-0	02	1	9505-	●	●
55	CLIP; HOSE,SIDE DEFROSTER HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) BROWN	8-94476-811-0	02	1	9112-9504	●	●
55	CLIP; HOSE,SIDE DEFROSTER ID=6 OD=16 L=18	8-94178-705-0	02	1	9505-	●	●
59	DUCT; VENT,ASSIST SIDE HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-116-1	01	1	9112-9504	●	●
59	DUCT; VENT,ASSIST SIDE	8-97102-685-1	01	1	9505-	●	●
64	DUCT; VENT,DRIVER SIDE HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-114-0	01	1	9112-9504	●	●
64	DUCT; VENT,DRIVER SIDE	8-97102-686-2	01	1	9505-	●	●
71	NUT; BLOWER UNIT TO DASH HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6 FLANGE	8-97022-131-0	03	1	9112-9307	●	●
71	NUT; BLOWER UNIT TO DASH HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6 FLANGE	8-97063-399-0	03	1	9308-9504	●	●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE	8-97063-399-0	03	1	9505-	●	●
98	DUCT; BLOWER UNIT TO HTR UNIT HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97109-568-2	01	1	9505-	●	●
98	DUCT; BLOWER UNIT TO HTR UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57) (A)	8-94376-106-0	01	1	9112-9504	●	●
98	DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94376-106-0	01	1	9505-	●	●
103	SCREW; TAPPING,RESISTOR FIX HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4) M4X16	8-94324-850-0	08	1	9505-9607	●	●
103	SCREW; TAPPING,RESISTOR FIX HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4) M4X16	8-94324-850-0	02	1	9608-	●	●
103	SCREW; TAPPING,RESISTOR FIX HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57) M4X16 TAPPING	1-83579-114-0	02	1	9112-9504	●	●
103	SCREW; TAPPING,RESISTOR FIX EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4) M4X16 TAPPING	1-83579-114-0	02	1	9505-	●	●
104	RESISTOR; HTR DUCT HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4)	8-97083-136-1	01	1	9505-	●	●
104	RESISTOR; HTR DUCT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57)	8-97045-850-0	01	1	9112-9504	●	●
104	RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4)	8-97045-850-0	01	1	9505-	●	●
105	PLATE; HTR DUCT HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4)	8-97125-382-0	01	1	9505-	●	●
105	PLATE; HTR DUCT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57)	8-97045-851-0	01	1	9112-9504	●	●
105	PLATE; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4)	8-97045-851-0	01	1	9505-	●	●
185	SCREW; VENT DUCT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M5X16 TAPPING	9-09829-323-1	02	1	9112-9504	●	●
185	SCREW; VENT DUCT M5X16 TAPPING	9-09829-323-1	03	1	9505-	●	●
189	SCREW; AIR DUCT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M5X16 TAPPING	9-09829-323-1	01	1	9112-9504	●	●
189	SCREW; AIR DUCT M5X16 TAPPING	9-09829-323-1	01	1	9505-	●	●
190	BOX; VENT,RAM AIR	8-94376-119-1	01	1	9112-9504	●	●
190	BOX; VENT,RAM AIR	8-94376-118-1	01	1	9112-9504	●	●
191	SCREW; VENT BOX M5X16 TAPPING	9-09829-323-1	06	1	9112-9504	●	●
196	KNOB; VENT BOX INTERIOR COLOR BROWN(130) DARK BROWN	8-97003-154-0	02	1	9112-9504	●	●
196	KNOB; VENT BOX INTERIOR COLOR GRAY(153) DARK GRAY	8-97003-156-0	02	1	9112-9504	●	●
241	PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94222-309-1	01	1	9112-9504	●	●
241	PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4)	8-94222-309-1	01	1	9505-	●	●

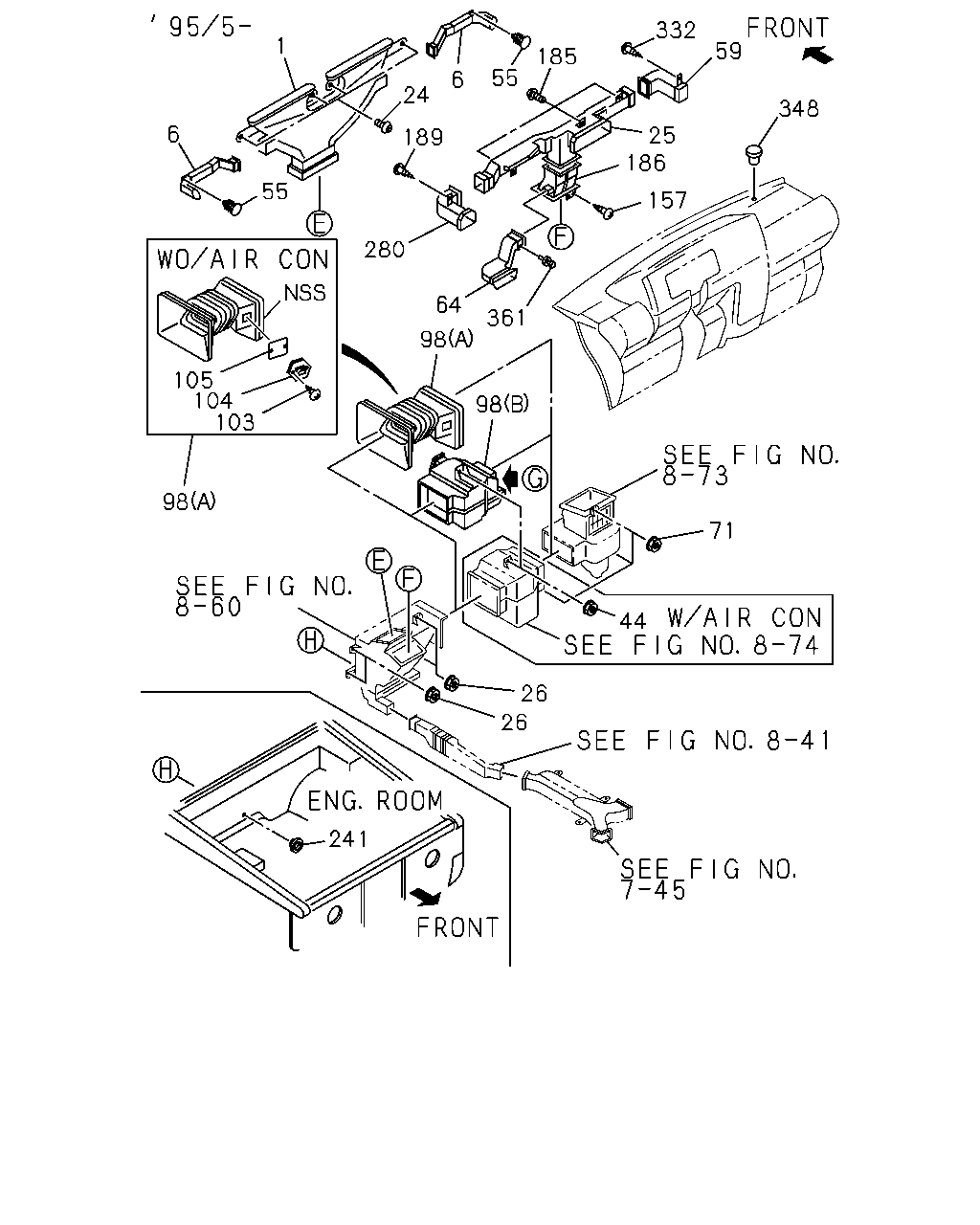

1 6 55 280 64 361 98 98 71 26 26 241 98 103 104 105 189 24 6 55 185 332 59 25 157 186 348

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	NOZZLE; DEFROSTER,INST PNL HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-108-4	01	1	9112-9211	●	●
1	NOZZLE; DEFROSTER,INST PNL HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97089-624-0	01	1	9212-9504	●	●
1	NOZZLE; DEFROSTER,INST PNL	8-97102-691-2	01	1	9505-	●	●
6	DUCT; SIDE DEFROSTER HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-111-1	01	1	9112-9504	●	●
6	DUCT; SIDE DEFROSTER	8-97102-689-1	01	1	9505-	●	●
6	DUCT; SIDE DEFROSTER HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-110-1	01	1	9112-9504	●	●
6	DUCT; SIDE DEFROSTER	8-97102-688-1	01	1	9505-	●	●
24	SCREW; NOZZLE TO INST PNL HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M5X16 W/LK&PL WASHER	9-03920-516-0	04	1	9112-9504	●	●
24	SCREW; NOZZLE TO INST PNL M5X16 W/LK&PL WASHER	9-03920-516-0	04	1	9505-	●	●
25	DUCT; CENTER HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-112-4	01	1	9112-9504	●	●
25	DUCT; CENTER	8-97102-683-1	01	1	9505-	●	●
26	NUT; HTR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6 FLANGE	8-97022-131-0	04	1	9112-9307	●	●
26	NUT; HTR HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6 FLANGE	8-97063-399-0	04	1	9308-9504	●	●
26	NUT; HTR M6 FLANGE	8-97063-399-0	04	1	9505-	●	●
26	NUT; HTR EXC. HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6 FLANGE	8-97022-131-0	01	1	9112-9307	●	●
26	NUT; HTR EXC. HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6 FLANGE	8-97063-399-0	01	1	9308-9504	●	●
55	CLIP; HOSE,SIDE DEFROSTER HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) BROWN	8-94476-811-0	02	1	9112-9504	●	●
55	CLIP; HOSE,SIDE DEFROSTER ID=6 OD=16 L=18	8-94178-705-0	02	1	9505-	●	●
59	DUCT; VENT,ASSIST SIDE HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-116-1	01	1	9112-9504	●	●
59	DUCT; VENT,ASSIST SIDE	8-97102-685-1	01	1	9505-	●	●
64	DUCT; VENT,DRIVER SIDE HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-114-0	01	1	9112-9504	●	●
64	DUCT; VENT,DRIVER SIDE	8-97102-686-2	01	1	9505-	●	●
71	NUT; BLOWER UNIT TO DASH HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6 FLANGE	8-97022-131-0	03	1	9112-9307	●	●
71	NUT; BLOWER UNIT TO DASH HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6 FLANGE	8-97063-399-0	03	1	9308-9504	●	●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE	8-97063-399-0	03	1	9505-	●	●
98	DUCT; BLOWER UNIT TO HTR UNIT HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97109-568-2	01	1	9505-	●	●
98	DUCT; BLOWER UNIT TO HTR UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57) (A)	8-94376-106-0	01	1	9112-9504	●	●
98	DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94376-106-0	01	1	9505-	●	●
103	SCREW; TAPPING,RESISTOR FIX HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4) M4X16	8-94324-850-0	08	1	9505-9607	●	●
103	SCREW; TAPPING,RESISTOR FIX HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4) M4X16	8-94324-850-0	02	1	9608-	●	●
103	SCREW; TAPPING,RESISTOR FIX HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57) M4X16 TAPPING	1-83579-114-0	02	1	9112-9504	●	●
103	SCREW; TAPPING,RESISTOR FIX EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4) M4X16 TAPPING	1-83579-114-0	02	1	9505-	●	●
104	RESISTOR; HTR DUCT HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4)	8-97083-136-1	01	1	9505-	●	●
104	RESISTOR; HTR DUCT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57)	8-97045-850-0	01	1	9112-9504	●	●
104	RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4)	8-97045-850-0	01	1	9505-	●	●
105	PLATE; HTR DUCT HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4)	8-97125-382-0	01	1	9505-	●	●
105	PLATE; HTR DUCT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57)	8-97045-851-0	01	1	9112-9504	●	●
105	PLATE; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4)	8-97045-851-0	01	1	9505-	●	●
157	SCREW M5X16 TAPPING	9-09829-323-1	01	1	9505-	●	●
185	SCREW; VENT DUCT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M5X16 TAPPING	9-09829-323-1	02	1	9112-9504	●	●
185	SCREW; VENT DUCT M5X16 TAPPING	9-09829-323-1	03	1	9505-	●	●
186	DUCT; VENTILATOR	8-97102-687-2	01	1	9505-	●	●
189	SCREW; AIR DUCT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M5X16 TAPPING	9-09829-323-1	01	1	9112-9504	●	●
189	SCREW; AIR DUCT M5X16 TAPPING	9-09829-323-1	01	1	9505-	●	●
241	PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94222-309-1	01	1	9112-9504	●	●
241	PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4)	8-94222-309-1	01	1	9505-	●	●
280	DUCT; VENT,DRIVER SIDE	8-97102-684-0	01	1	9505-	●	●
332	SCREW; TAP,COVER M5X16 TAPPING	9-09829-323-1	01	1	9505-	●	●
348	COVER; SUN SENSOR	8-97038-702-0	01	1	9505-9505	●	●
348	COVER; SUN SENSOR	8-97121-843-1	01	1	9505-	●	●
361	CLIP; DUCT D6.8X12	8-94198-687-0	01	1	9505-	●	●

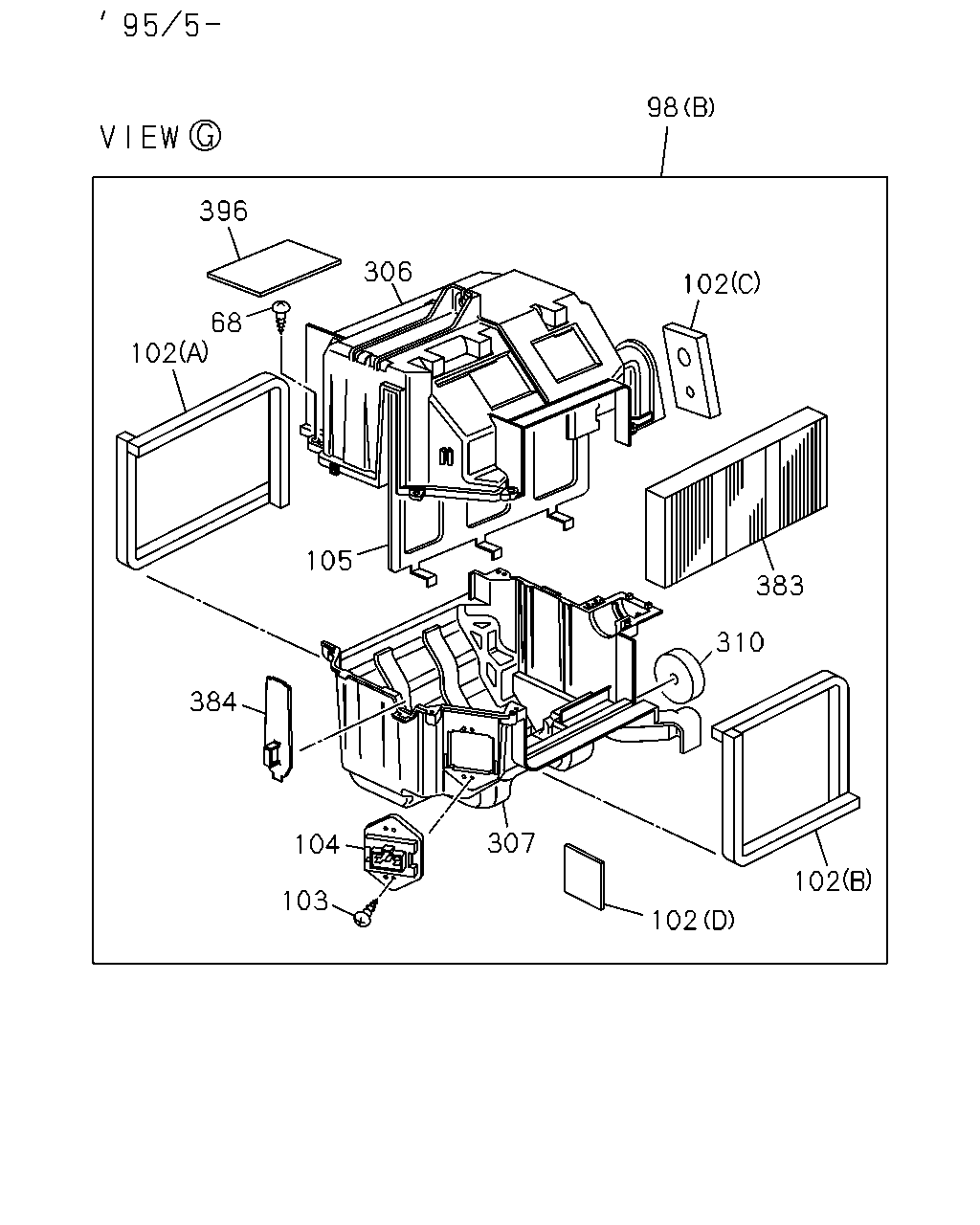

98 102 306 396 68 102 105 384 104 103 307 102 102 310 383

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
68	SCREW; HTR DUCT HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4) M4X16	8-94324-850-0	06	1	9608-	●	●
98	DUCT; BLOWER UNIT TO HTR UNIT HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97109-568-2	01	1	9505-	●	●
98	DUCT; BLOWER UNIT TO HTR UNIT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57) (A)	8-94376-106-0	01	1	9112-9504	●	●
98	DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94376-106-0	01	1	9505-	●	●
102	LINING; HTR DUCT HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97103-723-0	01	1	9505-	●	●
102	LINING; HTR DUCT HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97103-724-0	01	1	9505-	●	●
102	LINING; HTR DUCT HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4) (C)	8-97112-515-0	01	1	9505-	●	●
102	LINING; HTR DUCT HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4) (D)	8-97148-682-0	01	1	9603-	●	●
103	SCREW; TAPPING,RESISTOR FIX HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4) M4X16	8-94324-850-0	08	1	9505-9607	●	●
103	SCREW; TAPPING,RESISTOR FIX HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4) M4X16	8-94324-850-0	02	1	9608-	●	●
103	SCREW; TAPPING,RESISTOR FIX HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57) M4X16 TAPPING	1-83579-114-0	02	1	9112-9504	●	●
103	SCREW; TAPPING,RESISTOR FIX EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4) M4X16 TAPPING	1-83579-114-0	02	1	9505-	●	●
104	RESISTOR; HTR DUCT HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4)	8-97083-136-1	01	1	9505-	●	●
104	RESISTOR; HTR DUCT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57)	8-97045-850-0	01	1	9112-9504	●	●
104	RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4)	8-97045-850-0	01	1	9505-	●	●
105	PLATE; HTR DUCT HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4)	8-97125-382-0	01	1	9505-	●	●
105	PLATE; HTR DUCT HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57)	8-97045-851-0	01	1	9112-9504	●	●
105	PLATE; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4)	8-97045-851-0	01	1	9505-	●	●
306	CASE; UPR,HTR DUCT HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4)	8-97112-511-0	01	1	9505-9602	●	●
306	CASE; UPR,HTR DUCT HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4)	8-97111-780-2	01	1	9603-	●	●
307	CASE; LWR,HTR DUCT HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4)	8-97112-512-0	01	1	9505-9602	●	●
307	CASE; LWR,HTR DUCT HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4)	8-97148-683-0	01	1	9603-	●	●
310	GROMMET; HTR DUCT HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4)	8-97069-405-2	01	1	9505-	●	●
383	FILTER; DUCT HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4)	8-97111-788-0	02	1	9505-	●	●
384	COVER; DUCT HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4)	8-97111-790-0	01	1	9505-	●	●
396	TAPE; DUCT HEATER&DEFROSTER(C41) EUROPE/CANARY EQUIPMENT(EK4)	1-83579-367-0	01	1	9603-	●	●
