8-28 — CHASSIS ELECTRICAL (#35292) — 71 parça

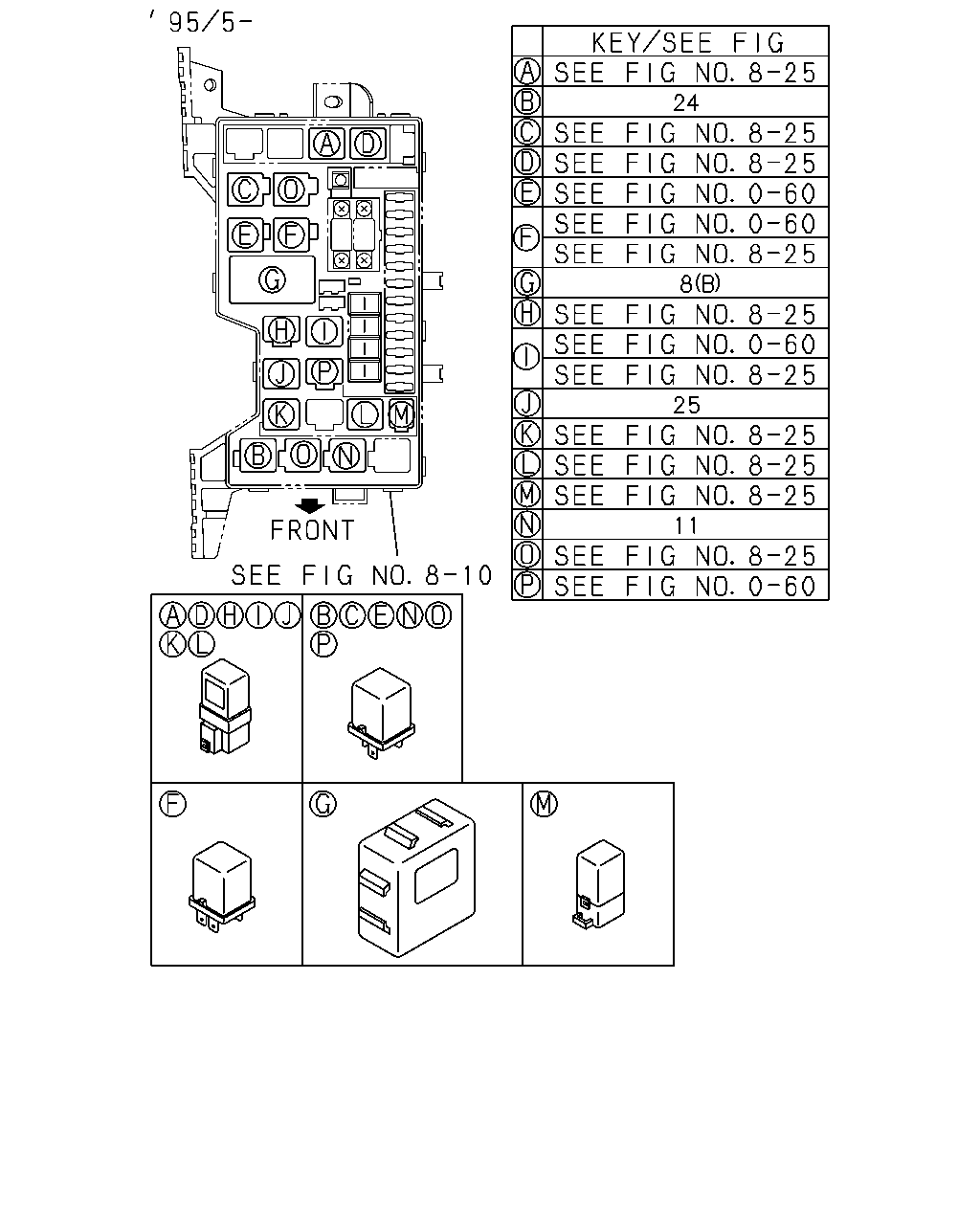

24 8 25 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	RELAY; WIPER FRT WIPER W/VARIABLE INTERMITTENT<6WH> (B)	8-94377-631-0	01	1	9112-	●	●
8	RELAY; WIPER INTERMITTENT WIPER<C13> (B)	8-94377-632-0	01	1	9112-	●	●
8	RELAY; WIPER RR WIPER W/INTERMITTENT<6WJ> (A)	8-94376-088-0	01	1	9112-	●	●
11	RELAY; DIMMER 12V 20A	8-94218-497-0	01	1	9112-	●	●
24	RELAY; LIGHTING 12V 20A	8-94218-497-0	01	1	9112-	●	●
25	RELAY; TAIL LAMP 12V 20A	8-94218-497-0	01	1	9112-9504	●	●
25	RELAY; TAIL LAMP 12V 20A	8-97093-910-1	01	1	9505-	●	●

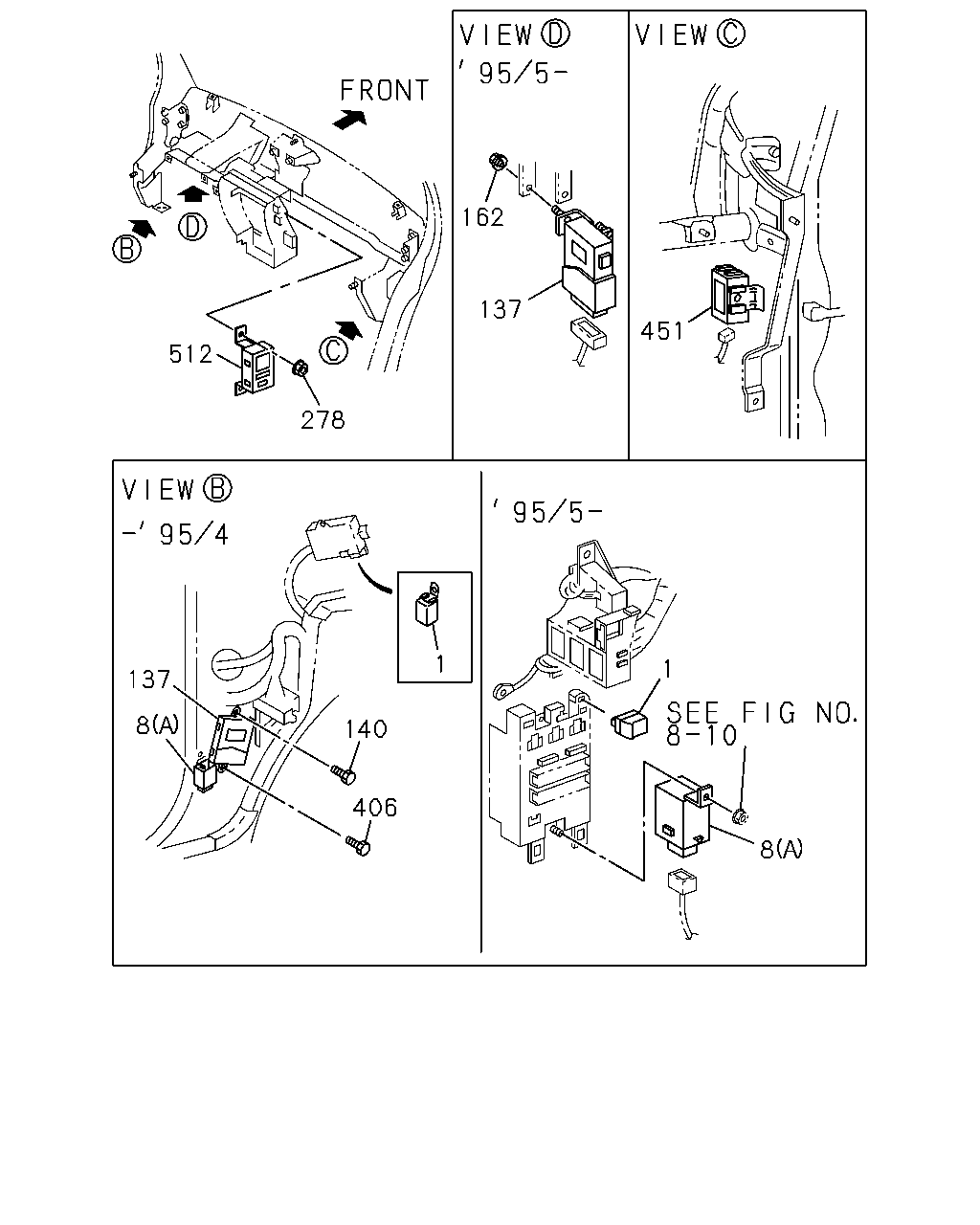

162 137 451 512 278 1 1 137 8 140 406 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER DENSO	8-97038-317-0	01	1	9112-	●	●
1	UNIT; FLASHER NILES	8-97039-288-0	01	1	9112-9308	●	●
1	UNIT; FLASHER NILES	8-97105-453-0	01	1	9309-	●	●
8	RELAY; WIPER FRT WIPER W/VARIABLE INTERMITTENT<6WH> (B)	8-94377-631-0	01	1	9112-	●	●
8	RELAY; WIPER INTERMITTENT WIPER<C13> (B)	8-94377-632-0	01	1	9112-	●	●
8	RELAY; WIPER RR WIPER W/INTERMITTENT<6WJ> (A)	8-94376-088-0	01	1	9112-	●	●
137	CONTROLLER; ANTI THEFT ANTI THEFT<UA6>	8-97031-754-0	01	1	9112-9208	●	●
137	CONTROLLER; ANTI THEFT CHILE EQUIPMENT(S2G) ANTI THEFT<UA6>	8-97079-141-0	01	1	9209-9308	●	●
137	CONTROLLER; ANTI THEFT ANTI THEFT<UA6> EXC. CHILE EQUIPMENT(S2G)	8-97078-459-0	01	1	9209-9308	●	●
137	CONTROLLER; ANTI THEFT ANTI THEFT<UA6>	8-97078-459-0	01	1	9309-9504	●	●
137	CONTROLLER; ANTI THEFT ANTI THEFT<UA6>	8-97129-424-0	01	1	9505-	●	●
140	BOLT; CONTROLLER ANTI THEFT<UA6> M6X16	0-28410-616-0	01	1	9112-9204	●	●
140	BOLT; CONTROLLER ANTI THEFT<UA6> M6X16 FLANGE	0-28480-616-0	01	1	9205-9504	●	●
162	NUT; ECM BRKT ANTI THEFT<UA6> M6 FLANGE	8-97063-399-0	02	1	9505-	●	●
278	NUT; CONT UNIT IMMOBILIZER SYSTEM<7KC> M6 FLANGE	8-97063-399-0	02	1	9505-9607	●	●
278	NUT; CONT UNIT IMMOBILIZER SYSTEM<7KC> M6 W/DISHED WASHER	8-94170-192-0	02	1	9608-	●	●
406	BOLT; WIPER RELAY ANTI THEFT<UA6> M6X16	0-28410-616-0	01	1	9112-9204	●	●
406	BOLT; WIPER RELAY ANTI THEFT<UA6> M6X16 FLANGE	0-28480-616-0	01	1	9205-9504	●	●
451	TIMER; HEADLAMP WIPER HEADLAMP WASHER<CE3>	8-97807-299-0	01	1	9112-	●	●
512	CONTROL UNIT; IMMOBILIZER 4JG2 ENG(RJC) TURBOCHARGER<K51> IMMOBILIZER SYSTEM<7KC>	8-97130-263-0	01	1	9505-9510	●	●
512	CONTROL UNIT; IMMOBILIZER 4JG2 ENG(RJC) TURBOCHARGER<K51> IMMOBILIZER SYSTEM<7KC>	8-97136-239-0	01	1	9511-	●	●
512	CONTROL UNIT; IMMOBILIZER 6VD1 SOHC ENG(RLU) IMMOBILIZER SYSTEM<7KC>	8-97130-261-0	01	1	9505-9510	●	●
512	CONTROL UNIT; IMMOBILIZER 6VD1 SOHC ENG(RLU) IMMOBILIZER SYSTEM<7KC>	8-97136-237-0	01	1	9511-	●	●

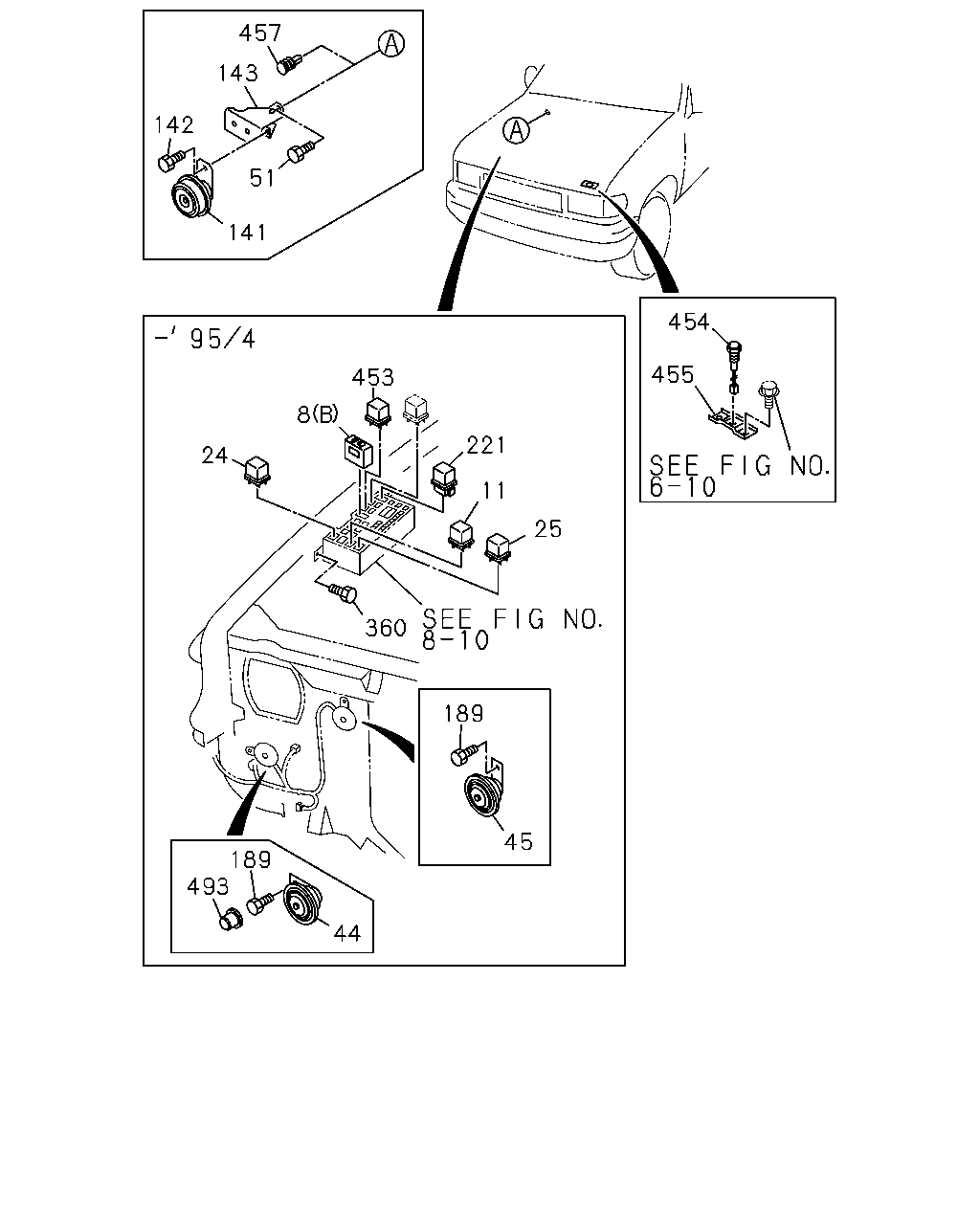

457 143 142 51 141 454 455 453 221 8 24 11 25 360 189 45 189 493 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	RELAY; WIPER FRT WIPER W/VARIABLE INTERMITTENT<6WH> (B)	8-94377-631-0	01	1	9112-	●	●
8	RELAY; WIPER INTERMITTENT WIPER<C13> (B)	8-94377-632-0	01	1	9112-	●	●
8	RELAY; WIPER RR WIPER W/INTERMITTENT<6WJ> (A)	8-94376-088-0	01	1	9112-	●	●
11	RELAY; DIMMER 12V 20A	8-94218-497-0	01	1	9112-	●	●
24	RELAY; LIGHTING 12V 20A	8-94218-497-0	01	1	9112-	●	●
25	RELAY; TAIL LAMP 12V 20A	8-94218-497-0	01	1	9112-9504	●	●
25	RELAY; TAIL LAMP 12V 20A	8-97093-910-1	01	1	9505-	●	●
44	HORN; HIGH NOTE DUAL TONE HORN<U05>	8-94463-449-2	01	1	9112-9303	●	●
44	HORN; HIGH NOTE DUAL TONE HORN<U05>	8-94463-449-2	01	1	9304-9607	●
44	HORN; HIGH NOTE DUAL TONE HORN<U05> EXC. CHINA EQUIPMENT(YT2)	8-94463-449-2	01	1	9304-9607		●
44	HORN; HIGH NOTE DUAL TONE HORN<U05> EXC. CHINA EQUIPMENT(YT2)	8-97138-271-1	01	1	9608-	●	●
44	HORN; HIGH NOTE DUAL TONE HORN<U05> CHINA EQUIPMENT(YT2)	8-97096-431-0	01	1	9304-9404		●
44	HORN; HIGH NOTE DUAL TONE HORN<U05> CHINA EQUIPMENT(YT2)	8-97109-359-0	01	1	9405-		●
45	HORN; LOW NOTE	8-94463-450-2	01	1	9112-9303	●	●
45	HORN; LOW NOTE	8-94463-450-2	01	1	9304-9607	●
45	HORN; LOW NOTE EXC. CHINA EQUIPMENT(YT2)	8-94463-450-2	01	1	9304-9607		●
45	HORN; LOW NOTE EXC. CHINA EQUIPMENT(YT2)	8-97138-272-1	01	1	9608-	●	●
45	HORN; LOW NOTE CHINA EQUIPMENT(YT2)	8-97096-432-0	01	1	9304-9404		●
45	HORN; LOW NOTE CHINA EQUIPMENT(YT2)	8-97109-360-0	01	1	9405-		●
51	BOLT; HORN TO BRKT ANTI THEFT<UA6> M6X16 W/LK&PL WASHER	9-01960-616-0	02	1	9112-9204	●	●
51	BOLT; HORN TO BRKT ANTI THEFT<UA6> M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9205-9705	●	●
51	BOLT; HORN TO BRKT ANTI THEFT<UA6> M6X16 FLANGE	0-28680-616-0	02	1	9706-	●	●
141	HORN; ANTI THEFT ANTI THEFT<UA6>	8-94469-228-0	01	1	9112-9504	●	●
141	HORN; ANTI THEFT ANTI THEFT<UA6>	8-94434-496-0	01	1	9505-	●	●
142	BOLT; HORN,ANTI THEFT ANTI THEFT<UA6> M8X16 W/LK&PL WASHER	9-01960-816-0	01	1	9112-9204	●	●
142	BOLT; HORN,ANTI THEFT ANTI THEFT<UA6> M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9205-9407	●	●
142	BOLT; HORN,ANTI THEFT ANTI THEFT<UA6> M8X16 FLANGE	0-28080-816-0	01	1	9408-	●	●
143	BRACKET; ANTI THEFT HORN ANTI THEFT<UA6>	8-97072-528-0	01	1	9112-	●	●
189	BOLT; HORN DUAL TONE HORN<U05> M8X22	8-94122-771-0	01	1	9112-9308	●	●
189	BOLT; HORN M8X22	8-94122-771-0	01	1	9112-9308	●	●
189	BOLT; HORN DUAL TONE HORN<U05> M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9309-	●	●
189	BOLT; HORN M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9309-	●	●
221	RELAY; AUTO CRUISE AUTO CRUISE CONT<K30> 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
221	RELAY; AUTO CRUISE AUTO CRUISE CONT<K30> 12V 20A	8-97093-910-1	01	1	9304-9504	●	●
360	BOLT; RELAY BOX M6X20	8-94412-422-0	03	1	9112-9504	●	●
453	RELAY; LOCK UP A/T THM(RMQ) 12V 20A	8-94218-497-0	01	1	9112-9504	●	●
454	SWITCH ANTI THEFT<UA6>	8-94371-878-2	01	1	9112-	●	●
455	BRACKET; ENG HOOD SW ANTI THEFT<UA6>	8-97034-040-1	01	1	9112-9308	●	●
455	BRACKET; ENG HOOD SW ANTI THEFT<UA6>	8-97090-018-0	01	1	9309-	●	●
457	CLIP; HOLE COVER EXC. ANTI THEFT<UA6>	8-94279-922-0	02	1	9112-	●	●
493	CAP; RUBBER DUAL TONE HORN<U05>	8-97095-863-0	01	1	9309-	●	●
