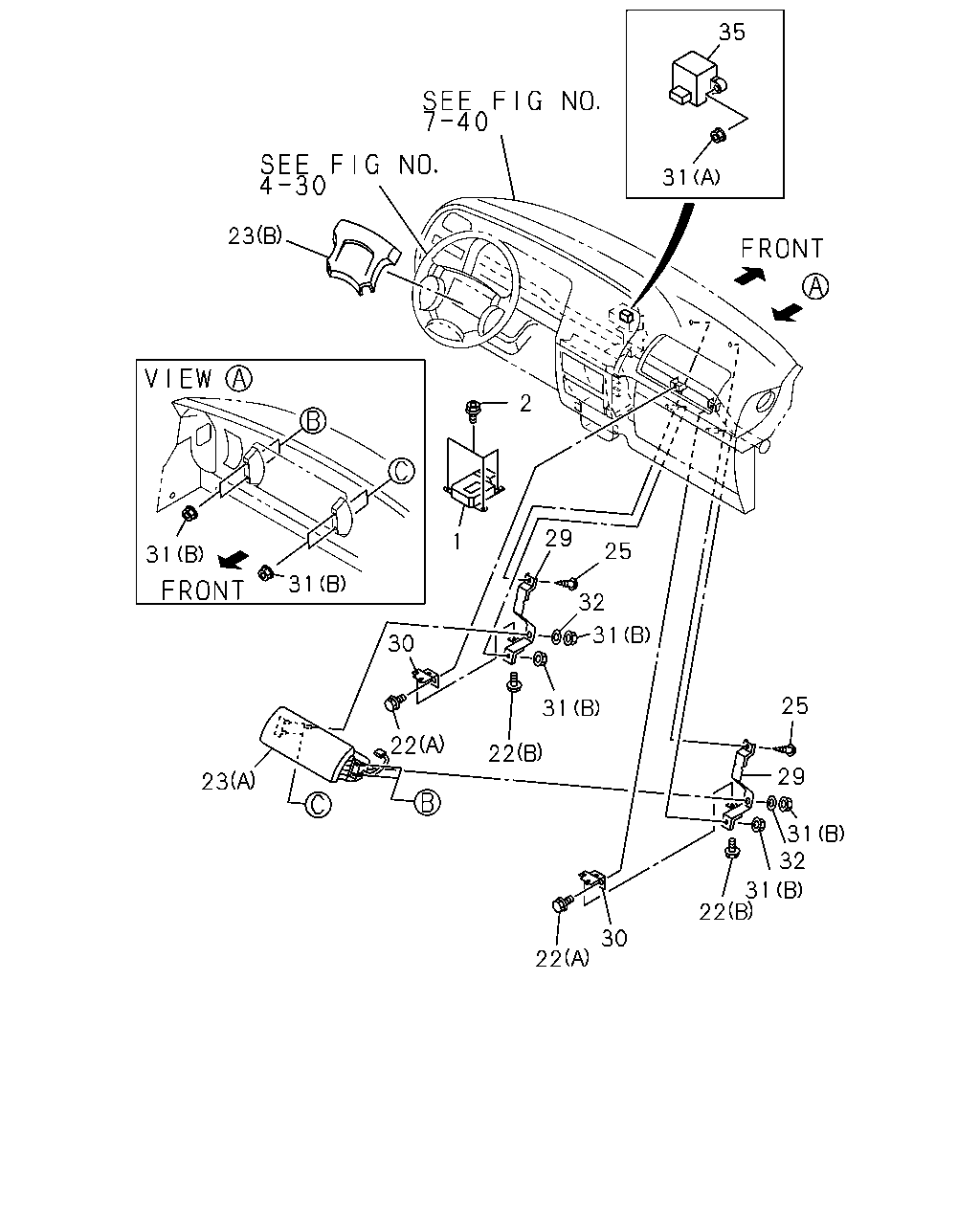

8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#35291) — 15 parça

35 31 23 2 25 29 1 31 31 32 31 30 25 31 22 22 29 31 32 31 22 23 30 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONTROL UNIT; SIR AIR BAG DRIVER<AJ3>	8-16205-059-0	01	1	9608-	●	●
2	BOLT; CONT UNIT,SIR AIR BAG DRIVER<AJ3> M6X18 W/PL WASHER	8-97105-796-0	03	1	9608-	●	●
22	BOLT; SIR MODULE AIR BAG PASSENGER<7FA> (A) M6X12 W/LK WASHER	0-50040-612-0	02	1	9608-	●	●
22	BOLT; SIR MODULE AIR BAG PASSENGER<7FA> (B) M6X12 W/PL WASHER	8-97806-950-0	02	1	9608-	●	●
23	AIR BAG UNIT AIR BAG DRIVER<AJ3> EXC. CHEVROLET BRAND<RWE>,GMC BRAND<RWT> (B) BLACK	8-97154-803-0	01	1	9608-	●	●
23	AIR BAG UNIT AIR BAG PASSENGER<7FA> (A) DARK GRAY	8-97154-034-3	01	1	9608-	●	●
25	SCREW AIR BAG PASSENGER<7FA> M5X14 TAPPING	1-72548-072-0	02	1	9608-	●	●
29	BRACKET; SUPPORT AIR BAG PASSENGER<7FA> EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97103-476-1	02	1	9608-	●	●
29	BRACKET; SUPPORT EUROPE/CANARY EQUIPMENT(EK4) AIR BAG PASSENGER<7FA>	8-97161-107-0	02	1	9608-	●	●
30	BRACKET; SIR AIR BAG PASSENGER<7FA> EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97083-249-1	02	1	9608-	●	●
30	BRACKET; SIR EUROPE/CANARY EQUIPMENT(EK4) AIR BAG PASSENGER<7FA>	8-97161-111-0	02	1	9608-	●	●
31	NUT AIR BAG PASSENGER<7FA> (B) M6 W/DISHED WASHER	8-94170-192-0	08	1	9608-	●	●
31	NUT EUROPE/CANARY EQUIPMENT(EK4) SEAT BELT 3 POINT PRE TENSIONER<7MC> (A) M6 FLANGE	0-91150-106-0	02	1	9608-	●	●
32	WASHER; PL AIR BAG PASSENGER<7FA>	1-09503-075-0	02	1	9608-	●	●
35	SENSOR; PRETENSIONER EUROPE/CANARY EQUIPMENT(EK4) SEAT BELT 3 POINT PRE TENSIONER<7MC>	8-97120-507-1	01	1	9608-	●	●
