◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#35290) — 132 parça

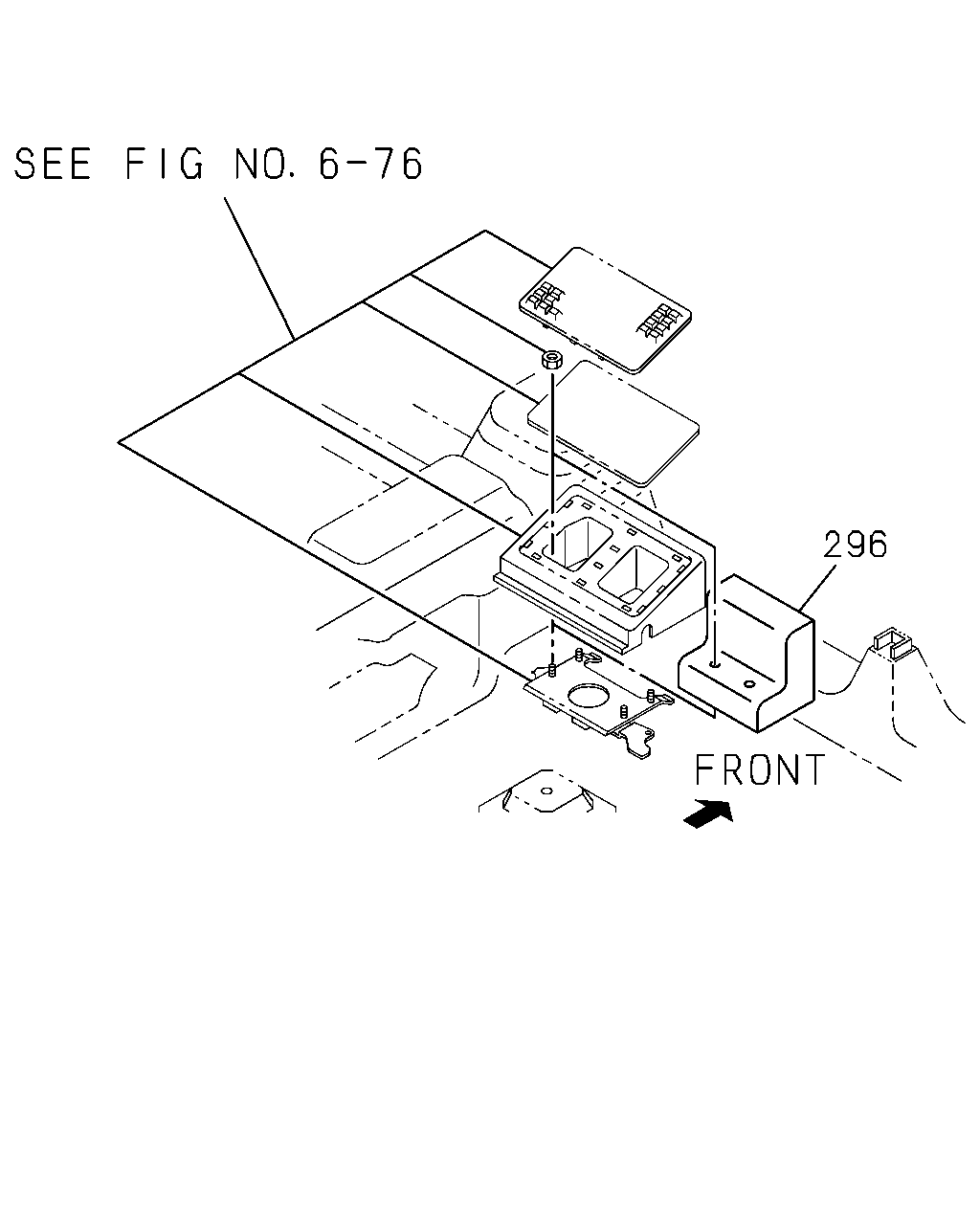

çizim 17589
296
BalonParca AdiParca NoAdetTipApplied Date A B
296 COVER; CONT UNIT
ANTI LOCK BRAKE(JE5) EXC. RR FOOT REST<6WM> 		8-97147-733-1 01 1 9608- ●

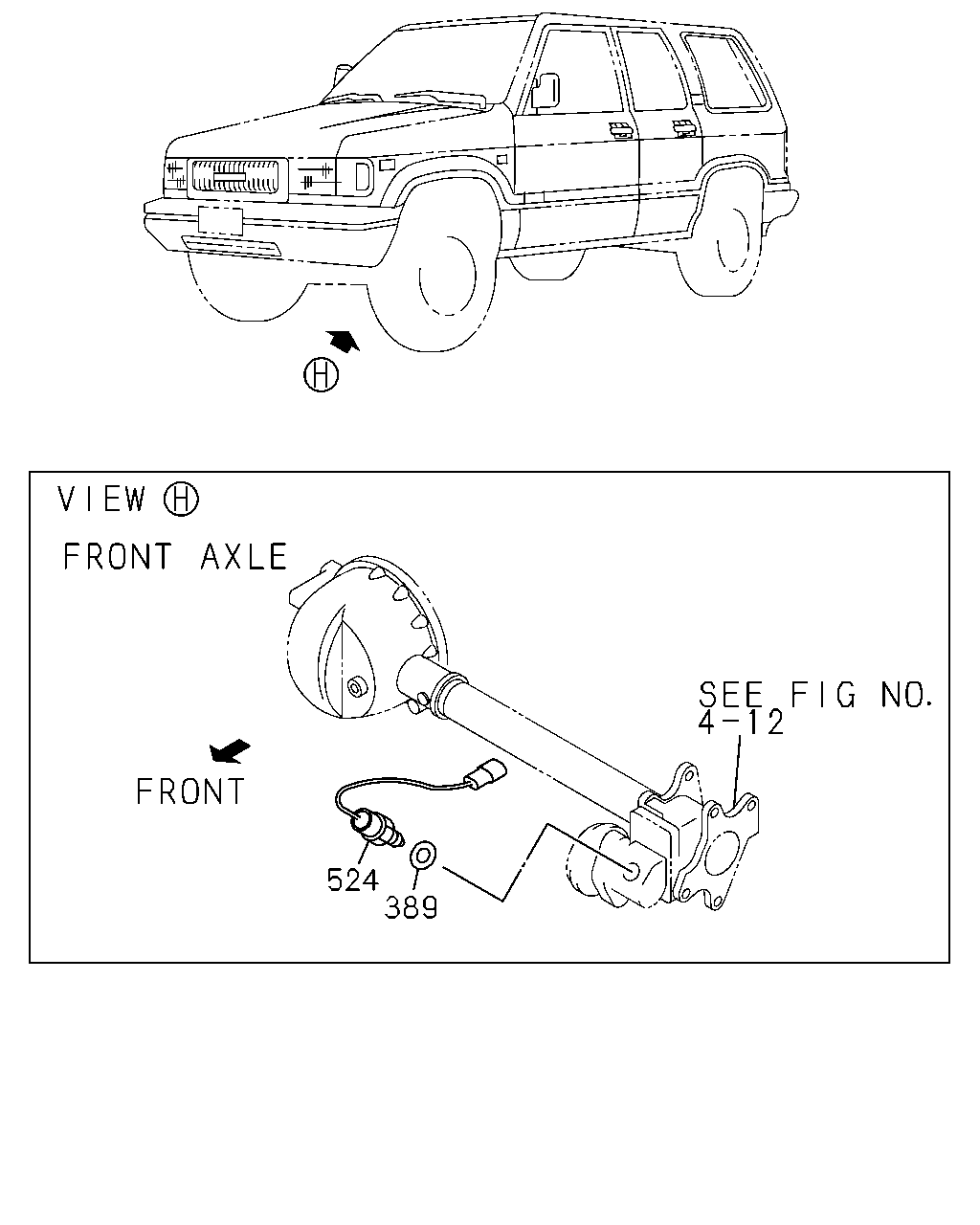

çizim 17590
524 389
BalonParca AdiParca NoAdetTipApplied Date A B
389 GASKET; SWITCH
SHIFT ON THE FLY(7EX) ID=14.2 OD=20.0 		9-09571-414-0 01 1 9505- ● ●
524 SWITCH; DIFF
SHIFT ON THE FLY(7EX) 		8-97101-956-2 01 1 9505- ● ●

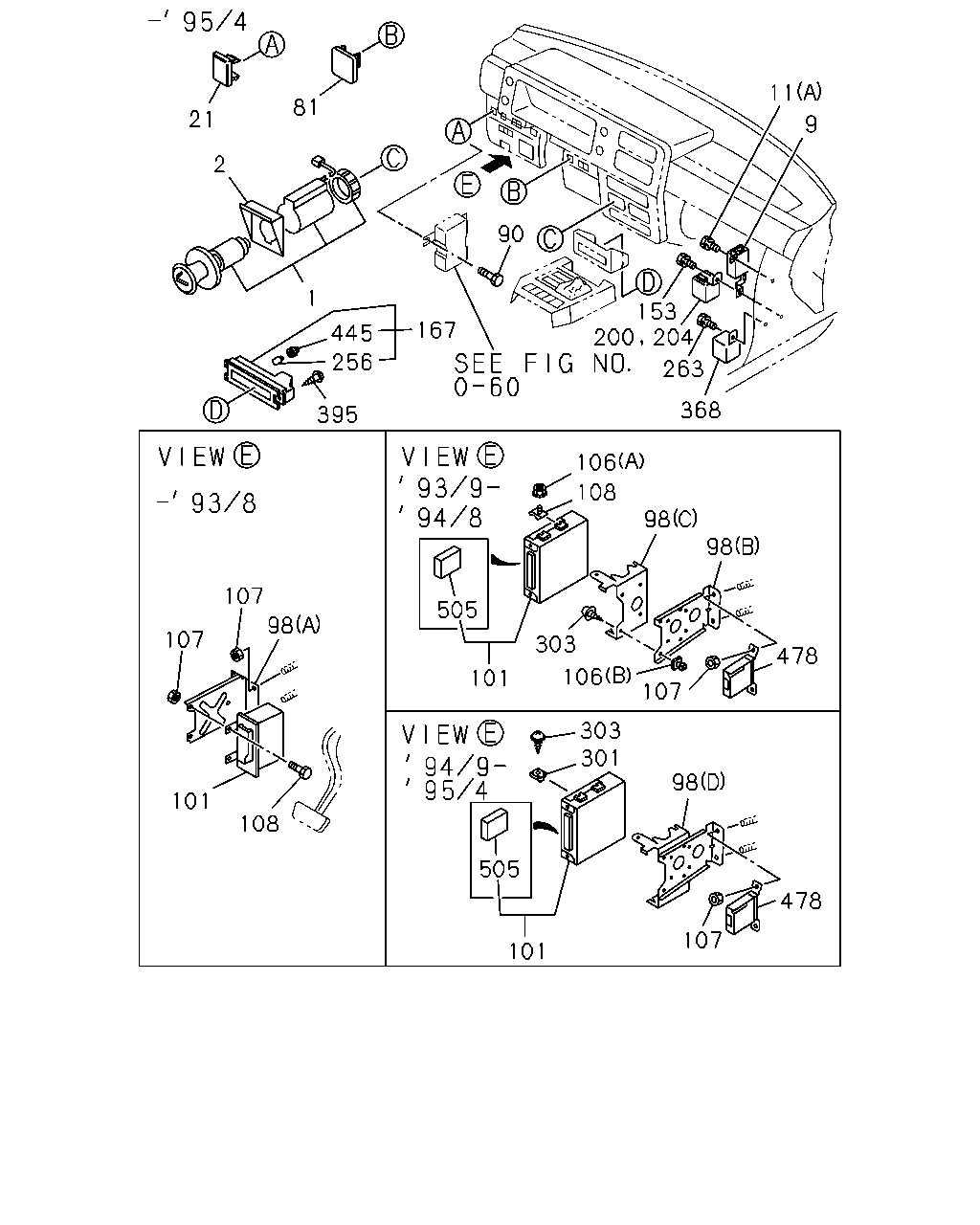

çizim 18052
11 9 81 21 2 90 153 263 1 167 445 256 368 395 106 108 98 98 303 106 107 107 98 505 107 478 101 303 301 98 101 108 505 478 107 101 200 204
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-94442-590-0 01 1 9112-9504 ● ●
1 LIGHTER; CIGAR 8-97094-468-1 01 1 9505- ● ●
2 BEZEL; CIGAR LIGHTER
BLACK 		8-97003-110-0 01 1 9112-9504 ● ●
2 BEZEL; CIGAR LIGHTER
BLACK 		8-97098-337-0 01 1 9505- ● ●
9 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) A/T THM(RMQ) AUTO CRUISE CONT<K30> SPEEDOMETER MILE<UC1> 		8-97065-133-0 01 1 9112-9504 ● ●
9 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) A/T THM(RMQ) AUTO CRUISE CONT<K30> EXC. SPEEDOMETER MILE<UC1> 		8-97070-117-0 01 1 9112-9504 ● ●
9 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> SPEEDOMETER MILE<UC1> 		8-97065-134-0 01 1 9112-9504 ● ●
9 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> 		8-97116-908-1 01 1 9505- ● ●
9 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> EXC. SPEEDOMETER MILE<UC1> 		8-97070-118-0 01 1 9112-9504 ● ●
9 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) A/T THM(RMQ) AUTO CRUISE CONT<K30> 		8-97116-907-1 01 1 9505- ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (A) M6X16 		0-28410-616-0 02 1 9112-9204 ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (A) M6X16 FLANGE 		0-28480-616-0 02 1 9205-9504 ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (C) M6X18 W/LK&PL WASHER 		0-50140-618-0 02 1 9505- ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (B) M6X14 		8-94153-946-0 01 1 9112-9308 ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9309- ● ●
21 COVER; HOLE
EXC. HEADLAMP WASHER<CE3>,REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> BLACK 		8-94417-418-2 01 1 9112-9504 ● ●
81 BEZEL; IDLE CONT
4JG2 ENG(RJC),4JG1 ENG(RLT) 		8-97065-377-1 01 1 9112-9504 ● ●
81 BEZEL; IDLE CONT
4JG2 ENG(RJC) DARK GRAY 		8-97153-189-1 01 1 9505- ● ●
81 BEZEL; IDLE CONT
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) 		8-94450-512-3 01 1 9112-9504 ● ●
90 BOLT; QOS CONTROLLER
4JG2 ENG(RJC),4JG1 ENG(RLT) M6X16 FLANGE 		8-94380-676-1 02 1 9112-9409 ● ●
90 BOLT; QOS CONTROLLER
4JG2 ENG(RJC),4JG1 ENG(RLT) M6X16 FLANGE 		0-28480-616-0 02 1 9410-9504 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (A) 		8-94375-127-1 01 1 9112-9308 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (C) 		8-97088-846-1 01 1 9309-9408 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (B) 		8-97088-845-1 01 1 9309-9408 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (D) 		8-97110-211-0 01 1 9409-9504 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (D) 		8-97110-211-0 01 1 9505- ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) (E) 		8-97126-131-0 01 1 9505- ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-96016-755-1 01 1 9112-9205 ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-96017-065-0 01 1 9206-9308 ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16196-609-0 01 1 9309-9309 ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16202-549-0 01 1 9310-9504 ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16218-429-1 01 1 9505- ● ●
106 NUT; ELEC CONT UNIT
A/T THM(RMQ) (A) M5 FLANGE 		8-94178-699-0 04 1 9309-9408 ● ●
106 NUT; ELEC CONT UNIT
A/T THM(RMQ) (B) D=9X9 L=8 M6 		8-94222-314-0 04 1 9309-9408 ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T THM(RMQ) M8 FLANGE 		0-91150-108-0 04 1 9112-9308 ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T THM(RMQ) M8 FLANGE 		0-91150-108-0 02 1 9309- ● ●
108 BOLT; TRANS CONT MODULE
A/T THM(RMQ) M6X16 		8-94220-097-0 03 1 9112-9308 ● ●
108 BOLT; TRANS CONT MODULE
A/T THM(RMQ) M5X12 W/CLIP 		8-94443-197-0 04 1 9309-9408 ● ●
153 BOLT; BUZZER FIX
HEAD LAMP REMINDER<T63> M6X16 		0-28410-616-0 01 1 9112-9204 ● ●
153 BOLT; BUZZER FIX
HEAD LAMP REMINDER<T63> M6X16 FLANGE 		0-28480-616-0 01 1 9205-9205 ● ●
153 BOLT; BUZZER FIX
SAUDI ARABIA EQUIPMENT(EU2) M6X16 FLANGE 		0-28480-616-0 01 1 9206-9504 ● ●
153 BOLT; BUZZER FIX
HEAD LAMP REMINDER<T63> EXC. SAUDI ARABIA EQUIPMENT(EU2) M6X16 FLANGE 		0-28480-616-0 01 1 9206-9504 ● ●
167 INDICATOR ASM; TRANS
A/T THM(RMQ) 		8-97071-707-0 01 1 9112-9504 ● ●
200 BUZZER; LIGHT REMIND
HEAD LAMP REMINDER<T63> 		8-94100-124-0 01 1 9112-9210 ● ●
200 BUZZER; LIGHT REMIND
HEAD LAMP REMINDER<T63> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94100-124-0 01 1 9211- ● ●
204 BUZZER; KEY REMIND
SAUDI ARABIA EQUIPMENT(EU2) 		8-97039-272-0 01 1 9206-9504 ● ●
204 BUZZER; KEY REMIND
SAUDI ARABIA EQUIPMENT(EU2) 		8-97113-143-0 01 1 9505-9601 ● ●
204 BUZZER; KEY REMIND
SAUDI ARABIA EQUIPMENT(EU2) 		8-97135-563-0 01 1 9602- ● ●
256 BULB; TRANS INDICATOR
A/T THM(RMQ) 12V 1.4W 		8-94152-313-0 02 1 9112-9504 ● ●
263 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> M6X16 		0-28410-616-0 01 1 9112-9204 ● ●
263 BOLT; CONT UNIT
AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28480-616-0 01 1 9205-9504 ● ●
301 GROMMET; CONT UNIT BRKT
A/T THM(RMQ) 		8-97110-216-1 04 1 9409- ● ●
303 SCREW; CONT UNIT
A/T THM(RMQ) M6X14 TAPPING W/PL WASHER 		0-74100-614-0 04 1 9309-9408 ● ●
303 SCREW; CONT UNIT
A/T THM(RMQ) M4X10 TAPPING W/PL WASHER 		0-74100-410-0 04 1 9409- ● ●
368 CONTROL UNIT; DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-94323-680-1 01 1 9112-9504 ● ●
395 SCREW; INDICATOR
A/T THM(RMQ) M5X12 TAPPING 		9-09829-321-1 02 1 9112-9504 ● ●
445 SOCKET; BULB
A/T THM(RMQ) 12V 1.4W BLACK 		8-94114-138-0 02 1 9112-9504 ● ●
478 CONTROLLER; INDICATOR,A/T
A/T THM(RMQ) 		8-97094-910-0 01 1 9309- ● ●
505 CALIBRATION; A/T CONTROL UNIT
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16196-591-0 01 1 9309-9309 ● ●
505 CALIBRATION; A/T CONTROL UNIT
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16202-527-0 01 1 9310-9504 ● ●
505 CALIBRATION; A/T CONTROL UNIT
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16218-428-0 01 1 9505- ● ●

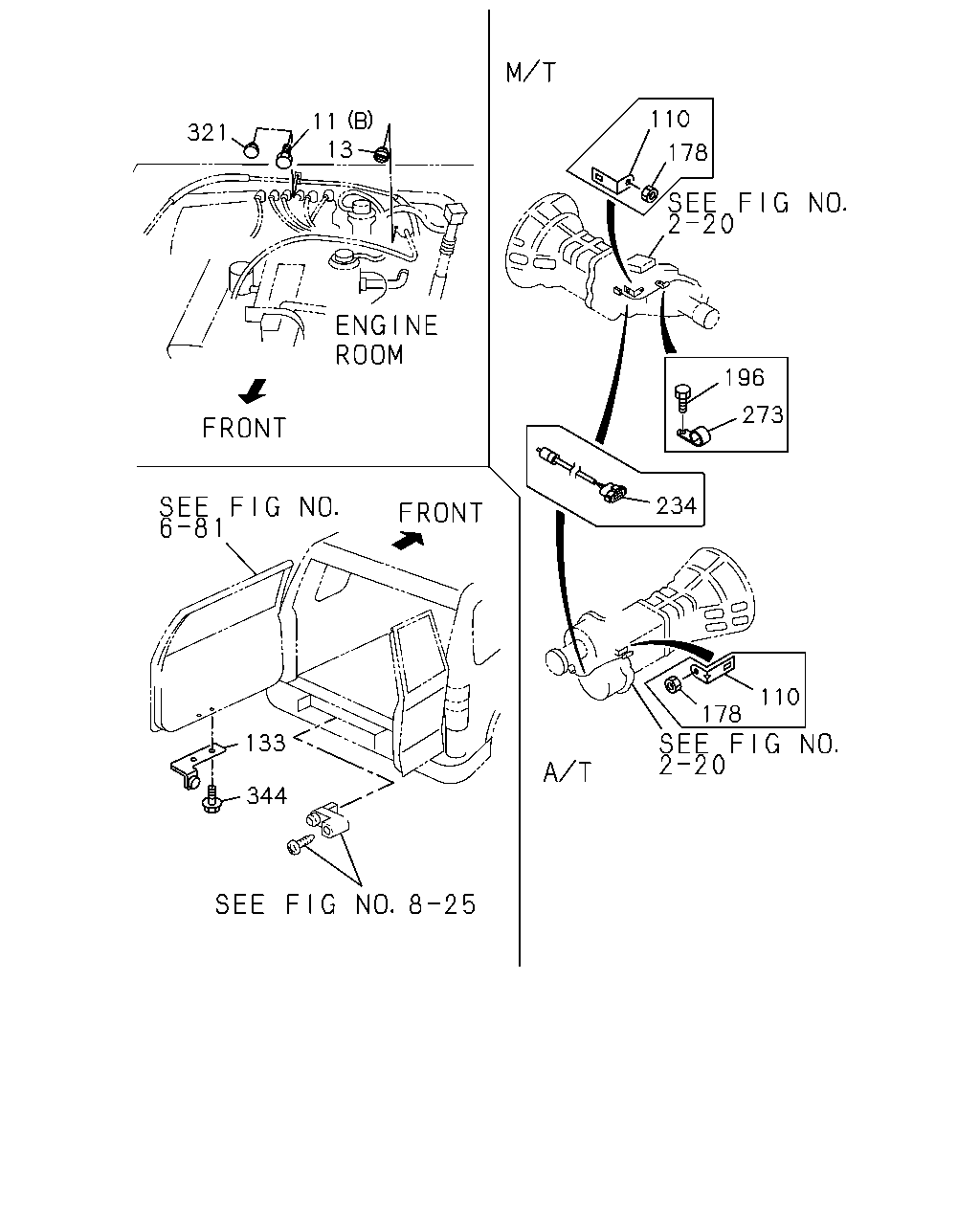

çizim 68599
11 13 110 178 321 196 273 234 110 133 178 344
BalonParca AdiParca NoAdetTipApplied Date A B
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (A) M6X16 		0-28410-616-0 02 1 9112-9204 ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (A) M6X16 FLANGE 		0-28480-616-0 02 1 9205-9504 ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (C) M6X18 W/LK&PL WASHER 		0-50140-618-0 02 1 9505- ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (B) M6X14 		8-94153-946-0 01 1 9112-9308 ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9309- ● ●
13 PLUG; CONTROLLER,CRUISE
EXC. AUTO CRUISE CONT<K30> 		8-94147-164-1 01 1 9112- ● ●
110 BRACKET; VEHICLE SPD SENSOR 8-97035-531-0 01 1 9112-9208 ● ●
133 BRACKET; SWITCH 8-97048-462-3 01 1 9112-9302 ● ●
133 BRACKET; SWITCH 8-97090-017-0 01 1 9303- ● ●
178 NUT; VEHICLE SPD SENSOR
M10 FLANGE 		0-91150-110-0 01 1 9112-9208 ● ●
196 BOLT
M/T MUA 5 SPEED(RMN) M8X14 		9-01960-814-0 01 1 9112-9204 ● ●
196 BOLT
M/T MUA 5 SPEED(RMN) M8X14 		0-50140-814-0 01 1 9205-9208 ● ●
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN DARK GRAY 		8-97065-834-0 01 1 9209-9503 ● ●
234 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 9504- ● ●
234 SENSOR; VEHICLE SPD
A/T THM(RMQ) 		8-97035-533-3 01 1 9112-9208 ● ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED(RMN) 		8-97033-291-3 01 1 9112-9208 ● ●
273 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9112-9208 ● ●
321 CLIP; SW PANEL
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) EXC. AUTO CRUISE CONT<K30> OD=12 L=14.8 		8-94279-921-0 01 1 9112- ● ●
344 BOLT; SW BRKT
M6X16 FLANGE 		8-97803-298-0 02 1 9112-9206 ● ●
344 BOLT; SW BRKT
M6X16 FLANGE 		8-97808-792-1 02 1 9207- ● ●

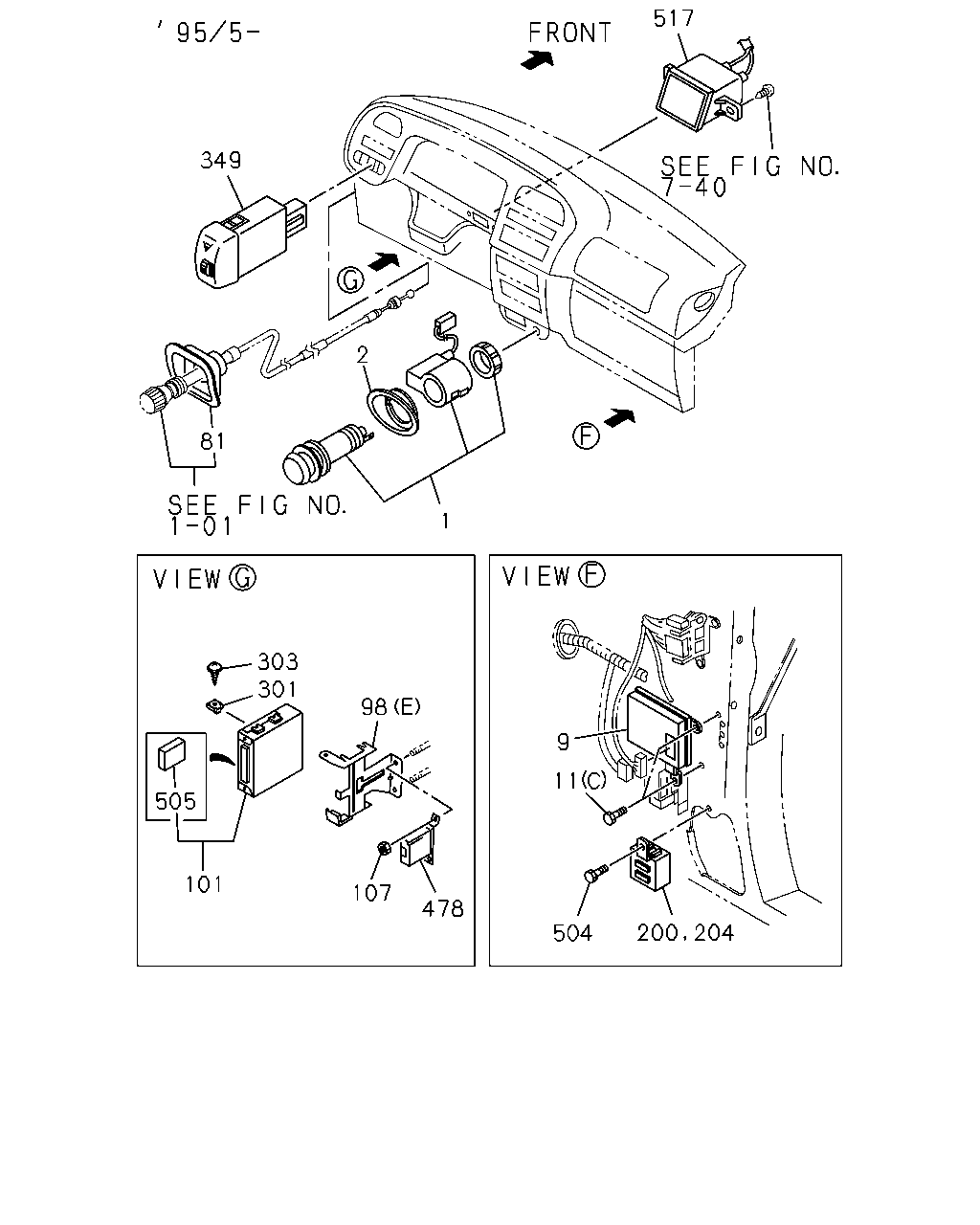

çizim 68626
517 349 2 81 1 303 301 98 9 505 11 101 107 478 504 200 204
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-94442-590-0 01 1 9112-9504 ● ●
1 LIGHTER; CIGAR 8-97094-468-1 01 1 9505- ● ●
2 BEZEL; CIGAR LIGHTER
BLACK 		8-97003-110-0 01 1 9112-9504 ● ●
2 BEZEL; CIGAR LIGHTER
BLACK 		8-97098-337-0 01 1 9505- ● ●
9 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) A/T THM(RMQ) AUTO CRUISE CONT<K30> SPEEDOMETER MILE<UC1> 		8-97065-133-0 01 1 9112-9504 ● ●
9 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) A/T THM(RMQ) AUTO CRUISE CONT<K30> EXC. SPEEDOMETER MILE<UC1> 		8-97070-117-0 01 1 9112-9504 ● ●
9 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> SPEEDOMETER MILE<UC1> 		8-97065-134-0 01 1 9112-9504 ● ●
9 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> 		8-97116-908-1 01 1 9505- ● ●
9 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) AUTO CRUISE CONT<K30> EXC. SPEEDOMETER MILE<UC1> 		8-97070-118-0 01 1 9112-9504 ● ●
9 CONTROLLER; CRUISE
6VD1 SOHC ENG(RLU) A/T THM(RMQ) AUTO CRUISE CONT<K30> 		8-97116-907-1 01 1 9505- ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (A) M6X16 		0-28410-616-0 02 1 9112-9204 ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (A) M6X16 FLANGE 		0-28480-616-0 02 1 9205-9504 ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (C) M6X18 W/LK&PL WASHER 		0-50140-618-0 02 1 9505- ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (B) M6X14 		8-94153-946-0 01 1 9112-9308 ● ●
11 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> (B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9309- ● ●
81 BEZEL; IDLE CONT
4JG2 ENG(RJC),4JG1 ENG(RLT) 		8-97065-377-1 01 1 9112-9504 ● ●
81 BEZEL; IDLE CONT
4JG2 ENG(RJC) DARK GRAY 		8-97153-189-1 01 1 9505- ● ●
81 BEZEL; IDLE CONT
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) 		8-94450-512-3 01 1 9112-9504 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (A) 		8-94375-127-1 01 1 9112-9308 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (C) 		8-97088-846-1 01 1 9309-9408 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (B) 		8-97088-845-1 01 1 9309-9408 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) (D) 		8-97110-211-0 01 1 9409-9504 ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4) (D) 		8-97110-211-0 01 1 9505- ● ●
98 BRACKET; ELEC CONT UNIT,A/T
A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) (E) 		8-97126-131-0 01 1 9505- ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-96016-755-1 01 1 9112-9205 ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-96017-065-0 01 1 9206-9308 ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16196-609-0 01 1 9309-9309 ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16202-549-0 01 1 9310-9504 ● ●
101 CONTROL UNIT; ELEC,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16218-429-1 01 1 9505- ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T THM(RMQ) M8 FLANGE 		0-91150-108-0 04 1 9112-9308 ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T THM(RMQ) M8 FLANGE 		0-91150-108-0 02 1 9309- ● ●
200 BUZZER; LIGHT REMIND
HEAD LAMP REMINDER<T63> 		8-94100-124-0 01 1 9112-9210 ● ●
200 BUZZER; LIGHT REMIND
HEAD LAMP REMINDER<T63> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94100-124-0 01 1 9211- ● ●
204 BUZZER; KEY REMIND
SAUDI ARABIA EQUIPMENT(EU2) 		8-97039-272-0 01 1 9206-9504 ● ●
204 BUZZER; KEY REMIND
SAUDI ARABIA EQUIPMENT(EU2) 		8-97113-143-0 01 1 9505-9601 ● ●
204 BUZZER; KEY REMIND
SAUDI ARABIA EQUIPMENT(EU2) 		8-97135-563-0 01 1 9602- ● ●
301 GROMMET; CONT UNIT BRKT
A/T THM(RMQ) 		8-97110-216-1 04 1 9409- ● ●
303 SCREW; CONT UNIT
A/T THM(RMQ) M6X14 TAPPING W/PL WASHER 		0-74100-614-0 04 1 9309-9408 ● ●
303 SCREW; CONT UNIT
A/T THM(RMQ) M4X10 TAPPING W/PL WASHER 		0-74100-410-0 04 1 9409- ● ●
349 CONTROL; ILLUMINATION
GRADE LS(RBD),GRADE RS(RBF) 		8-97085-355-2 01 1 9505-9607 ● ●
349 CONTROL; ILLUMINATION
GRADE LS(RBD),GRADE RS(RBF) 		8-97135-515-0 01 1 9608- ● ●
478 CONTROLLER; INDICATOR,A/T
A/T THM(RMQ) 		8-97094-910-0 01 1 9309- ● ●
504 NUT; BUZZER
SAUDI ARABIA EQUIPMENT(EU2) M6 FLANGE 		0-91150-106-0 01 1 9505- ● ●
504 NUT; BUZZER
HEAD LAMP REMINDER<T63> EXC. SAUDI ARABIA EQUIPMENT(EU2) M6 FLANGE 		0-91150-106-0 01 1 9505- ● ●
505 CALIBRATION; A/T CONTROL UNIT
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16196-591-0 01 1 9309-9309 ● ●
505 CALIBRATION; A/T CONTROL UNIT
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16202-527-0 01 1 9310-9504 ● ●
505 CALIBRATION; A/T CONTROL UNIT
6VD1 SOHC ENG(RLU) A/T THM(RMQ) 		8-16218-428-0 01 1 9505- ● ●
517 INDICATOR; AUTO CRUISE
AUTO CRUISE CONT<K30> 		8-97102-483-0 01 1 9505- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
