0-65 — STARTER (#3529) — 108 parça

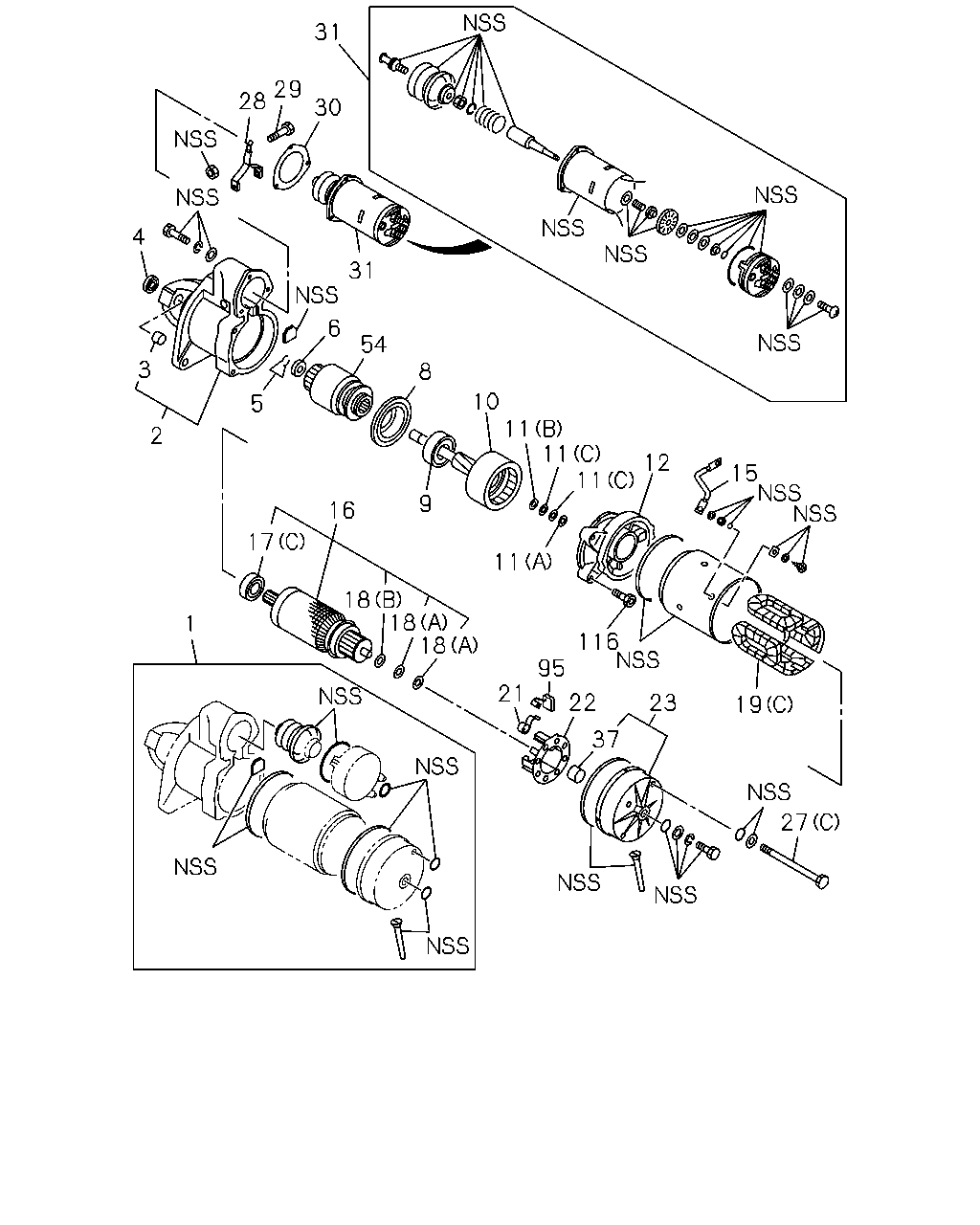

31 29 28 30 4 31 6 54 3 8 10 11 11 11 5 2 12 15 9 16 17 11 18 18 18 1 116 95 21 22 23 19 37 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEAL KIT; STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81129-601-0	01	1	-
1	SEAL KIT; STARTER ASM PART: C = 1-81100-276-1	1-81129-628-0	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 1-81100-274-1	1-81113-113-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 1-81100-275-1	1-81113-115-0	01	1	-
2	CASE; PINION,STARTER ASM PART: C = 1-81100-276-1	1-81113-116-0	01	1	-
3	METAL; PINION CASE STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1, C = 1-81100-276-1	1-81129-286-0	01	1	-
4	COVER; PINION CASE STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1, C = 1-81100-276-1	1-81129-305-0	01	1	-
5	CLIP; PINION STOPPER STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1, C = 1-81100-276-1	1-81129-189-0	01	1	-
6	STOPPER; PINION STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1, C = 1-81100-276-1	1-81129-190-0	01	1	-
8	BRACKET; CENTER STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81113-084-0	01	1	-
8	BRACKET; CENTER STARTER ASM PART: C = 1-81100-276-1	1-81113-117-0	01	1	-
9	BEARING; GEAR SHAFT STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81129-298-0	01	1	-
9	BEARING; GEAR SHAFT STARTER ASM PART: C = 1-81100-276-1	1-81129-541-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81123-042-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: C = 1-81100-276-1	1-81123-043-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (A) ASM PART: C = 1-81100-276-1	1-81129-295-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (A) ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81129-297-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (C) ASM PART: C = 1-81100-276-1	5-81129-159-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (C) ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	5-81129-159-0	02	1	-
11	WASHER; GEAR SHAFT STARTER (B) ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	5-81129-160-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (B) ASM PART: C = 1-81100-276-1	5-81129-160-0	02	1	-
12	BRACKET; CENTER RR STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81113-083-0	01	1	-
12	BRACKET; CENTER RR STARTER ASM PART: C = 1-81100-276-1	1-81113-100-0	01	1	-
15	WIRE; LEAD STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1, C = 1-81100-276-1	1-81116-034-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81121-056-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 1-81100-276-1	1-81121-057-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: C = 1-81100-276-1	1-81129-196-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81129-294-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: C = 1-81100-276-1	1-81129-539-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER (B) ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81129-289-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER (A) ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81129-290-0	02	1	-
18	WASHER; THRUST,ARMATURE,STARTER (C) ASM PART: C = 1-81100-276-1	1-81129-540-0	01	1	-
19	COIL; FIELD,STARTER (C) ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81112-028-0	01	1	-
19	COIL; FIELD,STARTER (A) ASM PART: C = 1-81100-276-1	1-81112-039-0	01	1	-
19	COIL; FIELD,STARTER (B) ASM PART: C = 1-81100-276-1	1-81112-040-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1, C = 1-81100-276-1	1-81117-016-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1, C = 1-81100-276-1	1-81118-032-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81115-180-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: C = 1-81100-276-1	1-81115-195-0	01	1	-
27	BOLT; THROUGH,STARTER (C) ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81129-292-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: C = 1-81100-276-1	1-81129-537-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: C = 1-81100-276-1	1-81129-542-0	06	1	-
28	LEVER; SHIFT,STARTER ASM PART: C = 1-81100-276-1	1-81127-035-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81127-040-0	01	1	-
29	PIN; SHIFT LEVER STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1, C = 1-81100-276-1	1-81129-185-0	01	1	-
30	PLATE; ENGAGE SW STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81129-598-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81151-090-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: C = 1-81100-276-1	1-81151-091-0	01	1	-
37	METAL; RR COVER STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81129-291-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-274-1	1-81122-057-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 1-81100-275-1	1-81122-058-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 1-81100-276-1	1-81122-059-0	01	1	-
95	BRUSH ASM; STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81116-035-0	04	1	-
95	BRUSH ASM; STARTER ASM PART: C = 1-81100-276-1	1-81116-051-0	04	1	-
116	BOLT; BRKT ASM PART: A = 1-81100-274-1, B = 1-81100-275-1, C = 1-81100-276-1	1-81129-293-0	03	1	-

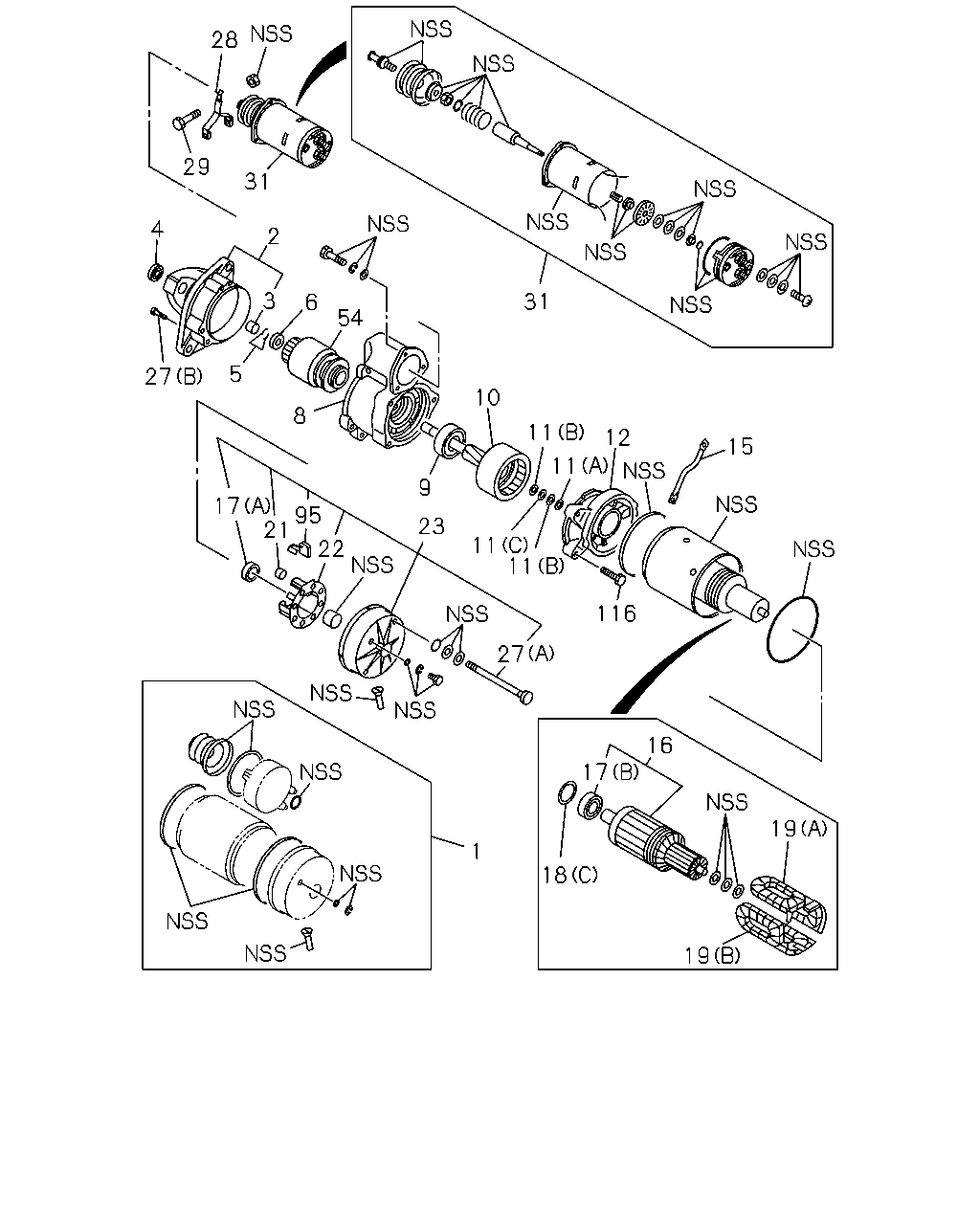

28 29 31 4 2 3 31 6 54 5 27 10 8 11 12 15 11 9 17 95 21 23 11 11 22 116 16 17 19 1 18 19 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEAL KIT; STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81129-601-0	01	1	-
1	SEAL KIT; STARTER ASM PART: C = 1-81100-276-1	1-81129-628-0	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 1-81100-274-1	1-81113-113-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 1-81100-275-1	1-81113-115-0	01	1	-
2	CASE; PINION,STARTER ASM PART: C = 1-81100-276-1	1-81113-116-0	01	1	-
3	METAL; PINION CASE STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1, C = 1-81100-276-1	1-81129-286-0	01	1	-
4	COVER; PINION CASE STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1, C = 1-81100-276-1	1-81129-305-0	01	1	-
5	CLIP; PINION STOPPER STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1, C = 1-81100-276-1	1-81129-189-0	01	1	-
6	STOPPER; PINION STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1, C = 1-81100-276-1	1-81129-190-0	01	1	-
8	BRACKET; CENTER STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81113-084-0	01	1	-
8	BRACKET; CENTER STARTER ASM PART: C = 1-81100-276-1	1-81113-117-0	01	1	-
9	BEARING; GEAR SHAFT STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81129-298-0	01	1	-
9	BEARING; GEAR SHAFT STARTER ASM PART: C = 1-81100-276-1	1-81129-541-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81123-042-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: C = 1-81100-276-1	1-81123-043-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (A) ASM PART: C = 1-81100-276-1	1-81129-295-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (A) ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81129-297-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (C) ASM PART: C = 1-81100-276-1	5-81129-159-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (C) ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	5-81129-159-0	02	1	-
11	WASHER; GEAR SHAFT STARTER (B) ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	5-81129-160-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (B) ASM PART: C = 1-81100-276-1	5-81129-160-0	02	1	-
12	BRACKET; CENTER RR STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81113-083-0	01	1	-
12	BRACKET; CENTER RR STARTER ASM PART: C = 1-81100-276-1	1-81113-100-0	01	1	-
15	WIRE; LEAD STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1, C = 1-81100-276-1	1-81116-034-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81121-056-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 1-81100-276-1	1-81121-057-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: C = 1-81100-276-1	1-81129-196-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81129-294-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: C = 1-81100-276-1	1-81129-539-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER (B) ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81129-289-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER (A) ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81129-290-0	02	1	-
18	WASHER; THRUST,ARMATURE,STARTER (C) ASM PART: C = 1-81100-276-1	1-81129-540-0	01	1	-
19	COIL; FIELD,STARTER (C) ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81112-028-0	01	1	-
19	COIL; FIELD,STARTER (A) ASM PART: C = 1-81100-276-1	1-81112-039-0	01	1	-
19	COIL; FIELD,STARTER (B) ASM PART: C = 1-81100-276-1	1-81112-040-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1, C = 1-81100-276-1	1-81117-016-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1, C = 1-81100-276-1	1-81118-032-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81115-180-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: C = 1-81100-276-1	1-81115-195-0	01	1	-
27	BOLT; THROUGH,STARTER (C) ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81129-292-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: C = 1-81100-276-1	1-81129-537-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: C = 1-81100-276-1	1-81129-542-0	06	1	-
28	LEVER; SHIFT,STARTER ASM PART: C = 1-81100-276-1	1-81127-035-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81127-040-0	01	1	-
29	PIN; SHIFT LEVER STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1, C = 1-81100-276-1	1-81129-185-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81151-090-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: C = 1-81100-276-1	1-81151-091-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-274-1	1-81122-057-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 1-81100-275-1	1-81122-058-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 1-81100-276-1	1-81122-059-0	01	1	-
95	BRUSH ASM; STARTER ASM PART: A = 1-81100-274-1, B = 1-81100-275-1	1-81116-035-0	04	1	-
95	BRUSH ASM; STARTER ASM PART: C = 1-81100-276-1	1-81116-051-0	04	1	-
116	BOLT; BRKT ASM PART: A = 1-81100-274-1, B = 1-81100-275-1, C = 1-81100-276-1	1-81129-293-0	03	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
