Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#35289) — 341 parça

480 449 436 423 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
95	SWITCH; RR FOG LAMP RR FOG LAMP<T79>	8-97038-419-1	01	1	9112-9504	●	●
95	SWITCH; RR FOG LAMP RR FOG LAMP<T79>	8-97081-612-2	01	1	9505-9607	●	●
95	SWITCH; RR FOG LAMP RR FOG LAMP<T79>	8-97135-514-1	01	1	9608-	●	●
423	SWITCH; ENG WARMING 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4)	8-97066-761-0	01	1	9112-9504	●	●
423	SWITCH; ENG WARMING ENG QUICK WARM UP SYSTEM<6JZ>	8-97081-772-2	01	1	9505-9607	●	●
423	SWITCH; ENG WARMING ENG QUICK WARM UP SYSTEM<6JZ>	8-97135-519-1	01	1	9608-	●	●
436	SWITCH; HEADLAMP LEVELING ADJUST HEADLAMP<6RC>	8-97018-463-0	01	1	9112-9504	●	●
436	SWITCH; HEADLAMP LEVELING ADJUST HEADLAMP<6RC>	8-97110-381-0	01	1	9505-	●	●
449	BULB ASM; HEADLAMP LEVELING SW ADJUST HEADLAMP<6RC>	8-97039-411-0	01	1	9112-9504	●	●
449	BULB ASM; HEADLAMP LEVELING SW ADJUST HEADLAMP<6RC> 14V 0.84W	8-97117-108-0	01	1	9505-	●	●

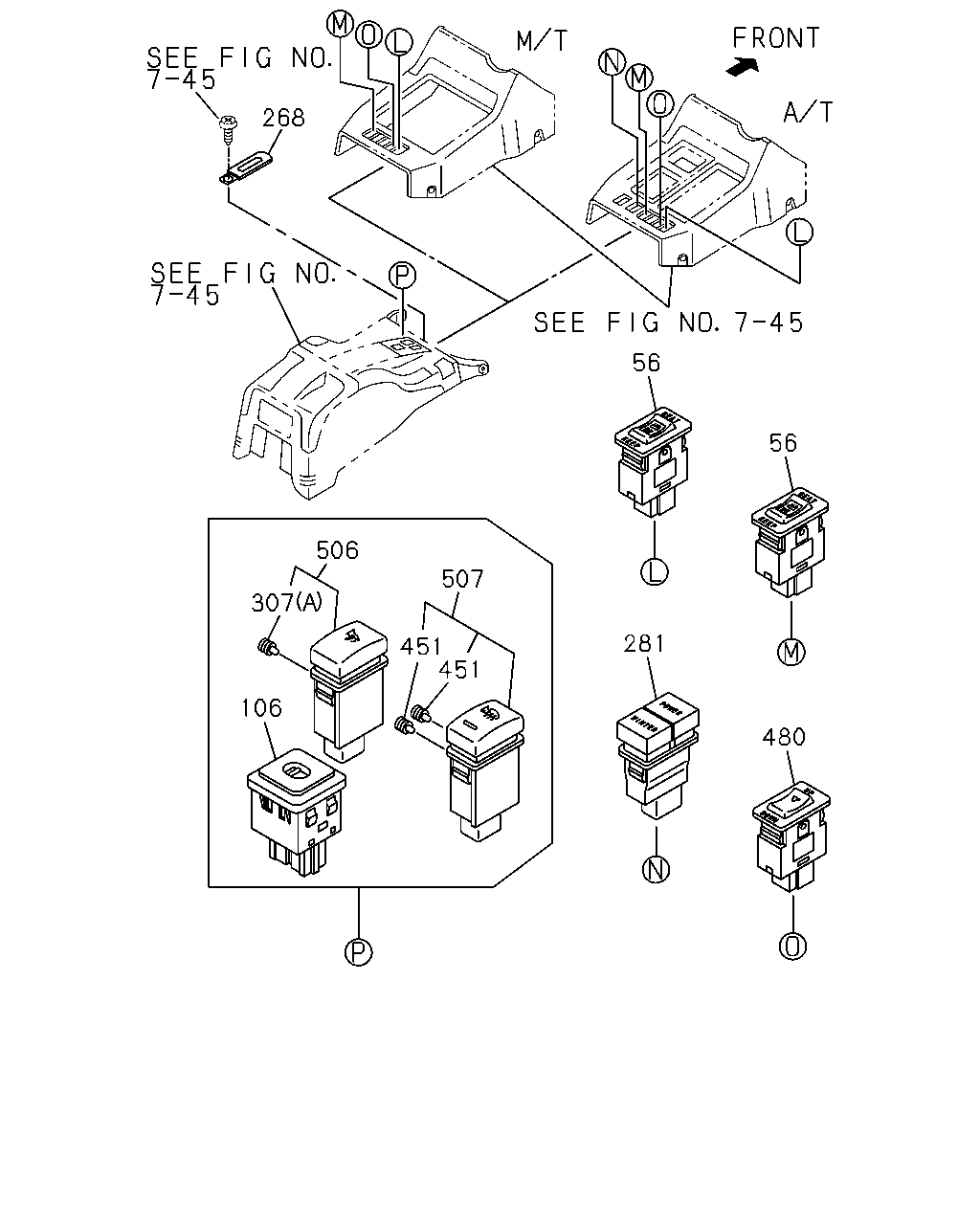

480	SWITCH; AUTO ANTENNA EUROPE/CANARY EQUIPMENT(EK4)	8-97066-796-0	01	1	9112-9504	●	●
480	SWITCH; AUTO ANTENNA EUROPE/CANARY EQUIPMENT(EK4)	8-97104-992-0	01	1	9505-	●	●

1 61 140 12 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

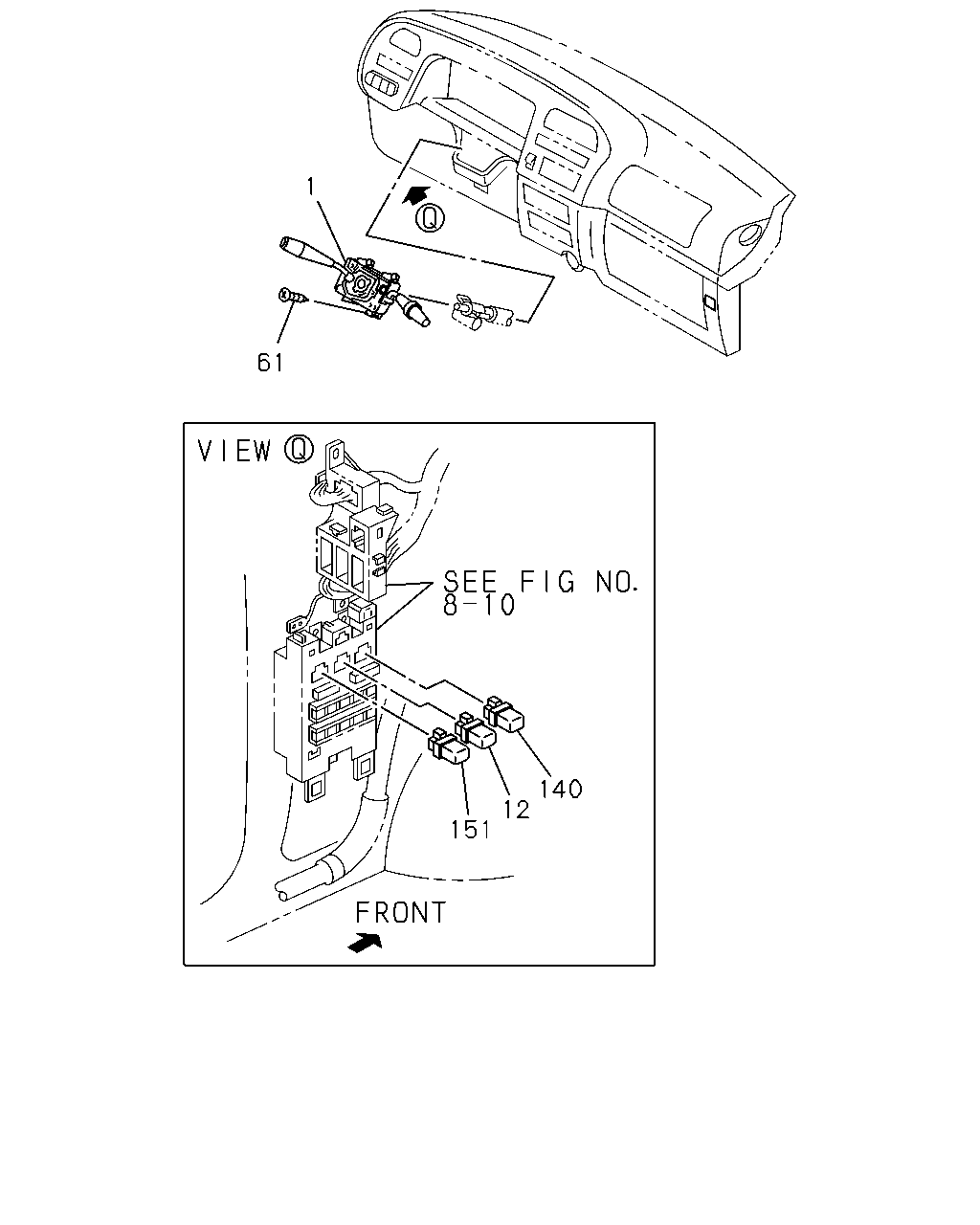

1	SWITCH; COMB AIR BAG DRIVER<AJ3> AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH>	8-97160-939-0	01	1	9608-	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30>	8-97160-937-0	01	1	9608-	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>	8-97160-938-0	01	1	9608-	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-97160-936-0	01	1	9608-	●	●
1	SWITCH; COMB AUTO CRUISE CONT<K30>	8-94375-499-4	01	1	9112-9504	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>	8-97126-495-0	01	1	9505-9606	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>	8-97160-926-0	01	1	9607-9607	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30> EXC. AIR BAG DRIVER<AJ3>	8-97160-926-0	01	1	9608-	●	●
1	SWITCH; COMB AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH>	8-97126-496-0	01	1	9505-9606	●	●
1	SWITCH; COMB AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH>	8-97160-927-0	01	1	9607-9607	●	●
1	SWITCH; COMB AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3>	8-97160-927-0	01	1	9608-	●	●
1	SWITCH; COMB EXC. AUTO CRUISE CONT<K30>	8-94375-496-4	01	1	9112-9504	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-97126-493-0	01	1	9505-9606	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-97160-924-0	01	1	9607-9607	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30>	8-97160-924-0	01	1	9608-	●	●
1	SWITCH; COMB FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30>	8-97126-494-0	01	1	9505-9606	●	●
1	SWITCH; COMB FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30>	8-97160-925-0	01	1	9607-9607	●	●
1	SWITCH; COMB FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30>	8-97160-925-0	01	1	9608-	●	●
12	RELAY; POWER WINDOW POWER WINDOW<A30> EXC. SUNROOF<CF5> 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
12	RELAY; POWER WINDOW SUNROOF<CF5> 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
12	RELAY; POWER WINDOW POWER WINDOW<A30> EXC. SUNROOF<CF5> 12V 20A	8-97093-910-1	01	1	9304-	●	●
12	RELAY; POWER WINDOW SUNROOF<CF5> 12V 20A	8-97093-910-1	01	1	9304-	●	●
61	SCREW; SW M4X14 TAPPING	9-09829-313-1	06	1	9112-9302	●	●
61	SCREW; SW M4X12 TAPPING OVAL-HEAD	9-09829-312-1	06	1	9303-9504	●	●
61	SCREW; SW M5X14 W/LK WASHER	9-03910-514-0	04	1	9505-	●	●
140	RELAY; RR DEFOGGER REAR DEFOGGER<C49> 12V 20A	8-97048-665-0	01	1	9112-9303	●
140	RELAY; RR DEFOGGER REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> 12V 20A	8-97048-665-0	01	1	9112-9303		●
140	RELAY; RR DEFOGGER REAR DEFOGGER<C49> 12V 20A	8-97093-910-1	01	1	9304-9504	●
140	RELAY; RR DEFOGGER REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> 12V 20A	8-97093-910-1	01	1	9304-9504		●
140	RELAY; RR DEFOGGER RR DEFOGGER W/AUTO CANCEL<S4Y> 12V 20A	8-97093-910-1	01	1	9505-	●	●
151	RELAY; HTR & A/C 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 12V 20A	8-97093-910-1	01	1	9505-9506	●	●
151	RELAY; HTR & A/C HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 12V 20A	8-97093-910-1	01	1	9505-9506	●	●
151	RELAY; HTR & A/C 12V 20A	8-97093-910-1	01	1	9507-	●	●

140 12 257 1 3 152 98 45 99 277 154 276 155 156 164 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

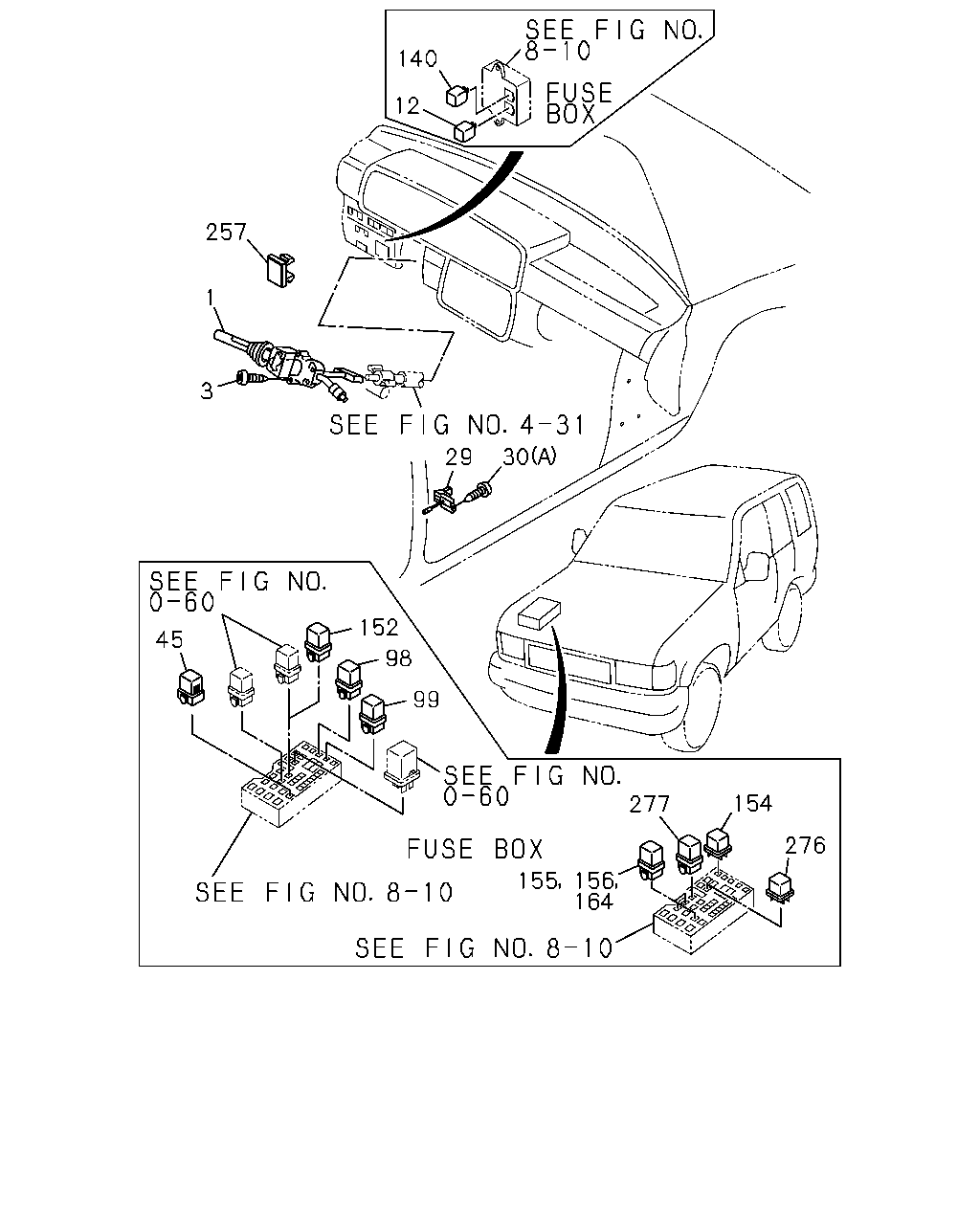

1	SWITCH; COMB AIR BAG DRIVER<AJ3> AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH>	8-97160-939-0	01	1	9608-	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30>	8-97160-937-0	01	1	9608-	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>	8-97160-938-0	01	1	9608-	●	●
1	SWITCH; COMB AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-97160-936-0	01	1	9608-	●	●
1	SWITCH; COMB AUTO CRUISE CONT<K30>	8-94375-499-4	01	1	9112-9504	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>	8-97126-495-0	01	1	9505-9606	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30>	8-97160-926-0	01	1	9607-9607	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30> EXC. AIR BAG DRIVER<AJ3>	8-97160-926-0	01	1	9608-	●	●
1	SWITCH; COMB AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH>	8-97126-496-0	01	1	9505-9606	●	●
1	SWITCH; COMB AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH>	8-97160-927-0	01	1	9607-9607	●	●
1	SWITCH; COMB AUTO CRUISE CONT<K30> FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3>	8-97160-927-0	01	1	9608-	●	●
1	SWITCH; COMB EXC. AUTO CRUISE CONT<K30>	8-94375-496-4	01	1	9112-9504	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-97126-493-0	01	1	9505-9606	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>	8-97160-924-0	01	1	9607-9607	●	●
1	SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30>	8-97160-924-0	01	1	9608-	●	●
1	SWITCH; COMB FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30>	8-97126-494-0	01	1	9505-9606	●	●
1	SWITCH; COMB FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30>	8-97160-925-0	01	1	9607-9607	●	●
1	SWITCH; COMB FRT WIPER W/VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30>	8-97160-925-0	01	1	9608-	●	●
3	SCREW; COMB SW M5X20 W/LK WASHER	9-03910-520-0	03	1	9112-9504	●	●
12	RELAY; POWER WINDOW POWER WINDOW<A30> EXC. SUNROOF<CF5> 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
12	RELAY; POWER WINDOW SUNROOF<CF5> 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
12	RELAY; POWER WINDOW POWER WINDOW<A30> EXC. SUNROOF<CF5> 12V 20A	8-97093-910-1	01	1	9304-	●	●
12	RELAY; POWER WINDOW SUNROOF<CF5> 12V 20A	8-97093-910-1	01	1	9304-	●	●

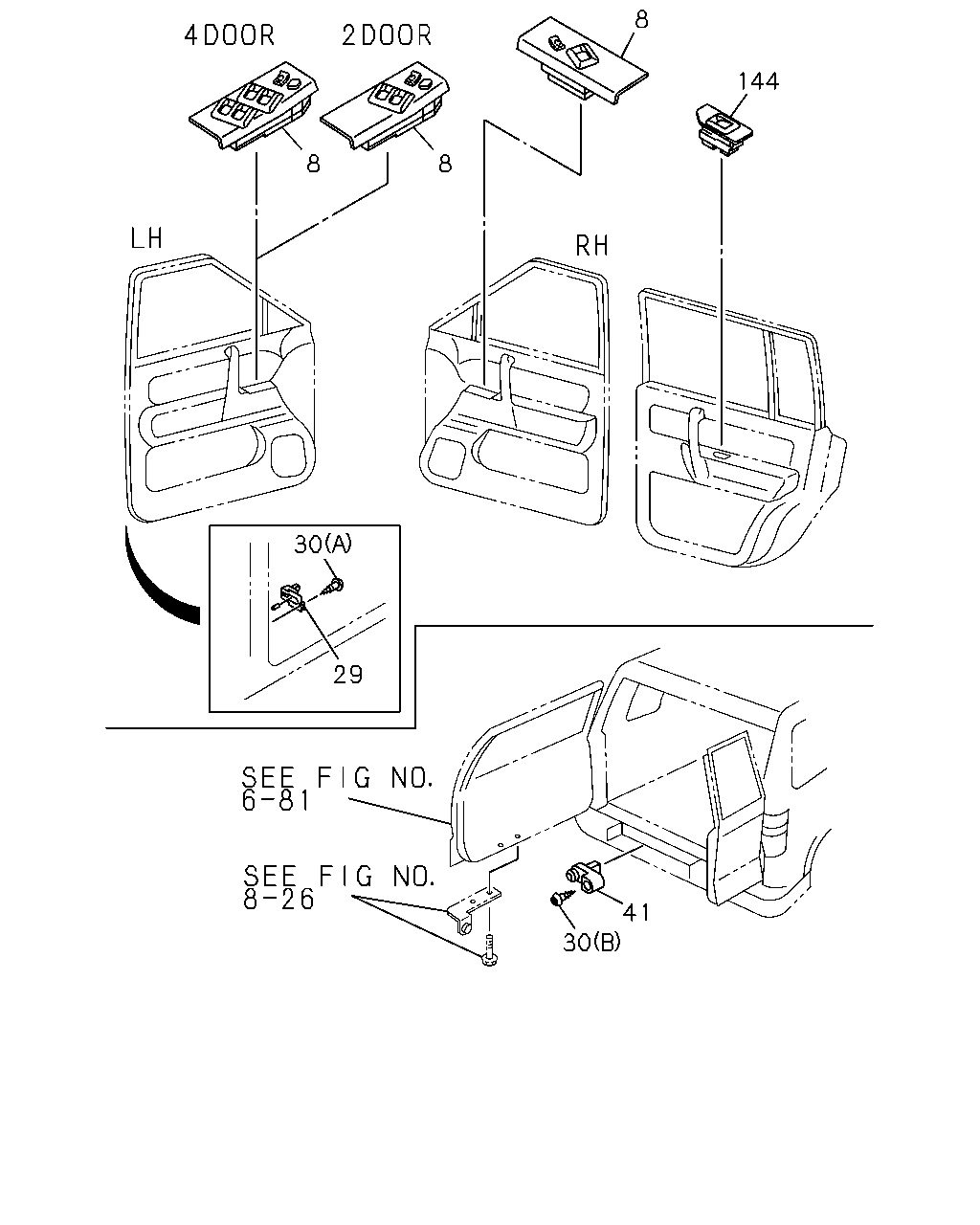

29	SWITCH; DOOR	8-97033-276-1	02	1	9112-9208	●
29	SWITCH; DOOR	8-97071-864-0	02	1	9209-9605	●
29	SWITCH; DOOR	8-97146-195-0	02	1	9606-	●
29	SWITCH; DOOR	8-97033-276-1	04	1	9112-9208		●
29	SWITCH; DOOR	8-97071-864-0	04	1	9209-9605		●
29	SWITCH; DOOR	8-97146-195-0	04	1	9606-		●
30	SCREW; DOOR SW (A) M5X14	8-94120-095-0	02	1	9112-	●
30	SCREW; DOOR SW (B) M5X14	8-94313-116-1	01	1	9112-	●	●
30	SCREW; DOOR SW (A) M5X14	8-94120-095-0	04	1	9112-		●
45	RELAY; HORN	8-97018-462-0	01	1	9112-	●	●

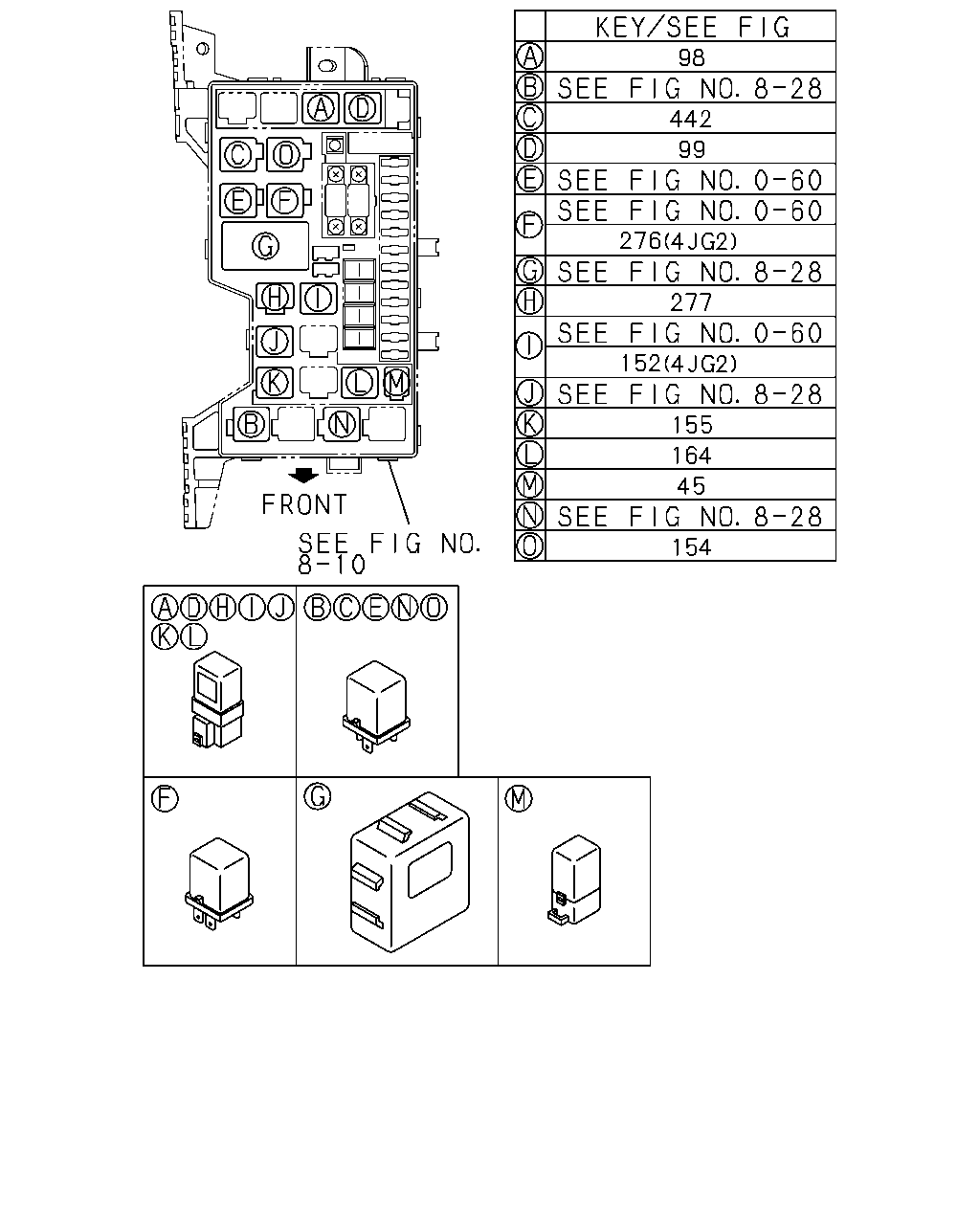

98	RELAY; RR FOG LAMP EUROPE/CANARY EQUIPMENT(EK4) RR FOG LAMP<T79> 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
98	RELAY; RR FOG LAMP EUROPE/CANARY EQUIPMENT(EK4) RR FOG LAMP<T79> 12V 20A	8-97093-910-1	01	1	9304-9504	●	●
98	RELAY; RR FOG LAMP RR FOG LAMP<T79> 12V 20A	8-97093-910-1	01	1	9505-	●	●
99	RELAY; FOG LAMP FOG LAMP HALOGEN(T37) 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
99	RELAY; FOG LAMP FOG LAMP HALOGEN(T37) 12V 20A	8-97093-910-1	01	1	9304-	●	●
140	RELAY; RR DEFOGGER REAR DEFOGGER<C49> 12V 20A	8-97048-665-0	01	1	9112-9303	●
140	RELAY; RR DEFOGGER REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> 12V 20A	8-97048-665-0	01	1	9112-9303		●
140	RELAY; RR DEFOGGER REAR DEFOGGER<C49> 12V 20A	8-97093-910-1	01	1	9304-9504	●
140	RELAY; RR DEFOGGER REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> 12V 20A	8-97093-910-1	01	1	9304-9504		●
140	RELAY; RR DEFOGGER RR DEFOGGER W/AUTO CANCEL<S4Y> 12V 20A	8-97093-910-1	01	1	9505-	●	●
152	RELAY; CERAMIC HTR 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) CERAMIC HEATER<6YX> 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
152	RELAY; CERAMIC HTR 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) CERAMIC HEATER<6YX> 12V 20A	8-97093-910-1	01	1	9304-	●	●
154	RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2) 12V 20A	8-94218-497-0	01	1	9112-9504	●	●
154	RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 12V 20A	8-94218-497-0	01	1	9505-9612	●	●
154	RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 12V 20A	8-94218-497-0	01	1	9701-9701	●	●
154	RELAY; CONDENSER FAN 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) PHILIPPINE EQUIPMENT(S2U) 12V 20A	8-94218-497-0	01	1	9701-9701		●
154	RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 12V 20A	8-94218-497-0	01	1	9701-	●	●
154	RELAY; CONDENSER FAN A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) PHILIPPINE EQUIPMENT(S2U) 12V 20A	8-94218-497-0	01	1	9701-		●
155	RELAY; THERMO SW,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
155	RELAY; THERMO SW,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 12V 20A	8-97093-910-1	01	1	9304-9504	●	●
155	RELAY; THERMO SW,A/C AIR CONDITIONER MANUAL CONT(C60) 12V 20A	8-97093-910-1	01	1	9505-	●	●
156	RELAY; BLOWER HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
156	RELAY; BLOWER HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 12V 20A	8-97093-910-1	01	1	9304-9504	●	●
164	RELAY; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
164	RELAY; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 12V 20A	8-97093-910-1	01	1	9304-9504	●	●
164	RELAY; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) 12V 20A	8-97093-910-1	01	1	9505-	●	●

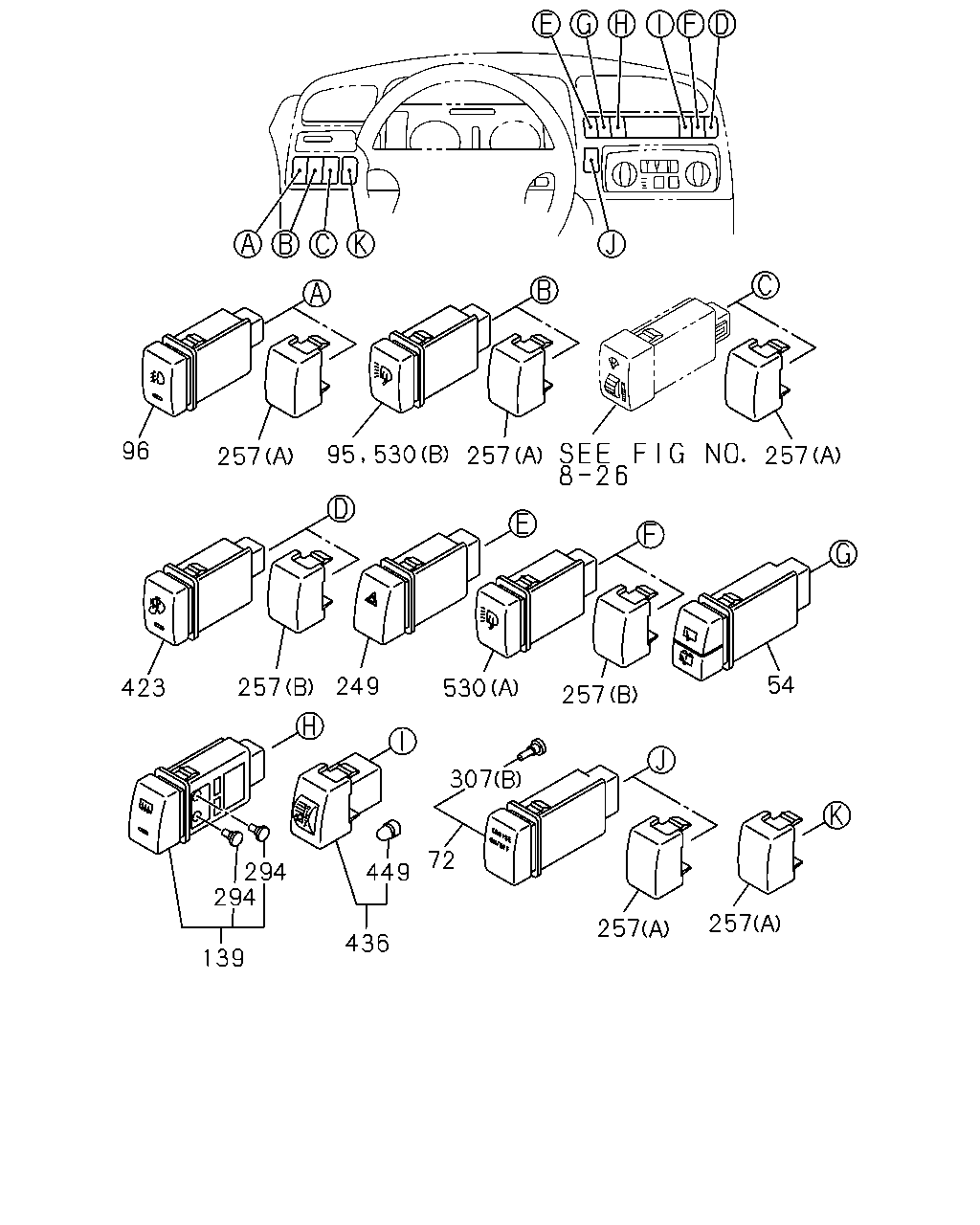

257	COVER; HOLE,SW ADJUST HEADLAMP<6RC> BLACK	8-94417-418-2	02	1	9112-9504	●	●
257	COVER; HOLE,SW EXC. FOG LAMP HALOGEN(T37) (A)	8-97081-617-1	01	1	9505-9607	●	●
257	COVER; HOLE,SW EXC. HEADLAMP WASHER<CE3>,EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97081-617-1	01	1	9505-9607	●	●
257	COVER; HOLE,SW GRADE S(RBA) (A)	8-97081-617-1	01	1	9505-9607	●	●
257	COVER; HOLE,SW EXC. AUTO CRUISE CONT<K30> (A)	8-97081-617-1	01	1	9505-9607	●	●
257	COVER; HOLE,SW (A)	8-97081-617-1	01	1	9505-9607	●	●
257	COVER; HOLE,SW EXC. FOG LAMP HALOGEN(T37) (A)	8-97081-617-1	01	1	9608-	●	●
257	COVER; HOLE,SW GRADE S(RBA) (A)	8-97081-617-1	01	1	9608-	●	●
257	COVER; HOLE,SW EXC. HEADLAMP WASHER<CE3>,RR FOG LAMP<T79> (A)	8-97081-617-1	01	1	9608-	●	●
257	COVER; HOLE,SW EXC. AUTO CRUISE CONT<K30> (A)	8-97081-617-1	01	1	9608-	●	●
257	COVER; HOLE,SW (A)	8-97081-617-1	01	1	9608-	●	●
257	COVER; HOLE,SW EXC. AUTO CRUISE CONT<K30> BLACK	8-94417-418-2	01	1	9112-9504	●	●
257	COVER; HOLE,SW EXC. RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> BLACK	8-94417-418-2	01	1	9112-9504	●	●
257	COVER; HOLE,SW EXC. FOG LAMP HALOGEN(T37) BLACK	8-94417-418-2	01	1	9112-9504	●	●
257	COVER; HOLE,SW EXC. RR FOG LAMP<T79> BLACK	8-94417-418-2	01	1	9112-9504	●	●
257	COVER; HOLE,SW EUROPE/CANARY EQUIPMENT(EK4) EXC. HEADLAMP WASHER<CE3> (B)	8-97088-762-0	01	1	9505-9607	●	●
257	COVER; HOLE,SW EXC. EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97088-762-0	01	1	9505-9607	●	●
257	COVER; HOLE,SW EXC. RR WIPER W/INTERMITTENT<6WJ> (B)	8-97088-762-0	01	1	9505-9607	●	●
257	COVER; HOLE,SW EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> (B)	8-97088-762-0	01	1	9505-9607	●	●
257	COVER; HOLE,SW EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97088-762-0	01	1	9505-9607	●	●
257	COVER; HOLE,SW EXC. ADJUST HEADLAMP<6RC> (B)	8-97088-762-0	01	1	9505-9607	●	●
257	COVER; HOLE,SW EXC. RR WIPER W/INTERMITTENT<6WJ> (B)	8-97088-762-0	01	1	9608-	●	●
257	COVER; HOLE,SW EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> (B)	8-97088-762-0	01	1	9608-	●	●
257	COVER; HOLE,SW EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97088-762-0	01	1	9608-	●	●
257	COVER; HOLE,SW RR FOG LAMP<T79> EXC. HEADLAMP WASHER<CE3> (B)	8-97088-762-0	01	1	9608-	●	●
257	COVER; HOLE,SW EXC. RR FOG LAMP<T79> (B)	8-97088-762-0	01	1	9608-	●	●
257	COVER; HOLE,SW EXC. ADJUST HEADLAMP<6RC> (B)	8-97088-762-0	01	1	9608-	●	●
276	RELAY; CHARGE & AUTO CHOKE 4JG2 ENG(RJC),4JG1 ENG(RLT) 12V 20A BLUE	8-94235-627-0	01	1	9112-9504	●	●
276	RELAY; CHARGE & AUTO CHOKE 4JG2 ENG(RJC) 12V 20A BLUE	8-94235-627-0	01	1	9505-	●	●
277	RELAY; FUEL PUMP 6VD1 SOHC ENG(RLU) 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
277	RELAY; FUEL PUMP 6VD1 SOHC ENG(RLU) 12V 20A	8-97093-910-1	01	1	9304-	●	●

307 307 307 106 84 61 378 72 61 281 379 249 268 146 52 50 96 61 307 56 54 495

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

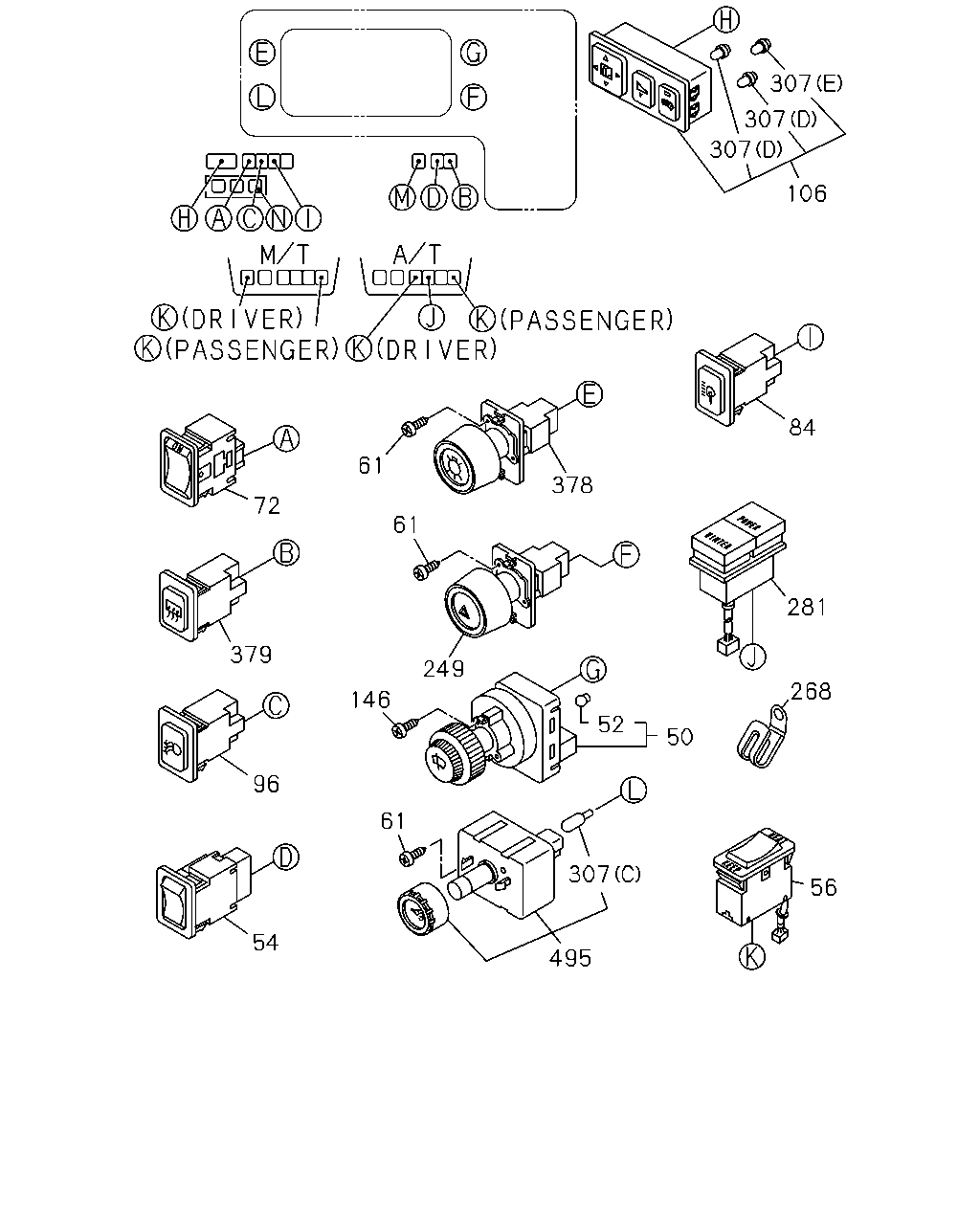

50	SWITCH; FRT WIPER FRT WIPER W/VARIABLE INTERMITTENT<6WH>	8-97023-825-1	01	1	9112-9203	●	●
50	SWITCH; FRT WIPER FRT WIPER W/VARIABLE INTERMITTENT<6WH>	8-97077-605-1	01	1	9204-9502	●	●
50	SWITCH; FRT WIPER FRT WIPER W/VARIABLE INTERMITTENT<6WH>	8-97119-643-0	01	1	9503-9504	●	●
50	SWITCH; FRT WIPER INTERMITTENT WIPER<C13>	8-97023-824-1	01	1	9112-9203	●	●
50	SWITCH; FRT WIPER INTERMITTENT WIPER<C13>	8-97077-604-1	01	1	9204-9502	●	●
50	SWITCH; FRT WIPER INTERMITTENT WIPER<C13>	8-97119-642-0	01	1	9503-9504	●	●
52	BULB ASM; WIPER & WASHER SW INTERMITTENT WIPER<C13>,FRT WIPER W/VARIABLE INTERMITTENT<6WH>	8-97045-658-0	01	1	9112-9504	●	●
54	SWITCH; RR WIPER RR WIPER W/INTERMITTENT<6WJ>	8-97043-261-3	01	1	9112-9504	●	●
54	SWITCH; RR WIPER RR WIPER W/INTERMITTENT<6WJ>	8-97103-581-2	01	1	9505-9607	●	●
54	SWITCH; RR WIPER RR WIPER W/INTERMITTENT<6WJ>	8-97135-516-0	01	1	9608-	●	●
54	SWITCH; RR WIPER RR WIPER<C25>	8-97043-731-3	01	1	9112-9208	●	●
54	SWITCH; RR WIPER RR WIPER<C25>	8-97077-532-0	01	1	9209-9504	●	●
56	SWITCH; SEAT HTR SEAT HEATER DRIVER<C37>	8-97021-228-1	01	1	9112-9504	●	●
56	SWITCH; SEAT HTR SEAT HEATER DRIVER<C37>	8-97104-988-1	01	1	9505-	●	●
56	SWITCH; SEAT HTR SEAT HEATER PASSENGER<C38>	8-97021-229-1	01	1	9112-9504	●	●
56	SWITCH; SEAT HTR SEAT HEATER PASSENGER<C38>	8-97104-989-1	01	1	9505-9511	●	●
56	SWITCH; SEAT HTR SEAT HEATER PASSENGER<C38>	8-97140-023-0	01	1	9512-	●	●
61	SCREW; SW M4X14 TAPPING	9-09829-313-1	06	1	9112-9302	●	●
61	SCREW; SW M4X12 TAPPING OVAL-HEAD	9-09829-312-1	06	1	9303-9504	●	●
61	SCREW; SW M5X14 W/LK WASHER	9-03910-514-0	04	1	9505-	●	●
72	SWITCH; CRUISE CONT AUTO CRUISE CONT<K30>	8-97018-582-2	01	1	9112-9504	●	●
72	SWITCH; CRUISE CONT AUTO CRUISE CONT<K30>	8-97116-755-1	01	1	9505-9607	●	●
72	SWITCH; CRUISE CONT AUTO CRUISE CONT<K30>	8-97135-520-0	01	1	9608-	●	●
84	SWITCH; WASHER,HEADLAMP HEADLAMP WASHER<CE3>	8-97045-927-2	01	1	9112-9504	●	●
96	SWITCH; FOG LAMP FOG LAMP HALOGEN(T37)	8-94450-648-0	01	1	9112-9504	●	●
96	SWITCH; FOG LAMP FOG LAMP HALOGEN(T37)	8-97085-353-2	01	1	9505-9607	●	●
96	SWITCH; FOG LAMP FOG LAMP HALOGEN(T37)	8-97135-512-0	01	1	9608-	●	●
106	SWITCH; REMOTE CONT MIRROR DOOR MIRROR ELEC FOLDING W/DEF(6MK)	8-97034-039-2	01	1	9112-9504	●	●
106	SWITCH; REMOTE CONT MIRROR DOOR MIRROR ELEC FOLDING W/DEF(6MK)	8-97060-167-1	01	1	9505-	●	●
146	SCREW; SW M4X14 TAPPING	9-09829-313-1	02	1	9112-9302	●	●
146	SCREW; SW M4X12 TAPPING OVAL-HEAD	9-09829-312-1	02	1	9303-9504	●	●
249	SWITCH; HAZARD	8-94375-394-1	01	1	9112-9504	●	●
249	SWITCH; HAZARD	8-97085-381-3	01	1	9505-	●	●
268	CLIP; SW A/T THM(RMQ) PLATE CLIP T=0.8	8-94279-972-0	01	1	9305-9308	●	●
268	CLIP; SW A/T THM(RMQ) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9309-	●	●
281	SWITCH; SELECT,TRANS CONT A/T THM(RMQ)	8-94375-503-0	01	1	9112-9504	●	●
281	SWITCH; SELECT,TRANS CONT 6VD1 SOHC ENG(RLU) A/T THM(RMQ)	8-97104-996-0	01	1	9505-	●	●
307	BULB ASM; SW (C) ????-???	8-97061-422-0	01	1	9112-9504	●	●
307	BULB ASM; SW DOOR MIRROR ELEC FOLDING W/DEF(6MK) (D) GREEN	8-97066-258-0	02	1	9112-9504	●	●
307	BULB ASM; SW DOOR MIRROR ELEC FOLDING W/DEF(6MK) (A) 14V 0.7W	8-97102-439-0	01	1	9505-	●	●
307	BULB ASM; SW DOOR MIRROR ELEC FOLDING W/DEF(6MK) (E) AMBER	8-97066-259-0	01	1	9112-9504	●	●
307	BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97117-108-0	01	1	9505-9607	●	●
307	BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97117-108-0	01	1	9608-	●	●
307	BULB ASM; SW HEADLAMP WASHER<CE3> (B) 14V 0.84W	8-97117-108-0	01	1	9608-	●	●
378	SWITCH; LIGHTING	8-97023-829-1	01	1	9112-9203	●	●
378	SWITCH; LIGHTING	8-97077-602-1	01	1	9204-9502	●	●
378	SWITCH; LIGHTING	8-97119-644-0	01	1	9503-9504	●	●
379	SWITCH; DEFOGGER REAR DEFOGGER<C49>	8-94450-651-1	01	1	9112-9504	●	●
379	SWITCH; DEFOGGER RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97018-464-2	01	1	9112-9504		●
495	SWITCH; METER,ILLUMINATION	8-94375-393-2	01	1	9112-9504	●	●

96 95 530 257 257 54 249 257 423 530 257 307 72 294 294 449 257 257 436 139 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	SWITCH; RR WIPER RR WIPER W/INTERMITTENT<6WJ>	8-97043-261-3	01	1	9112-9504	●	●
54	SWITCH; RR WIPER RR WIPER W/INTERMITTENT<6WJ>	8-97103-581-2	01	1	9505-9607	●	●
54	SWITCH; RR WIPER RR WIPER W/INTERMITTENT<6WJ>	8-97135-516-0	01	1	9608-	●	●
54	SWITCH; RR WIPER RR WIPER<C25>	8-97043-731-3	01	1	9112-9208	●	●
54	SWITCH; RR WIPER RR WIPER<C25>	8-97077-532-0	01	1	9209-9504	●	●
72	SWITCH; CRUISE CONT AUTO CRUISE CONT<K30>	8-97018-582-2	01	1	9112-9504	●	●
72	SWITCH; CRUISE CONT AUTO CRUISE CONT<K30>	8-97116-755-1	01	1	9505-9607	●	●
72	SWITCH; CRUISE CONT AUTO CRUISE CONT<K30>	8-97135-520-0	01	1	9608-	●	●
95	SWITCH; RR FOG LAMP RR FOG LAMP<T79>	8-97038-419-1	01	1	9112-9504	●	●
95	SWITCH; RR FOG LAMP RR FOG LAMP<T79>	8-97081-612-2	01	1	9505-9607	●	●
95	SWITCH; RR FOG LAMP RR FOG LAMP<T79>	8-97135-514-1	01	1	9608-	●	●
96	SWITCH; FOG LAMP FOG LAMP HALOGEN(T37)	8-94450-648-0	01	1	9112-9504	●	●
96	SWITCH; FOG LAMP FOG LAMP HALOGEN(T37)	8-97085-353-2	01	1	9505-9607	●	●
96	SWITCH; FOG LAMP FOG LAMP HALOGEN(T37)	8-97135-512-0	01	1	9608-	●	●
139	SWITCH; RR DEFOGGER RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97085-382-2	01	1	9505-9607	●	●
139	SWITCH; RR DEFOGGER RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97135-517-0	01	1	9608-	●	●
249	SWITCH; HAZARD	8-94375-394-1	01	1	9112-9504	●	●
249	SWITCH; HAZARD	8-97085-381-3	01	1	9505-	●	●
257	COVER; HOLE,SW ADJUST HEADLAMP<6RC> BLACK	8-94417-418-2	02	1	9112-9504	●	●
257	COVER; HOLE,SW EXC. FOG LAMP HALOGEN(T37) (A)	8-97081-617-1	01	1	9505-9607	●	●
257	COVER; HOLE,SW EXC. HEADLAMP WASHER<CE3>,EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97081-617-1	01	1	9505-9607	●	●
257	COVER; HOLE,SW GRADE S(RBA) (A)	8-97081-617-1	01	1	9505-9607	●	●
257	COVER; HOLE,SW EXC. AUTO CRUISE CONT<K30> (A)	8-97081-617-1	01	1	9505-9607	●	●
257	COVER; HOLE,SW (A)	8-97081-617-1	01	1	9505-9607	●	●
257	COVER; HOLE,SW EXC. FOG LAMP HALOGEN(T37) (A)	8-97081-617-1	01	1	9608-	●	●
257	COVER; HOLE,SW GRADE S(RBA) (A)	8-97081-617-1	01	1	9608-	●	●
257	COVER; HOLE,SW EXC. HEADLAMP WASHER<CE3>,RR FOG LAMP<T79> (A)	8-97081-617-1	01	1	9608-	●	●
257	COVER; HOLE,SW EXC. AUTO CRUISE CONT<K30> (A)	8-97081-617-1	01	1	9608-	●	●
257	COVER; HOLE,SW (A)	8-97081-617-1	01	1	9608-	●	●
257	COVER; HOLE,SW EXC. AUTO CRUISE CONT<K30> BLACK	8-94417-418-2	01	1	9112-9504	●	●
257	COVER; HOLE,SW EXC. RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> BLACK	8-94417-418-2	01	1	9112-9504	●	●
257	COVER; HOLE,SW EXC. FOG LAMP HALOGEN(T37) BLACK	8-94417-418-2	01	1	9112-9504	●	●
257	COVER; HOLE,SW EXC. RR FOG LAMP<T79> BLACK	8-94417-418-2	01	1	9112-9504	●	●
257	COVER; HOLE,SW EUROPE/CANARY EQUIPMENT(EK4) EXC. HEADLAMP WASHER<CE3> (B)	8-97088-762-0	01	1	9505-9607	●	●
257	COVER; HOLE,SW EXC. EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97088-762-0	01	1	9505-9607	●	●
257	COVER; HOLE,SW EXC. RR WIPER W/INTERMITTENT<6WJ> (B)	8-97088-762-0	01	1	9505-9607	●	●
257	COVER; HOLE,SW EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> (B)	8-97088-762-0	01	1	9505-9607	●	●
257	COVER; HOLE,SW EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97088-762-0	01	1	9505-9607	●	●
257	COVER; HOLE,SW EXC. ADJUST HEADLAMP<6RC> (B)	8-97088-762-0	01	1	9505-9607	●	●
257	COVER; HOLE,SW EXC. RR WIPER W/INTERMITTENT<6WJ> (B)	8-97088-762-0	01	1	9608-	●	●
257	COVER; HOLE,SW EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> (B)	8-97088-762-0	01	1	9608-	●	●
257	COVER; HOLE,SW EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97088-762-0	01	1	9608-	●	●
257	COVER; HOLE,SW RR FOG LAMP<T79> EXC. HEADLAMP WASHER<CE3> (B)	8-97088-762-0	01	1	9608-	●	●
257	COVER; HOLE,SW EXC. RR FOG LAMP<T79> (B)	8-97088-762-0	01	1	9608-	●	●
257	COVER; HOLE,SW EXC. ADJUST HEADLAMP<6RC> (B)	8-97088-762-0	01	1	9608-	●	●
294	BULB; DEFOGGER SW RR DEFOGGER W/AUTO CANCEL<S4Y> 14V 0.84W	8-97102-440-0	01	1	9505-	●	●
294	BULB; DEFOGGER SW RR DEFOGGER W/AUTO CANCEL<S4Y> 14V 0.84W	8-97117-108-0	01	1	9505-	●	●
307	BULB ASM; SW (C) ????-???	8-97061-422-0	01	1	9112-9504	●	●
307	BULB ASM; SW DOOR MIRROR ELEC FOLDING W/DEF(6MK) (D) GREEN	8-97066-258-0	02	1	9112-9504	●	●
307	BULB ASM; SW DOOR MIRROR ELEC FOLDING W/DEF(6MK) (A) 14V 0.7W	8-97102-439-0	01	1	9505-	●	●
307	BULB ASM; SW DOOR MIRROR ELEC FOLDING W/DEF(6MK) (E) AMBER	8-97066-259-0	01	1	9112-9504	●	●
307	BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97117-108-0	01	1	9505-9607	●	●
307	BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97117-108-0	01	1	9608-	●	●
307	BULB ASM; SW HEADLAMP WASHER<CE3> (B) 14V 0.84W	8-97117-108-0	01	1	9608-	●	●
423	SWITCH; ENG WARMING 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4)	8-97066-761-0	01	1	9112-9504	●	●
423	SWITCH; ENG WARMING ENG QUICK WARM UP SYSTEM<6JZ>	8-97081-772-2	01	1	9505-9607	●	●
423	SWITCH; ENG WARMING ENG QUICK WARM UP SYSTEM<6JZ>	8-97135-519-1	01	1	9608-	●	●
436	SWITCH; HEADLAMP LEVELING ADJUST HEADLAMP<6RC>	8-97018-463-0	01	1	9112-9504	●	●
436	SWITCH; HEADLAMP LEVELING ADJUST HEADLAMP<6RC>	8-97110-381-0	01	1	9505-	●	●
449	BULB ASM; HEADLAMP LEVELING SW ADJUST HEADLAMP<6RC>	8-97039-411-0	01	1	9112-9504	●	●
449	BULB ASM; HEADLAMP LEVELING SW ADJUST HEADLAMP<6RC> 14V 0.84W	8-97117-108-0	01	1	9505-	●	●
530	SWITCH; HEAD/L WIPER HEADLAMP WASHER<CE3> RR FOG LAMP<T79> (A)	8-97093-767-1	01	1	9505-9607	●	●
530	SWITCH; HEAD/L WIPER HEADLAMP WASHER<CE3> RR FOG LAMP<T79> (A)	8-97135-518-1	01	1	9608-	●	●
530	SWITCH; HEAD/L WIPER HEADLAMP WASHER<CE3> EXC. RR FOG LAMP<T79> (B)	8-97081-611-1	01	1	9505-9607	●	●
530	SWITCH; HEAD/L WIPER HEADLAMP WASHER<CE3> EXC. RR FOG LAMP<T79> (B)	8-97135-513-1	01	1	9608-	●	●

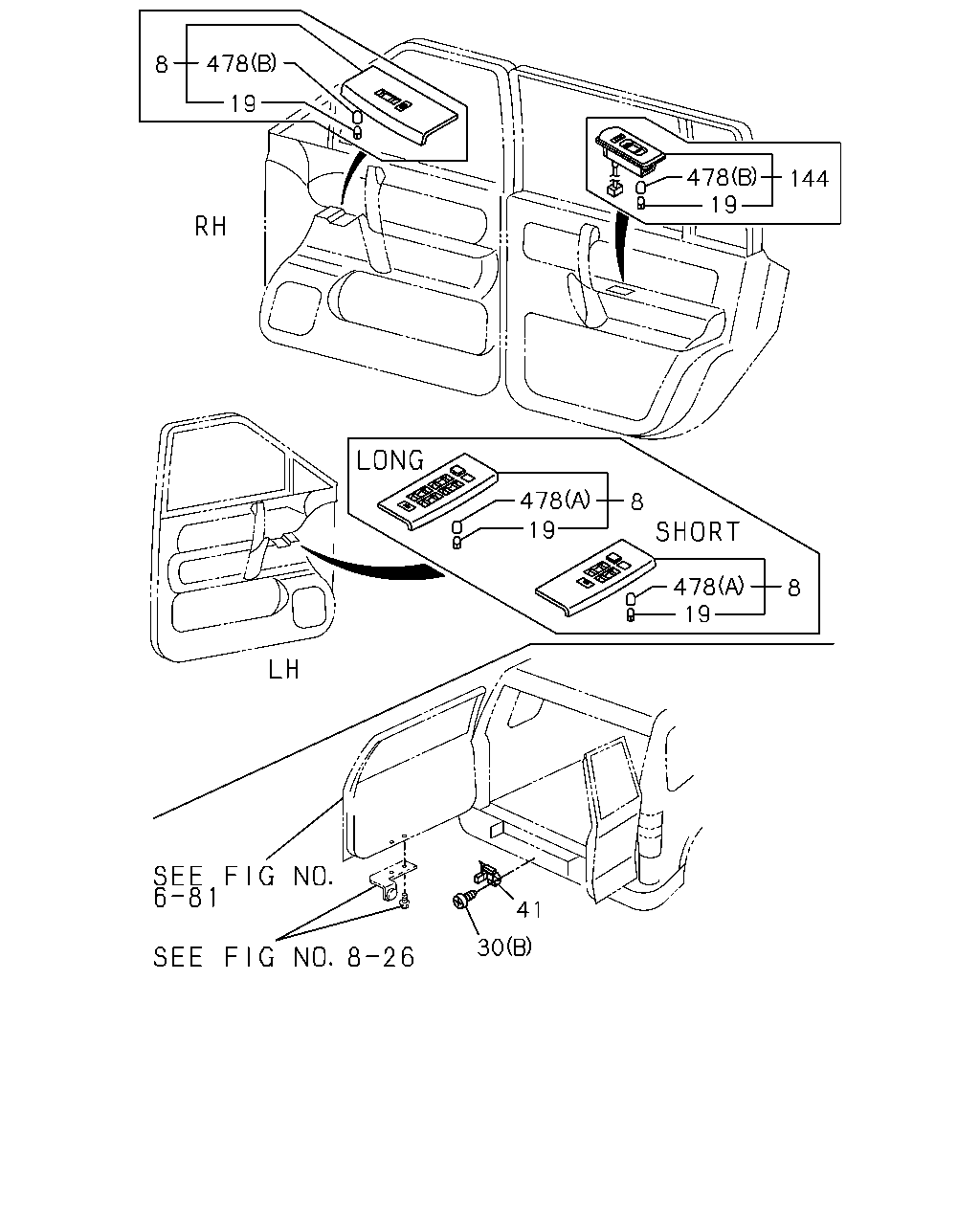

478 8 19 478 19 144 478 19 8 478 19 8 41 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW<A30> BLACK	8-97153-004-1	01	1	9505-	●
8	SWITCH; POWER WINDOW POWER WINDOW<A30> DRIVER BLACK	8-97005-931-2	01	1	9112-9504	●
8	SWITCH; POWER WINDOW POWER WINDOW<A30> PASSENGER BLACK	8-97007-250-0	01	1	9112-9504	●	●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW<A30> PASSENGER BLACK	8-97153-010-0	01	1	9505-9607	●	●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW<A30> PASSNEGER BLACK	8-97154-904-1	01	1	9608-	●	●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW<A30> BLACK	8-97153-006-1	01	1	9505-		●
8	SWITCH; POWER WINDOW POWER WINDOW<A30> DRIVER BLACK	8-97005-930-2	01	1	9112-9504		●
19	BULB; POWER WINDOW SW POWER WINDOW<A30> DRIVER	8-97062-287-0	02	1	9112-9504	●
19	BULB; POWER WINDOW SW POWER WINDOW<A30> PASSENGER,RR WINDOW	8-97062-565-0	02	1	9112-9504	●	●
19	BULB; POWER WINDOW SW POWER WINDOW<A30> PASSENGER,RR WINDOW	8-97062-565-0	02	1	9112-9504		●
19	BULB; POWER WINDOW SW POWER WINDOW<A30> DRIVER	8-97062-287-0	03	1	9112-9504		●
30	SCREW; DOOR SW (A) M5X14	8-94120-095-0	02	1	9112-	●
30	SCREW; DOOR SW (B) M5X14	8-94313-116-1	01	1	9112-	●	●
30	SCREW; DOOR SW (A) M5X14	8-94120-095-0	04	1	9112-		●
41	SWITCH; BACK DOOR LOCK	8-97015-743-1	01	1	9112-9208	●	●
41	SWITCH; BACK DOOR LOCK	8-97081-773-0	01	1	9209-	●	●
144	SWITCH; POWER WINDOW,RR POWER WINDOW<A30> BLACK	8-97003-120-0	01	1	9112-9504		●
144	SWITCH; POWER WINDOW,RR POWER WINDOW<A30> BLACK	8-97098-342-2	01	1	9505-		●
144	SWITCH; POWER WINDOW,RR POWER WINDOW<A30> BLACK	8-97003-119-0	01	1	9112-9504		●
144	SWITCH; POWER WINDOW,RR POWER WINDOW<A30> BLACK	8-97098-341-2	01	1	9505-		●
478	CAP; COLLAR POWER WINDOW<A30> (A)	8-97062-563-0	02	1	9112-9504	●
478	CAP; COLLAR POWER WINDOW<A30> (B)	8-97069-657-0	02	1	9112-9504	●	●
478	CAP; COLLAR POWER WINDOW<A30> (B)	8-97069-657-0	02	1	9112-9504		●
478	CAP; COLLAR POWER WINDOW<A30> (A)	8-97062-563-0	03	1	9112-9504		●

268 56 56 506 507 307 281 451 451 106 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
56	SWITCH; SEAT HTR SEAT HEATER DRIVER<C37>	8-97021-228-1	01	1	9112-9504	●	●
56	SWITCH; SEAT HTR SEAT HEATER DRIVER<C37>	8-97104-988-1	01	1	9505-	●	●
56	SWITCH; SEAT HTR SEAT HEATER PASSENGER<C38>	8-97021-229-1	01	1	9112-9504	●	●
56	SWITCH; SEAT HTR SEAT HEATER PASSENGER<C38>	8-97104-989-1	01	1	9505-9511	●	●
56	SWITCH; SEAT HTR SEAT HEATER PASSENGER<C38>	8-97140-023-0	01	1	9512-	●	●
106	SWITCH; REMOTE CONT MIRROR DOOR MIRROR ELEC FOLDING W/DEF(6MK)	8-97034-039-2	01	1	9112-9504	●	●
106	SWITCH; REMOTE CONT MIRROR DOOR MIRROR ELEC FOLDING W/DEF(6MK)	8-97060-167-1	01	1	9505-	●	●
268	CLIP; SW A/T THM(RMQ) PLATE CLIP T=0.8	8-94279-972-0	01	1	9305-9308	●	●
268	CLIP; SW A/T THM(RMQ) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9309-	●	●
281	SWITCH; SELECT,TRANS CONT A/T THM(RMQ)	8-94375-503-0	01	1	9112-9504	●	●
281	SWITCH; SELECT,TRANS CONT 6VD1 SOHC ENG(RLU) A/T THM(RMQ)	8-97104-996-0	01	1	9505-	●	●
307	BULB ASM; SW (C) ????-???	8-97061-422-0	01	1	9112-9504	●	●
307	BULB ASM; SW DOOR MIRROR ELEC FOLDING W/DEF(6MK) (D) GREEN	8-97066-258-0	02	1	9112-9504	●	●
307	BULB ASM; SW DOOR MIRROR ELEC FOLDING W/DEF(6MK) (A) 14V 0.7W	8-97102-439-0	01	1	9505-	●	●
307	BULB ASM; SW DOOR MIRROR ELEC FOLDING W/DEF(6MK) (E) AMBER	8-97066-259-0	01	1	9112-9504	●	●
307	BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97117-108-0	01	1	9505-9607	●	●
307	BULB ASM; SW AUTO CRUISE CONT<K30> (B) 14V 0.84W	8-97117-108-0	01	1	9608-	●	●
307	BULB ASM; SW HEADLAMP WASHER<CE3> (B) 14V 0.84W	8-97117-108-0	01	1	9608-	●	●
451	BULB; MIRROR HTR SW DOOR MIRROR ELEC FOLDING W/DEF(6MK) 14V 0.7W	8-97102-439-0	01	1	9505-	●	●
451	BULB; MIRROR HTR SW DOOR MIRROR ELEC FOLDING W/DEF(6MK) 14V 0.84W	8-97102-440-0	01	1	9505-	●	●
480	SWITCH; AUTO ANTENNA EUROPE/CANARY EQUIPMENT(EK4)	8-97066-796-0	01	1	9112-9504	●	●
480	SWITCH; AUTO ANTENNA EUROPE/CANARY EQUIPMENT(EK4)	8-97104-992-0	01	1	9505-	●	●
506	SWITCH; MIRROR FOLD DOOR MIRROR ELEC FOLDING W/DEF(6MK)	8-97081-766-3	01	1	9505-	●	●
507	SWITCH; MIRROR HEATER DOOR MIRROR ELEC FOLDING W/DEF(6MK)	8-97081-763-4	01	1	9505-	●	●

98 442 99 277 155 164 45 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	RELAY; HORN	8-97018-462-0	01	1	9112-	●	●
98	RELAY; RR FOG LAMP EUROPE/CANARY EQUIPMENT(EK4) RR FOG LAMP<T79> 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
98	RELAY; RR FOG LAMP EUROPE/CANARY EQUIPMENT(EK4) RR FOG LAMP<T79> 12V 20A	8-97093-910-1	01	1	9304-9504	●	●
98	RELAY; RR FOG LAMP RR FOG LAMP<T79> 12V 20A	8-97093-910-1	01	1	9505-	●	●
99	RELAY; FOG LAMP FOG LAMP HALOGEN(T37) 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
99	RELAY; FOG LAMP FOG LAMP HALOGEN(T37) 12V 20A	8-97093-910-1	01	1	9304-	●	●
154	RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) SAUDI ARABIA EQUIPMENT(EU2) 12V 20A	8-94218-497-0	01	1	9112-9504	●	●
154	RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 12V 20A	8-94218-497-0	01	1	9505-9612	●	●
154	RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 12V 20A	8-94218-497-0	01	1	9701-9701	●	●
154	RELAY; CONDENSER FAN 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) PHILIPPINE EQUIPMENT(S2U) 12V 20A	8-94218-497-0	01	1	9701-9701		●
154	RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 12V 20A	8-94218-497-0	01	1	9701-	●	●
154	RELAY; CONDENSER FAN A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) PHILIPPINE EQUIPMENT(S2U) 12V 20A	8-94218-497-0	01	1	9701-		●
155	RELAY; THERMO SW,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
155	RELAY; THERMO SW,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 12V 20A	8-97093-910-1	01	1	9304-9504	●	●
155	RELAY; THERMO SW,A/C AIR CONDITIONER MANUAL CONT(C60) 12V 20A	8-97093-910-1	01	1	9505-	●	●
164	RELAY; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
164	RELAY; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 12V 20A	8-97093-910-1	01	1	9304-9504	●	●
164	RELAY; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) 12V 20A	8-97093-910-1	01	1	9505-	●	●
277	RELAY; FUEL PUMP 6VD1 SOHC ENG(RLU) 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
277	RELAY; FUEL PUMP 6VD1 SOHC ENG(RLU) 12V 20A	8-97093-910-1	01	1	9304-	●	●
442	RELAY SHIFT ON THE FLY(7EX) 12V 20A	8-94218-497-0	01	1	9505-	●	●

8 144 8 8 30 29 41 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW<A30> BLACK	8-97153-004-1	01	1	9505-	●
8	SWITCH; POWER WINDOW POWER WINDOW<A30> DRIVER BLACK	8-97005-931-2	01	1	9112-9504	●
8	SWITCH; POWER WINDOW POWER WINDOW<A30> PASSENGER BLACK	8-97007-250-0	01	1	9112-9504	●	●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW<A30> PASSENGER BLACK	8-97153-010-0	01	1	9505-9607	●	●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW<A30> PASSNEGER BLACK	8-97154-904-1	01	1	9608-	●	●
8	SWITCH; POWER WINDOW AUTO DOOR LOCK<AU4> POWER WINDOW<A30> BLACK	8-97153-006-1	01	1	9505-		●
8	SWITCH; POWER WINDOW POWER WINDOW<A30> DRIVER BLACK	8-97005-930-2	01	1	9112-9504		●
29	SWITCH; DOOR	8-97033-276-1	02	1	9112-9208	●
29	SWITCH; DOOR	8-97071-864-0	02	1	9209-9605	●
29	SWITCH; DOOR	8-97146-195-0	02	1	9606-	●
29	SWITCH; DOOR	8-97033-276-1	04	1	9112-9208		●
29	SWITCH; DOOR	8-97071-864-0	04	1	9209-9605		●
29	SWITCH; DOOR	8-97146-195-0	04	1	9606-		●
30	SCREW; DOOR SW (A) M5X14	8-94120-095-0	02	1	9112-	●
30	SCREW; DOOR SW (B) M5X14	8-94313-116-1	01	1	9112-	●	●
30	SCREW; DOOR SW (A) M5X14	8-94120-095-0	04	1	9112-		●
41	SWITCH; BACK DOOR LOCK	8-97015-743-1	01	1	9112-9208	●	●
41	SWITCH; BACK DOOR LOCK	8-97081-773-0	01	1	9209-	●	●
144	SWITCH; POWER WINDOW,RR POWER WINDOW<A30> BLACK	8-97003-120-0	01	1	9112-9504		●
144	SWITCH; POWER WINDOW,RR POWER WINDOW<A30> BLACK	8-97098-342-2	01	1	9505-		●
144	SWITCH; POWER WINDOW,RR POWER WINDOW<A30> BLACK	8-97003-119-0	01	1	9112-9504		●
144	SWITCH; POWER WINDOW,RR POWER WINDOW<A30> BLACK	8-97098-341-2	01	1	9505-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
