8-15 — FIXING PARTS; WIRING HARNESS (#35287) — 426 parça

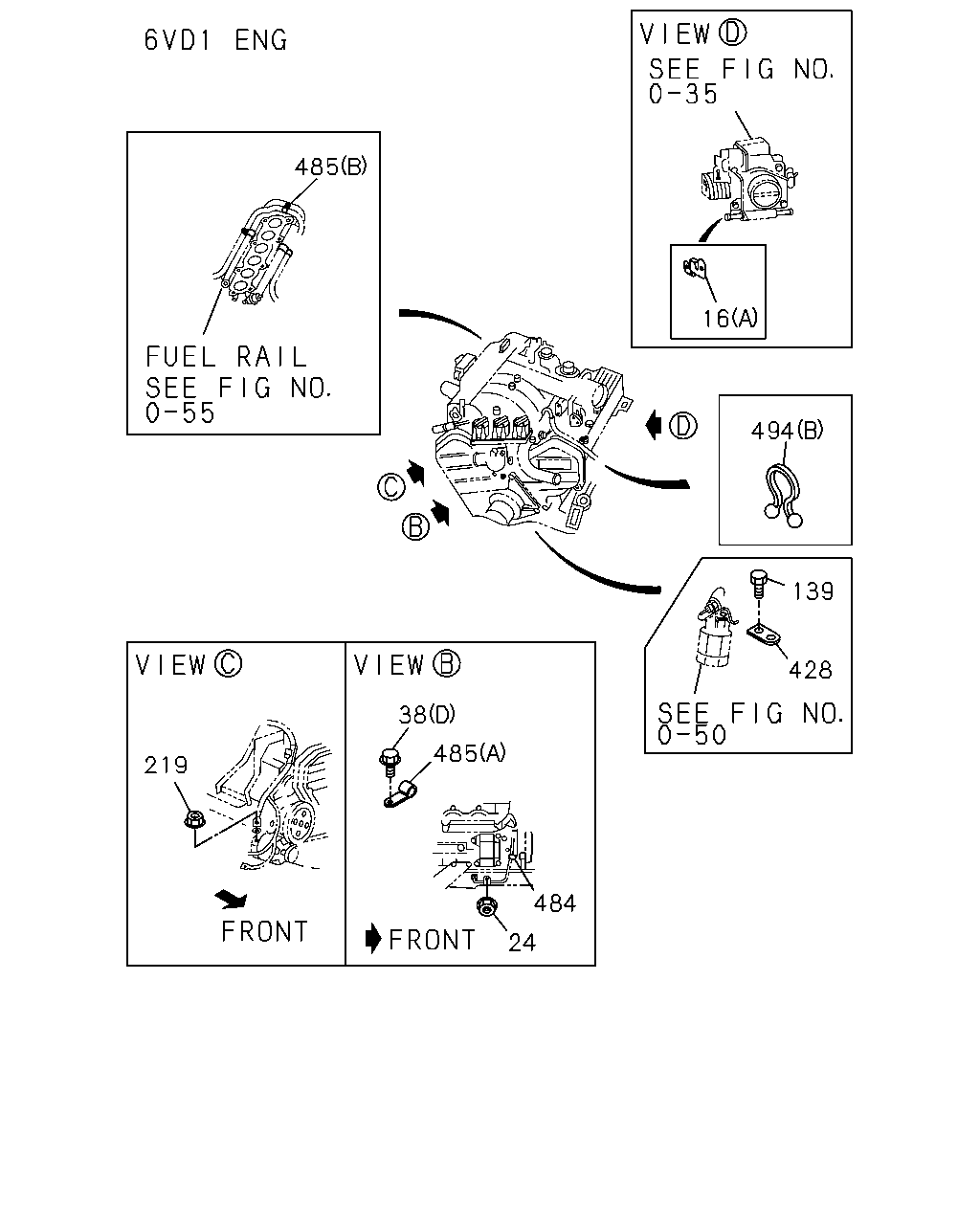

485 16 494 139 428 38 485 219 484 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (G) L=250	5-09707-030-0	01	1	9112-9504	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C) L=60	8-94449-165-0	06	1	9505-	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (D) L=36.5	8-97019-892-0	08	1	9505-	●	●
16	CLIP; HARNESS SEAT HEATER DRIVER<C37> (E) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	CLIP; HARNESS SEAT HEATER PASSENGER<C38> (E) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (B) L=104	8-94433-185-0	02	1	9505-	●	●
16	CLIP; HARNESS 6VD1 SOHC ENG(RLU) (A)	8-97032-822-1	01	1	9112-	●	●
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) (F) ID=11.5	1-09709-083-0	01	1	9306-9607		●
24	NUT; HARNESS 6VD1 SOHC ENG(RLU) M8 W/LK WASHER	8-94327-073-0	01	1	9112-9504	●	●
24	NUT; HARNESS 6VD1 SOHC ENG(RLU) M8 W/LK WASHER	8-94327-073-0	01	1	9505-	●	●
38	BOLT; CLIP,HARNESS (A) M6X16 W/LK WASHER	9-01900-616-0	01	1	9112-9204	●	●
38	BOLT; CLIP,HARNESS (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-9211	●	●
38	BOLT; CLIP,HARNESS (A) M6X12 W/LK WASHER	0-50040-612-0	01	1	9212-9504	●	●
38	BOLT; CLIP,HARNESS (B) M6X18	9-01960-618-0	08	1	9112-9204	●	●
38	BOLT; CLIP,HARNESS (B) M6X18 W/LK&PL WASHER	0-50140-618-0	08	1	9205-9504	●	●
38	BOLT; CLIP,HARNESS A/T THM(RMQ) (C) M4X12 W/LK WASHER	8-97066-403-1	01	1	9112-	●	●
38	BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) (F) M8X14	0-50140-814-0	01	1	9209-9212	●	●
38	BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) (F) M8X14 FLANGE	0-28080-814-0	01	1	9301-9408	●	●
38	BOLT; CLIP,HARNESS 4ZE1 ENG(RLJ) (F) M8X16 W/LK WASHER	0-50040-816-0	01	1	9112-	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) M10X16 FLANGE	0-28181-016-0	01	1	9112-9208	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (D) M10X16 FLANGE	0-28181-016-0	01	1	9209-9504	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) M10X16 FLANGE	0-28181-016-0	01	1	9505-	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4) (E) M8X12 FLANGE	0-28080-812-0	01	1	9112-9208	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. CHILE EQUIPMENT(S2G) (E) M8X12 FLANGE	0-28080-812-0	01	1	9209-9308	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) (E) M8X12 FLANGE	0-28080-812-0	01	1	9309-9408	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) (E) M8X12 FLANGE	0-28080-812-0	01	1	9505-	●	●
139	BOLT; BRKT 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) M6X12 FLANGE	0-28080-612-0	01	1	9112-9505	●	●
139	BOLT; BRKT 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) M6X12 FLANGE	0-28080-612-0	01	1	9506-9506	●	●
139	BOLT; BRKT 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),G UATEMALA/COSTA RICA EQUIPMENT(7LD) M6X12 FLANGE	0-28080-612-0	01	1	9507-9611	●	●
139	BOLT; BRKT 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M6X12 FLANGE	0-28080-612-0	01	1	9612-	●	●
219	NUT 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) CERAMIC HEATER<6YX> M6 W/LK WASHER	8-94424-179-0	01	1	9112-9504	●	●
219	NUT 4JG1 ENG(RLT) SAUDI ARABIA EQUIPMENT(EU2) M6 W/LK WASHER	8-94424-179-0	01	1	9112-9504	●	●
219	NUT 6VD1 SOHC ENG(RLU) M6 W/LK WASHER	8-94424-179-0	01	1	9112-9504	●	●
428	BRACKET 6VD1 SOHC ENG(RLU)	8-97032-701-0	01	1	9112-	●	●
484	CLIP; ECGI HARNESS TO C/MBR 6VD1 SOHC ENG(RLU) L=100	5-09707-036-0	03	1	9112-9308	●	●
484	CLIP; ECGI HARNESS TO C/MBR 6VD1 SOHC ENG(RLU) SPEEDOMETER MILE<UC1> EXC. SAUDI ARABIA EQUIPMENT(EU2),ANTI LOCK BRAKE(JE5) L=100	5-09707-036-0	03	1	9309-9504	●	●
484	CLIP; ECGI HARNESS TO C/MBR 6VD1 SOHC ENG(RLU) L=100	5-09707-036-0	03	1	9505-	●	●
485	CLIP; HARNESS,ECGI 6VD1 SOHC ENG(RLU) (B) ID=8	5-09700-338-0	01	1	9112-9211	●	●
485	CLIP; HARNESS,ECGI 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) (A) ID=8 L=31	1-09700-112-0	01	1	9112-9201	●	●
485	CLIP; HARNESS,ECGI 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-94327-574-0	01	1	9202-9504	●	●
485	CLIP; HARNESS,ECGI 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-94327-574-0	01	1	9505-	●	●
494	CLIP; BONDING CABLE 4ZE1 ENG(RLJ) (A) ID=8 & 23	5-09707-002-0	01	1	9112-9210	●	●
494	CLIP; BONDING CABLE 4ZE1 ENG(RLJ) (A) ID=12.5 & 24	5-09709-034-0	01	1	9211-	●	●
494	CLIP; BONDING CABLE 6VD1 SOHC ENG(RLU) (B) ID=25	8-94120-831-0	01	1	9112-9112	●	●

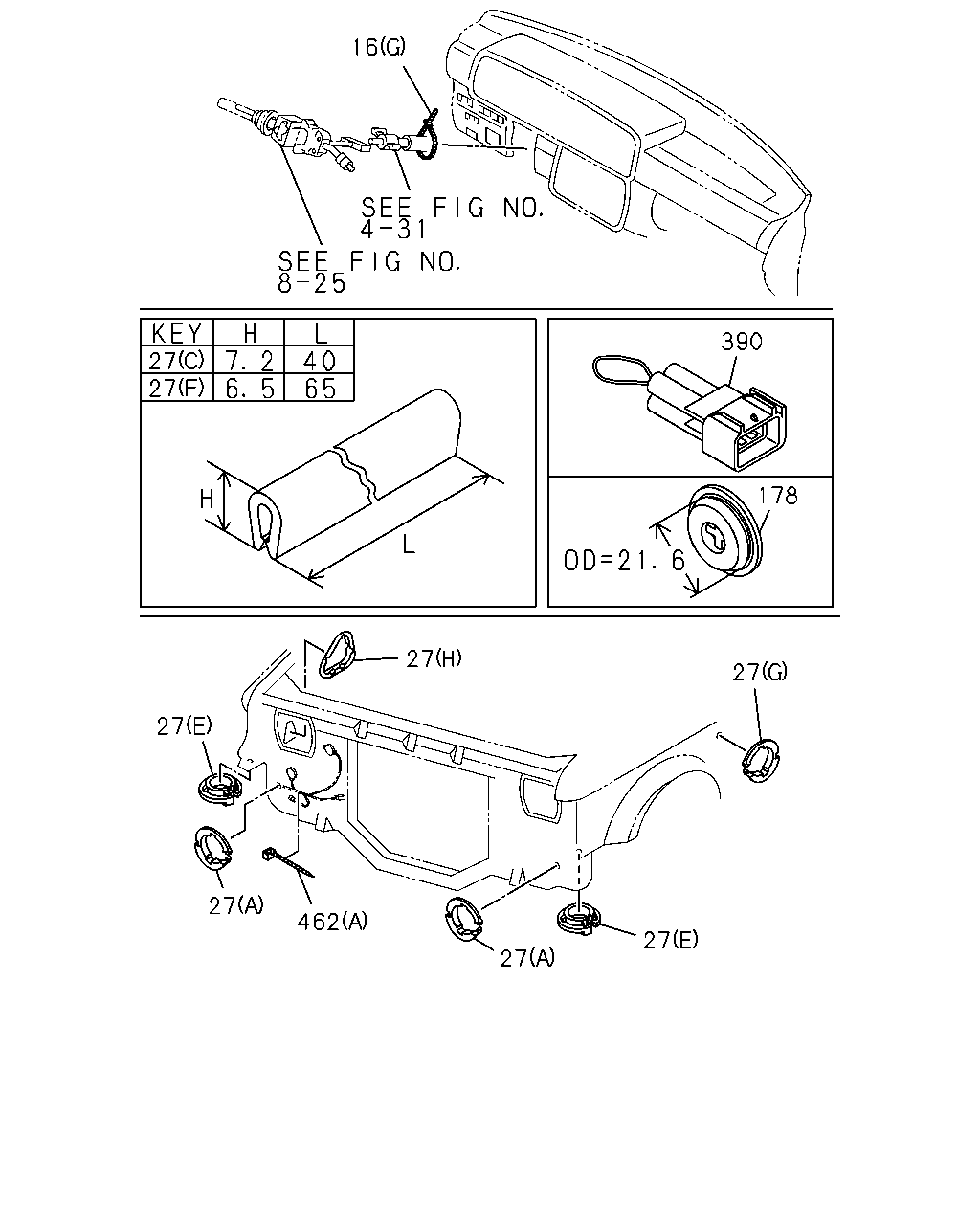

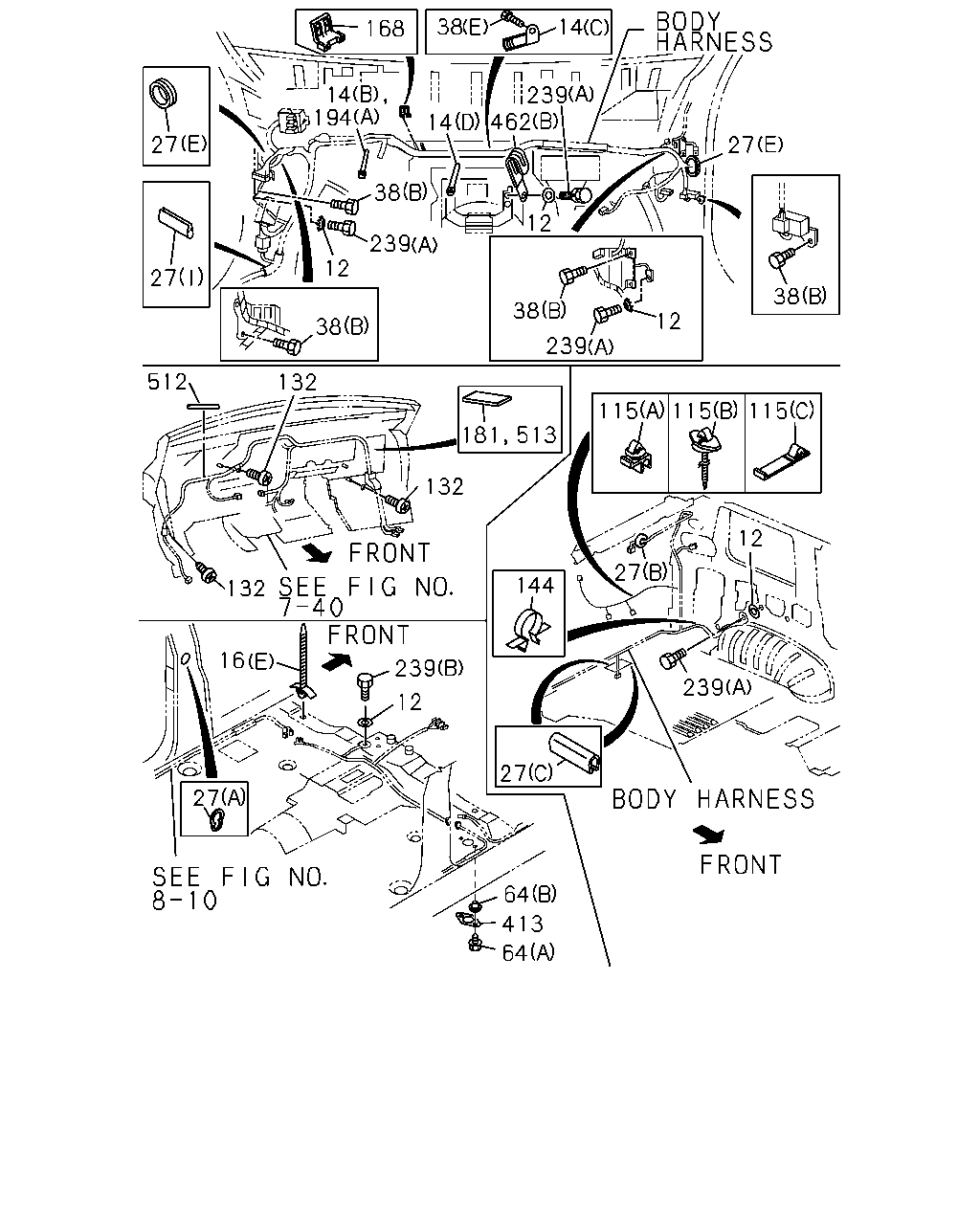

239 38 14 168 14 194 38 27 27 12 239 12 27 12 38 38 38 239 512 132 181 513 132 27 144 12 239 12 239 16 27 27 64 413 64 14 462 115 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	WASHER; LK ANTI LOCK BRAKE(JE5) ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	01	1	9112-9209	●	●
12	WASHER; LK 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	06	1	9112-9209	●	●
12	WASHER; LK 4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	06	1	9112-9209	●	●
12	WASHER; LK 4JG2 ENG(RJC) EXC. EUROPE/CANARY EQUIPMENT(EK4) ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	05	1	9112-9209	●	●
12	WASHER; LK 4ZE1 ENG(RLJ) ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	05	1	9112-9209	●	●
14	CLIP; BAND,HARNESS (A) L=172	8-94232-620-0	01	1	9112-9309	●	●
14	CLIP; BAND,HARNESS (A) 930920- L=212	8-94107-652-0	01	1	9309-9504	●	●
14	CLIP; BAND,HARNESS 4JG2 ENG(RJC) (E)	8-94225-098-0	01	1	9201-9504	●	●
14	CLIP; BAND,HARNESS 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) (B) L=250	5-09707-030-0	01	1	9112-9308	●	●
14	CLIP; BAND,HARNESS 6VD1 SOHC ENG(RLU) (B) L=250	5-09707-030-0	01	1	9112-9308	●	●
14	CLIP; BAND,HARNESS 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) (D) L=140	5-09707-031-0	01	1	9207-9208	●	●
14	CLIP; BAND,HARNESS 6VD1 SOHC ENG(RLU) (D) L=140	5-09707-031-0	01	1	9207-9208	●	●
14	CLIP; BAND,HARNESS 6VD1 SOHC ENG(RLU) (F) L=175	8-94155-593-1	01	1	9112-9308	●	●
14	CLIP; BAND,HARNESS 6VD1 SOHC ENG(RLU) EXC. CHILE EQUIPMENT(S2G) (C) ID=12	5-09700-331-0	01	1	9112-9308	●	●
14	CLIP; BAND,HARNESS 6VD1 SOHC ENG(RLU) (C) ID=12	5-09700-331-0	01	1	9309-	●	●
16	CLIP; HARNESS (G) L=250	5-09707-030-0	01	1	9112-9504	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C) L=60	8-94449-165-0	06	1	9505-	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (D) L=36.5	8-97019-892-0	08	1	9505-	●	●
16	CLIP; HARNESS SEAT HEATER DRIVER<C37> (E) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	CLIP; HARNESS SEAT HEATER PASSENGER<C38> (E) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (B) L=104	8-94433-185-0	02	1	9505-	●	●
16	CLIP; HARNESS 6VD1 SOHC ENG(RLU) (A)	8-97032-822-1	01	1	9112-	●	●
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) (F) ID=11.5	1-09709-083-0	01	1	9306-9607		●
27	PROTECTOR; EDGE ANTI LOCK BRAKE(JE5) (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9608-	●
27	PROTECTOR; EDGE (C)L=40 SERVICED BY L=190	1-71998-300-0	01	1	9112-9202	●	●
27	PROTECTOR; EDGE (C)L=40 SERVICED BY L=190	1-71998-300-0	02	1	9203-	●	●
27	PROTECTOR; EDGE (E) ID=30	8-94142-264-0	02	1	9112-9504	●	●
27	PROTECTOR; EDGE (E) ID=30	8-94142-264-0	04	1	9505-	●	●
27	PROTECTOR; EDGE (F) L=65	8-94235-856-0	02	1	9112-	●	●
27	PROTECTOR; EDGE (A)	8-94340-075-0	02	1	9112-9112	●	●
27	PROTECTOR; EDGE (B)	8-97804-817-1	01	1	9112-	●	●
27	PROTECTOR; EDGE (A) ID=36	8-94178-685-0	02	1	9201-	●	●
27	PROTECTOR; EDGE (H)	8-97803-554-0	01	1	9505-	●	●
27	PROTECTOR; EDGE AIR BAG DRIVER<AJ3> (I) L=80	5-22439-006-0	01	1	9608-	●	●
27	PROTECTOR; EDGE AUTO CRUISE CONT<K30> (D)	8-97066-651-0	02	1	9112-9308	●	●
27	PROTECTOR; EDGE EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (G) ID=34.7	8-94365-780-0	02	1	9505-	●	●
27	PROTECTOR; EDGE 4JG2 ENG(RJC) (F) L=65	8-94235-856-0	01	1	9505-	●	●
27	PROTECTOR; EDGE 4JG2 ENG(RJC) FRIGID ZONE<YL3> (C) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9505-9603	●	●
27	PROTECTOR; EDGE GRADE S(RBA),GRADE LS(RBD) EXC. SEAT HEATER PASSENGER<C38>,FRT SEAT CAPTAIN SEAT<6JX>,LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (C) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9604-9607		●
27	PROTECTOR; EDGE 4JG2 ENG(RJC) FRIGID ZONE<YL3> (C) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9608-	●	●
27	PROTECTOR; EDGE (A) ID=36	8-94178-685-0	02	1	9112-9504		●
27	PROTECTOR; EDGE (A) ID=36	8-94178-685-0	01	1	9505-		●
27	PROTECTOR; EDGE AUTO DOOR LOCK<AU4> (A) ID=36	8-94178-685-0	03	1	9505-		●
27	PROTECTOR; EDGE POWER WINDOW<A30> (E) ID=30	8-94142-264-0	02	1	9505-		●
38	BOLT; CLIP,HARNESS (A) M6X16 W/LK WASHER	9-01900-616-0	01	1	9112-9204	●	●
38	BOLT; CLIP,HARNESS (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-9211	●	●
38	BOLT; CLIP,HARNESS (A) M6X12 W/LK WASHER	0-50040-612-0	01	1	9212-9504	●	●
38	BOLT; CLIP,HARNESS (B) M6X18	9-01960-618-0	08	1	9112-9204	●	●
38	BOLT; CLIP,HARNESS (B) M6X18 W/LK&PL WASHER	0-50140-618-0	08	1	9205-9504	●	●
38	BOLT; CLIP,HARNESS A/T THM(RMQ) (C) M4X12 W/LK WASHER	8-97066-403-1	01	1	9112-	●	●
38	BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) (F) M8X14	0-50140-814-0	01	1	9209-9212	●	●
38	BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) (F) M8X14 FLANGE	0-28080-814-0	01	1	9301-9408	●	●
38	BOLT; CLIP,HARNESS 4ZE1 ENG(RLJ) (F) M8X16 W/LK WASHER	0-50040-816-0	01	1	9112-	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) M10X16 FLANGE	0-28181-016-0	01	1	9112-9208	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (D) M10X16 FLANGE	0-28181-016-0	01	1	9209-9504	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) M10X16 FLANGE	0-28181-016-0	01	1	9505-	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4) (E) M8X12 FLANGE	0-28080-812-0	01	1	9112-9208	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. CHILE EQUIPMENT(S2G) (E) M8X12 FLANGE	0-28080-812-0	01	1	9209-9308	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) (E) M8X12 FLANGE	0-28080-812-0	01	1	9309-9408	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) (E) M8X12 FLANGE	0-28080-812-0	01	1	9505-	●	●
64	SCREW; CLIP (A)SCREW M5X14	8-94120-095-0	02	1	9112-	●	●
64	SCREW; CLIP (B)GROMMET D=7.9X7.9 L=20 M5	8-94441-539-0	02	1	9112-	●	●

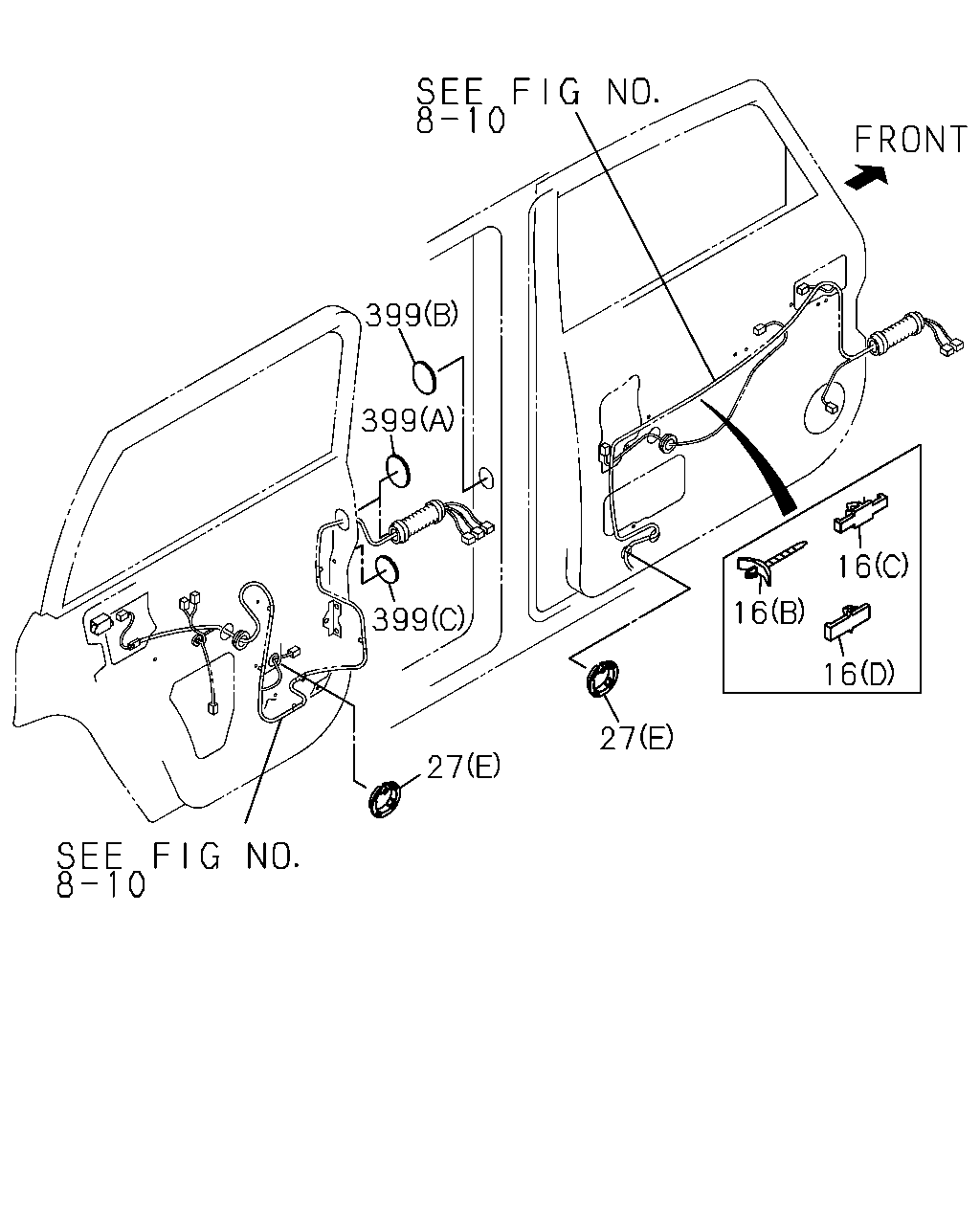

115	CLIP; DOOR HARNESS (B)	8-94338-044-0	03	1	9209-9401	●	●
115	CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> (B)	8-94338-044-0	03	1	9402-9504	●	●
115	CLIP; DOOR HARNESS RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> (B)	8-94338-044-0	03	1	9402-9504	●	●
115	CLIP; DOOR HARNESS REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4> (B)	8-94338-044-0	03	1	9402-9504	●	●
115	CLIP; DOOR HARNESS RR LICENSE BACK DOOR<S8Z> EXC. ANTI THEFT<UA6>,CHILE EQUIPMENT(6KB),RR WIPERW/INTERMITTENT<6WJ> (B)	8-94338-044-0	03	1	9505-9506	●	●
115	CLIP; DOOR HARNESS RR LICENSE BACK DOOR<S8Z> EXC. ANTI THEFT<UA6>,CHILE EQUIPMENT(6KB),RR WIPERW/INTERMITTENT<6WJ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B)	8-94338-044-0	03	1	9507-9507	●	●
115	CLIP; DOOR HARNESS RR LICENSE BACK DOOR<S8Z> EXC. ANTI THEFT<UA6>,CHILE EQUIPMENT(6KB),RR WIPERW/INTERMITTENT<6WJ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 950710-	8-94338-044-0	03	1	9507-9607	●	●
115	CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> (B)	8-94338-044-0	03	1	9608-	●	●
115	CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> (B)	8-94338-044-0	03	1	9608-	●	●
115	CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> (C) L=36.5	8-97019-892-0	04	1	9209-9401	●	●
115	CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> (C) L=36.5	8-97019-892-0	04	1	9402-9504	●	●
115	CLIP; DOOR HARNESS CHILE EQUIPMENT(6KB) EXC. AUTO DOOR LOCK<AU4>,RR WIPER<C25>,REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> (C) L=36.5	8-97019-892-0	04	1	9402-9504	●	●
115	CLIP; DOOR HARNESS RR LICENSE BACK DOOR<S8Z> EXC. ANTI THEFT<UA6>,CHILE EQUIPMENT(6KB),RR WIPERW/INTERMITTENT<6WJ> (C) L=36.5	8-97019-892-0	04	1	9505-9506	●	●
115	CLIP; DOOR HARNESS RR LICENSE BACK DOOR<S8Z> EXC. ANTI THEFT<UA6>,RR WIPER W/INTERMITTENT<6WJ> (C) L=36.5	8-97019-892-0	04	1	9507-9507	●	●
115	CLIP; DOOR HARNESS RR LICENSE BACK DOOR<S8Z> EXC. ANTI THEFT<UA6>,RR WIPER W/INTERMITTENT<6WJ>, GUATEMALA/COSTA RICA EQUIPMENT(7LD) (C) L=36.5	8-97019-892-0	04	1	9507-9607	●	●
115	CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. RR WIPER W/INTERMITTENT<6WJ> (C) L=36.5	8-97019-892-0	04	1	9608-9608	●	●
115	CLIP; DOOR HARNESS CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. AUTO DOOR LOCK<AU4>,RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> (C) L=36.5	8-97019-892-0	04	1	9609-	●	●
115	CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> (C) L=36.5	8-97019-892-0	04	1	9609-	●	●
115	CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> (C) L=36.5	8-97019-892-0	04	1	9609-	●	●
115	CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> CHILE EQUIPMENT(6KB) EXC. RR WIPER<C25>,REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> (A)	8-97804-785-0	03	1	9402-9504	●	●
115	CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> CHILE EQUIPMENT(6KB) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> (A)	8-97804-785-0	03	1	9505-9506	●	●
115	CLIP; DOOR HARNESS RR LICENSE BACK DOOR<S8Z> EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,ANTI THEFT<UA6>,CHILE EQUIPMENT(6KB),RR WIPER W/INTERMITTENT<6WJ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A)	8-97804-785-0	02	1	9507-9607	●	●
115	CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,CHILE EQUIPMENT(6KB),RR WIPER W/INTERMITTENT<6WJ>,GUATEMALA/COST A RICA EQUIPMENT(7LD) (A)	8-97804-785-0	02	1	9608-	●	●
115	CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. RR WIPER<C25>,REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y>,CHILE EQUIPMENT(6KB),RR WIPER W/INTERMITTENT<6WJ> (A)	8-97804-785-0	02	1	9209-9504	●	●
115	CLIP; DOOR HARNESS RR LICENSE BACK DOOR<S8Z> EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,ANTI THEFT<UA6>,CHILE EQUIPMENT(6KB),RR WIPER W/INTERMITTENT<6WJ> (A)	8-97804-785-0	02	1	9505-9506	●	●
115	CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> (A)	8-97804-785-0	05	1	9507-	●	●
115	CLIP; DOOR HARNESS RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> (C) L=36.5	8-97019-892-0	02	1	9209-9504	●	●
115	CLIP; DOOR HARNESS REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4> (C) L=36.5	8-97019-892-0	02	1	9209-9504	●	●
115	CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4> (C) L=36.5	8-97019-892-0	02	1	9505-9506	●	●
115	CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) (C) L=36.5	8-97019-892-0	02	1	9507-9507	●	●
115	CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4> (C) L=36.5	8-97019-892-0	02	1	9507-	●	●
115	CLIP; DOOR HARNESS RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> EXC. REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> (A)	8-97804-785-0	05	1	9209-9504	●	●
115	CLIP; DOOR HARNESS REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> (A)	8-97804-785-0	05	1	9209-9504	●	●
115	CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> (A)	8-97804-785-0	05	1	9505-9506	●	●
115	CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A)	8-97804-785-0	05	1	9507-9507	●	●
115	CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ> (A)	8-97804-785-0	03	1	9507-	●	●
132	SCREW; HARNESS M5X16 TAPPING W/PL WASHER	0-74315-516-0	05	1	9112-9504	●	●
132	SCREW; HARNESS M5X16 TAPPING	9-09829-323-1	04	1	9505-	●	●
144	CLIP; TAIL LAMP HARNESS ID=20	8-94410-200-0	01	1	9112-9202	●	●
144	CLIP; TAIL LAMP HARNESS ID=6 & 10-13	8-97069-515-0	01	1	9203-	●	●
168	CLIP; DASH HARNESS	8-97807-829-0	01	1	9112-	●	●
181	TAPE; SOFT,SIDE PNL HARNESS EXC. HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94137-544-0	02	1	9206-9504	●	●
181	TAPE; SOFT,SIDE PNL HARNESS M/T MUA 5 SPEED(RMN)	8-94137-544-0	01	1	9309-9504	●	●
194	CLIP; BAND (A) L=172	8-94232-620-0	01	1	9608-	●	●
194	CLIP; BAND SEAT BELT 3 POINT PRE TENSIONER<7MC> (B) L=250	5-09707-030-0	01	1	9608-	●	●
194	CLIP; BAND ANTI LOCK BRAKE(JE5) (A) L=142	8-94232-619-0	01	1	9608-		●
239	BOLT; GRAND (A) M6X14	8-94153-946-0	05	1	9112-9209	●	●
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	05	1	9210-9504	●	●
239	BOLT; GRAND A/T THM(RMQ) (B) M6X14	8-94153-946-0	01	1	9210-9308	●	●
239	BOLT; GRAND 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (B) M6X14	8-94153-946-0	01	1	9112-9209	●	●
239	BOLT; GRAND 4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (B) M6X14	8-94153-946-0	01	1	9112-9209	●	●
239	BOLT; GRAND 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-9308	●	●
239	BOLT; GRAND 4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-9308	●	●
239	BOLT; GRAND ANTI LOCK BRAKE(JE5) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-9308	●	●
239	BOLT; GRAND 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9309-9504	●	●
239	BOLT; GRAND 4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9309-9504	●	●
239	BOLT; GRAND 6VD1 SOHC ENG(RLU) A/T THM(RMQ) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
239	BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
413	PLUG; CAVITY,HARNESS	8-97803-276-0	01	1	9112-	●	●
462	CLIP; HARNESS,HTR EXC. HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) L=140	5-09707-031-0	01	1	9206-9504	●	●
462	CLIP; HARNESS,HTR 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (B) ID=8.5	5-09700-275-0	01	1	9112-9208	●	●
462	CLIP; HARNESS,HTR 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9209-9607	●	●
462	CLIP; HARNESS,HTR 4JG2 ENG(RJC) EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9608-	●	●
512	PROTECTOR; HARNESS L=73 SERVICED BY L=190	1-71998-300-0	01	1	9512-	●	●
513	TAPE; SOFT,HARNESS M/T MUA 5 SPEED(RMN) EXC. ANTI THEFT<UA6>	8-94137-544-0	01	1	9505-9506	●	●

14 239 12 27 7 412 8 8 14 483 294 53 14 85 14 7 38 239 12 294 7 401 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97805-902-1	01	1	9112-	●	●
7	BRACKET; CONNECTOR 4JG2 ENG(RJC),4JG1 ENG(RLT) (A)	8-97805-895-0	01	1	9112-9504	●	●
7	BRACKET; CONNECTOR 4JG2 ENG(RJC) (A)	8-97805-895-0	01	1	9505-	●	●
7	BRACKET; CONNECTOR 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE/CANARY EQUIPMENT(EK4) (C)	8-97802-171-0	01	1	9112-	●	●
8	BOLT; BRKT,CONNECTOR 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (A) M8X18 W/LK WASHER	9-01900-818-0	01	1	9112-9204	●	●
8	BOLT; BRKT,CONNECTOR 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (A) M8X18 W/LK WASHER	0-50040-818-0	01	1	9205-9407	●	●
8	BOLT; BRKT,CONNECTOR 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (A) M8X16 FLANGE	0-28080-816-0	01	1	9408-	●	●
8	BOLT; BRKT,CONNECTOR 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (B) M6X14 W/LK&PL WASHER	9-01960-614-0	01	1	9112-9204	●	●
8	BOLT; BRKT,CONNECTOR 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (B) M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9205-	●	●
8	BOLT; BRKT,CONNECTOR 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) M6X14 W/LK&PL WASHER	9-01960-614-0	02	1	9112-9204	●	●
8	BOLT; BRKT,CONNECTOR 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9205-9504	●	●
12	WASHER; LK ANTI LOCK BRAKE(JE5) ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	01	1	9112-9209	●	●
12	WASHER; LK 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	06	1	9112-9209	●	●
12	WASHER; LK 4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	06	1	9112-9209	●	●
12	WASHER; LK 4JG2 ENG(RJC) EXC. EUROPE/CANARY EQUIPMENT(EK4) ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	05	1	9112-9209	●	●
12	WASHER; LK 4ZE1 ENG(RLJ) ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	05	1	9112-9209	●	●
14	CLIP; BAND,HARNESS (A) L=172	8-94232-620-0	01	1	9112-9309	●	●
14	CLIP; BAND,HARNESS (A) 930920- L=212	8-94107-652-0	01	1	9309-9504	●	●
14	CLIP; BAND,HARNESS 4JG2 ENG(RJC) (E)	8-94225-098-0	01	1	9201-9504	●	●
14	CLIP; BAND,HARNESS 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) (B) L=250	5-09707-030-0	01	1	9112-9308	●	●
14	CLIP; BAND,HARNESS 6VD1 SOHC ENG(RLU) (B) L=250	5-09707-030-0	01	1	9112-9308	●	●
14	CLIP; BAND,HARNESS 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) (D) L=140	5-09707-031-0	01	1	9207-9208	●	●
14	CLIP; BAND,HARNESS 6VD1 SOHC ENG(RLU) (D) L=140	5-09707-031-0	01	1	9207-9208	●	●
14	CLIP; BAND,HARNESS 6VD1 SOHC ENG(RLU) (F) L=175	8-94155-593-1	01	1	9112-9308	●	●
14	CLIP; BAND,HARNESS 6VD1 SOHC ENG(RLU) EXC. CHILE EQUIPMENT(S2G) (C) ID=12	5-09700-331-0	01	1	9112-9308	●	●
14	CLIP; BAND,HARNESS 6VD1 SOHC ENG(RLU) (C) ID=12	5-09700-331-0	01	1	9309-	●	●
27	PROTECTOR; EDGE ANTI LOCK BRAKE(JE5) (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9608-	●
27	PROTECTOR; EDGE (C)L=40 SERVICED BY L=190	1-71998-300-0	01	1	9112-9202	●	●
27	PROTECTOR; EDGE (C)L=40 SERVICED BY L=190	1-71998-300-0	02	1	9203-	●	●
27	PROTECTOR; EDGE (E) ID=30	8-94142-264-0	02	1	9112-9504	●	●
27	PROTECTOR; EDGE (E) ID=30	8-94142-264-0	04	1	9505-	●	●
27	PROTECTOR; EDGE (F) L=65	8-94235-856-0	02	1	9112-	●	●
27	PROTECTOR; EDGE (A)	8-94340-075-0	02	1	9112-9112	●	●
27	PROTECTOR; EDGE (B)	8-97804-817-1	01	1	9112-	●	●
27	PROTECTOR; EDGE (A) ID=36	8-94178-685-0	02	1	9201-	●	●
27	PROTECTOR; EDGE (H)	8-97803-554-0	01	1	9505-	●	●
27	PROTECTOR; EDGE AIR BAG DRIVER<AJ3> (I) L=80	5-22439-006-0	01	1	9608-	●	●
27	PROTECTOR; EDGE AUTO CRUISE CONT<K30> (D)	8-97066-651-0	02	1	9112-9308	●	●
27	PROTECTOR; EDGE EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (G) ID=34.7	8-94365-780-0	02	1	9505-	●	●
27	PROTECTOR; EDGE 4JG2 ENG(RJC) (F) L=65	8-94235-856-0	01	1	9505-	●	●
27	PROTECTOR; EDGE 4JG2 ENG(RJC) FRIGID ZONE<YL3> (C) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9505-9603	●	●
27	PROTECTOR; EDGE GRADE S(RBA),GRADE LS(RBD) EXC. SEAT HEATER PASSENGER<C38>,FRT SEAT CAPTAIN SEAT<6JX>,LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (C) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9604-9607		●
27	PROTECTOR; EDGE 4JG2 ENG(RJC) FRIGID ZONE<YL3> (C) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9608-	●	●
27	PROTECTOR; EDGE (A) ID=36	8-94178-685-0	02	1	9112-9504		●
27	PROTECTOR; EDGE (A) ID=36	8-94178-685-0	01	1	9505-		●
27	PROTECTOR; EDGE AUTO DOOR LOCK<AU4> (A) ID=36	8-94178-685-0	03	1	9505-		●
27	PROTECTOR; EDGE POWER WINDOW<A30> (E) ID=30	8-94142-264-0	02	1	9505-		●
38	BOLT; CLIP,HARNESS (A) M6X16 W/LK WASHER	9-01900-616-0	01	1	9112-9204	●	●
38	BOLT; CLIP,HARNESS (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-9211	●	●
38	BOLT; CLIP,HARNESS (A) M6X12 W/LK WASHER	0-50040-612-0	01	1	9212-9504	●	●
38	BOLT; CLIP,HARNESS (B) M6X18	9-01960-618-0	08	1	9112-9204	●	●
38	BOLT; CLIP,HARNESS (B) M6X18 W/LK&PL WASHER	0-50140-618-0	08	1	9205-9504	●	●
38	BOLT; CLIP,HARNESS A/T THM(RMQ) (C) M4X12 W/LK WASHER	8-97066-403-1	01	1	9112-	●	●
38	BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) (F) M8X14	0-50140-814-0	01	1	9209-9212	●	●
38	BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) (F) M8X14 FLANGE	0-28080-814-0	01	1	9301-9408	●	●
38	BOLT; CLIP,HARNESS 4ZE1 ENG(RLJ) (F) M8X16 W/LK WASHER	0-50040-816-0	01	1	9112-	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) M10X16 FLANGE	0-28181-016-0	01	1	9112-9208	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (D) M10X16 FLANGE	0-28181-016-0	01	1	9209-9504	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) M10X16 FLANGE	0-28181-016-0	01	1	9505-	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4) (E) M8X12 FLANGE	0-28080-812-0	01	1	9112-9208	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. CHILE EQUIPMENT(S2G) (E) M8X12 FLANGE	0-28080-812-0	01	1	9209-9308	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) (E) M8X12 FLANGE	0-28080-812-0	01	1	9309-9408	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) (E) M8X12 FLANGE	0-28080-812-0	01	1	9505-	●	●
53	BRACKET; HARNESS A/T THM(RMQ) ANTI LOCK BRAKE(JE5)	8-97807-647-2	01	1	9112-9607	●	●
53	BRACKET; HARNESS A/T THM(RMQ)	8-97807-647-2	01	1	9608-	●	●
53	BRACKET; HARNESS M/T MUA 5 SPEED(RMN) ANTI LOCK BRAKE(JE5)	8-97805-901-3	01	1	9112-9607	●	●
53	BRACKET; HARNESS 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN)	8-97805-901-3	01	1	9608-	●	●
85	CLIP; BRKT ASM,HARNESS A/T THM(RMQ) ANTI LOCK BRAKE(JE5) D6.8X12	8-94198-687-0	01	1	9112-9607	●	●
85	CLIP; BRKT ASM,HARNESS A/T THM(RMQ) D6.8X12	8-94198-687-0	01	1	9608-	●	●
194	CLIP; BAND (A) L=172	8-94232-620-0	01	1	9608-	●	●
194	CLIP; BAND SEAT BELT 3 POINT PRE TENSIONER<7MC> (B) L=250	5-09707-030-0	01	1	9608-	●	●
194	CLIP; BAND ANTI LOCK BRAKE(JE5) (A) L=142	8-94232-619-0	01	1	9608-		●
239	BOLT; GRAND (A) M6X14	8-94153-946-0	05	1	9112-9209	●	●
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	05	1	9210-9504	●	●
239	BOLT; GRAND A/T THM(RMQ) (B) M6X14	8-94153-946-0	01	1	9210-9308	●	●
239	BOLT; GRAND 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (B) M6X14	8-94153-946-0	01	1	9112-9209	●	●
239	BOLT; GRAND 4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (B) M6X14	8-94153-946-0	01	1	9112-9209	●	●
239	BOLT; GRAND 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-9308	●	●
239	BOLT; GRAND 4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-9308	●	●
239	BOLT; GRAND ANTI LOCK BRAKE(JE5) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-9308	●	●
239	BOLT; GRAND 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9309-9504	●	●
239	BOLT; GRAND 4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9309-9504	●	●
239	BOLT; GRAND 6VD1 SOHC ENG(RLU) A/T THM(RMQ) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
239	BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
294	NUT A/T THM(RMQ) ANTI LOCK BRAKE(JE5) M6 FLANGE	0-91150-106-0	01	1	9112-9208	●	●
294	NUT 4JG2 ENG(RJC),4JG1 ENG(RLT) M6 FLANGE	0-91150-106-0	01	1	9112-9208	●	●
294	NUT A/T THM(RMQ) ANTI LOCK BRAKE(JE5) M6 FLANGE	0-91150-106-0	01	1	9209-9607	●	●
294	NUT A/T THM(RMQ) M6 FLANGE	0-91150-106-0	01	1	9608-	●	●
401	BRACKET; HARNESS,GEN 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-97805-899-0	01	1	9112-9208	●	●
412	BRACKET; HARNESS,TRANS 4ZE1 ENG(RLJ) (A)	8-94472-197-0	01	1	9112-	●	●
412	BRACKET; HARNESS,TRANS 4ZE1 ENG(RLJ) (B)	8-97806-180-1	01	1	9112-	●	●
412	BRACKET; HARNESS,TRANS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) (B)	8-94359-008-1	01	1	9112-	●	●
483	CLIP; ENG HARNESS L=212	8-94107-652-0	01	1	9505-	●	●

494 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (G) L=250	5-09707-030-0	01	1	9112-9504	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C) L=60	8-94449-165-0	06	1	9505-	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (D) L=36.5	8-97019-892-0	08	1	9505-	●	●
16	CLIP; HARNESS SEAT HEATER DRIVER<C37> (E) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	CLIP; HARNESS SEAT HEATER PASSENGER<C38> (E) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (B) L=104	8-94433-185-0	02	1	9505-	●	●
16	CLIP; HARNESS 6VD1 SOHC ENG(RLU) (A)	8-97032-822-1	01	1	9112-	●	●
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) (F) ID=11.5	1-09709-083-0	01	1	9306-9607		●
494	CLIP; BONDING CABLE 4ZE1 ENG(RLJ) (A) ID=8 & 23	5-09707-002-0	01	1	9112-9210	●	●
494	CLIP; BONDING CABLE 4ZE1 ENG(RLJ) (A) ID=12.5 & 24	5-09709-034-0	01	1	9211-	●	●
494	CLIP; BONDING CABLE 6VD1 SOHC ENG(RLU) (B) ID=25	8-94120-831-0	01	1	9112-9112	●	●

16 390 178 27 27 27 27 462 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (G) L=250	5-09707-030-0	01	1	9112-9504	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C) L=60	8-94449-165-0	06	1	9505-	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (D) L=36.5	8-97019-892-0	08	1	9505-	●	●
16	CLIP; HARNESS SEAT HEATER DRIVER<C37> (E) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	CLIP; HARNESS SEAT HEATER PASSENGER<C38> (E) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (B) L=104	8-94433-185-0	02	1	9505-	●	●
16	CLIP; HARNESS 6VD1 SOHC ENG(RLU) (A)	8-97032-822-1	01	1	9112-	●	●
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) (F) ID=11.5	1-09709-083-0	01	1	9306-9607		●
27	PROTECTOR; EDGE ANTI LOCK BRAKE(JE5) (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9608-	●
27	PROTECTOR; EDGE (C)L=40 SERVICED BY L=190	1-71998-300-0	01	1	9112-9202	●	●
27	PROTECTOR; EDGE (C)L=40 SERVICED BY L=190	1-71998-300-0	02	1	9203-	●	●
27	PROTECTOR; EDGE (E) ID=30	8-94142-264-0	02	1	9112-9504	●	●
27	PROTECTOR; EDGE (E) ID=30	8-94142-264-0	04	1	9505-	●	●
27	PROTECTOR; EDGE (F) L=65	8-94235-856-0	02	1	9112-	●	●
27	PROTECTOR; EDGE (A)	8-94340-075-0	02	1	9112-9112	●	●
27	PROTECTOR; EDGE (B)	8-97804-817-1	01	1	9112-	●	●
27	PROTECTOR; EDGE (A) ID=36	8-94178-685-0	02	1	9201-	●	●
27	PROTECTOR; EDGE (H)	8-97803-554-0	01	1	9505-	●	●
27	PROTECTOR; EDGE AIR BAG DRIVER<AJ3> (I) L=80	5-22439-006-0	01	1	9608-	●	●
27	PROTECTOR; EDGE AUTO CRUISE CONT<K30> (D)	8-97066-651-0	02	1	9112-9308	●	●
27	PROTECTOR; EDGE EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (G) ID=34.7	8-94365-780-0	02	1	9505-	●	●
27	PROTECTOR; EDGE 4JG2 ENG(RJC) (F) L=65	8-94235-856-0	01	1	9505-	●	●
27	PROTECTOR; EDGE 4JG2 ENG(RJC) FRIGID ZONE<YL3> (C) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9505-9603	●	●
27	PROTECTOR; EDGE GRADE S(RBA),GRADE LS(RBD) EXC. SEAT HEATER PASSENGER<C38>,FRT SEAT CAPTAIN SEAT<6JX>,LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (C) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9604-9607		●
27	PROTECTOR; EDGE 4JG2 ENG(RJC) FRIGID ZONE<YL3> (C) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9608-	●	●
27	PROTECTOR; EDGE (A) ID=36	8-94178-685-0	02	1	9112-9504		●
27	PROTECTOR; EDGE (A) ID=36	8-94178-685-0	01	1	9505-		●
27	PROTECTOR; EDGE AUTO DOOR LOCK<AU4> (A) ID=36	8-94178-685-0	03	1	9505-		●
27	PROTECTOR; EDGE POWER WINDOW<A30> (E) ID=30	8-94142-264-0	02	1	9505-		●
178	GROMMET; HARNESS RR LICENSE BACK DOOR<S8Z> OD=26	8-94141-484-0	01	1	9203-9607	●	●
390	CONNECTOR; SHORT CIRCUIT 4JG2 ENG(RJC) EXC. SHIFT ON THE FLY(7EX)	8-97110-718-0	01	1	9505-	●	●
462	CLIP; HARNESS,HTR EXC. HEATER&DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) L=140	5-09707-031-0	01	1	9206-9504	●	●
462	CLIP; HARNESS,HTR 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (B) ID=8.5	5-09700-275-0	01	1	9112-9208	●	●
462	CLIP; HARNESS,HTR 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9209-9607	●	●
462	CLIP; HARNESS,HTR 4JG2 ENG(RJC) EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9608-	●	●

408 38 408 465 466 239 408 408 408 313 38 408 407 95 95 466 465 412 459 49 106 38 524 304 210 242 95 412

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; CLIP,HARNESS (A) M6X16 W/LK WASHER	9-01900-616-0	01	1	9112-9204	●	●
38	BOLT; CLIP,HARNESS (A) M6X16 W/LK WASHER	0-50040-616-0	01	1	9205-9211	●	●
38	BOLT; CLIP,HARNESS (A) M6X12 W/LK WASHER	0-50040-612-0	01	1	9212-9504	●	●
38	BOLT; CLIP,HARNESS (B) M6X18	9-01960-618-0	08	1	9112-9204	●	●
38	BOLT; CLIP,HARNESS (B) M6X18 W/LK&PL WASHER	0-50140-618-0	08	1	9205-9504	●	●
38	BOLT; CLIP,HARNESS A/T THM(RMQ) (C) M4X12 W/LK WASHER	8-97066-403-1	01	1	9112-	●	●
38	BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) (F) M8X14	0-50140-814-0	01	1	9209-9212	●	●
38	BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) (F) M8X14 FLANGE	0-28080-814-0	01	1	9301-9408	●	●
38	BOLT; CLIP,HARNESS 4ZE1 ENG(RLJ) (F) M8X16 W/LK WASHER	0-50040-816-0	01	1	9112-	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) M10X16 FLANGE	0-28181-016-0	01	1	9112-9208	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (D) M10X16 FLANGE	0-28181-016-0	01	1	9209-9504	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) (D) M10X16 FLANGE	0-28181-016-0	01	1	9505-	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4) (E) M8X12 FLANGE	0-28080-812-0	01	1	9112-9208	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) EXC. CHILE EQUIPMENT(S2G) (E) M8X12 FLANGE	0-28080-812-0	01	1	9209-9308	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) (E) M8X12 FLANGE	0-28080-812-0	01	1	9309-9408	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	BOLT; CLIP,HARNESS M/T MUA 5 SPEED(RMN) (E) M8X12 FLANGE	0-28080-812-0	01	1	9409-9504	●	●
38	BOLT; CLIP,HARNESS 6VD1 SOHC ENG(RLU) (E) M8X12 FLANGE	0-28080-812-0	01	1	9505-	●	●
49	CLIP; GEN HARNESS 4ZE1 ENG(RLJ)	8-94319-607-0	01	1	9112-	●	●
95	CLIP; CABLE 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4) (A) ID=25	8-94120-831-0	01	1	9112-	●	●
95	CLIP; CABLE 4JG2 ENG(RJC),4JG1 ENG(RLT) (B) ID=20	1-09709-068-0	01	1	9112-9310	●	●
95	CLIP; CABLE 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=20	1-09709-068-0	01	1	9311-9504	●	●
95	CLIP; CABLE 4JG1 ENG(RLT) (B) ID=20	1-09709-068-0	01	1	9311-9504	●	●
95	CLIP; CABLE 4JG2 ENG(RJC),4JG1 ENG(RLT) (C) L=140	5-09707-031-0	01	1	9309-9310	●	●
95	CLIP; CABLE 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) L=140	5-09707-031-0	01	1	9311-9504	●	●
95	CLIP; CABLE 4JG1 ENG(RLT) (C) L=140	5-09707-031-0	01	1	9311-9504	●	●
95	CLIP; CABLE 4JG2 ENG(RJC) HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (C) L=140	5-09707-031-0	01	1	9505-	●	●
95	CLIP; CABLE 4JG2 ENG(RJC) EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> (C) L=140	5-09707-031-0	01	1	9505-	●	●
106	WASHER; HARNESS CLIP 4ZE1 ENG(RLJ) ID=8.4	9-09164-508-0	01	1	9112-	●	●
210	WASHER; PL,GEN 4ZE1 ENG(RLJ) ID=6.4	9-09160-506-0	01	1	9112-	●	●
239	BOLT; GRAND (A) M6X14	8-94153-946-0	05	1	9112-9209	●	●
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	05	1	9210-9504	●	●
239	BOLT; GRAND A/T THM(RMQ) (B) M6X14	8-94153-946-0	01	1	9210-9308	●	●
239	BOLT; GRAND 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (B) M6X14	8-94153-946-0	01	1	9112-9209	●	●
239	BOLT; GRAND 4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (B) M6X14	8-94153-946-0	01	1	9112-9209	●	●
239	BOLT; GRAND 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-9308	●	●
239	BOLT; GRAND 4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-9308	●	●
239	BOLT; GRAND ANTI LOCK BRAKE(JE5) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-9308	●	●
239	BOLT; GRAND 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9309-9504	●	●
239	BOLT; GRAND 4JG1 ENG(RLT),6VD1 SOHC ENG(RLU) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9309-9504	●	●
239	BOLT; GRAND 6VD1 SOHC ENG(RLU) A/T THM(RMQ) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
239	BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
242	BOLT; BRKT,HARNESS 4ZE1 ENG(RLJ) M6X14 W/LK&PL WASHER	9-01960-614-0	01	1	9112-9204	●	●
242	BOLT; BRKT,HARNESS 4ZE1 ENG(RLJ) M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9205-9504	●	●
304	BOLT; ENG HARNESS CLIP 4ZE1 ENG(RLJ) M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9112-9607	●	●
304	BOLT; ENG HARNESS CLIP 6VD1 SOHC ENG(RLU) M6X12 FLANGE	0-28080-612-0	02	1	9112-9308	●	●
304	BOLT; ENG HARNESS CLIP 4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) CHINA EQUIPMENT(YT2) M6X12 FLANGE	0-28080-612-0	02	1	9505-9607		●
313	BOLT; BRKT 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) M8X40	0-28010-840-0	01	1	9112-9204	●	●
313	BOLT; BRKT 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) M8X40 FLANGE	0-28080-840-0	01	1	9205-	●	●
407	BOLT; HARNESS TO TRANS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) M6X12	0-28010-612-0	01	1	9112-9204	●	●
407	BOLT; HARNESS TO TRANS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) M6X12 FLANGE	0-28080-612-0	01	1	9205-9607	●	●
407	BOLT; HARNESS TO TRANS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) M6X16 FLANGE	0-28680-616-0	01	1	9608-	●	●
408	CLIP; TRANS HARNESS A/T THM(RMQ) (A) L=250	5-09707-030-0	02	1	9112-9305	●	●
408	CLIP; TRANS HARNESS A/T THM(RMQ) (A) L=200	8-94464-835-0	02	1	9306-	●	●
408	CLIP; TRANS HARNESS A/T THM(RMQ) (C)	8-97022-809-0	01	1	9112-	●	●
408	CLIP; TRANS HARNESS A/T THM(RMQ) (D) ID=16	9-09525-522-0	01	1	9112-	●	●
408	CLIP; TRANS HARNESS M/T MUA 5 SPEED(RMN) (E) ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9209-9504	●	●
408	CLIP; TRANS HARNESS 4JG2 ENG(RJC),4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) EXC. SHIFT ON THE FLY(7EX) (E) ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9505-9505	●	●
408	CLIP; TRANS HARNESS 4JG2 ENG(RJC),4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) (E) ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9505-9607	●	●
408	CLIP; TRANS HARNESS M/T MUA 5 SPEED(RMN) (E) ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9608-	●	●
408	CLIP; TRANS HARNESS M/T MUA 5 SPEED(RMN) (E) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9209-9504	●	●
408	CLIP; TRANS HARNESS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) (B) ID=24	8-97022-568-3	01	1	9112-	●	●
412	BRACKET; HARNESS,TRANS 4ZE1 ENG(RLJ) (A)	8-94472-197-0	01	1	9112-	●	●
412	BRACKET; HARNESS,TRANS 4ZE1 ENG(RLJ) (B)	8-97806-180-1	01	1	9112-	●	●
412	BRACKET; HARNESS,TRANS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) (B)	8-94359-008-1	01	1	9112-	●	●
459	BRACKET; SUPPORT,HARNESS 4JG2 ENG(RJC),4JG1 ENG(RLT)	8-94315-284-0	01	1	9112-9504	●	●
459	BRACKET; SUPPORT,HARNESS 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN)	8-94315-284-0	01	1	9505-	●	●
465	PROTECTOR; HEAT,HARNESS 6VD1 SOHC ENG(RLU) A/T THM(RMQ)	8-97029-511-1	01	1	9112-	●	●
465	PROTECTOR; HEAT,HARNESS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN)	8-97807-963-0	01	1	9112-9210	●	●
465	PROTECTOR; HEAT,HARNESS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN)	8-97809-116-1	01	1	9211-	●	●
466	BOLT; HEAT PROTECTOR 6VD1 SOHC ENG(RLU) A/T THM(RMQ) M6X12	0-28010-612-0	02	1	9112-9204	●	●
466	BOLT; HEAT PROTECTOR 6VD1 SOHC ENG(RLU) A/T THM(RMQ) M6X12 FLANGE	0-28080-612-0	02	1	9205-9607	●	●
466	BOLT; HEAT PROTECTOR 6VD1 SOHC ENG(RLU) A/T THM(RMQ) M6X16 FLANGE	0-28680-616-0	02	1	9608-	●	●
466	BOLT; HEAT PROTECTOR 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) M6X12	0-28010-612-0	03	1	9112-9204	●	●
466	BOLT; HEAT PROTECTOR 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) M6X12 FLANGE	0-28080-612-0	03	1	9205-9607	●	●
466	BOLT; HEAT PROTECTOR 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) M6X16 FLANGE	0-28680-616-0	03	1	9608-	●	●
524	NUT; HARNESS 4ZE1 ENG(RLJ) M6 W/LK WASHER	8-94424-179-0	01	1	9112-	●	●

399 399 16 16 399 16 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (G) L=250	5-09707-030-0	01	1	9112-9504	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C) L=60	8-94449-165-0	06	1	9505-	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (D) L=36.5	8-97019-892-0	08	1	9505-	●	●
16	CLIP; HARNESS SEAT HEATER DRIVER<C37> (E) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	CLIP; HARNESS SEAT HEATER PASSENGER<C38> (E) L=112	8-94232-618-0	01	1	9112-9504	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (B) L=104	8-94433-185-0	02	1	9505-	●	●
16	CLIP; HARNESS 6VD1 SOHC ENG(RLU) (A)	8-97032-822-1	01	1	9112-	●	●
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) (F) ID=11.5	1-09709-083-0	01	1	9306-9607		●
27	PROTECTOR; EDGE ANTI LOCK BRAKE(JE5) (I) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9608-	●
27	PROTECTOR; EDGE (C)L=40 SERVICED BY L=190	1-71998-300-0	01	1	9112-9202	●	●
27	PROTECTOR; EDGE (C)L=40 SERVICED BY L=190	1-71998-300-0	02	1	9203-	●	●
27	PROTECTOR; EDGE (E) ID=30	8-94142-264-0	02	1	9112-9504	●	●
27	PROTECTOR; EDGE (E) ID=30	8-94142-264-0	04	1	9505-	●	●
27	PROTECTOR; EDGE (F) L=65	8-94235-856-0	02	1	9112-	●	●
27	PROTECTOR; EDGE (A)	8-94340-075-0	02	1	9112-9112	●	●
27	PROTECTOR; EDGE (B)	8-97804-817-1	01	1	9112-	●	●
27	PROTECTOR; EDGE (A) ID=36	8-94178-685-0	02	1	9201-	●	●
27	PROTECTOR; EDGE (H)	8-97803-554-0	01	1	9505-	●	●
27	PROTECTOR; EDGE AIR BAG DRIVER<AJ3> (I) L=80	5-22439-006-0	01	1	9608-	●	●
27	PROTECTOR; EDGE AUTO CRUISE CONT<K30> (D)	8-97066-651-0	02	1	9112-9308	●	●
27	PROTECTOR; EDGE EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (G) ID=34.7	8-94365-780-0	02	1	9505-	●	●
27	PROTECTOR; EDGE 4JG2 ENG(RJC) (F) L=65	8-94235-856-0	01	1	9505-	●	●
27	PROTECTOR; EDGE 4JG2 ENG(RJC) FRIGID ZONE<YL3> (C) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9505-9603	●	●
27	PROTECTOR; EDGE GRADE S(RBA),GRADE LS(RBD) EXC. SEAT HEATER PASSENGER<C38>,FRT SEAT CAPTAIN SEAT<6JX>,LEATHER SEAT<6TB>,POWER SEAT W/ARM REST<7DW> (C) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9604-9607		●
27	PROTECTOR; EDGE 4JG2 ENG(RJC) FRIGID ZONE<YL3> (C) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9608-	●	●
27	PROTECTOR; EDGE (A) ID=36	8-94178-685-0	02	1	9112-9504		●
27	PROTECTOR; EDGE (A) ID=36	8-94178-685-0	01	1	9505-		●
27	PROTECTOR; EDGE AUTO DOOR LOCK<AU4> (A) ID=36	8-94178-685-0	03	1	9505-		●
27	PROTECTOR; EDGE POWER WINDOW<A30> (E) ID=30	8-94142-264-0	02	1	9505-		●
399	COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4> (C) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9505-9509		●
399	COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4> (C) OD=20 T=0.4 BLACK	1-76798-020-0	02	1	9510-		●
399	COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4> (A)	8-97115-143-0	02	1	9505-		●
399	COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4> (B)	8-97115-144-0	02	1	9505-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
