Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#35286) — 613 parça

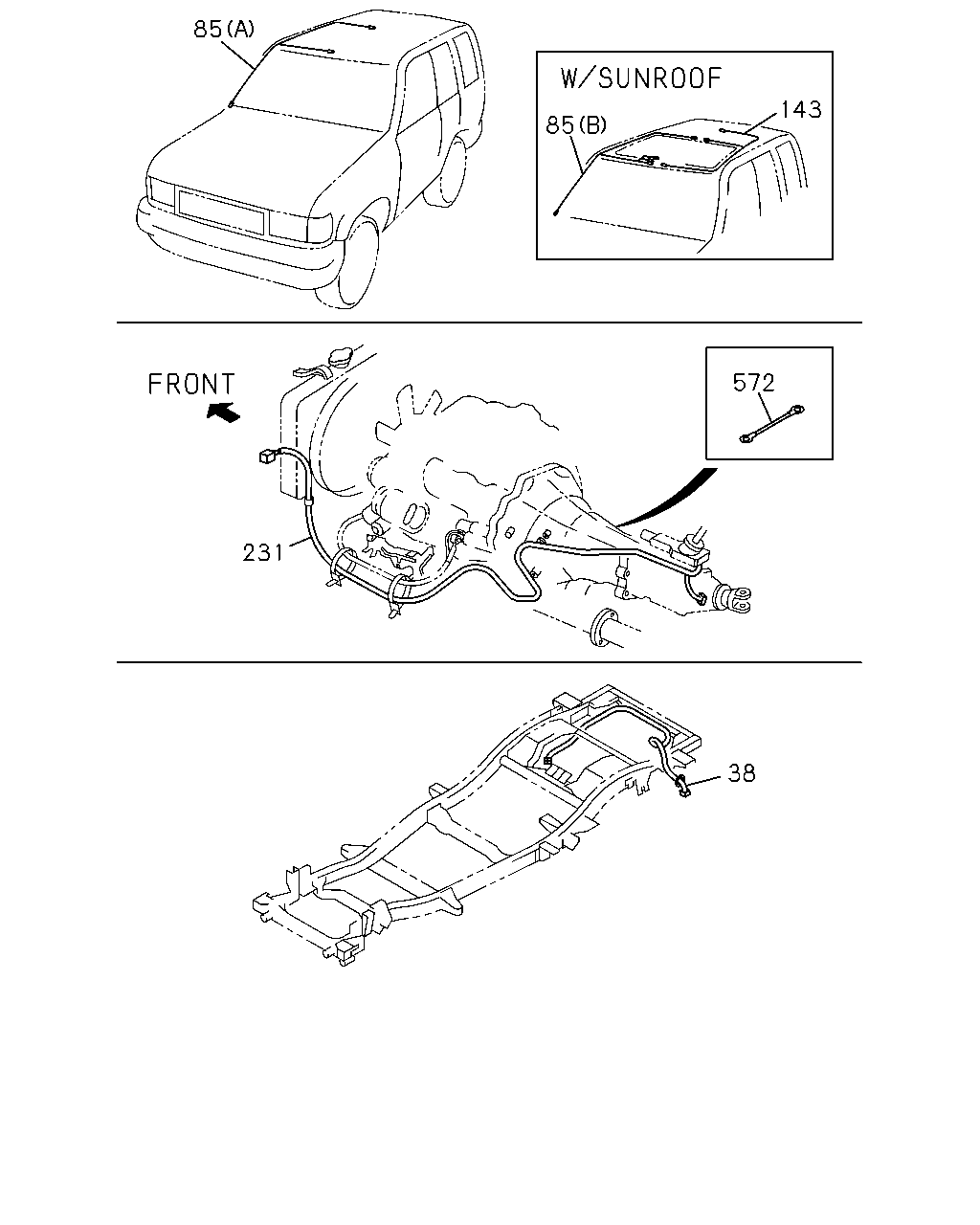

85 143 85 572 231 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	HARNESS; CHAS ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97807-565-1	01	1	9112-9208	●	●
38	HARNESS; CHAS ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97808-599-3	01	1	9209-9308	●	●
38	HARNESS; CHAS ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97810-126-0	01	1	9309-9607	●	●
38	HARNESS; CHAS ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-97133-781-0	01	1	9608-	●	●
38	HARNESS; CHAS EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97807-563-2	01	1	9112-9208	●	●
38	HARNESS; CHAS EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97808-598-4	01	1	9209-9308	●	●
38	HARNESS; CHAS EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97810-125-0	01	1	9309-9504	●	●
38	HARNESS; CHAS EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97130-164-2	01	1	9505-9607	●	●
38	HARNESS; CHAS EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97133-783-1	01	1	9608-	●	●
38	HARNESS; CHAS EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97807-562-2	01	1	9112-9208	●	●
38	HARNESS; CHAS EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97809-152-2	01	1	9209-9504	●	●
38	HARNESS; CHAS EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97811-135-1	01	1	9505-9607	●
38	HARNESS; CHAS EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) EXC. ANTI LOCK BRAKE(JE5)	8-97811-135-1	01	1	9505-9607		●
38	HARNESS; CHAS EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) EXC. ANTI LOCK BRAKE(JE5)	8-97133-785-1	01	1	9608-	●	●
38	HARNESS; CHAS EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5)	8-97807-564-3	01	1	9112-9504	●	●
38	HARNESS; CHAS EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5),CHINA EQUIPMENT(YT2)	8-97807-564-3	01	1	9505-9607	●	●
38	HARNESS; CHAS EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5),CHINA EQUIPMENT(YT2)	8-97133-782-0	01	1	9608-	●	●
38	HARNESS; CHAS ANTI LOCK BRAKE(JE5) CHINA EQUIPMENT(YT2)	8-97133-784-1	01	1	9608-		●
85	HARNESS; ROOM LAMP MAP LAMP<UF3> EXC. SUNROOF<CF5> (A)	8-94359-006-4	01	1	9112-9504	●	●
85	HARNESS; ROOM LAMP MAP LAMP<UF3> EXC. SUNROOF<CF5> (A)	8-97119-701-0	01	1	9505-9607	●	●
85	HARNESS; ROOM LAMP MAP LAMP<UF3> EXC. SUNROOF<CF5>,MULTI METER<7HT> (A)	8-97123-828-1	01	1	9608-	●	●
85	HARNESS; ROOM LAMP MULTI METER<7HT> EXC. SUNROOF<CF5> (A)	8-97145-744-0	01	1	9608-	●	●
85	HARNESS; ROOM LAMP SUNROOF<CF5> (B)	8-94359-005-3	01	1	9112-9504	●	●
85	HARNESS; ROOM LAMP SUNROOF<CF5> (B)	8-97119-700-0	01	1	9505-9607	●	●
85	HARNESS; ROOM LAMP SUNROOF<CF5> (B)	8-97145-743-0	01	1	9608-	●	●
85	HARNESS; ROOM LAMP EXC. SUNROOF<CF5>,MAP LAMP<UF3> (A)	8-97805-909-3	01	1	9112-9504	●	●
85	HARNESS; ROOM LAMP EXC. SUNROOF<CF5>,MAP LAMP<UF3> (A)	8-97119-702-0	01	1	9505-9607	●	●
85	HARNESS; ROOM LAMP EXC. SUNROOF<CF5>,MAP LAMP<UF3>,MULTI METER<7HT> (A)	8-97144-840-0	01	1	9608-	●	●
143	HARNESS; CABLE,SUNROOF INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) SUNROOF<CF5>	8-97805-525-1	01	1	9112-9504	●	●
143	HARNESS; CABLE,SUNROOF SUNROOF<CF5>	8-97805-525-1	01	1	9505-	●	●
231	HARNESS; TRANS 4ZE1 ENG(RLJ)	8-97801-557-2	01	1	9112-9208	●	●
231	HARNESS; TRANS 4ZE1 ENG(RLJ)	8-97808-668-1	01	1	9209-9607	●	●
231	HARNESS; TRANS 4ZE1 ENG(RLJ)	8-97176-247-0	01	1	9608-	●	●
231	HARNESS; TRANS 6VD1 SOHC ENG(RLU) A/T THM(RMQ)	8-97066-982-0	01	1	9112-9208	●	●
231	HARNESS; TRANS 6VD1 SOHC ENG(RLU) A/T THM(RMQ)	8-97074-815-1	01	1	9209-9504	●	●
231	HARNESS; TRANS 6VD1 SOHC ENG(RLU) A/T THM(RMQ) SHIFT ON THE FLY(7EX)	8-97102-390-5	01	1	9505-9607	●	●
231	HARNESS; TRANS 6VD1 SOHC ENG(RLU) A/T THM(RMQ) SHIFT ON THE FLY(7EX)	8-97145-028-0	01	1	9608-	●	●
231	HARNESS; TRANS 6VD1 SOHC ENG(RLU) A/T THM(RMQ) EXC. SHIFT ON THE FLY(7EX)	8-97111-259-1	01	1	9505-9607	●	●
231	HARNESS; TRANS 6VD1 SOHC ENG(RLU) A/T THM(RMQ) EXC. SHIFT ON THE FLY(7EX)	8-97145-029-0	01	1	9608-	●	●
231	HARNESS; TRANS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN)	8-97801-957-2	01	1	9112-9208	●	●
231	HARNESS; TRANS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN)	8-97808-664-1	01	1	9209-9308	●	●
231	HARNESS; TRANS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN)	8-97810-506-0	01	1	9309-9504	●	●
231	HARNESS; TRANS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) SHIFT ON THE FLY(7EX)	8-97130-484-0	01	1	9505-9607	●	●
231	HARNESS; TRANS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) SHIFT ON THE FLY(7EX)	8-97145-033-0	01	1	9608-	●	●
231	HARNESS; TRANS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) EXC. SHIFT ON THE FLY(7EX)	8-97125-753-0	01	1	9505-9607	●	●
231	HARNESS; TRANS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) EXC. SHIFT ON THE FLY(7EX)	8-97145-034-0	01	1	9608-	●	●
572	HARNESS; A/T EARTH 6VD1 SOHC ENG(RLU) A/T THM(RMQ)	8-97164-256-0	01	1	9608-	●	●

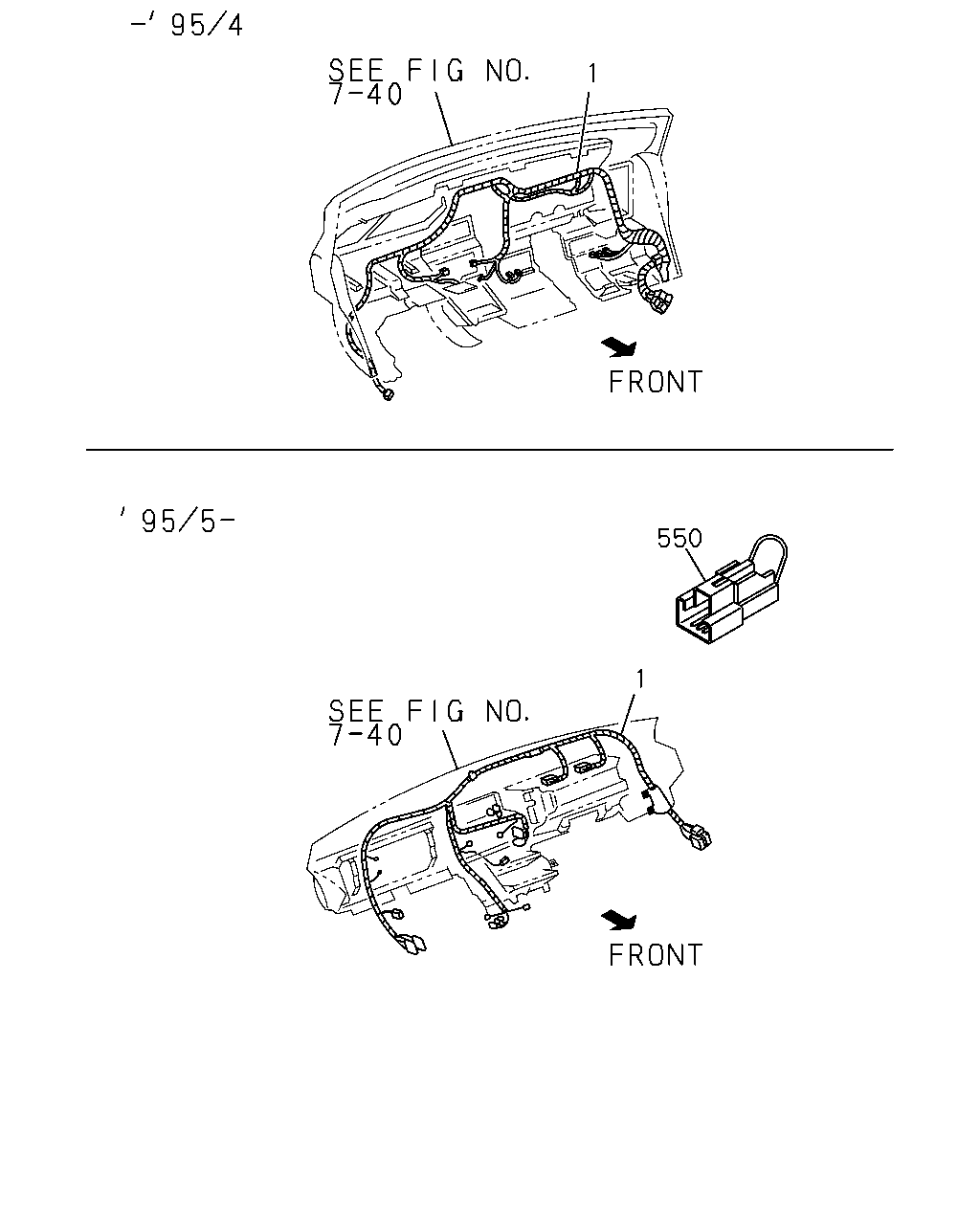

1 550 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB	8-97808-225-0	01	1	9112-9207	●
1	HARNESS; CAB EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97808-225-0	01	1	9112-9207		●
1	HARNESS; CAB	8-97808-847-0	01	1	9208-9308	●
1	HARNESS; CAB EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97808-847-0	01	1	9208-9308		●
1	HARNESS; CAB	8-97810-856-0	01	1	9309-9504	●
1	HARNESS; CAB EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97810-856-0	01	1	9309-9504		●
1	HARNESS; CAB EUROPE/CANARY EQUIPMENT(EK4)	8-97130-301-0	01	1	9505-9505	●	●
1	HARNESS; CAB EUROPE/CANARY EQUIPMENT(EK4)	8-97131-376-0	01	1	9506-9607	●	●
1	HARNESS; CAB AIR BAG DRIVER<AJ3> EUROPE/CANARY EQUIPMENT(EK4)	8-97144-837-1	01	1	9608-	●	●
1	HARNESS; CAB RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97808-223-0	01	1	9112-9207		●
1	HARNESS; CAB RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97808-846-0	01	1	9208-9308		●
1	HARNESS; CAB RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97810-855-0	01	1	9309-9504		●
1	HARNESS; CAB EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97130-300-0	01	1	9505-9505	●	●
1	HARNESS; CAB EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97131-375-0	01	1	9506-9607	●	●
1	HARNESS; CAB EXC. AIR BAG DRIVER<AJ3>,EUROPE/CANARY EQUIPMENT(EK4)	8-97144-838-0	01	1	9608-	●	●
550	CONNECTOR; LIGHT CONT GRADE S(RBA)	8-97116-613-0	01	1	9505-	●	●

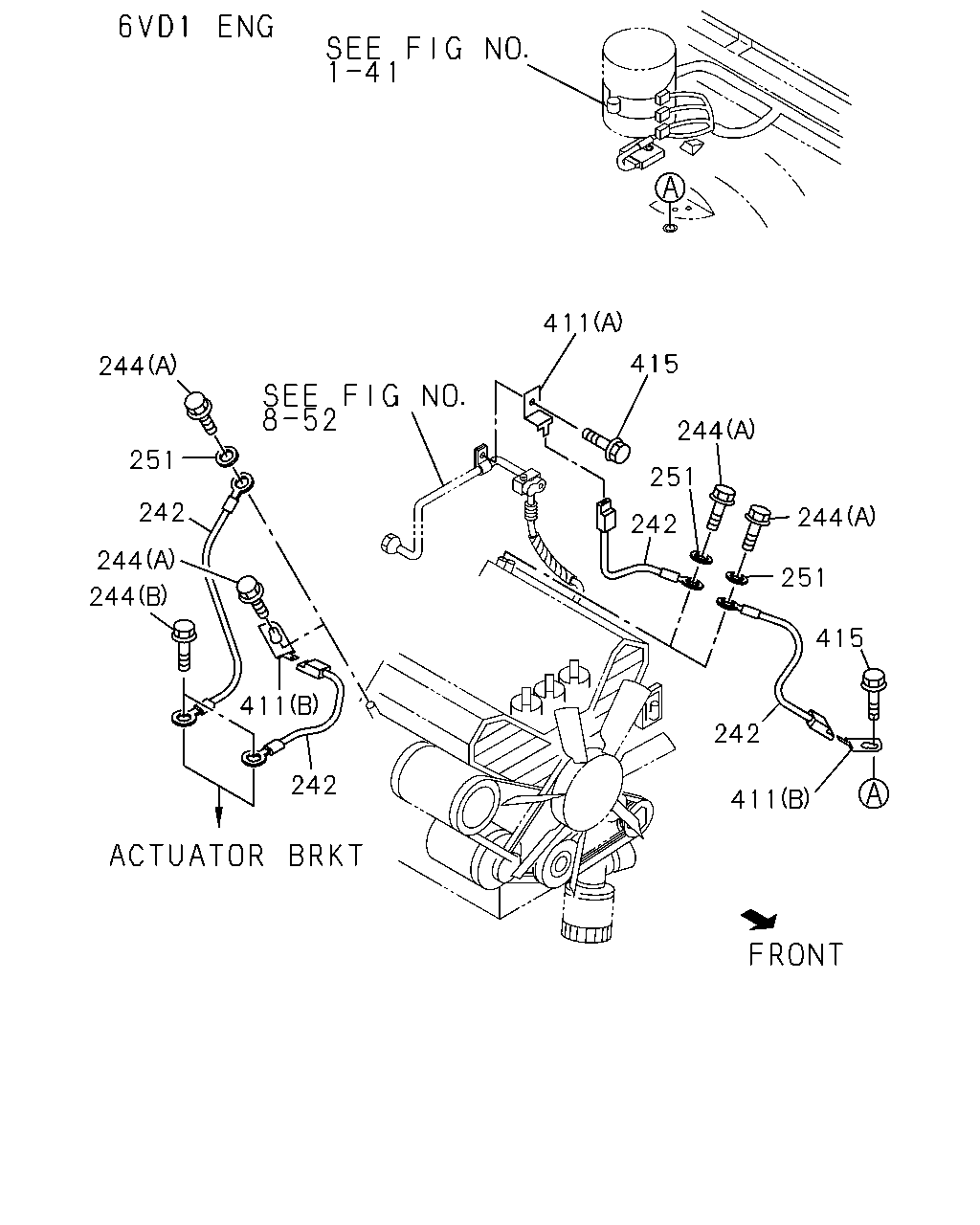

411 416 242 413 243 415

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
242	CABLE; BONDING,ENG TO BODY 4ZE1 ENG(RLJ)	8-94318-918-1	01	1	9112-	●	●
242	CABLE; BONDING,ENG TO BODY 6VD1 SOHC ENG(RLU)	8-97033-280-1	01	1	9112-9112	●	●
242	CABLE; BONDING,ENG TO BODY 6VD1 SOHC ENG(RLU)	8-97074-825-1	01	1	9201-	●	●
242	CABLE; BONDING,ENG TO BODY 6VD1 SOHC ENG(RLU)	8-97033-281-1	01	1	9112-9401	●	●
242	CABLE; BONDING,ENG TO BODY 6VD1 SOHC ENG(RLU)	8-97084-314-0	01	1	9402-9406	●	●
242	CABLE; BONDING,ENG TO BODY 6VD1 SOHC ENG(RLU)	8-94126-755-0	01	1	9407-	●	●
243	CABLE; BONDING,TRANS 4ZE1 ENG(RLJ)	8-94389-187-0	01	1	9112-	●	●
411	TERMINAL; MALE,EARTH BONDING CABLE 4ZE1 ENG(RLJ) (C)	8-94371-711-0	01	1	9112-	●	●
411	TERMINAL; MALE,EARTH BONDING CABLE 6VD1 SOHC ENG(RLU) (A)	8-97033-282-0	01	1	9112-9112	●	●
411	TERMINAL; MALE,EARTH BONDING CABLE 6VD1 SOHC ENG(RLU) (B)	8-94102-644-0	01	1	9201-9401	●	●
411	TERMINAL; MALE,EARTH BONDING CABLE 6VD1 SOHC ENG(RLU) (B)	8-94102-644-0	02	1	9402-9607	●	●
411	TERMINAL; MALE,EARTH BONDING CABLE 6VD1 SOHC ENG(RLU) (B)	8-94102-644-0	01	1	9608-	●	●
413	WASHER; LK,TERMINAL 4ZE1 ENG(RLJ) ID=6.4 TOOTH LK INT-EXT	9-09152-206-0	01	1	9112-	●	●
415	BOLT; CABLE,BONDING 4ZE1 ENG(RLJ) M8X14 W/LK WASHER	9-01900-814-0	01	1	9112-9204	●	●
415	BOLT; CABLE,BONDING 4ZE1 ENG(RLJ) M8X14 W/LK WASHER	0-50040-814-0	01	1	9205-9504	●	●
415	BOLT; CABLE,BONDING 4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) M8X14 W/LK WASHER	0-50040-814-0	01	1	9505-9509	●	●
415	BOLT; CABLE,BONDING 4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) M8X12 FLANGE	0-28080-812-0	01	1	9510-	●	●
415	BOLT; CABLE,BONDING 6VD1 SOHC ENG(RLU) M6X14	8-94153-946-0	01	1	9112-9201	●	●
415	BOLT; CABLE,BONDING 6VD1 SOHC ENG(RLU) M8X22	8-94122-771-0	01	1	9202-9308	●	●
415	BOLT; CABLE,BONDING 6VD1 SOHC ENG(RLU) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9309-	●	●
415	BOLT; CABLE,BONDING 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9309-	●	●
416	NUT; TERMINAL 4ZE1 ENG(RLJ) M6 FLANGE	5-09440-004-0	01	1	9112-	●	●

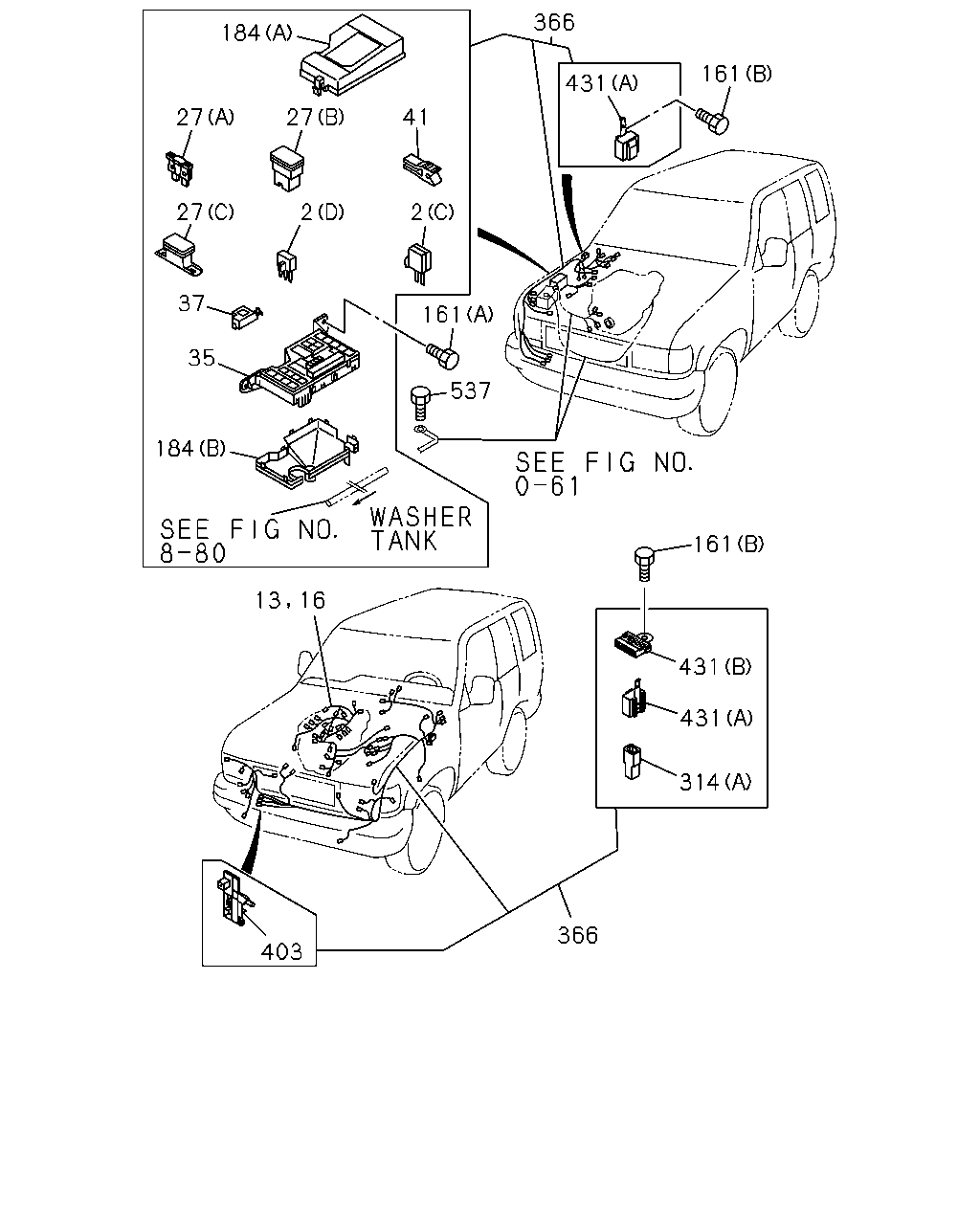

366 184 161 431 27 27 41 27 2 2 37 161 35 537 184 161 13 16 431 431 314 366 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94416-438-1	AR	1	9112-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 4P-1.5A	8-94416-440-1	AR	1	9112-	●	●
2	DIODE; CABLE HARNESS (C) BLACK 2P-1.5A	8-94422-639-1	AR	1	9112-	●	●
2	DIODE; CABLE HARNESS (D) BLACK 3P-1.5A	8-94422-640-1	AR	1	9112-	●	●
13	HARNESS; ENG 4JG1 ENG(RLT)	8-97039-027-3	01	1	9112-9208	●	●
13	HARNESS; ENG 4JG1 ENG(RLT)	8-97074-551-3	01	1	9209-9504	●	●
13	HARNESS; ENG 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4)	8-97039-024-3	01	1	9112-9208	●	●
13	HARNESS; ENG 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4)	8-97074-629-1	01	1	9209-9308	●	●
13	HARNESS; ENG 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4)	8-97086-796-1	01	1	9309-9504	●	●
13	HARNESS; ENG 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-97129-831-1	01	1	9505-	●	●
13	HARNESS; ENG 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-97110-901-3	01	1	9506-	●	●
13	HARNESS; ENG 4JG2 ENG(RJC) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97039-026-3	01	1	9112-9208	●	●
13	HARNESS; ENG 4JG2 ENG(RJC) EXC. EUROPE/CANARY EQUIPMENT(EK4),CERAMIC HEATER<6YX>	8-97074-552-2	01	1	9209-9308	●	●
13	HARNESS; ENG 4JG2 ENG(RJC) EXC. EUROPE/CANARY EQUIPMENT(EK4),CERAMIC HEATER<6YX>	8-97086-797-1	01	1	9309-9504	●	●
13	HARNESS; ENG 4JG2 ENG(RJC) EXC. EUROPE/CANARY EQUIPMENT(EK4),CERAMIC HEATER<6YX>	8-97110-568-3	01	1	9505-	●	●
16	HARNESS; ENG,ECGI 6VD1 SOHC ENG(RLU) CHILE EQUIPMENT(S2G)	8-97023-254-7	01	1	9209-9211	●	●
16	HARNESS; ENG,ECGI 6VD1 SOHC ENG(RLU) CHILE EQUIPMENT(S2G)	8-97086-346-0	01	1	9302-9308	●	●
16	HARNESS; ENG,ECGI 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4)	8-97023-254-5	01	1	9112-9208	●	●
16	HARNESS; ENG,ECGI 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G)	8-97081-152-0	01	1	9209-9211	●	●
16	HARNESS; ENG,ECGI 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G)	8-97086-384-0	01	1	9302-9308	●	●
16	HARNESS; ENG,ECGI 6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97037-424-9	01	1	9112-9211	●	●
16	HARNESS; ENG,ECGI 6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97086-383-0	01	1	9302-9308	●	●
16	HARNESS; ENG,ECGI 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB)	8-97087-542-4	01	1	9309-9504	●	●
16	HARNESS; ENG,ECGI 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB)	8-97106-540-2	01	1	9505-9506	●	●
16	HARNESS; ENG,ECGI 6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97106-540-2	01	1	9507-	●	●
16	HARNESS; ENG,ECGI 6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB)	8-97102-766-2	01	1	9309-9504	●	●
16	HARNESS; ENG,ECGI 6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB)	8-97106-555-2	01	1	9505-9506	●	●
16	HARNESS; ENG,ECGI 6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97106-555-2	01	1	9507-	●	●
27	FUSE UNIT (A) 10A RED	5-82516-002-0	AR	1	9112-	●	●
27	FUSE UNIT (A) 15A BLUE	5-82516-003-0	AR	1	9112-	●	●
27	FUSE UNIT (A) 20A YELLOW	5-82516-004-0	AR	1	9112-	●	●
27	FUSE UNIT (A) 25A CLEAR	5-82516-005-0	AR	1	9112-	●	●
27	FUSE UNIT (A) 7.5A BROWN	8-94159-007-0	AR	1	9112-9504	●	●
27	FUSE UNIT (C) 50A RED	8-94388-302-0	AR	1	9112-	●	●
27	FUSE UNIT (C) 80A BLACK	8-94388-305-0	AR	1	9112-	●	●
27	FUSE UNIT (B) 30A PINK	8-94468-661-0	AR	1	9112-	●	●
27	FUSE UNIT (B) 40A GREEN	8-94468-662-0	AR	1	9112-	●	●
27	FUSE UNIT (B) 50A RED	8-94468-663-0	AR	1	9112-	●	●
35	BOX; RELAY & FUSE	8-97044-180-1	01	1	9112-	●	●
37	COVER; FUSE,RELAY & FUSE BOX	8-97044-183-0	01	1	9112-9607	●	●
41	PULLER; FUSE L=31.0 B=10.0	8-94369-144-0	01	1	9112-	●	●
161	BOLT; GROUND,HARNESS (B) M6X14 W/LK&PL WASHER	8-97086-822-0	06	1	9112-9607	●	●
161	BOLT; GROUND,HARNESS (B) M6X14 W/LK&PL WASHER	8-97086-822-0	05	1	9608-	●	●
161	BOLT; GROUND,HARNESS (A) M6X20	8-94412-422-0	03	1	9505-	●	●
161	BOLT; GROUND,HARNESS ANTI LOCK BRAKE(JE5) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-9607	●	●
161	BOLT; GROUND,HARNESS ANTI LOCK BRAKE(JE5) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9608-	●	●
161	BOLT; GROUND,HARNESS 4ZE1 ENG(RLJ) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9608-	●	●
161	BOLT; GROUND,HARNESS 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	9608-	●	●
184	COVER; RELAY & FUSE BOX (B)	8-97044-181-0	01	1	9112-	●	●
184	COVER; RELAY & FUSE BOX 4JG1 ENG(RLT) (A)	8-97044-198-1	01	1	9112-9208	●	●
184	COVER; RELAY & FUSE BOX 4JG1 ENG(RLT) (A)	8-97080-319-0	01	1	9209-9504	●	●
184	COVER; RELAY & FUSE BOX 4JG2 ENG(RJC) (A)	8-97044-193-1	01	1	9112-9208	●	●
184	COVER; RELAY & FUSE BOX 4JG2 ENG(RJC) (A)	8-97078-075-0	01	1	9209-9504	●	●
184	COVER; RELAY & FUSE BOX 4JG2 ENG(RJC) (A)	8-97112-397-0	01	1	9505-	●	●
184	COVER; RELAY & FUSE BOX 4ZE1 ENG(RLJ) (A)	8-97044-190-1	01	1	9112-9504	●	●
184	COVER; RELAY & FUSE BOX 4ZE1 ENG(RLJ) (A)	8-97112-396-2	01	1	9505-9607	●	●
184	COVER; RELAY & FUSE BOX 4ZE1 ENG(RLJ) (A)	8-97112-396-2	01	1	9608-	●	●
184	COVER; RELAY & FUSE BOX 6VD1 SOHC ENG(RLU) (A)	8-97044-187-1	01	1	9112-9208	●	●
184	COVER; RELAY & FUSE BOX 6VD1 SOHC ENG(RLU) (A)	8-97078-071-0	01	1	9209-9504	●	●
184	COVER; RELAY & FUSE BOX 6VD1 SOHC ENG(RLU) (A)	8-97112-392-1	01	1	9505-	●	●
314	RESISTOR; HARNESS AIR BAG DRIVER<AJ3> EXC. AIR BAG PASSENGER<7FA> (B)	8-97133-042-0	01	1	9608-	●	●
314	RESISTOR; HARNESS 4JG1 ENG(RLT) (A)	1-81515-024-0	01	1	9209-9504	●	●
314	RESISTOR; HARNESS 6VD1 SOHC ENG(RLU) A/T THM(RMQ) EXC. ANTI LOCK BRAKE(JE5) (A)	8-97808-503-0	01	1	9112-9203	●	●
314	RESISTOR; HARNESS 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) (A)	8-97808-503-0	01	1	9112-9203	●	●
314	RESISTOR; HARNESS 6VD1 SOHC ENG(RLU) (A)	8-97808-503-0	01	1	9204-	●	●
314	RESISTOR; HARNESS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) EXC. ANTI LOCK BRAKE(JE5) (A)	8-97807-566-0	01	1	9112-9203	●	●
366	HARNESS; CABLE,ENG ROOM 4JG1 ENG(RLT)	8-97808-176-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 4JG1 ENG(RLT)	8-97808-423-3	01	1	9209-9308	●	●
366	HARNESS; CABLE,ENG ROOM 4JG1 ENG(RLT)	8-97810-635-1	01	1	9309-9504	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC)	8-97808-174-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC)	8-97808-421-4	01	1	9209-9308	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC)	8-97810-634-1	01	1	9309-9504	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC)	8-97129-798-0	01	1	9505-9607	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5)	8-97160-034-1	01	1	9608-	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97129-822-1	01	1	9505-9607	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE(JE5)	8-97160-035-0	01	1	9608-	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97808-184-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97808-433-6	01	1	9209-9308	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97810-860-0	01	1	9309-9504	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5)	8-97129-824-1	01	1	9505-9607	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4)	8-97160-063-3	01	1	9608-	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97808-046-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97808-434-5	01	1	9209-9308	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97810-861-0	01	1	9309-9504	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5)	8-97129-825-1	01	1	9505-9607	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97160-062-2	01	1	9608-	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC),4JG1 ENG(RLT) ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97808-186-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC),4JG1 ENG(RLT) ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97808-437-4	01	1	9209-9212	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5)	8-97808-050-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5)	8-97808-438-4	01	1	9209-9308	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5)	8-97810-651-1	01	1	9309-9504	●	●
366	HARNESS; CABLE,ENG ROOM 4JG2 ENG(RJC) EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5)	8-97129-823-1	01	1	9505-9607	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5)	8-97160-030-1	01	1	9608-	●	●
366	HARNESS; CABLE,ENG ROOM 4ZE1 ENG(RLJ)	8-97808-051-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 4ZE1 ENG(RLJ)	8-97808-036-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 4ZE1 ENG(RLJ)	8-97808-439-1	01	1	9209-9211	●	●
366	HARNESS; CABLE,ENG ROOM 4ZE1 ENG(RLJ)	8-97810-106-0	01	1	9212-9308	●	●
366	HARNESS; CABLE,ENG ROOM 4ZE1 ENG(RLJ)	8-97808-424-1	01	1	9209-9211	●	●
366	HARNESS; CABLE,ENG ROOM 4ZE1 ENG(RLJ)	8-97810-105-0	01	1	9212-9308	●	●
366	HARNESS; CABLE,ENG ROOM 4ZE1 ENG(RLJ)	8-97810-652-1	01	1	9309-9504	●	●
366	HARNESS; CABLE,ENG ROOM 4ZE1 ENG(RLJ)	8-97129-826-1	01	1	9505-9607	●	●
366	HARNESS; CABLE,ENG ROOM 4ZE1 ENG(RLJ)	8-97160-064-0	01	1	9608-	●	●
366	HARNESS; CABLE,ENG ROOM 4ZE1 ENG(RLJ)	8-97810-636-1	01	1	9309-9504	●	●
366	HARNESS; CABLE,ENG ROOM 4ZE1 ENG(RLJ)	8-97129-800-1	01	1	9505-9607	●	●
366	HARNESS; CABLE,ENG ROOM 4ZE1 ENG(RLJ)	8-97160-036-0	01	1	9608-	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU)	8-97808-161-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU)	8-97808-419-3	01	1	9209-9308	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU)	8-97810-633-1	01	1	9309-9310	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU)	8-97811-127-0	01	1	9311-9504	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU)	8-97129-796-0	01	1	9505-9607	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN)	8-97160-060-2	01	1	9608-	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU) A/T THM(RMQ) ANTI LOCK BRAKE(JE5)	8-97808-177-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU) A/T THM(RMQ) ANTI LOCK BRAKE(JE5)	8-97808-425-5	01	1	9209-9308	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU) A/T THM(RMQ) ANTI LOCK BRAKE(JE5)	8-97810-849-0	01	1	9309-9504	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU) A/T THM(RMQ) ANTI LOCK BRAKE(JE5)	8-97129-820-1	01	1	9505-9607	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU) A/T THM(RMQ) EXC. ANTI LOCK BRAKE(JE5)	8-97808-178-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU) A/T THM(RMQ) EXC. ANTI LOCK BRAKE(JE5)	8-97808-426-4	01	1	9209-9308	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU) A/T THM(RMQ) EXC. ANTI LOCK BRAKE(JE5)	8-97810-850-0	01	1	9309-9504	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU) A/T THM(RMQ) EXC. ANTI LOCK BRAKE(JE5)	8-97129-821-1	01	1	9505-9607	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) ANTI LOCK BRAKE(JE5)	8-97808-179-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) ANTI LOCK BRAKE(JE5)	8-97808-427-5	01	1	9209-9308	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) ANTI LOCK BRAKE(JE5)	8-97810-851-0	01	1	9309-9504	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) ANTI LOCK BRAKE(JE5)	8-97129-818-1	01	1	9505-9607	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU) A/T THM(RMQ)	8-97160-061-2	01	1	9608-	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) EXC. ANTI LOCK BRAKE(JE5)	8-97808-040-0	01	1	9112-9208	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) EXC. ANTI LOCK BRAKE(JE5)	8-97808-428-4	01	1	9209-9308	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) EXC. ANTI LOCK BRAKE(JE5)	8-97810-852-0	01	1	9309-9504	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) EXC. ANTI LOCK BRAKE(JE5)	8-97129-819-1	01	1	9505-9607	●	●
366	HARNESS; CABLE,ENG ROOM 6VD1 SOHC ENG(RLU) EXC. ANTI LOCK BRAKE(JE5)	8-97160-031-0	01	1	9608-	●	●
403	BRACKET; CONNECTOR,HARNESS	8-97109-463-0	01	1	9505-	●	●
431	CONNECTOR; JOINT (A)EARTH JOINT	8-97805-765-0	02	1	9112-9504	●	●
431	CONNECTOR; JOINT (A)EARTH JOINT	8-97805-765-0	01	1	9505-	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER<AJ3> (D)	8-97125-467-0	01	1	9608-9609	●	●
431	CONNECTOR; JOINT 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)ABS SENSOR	8-97093-517-0	01	1	9306-9504	●	●
431	CONNECTOR; JOINT 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) (B)ABS SENSOR	8-97093-517-0	01	1	9306-9504	●	●
431	CONNECTOR; JOINT 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) (B)ABS SENSOR	8-97111-448-0	01	1	9505-9508	●	●
431	CONNECTOR; JOINT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI LOCK BRAKE(JE5) (B)ABS SENSOR	8-97111-448-0	01	1	9505-9508	●	●
431	CONNECTOR; JOINT 6VD1 SOHC ENG(RLU) A/T THM(RMQ) (B)ABS SENSOR	8-97111-448-0	01	1	9509-9607	●	●
431	CONNECTOR; JOINT 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) ANTI LOCK BRAKE(JE5) (B)ABS SENSOR	8-97111-448-0	01	1	9509-9607	●	●
431	CONNECTOR; JOINT 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) (B)ABS SENSOR	8-97111-448-0	01	1	9608-	●	●
431	CONNECTOR; JOINT 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EXC. AIR BAG DRIVER<AJ3> (C)	8-97133-712-0	01	1	9608-	●	●
537	BOLT M6X12 W/LK WASHER	0-50040-612-0	01	1	9505-9612	●	●
537	BOLT M6X12 FLANGE	0-28080-612-0	01	1	9701-	●	●

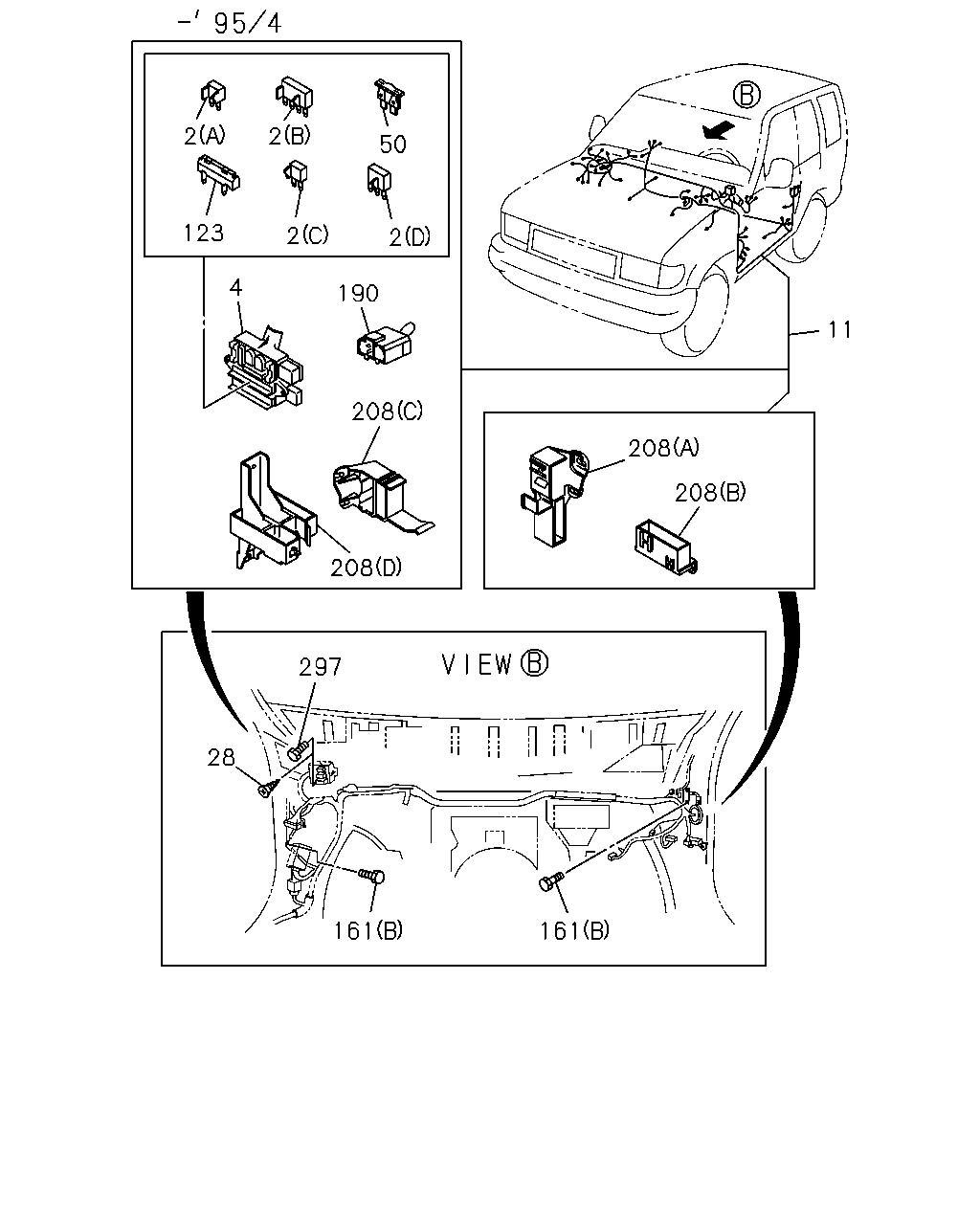

2 2 50 123 2 2 4 190 11 208 208 208 208 297 28 161 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94416-438-1	AR	1	9112-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 4P-1.5A	8-94416-440-1	AR	1	9112-	●	●
2	DIODE; CABLE HARNESS (C) BLACK 2P-1.5A	8-94422-639-1	AR	1	9112-	●	●
2	DIODE; CABLE HARNESS (D) BLACK 3P-1.5A	8-94422-640-1	AR	1	9112-	●	●
4	BOX ASM; FUSE,HARNESS	8-97801-563-1	01	1	9112-9308	●	●
4	BOX ASM; FUSE,HARNESS	8-97803-983-2	01	1	9309-9504	●	●
4	BOX ASM; FUSE,HARNESS	8-97808-883-1	01	1	9505-	●	●
11	HARNESS; BODY 4JG1 ENG(RLT) M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6>	8-97808-002-0	01	1	9112-9205	●	●
11	HARNESS; BODY 4JG1 ENG(RLT) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6>	8-97809-439-0	01	1	9206-9208	●	●
11	HARNESS; BODY 4JG1 ENG(RLT) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6>	8-97808-449-4	01	1	9209-9308	●	●
11	HARNESS; BODY 4JG1 ENG(RLT) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6>	8-97810-620-1	01	1	9309-9504	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EXC. SAUDI ARABIA EQUIPMENT(EU2),ANTI THEFT<UA6>	8-97130-144-2	01	1	9505-9607	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EXC. SAUDI ARABIA EQUIPMENT(EU2),ANTI THEFT<UA6>	8-97160-332-0	01	1	9608-	●	●
11	HARNESS; BODY 4JG1 ENG(RLT) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6>	8-97809-440-0	01	1	9206-9208	●	●
11	HARNESS; BODY 4JG1 ENG(RLT) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6>	8-97808-450-4	01	1	9209-9308	●	●
11	HARNESS; BODY 4JG1 ENG(RLT) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6>	8-97810-621-1	01	1	9309-9504	●	●
11	HARNESS; BODY 4JG1 ENG(RLT) EXC. SAUDI ARABIA EQUIPMENT(EU2),ANTI THEFT<UA6>	8-97808-008-2	01	1	9112-9208	●	●
11	HARNESS; BODY 4JG1 ENG(RLT) EXC. SAUDI ARABIA EQUIPMENT(EU2),ANTI THEFT<UA6>	8-97808-309-3	01	1	9209-9308	●	●
11	HARNESS; BODY 4JG1 ENG(RLT) EXC. SAUDI ARABIA EQUIPMENT(EU2),ANTI THEFT<UA6>	8-97810-623-1	01	1	9309-9504	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI THEFT<UA6> -920906	8-97808-315-3	01	1	9209-9209	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI THEFT<UA6> 920907-	8-97809-119-0	01	1	9209-9308	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI THEFT<UA6>	8-97810-616-1	01	1	9309-9504	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6>	8-97130-145-2	01	1	9505-9607	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6>	8-97160-333-0	01	1	9608-	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI THEFT<UA6>	8-97808-006-0	01	1	9112-9208	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI THEFT<UA6>	8-97808-308-4	01	1	9209-9308	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI THEFT<UA6>	8-97810-617-1	01	1	9309-9504	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6>	8-97130-146-2	01	1	9505-9607	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6>	8-97160-334-0	01	1	9608-	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97808-009-0	01	1	9112-9208	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97808-310-3	01	1	9209-9308	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97810-622-1	01	1	9309-9504	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) ANTI THEFT<UA6> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97130-143-2	01	1	9505-9607	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) ANTI THEFT<UA6> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97160-331-0	01	1	9608-	●	●
11	HARNESS; BODY 4ZE1 ENG(RLJ)	8-97808-001-0	01	1	9112-9208	●	●
11	HARNESS; BODY 4ZE1 ENG(RLJ)	8-97808-306-3	01	1	9209-9308	●	●
11	HARNESS; BODY 4ZE1 ENG(RLJ)	8-97810-624-1	01	1	9309-9504	●	●
11	HARNESS; BODY 4ZE1 ENG(RLJ)	8-97130-147-1	01	1	9505-9607	●	●
11	HARNESS; BODY 4ZE1 ENG(RLJ)	8-97160-335-0	01	1	9608-	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) ANTI THEFT<UA6>	8-97808-004-0	01	1	9112-9205	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) ANTI THEFT<UA6> EXC. SAUDI ARABIA EQUIPMENT(EU2) -920906	8-97808-314-3	01	1	9209-9209	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) ANTI THEFT<UA6> EXC. SAUDI ARABIA EQUIPMENT(EU2) 920907-	8-97809-118-1	01	1	9209-9308	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) ANTI THEFT<UA6> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97810-614-1	01	1	9309-9504	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) ANTI THEFT<UA6> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97130-139-2	01	1	9505-9607	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) ANTI THEFT<UA6> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97160-327-0	01	1	9608-9612	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) ANTI THEFT<UA6> EXC. SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U)	8-97160-327-0	01	1	9701-	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6>	8-97808-447-4	01	1	9206-9308	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6>	8-97810-618-1	01	1	9309-9504	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6>	8-97130-141-2	01	1	9505-9607	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6>	8-97160-329-0	01	1	9608-	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6>	8-97808-448-4	01	1	9206-9308	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6>	8-97810-619-1	01	1	9309-9504	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6>	8-97130-142-2	01	1	9505-9607	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6>	8-97160-330-0	01	1	9608-	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) EXC. SAUDI ARABIA EQUIPMENT(EU2),ANTI THEFT<UA6>	8-97808-005-2	01	1	9112-9208	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) EXC. SAUDI ARABIA EQUIPMENT(EU2),ANTI THEFT<UA6>	8-97808-307-4	01	1	9209-9308	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) EXC. SAUDI ARABIA EQUIPMENT(EU2),ANTI THEFT<UA6>	8-97810-615-1	01	1	9309-9504	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) EXC. SAUDI ARABIA EQUIPMENT(EU2),ANTI THEFT<UA6>	8-97130-140-2	01	1	9505-9607	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) EXC. SAUDI ARABIA EQUIPMENT(EU2),ANTI THEFT<UA6>	8-97160-328-0	01	1	9608-9612	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) EXC. SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),ANTI THEFT<UA6>	8-97160-328-0	01	1	9701-	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) PHILIPPINE EQUIPMENT(S2U) ANTI THEFT<UA6>	8-97173-097-0	01	1	9701-		●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) PHILIPPINE EQUIPMENT(S2U) EXC. ANTI THEFT<UA6>	8-97173-098-0	01	1	9701-		●
28	SCREW; FUSE BOX M5X16 W/LK&PL WASHER	9-03920-516-0	02	1	9302-9504	●	●
50	FUSE; BODY HARNESS 10A RED	5-82516-002-0	AR	1	9112-	●	●
50	FUSE; BODY HARNESS 15A BLUE	5-82516-003-0	AR	1	9112-	●	●
50	FUSE; BODY HARNESS 20A YELLOW	5-82516-004-0	AR	1	9112-	●	●
50	FUSE; BODY HARNESS 25A CLEAR	5-82516-005-0	AR	1	9112-	●	●
50	FUSE; BODY HARNESS 7.5A BROWN	8-94159-007-0	AR	1	9112-	●	●
123	BREAKER; CIRCUIT	8-97011-745-0	01	1	9112-9308	●	●
123	BREAKER; CIRCUIT	8-97011-746-0	01	1	9309-9504	●	●
123	BREAKER; CIRCUIT	8-97106-113-0	01	1	9505-	●	●
161	BOLT; GROUND,HARNESS (B) M6X14 W/LK&PL WASHER	8-97086-822-0	06	1	9112-9607	●	●
161	BOLT; GROUND,HARNESS (B) M6X14 W/LK&PL WASHER	8-97086-822-0	05	1	9608-	●	●
161	BOLT; GROUND,HARNESS (A) M6X20	8-94412-422-0	03	1	9505-	●	●
161	BOLT; GROUND,HARNESS ANTI LOCK BRAKE(JE5) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-9607	●	●
161	BOLT; GROUND,HARNESS ANTI LOCK BRAKE(JE5) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9608-	●	●
161	BOLT; GROUND,HARNESS 4ZE1 ENG(RLJ) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9608-	●	●
161	BOLT; GROUND,HARNESS 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	9608-	●	●
190	CONNECTOR; SHORT CIRCUIT 6VD1 SOHC ENG(RLU) RR WIPER<C25>	8-97801-402-0	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (A)	8-97801-050-1	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (F)	8-97105-295-1	01	1	9505-	●	●
208	HOLDER; CONNECTOR (B)	8-97801-051-0	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (G)	8-97808-879-2	01	1	9505-	●	●
208	HOLDER; CONNECTOR (C)	8-97801-052-0	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (H)	8-97808-880-0	01	1	9505-	●	●
208	HOLDER; CONNECTOR (D)	8-97801-062-1	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (E)	8-97808-881-1	01	1	9505-	●	●
208	HOLDER; CONNECTOR AIR BAG DRIVER<AJ3> (I)	8-97111-319-0	01	1	9608-	●	●
297	BOLT; BOX BRKT M5X16	8-94242-120-0	02	1	9112-9301	●	●

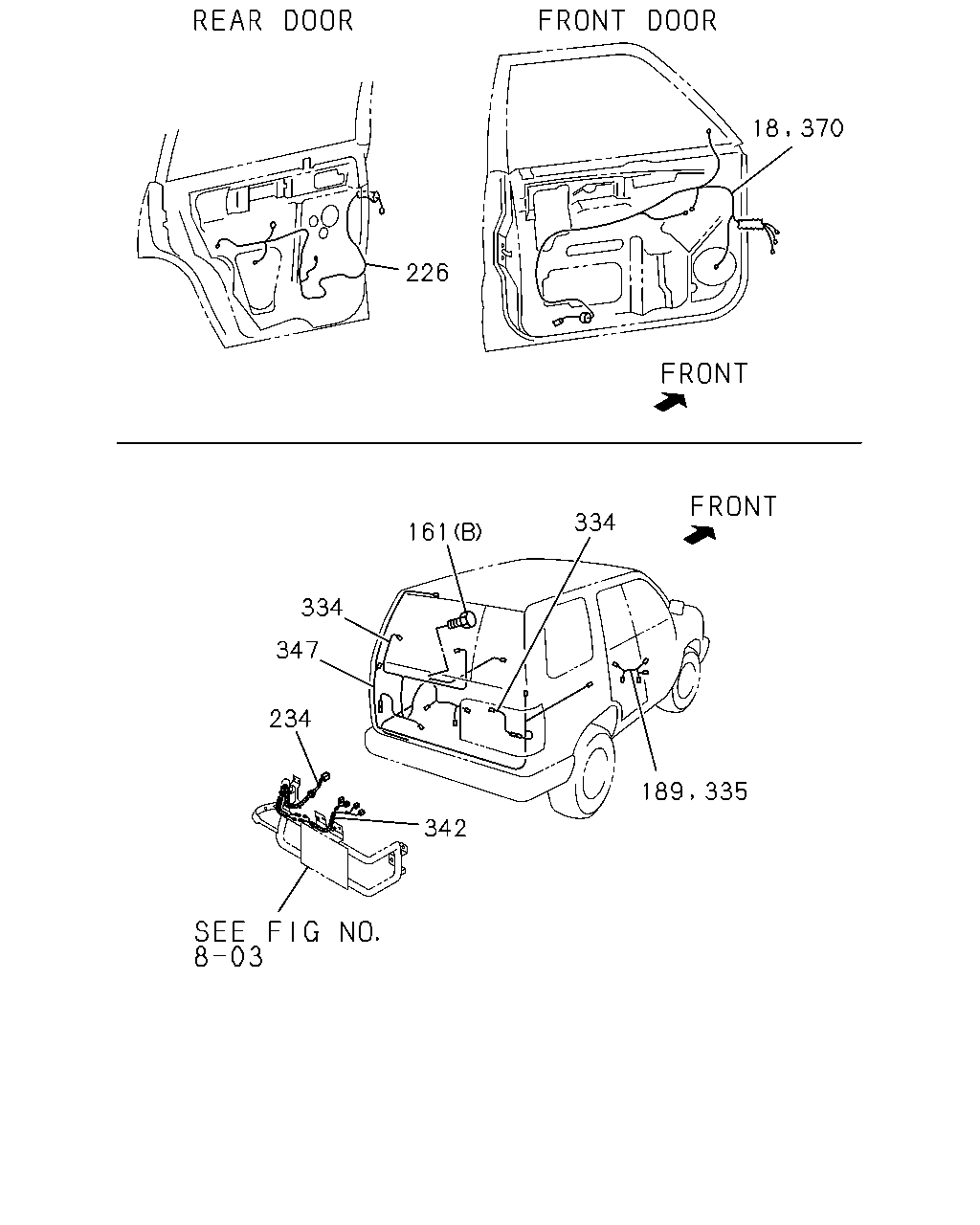

18 370 226 334 161 334 347 234 189 335 342

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6>,DOOR MIRROR ELEC FOLDING W/DEF(6MK)	8-97808-254-3	02	1	9112-9504	●	●
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6>,DOOR MIRROR ELEC FOLDING W/DEF(6MK)	8-97106-951-1	02	1	9505-	●	●
18	HARNESS; DOOR DOOR MIRROR ELEC FOLDING W/DEF(6MK) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6>	8-97808-255-3	02	1	9112-9504	●	●
18	HARNESS; DOOR DOOR MIRROR ELEC FOLDING W/DEF(6MK) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6>	8-97106-952-1	02	1	9505-	●	●
161	BOLT; GROUND,HARNESS (B) M6X14 W/LK&PL WASHER	8-97086-822-0	06	1	9112-9607	●	●
161	BOLT; GROUND,HARNESS (B) M6X14 W/LK&PL WASHER	8-97086-822-0	05	1	9608-	●	●
161	BOLT; GROUND,HARNESS (A) M6X20	8-94412-422-0	03	1	9505-	●	●
161	BOLT; GROUND,HARNESS ANTI LOCK BRAKE(JE5) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-9607	●	●
161	BOLT; GROUND,HARNESS ANTI LOCK BRAKE(JE5) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9608-	●	●
161	BOLT; GROUND,HARNESS 4ZE1 ENG(RLJ) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9608-	●	●
161	BOLT; GROUND,HARNESS 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	9608-	●	●
189	HARNESS; EXT POWER WINDOW<A30>	8-97807-560-1	01	1	9112-9208		●
189	HARNESS; EXT POWER WINDOW<A30>	8-97808-921-0	01	1	9209-9308		●
189	HARNESS; EXT POWER WINDOW<A30>	8-97810-812-0	01	1	9309-9504		●
189	HARNESS; EXT POWER WINDOW<A30>	8-97123-832-1	01	1	9505-		●
189	HARNESS; EXT EXC. POWER WINDOW<A30>	8-97807-561-1	01	1	9112-9208		●
189	HARNESS; EXT EXC. POWER WINDOW<A30>	8-97808-922-0	01	1	9209-9308		●
189	HARNESS; EXT EXC. POWER WINDOW<A30>	8-97810-813-0	01	1	9309-9504		●
189	HARNESS; EXT EXC. POWER WINDOW<A30>	8-97117-521-1	01	1	9505-		●
226	HARNESS; RR DOOR AUTO DOOR LOCK<AU4> POWER WINDOW<A30>	8-97807-292-3	02	1	9112-9504		●
226	HARNESS; RR DOOR AUTO DOOR LOCK<AU4>	8-97130-152-0	02	1	9505-		●
226	HARNESS; RR DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A30>	8-97807-294-3	02	1	9112-9504		●
226	HARNESS; RR DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6>	8-97807-293-3	02	1	9112-9504		●
234	HARNESS; LICENSE LAMP RR LICENSE BACK DOOR<S8Z>	8-94359-027-2	01	1	9112-9607	●	●
334	HARNESS; CABLE,BACK DOOR ANTI THEFT<UA6> EXC. RR WIPER<C25>,REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ>	8-97808-698-0	01	1	9202-9208	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> CHILE EQUIPMENT(6KB) EXC. RR WIPER<C25>,REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ>	8-97808-631-3	01	1	9309-9504	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> CHILE EQUIPMENT(6KB) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ>	8-97130-166-0	01	1	9505-9506	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ>	8-97130-166-0	01	1	9507-	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. RR WIPER<C25>,ANTI THEFT<UA6>,RR WIPER W/INTERMITTENT<6WJ>	8-97807-571-1	01	1	9112-9208	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> EXC. RR WIPER<C25>,REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y>,ANTI THEFT<UA6>,RR WIPER W/INTERMITTENT<6WJ>	8-97807-573-1	01	1	9112-9208	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> EXC. RR WIPER<C25>,REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y>,CHILE EQUIPMENT(6KB),RR WIPER W/INTERMITTENT<6WJ>	8-97808-633-2	01	1	9209-9504	●	●
334	HARNESS; CABLE,BACK DOOR RR LICENSE BACK DOOR<S8Z> EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,ANTI THEFT<UA6>,CHILE EQUIPMENT(6KB),RR WIPER W/INTERMITTENT<6WJ>	8-97130-168-0	01	1	9505-9506	●	●
334	HARNESS; CABLE,BACK DOOR RR LICENSE BACK DOOR<S8Z> EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,ANTI THEFT<UA6>,CHILE EQUIPMENT(6KB),RR WIPER W/INTERMITTENT<6WJ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97130-168-0	01	1	9507-9607	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,CHILE EQUIPMENT(6KB),RR WIPER W/INTERMITTENT<6WJ>,GUATEMALA/COST A RICA EQUIPMENT(7LD)	8-97133-800-0	01	1	9608-	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ>	8-97807-295-3	01	1	9112-9208	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97807-295-3	01	1	9112-9208	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ>	8-97808-632-2	01	1	9209-9308	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97808-632-2	01	1	9209-9308	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> CHILE EQUIPMENT(6KB) EXC. REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97808-490-6	01	1	9309-9504	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> CHILE EQUIPMENT(6KB)	8-97808-490-6	01	1	9309-9504	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> CHILE EQUIPMENT(6KB) RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97130-165-0	01	1	9505-9506	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97130-165-0	01	1	9507-	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. ANTI THEFT<UA6>	8-97807-297-3	01	1	9112-9208	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> EXC. REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y>,ANTI THEFT<UA6>	8-97807-572-1	01	1	9112-9208	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> EXC. REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y>,CHILE EQUIPMENT(6KB)	8-97808-632-4	01	1	9309-9504	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. CHILE EQUIPMENT(6KB)	8-97808-632-4	01	1	9309-9504	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. CHILE EQUIPMENT(6KB)	8-97130-167-0	01	1	9505-9506	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97130-167-0	01	1	9507-9607	●	●
334	HARNESS; CABLE,BACK DOOR AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97133-798-0	01	1	9608-	●	●
334	HARNESS; CABLE,BACK DOOR CHILE EQUIPMENT(6KB) EXC. AUTO DOOR LOCK<AU4>,RR WIPER<C25>,REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ>	8-97808-493-3	01	1	9309-9504	●	●
334	HARNESS; CABLE,BACK DOOR CHILE EQUIPMENT(6KB) EXC. AUTO DOOR LOCK<AU4>,RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ>	8-97808-493-3	01	1	9505-9506	●	●
334	HARNESS; CABLE,BACK DOOR CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. AUTO DOOR LOCK<AU4>,RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER W/INTERMITTENT<6WJ>	8-97808-493-3	01	1	9507-	●	●
334	HARNESS; CABLE,BACK DOOR REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> ANTI THEFT<UA6> EXC. RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ>	8-97808-699-0	01	1	9202-9208	●	●
334	HARNESS; CABLE,BACK DOOR REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>,RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ>	8-94359-019-3	01	1	9112-9208	●	●
334	HARNESS; CABLE,BACK DOOR EXC. RR LICENSE BACK DOOR<S8Z>	8-94359-020-4	01	1	9112-9607	●	●
334	HARNESS; CABLE,BACK DOOR EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-94359-020-4	01	1	9608-	●	●
334	HARNESS; CABLE,BACK DOOR RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> ANTI THEFT<UA6> EXC. REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97808-700-0	01	1	9202-9208	●	●
334	HARNESS; CABLE,BACK DOOR RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97804-773-4	01	1	9112-9208	●	●
334	HARNESS; CABLE,BACK DOOR RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y>,CHILE EQUIPMENT(6KB)	8-97808-634-3	01	1	9209-9504	●	●
334	HARNESS; CABLE,BACK DOOR REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>,CHILE EQUIPMENT(6KB)	8-97808-634-3	01	1	9209-9504	●	●
334	HARNESS; CABLE,BACK DOOR RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>,CHILE EQUIPMENT(6KB)	8-97808-634-3	01	1	9505-9506	●	●
334	HARNESS; CABLE,BACK DOOR RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>,CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97808-634-3	01	1	9507-9607	●	●
334	HARNESS; CABLE,BACK DOOR RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>,CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97133-799-0	01	1	9608-	●	●
334	HARNESS; CABLE,BACK DOOR RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> CHILE EQUIPMENT(6KB) EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y>	8-97808-491-5	01	1	9309-9504	●	●
334	HARNESS; CABLE,BACK DOOR REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> CHILE EQUIPMENT(6KB) EXC. AUTO DOOR LOCK<AU4>	8-97808-491-5	01	1	9309-9504	●	●
334	HARNESS; CABLE,BACK DOOR CHILE EQUIPMENT(6KB) RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>	8-97808-491-5	01	1	9505-9506	●	●
334	HARNESS; CABLE,BACK DOOR CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>	8-97808-491-5	01	1	9507-	●	●
334	HARNESS; CABLE,BACK DOOR RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>	8-97807-296-3	01	1	9112-9208	●	●
335	HARNESS; CABLE,DOOR SW	8-97806-184-2	01	1	9112-9208	●
335	HARNESS; CABLE,DOOR SW	8-97808-920-1	01	1	9209-	●
342	HARNESS; EXT,LICENSE LAMP RR LICENSE BACK DOOR<S8Z>	8-97803-277-2	01	1	9112-9607	●	●
347	HARNESS; CABLE,RR BODY EUROPE/CANARY EQUIPMENT(EK4)	8-97807-557-1	01	1	9112-9208	●
347	HARNESS; CABLE,RR BODY EUROPE/CANARY EQUIPMENT(EK4)	8-97808-590-2	01	1	9209-9308	●
347	HARNESS; CABLE,RR BODY EUROPE/CANARY EQUIPMENT(EK4)	8-97809-950-1	01	1	9309-9504	●
347	HARNESS; CABLE,RR BODY EUROPE/CANARY EQUIPMENT(EK4)	8-97116-306-1	01	1	9505-9607	●
347	HARNESS; CABLE,RR BODY EUROPE/CANARY EQUIPMENT(EK4)	8-97144-829-1	01	1	9608-	●
347	HARNESS; CABLE,RR BODY EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97807-559-1	01	1	9112-9208	●
347	HARNESS; CABLE,RR BODY EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97808-487-2	01	1	9209-9308	●
347	HARNESS; CABLE,RR BODY EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97809-948-2	01	1	9309-9504	●
347	HARNESS; CABLE,RR BODY EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97123-819-0	01	1	9505-9607	●
347	HARNESS; CABLE,RR BODY EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97144-827-1	01	1	9608-	●
347	HARNESS; CABLE,RR BODY EUROPE/CANARY EQUIPMENT(EK4)	8-97807-556-1	01	1	9112-9208		●
347	HARNESS; CABLE,RR BODY EUROPE/CANARY EQUIPMENT(EK4)	8-97808-589-2	01	1	9209-9308		●
347	HARNESS; CABLE,RR BODY EUROPE/CANARY EQUIPMENT(EK4)	8-97809-949-1	01	1	9309-9504		●
347	HARNESS; CABLE,RR BODY EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-97130-175-0	01	1	9505-9607		●
347	HARNESS; CABLE,RR BODY EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-97144-826-1	01	1	9608-		●
347	HARNESS; CABLE,RR BODY EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97807-558-1	01	1	9112-9208		●
347	HARNESS; CABLE,RR BODY EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97808-486-2	01	1	9209-9308		●
347	HARNESS; CABLE,RR BODY EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97810-811-0	01	1	9309-9504		●
347	HARNESS; CABLE,RR BODY EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-97130-173-0	01	1	9505-9607		●
347	HARNESS; CABLE,RR BODY EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-97144-824-1	01	1	9608-		●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> EXC. POWER WINDOW<A30>	8-97808-248-0	01	1	9112-9208	●	●
370	HARNESS; CABLE,FRT DOOR ANTI THEFT<UA6> EXC. POWER WINDOW<A30>	8-97808-248-4	01	1	9209-9504	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> EXC. POWER WINDOW<A30>	8-97808-253-0	01	1	9112-9208	●	●
370	HARNESS; CABLE,FRT DOOR ANTI THEFT<UA6> EXC. POWER WINDOW<A30>	8-97808-253-4	01	1	9209-9504	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> POWER WINDOW<A30> ANTI THEFT<UA6>	8-97808-246-4	01	1	9112-9504	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> ANTI THEFT<UA6>	8-97130-148-0	01	1	9505-	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> POWER WINDOW<A30> ANTI THEFT<UA6>	8-97808-251-4	01	1	9112-9504	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> ANTI THEFT<UA6>	8-97130-150-0	01	1	9505-9607	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> ANTI THEFT<UA6>	8-97133-801-0	01	1	9608-	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. ANTI THEFT<UA6>,DOOR MIRROR ELEC FOLDING W/DEF(6MK)	8-97808-245-4	01	1	9112-9504	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. ANTI THEFT<UA6>,DOOR MIRROR ELEC FOLDING W/DEF(6MK)	8-97808-250-4	01	1	9112-9504	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> POWER WINDOW<A30> DOOR MIRROR ELEC FOLDING W/DEF(6MK) EXC. ANTI THEFT<UA6>	8-97808-244-4	01	1	9112-9504	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6>	8-97130-149-0	01	1	9505-	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> POWER WINDOW<A30> DOOR MIRROR ELEC FOLDING W/DEF(6MK) EXC. ANTI THEFT<UA6>	8-97808-249-4	01	1	9112-9504	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6>	8-97130-151-0	01	1	9505-9607	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6>	8-97133-802-0	01	1	9608-	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A30>,ANTI THEFT<UA6>	8-97808-247-4	01	1	9112-9504	●	●
370	HARNESS; CABLE,FRT DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A30>,ANTI THEFT<UA6>	8-97808-252-4	01	1	9112-9504	●	●

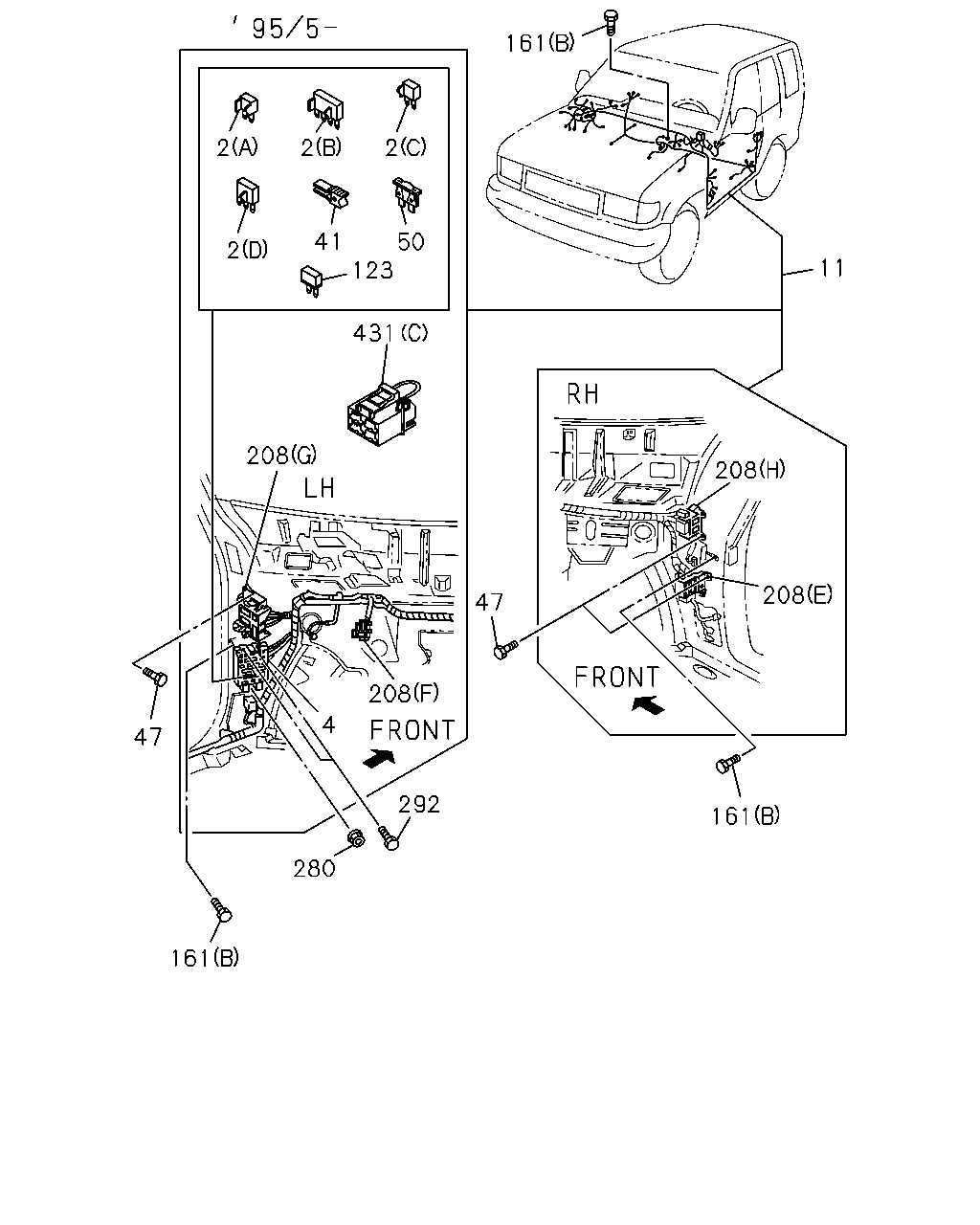

161 2 2 2 41 50 123 2 11 431 208 208 208 47 208 4 47 292 161 280 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94416-438-1	AR	1	9112-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 4P-1.5A	8-94416-440-1	AR	1	9112-	●	●
2	DIODE; CABLE HARNESS (C) BLACK 2P-1.5A	8-94422-639-1	AR	1	9112-	●	●
2	DIODE; CABLE HARNESS (D) BLACK 3P-1.5A	8-94422-640-1	AR	1	9112-	●	●
4	BOX ASM; FUSE,HARNESS	8-97801-563-1	01	1	9112-9308	●	●
4	BOX ASM; FUSE,HARNESS	8-97803-983-2	01	1	9309-9504	●	●
4	BOX ASM; FUSE,HARNESS	8-97808-883-1	01	1	9505-	●	●
11	HARNESS; BODY 4JG1 ENG(RLT) M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6>	8-97808-002-0	01	1	9112-9205	●	●
11	HARNESS; BODY 4JG1 ENG(RLT) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6>	8-97809-439-0	01	1	9206-9208	●	●
11	HARNESS; BODY 4JG1 ENG(RLT) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6>	8-97808-449-4	01	1	9209-9308	●	●
11	HARNESS; BODY 4JG1 ENG(RLT) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6>	8-97810-620-1	01	1	9309-9504	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EXC. SAUDI ARABIA EQUIPMENT(EU2),ANTI THEFT<UA6>	8-97130-144-2	01	1	9505-9607	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EXC. SAUDI ARABIA EQUIPMENT(EU2),ANTI THEFT<UA6>	8-97160-332-0	01	1	9608-	●	●
11	HARNESS; BODY 4JG1 ENG(RLT) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6>	8-97809-440-0	01	1	9206-9208	●	●
11	HARNESS; BODY 4JG1 ENG(RLT) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6>	8-97808-450-4	01	1	9209-9308	●	●
11	HARNESS; BODY 4JG1 ENG(RLT) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6>	8-97810-621-1	01	1	9309-9504	●	●
11	HARNESS; BODY 4JG1 ENG(RLT) EXC. SAUDI ARABIA EQUIPMENT(EU2),ANTI THEFT<UA6>	8-97808-008-2	01	1	9112-9208	●	●
11	HARNESS; BODY 4JG1 ENG(RLT) EXC. SAUDI ARABIA EQUIPMENT(EU2),ANTI THEFT<UA6>	8-97808-309-3	01	1	9209-9308	●	●
11	HARNESS; BODY 4JG1 ENG(RLT) EXC. SAUDI ARABIA EQUIPMENT(EU2),ANTI THEFT<UA6>	8-97810-623-1	01	1	9309-9504	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI THEFT<UA6> -920906	8-97808-315-3	01	1	9209-9209	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI THEFT<UA6> 920907-	8-97809-119-0	01	1	9209-9308	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI THEFT<UA6>	8-97810-616-1	01	1	9309-9504	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6>	8-97130-145-2	01	1	9505-9607	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6>	8-97160-333-0	01	1	9608-	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI THEFT<UA6>	8-97808-006-0	01	1	9112-9208	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI THEFT<UA6>	8-97808-308-4	01	1	9209-9308	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI THEFT<UA6>	8-97810-617-1	01	1	9309-9504	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6>	8-97130-146-2	01	1	9505-9607	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6>	8-97160-334-0	01	1	9608-	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97808-009-0	01	1	9112-9208	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97808-310-3	01	1	9209-9308	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97810-622-1	01	1	9309-9504	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) ANTI THEFT<UA6> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97130-143-2	01	1	9505-9607	●	●
11	HARNESS; BODY 4JG2 ENG(RJC) ANTI THEFT<UA6> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97160-331-0	01	1	9608-	●	●
11	HARNESS; BODY 4ZE1 ENG(RLJ)	8-97808-001-0	01	1	9112-9208	●	●
11	HARNESS; BODY 4ZE1 ENG(RLJ)	8-97808-306-3	01	1	9209-9308	●	●
11	HARNESS; BODY 4ZE1 ENG(RLJ)	8-97810-624-1	01	1	9309-9504	●	●
11	HARNESS; BODY 4ZE1 ENG(RLJ)	8-97130-147-1	01	1	9505-9607	●	●
11	HARNESS; BODY 4ZE1 ENG(RLJ)	8-97160-335-0	01	1	9608-	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) ANTI THEFT<UA6>	8-97808-004-0	01	1	9112-9205	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) ANTI THEFT<UA6> EXC. SAUDI ARABIA EQUIPMENT(EU2) -920906	8-97808-314-3	01	1	9209-9209	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) ANTI THEFT<UA6> EXC. SAUDI ARABIA EQUIPMENT(EU2) 920907-	8-97809-118-1	01	1	9209-9308	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) ANTI THEFT<UA6> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97810-614-1	01	1	9309-9504	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) ANTI THEFT<UA6> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97130-139-2	01	1	9505-9607	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) ANTI THEFT<UA6> EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97160-327-0	01	1	9608-9612	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) ANTI THEFT<UA6> EXC. SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U)	8-97160-327-0	01	1	9701-	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6>	8-97808-447-4	01	1	9206-9308	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6>	8-97810-618-1	01	1	9309-9504	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6>	8-97130-141-2	01	1	9505-9607	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6>	8-97160-329-0	01	1	9608-	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6>	8-97808-448-4	01	1	9206-9308	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6>	8-97810-619-1	01	1	9309-9504	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6>	8-97130-142-2	01	1	9505-9607	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6>	8-97160-330-0	01	1	9608-	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) EXC. SAUDI ARABIA EQUIPMENT(EU2),ANTI THEFT<UA6>	8-97808-005-2	01	1	9112-9208	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) EXC. SAUDI ARABIA EQUIPMENT(EU2),ANTI THEFT<UA6>	8-97808-307-4	01	1	9209-9308	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) EXC. SAUDI ARABIA EQUIPMENT(EU2),ANTI THEFT<UA6>	8-97810-615-1	01	1	9309-9504	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) EXC. SAUDI ARABIA EQUIPMENT(EU2),ANTI THEFT<UA6>	8-97130-140-2	01	1	9505-9607	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) EXC. SAUDI ARABIA EQUIPMENT(EU2),ANTI THEFT<UA6>	8-97160-328-0	01	1	9608-9612	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) EXC. SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),ANTI THEFT<UA6>	8-97160-328-0	01	1	9701-	●	●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) PHILIPPINE EQUIPMENT(S2U) ANTI THEFT<UA6>	8-97173-097-0	01	1	9701-		●
11	HARNESS; BODY 6VD1 SOHC ENG(RLU) PHILIPPINE EQUIPMENT(S2U) EXC. ANTI THEFT<UA6>	8-97173-098-0	01	1	9701-		●
41	PULLER; FUSE L=31.0 B=10.0	8-94369-144-0	01	1	9112-	●	●
47	BOLT; JUNCTION BLOCK M6X18 W/LK&PL WASHER	0-50140-618-0	05	1	9505-9704	●	●
50	FUSE; BODY HARNESS 10A RED	5-82516-002-0	AR	1	9112-	●	●
50	FUSE; BODY HARNESS 15A BLUE	5-82516-003-0	AR	1	9112-	●	●
50	FUSE; BODY HARNESS 20A YELLOW	5-82516-004-0	AR	1	9112-	●	●
50	FUSE; BODY HARNESS 25A CLEAR	5-82516-005-0	AR	1	9112-	●	●
50	FUSE; BODY HARNESS 7.5A BROWN	8-94159-007-0	AR	1	9112-	●	●
123	BREAKER; CIRCUIT	8-97011-745-0	01	1	9112-9308	●	●
123	BREAKER; CIRCUIT	8-97011-746-0	01	1	9309-9504	●	●
123	BREAKER; CIRCUIT	8-97106-113-0	01	1	9505-	●	●
161	BOLT; GROUND,HARNESS (B) M6X14 W/LK&PL WASHER	8-97086-822-0	06	1	9112-9607	●	●
161	BOLT; GROUND,HARNESS (B) M6X14 W/LK&PL WASHER	8-97086-822-0	05	1	9608-	●	●
161	BOLT; GROUND,HARNESS (A) M6X20	8-94412-422-0	03	1	9505-	●	●
161	BOLT; GROUND,HARNESS ANTI LOCK BRAKE(JE5) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-9607	●	●
161	BOLT; GROUND,HARNESS ANTI LOCK BRAKE(JE5) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9608-	●	●
161	BOLT; GROUND,HARNESS 4ZE1 ENG(RLJ) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9608-	●	●
161	BOLT; GROUND,HARNESS 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	9608-	●	●
208	HOLDER; CONNECTOR (A)	8-97801-050-1	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (F)	8-97105-295-1	01	1	9505-	●	●
208	HOLDER; CONNECTOR (B)	8-97801-051-0	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (G)	8-97808-879-2	01	1	9505-	●	●
208	HOLDER; CONNECTOR (C)	8-97801-052-0	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (H)	8-97808-880-0	01	1	9505-	●	●
208	HOLDER; CONNECTOR (D)	8-97801-062-1	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (E)	8-97808-881-1	01	1	9505-	●	●
208	HOLDER; CONNECTOR AIR BAG DRIVER<AJ3> (I)	8-97111-319-0	01	1	9608-	●	●
280	NUT; BOX ASM FIX M6 FLANGE	0-91150-106-0	01	1	9505-9704	●	●
280	NUT; BOX ASM FIX M6 FLANGE	8-97063-399-0	01	1	9705-	●	●
292	BOLT; BOX M6X18 W/LK&PL WASHER	0-50140-618-0	02	1	9505-9704	●	●
292	BOLT; BOX M6X16 FLANGE	0-28080-616-0	07	1	9705-	●	●
431	CONNECTOR; JOINT (A)EARTH JOINT	8-97805-765-0	02	1	9112-9504	●	●
431	CONNECTOR; JOINT (A)EARTH JOINT	8-97805-765-0	01	1	9505-	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER<AJ3> (D)	8-97125-467-0	01	1	9608-9609	●	●
431	CONNECTOR; JOINT 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)ABS SENSOR	8-97093-517-0	01	1	9306-9504	●	●
431	CONNECTOR; JOINT 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) (B)ABS SENSOR	8-97093-517-0	01	1	9306-9504	●	●
431	CONNECTOR; JOINT 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) (B)ABS SENSOR	8-97111-448-0	01	1	9505-9508	●	●
431	CONNECTOR; JOINT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI LOCK BRAKE(JE5) (B)ABS SENSOR	8-97111-448-0	01	1	9505-9508	●	●
431	CONNECTOR; JOINT 6VD1 SOHC ENG(RLU) A/T THM(RMQ) (B)ABS SENSOR	8-97111-448-0	01	1	9509-9607	●	●
431	CONNECTOR; JOINT 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) ANTI LOCK BRAKE(JE5) (B)ABS SENSOR	8-97111-448-0	01	1	9509-9607	●	●
431	CONNECTOR; JOINT 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) (B)ABS SENSOR	8-97111-448-0	01	1	9608-	●	●
431	CONNECTOR; JOINT 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EXC. AIR BAG DRIVER<AJ3> (C)	8-97133-712-0	01	1	9608-	●	●

253 253

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	253	HARNESS; EXT,HORN DUAL TONE HORN<U05> CHINA EQUIPMENT(YT2)	8-97102-569-0	01	1	9306-9607		●
	253	HARNESS; EXT,HORN CHINA EQUIPMENT(YT2)	8-97102-569-0	01	1	9306-9607		●

411 244 415 244 251 251 242 244 242 244 244 251 415 411 242 242 411

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
242	CABLE; BONDING,ENG TO BODY 4ZE1 ENG(RLJ)	8-94318-918-1	01	1	9112-	●	●
242	CABLE; BONDING,ENG TO BODY 6VD1 SOHC ENG(RLU)	8-97033-280-1	01	1	9112-9112	●	●
242	CABLE; BONDING,ENG TO BODY 6VD1 SOHC ENG(RLU)	8-97074-825-1	01	1	9201-	●	●
242	CABLE; BONDING,ENG TO BODY 6VD1 SOHC ENG(RLU)	8-97033-281-1	01	1	9112-9401	●	●
242	CABLE; BONDING,ENG TO BODY 6VD1 SOHC ENG(RLU)	8-97084-314-0	01	1	9402-9406	●	●
242	CABLE; BONDING,ENG TO BODY 6VD1 SOHC ENG(RLU)	8-94126-755-0	01	1	9407-	●	●
244	BOLT; GRAND BONDING CABLE AIR BAG DRIVER<AJ3> (C) M6X14 W/LK&PL WASHER	8-97119-479-0	01	1	9608-	●	●
244	BOLT; GRAND BONDING CABLE 6VD1 SOHC ENG(RLU) (A) M6X12	0-28010-612-0	02	1	9112-9204	●	●
244	BOLT; GRAND BONDING CABLE 6VD1 SOHC ENG(RLU) (A) M6X12 FLANGE	0-28080-612-0	02	1	9205-	●	●
244	BOLT; GRAND BONDING CABLE 6VD1 SOHC ENG(RLU) (B) M6X14	8-94153-946-0	01	1	9209-9308	●	●
244	BOLT; GRAND BONDING CABLE 6VD1 SOHC ENG(RLU) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9309-	●	●
244	BOLT; GRAND BONDING CABLE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) M6X40	8-94370-153-0	01	1	9112-9112	●	●
244	BOLT; GRAND BONDING CABLE 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) M6X14	8-94153-946-0	01	1	9112-9112	●	●
244	BOLT; GRAND BONDING CABLE 6VD1 SOHC ENG(RLU) (B) M6X14	8-94153-946-0	01	1	9201-9208	●	●
251	WASHER; PL,BONDING CABLE 6VD1 SOHC ENG(RLU) ID=6.4 OD=18	9-09160-706-0	02	1	9307-	●	●
411	TERMINAL; MALE,EARTH BONDING CABLE 4ZE1 ENG(RLJ) (C)	8-94371-711-0	01	1	9112-	●	●
411	TERMINAL; MALE,EARTH BONDING CABLE 6VD1 SOHC ENG(RLU) (A)	8-97033-282-0	01	1	9112-9112	●	●
411	TERMINAL; MALE,EARTH BONDING CABLE 6VD1 SOHC ENG(RLU) (B)	8-94102-644-0	01	1	9201-9401	●	●
411	TERMINAL; MALE,EARTH BONDING CABLE 6VD1 SOHC ENG(RLU) (B)	8-94102-644-0	02	1	9402-9607	●	●
411	TERMINAL; MALE,EARTH BONDING CABLE 6VD1 SOHC ENG(RLU) (B)	8-94102-644-0	01	1	9608-	●	●
415	BOLT; CABLE,BONDING 4ZE1 ENG(RLJ) M8X14 W/LK WASHER	9-01900-814-0	01	1	9112-9204	●	●
415	BOLT; CABLE,BONDING 4ZE1 ENG(RLJ) M8X14 W/LK WASHER	0-50040-814-0	01	1	9205-9504	●	●
415	BOLT; CABLE,BONDING 4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) M8X14 W/LK WASHER	0-50040-814-0	01	1	9505-9509	●	●
415	BOLT; CABLE,BONDING 4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) M8X12 FLANGE	0-28080-812-0	01	1	9510-	●	●
415	BOLT; CABLE,BONDING 6VD1 SOHC ENG(RLU) M6X14	8-94153-946-0	01	1	9112-9201	●	●
415	BOLT; CABLE,BONDING 6VD1 SOHC ENG(RLU) M8X22	8-94122-771-0	01	1	9202-9308	●	●
415	BOLT; CABLE,BONDING 6VD1 SOHC ENG(RLU) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9309-	●	●
415	BOLT; CABLE,BONDING 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9309-	●	●

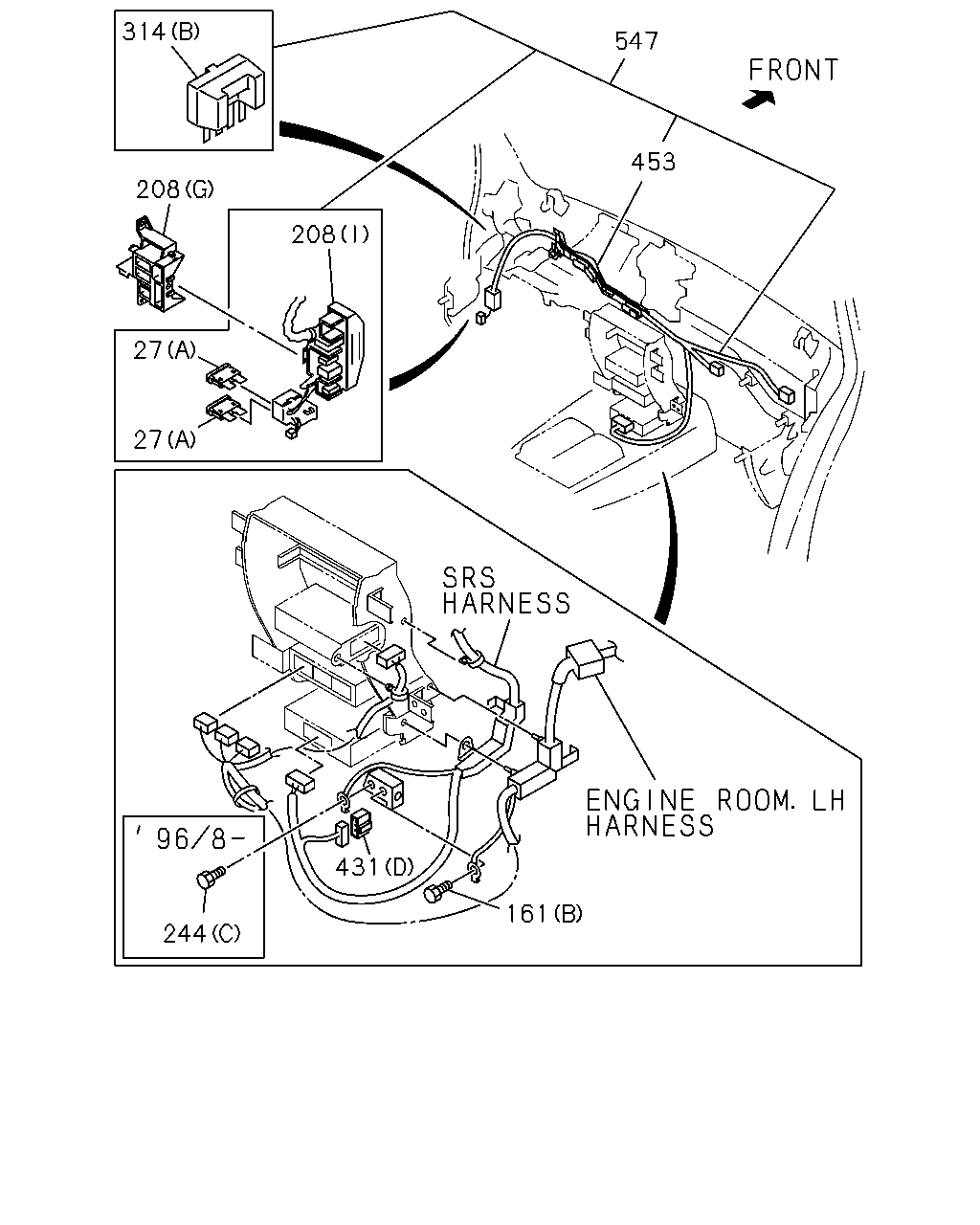

314 547 453 208 208 27 27 431 161 244

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	FUSE UNIT (A) 10A RED	5-82516-002-0	AR	1	9112-	●	●
27	FUSE UNIT (A) 15A BLUE	5-82516-003-0	AR	1	9112-	●	●
27	FUSE UNIT (A) 20A YELLOW	5-82516-004-0	AR	1	9112-	●	●
27	FUSE UNIT (A) 25A CLEAR	5-82516-005-0	AR	1	9112-	●	●
27	FUSE UNIT (A) 7.5A BROWN	8-94159-007-0	AR	1	9112-9504	●	●
27	FUSE UNIT (C) 50A RED	8-94388-302-0	AR	1	9112-	●	●
27	FUSE UNIT (C) 80A BLACK	8-94388-305-0	AR	1	9112-	●	●
27	FUSE UNIT (B) 30A PINK	8-94468-661-0	AR	1	9112-	●	●
27	FUSE UNIT (B) 40A GREEN	8-94468-662-0	AR	1	9112-	●	●
27	FUSE UNIT (B) 50A RED	8-94468-663-0	AR	1	9112-	●	●
161	BOLT; GROUND,HARNESS (B) M6X14 W/LK&PL WASHER	8-97086-822-0	06	1	9112-9607	●	●
161	BOLT; GROUND,HARNESS (B) M6X14 W/LK&PL WASHER	8-97086-822-0	05	1	9608-	●	●
161	BOLT; GROUND,HARNESS (A) M6X20	8-94412-422-0	03	1	9505-	●	●
161	BOLT; GROUND,HARNESS ANTI LOCK BRAKE(JE5) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-9607	●	●
161	BOLT; GROUND,HARNESS ANTI LOCK BRAKE(JE5) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9608-	●	●
161	BOLT; GROUND,HARNESS 4ZE1 ENG(RLJ) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9608-	●	●
161	BOLT; GROUND,HARNESS 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	9608-	●	●
208	HOLDER; CONNECTOR (A)	8-97801-050-1	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (F)	8-97105-295-1	01	1	9505-	●	●
208	HOLDER; CONNECTOR (B)	8-97801-051-0	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (G)	8-97808-879-2	01	1	9505-	●	●
208	HOLDER; CONNECTOR (C)	8-97801-052-0	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (H)	8-97808-880-0	01	1	9505-	●	●
208	HOLDER; CONNECTOR (D)	8-97801-062-1	01	1	9112-9504	●	●
208	HOLDER; CONNECTOR (E)	8-97808-881-1	01	1	9505-	●	●
208	HOLDER; CONNECTOR AIR BAG DRIVER<AJ3> (I)	8-97111-319-0	01	1	9608-	●	●
244	BOLT; GRAND BONDING CABLE AIR BAG DRIVER<AJ3> (C) M6X14 W/LK&PL WASHER	8-97119-479-0	01	1	9608-	●	●
244	BOLT; GRAND BONDING CABLE 6VD1 SOHC ENG(RLU) (A) M6X12	0-28010-612-0	02	1	9112-9204	●	●
244	BOLT; GRAND BONDING CABLE 6VD1 SOHC ENG(RLU) (A) M6X12 FLANGE	0-28080-612-0	02	1	9205-	●	●
244	BOLT; GRAND BONDING CABLE 6VD1 SOHC ENG(RLU) (B) M6X14	8-94153-946-0	01	1	9209-9308	●	●
244	BOLT; GRAND BONDING CABLE 6VD1 SOHC ENG(RLU) (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9309-	●	●
244	BOLT; GRAND BONDING CABLE 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) M6X40	8-94370-153-0	01	1	9112-9112	●	●
244	BOLT; GRAND BONDING CABLE 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) M6X14	8-94153-946-0	01	1	9112-9112	●	●
244	BOLT; GRAND BONDING CABLE 6VD1 SOHC ENG(RLU) (B) M6X14	8-94153-946-0	01	1	9201-9208	●	●
314	RESISTOR; HARNESS AIR BAG DRIVER<AJ3> EXC. AIR BAG PASSENGER<7FA> (B)	8-97133-042-0	01	1	9608-	●	●
314	RESISTOR; HARNESS 4JG1 ENG(RLT) (A)	1-81515-024-0	01	1	9209-9504	●	●
314	RESISTOR; HARNESS 6VD1 SOHC ENG(RLU) A/T THM(RMQ) EXC. ANTI LOCK BRAKE(JE5) (A)	8-97808-503-0	01	1	9112-9203	●	●
314	RESISTOR; HARNESS 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) (A)	8-97808-503-0	01	1	9112-9203	●	●
314	RESISTOR; HARNESS 6VD1 SOHC ENG(RLU) (A)	8-97808-503-0	01	1	9204-	●	●
314	RESISTOR; HARNESS 6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) EXC. ANTI LOCK BRAKE(JE5) (A)	8-97807-566-0	01	1	9112-9203	●	●
431	CONNECTOR; JOINT (A)EARTH JOINT	8-97805-765-0	02	1	9112-9504	●	●
431	CONNECTOR; JOINT (A)EARTH JOINT	8-97805-765-0	01	1	9505-	●	●
431	CONNECTOR; JOINT AIR BAG DRIVER<AJ3> (D)	8-97125-467-0	01	1	9608-9609	●	●
431	CONNECTOR; JOINT 4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) (B)ABS SENSOR	8-97093-517-0	01	1	9306-9504	●	●
431	CONNECTOR; JOINT 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) (B)ABS SENSOR	8-97093-517-0	01	1	9306-9504	●	●
431	CONNECTOR; JOINT 6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) (B)ABS SENSOR	8-97111-448-0	01	1	9505-9508	●	●
431	CONNECTOR; JOINT 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI LOCK BRAKE(JE5) (B)ABS SENSOR	8-97111-448-0	01	1	9505-9508	●	●
431	CONNECTOR; JOINT 6VD1 SOHC ENG(RLU) A/T THM(RMQ) (B)ABS SENSOR	8-97111-448-0	01	1	9509-9607	●	●
431	CONNECTOR; JOINT 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) M/T MUA 5 SPEED(RMN) ANTI LOCK BRAKE(JE5) (B)ABS SENSOR	8-97111-448-0	01	1	9509-9607	●	●
431	CONNECTOR; JOINT 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) ANTI LOCK BRAKE(JE5) (B)ABS SENSOR	8-97111-448-0	01	1	9608-	●	●
431	CONNECTOR; JOINT 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EXC. AIR BAG DRIVER<AJ3> (C)	8-97133-712-0	01	1	9608-	●	●
453	PROTECTOR; HARNESS AIR BAG DRIVER<AJ3>	8-97111-316-0	01	1	9608-	●	●
547	HARNESS; CABLE,SRS AIR BAG DRIVER<AJ3> AIR BAG PASSENGER<7FA>	8-97160-342-1	01	1	9608-	●	●
547	HARNESS; CABLE,SRS AIR BAG DRIVER<AJ3> EXC. AIR BAG PASSENGER<7FA>	8-97133-804-3	01	1	9608-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
