◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-08 - HEAD LAMP WASHER ▶
8-08 — HEAD LAMP WASHER (#35285) — 54 parça

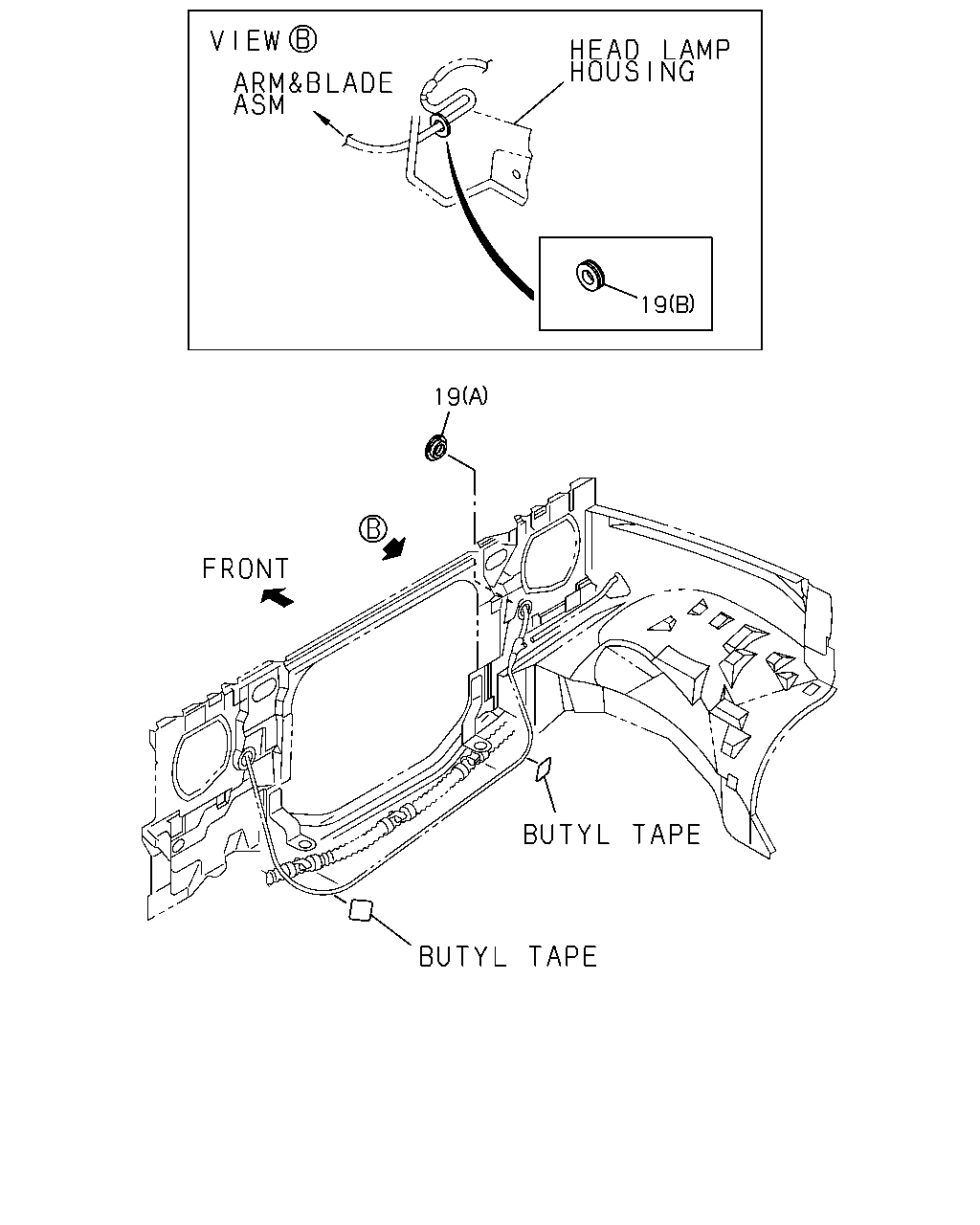

çizim 16074
19 19
BalonParca AdiParca NoAdetTipApplied Date A B
19 GROMMET; HEADLAMP CLEANER HOSE
HEADLAMP WASHER<CE3> (A) ID=30 		8-94142-264-0 01 1 9112- ● ●
19 GROMMET; HEADLAMP CLEANER HOSE
HEADLAMP WASHER<CE3> (B) ID=8 OD=18 T=5 		9-09575-208-0 02 1 9112- ● ●

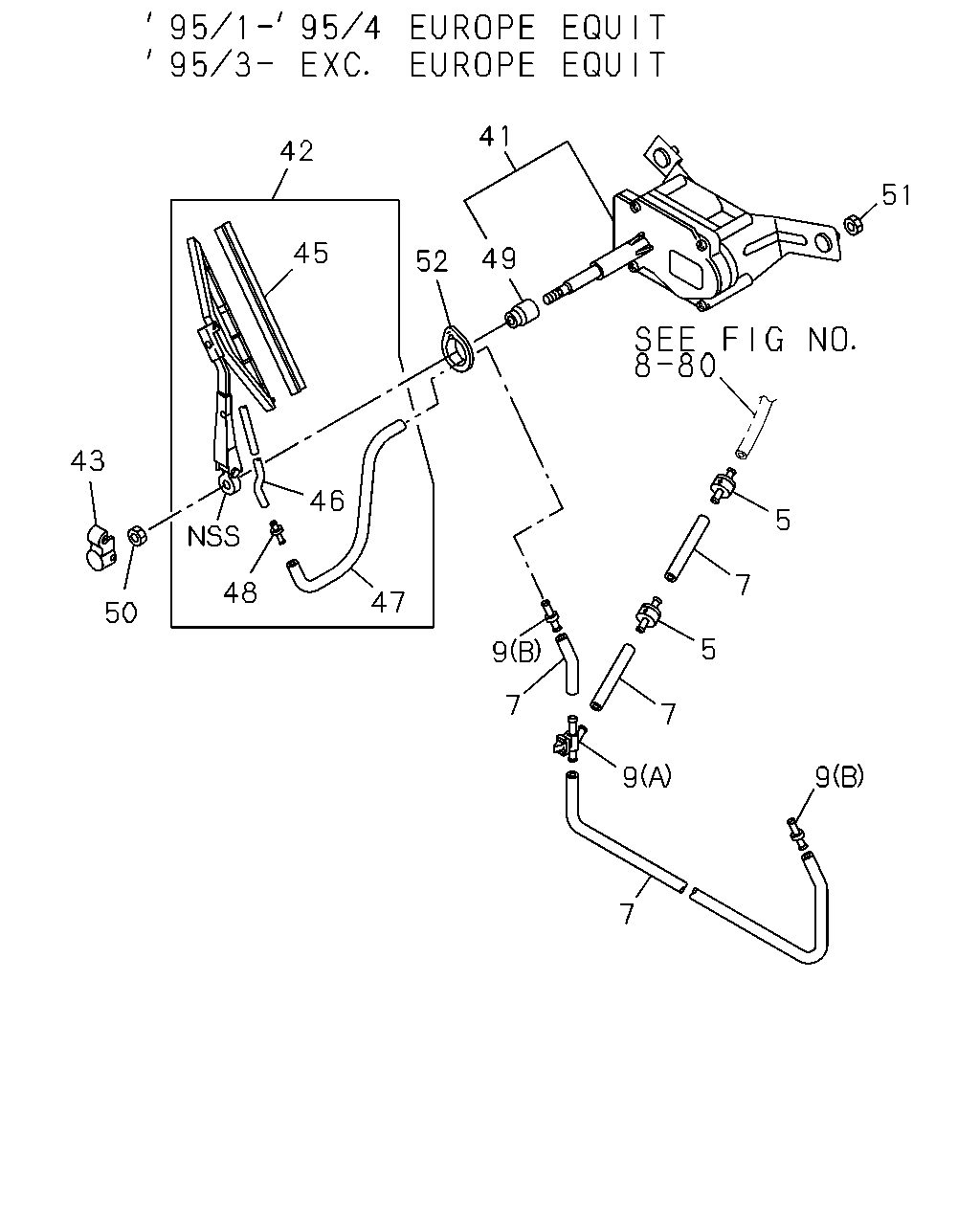

çizim 65489
41 42 51 45 49 52 43 46 5 9 7 48 47 50 5 7 7 9 9 7
BalonParca AdiParca NoAdetTipApplied Date A B
5 VALVE; CHECK,HLC HOSE
HEADLAMP WASHER<CE3> 		8-97807-641-0 02 1 9112-9412 ● ●
5 VALVE; CHECK,HLC HOSE
HEADLAMP WASHER<CE3> EUROPE/CANARY EQUIPMENT(EK4) 		8-97807-641-0 02 1 9501-9504 ● ●
5 VALVE; CHECK,HLC HOSE
HEADLAMP WASHER<CE3> EUROPE/CANARY EQUIPMENT(EK4) 		8-97127-449-0 01 1 9505- ● ●
5 VALVE; CHECK,HLC HOSE
HEADLAMP WASHER<CE3> EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97807-641-0 01 1 9501-9502 ● ●
5 VALVE; CHECK,HLC HOSE
HEADLAMP WASHER<CE3> EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97127-449-0 02 1 9503- ● ●
7 HOSE; HLC
HEADLAMP WASHER<CE3> SERVICED BY L=10000 		9-09914-906-0 01 1 9112- ● ●
9 JOINT; HLC HOSE
HEADLAMP WASHER<CE3> (A) 		8-97807-642-0 01 1 9112- ● ●
9 JOINT; HLC HOSE
HEADLAMP WASHER<CE3> (B) 2WAY 		8-94239-402-0 02 1 9501- ● ●
41 MOTOR & BRACKET ASM; HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-94358-857-4 01 1 9112-9504 ● ●
41 MOTOR & BRACKET ASM; HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-94358-859-4 01 1 9505- ● ●
41 MOTOR & BRACKET ASM; HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-94358-856-4 01 1 9112-9504 ● ●
41 MOTOR & BRACKET ASM; HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-94358-858-4 01 1 9505- ● ●
42 ARM & BLADE ASM; HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-94358-861-1 01 1 9112-9504 ● ●
42 ARM & BLADE ASM; HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-97808-806-0 01 1 9505- ● ●
42 ARM & BLADE ASM; HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-94358-860-1 01 1 9112-9504 ● ●
42 ARM & BLADE ASM; HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-97808-805-0 01 1 9505- ● ●
43 COVER; WIPER ARM,HEAD LAMP
HEADLAMP WASHER<CE3> 		8-94358-864-1 02 1 9112- ● ●
45 RUBBER; BLADE,HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-97807-484-0 02 1 9112- ● ●
46 TUBE; NOZZLE,HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-97807-485-0 02 1 9112- ● ●
47 TUBE; JOINT TO TANK,HEAD LAMP WIPER
HEADLAMP WASHER<CE3> SERVICED BY L=10000 		8-94389-303-0 02 1 9112- ● ●
48 JOINT; TUBE,HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-97807-487-0 02 1 9112- ● ●
49 SEAL; PIVOT,HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-97807-339-0 02 1 9112- ● ●
50 NUT; WIPER ARM,HEAD LAMP
HEADLAMP WASHER<CE3> M5 		9-99111-405-0 02 1 9112-9212 ● ●
50 NUT; WIPER ARM,HEAD LAMP
HEADLAMP WASHER<CE3> 		1-09400-075-0 02 1 9301- ● ●
51 NUT; MOTOR,HEAD LAMP WIPER
HEADLAMP WASHER<CE3> M6 FLANGE 		0-91150-106-0 04 1 9112- ● ●
52 PROTECTOR; WIPER,HEAD LAMP
HEADLAMP WASHER<CE3> 		8-97802-918-0 02 1 9112- ● ●

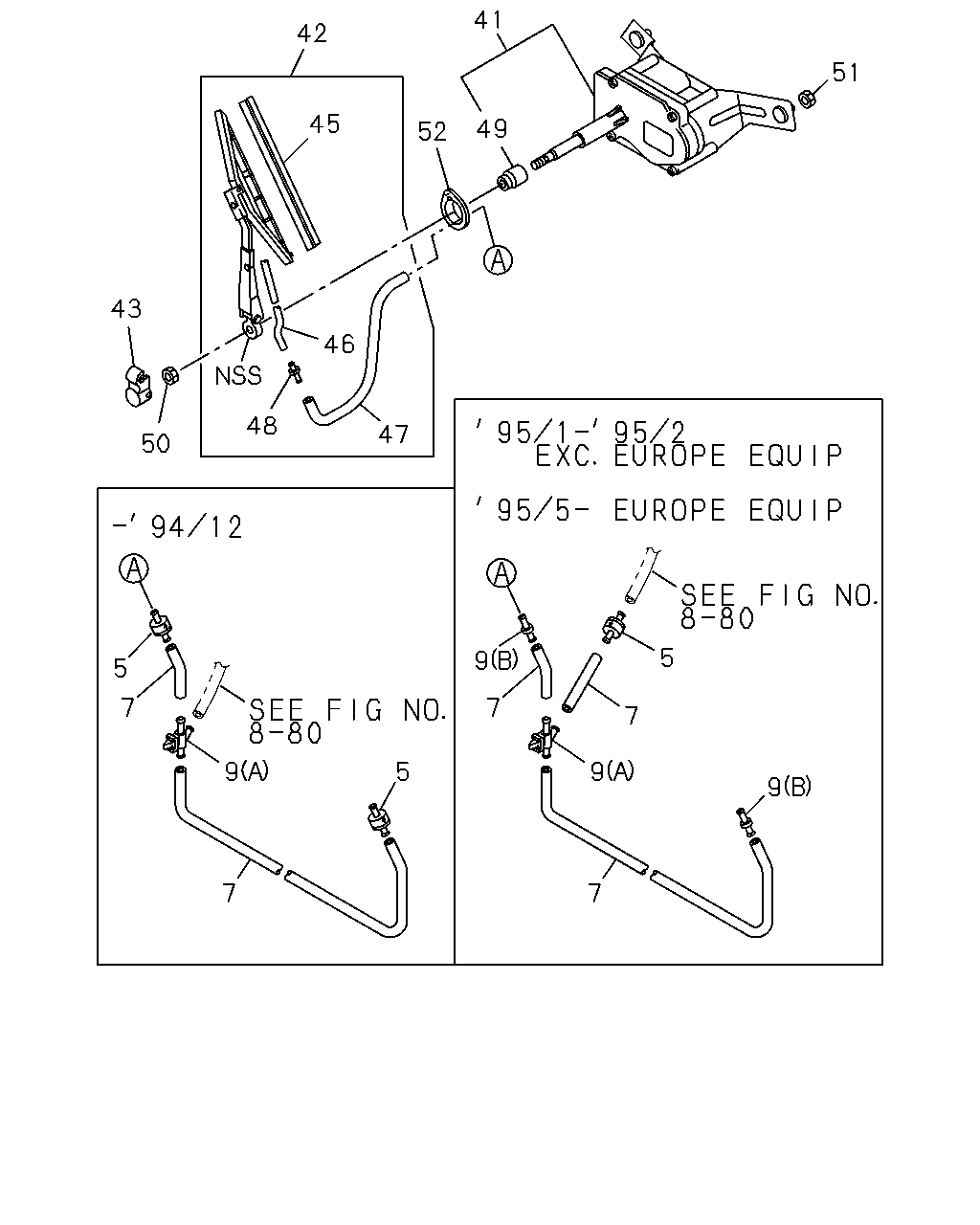

çizim 65842
41 42 51 45 49 52 43 46 48 47 50 9 5 5 7 7 9 7 9 5 9 7 7
BalonParca AdiParca NoAdetTipApplied Date A B
5 VALVE; CHECK,HLC HOSE
HEADLAMP WASHER<CE3> 		8-97807-641-0 02 1 9112-9412 ● ●
5 VALVE; CHECK,HLC HOSE
HEADLAMP WASHER<CE3> EUROPE/CANARY EQUIPMENT(EK4) 		8-97807-641-0 02 1 9501-9504 ● ●
5 VALVE; CHECK,HLC HOSE
HEADLAMP WASHER<CE3> EUROPE/CANARY EQUIPMENT(EK4) 		8-97127-449-0 01 1 9505- ● ●
5 VALVE; CHECK,HLC HOSE
HEADLAMP WASHER<CE3> EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97807-641-0 01 1 9501-9502 ● ●
5 VALVE; CHECK,HLC HOSE
HEADLAMP WASHER<CE3> EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97127-449-0 02 1 9503- ● ●
7 HOSE; HLC
HEADLAMP WASHER<CE3> SERVICED BY L=10000 		9-09914-906-0 01 1 9112- ● ●
9 JOINT; HLC HOSE
HEADLAMP WASHER<CE3> (A) 		8-97807-642-0 01 1 9112- ● ●
9 JOINT; HLC HOSE
HEADLAMP WASHER<CE3> (B) 2WAY 		8-94239-402-0 02 1 9501- ● ●
41 MOTOR & BRACKET ASM; HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-94358-857-4 01 1 9112-9504 ● ●
41 MOTOR & BRACKET ASM; HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-94358-859-4 01 1 9505- ● ●
41 MOTOR & BRACKET ASM; HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-94358-856-4 01 1 9112-9504 ● ●
41 MOTOR & BRACKET ASM; HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-94358-858-4 01 1 9505- ● ●
42 ARM & BLADE ASM; HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-94358-861-1 01 1 9112-9504 ● ●
42 ARM & BLADE ASM; HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-97808-806-0 01 1 9505- ● ●
42 ARM & BLADE ASM; HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-94358-860-1 01 1 9112-9504 ● ●
42 ARM & BLADE ASM; HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-97808-805-0 01 1 9505- ● ●
43 COVER; WIPER ARM,HEAD LAMP
HEADLAMP WASHER<CE3> 		8-94358-864-1 02 1 9112- ● ●
45 RUBBER; BLADE,HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-97807-484-0 02 1 9112- ● ●
46 TUBE; NOZZLE,HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-97807-485-0 02 1 9112- ● ●
47 TUBE; JOINT TO TANK,HEAD LAMP WIPER
HEADLAMP WASHER<CE3> SERVICED BY L=10000 		8-94389-303-0 02 1 9112- ● ●
48 JOINT; TUBE,HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-97807-487-0 02 1 9112- ● ●
49 SEAL; PIVOT,HEAD LAMP WIPER
HEADLAMP WASHER<CE3> 		8-97807-339-0 02 1 9112- ● ●
50 NUT; WIPER ARM,HEAD LAMP
HEADLAMP WASHER<CE3> M5 		9-99111-405-0 02 1 9112-9212 ● ●
50 NUT; WIPER ARM,HEAD LAMP
HEADLAMP WASHER<CE3> 		1-09400-075-0 02 1 9301- ● ●
51 NUT; MOTOR,HEAD LAMP WIPER
HEADLAMP WASHER<CE3> M6 FLANGE 		0-91150-106-0 04 1 9112- ● ●
52 PROTECTOR; WIPER,HEAD LAMP
HEADLAMP WASHER<CE3> 		8-97802-918-0 02 1 9112- ● ●
