8-05 — INTERIOR LAMP (#35284) — 67 parça

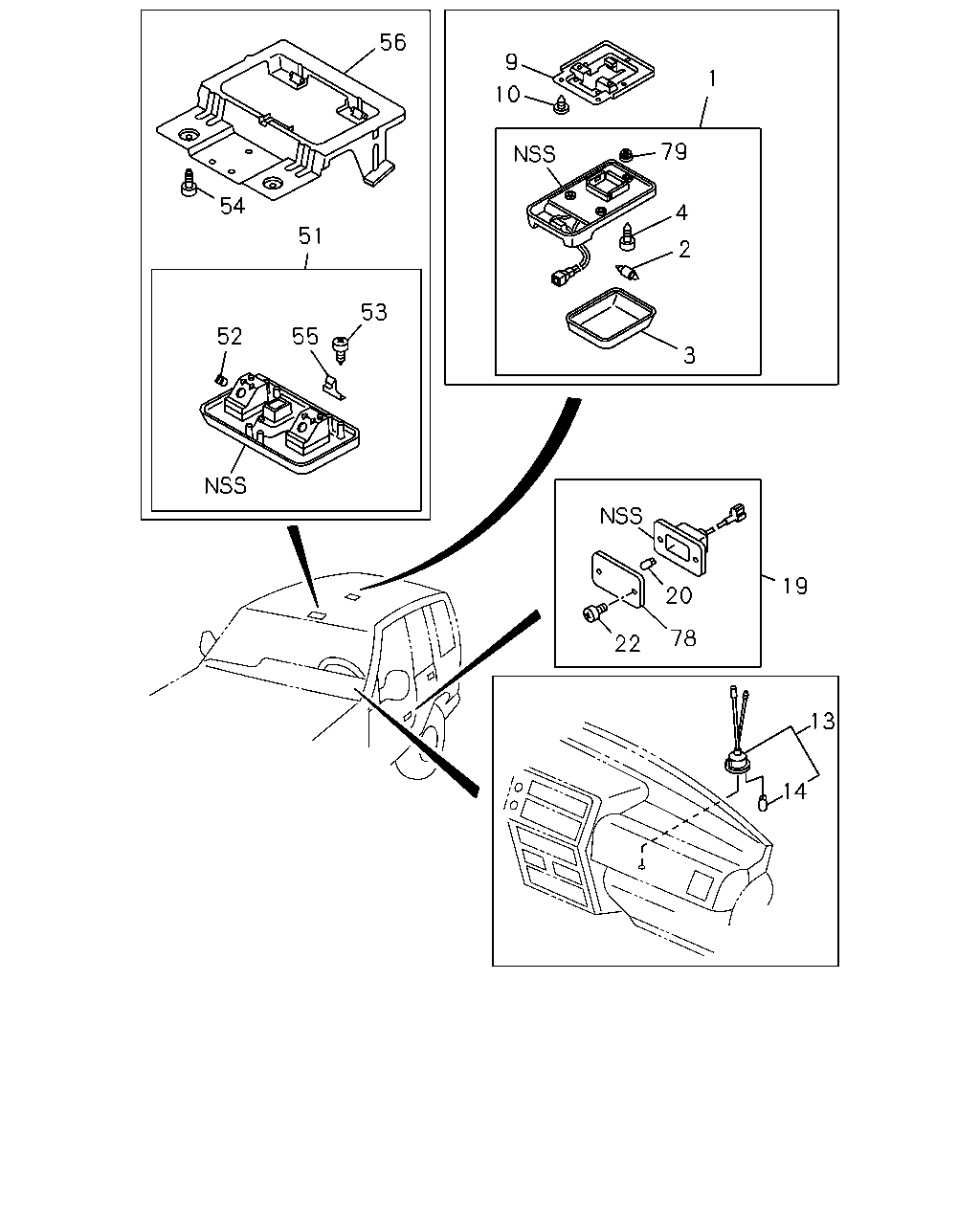

çizim 68562
56 9 10 1 79 54 4 51 2 53 52 55 3 19 20 78 22 13 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; ROOM
INTERIOR COLOR BROWN(130) TIME DELAY ROOM LAMP<6WP> BEIGE 		8-97003-095-3 01 1 9112-9503 ● ●
1 LAMP ASM; ROOM
INTERIOR COLOR BROWN(130) TIME DELAY ROOM LAMP<6WP> BEIGE 		8-97153-953-0 01 1 9504-9504 ● ●
1 LAMP ASM; ROOM
INTERIOR COLOR BROWN(130) EXC. TIME DELAY ROOM LAMP<6WP> DARK BROWN 		8-97004-098-2 01 1 9112-9503 ● ●
1 LAMP ASM; ROOM
INTERIOR COLOR BROWN(130) EXC. TIME DELAY ROOM LAMP<6WP> BEIGE 		8-97153-952-0 01 1 9504-9504 ● ●
1 LAMP ASM; ROOM
INTERIOR COLOR GRAY(153) TIME DELAY ROOM LAMP<6WP> DARK GRAY 		8-97004-099-3 01 1 9112-9503 ● ●
1 LAMP ASM; ROOM
INTERIOR COLOR GRAY(153) TIME DELAY ROOM LAMP<6WP> DARK GRAY 		8-97153-954-0 01 1 9504-9504 ● ●
1 LAMP ASM; ROOM
TIME DELAY ROOM LAMP<6WP> LIGHT GRAY 		8-97153-956-0 01 1 9505- ● ●
1 LAMP ASM; ROOM
INTERIOR COLOR GRAY(153) EXC. TIME DELAY ROOM LAMP<6WP> DARK GRAY 		8-97003-092-2 01 1 9112-9503 ● ●
1 LAMP ASM; ROOM
INTERIOR COLOR GRAY(153) EXC. TIME DELAY ROOM LAMP<6WP> DARK GRAY 		8-97153-951-0 01 1 9504-9504 ● ●
1 LAMP ASM; ROOM
EXC. TIME DELAY ROOM LAMP<6WP> LIGHT GRAY 		8-97153-955-0 01 1 9505- ● ●
2 BULB; ROOM LAMP
INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) 12V 10W 		5-82194-015-0 01 1 9112-9503 ● ●
2 BULB; ROOM LAMP
12V 10W 		8-97128-771-0 01 1 9504- ● ●
3 LENS; ROOM LAMP
INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) TIME DELAY ROOM LAMP<6WP> 		8-94241-961-1 01 1 9112-9504 ● ●
3 LENS; ROOM LAMP
TIME DELAY ROOM LAMP<6WP> 		8-94241-961-1 01 1 9505- ● ●
3 LENS; ROOM LAMP
INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) EXC. TIME DELAY ROOM LAMP<6WP> 		8-97044-784-0 01 1 9112-9504 ● ●
3 LENS; ROOM LAMP
EXC. TIME DELAY ROOM LAMP<6WP> 		8-97044-784-0 01 1 9505- ● ●
4 SCREW; ROOM LAMP
INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) TIME DELAY ROOM LAMP<6WP> M4X16 TAPPING 		0-71080-416-0 03 1 9112-9504 ● ●
4 SCREW; ROOM LAMP
TIME DELAY ROOM LAMP<6WP> M4X16 TAPPING 		0-71080-416-0 03 1 9505- ● ●
4 SCREW; ROOM LAMP
INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) EXC. TIME DELAY ROOM LAMP<6WP> M5X16 TAPPING 		9-07066-516-0 03 1 9112-9504 ● ●
4 SCREW; ROOM LAMP
EXC. TIME DELAY ROOM LAMP<6WP> M5X16 TAPPING 		9-07066-516-0 03 1 9505- ● ●
9 BRACKET; ROOM LAMP,ROOF
EXC. SUNROOF<CF5> 		8-94375-387-1 01 1 9112- ● ●
10 SCREW; BRKT,ROOM LAMP
EXC. SUNROOF<CF5> M5X12 		8-94120-094-0 02 1 9112- ● ●
13 LAMP ASM; GLOVE BOX 8-94479-124-2 01 1 9112-9208 ● ●
13 LAMP ASM; GLOVE BOX 8-97083-063-1 01 1 9209- ● ●
14 BULB; GLOVE BOX LAMP
12V 1.2W 		5-82194-022-0 01 1 9209- ● ●
19 LAMP ASM; COURTESY
EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-331-1 02 1 9112-9504 ●
19 LAMP ASM; COURTESY
EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-331-1 02 1 9505- ● ●
19 LAMP ASM; COURTESY
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97035-685-1 02 1 9112-9504 ●
19 LAMP ASM; COURTESY
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97035-685-1 02 1 9505- ● ●
19 LAMP ASM; COURTESY
EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-331-1 04 1 9112-9504 ●
19 LAMP ASM; COURTESY
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97035-685-1 04 1 9112-9504 ●
20 BULB; COURTESY LAMP
EUROPE/CANARY EQUIPMENT(EK4) 12V 5W 		8-94124-595-0 02 1 9112-9504 ●
20 BULB; COURTESY LAMP
EUROPE/CANARY EQUIPMENT(EK4) 12V 5W 		8-94124-595-0 02 1 9505- ● ●
20 BULB; COURTESY LAMP
EXC. EUROPE/CANARY EQUIPMENT(EK4) 12V 3.8W 		5-82194-023-0 02 1 9112-9504 ●
20 BULB; COURTESY LAMP
EXC. EUROPE/CANARY EQUIPMENT(EK4) 12V 3.8W 		5-82194-023-0 02 1 9505- ● ●
20 BULB; COURTESY LAMP
EUROPE/CANARY EQUIPMENT(EK4) 12V 5W 		8-94124-595-0 04 1 9112-9504 ●
20 BULB; COURTESY LAMP
EXC. EUROPE/CANARY EQUIPMENT(EK4) 12V 3.8W 		5-82194-023-0 04 1 9112-9504 ●
22 SCREW; COURTESY LAMP 8-94324-103-0 04 1 9112-9504 ●
22 SCREW; COURTESY LAMP 8-94324-103-0 04 1 9505- ● ●
22 SCREW; COURTESY LAMP 8-94324-103-0 08 1 9112-9504 ●
51 LAMP ASM; SPOT
INTERIOR COLOR BROWN(130) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK BROWN 		8-97003-104-5 01 1 9112-9504 ● ●
51 LAMP ASM; SPOT
MAP LAMP<UF3> EXC. SUNROOF<CF5> LIGHT GRAY 		8-97151-449-5 01 1 9505- ● ●
51 LAMP ASM; SPOT
INTERIOR COLOR BROWN(130) SUNROOF<CF5> MAP LAMP<UF3> DARK BROWN 		8-97003-107-4 01 1 9112-9504 ● ●
51 LAMP ASM; SPOT
SUNROOF<CF5> MAP LAMP<UF3> LIGHT GRAY 		8-97151-450-4 01 1 9505- ● ●
51 LAMP ASM; SPOT
INTERIOR COLOR GRAY(153) MAP LAMP<UF3> EXC. SUNROOF<CF5> DARK GRAY 		8-97003-102-5 01 1 9112-9504 ● ●
51 LAMP ASM; SPOT
INTERIOR COLOR GRAY(153) SUNROOF<CF5> MAP LAMP<UF3> DARK GRAY 		8-97003-109-4 01 1 9112-9504 ● ●
52 BULB; SPOT LAMP
INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) MAP LAMP<UF3> 12V 5W 		8-94124-595-0 02 1 9112-9504 ● ●
52 BULB; SPOT LAMP
MAP LAMP<UF3> 12V 5W 		8-94124-595-0 02 1 9505- ● ●
53 SCREW; SPRING,SPOT LAMP
INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) MAP LAMP<UF3> EXC. SUNROOF<CF5> M3X10 TAPPING 		9-07076-310-0 12 1 9112-9504 ● ●
53 SCREW; SPRING,SPOT LAMP
MAP LAMP<UF3> EXC. SUNROOF<CF5> M3X10 TAPPING 		9-07076-310-0 12 1 9505- ● ●
53 SCREW; SPRING,SPOT LAMP
INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) SUNROOF<CF5> MAP LAMP<UF3> M3X10 TAPPING 		9-07076-310-0 14 1 9112-9504 ● ●
53 SCREW; SPRING,SPOT LAMP
SUNROOF<CF5> MAP LAMP<UF3> M3X10 TAPPING 		9-07076-310-0 14 1 9505- ● ●
54 SCREW; TAP,SPOT LAMP BRKT
MAP LAMP<UF3> M5X12 		8-94120-094-0 02 1 9112- ● ●
55 SPRING; SPOT LAMP
INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) MAP LAMP<UF3> 		8-94381-639-0 03 1 9112-9504 ● ●
55 SPRING; SPOT LAMP
MAP LAMP<UF3> 		8-94381-639-0 03 1 9505- ● ●
56 BRACKET; LAMP
MAP LAMP<UF3> 		8-94375-386-5 01 1 9112-9607 ● ●
56 BRACKET; LAMP
MAP LAMP<UF3> EXC. MULTI METER<7HT> 		8-94375-386-5 01 1 9608- ● ●
56 BRACKET; LAMP
MAP LAMP<UF3> MULTI METER<7HT> 		8-97110-389-2 01 1 9608- ● ●
78 LENS; COURTESY LAMP
EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-388-0 02 1 9112-9504 ●
78 LENS; COURTESY LAMP
EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-388-0 02 1 9505- ● ●
78 LENS; COURTESY LAMP
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-94289-168-0 02 1 9112-9504 ●
78 LENS; COURTESY LAMP
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-94289-168-0 02 1 9505- ● ●
78 LENS; COURTESY LAMP
EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-388-0 04 1 9112-9504 ●
78 LENS; COURTESY LAMP
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-94289-168-0 04 1 9112-9504 ●
79 SPACER; ROOM LAMP,SCREW
INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) 		8-97044-785-0 03 1 9112-9504 ● ●
79 SPACER; ROOM LAMP,SCREW 8-97044-785-0 03 1 9505-9607 ● ●
79 SPACER; ROOM LAMP,SCREW
EXC. TIME DELAY ROOM LAMP<6WP> 		8-97044-785-0 03 1 9608- ● ●
