Sayfa 8-03 - Isuzu EPC

8-03 — LAMP; REAR AND REAR SIDE (#35283) — 171 parça

68 100 100 99 70 99 69 71 97 99 99 58 49 52 51 50 55 53 54 99 103 49 53 50 51 55 53 51 50 52 54 55 234 51 54 54 49 99

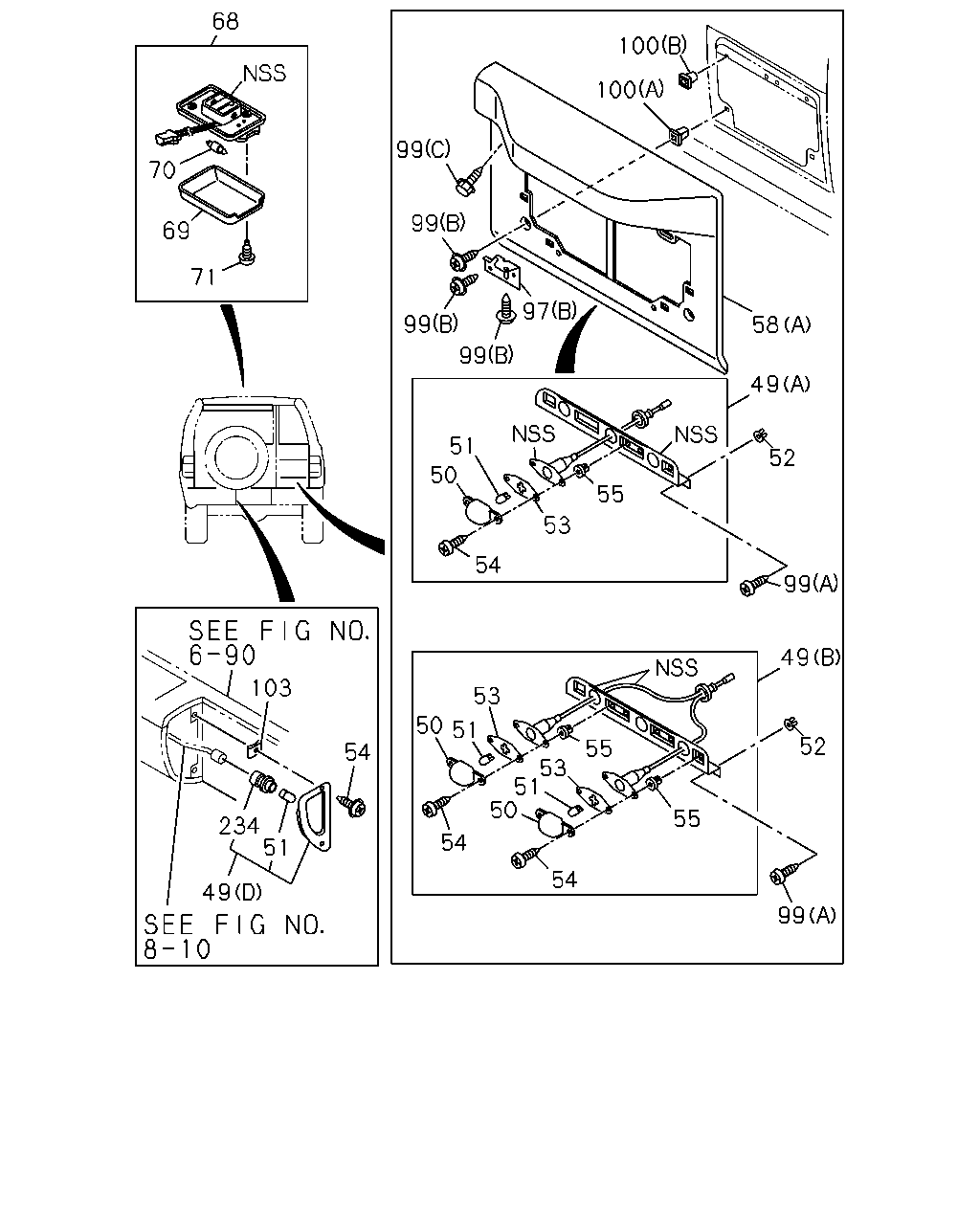

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	LAMP; LICENSE PLATE EUROPE/CANARY EQUIPMENT(EK4) EXC. RR LICENSE BACK DOOR<S8Z> (B)	8-97800-734-3	01	1	9112-9305	●	●
49	LAMP; LICENSE PLATE EUROPE/CANARY EQUIPMENT(EK4) EXC. RR LICENSE BACK DOOR<S8Z> (B)	8-97810-728-0	01	1	9306-9410	●	●
49	LAMP; LICENSE PLATE EUROPE/CANARY EQUIPMENT(EK4) EXC. RR LICENSE BACK DOOR<S8Z> (B)	8-97118-028-0	01	1	9411-9607	●	●
49	LAMP; LICENSE PLATE EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (D)	8-97176-020-0	01	1	9608-	●	●
49	LAMP; LICENSE PLATE EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97800-733-2	01	1	9112-9305	●	●
49	LAMP; LICENSE PLATE EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97810-727-0	01	1	9306-9410	●	●
49	LAMP; LICENSE PLATE EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97118-027-0	01	1	9411-9504	●	●
49	LAMP; LICENSE PLATE EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (A)	8-97118-027-0	01	1	9505-	●	●
49	LAMP; LICENSE PLATE RR LICENSE BACK DOOR<S8Z> (C)	8-94366-586-0	02	1	9112-9607	●	●
49	LAMP; LICENSE PLATE EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (D)	8-97176-021-0	01	1	9608-	●	●
50	LENS; LICENSE PLATE LAMP EUROPE/CANARY EQUIPMENT(EK4) EXC. RR LICENSE BACK DOOR<S8Z>	8-94360-612-0	02	1	9112-9607	●	●
50	LENS; LICENSE PLATE LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94360-612-0	01	1	9112-9504	●	●
50	LENS; LICENSE PLATE LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-94360-612-0	01	1	9505-	●	●
50	LENS; LICENSE PLATE LAMP RR LICENSE BACK DOOR<S8Z>	8-94135-878-2	02	1	9112-9607	●	●
51	BULB; LICENSE PLATE LAMP EUROPE/CANARY EQUIPMENT(EK4) 12V 5W	8-94124-595-0	02	1	9112-9607	●	●
51	BULB; LICENSE PLATE LAMP EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 12V 5W	8-94124-595-0	02	1	9608-	●	●
51	BULB; LICENSE PLATE LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4) 12V 5W	8-94124-595-0	01	1	9112-9504	●	●
51	BULB; LICENSE PLATE LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 12V 5W	8-94124-595-0	01	1	9505-	●	●
52	GROMMET; SCREW,LICENSE PLATE LAMP EXC. RR LICENSE BACK DOOR<S8Z>	8-94430-318-1	02	1	9112-9607	●	●
52	GROMMET; SCREW,LICENSE PLATE LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-94430-318-1	02	1	9608-	●	●
53	GASKET; LICENSE LAMP EUROPE/CANARY EQUIPMENT(EK4)	8-94379-544-0	02	1	9112-9607	●	●
53	GASKET; LICENSE LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94379-544-0	01	1	9112-9504	●	●
53	GASKET; LICENSE LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-94379-544-0	01	1	9505-	●	●
54	SCREW; LICENSE PLATE LAMP EUROPE/CANARY EQUIPMENT(EK4) M4X20 TAPPING STAINLESS	0-71190-420-0	04	1	9112-9607	●	●
54	SCREW; LICENSE PLATE LAMP EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) M4X20	8-94446-971-0	04	1	9608-	●	●
54	SCREW; LICENSE PLATE LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4) M4X20 TAPPING STAINLESS	0-71190-420-0	02	1	9112-9504	●	●
54	SCREW; LICENSE PLATE LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) M4X20 TAPPING STAINLESS	0-71190-420-0	02	1	9505-	●	●
55	NUT; LICENSE PLATE LAMP EUROPE/CANARY EQUIPMENT(EK4) EXC. RR LICENSE BACK DOOR<S8Z> M4	5-09470-002-0	04	1	9112-9607	●	●
55	NUT; LICENSE PLATE LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4) M4	5-09470-002-0	02	1	9112-9504	●	●
55	NUT; LICENSE PLATE LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) M4	5-09470-002-0	02	1	9505-	●	●
55	NUT; LICENSE PLATE LAMP RR LICENSE BACK DOOR<S8Z> M6 FLANGE	0-91150-106-0	04	1	9112-9607	●	●
58	COVER; LICENSE PLATE LAMP (A) PLEASE PAINT TO MATCH BODY COLOR	8-94358-812-3	01	1	9112-	●	●
58	COVER; LICENSE PLATE LAMP (A) W/GRAIN GRAY	8-94359-730-3	01	1	9112-	●	●
58	COVER; LICENSE PLATE LAMP RR LICENSE BACK DOOR<S8Z> (B) BLACK	8-94499-927-0	01	1	9112-9607	●	●
68	LAMP; LUGGAGE ROOM INTERIOR COLOR BROWN(130) DARK BROWN	8-97004-733-2	01	1	9112-9504	●	●
68	LAMP; LUGGAGE ROOM DARK GRAY	8-97098-336-2	01	1	9505-	●	●
68	LAMP; LUGGAGE ROOM INTERIOR COLOR GRAY(153) DARK GRAY	8-97004-735-2	01	1	9112-9504	●	●
69	LENS; LUGGAGE ROOM LAMP INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153)	8-94377-660-0	01	1	9112-9504	●	●
69	LENS; LUGGAGE ROOM LAMP	8-94377-660-0	01	1	9505-	●	●
70	BULB; LUGGAGE ROOM LAMP INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) 12V 8W	8-94153-335-0	01	1	9112-9504	●	●
70	BULB; LUGGAGE ROOM LAMP 12V 8W	8-94153-335-0	01	1	9505-	●	●
71	SCREW; LUGGAGE ROOM LAMP INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153)	9-07067-516-0	02	1	9112-9504	●	●
71	SCREW; LUGGAGE ROOM LAMP	9-07067-516-0	02	1	9505-	●	●
97	BRACKET; LICENSE PLATE LAMP (A)	8-97807-358-1	01	1	9112-	●	●
97	BRACKET; LICENSE PLATE LAMP RR LICENSE BACK DOOR<S8Z> (B)	8-97801-981-0	01	1	9112-9607	●	●
99	SCREW (A) M6X16	8-97805-189-0	05	1	9112-	●	●
99	SCREW (B) M6X25	8-97807-554-0	03	1	9112-9509	●	●
99	SCREW (B) M6X25	8-97807-554-0	02	1	9510-	●	●
99	SCREW RR LICENSE BACK DOOR<S8Z> (C) M6X20	8-94324-557-0	02	1	9112-9607	●	●
99	SCREW RR LICENSE BACK DOOR<S8Z> (D) M4X8	8-94366-897-0	02	1	9112-9607	●	●
99	SCREW EXC. RR LICENSE BACK DOOR<S8Z> (C) M5X16	8-94358-694-0	02	1	9112-9607	●	●
99	SCREW EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (C) M5X16	8-94358-694-0	02	1	9608-	●	●
100	SCREW; GROMMET (A) FOR M6 TAPPING SCREW	8-97801-073-1	04	1	9112-	●	●
100	SCREW; GROMMET (B)	8-97802-935-2	03	1	9112-9509	●	●
100	SCREW; GROMMET (B)	8-97802-935-2	02	1	9510-	●	●
100	SCREW; GROMMET RR LICENSE BACK DOOR<S8Z> (C) M4	5-09470-002-0	04	1	9112-9607	●	●
103	NUT EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-94382-501-0	04	1	9608-	●	●
234	SOCKET ASM; LICENSE PLATE LAMP EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-97184-970-0	02	1	9608-	●	●

5 5 3 7 11 75 263 263 8 5 37 12 1 15 37 3 5 7 11 8 1 5 5 8 5 12 1 15 37 3 8 5 161 7 11 3 15 9 12 1 15

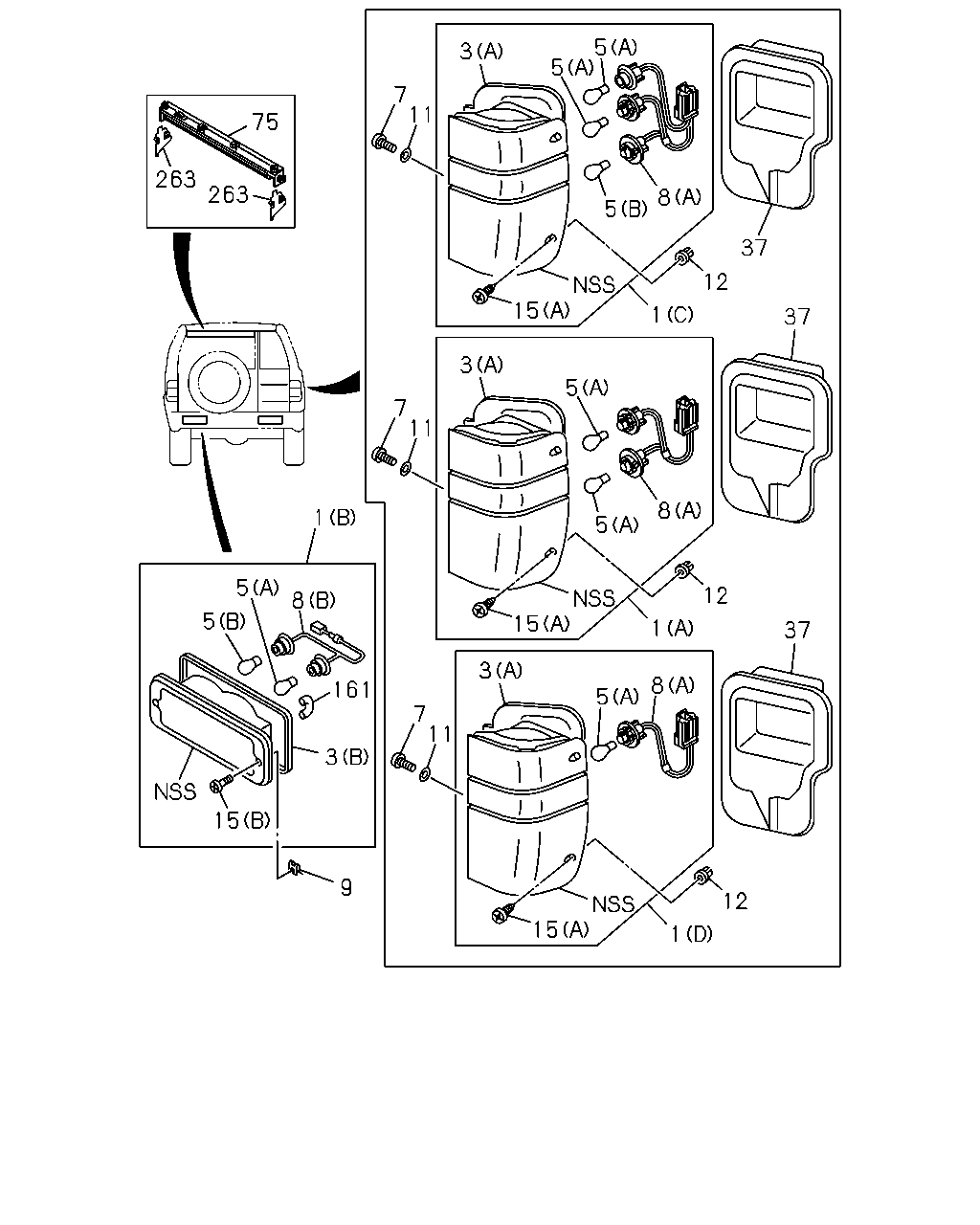

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; RR COMB EUROPE/CANARY EQUIPMENT(EK4) (B)	8-94358-913-3	01	1	9112-9504	●	●
1	LAMP ASM; RR COMB EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B)	8-94358-913-6	01	1	9505-9607	●	●
1	LAMP ASM; RR COMB EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B)	8-97091-774-2	01	1	9608-	●	●
1	LAMP ASM; RR COMB EUROPE/CANARY EQUIPMENT(EK4) (B)	8-94358-912-3	01	1	9112-9504	●	●
1	LAMP ASM; RR COMB EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B)	8-94358-912-6	01	1	9505-9607	●	●
1	LAMP ASM; RR COMB EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B)	8-97091-772-2	01	1	9608-	●	●
1	LAMP ASM; RR COMB EUROPE/CANARY EQUIPMENT(EK4) EXC. RR FOG LAMP<T79> (D)	8-94358-911-2	01	1	9112-9308	●	●
1	LAMP ASM; RR COMB EUROPE/CANARY EQUIPMENT(EK4) EXC. RR FOG LAMP<T79> (D)	8-94358-910-2	01	1	9112-9308	●	●
1	LAMP ASM; RR COMB EXC. EUROPE/CANARY EQUIPMENT(EK4) (C)	8-94358-905-2	01	1	9112-9309	●	●
1	LAMP ASM; RR COMB EXC. EUROPE/CANARY EQUIPMENT(EK4) (C)	8-97103-733-0	01	1	9309-9504	●	●
1	LAMP ASM; RR COMB EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (C)	8-97103-733-1	01	1	9505-	●	●
1	LAMP ASM; RR COMB EXC. EUROPE/CANARY EQUIPMENT(EK4) (C)	8-94358-904-2	01	1	9112-9309	●	●
1	LAMP ASM; RR COMB EXC. EUROPE/CANARY EQUIPMENT(EK4) (C)	8-97103-732-0	01	1	9309-9504	●	●
1	LAMP ASM; RR COMB EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (C)	8-97103-732-1	01	1	9505-	●	●
1	LAMP ASM; RR COMB RR FOG LAMP<T79> (A)	8-94358-909-2	01	1	9112-9308	●	●
1	LAMP ASM; RR COMB RR FOG LAMP<T79> (A)	8-97103-735-1	01	1	9309-	●	●
1	LAMP ASM; RR COMB RR FOG LAMP<T79> (A)	8-94358-908-2	01	1	9112-9308	●	●
1	LAMP ASM; RR COMB RR FOG LAMP<T79> (A)	8-97103-734-1	01	1	9309-	●	●
1	LAMP ASM; RR COMB CHINA EQUIPMENT(YT2) (D)	8-94358-911-4	01	1	9505-		●
1	LAMP ASM; RR COMB CHINA EQUIPMENT(YT2) (D)	8-94358-910-4	01	1	9505-		●
3	GASKET; RR COMB LAMP (A)	8-97807-106-0	02	1	9112-	●	●
3	GASKET; RR COMB LAMP EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97115-453-0	02	1	9309-9504	●	●
3	GASKET; RR COMB LAMP EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B)	8-97115-453-0	02	1	9505-9607	●	●
5	BULB; RR COMB LAMP (A) 12V 21W	8-94124-074-0	04	1	9112-9504	●	●
5	BULB; RR COMB LAMP RR FOG LAMP<T79> (A) 12V 21W	8-94124-074-0	04	1	9505-	●	●
5	BULB; RR COMB LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (A) 12V 21W	8-94124-074-0	04	1	9505-	●	●
5	BULB; RR COMB LAMP (B) 12V 21/5W	8-94125-959-0	02	1	9112-	●	●
5	BULB; RR COMB LAMP EUROPE/CANARY EQUIPMENT(EK4) (A) 12V 21W	8-94124-074-0	02	1	9112-9504	●	●
5	BULB; RR COMB LAMP EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (A) 12V 21W	8-94124-074-0	02	1	9505-	●	●
7	SCREW; RR COMB LAMP M5X16	8-97800-740-0	02	1	9112-	●	●
8	HARNESS; RR COMB LAMP EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97807-102-0	02	1	9112-9504	●	●
8	HARNESS; RR COMB LAMP EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B)	8-97807-102-0	02	1	9505-9607	●	●
8	HARNESS; RR COMB LAMP EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B)	8-97145-345-0	02	1	9608-	●	●
8	HARNESS; RR COMB LAMP EUROPE/CANARY EQUIPMENT(EK4) EXC. RR FOG LAMP<T79> (A)	8-97807-105-0	02	1	9112-9308	●	●
8	HARNESS; RR COMB LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97807-103-0	02	1	9112-9504	●	●
8	HARNESS; RR COMB LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (A)	8-97807-103-0	02	1	9505-	●	●
8	HARNESS; RR COMB LAMP RR FOG LAMP<T79> (A)	8-97807-104-0	02	1	9112-	●	●
8	HARNESS; RR COMB LAMP CHINA EQUIPMENT(YT2) (A)	8-97807-105-0	02	1	9505-		●
9	NUT; LAMP,RR COMB EUROPE/CANARY EQUIPMENT(EK4)	8-94471-330-2	04	1	9112-9504	●	●
9	NUT; LAMP,RR COMB EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-94471-330-2	04	1	9505-	●	●
11	WASHER; PL,LAMP,RR COMB ID=6	8-94126-642-0	02	1	9112-9404	●	●
11	WASHER; PL,LAMP,RR COMB D=16	8-94427-941-0	02	1	9405-	●	●
12	GROMMET; RR COMB LAMP	8-94430-318-1	04	1	9112-	●	●
15	SCREW; RR COMB LAMP (A)	8-97807-135-0	04	1	9112-	●	●
15	SCREW; RR COMB LAMP EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97807-126-0	04	1	9112-9504	●	●
15	SCREW; RR COMB LAMP EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B)	8-97807-126-0	04	1	9505-	●	●
37	COVER; RR COMB LAMP	8-97808-597-1	01	1	9201-9602	●	●
37	COVER; RR COMB LAMP	8-97808-596-1	01	1	9201-9602	●	●
75	LAMP ASM; STOP,HIGHMOUNTED CHILE EQUIPMENT(6KB)	8-97806-969-1	01	1	9309-9506	●	●
75	LAMP ASM; STOP,HIGHMOUNTED CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97806-969-2	01	1	9507-	●	●
161	TUBE; RR COMB LAMP EUROPE/CANARY EQUIPMENT(EK4)	8-97807-093-0	04	1	9112-9504	●	●
161	TUBE; RR COMB LAMP EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-97807-093-0	04	1	9505-	●	●
263	CLIP; STOP LAMP CHILE EQUIPMENT(6KB)	8-97808-380-1	02	1	9309-9506	●	●
263	CLIP; STOP LAMP CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97808-380-1	02	1	9507-	●	●

118 121 102 124 123 125 122 58 126 251 97 120 99 55 100 231 50 49 53 51 54

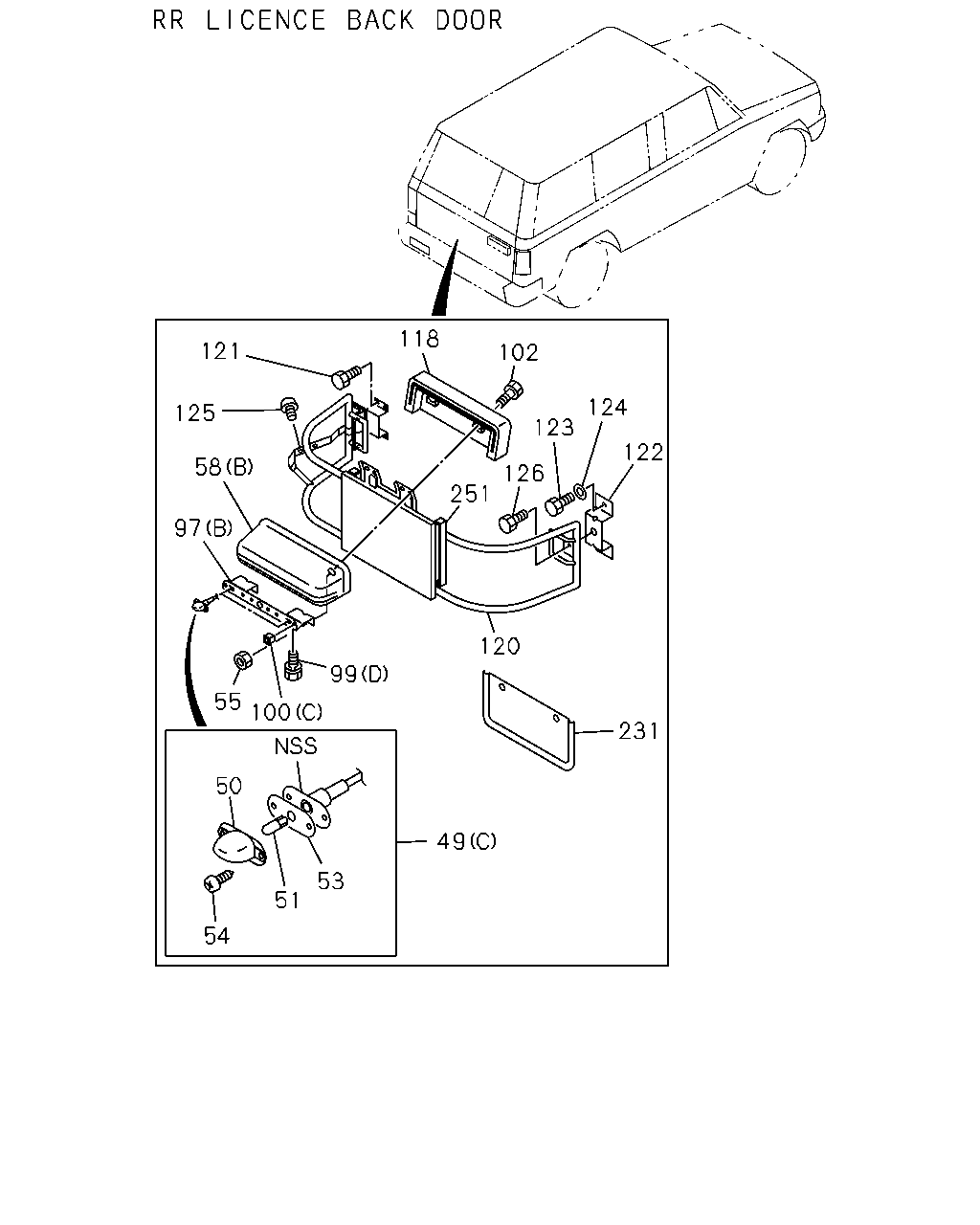

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	LAMP; LICENSE PLATE EUROPE/CANARY EQUIPMENT(EK4) EXC. RR LICENSE BACK DOOR<S8Z> (B)	8-97800-734-3	01	1	9112-9305	●	●
49	LAMP; LICENSE PLATE EUROPE/CANARY EQUIPMENT(EK4) EXC. RR LICENSE BACK DOOR<S8Z> (B)	8-97810-728-0	01	1	9306-9410	●	●
49	LAMP; LICENSE PLATE EUROPE/CANARY EQUIPMENT(EK4) EXC. RR LICENSE BACK DOOR<S8Z> (B)	8-97118-028-0	01	1	9411-9607	●	●
49	LAMP; LICENSE PLATE EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (D)	8-97176-020-0	01	1	9608-	●	●
49	LAMP; LICENSE PLATE EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97800-733-2	01	1	9112-9305	●	●
49	LAMP; LICENSE PLATE EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97810-727-0	01	1	9306-9410	●	●
49	LAMP; LICENSE PLATE EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97118-027-0	01	1	9411-9504	●	●
49	LAMP; LICENSE PLATE EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (A)	8-97118-027-0	01	1	9505-	●	●
49	LAMP; LICENSE PLATE RR LICENSE BACK DOOR<S8Z> (C)	8-94366-586-0	02	1	9112-9607	●	●
49	LAMP; LICENSE PLATE EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (D)	8-97176-021-0	01	1	9608-	●	●
50	LENS; LICENSE PLATE LAMP EUROPE/CANARY EQUIPMENT(EK4) EXC. RR LICENSE BACK DOOR<S8Z>	8-94360-612-0	02	1	9112-9607	●	●
50	LENS; LICENSE PLATE LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94360-612-0	01	1	9112-9504	●	●
50	LENS; LICENSE PLATE LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-94360-612-0	01	1	9505-	●	●
50	LENS; LICENSE PLATE LAMP RR LICENSE BACK DOOR<S8Z>	8-94135-878-2	02	1	9112-9607	●	●
51	BULB; LICENSE PLATE LAMP EUROPE/CANARY EQUIPMENT(EK4) 12V 5W	8-94124-595-0	02	1	9112-9607	●	●
51	BULB; LICENSE PLATE LAMP EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 12V 5W	8-94124-595-0	02	1	9608-	●	●
51	BULB; LICENSE PLATE LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4) 12V 5W	8-94124-595-0	01	1	9112-9504	●	●
51	BULB; LICENSE PLATE LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 12V 5W	8-94124-595-0	01	1	9505-	●	●
53	GASKET; LICENSE LAMP EUROPE/CANARY EQUIPMENT(EK4)	8-94379-544-0	02	1	9112-9607	●	●
53	GASKET; LICENSE LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94379-544-0	01	1	9112-9504	●	●
53	GASKET; LICENSE LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-94379-544-0	01	1	9505-	●	●
54	SCREW; LICENSE PLATE LAMP EUROPE/CANARY EQUIPMENT(EK4) M4X20 TAPPING STAINLESS	0-71190-420-0	04	1	9112-9607	●	●
54	SCREW; LICENSE PLATE LAMP EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) M4X20	8-94446-971-0	04	1	9608-	●	●
54	SCREW; LICENSE PLATE LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4) M4X20 TAPPING STAINLESS	0-71190-420-0	02	1	9112-9504	●	●
54	SCREW; LICENSE PLATE LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) M4X20 TAPPING STAINLESS	0-71190-420-0	02	1	9505-	●	●
55	NUT; LICENSE PLATE LAMP EUROPE/CANARY EQUIPMENT(EK4) EXC. RR LICENSE BACK DOOR<S8Z> M4	5-09470-002-0	04	1	9112-9607	●	●
55	NUT; LICENSE PLATE LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4) M4	5-09470-002-0	02	1	9112-9504	●	●
55	NUT; LICENSE PLATE LAMP EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) M4	5-09470-002-0	02	1	9505-	●	●
55	NUT; LICENSE PLATE LAMP RR LICENSE BACK DOOR<S8Z> M6 FLANGE	0-91150-106-0	04	1	9112-9607	●	●
58	COVER; LICENSE PLATE LAMP (A) PLEASE PAINT TO MATCH BODY COLOR	8-94358-812-3	01	1	9112-	●	●
58	COVER; LICENSE PLATE LAMP (A) W/GRAIN GRAY	8-94359-730-3	01	1	9112-	●	●
58	COVER; LICENSE PLATE LAMP RR LICENSE BACK DOOR<S8Z> (B) BLACK	8-94499-927-0	01	1	9112-9607	●	●
97	BRACKET; LICENSE PLATE LAMP (A)	8-97807-358-1	01	1	9112-	●	●
97	BRACKET; LICENSE PLATE LAMP RR LICENSE BACK DOOR<S8Z> (B)	8-97801-981-0	01	1	9112-9607	●	●
99	SCREW (A) M6X16	8-97805-189-0	05	1	9112-	●	●
99	SCREW (B) M6X25	8-97807-554-0	03	1	9112-9509	●	●
99	SCREW (B) M6X25	8-97807-554-0	02	1	9510-	●	●
99	SCREW RR LICENSE BACK DOOR<S8Z> (C) M6X20	8-94324-557-0	02	1	9112-9607	●	●
99	SCREW RR LICENSE BACK DOOR<S8Z> (D) M4X8	8-94366-897-0	02	1	9112-9607	●	●
99	SCREW EXC. RR LICENSE BACK DOOR<S8Z> (C) M5X16	8-94358-694-0	02	1	9112-9607	●	●
99	SCREW EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (C) M5X16	8-94358-694-0	02	1	9608-	●	●
100	SCREW; GROMMET (A) FOR M6 TAPPING SCREW	8-97801-073-1	04	1	9112-	●	●
100	SCREW; GROMMET (B)	8-97802-935-2	03	1	9112-9509	●	●
100	SCREW; GROMMET (B)	8-97802-935-2	02	1	9510-	●	●
100	SCREW; GROMMET RR LICENSE BACK DOOR<S8Z> (C) M4	5-09470-002-0	04	1	9112-9607	●	●
102	BOLT; BRKT RR LICENSE BACK DOOR<S8Z> M6X20 W/LK&PL WASHER	9-01960-620-0	04	1	9112-9204	●	●
102	BOLT; BRKT RR LICENSE BACK DOOR<S8Z> M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	9205-9607	●	●
118	EXTENSION; LICENSE PLATE LAMP RR LICENSE BACK DOOR<S8Z>	8-94189-751-0	01	1	9112-9607	●	●
120	FRAME ASM; RR LICENSE PLATE RR LICENSE BACK DOOR<S8Z>	8-97802-907-3	01	1	9112-9607	●	●
121	BOLT; FRAME TO DOOR RR LICENSE BACK DOOR<S8Z> M8X20 W/LK&PL WASHER	9-01960-820-0	04	1	9112-9204	●	●
121	BOLT; FRAME TO DOOR RR LICENSE BACK DOOR<S8Z> M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9205-9607	●	●
122	BRACKET; LICENSE FRAME LOCK RR LICENSE BACK DOOR<S8Z>	8-97802-912-0	01	1	9112-9607	●	●
123	BOLT; BRKT TO DOOR RR LICENSE BACK DOOR<S8Z> M8X20 W/LK WASHER	9-01900-820-0	02	1	9112-9204	●	●
123	BOLT; BRKT TO DOOR RR LICENSE BACK DOOR<S8Z> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9607	●	●
124	WASHER; BRKT TO DOOR RR LICENSE BACK DOOR<S8Z> ID=8.4 OD=18	9-09160-608-0	02	1	9112-9607	●	●
125	RUBBER; BUFFER RR LICENSE BACK DOOR<S8Z>	8-97808-080-0	02	1	9112-9607	●	●
126	BOLT; FRAME TO BRKT RR LICENSE BACK DOOR<S8Z>	8-97805-242-0	01	1	9112-9607	●	●
231	PLATE; LICENCE COVER RR LICENSE BACK DOOR<S8Z>	8-97807-654-1	01	1	9112-9607	●	●
251	FINISHER; RR LICENSE FRAME RR LICENSE BACK DOOR<S8Z>	8-97808-010-1	01	1	9112-9607	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
