◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#35282) — 110 parça

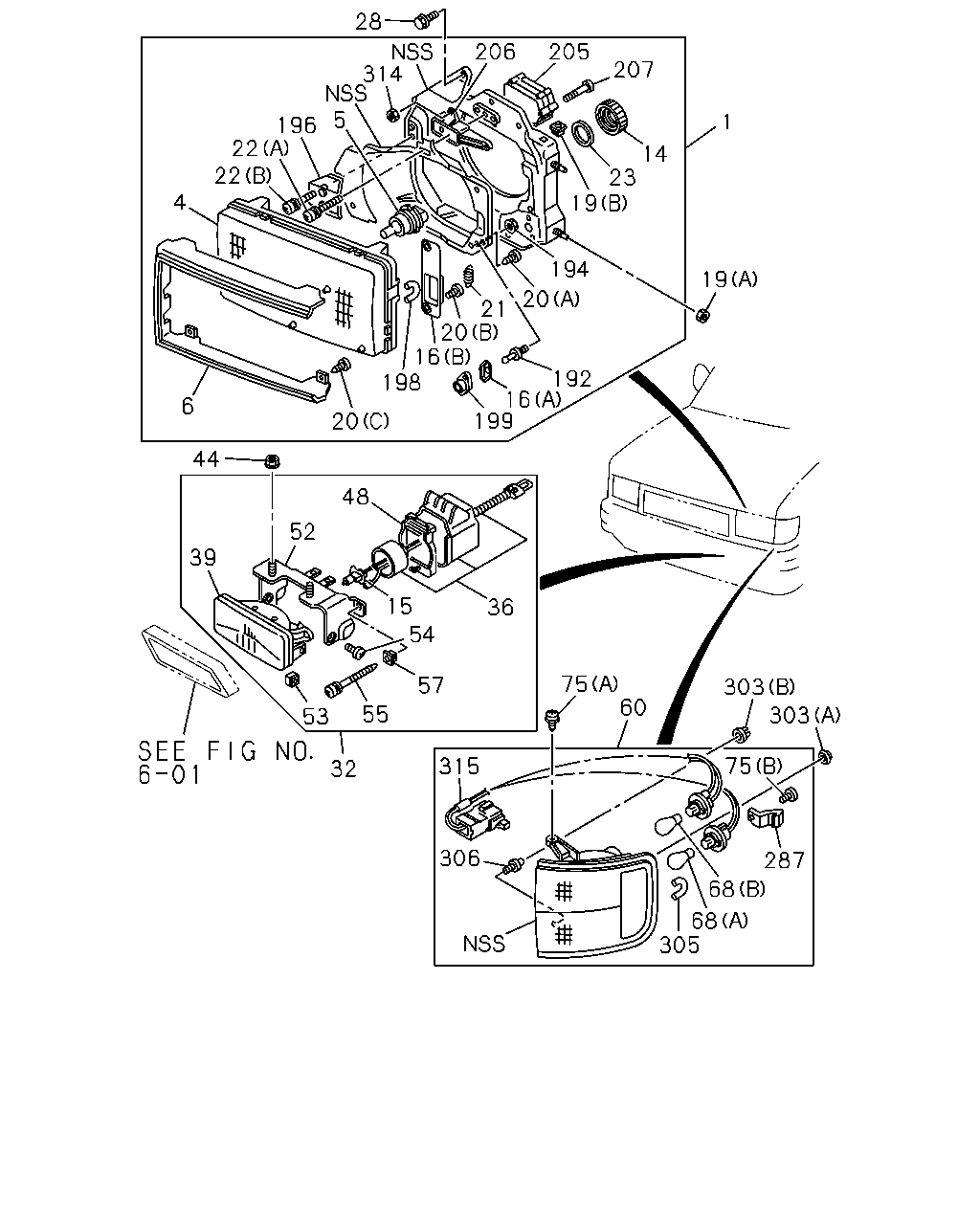

çizim 16742
28 314 196 5 22 22 206 205 207 1 14 23 19 194 20 21 20 16 198 4 19 192 16 199 6 20 44 48 52 39 15 54 36 75 60 57 303 303 55 53 75 315 32 306 287 68 68 305
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-97805-930-5 01 1 9112- ●
1 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-97805-929-5 01 1 9112- ●
1 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> 		8-94358-887-4 01 1 9112- ● ●
1 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> 		8-94358-886-4 01 1 9112- ● ●
1 LAMP ASM; HEAD
EXC. YELLOW HEAD LAMP<T75>,ADJUST HEADLAMP<6RC> 		8-94358-885-5 01 1 9112- ● ●
1 LAMP ASM; HEAD
EXC. YELLOW HEAD LAMP<T75>,ADJUST HEADLAMP<6RC> 		8-94358-884-5 01 1 9112- ● ●
1 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-94358-889-5 01 1 9112- ●
1 LAMP ASM; HEAD
ADJUST HEADLAMP<6RC> 		8-94358-888-5 01 1 9112- ●
4 HEADLAMP UNIT 8-97807-117-0 01 1 9112- ● ●
4 HEADLAMP UNIT 8-97807-116-0 01 1 9112- ● ●
5 BULB; HEADLAMP
YELLOW HEAD LAMP<T75> 12V 60/55W YELLOW 		8-94252-140-0 02 1 9112- ● ●
5 BULB; HEADLAMP
EXC. YELLOW HEAD LAMP<T75> 12V 60/55W 		8-94217-817-0 02 1 9112- ● ●
6 RIM; HEADLAMP 8-97807-121-0 01 1 9112- ● ●
6 RIM; HEADLAMP 8-97807-120-0 01 1 9112- ● ●
14 CAP; BULB,LAMP 8-97807-091-0 02 1 9112- ● ●
15 BULB; FOG LAMP
FOG LAMP HALOGEN(T37) 12V 55W 		8-94458-282-0 02 1 9112- ● ●
16 BRACKET; HEADLAMP
ADJUST HEADLAMP<6RC> (A) 		8-97807-097-0 04 1 9112- ● ●
16 BRACKET; HEADLAMP
ADJUST HEADLAMP<6RC> (B) 		8-97807-101-0 01 1 9112- ● ●
16 BRACKET; HEADLAMP
ADJUST HEADLAMP<6RC> (B) 		8-97807-100-0 01 1 9112- ● ●
19 NUT; HEADLAMP
(A) M6 FLANGE 		0-91150-106-0 04 1 9112- ● ●
19 NUT; HEADLAMP
(B) M4 		5-09470-002-0 02 1 9112-9301 ● ●
19 NUT; HEADLAMP
(B) 		8-94252-864-2 02 1 9302- ● ●
20 SCREW; HEADLAMP
ADJUST HEADLAMP<6RC> (A) 		8-97807-125-0 08 1 9112- ● ●
20 SCREW; HEADLAMP
ADJUST HEADLAMP<6RC> (B) 		8-97807-127-0 04 1 9112- ● ●
20 SCREW; HEADLAMP
ADJUST HEADLAMP<6RC> (C) 		8-97807-131-0 20 1 9112- ● ●
20 SCREW; HEADLAMP
EXC. ADJUST HEADLAMP<6RC> (B) 		8-97807-127-0 08 1 9112- ● ●
20 SCREW; HEADLAMP
EXC. ADJUST HEADLAMP<6RC> (C) 		8-97807-131-0 16 1 9112- ● ●
21 SPRING; ADJ HEADLAMP
EXC. ADJUST HEADLAMP<6RC> 		8-97807-107-0 02 1 9112- ● ●
22 SCREW; ADJ,HEADLAMP
(A) 		8-97807-132-0 02 1 9112- ● ●
22 SCREW; ADJ,HEADLAMP
ADJUST HEADLAMP<6RC> (B) 		8-97807-133-0 02 1 9112-9301 ● ●
22 SCREW; ADJ,HEADLAMP
EXC. ADJUST HEADLAMP<6RC> (B) 		8-97807-134-0 02 1 9112- ● ●
23 COVER; BULB,HEADLAMP 8-97807-092-0 02 1 9112- ● ●
28 BOLT; HEADLAMP
M6X16 FLANGE 		0-28210-616-0 04 1 9112-9204 ● ●
28 BOLT; HEADLAMP
M6X16 FLANGE 		0-28280-616-0 04 1 9205- ● ●
32 LAMP ASM; FOG
FOG LAMP HALOGEN(T37) 		8-94358-893-3 01 1 9112-9504 ● ●
32 LAMP ASM; FOG
FOG LAMP HALOGEN(T37) 		8-97131-425-0 01 1 9505- ● ●
32 LAMP ASM; FOG
FOG LAMP HALOGEN(T37) 		8-94358-892-3 01 1 9112-9504 ● ●
32 LAMP ASM; FOG
FOG LAMP HALOGEN(T37) 		8-97131-424-0 01 1 9505- ● ●
36 CORD; FOG LAMP
FOG LAMP HALOGEN(T37) 		8-97805-964-0 02 1 9112- ● ●
39 UNIT; FOG LAMP
FOG LAMP HALOGEN(T37) 		8-97805-963-0 01 1 9112- ● ●
39 UNIT; FOG LAMP
FOG LAMP HALOGEN(T37) 		8-97805-962-0 01 1 9112- ● ●
44 NUT; FOG LAMP
FOG LAMP HALOGEN(T37) M6 FLANGE 		0-91150-106-0 04 1 9112- ● ●
48 COVER; FOG LAMP
FOG LAMP HALOGEN(T37) 		8-97807-726-0 02 1 9112- ● ●
52 RING; MTG,FOG LAMP
FOG LAMP HALOGEN(T37) 		8-97805-965-0 02 1 9112- ● ●
53 NUT; MTG RING,FOG LAMP
FOG LAMP HALOGEN(T37) 		8-94379-802-0 04 1 9112- ● ●
54 BOLT; MTG RING,FOG LAMP
FOG LAMP HALOGEN(T37) M5X12 		8-94379-803-0 04 1 9112- ● ●
55 SCREW; ADJ,FOG LAMP
FOG LAMP HALOGEN(T37) 		8-97016-275-0 02 1 9112- ● ●
57 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP HALOGEN(T37) 		8-94379-806-0 02 1 9112- ● ●
60 LAMP ASM; FRT COMB 8-94358-901-4 01 1 9112- ● ●
60 LAMP ASM; FRT COMB 8-94358-900-4 01 1 9112- ● ●
68 BULB; FRT COMB LAMP
(A) 12V 21W 		8-94124-074-0 02 1 9112- ● ●
68 BULB; FRT COMB LAMP
(B) 12V 5W 		8-94124-075-0 02 1 9112- ● ●
75 SCREW; FRT COMB LAMP
(A) 		8-97803-220-0 02 1 9112-9301 ● ●
75 SCREW; FRT COMB LAMP
(A) M4X16 W/WASHER 		8-97809-122-0 02 1 9302- ● ●
75 SCREW; FRT COMB LAMP
(B) 		8-97807-124-0 02 1 9112- ● ●
192 PIVOT; HEADLAMP
ADJUST HEADLAMP<6RC> 		8-97807-094-0 04 1 9112- ● ●
194 NUT; PIVOT,HEADLAMP
ADJUST HEADLAMP<6RC> 		8-97807-128-0 08 1 9112- ● ●
196 PLATE; ADJ SCREW
ADJUST HEADLAMP<6RC> 		8-97807-099-0 01 1 9112- ● ●
196 PLATE; ADJ SCREW
ADJUST HEADLAMP<6RC> 		8-97807-098-0 01 1 9112- ● ●
198 TUBE; COVER,HEADLAMP 8-94325-772-0 04 1 9112- ● ●
199 BUSHING
ADJUST HEADLAMP<6RC> 		8-97807-095-0 08 1 9112- ● ●
205 ACTUATOR; HEADLAMP
ADJUST HEADLAMP<6RC> 		8-97807-090-0 02 1 9112- ●
205 ACTUATOR; HEADLAMP
ADJUST HEADLAMP<6RC> 		8-97807-089-0 02 1 9112- ●
206 HOLDER; HEADLAMP
ADJUST HEADLAMP<6RC> 		8-97807-096-0 02 1 9112- ● ●
207 SCREW; ACTUATOR TO HOLDER
ADJUST HEADLAMP<6RC> 		8-97807-130-0 06 1 9112- ● ●
287 CLIP; FRT TURN SIGNAL 8-97807-111-0 02 1 9112- ● ●
303 CLIP; COMB LAMP
(A) 		8-97800-741-0 02 1 9112- ● ●
303 CLIP; COMB LAMP
(B) 		8-97801-572-0 02 1 9112- ● ●
305 COVER; FRT COMB LAMP 8-94325-772-0 02 1 9112- ● ●
306 PIVOT; FRT COMB LAMP 8-97807-110-0 02 1 9112- ● ●
314 NUT; ACTUATOR
ADJUST HEADLAMP<6RC> 		8-97807-129-0 06 1 9112- ● ●
315 HARNESS; FRT COMB LAMP 8-97806-777-0 02 1 9206- ● ●

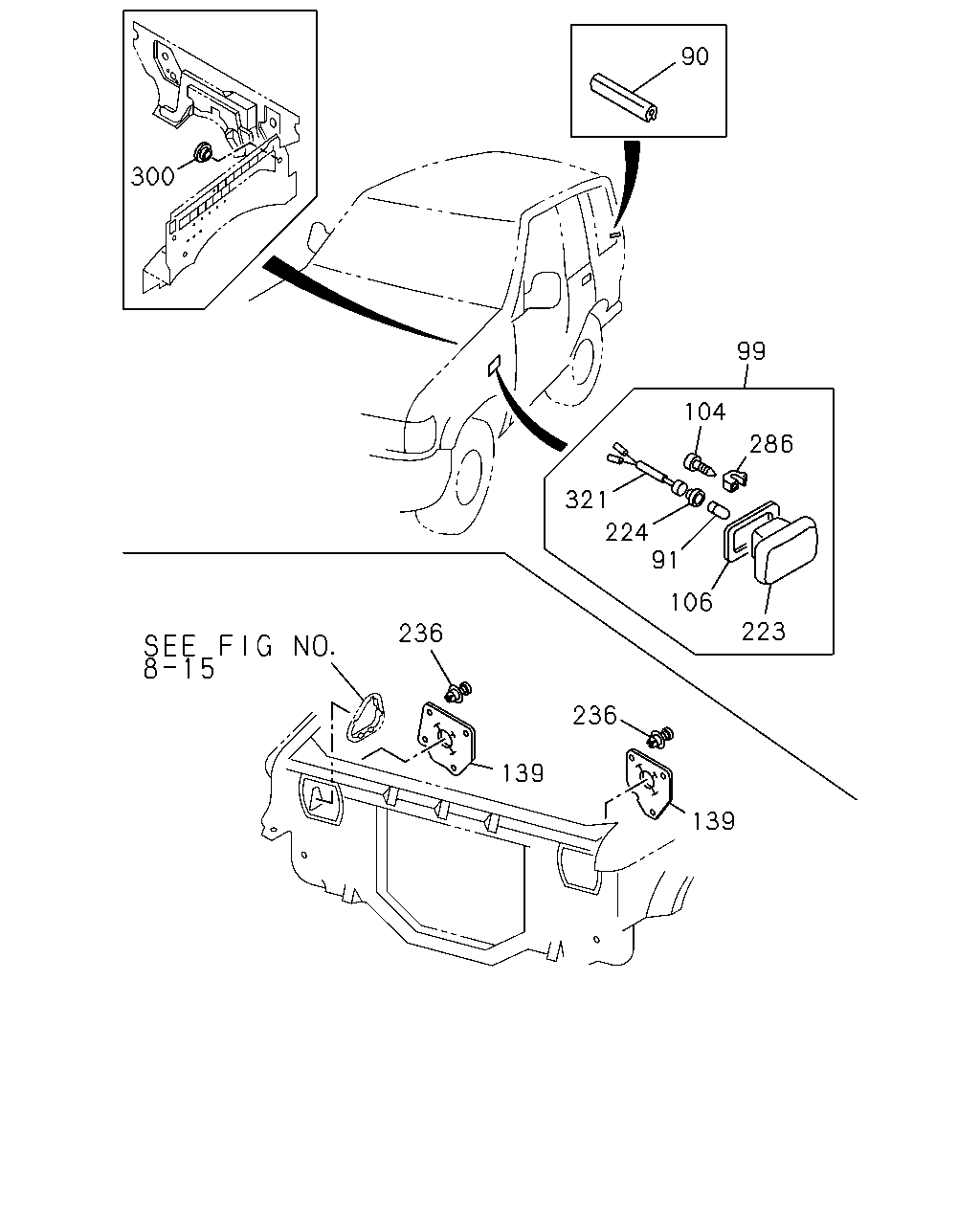

çizim 68322
90 300 99 104 286 321 224 91 106 223 236 236 139 139
BalonParca AdiParca NoAdetTipApplied Date A B
90 PROTECTOR; EDGE
REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> L=40 SERVICED BY L=190 		1-71998-300-0 01 1 9112-9208 ● ●
90 PROTECTOR; EDGE
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> EXC. CHILE EQUIPMENT(6KB) L=40 SERVICED BY L=190 		1-71998-300-0 01 1 9209-9504 ● ●
90 PROTECTOR; EDGE
CHILE EQUIPMENT(6KB) L=40 SERVICED BY L=190 		1-71998-300-0 01 1 9209-9504 ● ●
90 PROTECTOR; EDGE
4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) L=40 SERVICED BY L=190 		1-71998-300-0 01 1 9209-9504 ● ●
90 PROTECTOR; EDGE
REAR DEFOGGER<C49>,RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. RR WIPER<C25>,CHILE EQUIPMENT(6KB),RR WIPER W/INTERMITTENT<6WJ> L=40 SERVICED BY L=190 		1-71998-300-0 01 1 9209-9504 ● ●
90 PROTECTOR; EDGE
CHILE EQUIPMENT(6KB) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> L=40 SERVICED BY L=190 		1-71998-300-0 01 1 9505-9506 ● ●
90 PROTECTOR; EDGE
RR DEFOGGER W/AUTO CANCEL<S4Y> L=40 SERVICED BY L=190 		1-71998-300-0 01 1 9505-9506 ● ●
90 PROTECTOR; EDGE
CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> L=40 SERVICED BY L=190 		1-71998-300-0 01 1 9507- ● ●
90 PROTECTOR; EDGE
RR DEFOGGER W/AUTO CANCEL<S4Y> L=40 SERVICED BY L=190 		1-71998-300-0 01 1 9507- ● ●
91 BULB; SIDE TURN SIGNAL
EUROPE/CANARY EQUIPMENT(EK4) 12V 5W 		8-94124-595-0 02 1 9112-9504 ● ●
91 BULB; SIDE TURN SIGNAL
EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 12V 5W 		8-94124-595-0 02 1 9505- ● ●
99 LAMP; SIDE FLASHER
EUROPE/CANARY EQUIPMENT(EK4) 		8-97805-968-0 02 1 9112-9504 ● ●
99 LAMP; SIDE FLASHER
EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97805-968-0 02 1 9505- ● ●
104 SCREW; SIDE TURN SIGNAL
EUROPE/CANARY EQUIPMENT(EK4) M3X10 TAPPING 		9-07076-310-0 02 1 9112-9504 ● ●
104 SCREW; SIDE TURN SIGNAL
EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) M3X10 TAPPING 		9-07076-310-0 02 1 9505- ● ●
106 GASKET; SIDE TURN SIGNAL
EUROPE/CANARY EQUIPMENT(EK4) 		8-97032-884-0 02 1 9112-9504 ● ●
106 GASKET; SIDE TURN SIGNAL
EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97032-884-0 02 1 9505- ● ●
139 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-97804-049-2 01 1 9112-9504 ● ●
139 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60) 		8-97804-049-2 01 1 9505-9505 ● ●
139 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60) 950529- 		8-97129-573-0 02 1 9505- ● ●
139 COVER; HEADLAMP
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-97806-171-1 01 1 9112-9504 ● ●
139 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-97806-171-1 01 1 9112-9504 ● ●
139 COVER; HEADLAMP
4JG2 ENG(RJC),4ZE1 ENG(RLJ) EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97806-171-1 01 1 9505-9505 ● ●
139 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60) 		8-97806-171-1 01 1 9505-9505 ● ●
223 UNIT; LAMP,SIDE FLASHER
EUROPE/CANARY EQUIPMENT(EK4) 		8-97032-882-0 02 1 9112-9504 ● ●
223 UNIT; LAMP,SIDE FLASHER
EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97032-882-0 02 1 9505- ● ●
224 SOCKET; SIDE FLASHER LAMP
EUROPE/CANARY EQUIPMENT(EK4) 		8-94372-885-0 02 1 9112-9504 ● ●
224 SOCKET; SIDE FLASHER LAMP
EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-94372-885-0 02 1 9505- ● ●
236 CLIP; COVER
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) D5.8 SCREW & GROMMET NYLON 		8-94242-150-0 07 1 9112-9504 ● ●
236 CLIP; COVER
AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-94429-372-0 07 1 9505- ● ●
236 CLIP; COVER
4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) D5.8 SCREW & GROMMET NYLON 		8-94242-150-0 03 1 9112-9504 ● ●
236 CLIP; COVER
4JG2 ENG(RJC),4ZE1 ENG(RLJ) EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-94429-372-0 03 1 9505- ● ●
286 CLIP; SIDE TURN SIGNAL
EUROPE/CANARY EQUIPMENT(EK4) 		8-97032-883-0 02 1 9112-9504 ● ●
286 CLIP; SIDE TURN SIGNAL
EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97032-883-0 02 1 9505- ● ●
300 PLUG; HOLE
4JG2 ENG(RJC) EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97800-739-0 01 1 9112-9504 ● ●
300 PLUG; HOLE
4ZE1 ENG(RLJ),4JG1 ENG(RLT) 		8-97800-739-0 02 1 9112-9504 ● ●
321 HARNESS; SIDE FLASHER LAMP
EUROPE/CANARY EQUIPMENT(EK4) 		8-97806-388-0 02 1 9112-9504 ● ●
321 HARNESS; SIDE FLASHER LAMP
EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97806-388-0 02 1 9505- ● ●
