◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#35278) — 166 parça

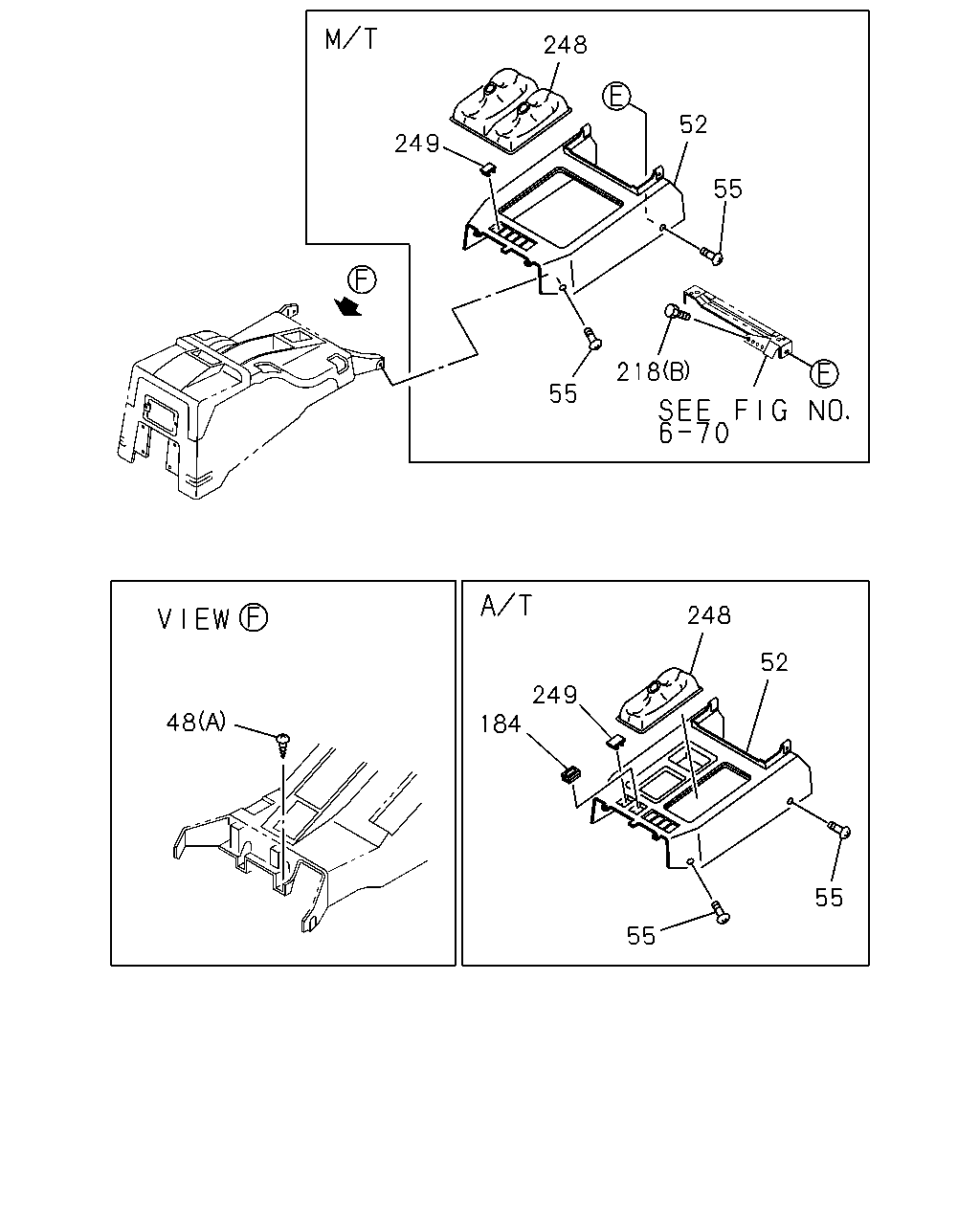

çizim 16670
248 52 249 55 218 55 248 52 249 184 48 55 55
BalonParca AdiParca NoAdetTipApplied Date A B C D
48 SCREW; BRKT,CENTER CONSOLE
(B) M5X35 		0-71080-535-0 02 1 9112-9202 ● ● ● ●
48 SCREW; BRKT,CENTER CONSOLE
(A) M5X16 		8-94295-854-0 04 1 9112-9504 ● ● ● ●
48 SCREW; BRKT,CENTER CONSOLE
(A) M5X16 		8-94295-854-0 02 1 9505- ● ● ● ●
52 CONSOLE; FRT
A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-031-3 01 1 9112-9202 ● ● ● ●
52 CONSOLE; FRT
A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-087-4 01 1 9203-9504 ● ● ● ●
52 CONSOLE; FRT
A/T THM(RMQ) DARK GRAY 		8-97098-647-3 01 1 9505- ● ● ● ●
52 CONSOLE; FRT
A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-033-3 01 1 9112-9202 ● ● ● ●
52 CONSOLE; FRT
A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-089-4 01 1 9203-9504 ● ● ● ●
52 CONSOLE; FRT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-027-4 01 1 9112-9202 ● ● ● ●
52 CONSOLE; FRT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-079-5 01 1 9203-9504 ● ● ● ●
52 CONSOLE; FRT
M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97098-646-3 01 1 9505- ● ● ● ●
52 CONSOLE; FRT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-029-4 01 1 9112-9202 ● ● ● ●
52 CONSOLE; FRT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-081-5 01 1 9203-9504 ● ● ● ●
55 SCREW; FRT CONSOLE
M5X19 		1-09981-152-0 02 1 9112-9202 ● ● ● ●
55 SCREW; FRT CONSOLE
M5X20 TAPPING W/PL WASHER 		0-74315-520-0 02 1 9203-9504 ● ● ● ●
55 SCREW; FRT CONSOLE
M5X14 TAPPING 		1-72548-072-0 04 1 9505- ● ● ● ●
184 BOX; COIN,SEAT SIDE
A/T THM(RMQ) 		8-94482-280-2 01 1 9112- ● ● ● ●
218 BOLT; BRKT
(B) M6X12 		0-20800-612-0 03 1 9505-9603 ● ● ● ●
218 BOLT; BRKT
(B) M6X10 		0-20800-610-0 03 1 9604-9607 ● ● ● ●
218 BOLT; BRKT
EXC. ANTI LOCK BRAKE(JE5) (A) M6X14 FLANGE 		0-28080-614-0 02 1 9203- ● ● ● ●
248 BOOT; SHIFT CONT
A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-091-0 01 1 9112-9308 ● ● ● ●
248 BOOT; SHIFT CONT
A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97810-000-0 01 1 9309-9504 ● ● ● ●
248 BOOT; SHIFT CONT
A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-093-0 01 1 9112-9308 ● ● ● ●
248 BOOT; SHIFT CONT
A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97810-001-0 01 1 9309-9504 ● ● ● ●
248 BOOT; SHIFT CONT
A/T THM(RMQ) BLACK 		8-97154-520-0 01 1 9505-9707 ● ● ● ●
248 BOOT; SHIFT CONT
A/T THM(RMQ) BLACK 		8-97159-879-0 01 1 9708- ● ● ● ●
248 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-083-1 01 1 9112-9308 ● ● ● ●
248 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97809-998-0 01 1 9309-9504 ● ● ● ●
248 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-085-1 01 1 9112-9308 ● ● ● ●
248 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-999-0 01 1 9309-9504 ● ● ● ●
248 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) BLACK 		8-97154-521-0 01 1 9505-9707 ● ● ● ●
248 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) BLACK 		8-97159-878-0 01 1 9708- ● ● ● ●
249 COVER 8-97043-732-1 AR 1 9112- ● ● ● ●

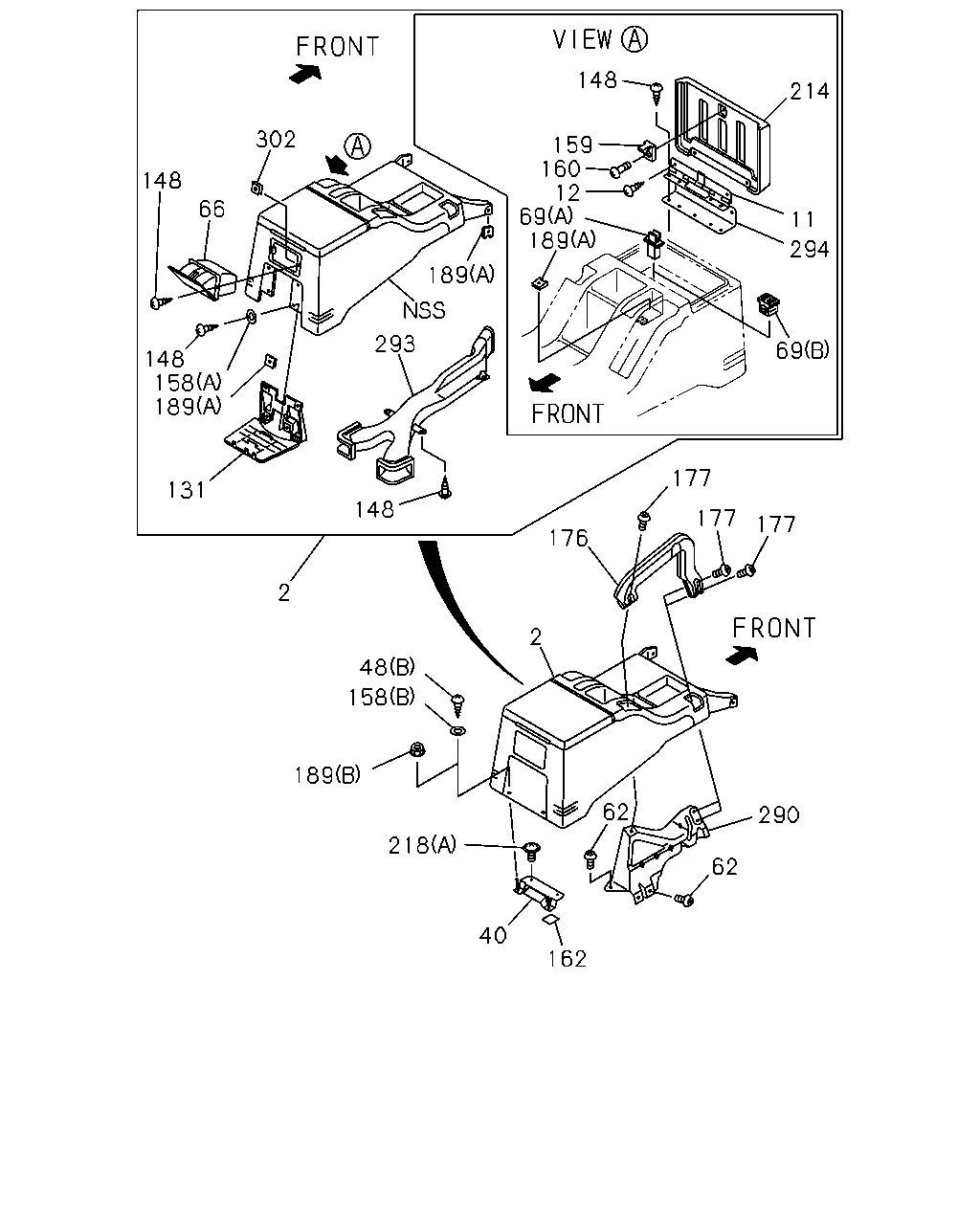

çizim 17130
148 214 302 159 160 12 69 189 148 66 11 294 189 293 69 148 158 189 177 131 148 177 177 176 2 2 48 158 189 62 290 218 62 40 162
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 CONSOLE; CENTER
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-035-7 01 1 9112-9202 ● ● ● ●
2 CONSOLE; CENTER
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97809-141-1 01 1 9203-9306 ● ● ● ●
2 CONSOLE; CENTER
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-005-0 01 1 9307-9504 ● ● ● ●
2 CONSOLE; CENTER
DARK GRAY 		8-97098-371-4 01 1 9505-9607 ● ● ● ●
2 CONSOLE; CENTER
DARK GRAY 		8-97154-902-0 01 1 9608- ● ● ● ●
2 CONSOLE; CENTER
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-037-7 01 1 9112-9202 ● ● ● ●
2 CONSOLE; CENTER
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-142-1 01 1 9203-9306 ● ● ● ●
2 CONSOLE; CENTER
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-006-0 01 1 9307-9504 ● ● ● ●
11 HINGE; CONSOLE LID 8-97806-815-5 01 1 9112-9504 ● ● ● ●
12 SCREW; DOOR HINGE
M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9112- ● ● ● ●
40 BRACKET; SUPPORT,CENTER CONSOLE 8-97808-660-1 01 1 9203- ● ● ● ●
48 SCREW; BRKT,CENTER CONSOLE
(B) M5X35 		0-71080-535-0 02 1 9112-9202 ● ● ● ●
48 SCREW; BRKT,CENTER CONSOLE
(A) M5X16 		8-94295-854-0 04 1 9112-9504 ● ● ● ●
48 SCREW; BRKT,CENTER CONSOLE
(A) M5X16 		8-94295-854-0 02 1 9505- ● ● ● ●
62 SCREW; BRKT
M6X16 W/LK&PL WASHER 		9-03920-616-0 06 1 9112-9301 ● ● ● ●
62 SCREW; BRKT
M6X16 W/LK&PL WASHER 		9-03920-616-0 05 1 9302- ● ● ● ●
66 TRAY ASM; ASH
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-067-1 01 1 9112-9504 ● ● ● ●
66 TRAY ASM; ASH
DARK GRAY 		8-97151-531-1 01 1 9505- ● ● ● ●
66 TRAY ASM; ASH
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-069-1 01 1 9112-9504 ● ● ● ●
69 LOCK ASM; CONSOLE
(A) 		8-97803-002-0 01 1 9112-9208 ● ● ● ●
69 LOCK ASM; CONSOLE
INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) (A) 		8-97803-002-0 01 1 9209-9306 ● ● ● ●
69 LOCK ASM; CONSOLE
INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) (B) 		8-97810-400-0 01 1 9307-9504 ● ● ● ●
131 COVER; CONSOLE SIDE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-071-3 01 1 9112-9504 ● ● ● ●
131 COVER; CONSOLE SIDE
DARK GRAY 		8-97151-532-1 01 1 9505- ● ● ● ●
131 COVER; CONSOLE SIDE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-073-3 01 1 9112-9504 ● ● ● ●
148 SCREW; LID,CONSOLE
M4.5X10 		8-94489-930-0 21 1 9112-9504 ● ● ● ●
158 WASHER; PL
(A) ID=8 OD=18 T=3 		8-94174-537-0 04 1 9112-9202 ● ● ● ●
158 WASHER; PL
(B) ID=5.3 OD=12 		9-09160-605-0 04 1 9112-9202 ● ● ● ●
159 STRIKER; CONSOLE
INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) 		8-97803-304-1 01 1 9112-9306 ● ● ● ●
160 SCREW; STRIKER,PARCEL BOX LID 8-94377-349-0 01 1 9112-9208 ● ● ● ●
160 SCREW; STRIKER,PARCEL BOX LID
INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) 		8-94377-349-0 01 1 9209-9306 ● ● ● ●
162 CUSHION; PARCEL BOX 8-97808-667-0 02 1 9203- ● ● ● ●
176 GRIP; CTR,CONSOLE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-039-3 01 1 9112-9504 ● ● ● ●
176 GRIP; CTR,CONSOLE
DARK GRAY 		8-97098-372-3 01 1 9505- ● ● ● ●
176 GRIP; CTR,CONSOLE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-041-3 01 1 9112-9504 ● ● ● ●
177 SCREW; CTR GRIP 8-97807-919-0 03 1 9112-9607 ● ● ● ●
177 SCREW; CTR GRIP
M6X25 FLANGE 		0-28680-625-0 03 1 9608- ● ● ● ●
189 NUT; CONSOLE BOX
(A) M5 SPIRE NUT 		8-94217-271-0 10 1 9112-9504 ● ● ● ●
189 NUT; CONSOLE BOX
(A) M5 SPIRE NUT 		8-94217-271-0 04 1 9505- ● ● ● ●
189 NUT; CONSOLE BOX
(B) M5 FLANGE 		8-94379-494-0 02 1 9203- ● ● ● ●
214 LID; CONSOLE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-063-5 01 1 9112-9306 ● ● ● ●
214 LID; CONSOLE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-009-0 01 1 9307-9504 ● ● ● ●
214 LID; CONSOLE
DARK GRAY 		8-97151-528-1 01 1 9505-9607 ● ● ● ●
214 LID; CONSOLE
DARK GRAY 		8-97151-528-1 01 1 9608- ● ● ● ●
214 LID; CONSOLE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-065-5 01 1 9112-9306 ● ● ● ●
214 LID; CONSOLE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-010-0 01 1 9307-9504 ● ● ● ●
218 BOLT; BRKT
(B) M6X12 		0-20800-612-0 03 1 9505-9603 ● ● ● ●
218 BOLT; BRKT
(B) M6X10 		0-20800-610-0 03 1 9604-9607 ● ● ● ●
218 BOLT; BRKT
EXC. ANTI LOCK BRAKE(JE5) (A) M6X14 FLANGE 		0-28080-614-0 02 1 9203- ● ● ● ●
290 BRACKET; GRIP 8-97804-057-4 01 1 9112-9504 ● ● ● ●
290 BRACKET; GRIP 8-97113-889-1 01 1 9505- ● ● ● ●
293 DUCT 8-97034-119-2 01 1 9112-9607 ● ● ● ●
293 DUCT 8-97116-662-1 01 1 9608- ● ● ● ●
294 COVER; HINGE 8-97807-243-2 01 1 9112-9504 ● ● ● ●
302 RETAINER; ASH TRAY 8-94123-300-5 02 1 9112-9512 ● ● ● ●
302 RETAINER; ASH TRAY 8-97142-901-0 02 1 9601- ● ● ● ●

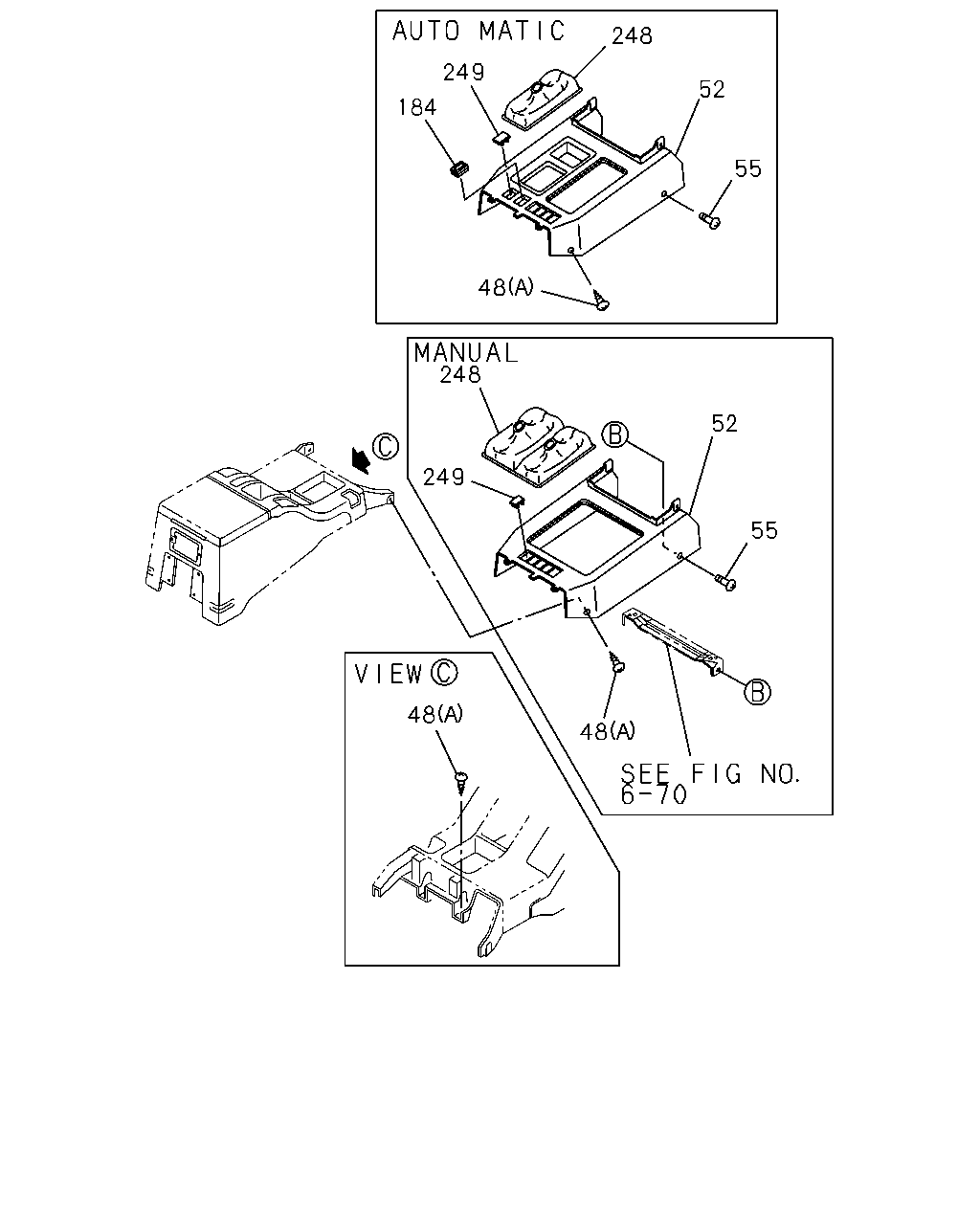

çizim 65734
248 249 52 184 55 48 248 52 249 55 48 48
BalonParca AdiParca NoAdetTipApplied Date A B C D
48 SCREW; BRKT,CENTER CONSOLE
(B) M5X35 		0-71080-535-0 02 1 9112-9202 ● ● ● ●
48 SCREW; BRKT,CENTER CONSOLE
(A) M5X16 		8-94295-854-0 04 1 9112-9504 ● ● ● ●
48 SCREW; BRKT,CENTER CONSOLE
(A) M5X16 		8-94295-854-0 02 1 9505- ● ● ● ●
52 CONSOLE; FRT
A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-031-3 01 1 9112-9202 ● ● ● ●
52 CONSOLE; FRT
A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-087-4 01 1 9203-9504 ● ● ● ●
52 CONSOLE; FRT
A/T THM(RMQ) DARK GRAY 		8-97098-647-3 01 1 9505- ● ● ● ●
52 CONSOLE; FRT
A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-033-3 01 1 9112-9202 ● ● ● ●
52 CONSOLE; FRT
A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-089-4 01 1 9203-9504 ● ● ● ●
52 CONSOLE; FRT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-027-4 01 1 9112-9202 ● ● ● ●
52 CONSOLE; FRT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-079-5 01 1 9203-9504 ● ● ● ●
52 CONSOLE; FRT
M/T MUA 5 SPEED(RMN) DARK GRAY 		8-97098-646-3 01 1 9505- ● ● ● ●
52 CONSOLE; FRT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-029-4 01 1 9112-9202 ● ● ● ●
52 CONSOLE; FRT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-081-5 01 1 9203-9504 ● ● ● ●
55 SCREW; FRT CONSOLE
M5X19 		1-09981-152-0 02 1 9112-9202 ● ● ● ●
55 SCREW; FRT CONSOLE
M5X20 TAPPING W/PL WASHER 		0-74315-520-0 02 1 9203-9504 ● ● ● ●
55 SCREW; FRT CONSOLE
M5X14 TAPPING 		1-72548-072-0 04 1 9505- ● ● ● ●
184 BOX; COIN,SEAT SIDE
A/T THM(RMQ) 		8-94482-280-2 01 1 9112- ● ● ● ●
248 BOOT; SHIFT CONT
A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-091-0 01 1 9112-9308 ● ● ● ●
248 BOOT; SHIFT CONT
A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97810-000-0 01 1 9309-9504 ● ● ● ●
248 BOOT; SHIFT CONT
A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-093-0 01 1 9112-9308 ● ● ● ●
248 BOOT; SHIFT CONT
A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97810-001-0 01 1 9309-9504 ● ● ● ●
248 BOOT; SHIFT CONT
A/T THM(RMQ) BLACK 		8-97154-520-0 01 1 9505-9707 ● ● ● ●
248 BOOT; SHIFT CONT
A/T THM(RMQ) BLACK 		8-97159-879-0 01 1 9708- ● ● ● ●
248 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-083-1 01 1 9112-9308 ● ● ● ●
248 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97809-998-0 01 1 9309-9504 ● ● ● ●
248 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-085-1 01 1 9112-9308 ● ● ● ●
248 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-999-0 01 1 9309-9504 ● ● ● ●
248 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) BLACK 		8-97154-521-0 01 1 9505-9707 ● ● ● ●
248 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) BLACK 		8-97159-878-0 01 1 9708- ● ● ● ●
249 COVER 8-97043-732-1 AR 1 9112- ● ● ● ●

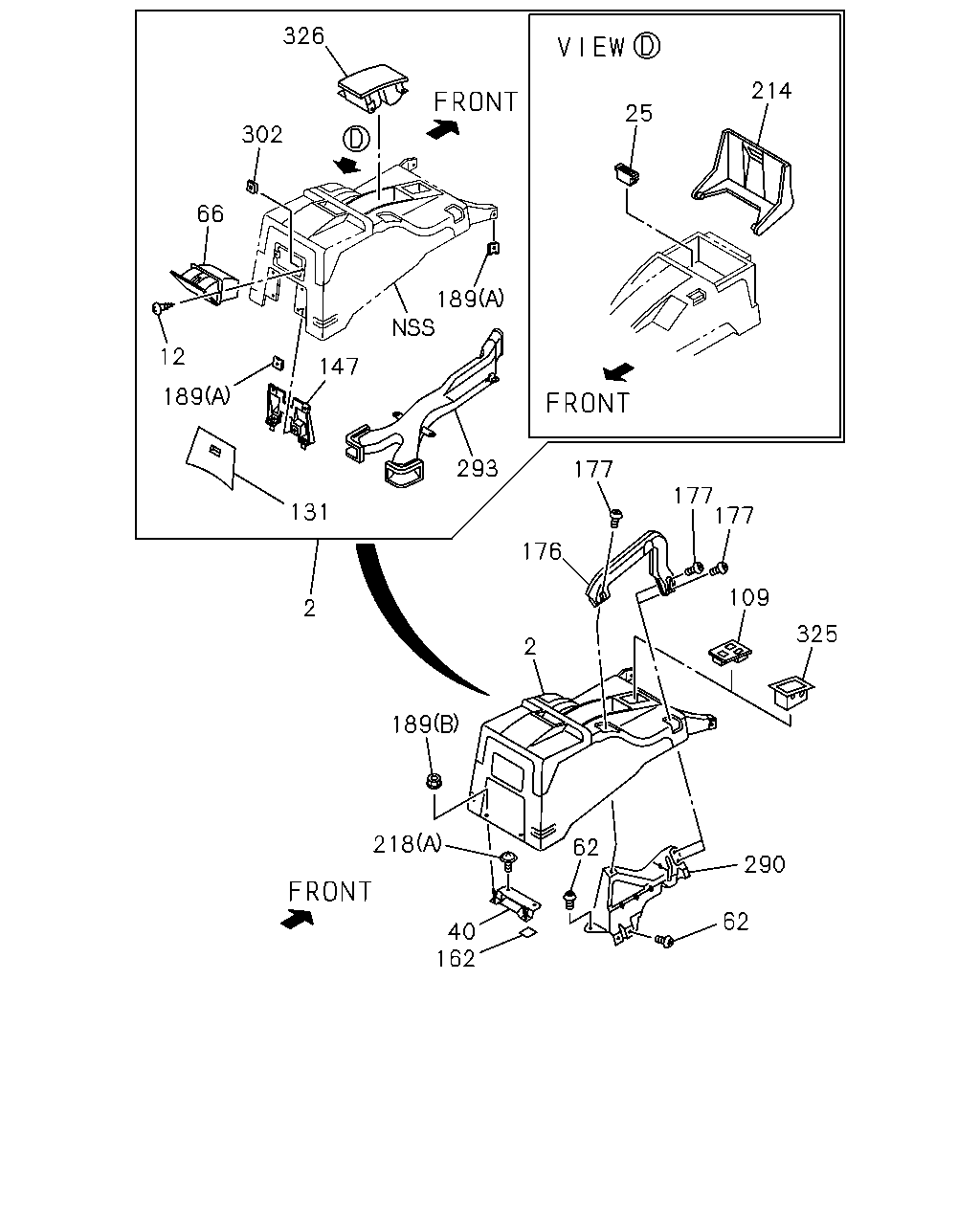

çizim 65745
326 214 25 302 66 189 12 147 189 293 177 177 177 131 176 109 2 325 2 189 218 62 290 62 40 162
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 CONSOLE; CENTER
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-035-7 01 1 9112-9202 ● ● ● ●
2 CONSOLE; CENTER
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97809-141-1 01 1 9203-9306 ● ● ● ●
2 CONSOLE; CENTER
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-005-0 01 1 9307-9504 ● ● ● ●
2 CONSOLE; CENTER
DARK GRAY 		8-97098-371-4 01 1 9505-9607 ● ● ● ●
2 CONSOLE; CENTER
DARK GRAY 		8-97154-902-0 01 1 9608- ● ● ● ●
2 CONSOLE; CENTER
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-037-7 01 1 9112-9202 ● ● ● ●
2 CONSOLE; CENTER
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-142-1 01 1 9203-9306 ● ● ● ●
2 CONSOLE; CENTER
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-006-0 01 1 9307-9504 ● ● ● ●
12 SCREW; DOOR HINGE
M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9112- ● ● ● ●
25 MAGNET; CENTER CONSOLE 8-97103-831-0 01 1 9505- ● ● ● ●
40 BRACKET; SUPPORT,CENTER CONSOLE 8-97808-660-1 01 1 9203- ● ● ● ●
62 SCREW; BRKT
M6X16 W/LK&PL WASHER 		9-03920-616-0 06 1 9112-9301 ● ● ● ●
62 SCREW; BRKT
M6X16 W/LK&PL WASHER 		9-03920-616-0 05 1 9302- ● ● ● ●
66 TRAY ASM; ASH
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-067-1 01 1 9112-9504 ● ● ● ●
66 TRAY ASM; ASH
DARK GRAY 		8-97151-531-1 01 1 9505- ● ● ● ●
66 TRAY ASM; ASH
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-069-1 01 1 9112-9504 ● ● ● ●
109 BEZEL; POWER WINDOW SW
DOOR MIRROR ELEC FOLDING W/DEF(6MK) 		8-97083-239-1 01 1 9505- ● ● ● ●
131 COVER; CONSOLE SIDE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-071-3 01 1 9112-9504 ● ● ● ●
131 COVER; CONSOLE SIDE
DARK GRAY 		8-97151-532-1 01 1 9505- ● ● ● ●
131 COVER; CONSOLE SIDE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-073-3 01 1 9112-9504 ● ● ● ●
147 BASE ASM; CENTER CONSOLE 8-97088-818-2 01 1 9505- ● ● ● ●
162 CUSHION; PARCEL BOX 8-97808-667-0 02 1 9203- ● ● ● ●
176 GRIP; CTR,CONSOLE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-039-3 01 1 9112-9504 ● ● ● ●
176 GRIP; CTR,CONSOLE
DARK GRAY 		8-97098-372-3 01 1 9505- ● ● ● ●
176 GRIP; CTR,CONSOLE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-041-3 01 1 9112-9504 ● ● ● ●
177 SCREW; CTR GRIP 8-97807-919-0 03 1 9112-9607 ● ● ● ●
177 SCREW; CTR GRIP
M6X25 FLANGE 		0-28680-625-0 03 1 9608- ● ● ● ●
189 NUT; CONSOLE BOX
(A) M5 SPIRE NUT 		8-94217-271-0 10 1 9112-9504 ● ● ● ●
189 NUT; CONSOLE BOX
(A) M5 SPIRE NUT 		8-94217-271-0 04 1 9505- ● ● ● ●
189 NUT; CONSOLE BOX
(B) M5 FLANGE 		8-94379-494-0 02 1 9203- ● ● ● ●
214 LID; CONSOLE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-063-5 01 1 9112-9306 ● ● ● ●
214 LID; CONSOLE
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-009-0 01 1 9307-9504 ● ● ● ●
214 LID; CONSOLE
DARK GRAY 		8-97151-528-1 01 1 9505-9607 ● ● ● ●
214 LID; CONSOLE
DARK GRAY 		8-97151-528-1 01 1 9608- ● ● ● ●
214 LID; CONSOLE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-065-5 01 1 9112-9306 ● ● ● ●
214 LID; CONSOLE
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-010-0 01 1 9307-9504 ● ● ● ●
218 BOLT; BRKT
(B) M6X12 		0-20800-612-0 03 1 9505-9603 ● ● ● ●
218 BOLT; BRKT
(B) M6X10 		0-20800-610-0 03 1 9604-9607 ● ● ● ●
218 BOLT; BRKT
EXC. ANTI LOCK BRAKE(JE5) (A) M6X14 FLANGE 		0-28080-614-0 02 1 9203- ● ● ● ●
290 BRACKET; GRIP 8-97804-057-4 01 1 9112-9504 ● ● ● ●
290 BRACKET; GRIP 8-97113-889-1 01 1 9505- ● ● ● ●
293 DUCT 8-97034-119-2 01 1 9112-9607 ● ● ● ●
293 DUCT 8-97116-662-1 01 1 9608- ● ● ● ●
302 RETAINER; ASH TRAY 8-94123-300-5 02 1 9112-9512 ● ● ● ●
302 RETAINER; ASH TRAY 8-97142-901-0 02 1 9601- ● ● ● ●
325 POCKET
DOOR MIRROR DRIVER & PASSENGER PLAIN(S4K) 		8-97083-252-1 01 1 9505- ● ● ● ●
326 HOLDER; CUP
DARK GRAY 		8-97151-533-0 01 1 9505- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
