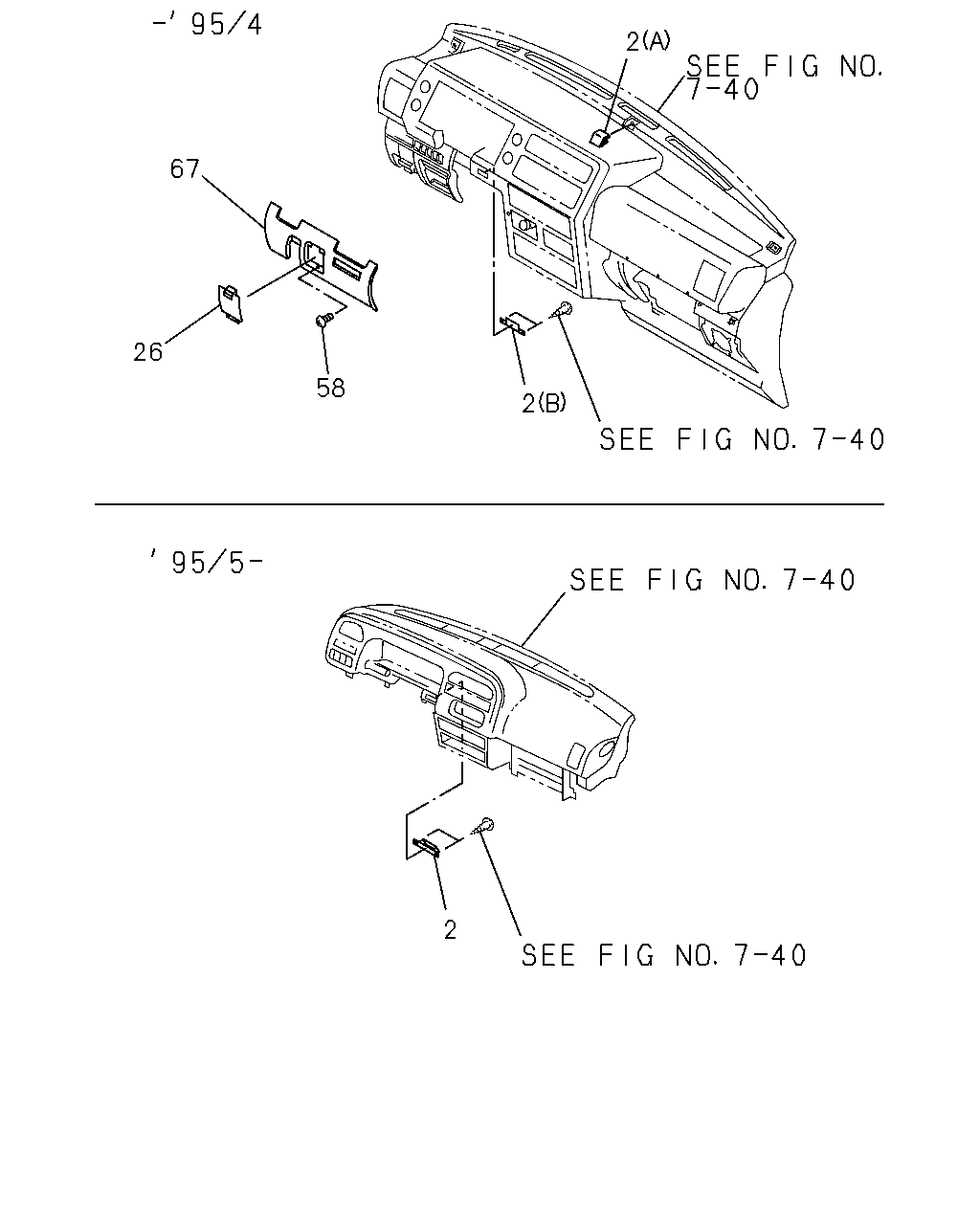

7-41 — UNDER COVER; INSTRUMENT (#35275) — 10 parça

2 67 26 58 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; HOLE,INST INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-330-1	01	1	9112-9504	●	●
2	COVER; HOLE,INST INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-332-1	01	1	9112-9504	●	●
2	COVER; HOLE,INST M/T MUA 5 SPEED(RMN) EXC. ANTI THEFT<UA6> (A)	8-97060-022-1	01	1	9112-9504	●	●
2	COVER; HOLE,INST EXC. AUTO CRUISE CONT<K30> (A)	8-97060-022-1	01	1	9112-9504	●	●
2	COVER; HOLE,INST EXC. AUTO CRUISE CONT<K30>	8-97060-022-1	01	1	9505-	●	●
26	COVER; FUSE BOX INTERIOR COLOR BROWN(130) DARK BROWN	8-97805-286-1	01	1	9112-9504	●	●
26	COVER; FUSE BOX INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-288-1	01	1	9112-9504	●	●
58	SCREW; UNDER COVER M5X16 TAPPING	9-09829-323-1	03	1	9112-9504	●	●
67	COVER; UNDER,INST PNL INTERIOR COLOR BROWN(130) DARK BROWN	8-97805-278-4	01	1	9112-9504	●	●
67	COVER; UNDER,INST PNL INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-280-4	01	1	9112-9504	●	●
