Sayfa 7-40 - Isuzu EPC

7-40 — INSTRUMENT PANEL AND BOX (#35274) — 289 parça

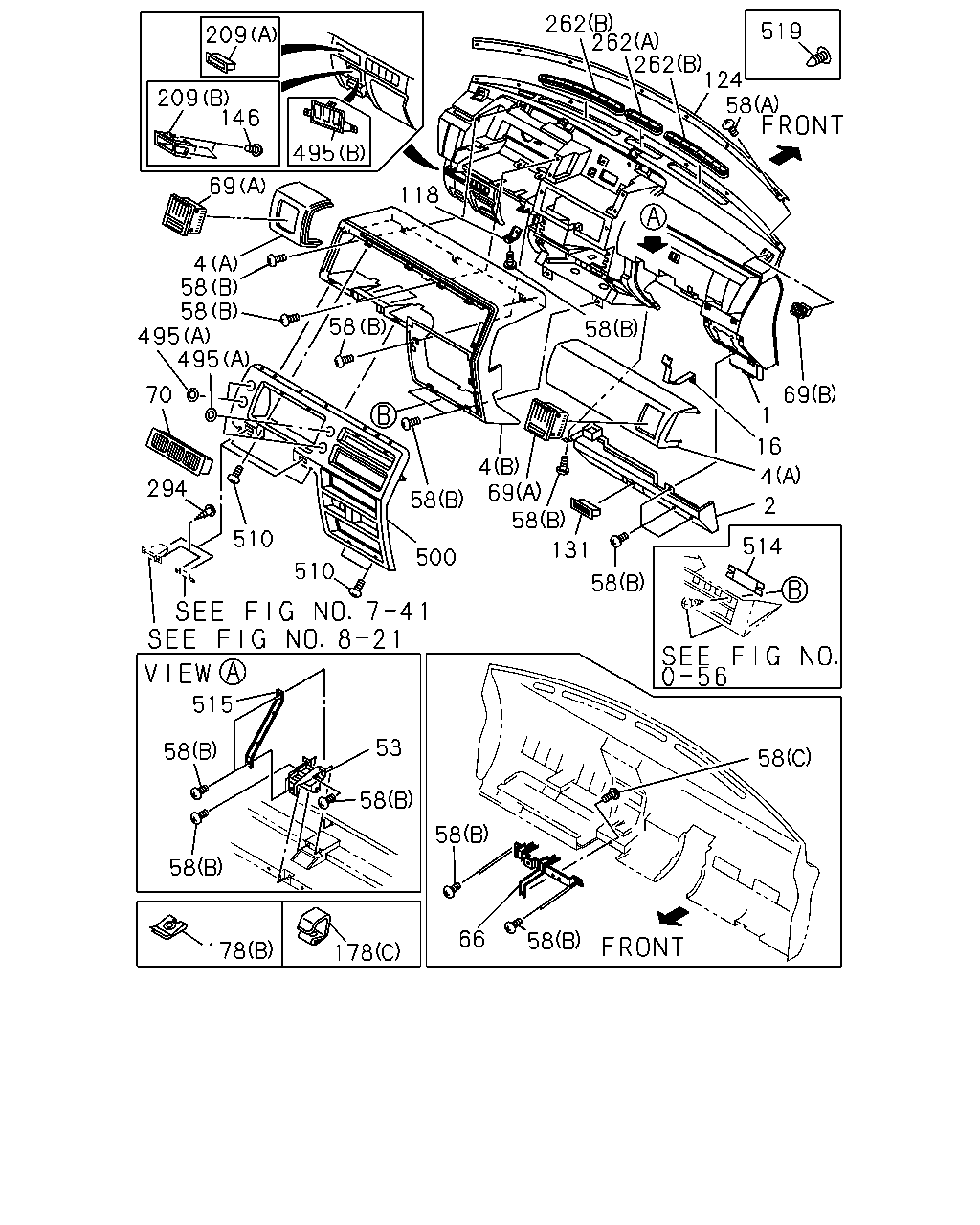

262 262 262 124 58 519 209 209 146 495 69 118 4 58 58 495 495 58 58 69 1 16 4 2 70 4 69 58 58 131 58 294 510 515 514 500 510 53 58 58 58 58 58 178 58 66 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; INST AIR BAG PASSENGER<7FA> EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY	8-97098-650-4	01	1	9608-	●	●
1	PANEL; INST EUROPE/CANARY EQUIPMENT(EK4) AIR BAG PASSENGER<7FA> DARK GRAY	8-97157-872-0	01	1	9608-	●	●
1	PANEL; INST INTERIOR COLOR BROWN(130) DARK BROWN	8-97805-249-9	01	1	9112-9504	●	●
1	PANEL; INST DARK GRAY	8-97152-350-4	01	1	9505-9607	●	●
1	PANEL; INST EXC. AIR BAG PASSENGER<7FA> DARK GRAY	8-97152-350-4	01	1	9608-	●	●
1	PANEL; INST INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-251-9	01	1	9112-9504	●	●
2	REINFORCEMENT; INST PNL,LWR INTERIOR COLOR BROWN(130) DARK BROWN	8-97805-273-4	01	1	9112-9504	●	●
2	REINFORCEMENT; INST PNL,LWR	8-97080-121-5	01	1	9505-9607	●	●
2	REINFORCEMENT; INST PNL,LWR	8-97142-742-1	01	1	9608-	●	●
2	REINFORCEMENT; INST PNL,LWR INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-275-4	01	1	9112-9504	●	●
4	COVER; INST PNL DARK GRAY	8-97098-308-5	01	1	9505-	●	●
4	COVER; INST PNL INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-261-5	01	1	9112-9504	●	●
4	COVER; INST PNL INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-253-1	01	1	9112-9504	●	●
4	COVER; INST PNL INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-257-1	01	1	9112-9504	●	●
4	COVER; INST PNL INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-263-5	01	1	9112-9504	●	●
4	COVER; INST PNL INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-255-1	01	1	9112-9504	●	●
4	COVER; INST PNL INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-259-1	01	1	9112-9504	●	●
16	BRACKET; INST PNL	8-97808-067-1	01	1	9112-9504	●	●
16	BRACKET; INST PNL	8-97083-250-2	01	1	9505-9607	●	●
16	BRACKET; INST PNL	8-97133-385-0	01	1	9608-	●	●
53	STRIKER; GLOVE BOX	8-94310-754-1	01	1	9112-9504	●	●
53	STRIKER; GLOVE BOX	8-97064-753-0	01	1	9505-	●	●
58	SCREW; INST PANEL (C) M5X14 TAPPING W/PL WASHER	0-74110-514-0	07	1	9112-9504	●	●
58	SCREW; INST PANEL (A) M4X12 TAPPING OVAL-HEAD	9-09829-312-1	13	1	9112-9504	●	●
58	SCREW; INST PANEL (B) M5X14 TAPPING	9-09829-322-1	22	1	9112-9504	●	●
66	REINFORCEMENT; INST PANEL	8-97804-041-5	01	1	9112-9504	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-318-3	01	1	9112-9504	●	●
69	GRILLE; SIDE,AIR OUTLET (E) DARK GRAY	8-97151-143-1	01	1	9505-	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-362-3	01	1	9112-9208	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97808-675-0	01	1	9209-9504	●	●
69	GRILLE; SIDE,AIR OUTLET (C) BLACK BLACK	8-97091-908-1	01	1	9505-	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-265-3	01	1	9112-9208	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97808-672-0	01	1	9209-9504	●	●
69	GRILLE; SIDE,AIR OUTLET (D) DARK GRAY	8-97080-486-1	01	1	9505-	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-314-3	01	1	9112-9504	●	●
69	GRILLE; SIDE,AIR OUTLET (E) DARK GRAY	8-97151-142-1	01	1	9505-	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-320-3	01	1	9112-9504	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-364-3	01	1	9112-9208	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97808-676-0	01	1	9209-9504	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-267-3	01	1	9112-9208	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97808-673-0	01	1	9209-9504	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-316-3	01	1	9112-9504	●	●
70	GRILLE; CENTER,AIR OUTLET BLACK	8-97805-300-3	01	1	9112-9208	●	●
70	GRILLE; CENTER,AIR OUTLET BLACK	8-97808-678-2	01	1	9209-9504	●	●
70	GRILLE; CENTER,AIR OUTLET BLACK	8-97091-909-1	01	1	9505-	●	●
118	BRACKET; STRG	8-97805-932-2	01	1	9112-9504	●	●
124	REINFORCEMENT; INST PNL,UPR	8-97804-156-1	01	1	9112-9504	●	●
124	REINFORCEMENT; INST PNL,UPR	8-97080-122-3	01	1	9505-9606	●	●
124	REINFORCEMENT; INST PNL,UPR	8-97176-081-0	01	1	9607-9607	●	●
124	REINFORCEMENT; INST PNL,UPR EXC. AIR BAG PASSENGER<7FA>	8-97176-081-0	01	1	9608-	●	●
124	REINFORCEMENT; INST PNL,UPR AIR BAG PASSENGER<7FA>	8-97080-122-3	01	1	9608-	●	●
131	GRILLE ASM; LAP VENT BLACK	8-97806-851-2	02	1	9112-9504	●	●
146	SCREW; TAP M4X12 TAPPING OVAL-HEAD	9-09829-312-1	03	1	9304-9504	●	●
146	SCREW; TAP (D) M4X12 TAPPING OVAL-HEAD	9-09829-312-1	04	1	9505-	●	●
146	SCREW; TAP (C) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9505-	●	●
146	SCREW; TAP (B) M5X14 TAPPING	1-72548-072-0	12	1	9505-	●	●
146	SCREW; TAP (A) M5X12 TAPPING	9-09829-321-1	05	1	9505-	●	●
178	NUT; INST PANEL (A) M6 W/DISHED WASHER	8-94170-192-0	02	1	9112-9504	●	●
178	NUT; INST PANEL M6 W/DISHED WASHER	8-94170-192-0	07	1	9505-	●	●
178	NUT; INST PANEL (B) M5 SPIRE NUT	8-94217-271-0	24	1	9112-9204	●	●
178	NUT; INST PANEL (B) M5 SPIRE NUT	8-94217-271-0	26	1	9205-9208	●	●
178	NUT; INST PANEL (B) M5 SPIRE NUT	8-94217-271-0	24	1	9209-9211	●	●
178	NUT; INST PANEL (B)	8-97810-118-0	24	1	9212-9303	●	●
178	NUT; INST PANEL (B)	8-97810-118-0	22	1	9304-9504	●	●
178	NUT; INST PANEL (C)	8-97807-989-0	01	1	9112-9504	●	●
209	BOX; COIN EXC. DOOR MIRROR ELEC FOLDING W/DEF(6MK) (A)	8-94119-021-1	01	1	9112-9504	●	●
209	BOX; COIN INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153) EXC. ADJUST HEADLAMP<6RC> (B) BLACK	8-97806-916-1	01	1	9112-9208	●	●
209	BOX; COIN EXC. ADJUST HEADLAMP<6RC> (B) BLACK	8-97806-916-1	01	1	9209-9303	●	●
209	BOX; COIN EXC. ADJUST HEADLAMP<6RC> (B)	8-97810-465-0	01	1	9304-9504	●	●
262	GRILLE; DEFROSTER DARK GRAY	8-97098-380-1	01	1	9505-	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-302-0	01	1	9112-9504	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-310-0	01	1	9112-9504	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-306-0	01	1	9112-9504	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-304-0	01	1	9112-9504	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-312-0	01	1	9112-9504	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-308-0	01	1	9112-9504	●	●
294	SCREW; BEZEL M4X14 TAPPING W/PL WASHER	0-74300-414-0	04	1	9112-9504	●	●
294	SCREW; BEZEL M4X14 TAPPING W/PL WASHER	0-74300-414-0	02	1	9505-	●	●
495	BEZEL; SW (A)WIPER BLACK	8-97805-290-2	01	1	9112-9504	●	●
495	BEZEL; SW (A)LIGHTING BLACK	8-97805-292-3	01	1	9112-9504	●	●
495	BEZEL; SW (A)ILLUMI BLACK	8-97805-293-2	01	1	9112-9504	●	●
495	BEZEL; SW (A)HAZARD BLACK	8-97805-294-3	01	1	9112-9504	●	●
495	BEZEL; SW ADJUST HEADLAMP<6RC> (B) BLACK	8-97806-915-1	01	1	9112-9504	●	●
500	CLUSTER; INST CENTER	8-94359-592-5	01	1	9112-9311	●	●
500	CLUSTER; INST CENTER	8-97810-752-0	01	1	9312-9504	●	●
510	SCREW; CENTER CLUSTER M5X16 TAPPING	9-09829-323-1	08	1	9112-9504	●	●
514	BEZEL; WARNING A/T THM(RMQ)	8-97803-344-0	01	1	9112-9307	●	●
515	RETAINER; GLOVE BOX	8-97804-043-0	01	1	9112-9504	●	●
519	PLUG; DASH UPR 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) OD=12 L=14.8	8-94279-921-0	01	1	9204-9504	●	●
519	PLUG; DASH UPR 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) OD=12 L=14.8	8-94279-921-0	01	1	9505-	●	●

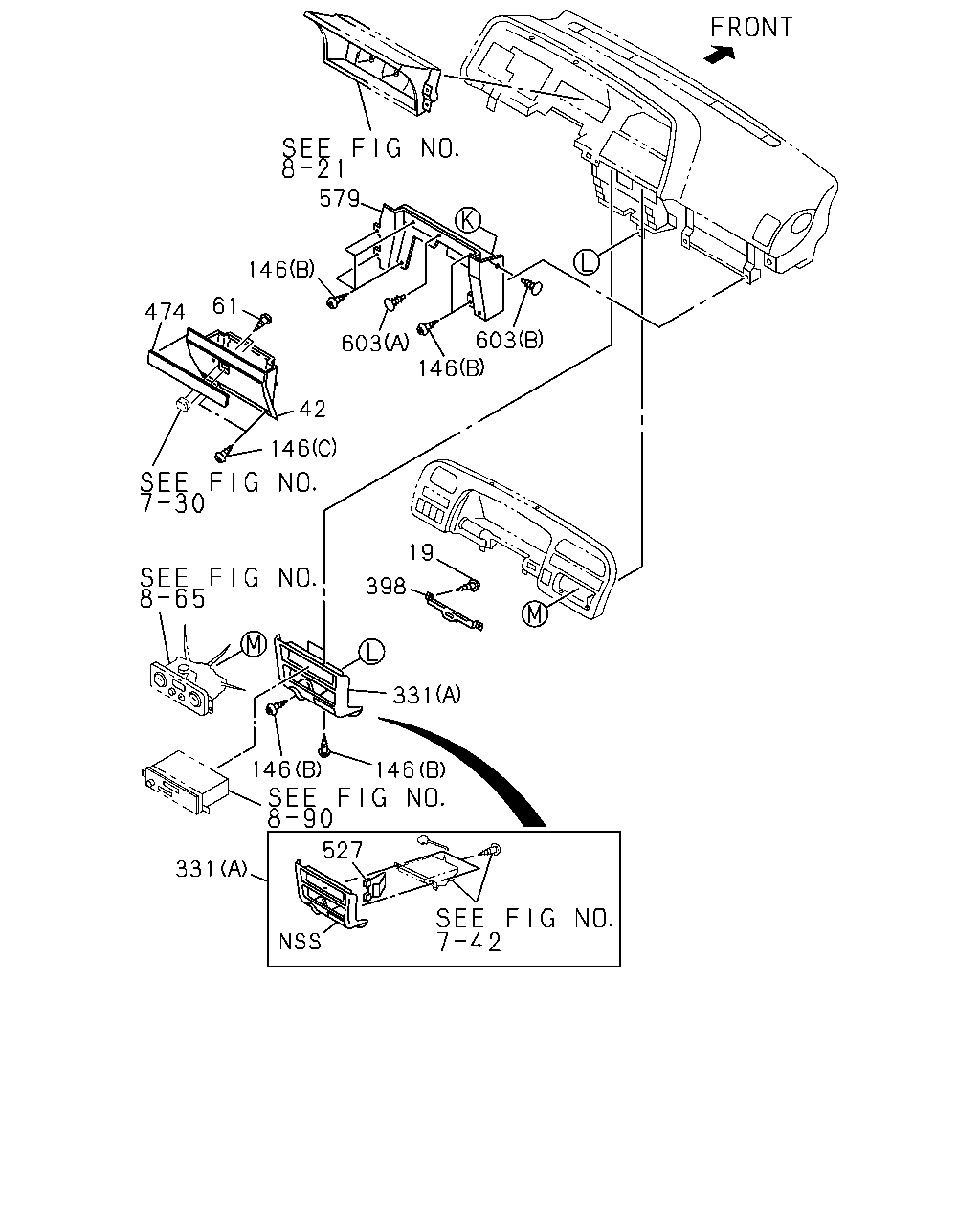

579 146 61 474 603 603 146 42 146 19 398 331 146 146 527 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	SCREW; BRKT CLUSTER AUDIO DIN 'E' FORM<7LG> M5X16 TAPPING	9-09829-323-1	06	1	9505-	●	●
42	BOX; GLOVE,INST PNL INTERIOR COLOR BROWN(130) DARK BROWN	8-97805-322-7	01	1	9112-9504	●	●
42	BOX; GLOVE,INST PNL DARK GRAY	8-97151-304-4	01	1	9505-9708	●	●
42	BOX; GLOVE,INST PNL DARK GRAY	8-97195-652-0	01	1	9709-	●	●
42	BOX; GLOVE,INST PNL INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-324-7	01	1	9112-9504	●	●
61	SCREW; GLOVE BOX (A) D6X11 POP RIVET	8-94298-119-0	04	1	9112-9504	●	●
61	SCREW; GLOVE BOX (B) M4X8 CK-HEAD	9-03094-408-0	02	1	9112-9401	●	●
61	SCREW; GLOVE BOX (B) M4X10	8-97107-420-0	02	1	9402-9504	●	●
61	SCREW; GLOVE BOX M4X14 TAPPING	8-97111-555-0	02	1	9505-	●	●
146	SCREW; TAP M4X12 TAPPING OVAL-HEAD	9-09829-312-1	03	1	9304-9504	●	●
146	SCREW; TAP (D) M4X12 TAPPING OVAL-HEAD	9-09829-312-1	04	1	9505-	●	●
146	SCREW; TAP (C) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9505-	●	●
146	SCREW; TAP (B) M5X14 TAPPING	1-72548-072-0	12	1	9505-	●	●
146	SCREW; TAP (A) M5X12 TAPPING	9-09829-321-1	05	1	9505-	●	●
331	CLUSTER; INST SIDE (B)	8-97103-469-5	01	1	9505-9603	●	●
331	CLUSTER; INST SIDE (B)	8-97160-266-0	01	1	9604-	●	●
331	CLUSTER; INST SIDE CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97111-343-4	01	1	9505-9603	●	●
331	CLUSTER; INST SIDE CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97160-269-0	01	1	9604-9608	●	●
331	CLUSTER; INST SIDE CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97165-356-0	01	1	9609-	●	●
331	CLUSTER; INST SIDE EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97091-910-4	01	1	9505-9603	●	●
331	CLUSTER; INST SIDE EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97160-268-0	01	1	9604-9608	●	●
331	CLUSTER; INST SIDE EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97165-355-0	01	1	9609-	●	●
398	BRACKET; SUPPORT CLUSTER AUDIO DIN 'E' FORM<7LG>	8-97111-352-1	02	1	9505-	●	●
474	PANEL ASM; ORNAMENT WOOD GRAIN TRIM<7FB>	8-97089-513-2	01	1	9505-9607		●
474	PANEL ASM; ORNAMENT WOOD GRAIN TRIM<7FB>	8-97135-973-0	01	1	9608-9610		●
474	PANEL ASM; ORNAMENT WOOD GRAIN TRIM<7FB>	8-97169-721-0	01	1	9611-		●
527	CLIP; INST CLUSTER T=0.5	8-97137-828-0	08	1	9505-	●	●
579	COVER; INST PNL DARK GRAY	8-97154-461-0	01	1	9505-	●	●
603	CLIP; COVER (A) OD=12 L=14.8	8-94279-921-0	01	1	9505-	●	●
603	CLIP; COVER (B) DARK GRAY	8-97151-280-1	02	1	9505-	●	●

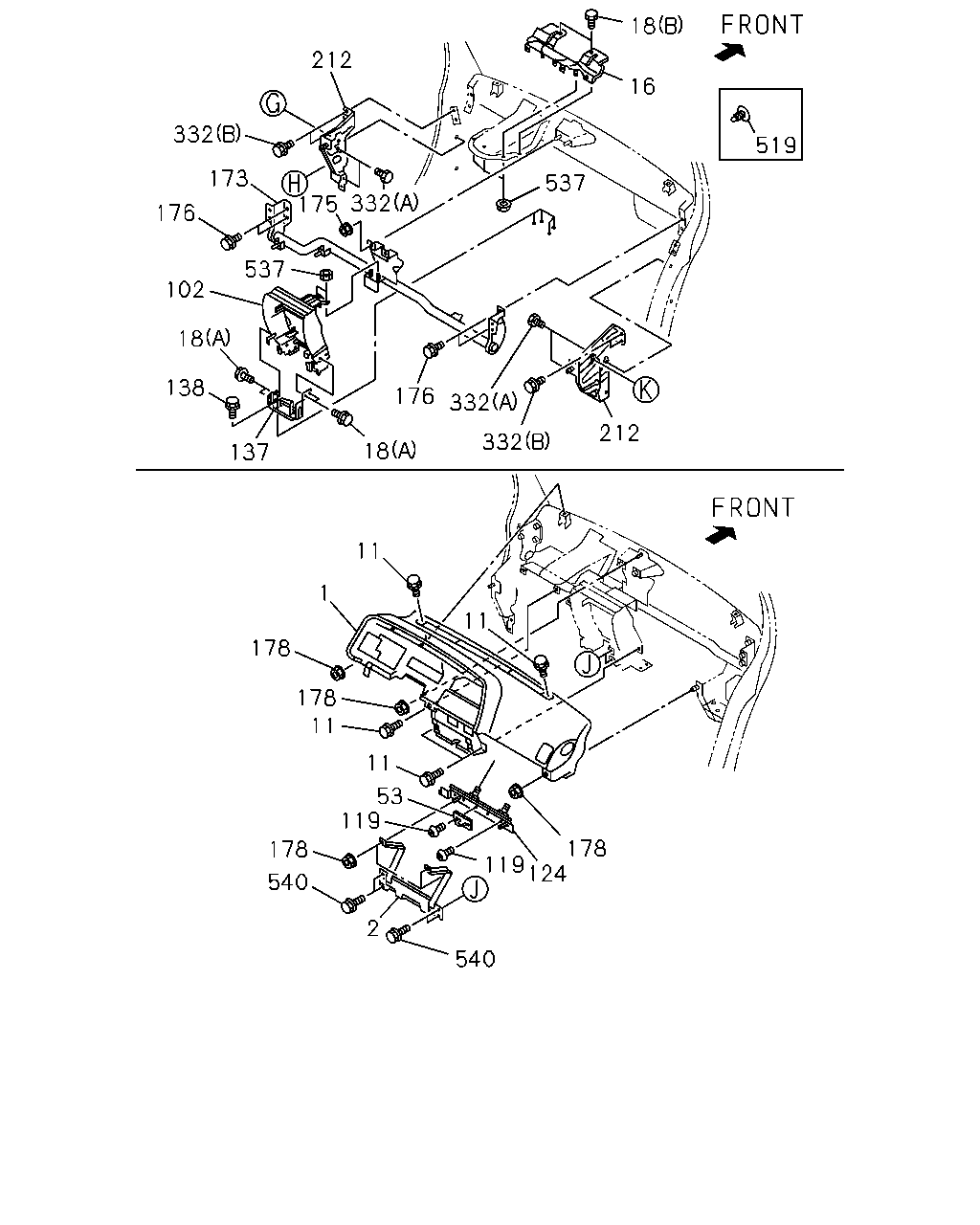

18 212 16 332 519 173 537 176 537 102 18 138 176 332 212 332 18 137 11 1 11 178 178 11 11 53 119 178 119 124 178 540 2 540 332 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; INST AIR BAG PASSENGER<7FA> EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY	8-97098-650-4	01	1	9608-	●	●
1	PANEL; INST EUROPE/CANARY EQUIPMENT(EK4) AIR BAG PASSENGER<7FA> DARK GRAY	8-97157-872-0	01	1	9608-	●	●
1	PANEL; INST INTERIOR COLOR BROWN(130) DARK BROWN	8-97805-249-9	01	1	9112-9504	●	●
1	PANEL; INST DARK GRAY	8-97152-350-4	01	1	9505-9607	●	●
1	PANEL; INST EXC. AIR BAG PASSENGER<7FA> DARK GRAY	8-97152-350-4	01	1	9608-	●	●
1	PANEL; INST INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-251-9	01	1	9112-9504	●	●
2	REINFORCEMENT; INST PNL,LWR INTERIOR COLOR BROWN(130) DARK BROWN	8-97805-273-4	01	1	9112-9504	●	●
2	REINFORCEMENT; INST PNL,LWR	8-97080-121-5	01	1	9505-9607	●	●
2	REINFORCEMENT; INST PNL,LWR	8-97142-742-1	01	1	9608-	●	●
2	REINFORCEMENT; INST PNL,LWR INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-275-4	01	1	9112-9504	●	●
11	BOLT; INST PNL	8-97805-931-0	06	1	9112-9210	●	●
11	BOLT; INST PNL	8-97032-653-0	06	1	9211-9504	●	●
11	BOLT; INST PNL M6X18 W/LK&PL WASHER	8-97060-719-0	06	1	9505-	●	●
16	BRACKET; INST PNL	8-97808-067-1	01	1	9112-9504	●	●
16	BRACKET; INST PNL	8-97083-250-2	01	1	9505-9607	●	●
16	BRACKET; INST PNL	8-97133-385-0	01	1	9608-	●	●
18	BOLT; BRKT (A) M6X12 W/LK WASHER	0-50040-612-0	04	1	9505-	●	●
18	BOLT; BRKT (B) M8X25	8-94493-360-1	02	1	9505-	●	●
53	STRIKER; GLOVE BOX	8-94310-754-1	01	1	9112-9504	●	●
53	STRIKER; GLOVE BOX	8-97064-753-0	01	1	9505-	●	●
102	BRACKET; INST PANEL TO FLOOR	8-94359-619-4	01	1	9112-9504	●	●
102	BRACKET; INST PANEL TO FLOOR	8-97083-245-5	01	1	9505-9607	●	●
102	BRACKET; INST PANEL TO FLOOR	8-97133-232-1	01	1	9608-	●	●
119	SCREW; BRKT TO INST M5X16 TAPPING	9-09829-323-1	08	1	9505-	●	●
124	REINFORCEMENT; INST PNL,UPR	8-97804-156-1	01	1	9112-9504	●	●
124	REINFORCEMENT; INST PNL,UPR	8-97080-122-3	01	1	9505-9606	●	●
124	REINFORCEMENT; INST PNL,UPR	8-97176-081-0	01	1	9607-9607	●	●
124	REINFORCEMENT; INST PNL,UPR EXC. AIR BAG PASSENGER<7FA>	8-97176-081-0	01	1	9608-	●	●
124	REINFORCEMENT; INST PNL,UPR AIR BAG PASSENGER<7FA>	8-97080-122-3	01	1	9608-	●	●
137	BRACKET; INST PNL MTG	8-97086-062-2	01	1	9505-9607	●	●
137	BRACKET; INST PNL MTG	8-97115-363-0	01	1	9608-	●	●
138	BOLT; BRKT TO BODY M6X16 W/LK&PL WASHER	8-97086-823-0	04	1	9505-9607	●	●
138	BOLT; BRKT TO BODY M6X16 W/LK&PL WASHER	8-97086-823-0	06	1	9608-	●	●
173	BEAM ASM; CROSS,INST PANEL	8-94359-613-5	01	1	9112-9207	●	●
173	BEAM ASM; CROSS,INST PANEL	8-97808-941-0	01	1	9208-9504	●	●
173	BEAM ASM; CROSS,INST PANEL	8-97083-240-1	01	1	9505-9607	●	●
173	BEAM ASM; CROSS,INST PANEL	8-97138-017-0	01	1	9608-	●	●
175	NUT; CROSS BEAM M6 W/DISHED WASHER	8-94170-192-0	04	1	9112-9504	●	●
175	NUT; CROSS BEAM M6 FLANGE	8-97063-399-0	02	1	9505-	●	●
176	BOLT; CROSS BEAM (A) M6X16 W/PL WASHER	8-94204-636-0	08	1	9112-9504	●	●
176	BOLT; CROSS BEAM M6X16 W/PL WASHER	8-94204-636-0	04	1	9505-	●	●
176	BOLT; CROSS BEAM (B) M6X20	8-97803-614-0	02	1	9112-9504	●	●
178	NUT; INST PANEL (A) M6 W/DISHED WASHER	8-94170-192-0	02	1	9112-9504	●	●
178	NUT; INST PANEL M6 W/DISHED WASHER	8-94170-192-0	07	1	9505-	●	●
178	NUT; INST PANEL (B) M5 SPIRE NUT	8-94217-271-0	24	1	9112-9204	●	●
178	NUT; INST PANEL (B) M5 SPIRE NUT	8-94217-271-0	26	1	9205-9208	●	●
178	NUT; INST PANEL (B) M5 SPIRE NUT	8-94217-271-0	24	1	9209-9211	●	●
178	NUT; INST PANEL (B)	8-97810-118-0	24	1	9212-9303	●	●
178	NUT; INST PANEL (B)	8-97810-118-0	22	1	9304-9504	●	●
178	NUT; INST PANEL (C)	8-97807-989-0	01	1	9112-9504	●	●
212	BRACKET; INST PNL SIDE	8-97083-247-6	01	1	9505-	●	●
212	BRACKET; INST PNL SIDE	8-97083-246-5	01	1	9505-	●	●
332	BOLT; SIDE CLUSTER (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9505-	●	●
332	BOLT; SIDE CLUSTER (B) M6X16 W/PL WASHER	8-94204-636-0	04	1	9505-	●	●
519	PLUG; DASH UPR 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) OD=12 L=14.8	8-94279-921-0	01	1	9204-9504	●	●
519	PLUG; DASH UPR 6VD1 SOHC ENG(RLU) EXC. AIR CONDITIONER MANUAL CONT(C60) OD=12 L=14.8	8-94279-921-0	01	1	9505-	●	●
537	NUT; BRKT M6 FLANGE	8-97063-399-0	05	1	9505-	●	●
540	BOLT; REINFORCEMENT M6X20 W/WASHER	8-94112-987-1	04	1	9505-	●	●

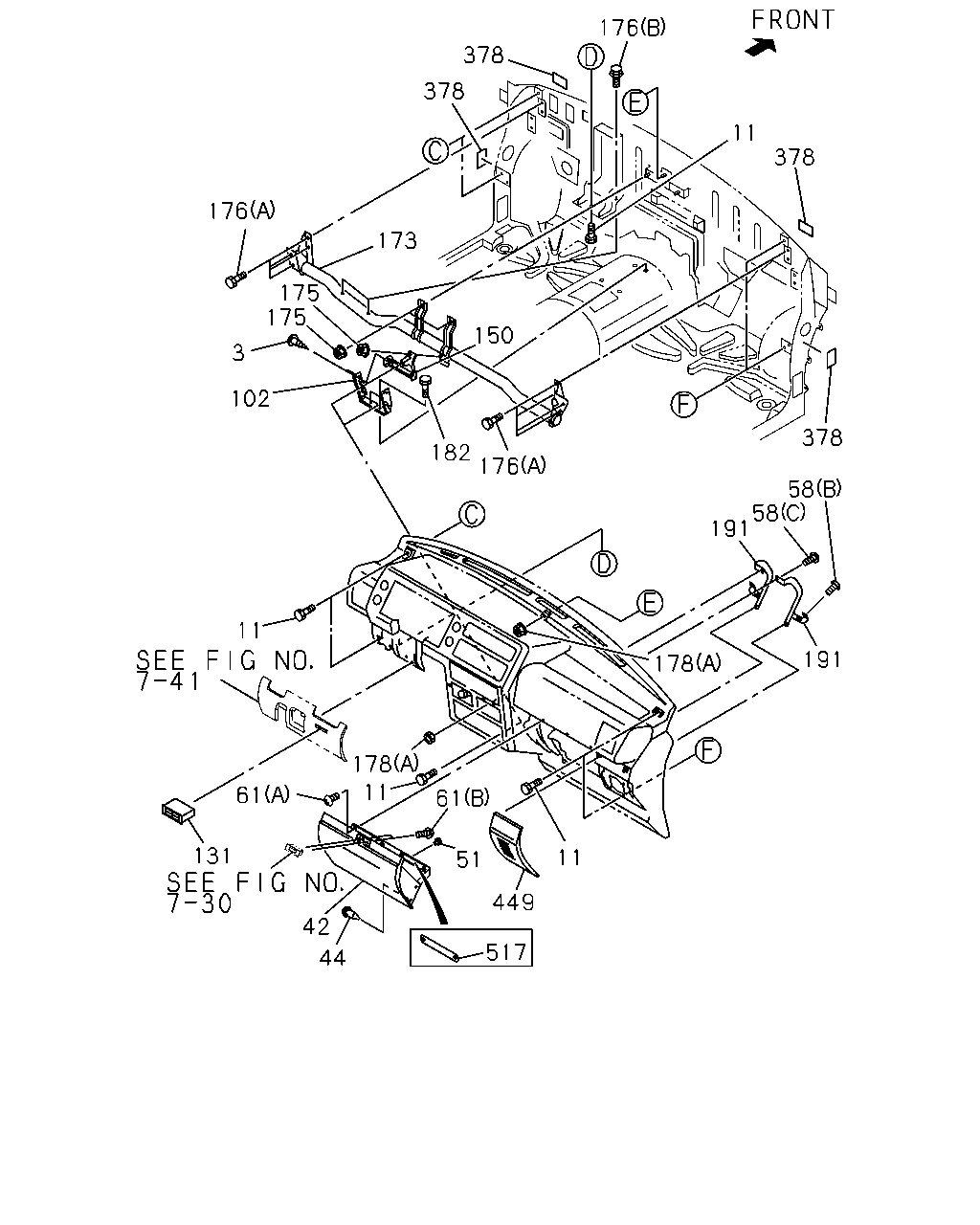

176 378 378 11 378 176 173 175 175 150 3 102 378 182 176 58 58 191 11 191 178 178 11 61 61 131 11 51 449 42 44 517

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	SCREW; BINDER HD M6X12 W/LK&PL WASHER	9-03920-612-0	04	1	9112-9504	●	●
11	BOLT; INST PNL	8-97805-931-0	06	1	9112-9210	●	●
11	BOLT; INST PNL	8-97032-653-0	06	1	9211-9504	●	●
11	BOLT; INST PNL M6X18 W/LK&PL WASHER	8-97060-719-0	06	1	9505-	●	●
42	BOX; GLOVE,INST PNL INTERIOR COLOR BROWN(130) DARK BROWN	8-97805-322-7	01	1	9112-9504	●	●
42	BOX; GLOVE,INST PNL DARK GRAY	8-97151-304-4	01	1	9505-9708	●	●
42	BOX; GLOVE,INST PNL DARK GRAY	8-97195-652-0	01	1	9709-	●	●
42	BOX; GLOVE,INST PNL INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-324-7	01	1	9112-9504	●	●
44	PIN; GLOVE BOX	8-94129-687-2	02	1	9112-9210	●	●
44	PIN; GLOVE BOX	8-94344-553-1	02	1	9211-9504	●	●
51	CUSHION; STOPPER,GLOVE BOX	9-09956-622-0	04	1	9112-9211	●	●
51	CUSHION; STOPPER,GLOVE BOX	8-97810-124-0	04	1	9212-9411	●	●
51	CUSHION; STOPPER,GLOVE BOX SIDE	8-97810-124-0	02	1	9412-9504	●	●
51	CUSHION; STOPPER,GLOVE BOX CENTER	9-09956-622-0	02	1	9412-9504	●	●
58	SCREW; INST PANEL (C) M5X14 TAPPING W/PL WASHER	0-74110-514-0	07	1	9112-9504	●	●
58	SCREW; INST PANEL (A) M4X12 TAPPING OVAL-HEAD	9-09829-312-1	13	1	9112-9504	●	●
58	SCREW; INST PANEL (B) M5X14 TAPPING	9-09829-322-1	22	1	9112-9504	●	●
61	SCREW; GLOVE BOX (A) D6X11 POP RIVET	8-94298-119-0	04	1	9112-9504	●	●
61	SCREW; GLOVE BOX (B) M4X8 CK-HEAD	9-03094-408-0	02	1	9112-9401	●	●
61	SCREW; GLOVE BOX (B) M4X10	8-97107-420-0	02	1	9402-9504	●	●
61	SCREW; GLOVE BOX M4X14 TAPPING	8-97111-555-0	02	1	9505-	●	●
102	BRACKET; INST PANEL TO FLOOR	8-94359-619-4	01	1	9112-9504	●	●
102	BRACKET; INST PANEL TO FLOOR	8-97083-245-5	01	1	9505-9607	●	●
102	BRACKET; INST PANEL TO FLOOR	8-97133-232-1	01	1	9608-	●	●
131	GRILLE ASM; LAP VENT BLACK	8-97806-851-2	02	1	9112-9504	●	●
150	STAY; INST PNL	8-94359-617-2	01	1	9112-9307	●	●
150	STAY; INST PNL	8-97810-919-0	01	1	9308-9504	●	●
173	BEAM ASM; CROSS,INST PANEL	8-94359-613-5	01	1	9112-9207	●	●
173	BEAM ASM; CROSS,INST PANEL	8-97808-941-0	01	1	9208-9504	●	●
173	BEAM ASM; CROSS,INST PANEL	8-97083-240-1	01	1	9505-9607	●	●
173	BEAM ASM; CROSS,INST PANEL	8-97138-017-0	01	1	9608-	●	●
175	NUT; CROSS BEAM M6 W/DISHED WASHER	8-94170-192-0	04	1	9112-9504	●	●
175	NUT; CROSS BEAM M6 FLANGE	8-97063-399-0	02	1	9505-	●	●
176	BOLT; CROSS BEAM (A) M6X16 W/PL WASHER	8-94204-636-0	08	1	9112-9504	●	●
176	BOLT; CROSS BEAM M6X16 W/PL WASHER	8-94204-636-0	04	1	9505-	●	●
176	BOLT; CROSS BEAM (B) M6X20	8-97803-614-0	02	1	9112-9504	●	●
178	NUT; INST PANEL (A) M6 W/DISHED WASHER	8-94170-192-0	02	1	9112-9504	●	●
178	NUT; INST PANEL M6 W/DISHED WASHER	8-94170-192-0	07	1	9505-	●	●
178	NUT; INST PANEL (B) M5 SPIRE NUT	8-94217-271-0	24	1	9112-9204	●	●
178	NUT; INST PANEL (B) M5 SPIRE NUT	8-94217-271-0	26	1	9205-9208	●	●
178	NUT; INST PANEL (B) M5 SPIRE NUT	8-94217-271-0	24	1	9209-9211	●	●
178	NUT; INST PANEL (B)	8-97810-118-0	24	1	9212-9303	●	●
178	NUT; INST PANEL (B)	8-97810-118-0	22	1	9304-9504	●	●
178	NUT; INST PANEL (C)	8-97807-989-0	01	1	9112-9504	●	●
182	BOLT; BRKT,INST PANEL M6X14	8-94153-946-0	02	1	9112-9308	●	●
182	BOLT; BRKT,INST PANEL M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	9309-9504	●	●
191	REINFORCEMENT; GLOVE BOX	8-97807-627-3	01	1	9112-9504	●	●
191	REINFORCEMENT; GLOVE BOX	8-97807-626-3	01	1	9112-9504	●	●
378	SEAL; INST PANEL	8-97807-547-0	04	1	9112-9210	●	●
378	SEAL; INST PANEL	8-97809-121-0	04	1	9211-9302	●	●
378	SEAL; INST PANEL	8-97809-121-0	08	1	9303-9504	●	●
449	COVER; SPEAKER INTERIOR COLOR BROWN(130) DARK BROWN	8-97805-282-2	01	1	9112-9504	●	●
449	COVER; SPEAKER INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-284-2	01	1	9112-9504	●	●
517	PATCH; GLOVE BOX	8-97808-121-0	02	1	9112-9504	●	●

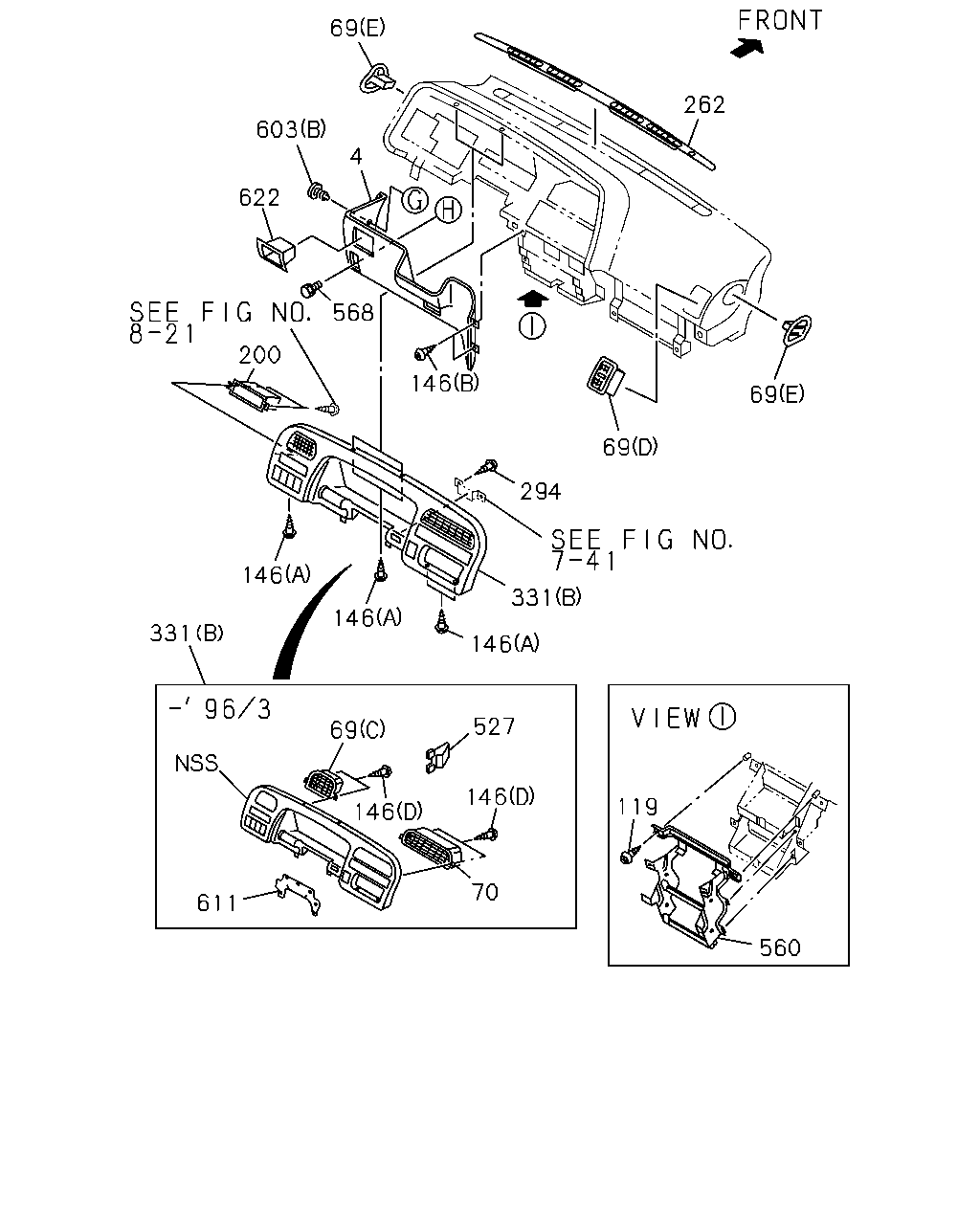

69 262 603 622 568 200 146 69 69 294 331 146 146 331 146 527 69 146 119 146 70 611 560 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	COVER; INST PNL DARK GRAY	8-97098-308-5	01	1	9505-	●	●
4	COVER; INST PNL INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-261-5	01	1	9112-9504	●	●
4	COVER; INST PNL INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-253-1	01	1	9112-9504	●	●
4	COVER; INST PNL INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-257-1	01	1	9112-9504	●	●
4	COVER; INST PNL INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-263-5	01	1	9112-9504	●	●
4	COVER; INST PNL INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-255-1	01	1	9112-9504	●	●
4	COVER; INST PNL INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-259-1	01	1	9112-9504	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-318-3	01	1	9112-9504	●	●
69	GRILLE; SIDE,AIR OUTLET (E) DARK GRAY	8-97151-143-1	01	1	9505-	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-362-3	01	1	9112-9208	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97808-675-0	01	1	9209-9504	●	●
69	GRILLE; SIDE,AIR OUTLET (C) BLACK BLACK	8-97091-908-1	01	1	9505-	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-265-3	01	1	9112-9208	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97808-672-0	01	1	9209-9504	●	●
69	GRILLE; SIDE,AIR OUTLET (D) DARK GRAY	8-97080-486-1	01	1	9505-	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-314-3	01	1	9112-9504	●	●
69	GRILLE; SIDE,AIR OUTLET (E) DARK GRAY	8-97151-142-1	01	1	9505-	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-320-3	01	1	9112-9504	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-364-3	01	1	9112-9208	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97808-676-0	01	1	9209-9504	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-267-3	01	1	9112-9208	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97808-673-0	01	1	9209-9504	●	●
69	GRILLE; SIDE,AIR OUTLET INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-316-3	01	1	9112-9504	●	●
70	GRILLE; CENTER,AIR OUTLET BLACK	8-97805-300-3	01	1	9112-9208	●	●
70	GRILLE; CENTER,AIR OUTLET BLACK	8-97808-678-2	01	1	9209-9504	●	●
70	GRILLE; CENTER,AIR OUTLET BLACK	8-97091-909-1	01	1	9505-	●	●
119	SCREW; BRKT TO INST M5X16 TAPPING	9-09829-323-1	08	1	9505-	●	●
146	SCREW; TAP M4X12 TAPPING OVAL-HEAD	9-09829-312-1	03	1	9304-9504	●	●
146	SCREW; TAP (D) M4X12 TAPPING OVAL-HEAD	9-09829-312-1	04	1	9505-	●	●
146	SCREW; TAP (C) M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9505-	●	●
146	SCREW; TAP (B) M5X14 TAPPING	1-72548-072-0	12	1	9505-	●	●
146	SCREW; TAP (A) M5X12 TAPPING	9-09829-321-1	05	1	9505-	●	●
200	BOX; CENTER CLUSTER M/T MUA 5 SPEED(RMN) EXC. ANTI THEFT<UA6>	8-97103-473-1	01	1	9505-	●	●
262	GRILLE; DEFROSTER DARK GRAY	8-97098-380-1	01	1	9505-	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97805-302-0	01	1	9112-9504	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-310-0	01	1	9112-9504	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-306-0	01	1	9112-9504	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97805-304-0	01	1	9112-9504	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-312-0	01	1	9112-9504	●	●
262	GRILLE; DEFROSTER INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-308-0	01	1	9112-9504	●	●
294	SCREW; BEZEL M4X14 TAPPING W/PL WASHER	0-74300-414-0	04	1	9112-9504	●	●
294	SCREW; BEZEL M4X14 TAPPING W/PL WASHER	0-74300-414-0	02	1	9505-	●	●
331	CLUSTER; INST SIDE (B)	8-97103-469-5	01	1	9505-9603	●	●
331	CLUSTER; INST SIDE (B)	8-97160-266-0	01	1	9604-	●	●
331	CLUSTER; INST SIDE CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97111-343-4	01	1	9505-9603	●	●
331	CLUSTER; INST SIDE CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97160-269-0	01	1	9604-9608	●	●
331	CLUSTER; INST SIDE CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97165-356-0	01	1	9609-	●	●
331	CLUSTER; INST SIDE EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97091-910-4	01	1	9505-9603	●	●
331	CLUSTER; INST SIDE EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97160-268-0	01	1	9604-9608	●	●
331	CLUSTER; INST SIDE EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> (A)	8-97165-355-0	01	1	9609-	●	●
527	CLIP; INST CLUSTER T=0.5	8-97137-828-0	08	1	9505-	●	●
560	BRACKET	8-97080-119-1	01	1	9505-	●	●
568	BOLT; COVER M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9505-	●	●
603	CLIP; COVER (A) OD=12 L=14.8	8-94279-921-0	01	1	9505-	●	●
603	CLIP; COVER (B) DARK GRAY	8-97151-280-1	02	1	9505-	●	●
611	SHEET	8-97103-470-1	01	1	9505-	●	●
622	BOX; IDLE CONT 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) DARK GRAY	8-97153-696-0	01	1	9505-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
