◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#35271) — 105 parça

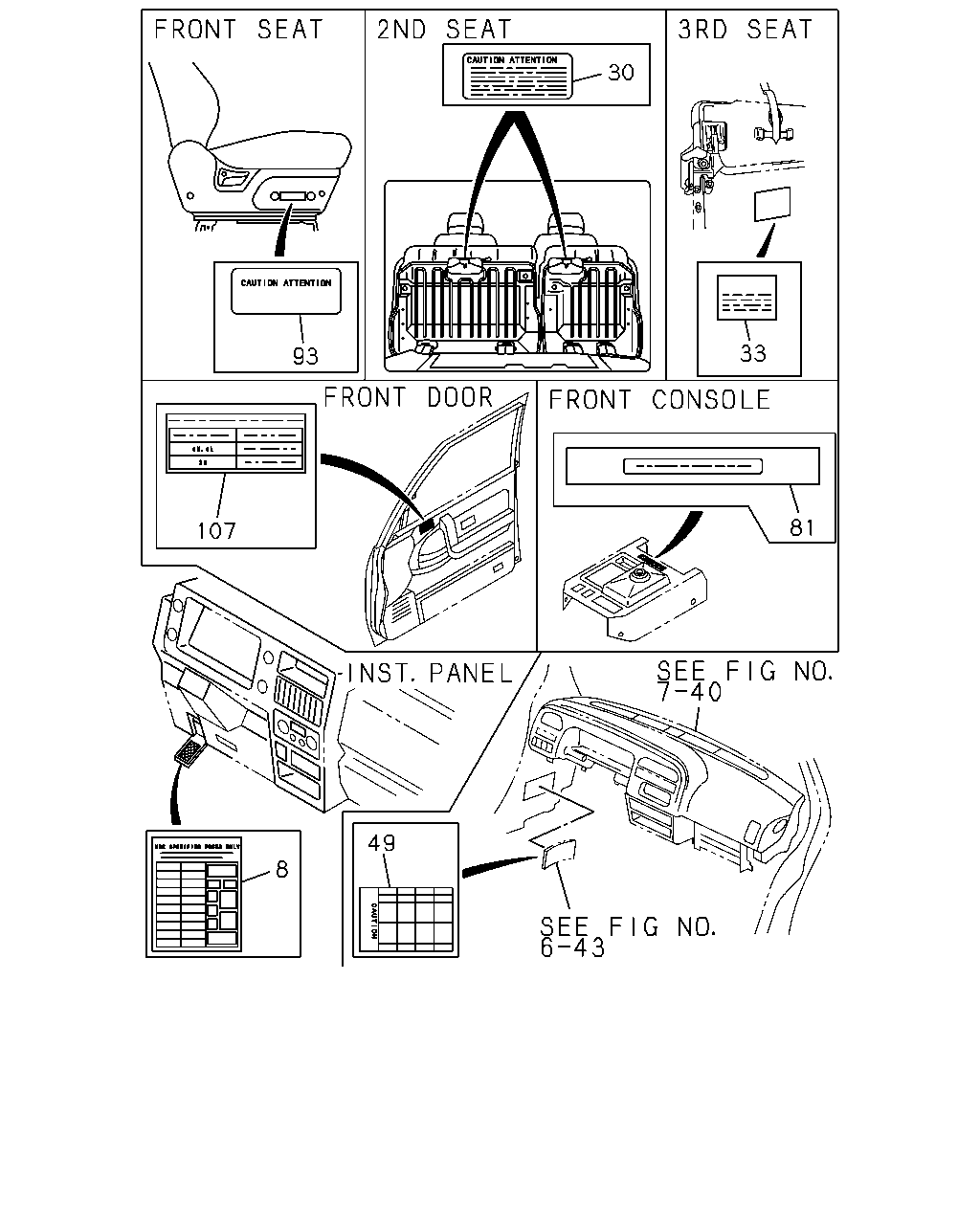

çizim 16973
30 33 93 81 107 49 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 LABEL; FUSE 8-97807-582-0 01 1 9112-9308 ● ●
8 LABEL; FUSE 8-97810-053-0 01 1 9309-9504 ● ●
30 PLATE; CAUTION,RR SEAT
RR SEAT NON SPLIT BACK<S3B> 		8-97092-587-1 01 1 9309-9506 ● ●
30 PLATE; CAUTION,RR SEAT
RR SEAT NON SPLIT BACK<S3B> 		8-97135-363-0 01 1 9507- ● ●
30 PLATE; CAUTION,RR SEAT
RR SEAT SPLIT BACK W/RECLINING<S3X> 920928- 		8-97086-937-0 02 1 9209-9301 ●
30 PLATE; CAUTION,RR SEAT
RR SEAT SPLIT BACK W/RECLINING<S3X> 		8-97092-587-1 02 1 9302-9506 ●
30 PLATE; CAUTION,RR SEAT
RR SEAT SPLIT BACK W/RECLINING<S3X> 		8-97135-363-0 02 1 9507- ●
30 PLATE; CAUTION,RR SEAT
3RD SEAT 7 PASSENGERS(AS3) 		8-97069-512-2 02 1 9112-9209 ●
30 PLATE; CAUTION,RR SEAT
RR SEAT NON SPLIT BACK<S3B> 920928- 		8-97086-937-0 01 1 9209-9301 ● ●
30 PLATE; CAUTION,RR SEAT
RR SEAT NON SPLIT BACK<S3B> 		8-97092-587-0 01 1 9302-9308 ● ●
30 PLATE; CAUTION,RR SEAT
3RD SEAT 7 PASSENGERS(AS3) 		8-97101-705-1 02 1 9309- ●
33 LABEL; CAUTION,RR SEAT
3RD SEAT 7 PASSENGERS(AS3) 		8-97044-903-1 02 1 9112-9501 ●
33 LABEL; CAUTION,RR SEAT
3RD SEAT 7 PASSENGERS(AS3) 		8-97115-760-0 02 1 9502-9506 ●
33 LABEL; CAUTION,RR SEAT
3RD SEAT 7 PASSENGERS(AS3) 		8-97124-953-0 02 1 9507- ●
49 PLATE; CAUTION,FUSE BOX 8-97110-336-1 01 1 9505- ● ●
81 LABEL; CAUTION,A/T SHIFT
A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) 		8-97063-034-1 01 1 9112-9607 ● ●
93 PLATE; CAUTION,WALK-IN SEAT
EXC. REAR SEAT DELETION(AP6) -920927 		8-97069-513-2 01 1 9112-9209 ●
93 PLATE; CAUTION,WALK-IN SEAT
EXC. REAR SEAT DELETION(AP6) 920928- 		8-97086-935-0 01 1 9209-9301 ●
93 PLATE; CAUTION,WALK-IN SEAT
EXC. REAR SEAT DELETION(AP6) 		8-97092-625-1 01 1 9302- ●
107 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) CAUTION SPANISH<YN1> 		8-94103-623-0 01 1 9112-9308 ● ●
107 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) CAUTION SPANISH<YN1> 		8-97101-553-0 01 1 9309-9310 ● ●
107 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) CAUTION SPANISH<YN1> 		8-97107-439-0 01 1 9311-9311 ● ●
107 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) CAUTION SPANISH<YN1> 		8-97108-671-0 01 1 9312-9504 ● ●
107 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) EXC. CAUTION SPANISH<YN1> 		8-94157-936-0 01 1 9112-9308 ● ●
107 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) EXC. CAUTION SPANISH<YN1> 		8-97101-554-0 01 1 9309-9310 ● ●
107 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) EXC. CAUTION SPANISH<YN1> 		8-97107-440-0 01 1 9311-9311 ● ●
107 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) EXC. CAUTION SPANISH<YN1> 		8-97108-672-0 01 1 9312-9504 ● ●
107 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) CAUTION SPANISH<YN1> 		5-85883-065-1 01 1 9112-9308 ● ●
107 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) CAUTION SPANISH<YN1> 		8-97101-556-0 01 1 9309-9310 ● ●
107 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) CAUTION SPANISH<YN1> 		8-97107-442-0 01 1 9311-9311 ● ●
107 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) CAUTION SPANISH<YN1> 		8-97108-674-0 01 1 9312-9504 ● ●
107 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) EXC. CAUTION SPANISH<YN1> 		5-85883-064-1 01 1 9112-9308 ● ●
107 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) EXC. CAUTION SPANISH<YN1> 		8-97101-555-0 01 1 9309-9310 ● ●
107 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) EXC. CAUTION SPANISH<YN1> 		8-97107-441-0 01 1 9311-9311 ● ●
107 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) EXC. CAUTION SPANISH<YN1> 		8-97108-673-0 01 1 9312-9504 ● ●

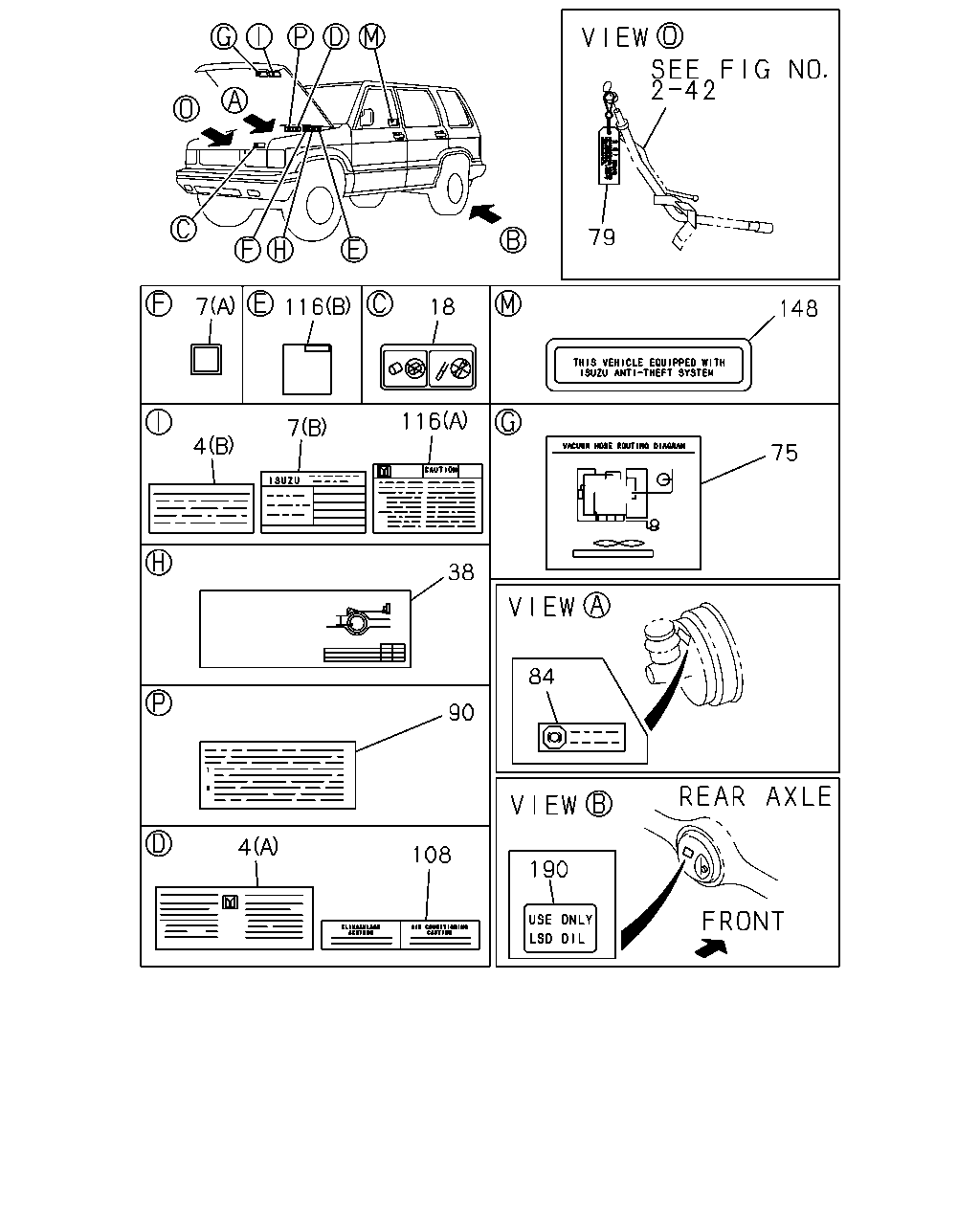

çizim 68092
79 7 116 18 148 116 4 7 75 38 84 90 4 108 190
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE
4JG1 ENG(RLT) (A) 		8-97039-225-1 01 1 9112-9504 ● ●
4 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EXC. TURBOCHARGER<K51> (A) 		8-97110-513-0 01 1 9505- ● ●
4 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (A) 		8-97039-223-1 01 1 9112- ● ●
4 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) 		8-97039-224-0 01 1 9112-9504 ● ●
4 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) TURBOCHARGER<K51> EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) 		8-97039-224-0 01 1 9505- ● ●
4 LABEL; ENG MAINTENANCE
4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> (B) 		8-94160-628-0 01 1 9112-9504 ● ●
4 LABEL; ENG MAINTENANCE
4ZE1 ENG(RLJ) (B) 		8-94160-628-0 01 1 9505- ● ●
7 LABEL; EMISSION
4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (A) 		8-97068-712-0 01 1 9112-9208 ● ●
7 LABEL; EMISSION
4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (A) 		8-97084-360-0 01 1 9209-9308 ● ●
7 LABEL; EMISSION
4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (A) 		8-94418-517-0 01 1 9309-9504 ● ●
7 LABEL; EMISSION
4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (A) 		8-94418-517-0 01 1 9506- ● ●
7 LABEL; EMISSION
6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),VENEZUELA EQUIPMENT(S2L),CHILE EQUIPMENT(6KB) (B) 		8-97044-323-2 01 1 9112-9504 ● ●
7 LABEL; EMISSION
6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (B) 		8-97044-323-2 01 1 9505-9505 ● ●
7 LABEL; EMISSION
6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) (B) 		8-97044-323-2 01 1 9506-9506 ● ●
7 LABEL; EMISSION
6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),G UATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97044-323-2 01 1 9507- ● ●
18 LABEL; ENG OIL
4JG2 ENG(RJC) 		8-94447-186-0 01 1 9112-9504 ● ●
18 LABEL; ENG OIL
4JG2 ENG(RJC) TURBOCHARGER<K51> 		8-94447-186-0 01 1 9505- ● ●
38 PLATE; CAUTION,LSV
EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) 		8-97064-111-0 01 1 9112-9409 ●
38 PLATE; CAUTION,LSV
EUROPE/CANARY EQUIPMENT(EK4) 		8-97115-827-0 01 1 9410-9607 ●
38 PLATE; CAUTION,LSV
EUROPE/CANARY EQUIPMENT(EK4) 		8-97139-518-0 01 1 9608- ●
38 PLATE; CAUTION,LSV
EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5) 		8-97064-110-0 01 1 9112-9409 ●
38 PLATE; CAUTION,LSV
EUROPE/CANARY EQUIPMENT(EK4) 		8-97115-828-0 01 1 9410-9607 ●
38 PLATE; CAUTION,LSV
EUROPE/CANARY EQUIPMENT(EK4) 		8-97139-517-0 01 1 9608- ●
75 PLATE; CAUTION,HOSE ROUTING
6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) 		8-97044-322-0 01 1 9112-9208 ● ●
75 PLATE; CAUTION,HOSE ROUTING
6VD1 SOHC ENG(RLU) CHILE EQUIPMENT(S2G) 		8-97044-322-0 01 1 9209-9301 ● ●
75 PLATE; CAUTION,HOSE ROUTING
6VD1 SOHC ENG(RLU) CHILE EQUIPMENT(S2G) 		8-97087-681-0 01 1 9302-9308 ● ●
75 PLATE; CAUTION,HOSE ROUTING
6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G) 		8-97080-555-0 01 1 9209-9301 ● ●
75 PLATE; CAUTION,HOSE ROUTING
6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G) 		8-97087-682-0 01 1 9302-9308 ● ●
75 PLATE; CAUTION,HOSE ROUTING
6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) 		8-97087-682-0 01 1 9309-9506 ● ●
75 PLATE; CAUTION,HOSE ROUTING
6VD1 SOHC ENG(RLU) EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97087-682-0 01 1 9507- ● ●
79 PLATE; CAUTION,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) CAUTION SPANISH<YN1> 		8-97108-038-0 01 1 9312-9607 ● ●
79 PLATE; CAUTION,A/T
6VD1 SOHC ENG(RLU) A/T THM(RMQ) EXC. CAUTION SPANISH<YN1> 		8-97108-035-0 01 1 9312-9607 ● ●
84 PLATE; CAUTION,BRAKE FLUID
EUROPE/CANARY EQUIPMENT(EK4) 		8-97062-755-2 01 1 9112-9504 ● ●
84 PLATE; CAUTION,BRAKE FLUID
EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97062-755-2 01 1 9505-9509 ● ●
90 LABEL; CAUTION,TIMING BELT
4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) 		8-94481-501-0 01 1 9112- ● ●
108 LABEL; CAUTION,A/C
AIR CONDITIONER MANUAL CONT(C60) EUROPE/CANARY EQUIPMENT(EK4) 		8-97086-600-0 01 1 9209-9303 ● ●
116 LABEL; CAUTION,SEDIMENTER
4JG2 ENG(RJC) EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-94332-263-1 01 1 9112-9410 ● ●
116 LABEL; CAUTION,SEDIMENTER
4JG2 ENG(RJC),4JG1 ENG(RLT) EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) 		8-94246-254-0 01 1 9112-9410 ● ●
148 PLATE; CAUTION,ANTI THEFT
ANTI THEFT<UA6> 		8-97129-695-0 02 1 9112- ● ●
190 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF(G80) 		8-97106-816-0 01 1 9311- ● ●

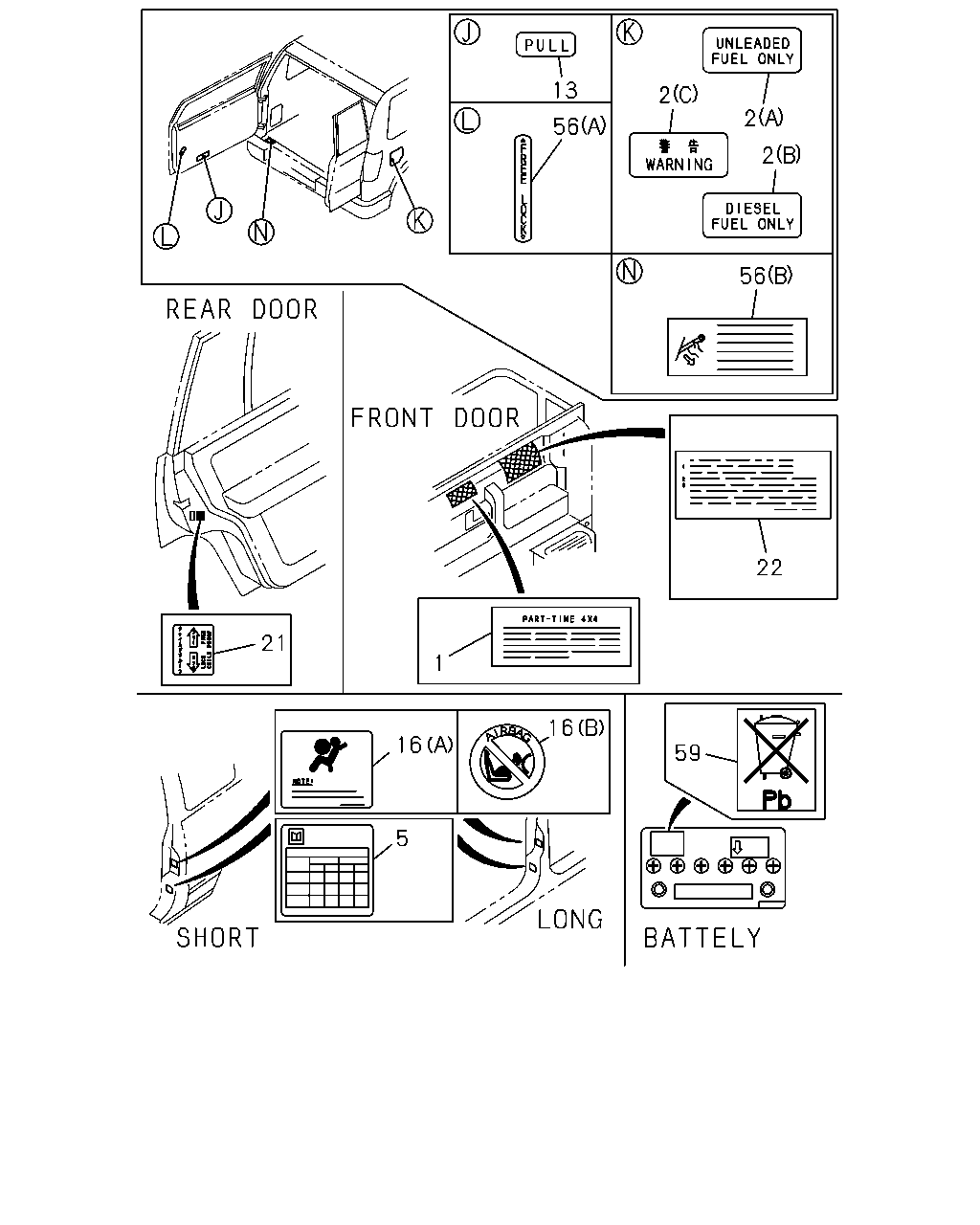

çizim 68603
13 2 2 56 2 56 22 21 1 16 16 59 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 PLATE; CAUTION,SHIFT PATTERN
CAUTION SPANISH<YN1> 		5-85883-056-1 01 1 9112-9312 ● ●
1 PLATE; CAUTION,SHIFT PATTERN
CAUTION SPANISH<YN1> 		8-97108-716-0 01 1 9401-9504 ● ●
1 PLATE; CAUTION,SHIFT PATTERN
CAUTION SPANISH<YN1> 		8-97131-711-0 01 1 9505- ● ●
1 PLATE; CAUTION,SHIFT PATTERN
EXC. CAUTION SPANISH<YN1> 		5-85883-055-1 01 1 9112-9312 ● ●
1 PLATE; CAUTION,SHIFT PATTERN
EXC. CAUTION SPANISH<YN1> 		8-97108-715-0 01 1 9401-9504 ● ●
1 PLATE; CAUTION,SHIFT PATTERN
EXC. CAUTION SPANISH<YN1> 		8-97131-709-0 01 1 9505- ● ●
2 LABEL; FUEL CAUTION
4JG2 ENG(RJC),4JG1 ENG(RLT) (B) 		8-94414-353-0 01 1 9112-9504 ● ●
2 LABEL; FUEL CAUTION
4JG2 ENG(RJC) (B) 		8-94414-353-0 01 1 9505-9607 ● ●
2 LABEL; FUEL CAUTION
4JG2 ENG(RJC) (B) 		8-94414-353-0 01 1 9608- ● ●
2 LABEL; FUEL CAUTION
6VD1 SOHC ENG(RLU) CATALYSIS CONTROL(6MZ) (A) 		8-94206-917-1 01 1 9112- ● ●
2 LABEL; FUEL CAUTION
4ZE1 ENG(RLJ) CHINA EQUIPMENT(YT2) (C) 		8-97094-568-1 01 1 9307-9505 ●
2 LABEL; FUEL CAUTION
4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) CHINA EQUIPMENT(YT2) (C) 		8-97094-568-1 01 1 9506- ●
5 LABEL; TIRE AIR PRESSURE
CAUTION SPANISH<YN1> 		8-97039-231-1 01 1 9309- ● ●
5 LABEL; TIRE AIR PRESSURE
EXC. CAUTION SPANISH<YN1> 		8-97039-229-1 01 1 9309- ● ●
13 LABEL; CAUTION,CHECK LINK 8-94187-413-0 01 1 9209-9308 ● ●
16 PLATE; CAUTION,SIR
AIR BAG DRIVER<AJ3> EUROPE/CANARY EQUIPMENT(EK4) AIR BAG PASSENGER<7FA> (A) 		8-97145-557-0 02 1 9608- ● ●
16 PLATE; CAUTION,SIR
AIR BAG DRIVER<AJ3> EUROPE/CANARY EQUIPMENT(EK4) AIR BAG PASSENGER<7FA> (B) 		8-97145-558-0 01 1 9608- ● ●
16 PLATE; CAUTION,SIR
AIR BAG DRIVER<AJ3> EUROPE/CANARY EQUIPMENT(EK4) EXC. AIR BAG PASSENGER<7FA> (A) 		8-97145-557-0 01 1 9608- ● ●
21 PLATE; CAUTION,CHILD LOCK 8-94117-828-0 02 1 9112-9509 ●
21 PLATE; CAUTION,CHILD LOCK 8-97022-812-0 02 1 9510- ●
22 PLATE; CAUTION,A/T SELECT MODE
6VD1 SOHC ENG(RLU) A/T THM(RMQ) CAUTION SPANISH<YN1> 		8-97038-811-1 01 1 9112-9309 ● ●
22 PLATE; CAUTION,A/T SELECT MODE
6VD1 SOHC ENG(RLU) A/T THM(RMQ) CAUTION SPANISH<YN1> 		8-97105-389-0 01 1 9309-9504 ● ●
22 PLATE; CAUTION,A/T SELECT MODE
6VD1 SOHC ENG(RLU) A/T THM(RMQ) EXC. CAUTION SPANISH<YN1> 		8-97024-123-1 01 1 9112-9309 ● ●
22 PLATE; CAUTION,A/T SELECT MODE
6VD1 SOHC ENG(RLU) A/T THM(RMQ) EXC. CAUTION SPANISH<YN1> 		8-97105-390-0 01 1 9309-9504 ● ●
56 PLATE; NAME,CAUTION
(A) 		8-94186-486-0 01 1 9112-9504 ● ●
56 PLATE; NAME,CAUTION
3RD SEAT 7 PASSENGERS(AS3) (A) 		8-94186-486-0 01 1 9505- ● ●
56 PLATE; NAME,CAUTION
EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97807-978-1 01 1 9112-9507 ● ●
56 PLATE; NAME,CAUTION
EUROPE/CANARY EQUIPMENT(EK4) (B) 		8-97135-652-0 01 1 9508- ● ●
59 PLATE; CAUTION,BATTERY
EUROPE/CANARY EQUIPMENT(EK4) FRIGID ZONE<YL3> 10 PER 1 SHEET 		8-97116-760-0 02 1 9504- ● ●
59 PLATE; CAUTION,BATTERY
EUROPE/CANARY EQUIPMENT(EK4) EXC. FRIGID ZONE<YL3> 10 PER 1 SHEET 		8-97116-760-0 01 1 9504- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
