Sayfa 6-90 - Isuzu EPC

6-90 — REAR BUMPER (#35269) — 198 parça

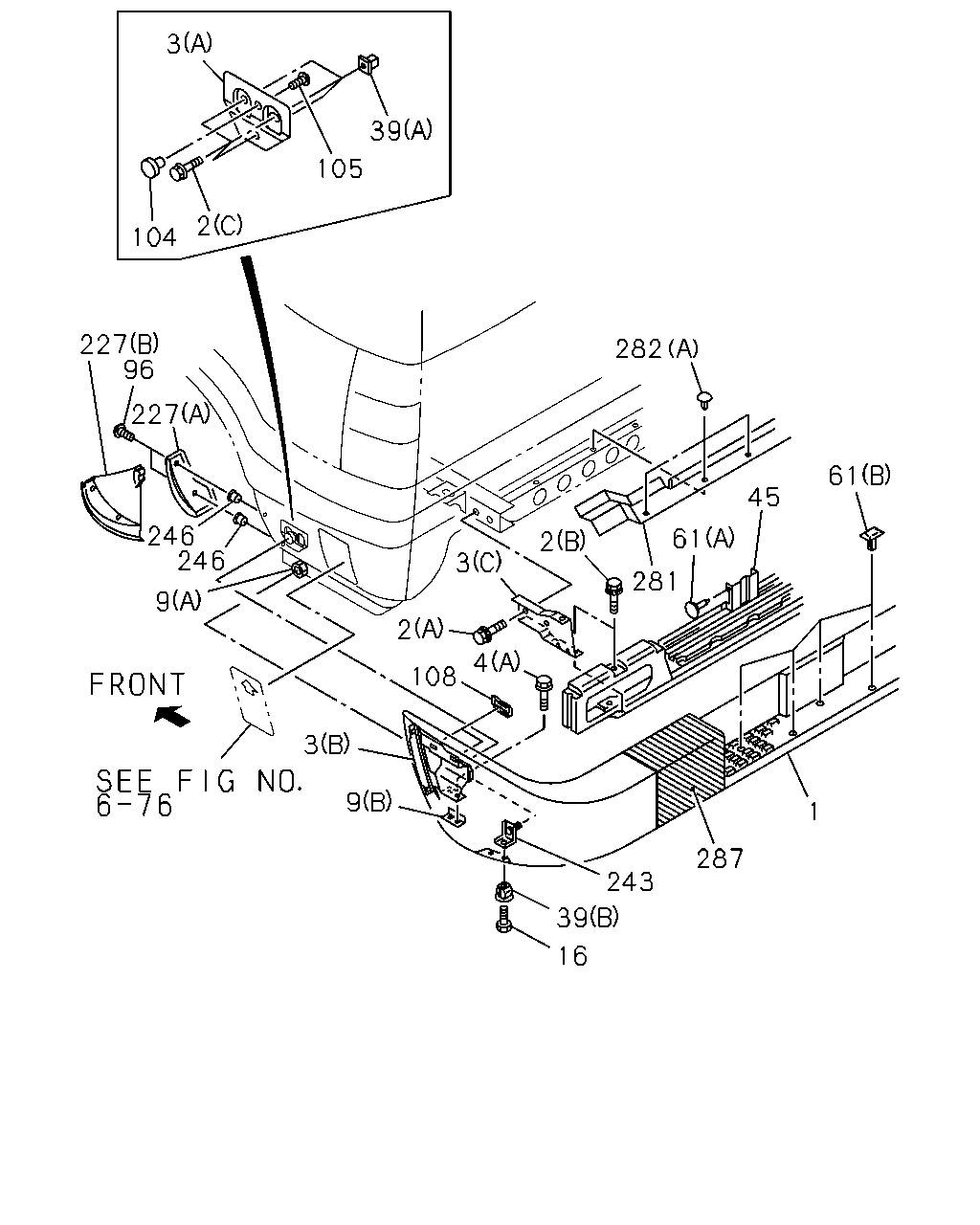

3 39 105 2 104 227 96 282 227 61 45 61 246 246 9 2 3 281 2 4 108 3 9 1 287 243 39 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER; RR EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) PRIMER	8-97807-863-0	01	1	9112-9607	●	●
1	BUMPER; RR EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) PRIMER	8-97115-719-1	01	1	9608-	●	●
1	BUMPER; RR EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) PRIMER	8-97807-862-1	01	1	9112-	●	●
2	BOLT; BACK BAR (C) M6X16	8-94493-405-0	06	1	9112-	●	●
2	BOLT; BACK BAR (B) M8X20 W/LK&PL WASHER	9-01960-820-0	06	1	9112-9204	●	●
2	BOLT; BACK BAR (B) M8X20 W/LK&PL WASHER	0-50140-820-0	06	1	9205-9412	●	●
2	BOLT; BACK BAR (B) M8X20 FLANGE	0-28680-820-0	06	1	9501-	●	●
2	BOLT; BACK BAR RR COIL & LINK SUSPENSION<6SV> (A) M12X30 FLANGE	8-94475-424-0	04	1	9112-9504	●	●
2	BOLT; BACK BAR EXC. RR COIL & LINK SUSPENSION<6SV> (A) M10X25	8-94188-801-1	04	1	9112-9504	●	●
2	BOLT; BACK BAR (A) M12X30 FLANGE	8-94475-424-0	04	1	9505-9509	●	●
2	BOLT; BACK BAR (A) M12X30 FLANGE	0-28691-230-0	04	1	9510-	●	●
3	BRACKET; BUMPER (C)	8-97800-132-2	01	1	9112-	●	●
3	BRACKET; BUMPER (A)	8-97805-157-1	01	1	9112-	●	●
3	BRACKET; BUMPER (C)	8-97800-131-2	01	1	9112-	●	●
3	BRACKET; BUMPER (A)	8-97805-156-1	01	1	9112-	●	●
3	BRACKET; BUMPER FORMED MUD FLAP<6WL> (B)	8-97805-172-3	01	1	9112-9607	●	●
3	BRACKET; BUMPER COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97805-172-3	01	1	9608-	●	●
3	BRACKET; BUMPER FORMED MUD FLAP<6WL> (B)	8-97805-171-3	01	1	9112-9607	●	●
3	BRACKET; BUMPER COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97805-171-3	01	1	9608-	●	●
3	BRACKET; BUMPER EXC. FORMED MUD FLAP<6WL> (B)	8-97800-119-1	01	1	9112-9607	●	●
3	BRACKET; BUMPER EXC. COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97800-119-1	01	1	9608-	●	●
3	BRACKET; BUMPER EXC. FORMED MUD FLAP<6WL> (B)	8-97800-118-1	01	1	9112-9607	●	●
3	BRACKET; BUMPER EXC. COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97800-118-1	01	1	9608-	●	●
4	BOLT; BUMPER (B) M6X12	8-97807-917-0	04	1	9112-9607	●	●
4	BOLT; BUMPER EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B) M6X12	8-97807-917-0	04	1	9608-	●	●
4	BOLT; BUMPER EUROPE/CANARY EQUIPMENT(EK4) (A) M6X16	8-94493-405-0	12	1	9112-9504	●	●
4	BOLT; BUMPER EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (A) M6X16	8-94493-405-0	12	1	9505-9607	●	●
4	BOLT; BUMPER EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (A) M6X16	8-94493-405-0	15	1	9608-	●	●
4	BOLT; BUMPER EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) M6X16	8-94493-405-0	10	1	9112-9408	●	●
4	BOLT; BUMPER EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) M6X16	8-94493-405-0	08	1	9409-9504	●	●
4	BOLT; BUMPER EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (A) M6X16	8-94493-405-0	08	1	9505-	●	●
9	NUT; BUMPER (A) M6 FLANGE	0-91150-106-0	02	1	9112-	●	●
9	NUT; BUMPER (B) M6 & M6	8-97801-185-1	02	1	9112-	●	●
16	SCREW; RR BUMPER M6X20 W/PL WASHER TAPPING	8-94321-767-1	07	1	9112-9607	●	●
16	SCREW; RR BUMPER EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	9608-	●	●
16	SCREW; RR BUMPER EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) M6X20 W/PL WASHER TAPPING	8-94321-767-1	07	1	9608-	●	●
39	GROMMET; SCREW,BUMPER BRKT (A) D=9X9 L=8 M6	8-94222-314-0	06	1	9112-	●	●
39	GROMMET; SCREW,BUMPER BRKT (B)	8-97804-050-2	07	1	9112-9607	●	●
39	GROMMET; SCREW,BUMPER BRKT EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B)	8-97804-050-2	02	1	9608-	●	●
39	GROMMET; SCREW,BUMPER BRKT EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B)	8-97804-050-2	07	1	9608-	●	●
45	REINFORCEMENT; RR BUMPER	8-97800-982-4	01	1	9112-9607	●	●
45	REINFORCEMENT; RR BUMPER EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-97800-982-4	01	1	9608-	●	●
45	REINFORCEMENT; RR BUMPER EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-97115-717-1	01	1	9608-	●	●
61	CLIP; BUMPER RR (A)	8-94175-178-1	02	1	9112-9607	●	●
61	CLIP; BUMPER RR EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (A)	8-94175-178-1	02	1	9608-	●	●
61	CLIP; BUMPER RR (B)	8-97805-166-0	07	1	9112-9607	●	●
61	CLIP; BUMPER RR EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B)	8-97805-166-0	07	1	9608-	●	●
61	CLIP; BUMPER RR EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B)	8-97133-938-1	08	1	9608-	●	●
96	SCREW; PROTECTOR M6X16	8-97805-189-0	04	1	9112-	●	●
104	SLIDER; SUPPORT,RR BUMPER	8-97805-152-2	02	1	9112-	●	●
105	SCREW; SLIDER M6X18	8-97805-235-0	02	1	9112-	●	●
108	SPIRE; RR BUMPER	8-94401-528-1	04	1	9112-	●	●
227	PROTECTOR; RR BUMPER FORMED MUD FLAP<6WL> (B)	8-97808-603-3	01	1	9309-9607	●	●
227	PROTECTOR; RR BUMPER COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97808-603-3	01	1	9608-	●	●
227	PROTECTOR; RR BUMPER FORMED MUD FLAP<6WL> (B)	8-97808-602-3	01	1	9309-9607	●	●
227	PROTECTOR; RR BUMPER COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97808-602-3	01	1	9608-	●	●
227	PROTECTOR; RR BUMPER EXC. MUD FLAP<VH4> (A)	8-97800-966-0	01	1	9112-9308	●	●
227	PROTECTOR; RR BUMPER EXC. MUD FLAP<VH4>,FORMED MUD FLAP<6WL> (A)	8-97800-966-0	01	1	9309-9607	●	●
227	PROTECTOR; RR BUMPER EXC. MUD FLAP<VH4>,COLOR KEYED ROCKER SKIRT<6YA> (A)	8-97800-966-0	01	1	9608-	●	●
227	PROTECTOR; RR BUMPER EXC. MUD FLAP<VH4> (A)	8-97800-965-0	01	1	9112-9308	●	●
227	PROTECTOR; RR BUMPER EXC. MUD FLAP<VH4>,FORMED MUD FLAP<6WL> (A)	8-97800-965-0	01	1	9309-9607	●	●
227	PROTECTOR; RR BUMPER EXC. MUD FLAP<VH4>,COLOR KEYED ROCKER SKIRT<6YA> (A)	8-97800-965-0	01	1	9608-	●	●
243	BRACKET	8-97805-168-1	01	1	9112-	●	●
243	BRACKET	8-97805-167-1	01	1	9112-	●	●
246	GROMMET; SCREW,RR BUMPER COVER	8-94159-130-0	04	1	9112-	●	●
281	COVER; 6TH CROSS MEMBER	8-94359-701-1	01	1	9112-	●	●
282	CLIP; COVER (A) D5.8 SCREW & GROMMET NYLON	8-94242-150-0	05	1	9112-9607	●	●
282	CLIP; COVER (A) D5.8 SCREW & GROMMET NYLON	8-94242-150-0	03	1	9608-	●	●
282	CLIP; COVER EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B)	8-94279-820-0	05	1	9608-	●	●
287	FILM; PROTECTION,BUMPER EUROPE/CANARY EQUIPMENT(EK4) EXC. SPARE TIRE COVER SOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97808-584-0	01	1	9205-9301	●	●
287	FILM; PROTECTION,BUMPER BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVER MET(753),BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR RADIANT RED/LT.SILVER MET(779),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780),BODY COLORCRANBERRY MICA/LT.SILVER MET(783) GRADE LS(RBD) EUROPE/CANARY EQUIPMENT(EK4) EXC. SPARE TIRE COVER SOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97808-584-0	01	1	9302-9308		●
287	FILM; PROTECTION,BUMPER EXC. EUROPE/CANARY EQUIPMENT(EK4),SPARE TIRE COVERSOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97808-790-0	01	1	9205-9303	●	●
287	FILM; PROTECTION,BUMPER BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR RADIANT RED/LT.SILVER MET(779),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780),BODY COLOR CRANBERRY MICA/LT.SILVER MET(783) GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),SPARE TIRE COVERSOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97808-790-0	01	1	9304-9308		●
287	FILM; PROTECTION,BUMPER BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVER MET(753),BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR RADIANT RED/LT.SILVER MET(779),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780),BODY COLORCRANBERRY MICA/LT.SILVER MET(783) GRADE LS(RBD) EUROPE/CANARY EQUIPMENT(EK4) EXC. SPARE TIRE COVER SOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97808-584-0	01	1	9309-9504		●
287	FILM; PROTECTION,BUMPER EUROPE/CANARY EQUIPMENT(EK4) PAINT TWO TONE DLX D TYPE<7KD> EXC. SPARE TIRE COVER SOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97808-584-0	01	1	9505-9607	●	●
287	FILM; PROTECTION,BUMPER CHINA EQUIPMENT(YT2) EXC. SPARE TIRE COVER SOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97808-584-0	01	1	9505-9607		●
287	FILM; PROTECTION,BUMPER BODY COLOR LT.SILVER MET(753),BODY COLOR RED ROCK MICA(872) CHINA EQUIPMENT(YT2) SPORTY PACKAGE<6LU> EXC. SPARE TIRE COVER SOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97808-584-0	01	1	9505-9607		●
287	FILM; PROTECTION,BUMPER EUROPE/CANARY EQUIPMENT(EK4) PAINT TWO TONE DLX D TYPE<7KD> EXC. SPARE TIRE COVER SOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97147-956-0	01	1	9608-	●	●
287	FILM; PROTECTION,BUMPER CHINA EQUIPMENT(YT2) EXC. SPARE TIRE COVER SOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97147-956-0	01	1	9608-		●
287	FILM; PROTECTION,BUMPER BODY COLOR LT.SILVER MET(753),BODY COLOR RED ROCK MICA(872) CHINA EQUIPMENT(YT2) SPORTY PACKAGE<6LU> EXC. SPARE TIRE COVER SOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97147-956-0	01	1	9608-		●
287	FILM; PROTECTION,BUMPER BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR RADIANT RED/LT.SILVER MET(779),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780),BODY COLOR CRANBERRY MICA/LT.SILVER MET(783) GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),SPARE TIRE COVERSOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97808-790-0	01	1	9309-9504		●
287	FILM; PROTECTION,BUMPER EXC. EUROPE/CANARY EQUIPMENT(EK4),SPARE TIRE COVERSOFT<P17>,CHINA EQUIPMENT(YT2),SPARE TIRE COVER H ARD<6SU>	8-97808-790-0	01	1	9505-		●
287	FILM; PROTECTION,BUMPER BODY COLOR LT.SILVER MET(753),BODY COLOR RED ROCK MICA(872) SPORTY PACKAGE<6LU> EXC. EUROPE/CANARY EQUIPMENT(EK4),SPARE TIRE COVERSOFT<P17>,CHINA EQUIPMENT(YT2),SPARE TIRE COVER HARD<6SU>	8-97808-790-0	01	1	9505-		●

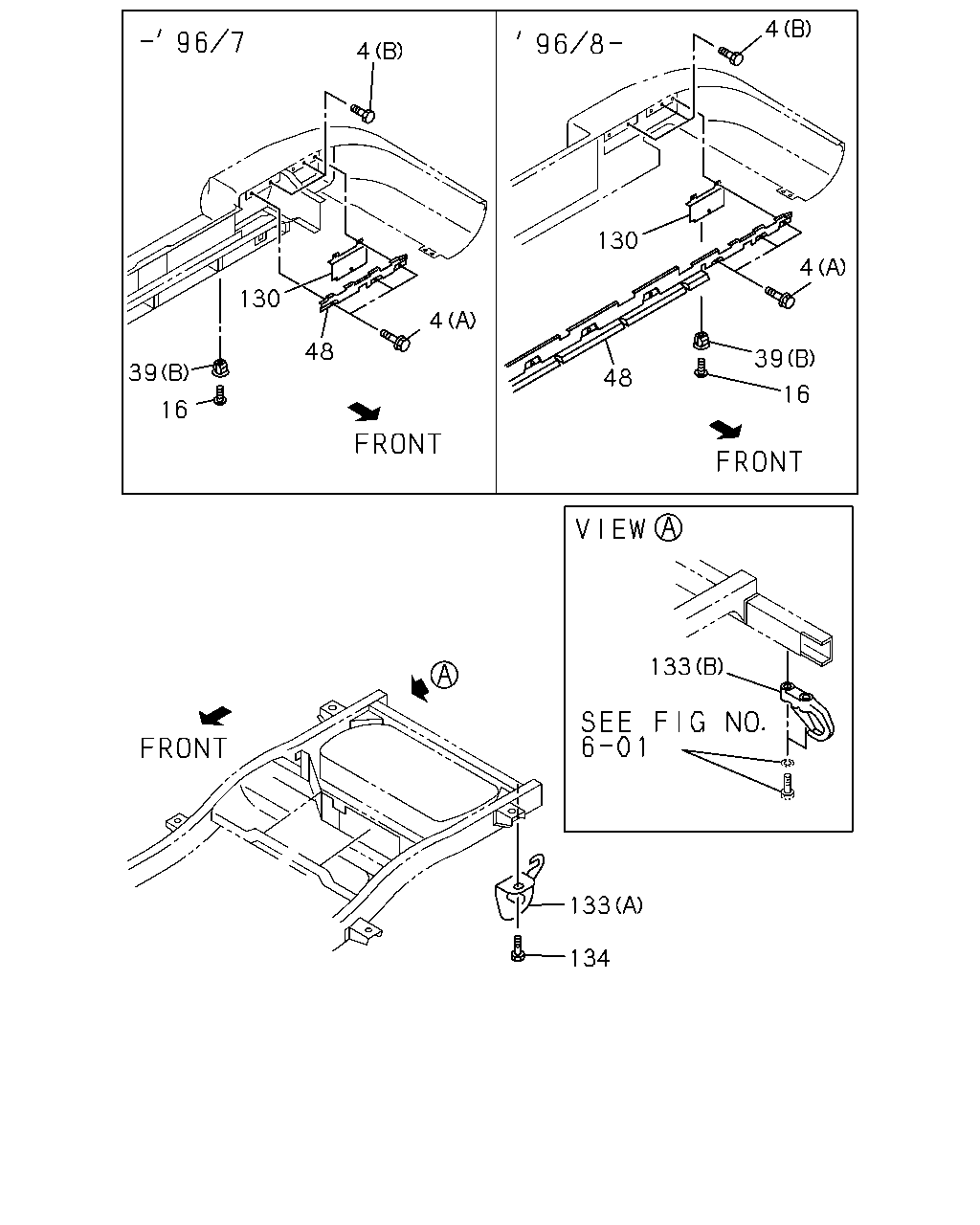

4 4 130 4 130 4 48 39 16 39 48 16 133 133 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOLT; BUMPER (B) M6X12	8-97807-917-0	04	1	9112-9607	●	●
4	BOLT; BUMPER EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B) M6X12	8-97807-917-0	04	1	9608-	●	●
4	BOLT; BUMPER EUROPE/CANARY EQUIPMENT(EK4) (A) M6X16	8-94493-405-0	12	1	9112-9504	●	●
4	BOLT; BUMPER EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (A) M6X16	8-94493-405-0	12	1	9505-9607	●	●
4	BOLT; BUMPER EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (A) M6X16	8-94493-405-0	15	1	9608-	●	●
4	BOLT; BUMPER EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) M6X16	8-94493-405-0	10	1	9112-9408	●	●
4	BOLT; BUMPER EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) M6X16	8-94493-405-0	08	1	9409-9504	●	●
4	BOLT; BUMPER EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (A) M6X16	8-94493-405-0	08	1	9505-	●	●
16	SCREW; RR BUMPER M6X20 W/PL WASHER TAPPING	8-94321-767-1	07	1	9112-9607	●	●
16	SCREW; RR BUMPER EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	9608-	●	●
16	SCREW; RR BUMPER EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) M6X20 W/PL WASHER TAPPING	8-94321-767-1	07	1	9608-	●	●
39	GROMMET; SCREW,BUMPER BRKT (A) D=9X9 L=8 M6	8-94222-314-0	06	1	9112-	●	●
39	GROMMET; SCREW,BUMPER BRKT (B)	8-97804-050-2	07	1	9112-9607	●	●
39	GROMMET; SCREW,BUMPER BRKT EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B)	8-97804-050-2	02	1	9608-	●	●
39	GROMMET; SCREW,BUMPER BRKT EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B)	8-97804-050-2	07	1	9608-	●	●
48	RETAINER; BUMPER RR SIDE	8-97803-993-1	01	1	9112-9607	●	●
48	RETAINER; BUMPER RR SIDE EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-97803-993-1	01	1	9608-	●	●
48	RETAINER; BUMPER RR SIDE	8-97803-992-1	01	1	9112-9607	●	●
48	RETAINER; BUMPER RR SIDE EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-97803-992-1	01	1	9608-	●	●
48	RETAINER; BUMPER RR SIDE EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-97090-883-1	01	1	9608-	●	●
130	PLATE; RR COMB LAMP EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-97803-086-0	01	1	9112-	●	●
130	PLATE; RR COMB LAMP EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-97803-085-0	01	1	9112-	●	●
133	HOOK 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (A)	8-97062-055-2	01	1	9112-9501	●	●
133	HOOK 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) (A)	8-97128-726-0	01	1	9502-9607	●	●
133	HOOK (A)	8-97128-726-0	01	1	9608-	●	●
133	HOOK 4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) (B)	8-97121-060-0	01	1	9505-9607	●	●
133	HOOK 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97121-060-0	01	1	9608-	●	●
133	HOOK 4ZE1 ENG(RLJ),6VD1 SOHC ENG(RLU) (B)	8-97121-060-0	01	1	9608-	●	●
134	BOLT; HOOK 4JG2 ENG(RJC),6VD1 SOHC ENG(RLU)	0-28281-230-0	01	1	9112-9607	●	●
134	BOLT; HOOK	0-28281-230-0	01	1	9608-9610	●	●
134	BOLT; HOOK M12X30 FLANGE	0-28681-230-0	01	1	9611-	●	●

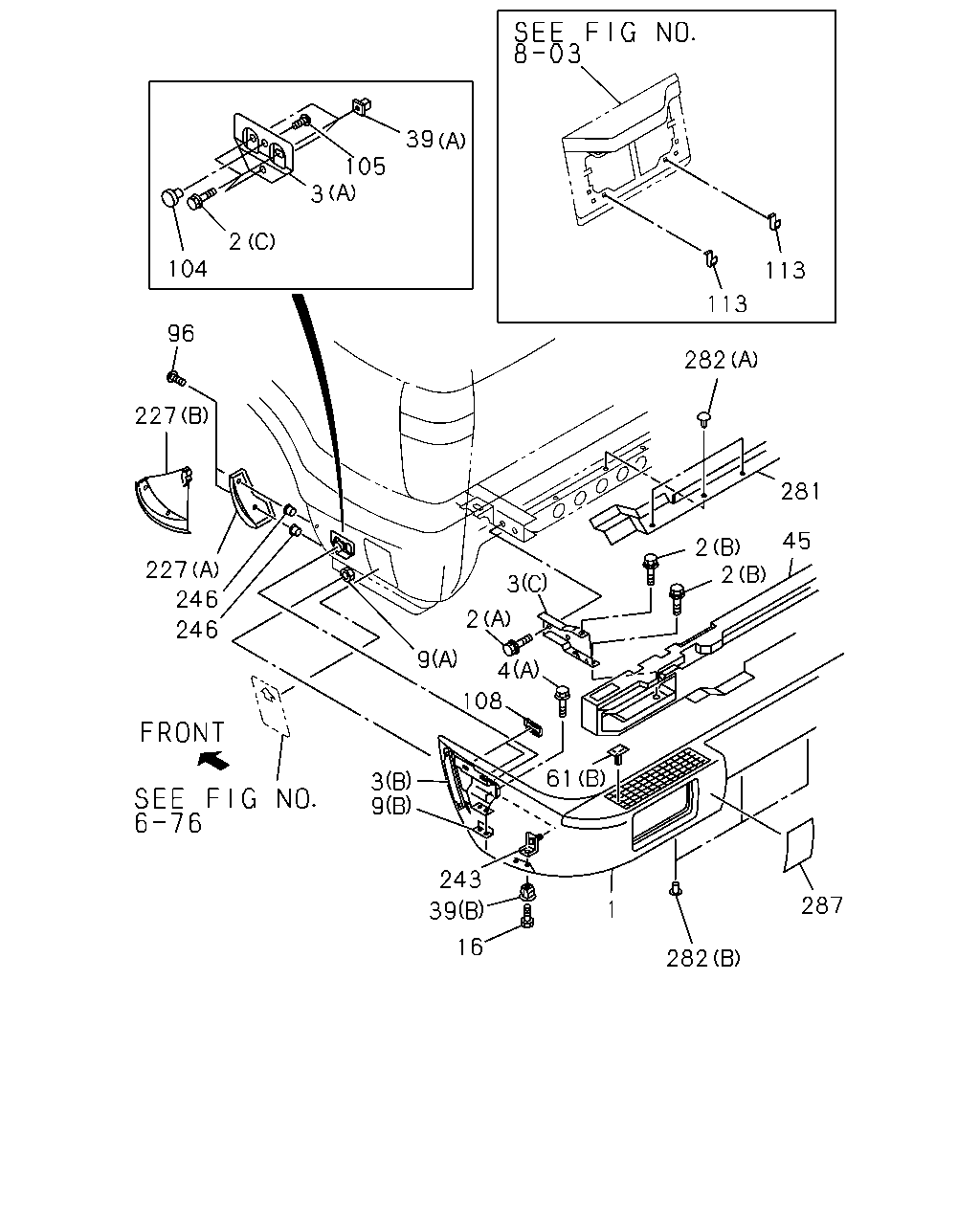

39 105 3 2 104 113 113 96 282 227 281 2 45 2 227 246 246 3 2 9 4 108 61 3 9 243 39 287 1 16 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER; RR EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) PRIMER	8-97807-863-0	01	1	9112-9607	●	●
1	BUMPER; RR EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) PRIMER	8-97115-719-1	01	1	9608-	●	●
1	BUMPER; RR EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) PRIMER	8-97807-862-1	01	1	9112-	●	●
2	BOLT; BACK BAR (C) M6X16	8-94493-405-0	06	1	9112-	●	●
2	BOLT; BACK BAR (B) M8X20 W/LK&PL WASHER	9-01960-820-0	06	1	9112-9204	●	●
2	BOLT; BACK BAR (B) M8X20 W/LK&PL WASHER	0-50140-820-0	06	1	9205-9412	●	●
2	BOLT; BACK BAR (B) M8X20 FLANGE	0-28680-820-0	06	1	9501-	●	●
2	BOLT; BACK BAR RR COIL & LINK SUSPENSION<6SV> (A) M12X30 FLANGE	8-94475-424-0	04	1	9112-9504	●	●
2	BOLT; BACK BAR EXC. RR COIL & LINK SUSPENSION<6SV> (A) M10X25	8-94188-801-1	04	1	9112-9504	●	●
2	BOLT; BACK BAR (A) M12X30 FLANGE	8-94475-424-0	04	1	9505-9509	●	●
2	BOLT; BACK BAR (A) M12X30 FLANGE	0-28691-230-0	04	1	9510-	●	●
3	BRACKET; BUMPER (C)	8-97800-132-2	01	1	9112-	●	●
3	BRACKET; BUMPER (A)	8-97805-157-1	01	1	9112-	●	●
3	BRACKET; BUMPER (C)	8-97800-131-2	01	1	9112-	●	●
3	BRACKET; BUMPER (A)	8-97805-156-1	01	1	9112-	●	●
3	BRACKET; BUMPER FORMED MUD FLAP<6WL> (B)	8-97805-172-3	01	1	9112-9607	●	●
3	BRACKET; BUMPER COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97805-172-3	01	1	9608-	●	●
3	BRACKET; BUMPER FORMED MUD FLAP<6WL> (B)	8-97805-171-3	01	1	9112-9607	●	●
3	BRACKET; BUMPER COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97805-171-3	01	1	9608-	●	●
3	BRACKET; BUMPER EXC. FORMED MUD FLAP<6WL> (B)	8-97800-119-1	01	1	9112-9607	●	●
3	BRACKET; BUMPER EXC. COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97800-119-1	01	1	9608-	●	●
3	BRACKET; BUMPER EXC. FORMED MUD FLAP<6WL> (B)	8-97800-118-1	01	1	9112-9607	●	●
3	BRACKET; BUMPER EXC. COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97800-118-1	01	1	9608-	●	●
4	BOLT; BUMPER (B) M6X12	8-97807-917-0	04	1	9112-9607	●	●
4	BOLT; BUMPER EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B) M6X12	8-97807-917-0	04	1	9608-	●	●
4	BOLT; BUMPER EUROPE/CANARY EQUIPMENT(EK4) (A) M6X16	8-94493-405-0	12	1	9112-9504	●	●
4	BOLT; BUMPER EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (A) M6X16	8-94493-405-0	12	1	9505-9607	●	●
4	BOLT; BUMPER EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (A) M6X16	8-94493-405-0	15	1	9608-	●	●
4	BOLT; BUMPER EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) M6X16	8-94493-405-0	10	1	9112-9408	●	●
4	BOLT; BUMPER EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) M6X16	8-94493-405-0	08	1	9409-9504	●	●
4	BOLT; BUMPER EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (A) M6X16	8-94493-405-0	08	1	9505-	●	●
9	NUT; BUMPER (A) M6 FLANGE	0-91150-106-0	02	1	9112-	●	●
9	NUT; BUMPER (B) M6 & M6	8-97801-185-1	02	1	9112-	●	●
16	SCREW; RR BUMPER M6X20 W/PL WASHER TAPPING	8-94321-767-1	07	1	9112-9607	●	●
16	SCREW; RR BUMPER EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	9608-	●	●
16	SCREW; RR BUMPER EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) M6X20 W/PL WASHER TAPPING	8-94321-767-1	07	1	9608-	●	●
39	GROMMET; SCREW,BUMPER BRKT (A) D=9X9 L=8 M6	8-94222-314-0	06	1	9112-	●	●
39	GROMMET; SCREW,BUMPER BRKT (B)	8-97804-050-2	07	1	9112-9607	●	●
39	GROMMET; SCREW,BUMPER BRKT EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B)	8-97804-050-2	02	1	9608-	●	●
39	GROMMET; SCREW,BUMPER BRKT EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B)	8-97804-050-2	07	1	9608-	●	●
45	REINFORCEMENT; RR BUMPER	8-97800-982-4	01	1	9112-9607	●	●
45	REINFORCEMENT; RR BUMPER EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-97800-982-4	01	1	9608-	●	●
45	REINFORCEMENT; RR BUMPER EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2)	8-97115-717-1	01	1	9608-	●	●
61	CLIP; BUMPER RR (A)	8-94175-178-1	02	1	9112-9607	●	●
61	CLIP; BUMPER RR EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (A)	8-94175-178-1	02	1	9608-	●	●
61	CLIP; BUMPER RR (B)	8-97805-166-0	07	1	9112-9607	●	●
61	CLIP; BUMPER RR EXC. EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B)	8-97805-166-0	07	1	9608-	●	●
61	CLIP; BUMPER RR EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B)	8-97133-938-1	08	1	9608-	●	●
96	SCREW; PROTECTOR M6X16	8-97805-189-0	04	1	9112-	●	●
104	SLIDER; SUPPORT,RR BUMPER	8-97805-152-2	02	1	9112-	●	●
105	SCREW; SLIDER M6X18	8-97805-235-0	02	1	9112-	●	●
108	SPIRE; RR BUMPER	8-94401-528-1	04	1	9112-	●	●
113	BRACKET; LICENSE PLATE EUROPE/CANARY EQUIPMENT(EK4)	8-97801-412-1	02	1	9112-9607	●	●
227	PROTECTOR; RR BUMPER FORMED MUD FLAP<6WL> (B)	8-97808-603-3	01	1	9309-9607	●	●
227	PROTECTOR; RR BUMPER COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97808-603-3	01	1	9608-	●	●
227	PROTECTOR; RR BUMPER FORMED MUD FLAP<6WL> (B)	8-97808-602-3	01	1	9309-9607	●	●
227	PROTECTOR; RR BUMPER COLOR KEYED ROCKER SKIRT<6YA> (B)	8-97808-602-3	01	1	9608-	●	●
227	PROTECTOR; RR BUMPER EXC. MUD FLAP<VH4> (A)	8-97800-966-0	01	1	9112-9308	●	●
227	PROTECTOR; RR BUMPER EXC. MUD FLAP<VH4>,FORMED MUD FLAP<6WL> (A)	8-97800-966-0	01	1	9309-9607	●	●
227	PROTECTOR; RR BUMPER EXC. MUD FLAP<VH4>,COLOR KEYED ROCKER SKIRT<6YA> (A)	8-97800-966-0	01	1	9608-	●	●
227	PROTECTOR; RR BUMPER EXC. MUD FLAP<VH4> (A)	8-97800-965-0	01	1	9112-9308	●	●
227	PROTECTOR; RR BUMPER EXC. MUD FLAP<VH4>,FORMED MUD FLAP<6WL> (A)	8-97800-965-0	01	1	9309-9607	●	●
227	PROTECTOR; RR BUMPER EXC. MUD FLAP<VH4>,COLOR KEYED ROCKER SKIRT<6YA> (A)	8-97800-965-0	01	1	9608-	●	●
243	BRACKET	8-97805-168-1	01	1	9112-	●	●
243	BRACKET	8-97805-167-1	01	1	9112-	●	●
246	GROMMET; SCREW,RR BUMPER COVER	8-94159-130-0	04	1	9112-	●	●
281	COVER; 6TH CROSS MEMBER	8-94359-701-1	01	1	9112-	●	●
282	CLIP; COVER (A) D5.8 SCREW & GROMMET NYLON	8-94242-150-0	05	1	9112-9607	●	●
282	CLIP; COVER (A) D5.8 SCREW & GROMMET NYLON	8-94242-150-0	03	1	9608-	●	●
282	CLIP; COVER EUROPE/CANARY EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B)	8-94279-820-0	05	1	9608-	●	●
287	FILM; PROTECTION,BUMPER EUROPE/CANARY EQUIPMENT(EK4) EXC. SPARE TIRE COVER SOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97808-584-0	01	1	9205-9301	●	●
287	FILM; PROTECTION,BUMPER BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVER MET(753),BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR RADIANT RED/LT.SILVER MET(779),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780),BODY COLORCRANBERRY MICA/LT.SILVER MET(783) GRADE LS(RBD) EUROPE/CANARY EQUIPMENT(EK4) EXC. SPARE TIRE COVER SOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97808-584-0	01	1	9302-9308		●
287	FILM; PROTECTION,BUMPER EXC. EUROPE/CANARY EQUIPMENT(EK4),SPARE TIRE COVERSOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97808-790-0	01	1	9205-9303	●	●
287	FILM; PROTECTION,BUMPER BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR RADIANT RED/LT.SILVER MET(779),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780),BODY COLOR CRANBERRY MICA/LT.SILVER MET(783) GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),SPARE TIRE COVERSOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97808-790-0	01	1	9304-9308		●
287	FILM; PROTECTION,BUMPER BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVER MET(753),BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR RADIANT RED/LT.SILVER MET(779),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780),BODY COLORCRANBERRY MICA/LT.SILVER MET(783) GRADE LS(RBD) EUROPE/CANARY EQUIPMENT(EK4) EXC. SPARE TIRE COVER SOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97808-584-0	01	1	9309-9504		●
287	FILM; PROTECTION,BUMPER EUROPE/CANARY EQUIPMENT(EK4) PAINT TWO TONE DLX D TYPE<7KD> EXC. SPARE TIRE COVER SOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97808-584-0	01	1	9505-9607	●	●
287	FILM; PROTECTION,BUMPER CHINA EQUIPMENT(YT2) EXC. SPARE TIRE COVER SOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97808-584-0	01	1	9505-9607		●
287	FILM; PROTECTION,BUMPER BODY COLOR LT.SILVER MET(753),BODY COLOR RED ROCK MICA(872) CHINA EQUIPMENT(YT2) SPORTY PACKAGE<6LU> EXC. SPARE TIRE COVER SOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97808-584-0	01	1	9505-9607		●
287	FILM; PROTECTION,BUMPER EUROPE/CANARY EQUIPMENT(EK4) PAINT TWO TONE DLX D TYPE<7KD> EXC. SPARE TIRE COVER SOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97147-956-0	01	1	9608-	●	●
287	FILM; PROTECTION,BUMPER CHINA EQUIPMENT(YT2) EXC. SPARE TIRE COVER SOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97147-956-0	01	1	9608-		●
287	FILM; PROTECTION,BUMPER BODY COLOR LT.SILVER MET(753),BODY COLOR RED ROCK MICA(872) CHINA EQUIPMENT(YT2) SPORTY PACKAGE<6LU> EXC. SPARE TIRE COVER SOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97147-956-0	01	1	9608-		●
287	FILM; PROTECTION,BUMPER BODY COLOR IRON GRAY MET/LT.SILVER MET(777),BODY COLOR RADIANT RED/LT.SILVER MET(779),BODY COLOR GOLD MICA GREEN/LT.SILVER MET(780),BODY COLOR CRANBERRY MICA/LT.SILVER MET(783) GRADE LS(RBD) EXC. EUROPE/CANARY EQUIPMENT(EK4),SPARE TIRE COVERSOFT<P17>,SPARE TIRE COVER HARD<6SU>	8-97808-790-0	01	1	9309-9504		●
287	FILM; PROTECTION,BUMPER EXC. EUROPE/CANARY EQUIPMENT(EK4),SPARE TIRE COVERSOFT<P17>,CHINA EQUIPMENT(YT2),SPARE TIRE COVER H ARD<6SU>	8-97808-790-0	01	1	9505-		●
287	FILM; PROTECTION,BUMPER BODY COLOR LT.SILVER MET(753),BODY COLOR RED ROCK MICA(872) SPORTY PACKAGE<6LU> EXC. EUROPE/CANARY EQUIPMENT(EK4),SPARE TIRE COVERSOFT<P17>,CHINA EQUIPMENT(YT2),SPARE TIRE COVER HARD<6SU>	8-97808-790-0	01	1	9505-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
