6-87 — TRUNK ROOM PACKAGE AND REAR PARCEL (#35268) — 332 parça

123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
123	SEAL; REAR (B)	8-97805-795-1	02	1	9112-	●
123	SEAL; REAR (A)	8-97805-794-2	01	1	9112-	●	●
123	SEAL; REAR (C)	8-97135-087-0	04	1	9508-9607	●	●
123	SEAL; REAR (C)	8-97135-087-0	02	1	9610-9610	●	●
123	SEAL; REAR (C)	8-97135-087-0	04	1	9611-	●	●
123	SEAL; REAR (B)	8-97805-793-2	02	1	9112-		●

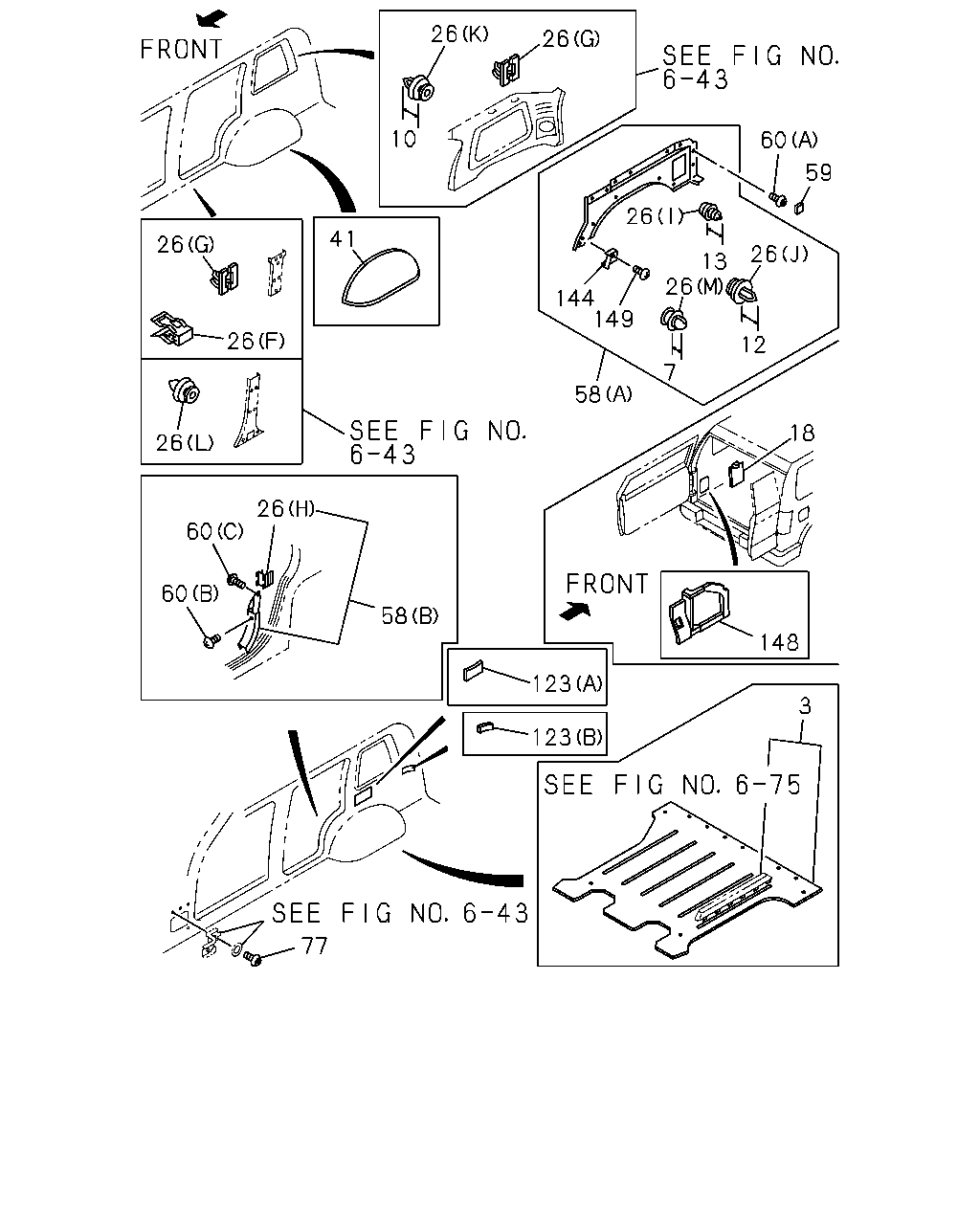

26 26 60 59 26 26 41 26 26 144 149 26 58 18 26 26 60 60 58 148 123 3 123 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97807-653-5	01	1	9112-9308	●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97810-296-1	01	1	9309-9504	●
3	MAT; LUGGAGE FLOOR SEAT BELT RR<A47> EUROPE/CANARY EQUIPMENT(EK4) EXC. LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97151-260-6	01	1	9505-	●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) SEAT BELT RR<A47> EXC. LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97804-966-6	01	1	9112-9504	●
3	MAT; LUGGAGE FLOOR SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY	8-97152-099-0	01	1	9505-	●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) EXC. SEAT BELT RR<A47>,LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97806-447-6	01	1	9112-9504	●
3	MAT; LUGGAGE FLOOR EUROPE/CANARY EQUIPMENT(EK4) EXC. SEAT BELT RR<A47>,LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97151-261-6	01	1	9505-	●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97806-422-5	01	1	9112-9308	●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97810-295-1	01	1	9309-9504	●
3	MAT; LUGGAGE FLOOR SEAT BELT RR<A47> EUROPE/CANARY EQUIPMENT(EK4) LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97098-350-1	01	1	9505-	●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) SEAT BELT RR<A47> EXC. LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97804-968-6	01	1	9112-9504	●
3	MAT; LUGGAGE FLOOR SEAT BELT RR<A47> EXC. EUROPE/CANARY EQUIPMENT(EK4),LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97152-097-0	01	1	9505-	●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) EXC. SEAT BELT RR<A47>,LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97806-449-6	01	1	9112-9504	●
3	MAT; LUGGAGE FLOOR EXC. SEAT BELT RR<A47>,EUROPE/CANARY EQUIPMENT(EK4),LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97152-098-0	01	1	9505-	●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN	8-97806-426-5	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN	8-97817-039-0	01	1	9306-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN	8-97810-274-2	01	1	9309-9504		●
3	MAT; LUGGAGE FLOOR EUROPE/CANARY EQUIPMENT(EK4) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY	8-97098-349-2	01	1	9505-		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> EXC. SEAT BELT RR<A47> DARK BROWN	8-97804-669-6	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> EXC. SEAT BELT RR<A47> DARK BROWN	8-97817-057-0	01	1	9306-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> EXC. SEAT BELT RR<A47> DARK BROWN	8-97810-280-2	01	1	9309-9504		●
3	MAT; LUGGAGE FLOOR 3RD SEAT 7 PASSENGERS(AS3) EXC. SEAT BELT RR<A47>,EUROPE/CANARY EQUIPMENT(EK4),LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97152-103-0	01	1	9505-		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> EXC. LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK BROWN	8-97806-428-3	01	1	9112-9208		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97806-431-4	01	1	9112-9208		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> EXC. LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK BROWN	8-97806-428-5	01	1	9209-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> EXC. LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK BROWN	8-97817-051-0	01	1	9306-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97806-431-6	01	1	9209-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97817-053-0	01	1	9306-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97810-278-2	01	1	9309-9504		●
3	MAT; LUGGAGE FLOOR 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> EUROPE/CANARY EQUIPMENT(EK4) EXC. LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97151-265-1	01	1	9505-		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> EXC. LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97817-051-1	01	1	9309-9504		●
3	MAT; LUGGAGE FLOOR 3RD SEAT 7 PASSENGERS(AS3) EUROPE/CANARY EQUIPMENT(EK4) EXC. SEAT BELT RR<A47>,LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97151-266-1	01	1	9505-		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. SEAT BELT RR<A47>,LUGGAGE COVER W/RAIL<6WG>, FLOOR COVER<6WX> DARK BROWN	8-97804-666-5	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. SEAT BELT RR<A47>,LUGGAGE COVER W/RAIL<6WG>, FLOOR COVER<6WX> DARK BROWN	8-97817-055-0	01	1	9306-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. SEAT BELT RR<A47>,LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97817-055-1	01	1	9309-9504		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97817-037-1	01	1	9309-9407		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK BROWN	8-97817-037-1	01	1	9408-9504		●
3	MAT; LUGGAGE FLOOR EUROPE/CANARY EQUIPMENT(EK4) EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97098-351-1	01	1	9505-		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK BROWN	8-97806-423-5	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK BROWN	8-97817-037-0	01	1	9306-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) FLOOR COVER<6WX> DARK GRAY	8-97806-433-2	01	1	9112-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) FLOOR COVER<6WX> DARK GRAY	8-97806-433-2	01	1	9408-9504		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY	8-97806-427-5	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY	8-97817-040-0	01	1	9306-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY	8-97810-275-2	01	1	9309-9504		●
3	MAT; LUGGAGE FLOOR LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3),EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY	8-97152-100-0	01	1	9505-		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> EXC. SEAT BELT RR<A47> DARK GRAY	8-97804-670-6	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> EXC. SEAT BELT RR<A47> DARK GRAY	8-97817-058-0	01	1	9306-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> EXC. SEAT BELT RR<A47> DARK GRAY	8-97810-281-2	01	1	9309-9504		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> EXC. LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK GRAY	8-97806-430-3	01	1	9112-9208		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97806-432-4	01	1	9112-9208		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> EXC. LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK GRAY	8-97806-430-5	01	1	9209-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> EXC. LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK GRAY	8-97817-052-0	01	1	9306-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97806-432-6	01	1	9209-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97817-054-0	01	1	9306-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97810-279-2	01	1	9309-9504		●
3	MAT; LUGGAGE FLOOR 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> EXC. EUROPE/CANARY EQUIPMENT(EK4),LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97152-102-0	01	1	9505-		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> EXC. LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97817-052-1	01	1	9309-9504		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. SEAT BELT RR<A47>,LUGGAGE COVER W/RAIL<6WG>, FLOOR COVER<6WX> DARK GRAY	8-97804-668-5	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. SEAT BELT RR<A47>,LUGGAGE COVER W/RAIL<6WG>, FLOOR COVER<6WX> DARK GRAY	8-97817-056-0	01	1	9306-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. SEAT BELT RR<A47>,LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97817-056-1	01	1	9309-9504		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97817-038-1	01	1	9309-9407		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK GRAY	8-97817-038-1	01	1	9408-9504		●
3	MAT; LUGGAGE FLOOR EXC. 3RD SEAT 7 PASSENGERS(AS3),EUROPE/CANARY EQUIPMENT(EK4),LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97152-101-0	01	1	9505-		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK GRAY	8-97806-425-5	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK GRAY	8-97817-038-0	01	1	9306-9308		●
18	LID; LUGGAGE SIDE POCKET INTERIOR COLOR BROWN(130) DARK BROWN	8-97804-350-2	01	1	9112-9307	●	●
18	LID; LUGGAGE SIDE POCKET INTERIOR COLOR BROWN(130) DARK BROWN	8-97817-188-0	01	1	9308-9504	●	●
18	LID; LUGGAGE SIDE POCKET DARK GRAY	8-97098-438-0	01	1	9505-	●	●
18	LID; LUGGAGE SIDE POCKET INTERIOR COLOR GRAY(153) DARK GRAY	8-97804-352-2	01	1	9112-9307	●	●
18	LID; LUGGAGE SIDE POCKET INTERIOR COLOR GRAY(153) DARK GRAY	8-97817-189-0	01	1	9308-9504	●	●
26	CLIP; TRIM COVER (A)	8-94313-458-0	AR	1	9112-	●
26	CLIP; TRIM COVER (E) H=16	8-94318-803-1	AR	1	9112-	●
26	CLIP; TRIM COVER (C) H=19.1	8-94385-553-0	AR	1	9112-	●
26	CLIP; TRIM COVER (D) H=17.7	8-94443-278-1	AR	1	9112-	●
26	CLIP; TRIM COVER (B) H=16.7	8-97022-017-0	AR	1	9112-	●
26	CLIP; TRIM COVER (G)	8-94313-458-0	AR	1	9112-		●
26	CLIP; TRIM COVER (K) H=16	8-94318-803-1	AR	1	9112-9207		●
26	CLIP; TRIM COVER (H)	8-94365-771-0	AR	1	9112-		●
26	CLIP; TRIM COVER (I) H=19.1	8-94385-553-0	AR	1	9112-		●
26	CLIP; TRIM COVER (J) H=17.7	8-94443-278-1	AR	1	9112-		●
26	CLIP; TRIM COVER (J) H=16.7	8-97022-017-0	AR	1	9112-		●
26	CLIP; TRIM COVER (L) H=15.3	8-97804-778-0	AR	1	9112-		●
26	CLIP; TRIM COVER (M) H=11.2	8-97807-381-0	AR	1	9112-		●
26	CLIP; TRIM COVER (F)	8-97808-609-0	AR	1	9112-		●
26	CLIP; TRIM COVER (K) H=16.7	8-97022-017-0	AR	1	9208-		●
41	MAT; WHEEL HOUSE INTERIOR COLOR GRAY(153) FLOOR COVER<6WX> DARK GRAY	8-97806-443-3	01	1	9112-9308		●
41	MAT; WHEEL HOUSE INTERIOR COLOR GRAY(153) FLOOR COVER<6WX> DARK GRAY	8-97806-443-3	01	1	9309-9504		●
41	MAT; WHEEL HOUSE INTERIOR COLOR GRAY(153) FLOOR COVER<6WX> DARK GRAY	8-97806-441-3	01	1	9112-9308		●
41	MAT; WHEEL HOUSE INTERIOR COLOR GRAY(153) FLOOR COVER<6WX> DARK GRAY	8-97806-441-3	01	1	9309-9504		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97804-346-9	01	1	9112-9504	●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97804-343-9	01	1	9112-9504	●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97804-348-9	01	1	9112-9504	●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97804-345-7	01	1	9112-9308	●
58	COVER; TRIM,LUGGAGE SIDE (A) DARK GRAY	8-97098-422-9	01	1	9505-9505	●
58	COVER; TRIM,LUGGAGE SIDE (A) DARK GRAY	8-97154-477-0	01	1	9505-	●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97804-345-9	01	1	9309-9504	●
58	COVER; TRIM,LUGGAGE SIDE (A) DARK GRAY	8-97098-421-9	01	1	9505-9607	●
58	COVER; TRIM,LUGGAGE SIDE (A) DARK GRAY	8-97098-421-9	01	1	9608-	●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-023-6	01	1	9112-9504		●
58	COVER; TRIM,LUGGAGE SIDE (B) DARK GRAY	8-97098-361-6	01	1	9505-9607		●
58	COVER; TRIM,LUGGAGE SIDE (B) DARK GRAY	8-97098-361-6	01	1	9608-		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97804-336-6	01	1	9112-9208		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-019-6	01	1	9112-9208		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97804-336-8	01	1	9209-9308		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-019-6	01	1	9209-9308		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97804-336-9	01	1	9309-9410		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97817-269-0	01	1	9411-9504		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-019-6	01	1	9309-9504		●
58	COVER; TRIM,LUGGAGE SIDE (B) DARK GRAY	8-97098-360-6	01	1	9505-9607		●
58	COVER; TRIM,LUGGAGE SIDE (B) DARK GRAY	8-97098-360-6	01	1	9608-		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) (A) DARK BROWN	8-97806-103-9	01	1	9112-9309		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) (A) DARK BROWN	8-97817-151-1	01	1	9310-9504		●
58	COVER; TRIM,LUGGAGE SIDE 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97151-335-2	01	1	9505-		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) DARK BROWN	8-97804-340-9	01	1	9112-9309		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) DARK BROWN	8-97817-149-1	01	1	9310-9504		●
58	COVER; TRIM,LUGGAGE SIDE EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97098-419-2	01	1	9505-		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-025-6	01	1	9112-9208		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97804-338-6	01	1	9112-9208		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-021-6	01	1	9112-9208		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-025-6	01	1	9209-9504		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97804-338-8	01	1	9209-9308		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-021-6	01	1	9209-9308		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97804-338-9	01	1	9309-9410		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97817-270-0	01	1	9411-9504		●
58	COVER; TRIM,LUGGAGE SIDE (A) DARK GRAY	8-97151-934-0	01	1	9505-9607		●
58	COVER; TRIM,LUGGAGE SIDE (A) DARK GRAY	8-97151-934-0	01	1	9608-		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-021-6	01	1	9309-9504		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97806-105-9	01	1	9112-9309		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97817-152-1	01	1	9310-9504		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97804-342-9	01	1	9112-9309		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97817-150-1	01	1	9310-9504		●
59	CAP; TRIM COVER INTERIOR COLOR BROWN(130) DARK BROWN	8-97805-797-2	04	1	9112-9504	●	●
59	CAP; TRIM COVER DARK GRAY	8-97098-423-2	04	1	9505-	●	●
59	CAP; TRIM COVER INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-799-2	04	1	9112-9504	●	●
60	SCREW; LUGGAGE SIDE TRIM (A) M7X20	8-94242-874-0	04	1	9112-	●	●
60	SCREW; LUGGAGE SIDE TRIM (B) M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9112-		●
60	SCREW; LUGGAGE SIDE TRIM (C) M5X16	8-94295-854-0	02	1	9112-		●
77	SCREW; BRKT M6X14 W/PL WASHER	9-03900-614-0	01	1	9112-9504	●	●
123	SEAL; REAR (B)	8-97805-795-1	02	1	9112-	●
123	SEAL; REAR (A)	8-97805-794-2	01	1	9112-	●	●
123	SEAL; REAR (C)	8-97135-087-0	04	1	9508-9607	●	●
123	SEAL; REAR (C)	8-97135-087-0	02	1	9610-9610	●	●
123	SEAL; REAR (C)	8-97135-087-0	04	1	9611-	●	●
123	SEAL; REAR (B)	8-97805-793-2	02	1	9112-		●
144	BRACKET	8-97808-765-0	01	1	9112-	●
144	BRACKET	8-97807-690-0	01	1	9112-9201	●
144	BRACKET	8-97808-764-0	01	1	9202-	●
144	BRACKET	8-97807-629-0	01	1	9112-		●
144	BRACKET	8-97807-628-0	01	1	9112-		●
148	PAD; CUSHION,JACK & TOOL	8-97806-776-4	01	1	9112-9302	●	●
148	PAD; CUSHION,JACK & TOOL	8-97810-300-0	01	1	9303-9412	●	●
148	PAD; CUSHION,JACK & TOOL	8-97111-186-0	01	1	9501-	●	●
149	SCREW; BRKT M4X10 TAPPING CK-HEAD	0-70080-410-0	08	1	9112-	●
149	SCREW; BRKT M4X8 TAPPING	9-07076-408-0	02	1	9203-9607		●
149	SCREW; BRKT M4X8 TAPPING	9-07076-408-0	02	1	9608-		●

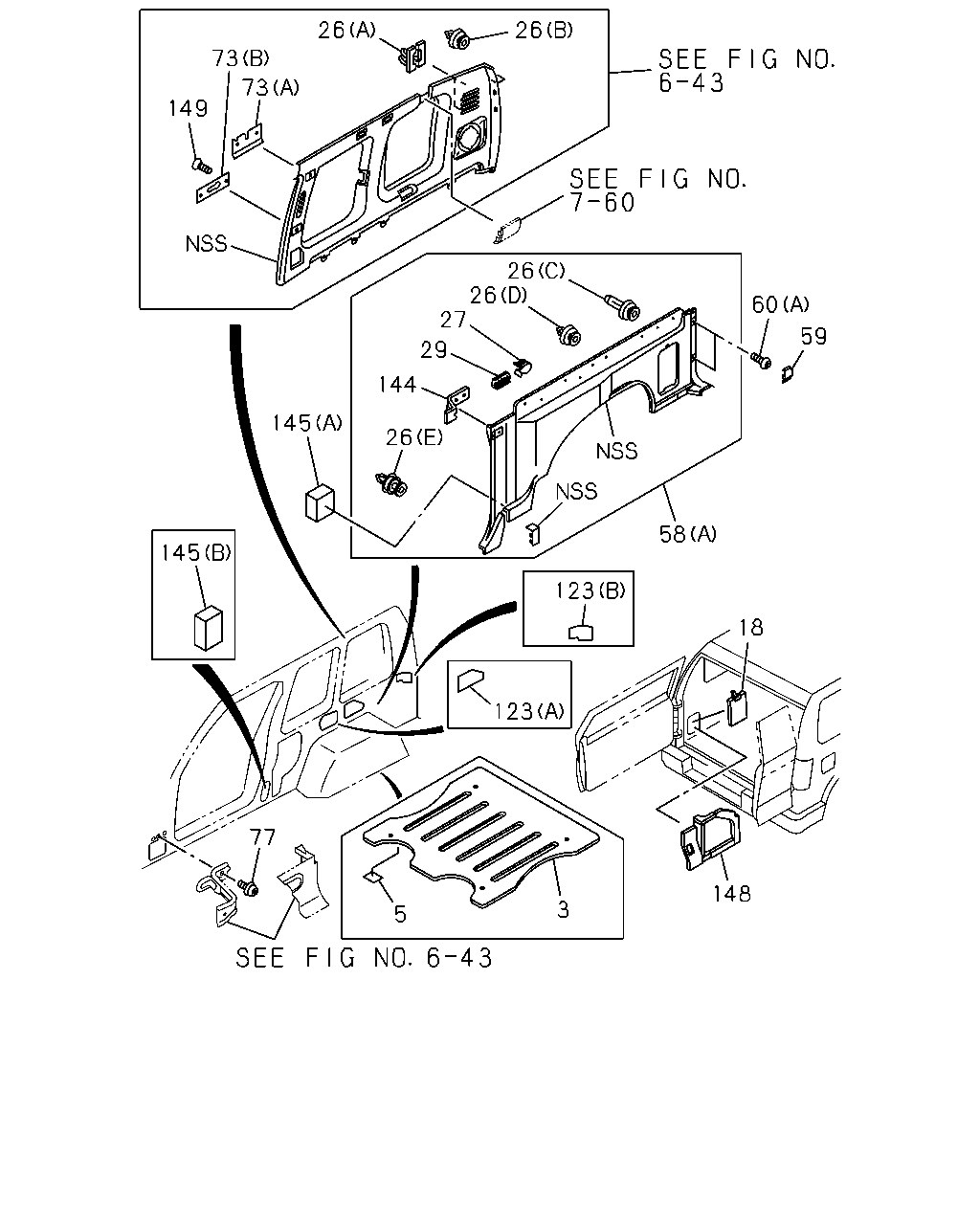

26 26 73 73 149 26 26 27 29 60 59 144 145 26 58 145 123 18 123 77 148 3 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97807-653-5	01	1	9112-9308	●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97810-296-1	01	1	9309-9504	●
3	MAT; LUGGAGE FLOOR SEAT BELT RR<A47> EUROPE/CANARY EQUIPMENT(EK4) EXC. LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97151-260-6	01	1	9505-	●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) SEAT BELT RR<A47> EXC. LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97804-966-6	01	1	9112-9504	●
3	MAT; LUGGAGE FLOOR SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY	8-97152-099-0	01	1	9505-	●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) EXC. SEAT BELT RR<A47>,LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97806-447-6	01	1	9112-9504	●
3	MAT; LUGGAGE FLOOR EUROPE/CANARY EQUIPMENT(EK4) EXC. SEAT BELT RR<A47>,LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97151-261-6	01	1	9505-	●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97806-422-5	01	1	9112-9308	●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97810-295-1	01	1	9309-9504	●
3	MAT; LUGGAGE FLOOR SEAT BELT RR<A47> EUROPE/CANARY EQUIPMENT(EK4) LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97098-350-1	01	1	9505-	●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) SEAT BELT RR<A47> EXC. LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97804-968-6	01	1	9112-9504	●
3	MAT; LUGGAGE FLOOR SEAT BELT RR<A47> EXC. EUROPE/CANARY EQUIPMENT(EK4),LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97152-097-0	01	1	9505-	●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) EXC. SEAT BELT RR<A47>,LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97806-449-6	01	1	9112-9504	●
3	MAT; LUGGAGE FLOOR EXC. SEAT BELT RR<A47>,EUROPE/CANARY EQUIPMENT(EK4),LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97152-098-0	01	1	9505-	●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN	8-97806-426-5	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN	8-97817-039-0	01	1	9306-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN	8-97810-274-2	01	1	9309-9504		●
3	MAT; LUGGAGE FLOOR EUROPE/CANARY EQUIPMENT(EK4) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY	8-97098-349-2	01	1	9505-		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> EXC. SEAT BELT RR<A47> DARK BROWN	8-97804-669-6	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> EXC. SEAT BELT RR<A47> DARK BROWN	8-97817-057-0	01	1	9306-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> EXC. SEAT BELT RR<A47> DARK BROWN	8-97810-280-2	01	1	9309-9504		●
3	MAT; LUGGAGE FLOOR 3RD SEAT 7 PASSENGERS(AS3) EXC. SEAT BELT RR<A47>,EUROPE/CANARY EQUIPMENT(EK4),LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97152-103-0	01	1	9505-		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> EXC. LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK BROWN	8-97806-428-3	01	1	9112-9208		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97806-431-4	01	1	9112-9208		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> EXC. LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK BROWN	8-97806-428-5	01	1	9209-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> EXC. LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK BROWN	8-97817-051-0	01	1	9306-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97806-431-6	01	1	9209-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97817-053-0	01	1	9306-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97810-278-2	01	1	9309-9504		●
3	MAT; LUGGAGE FLOOR 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> EUROPE/CANARY EQUIPMENT(EK4) EXC. LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97151-265-1	01	1	9505-		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> EXC. LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97817-051-1	01	1	9309-9504		●
3	MAT; LUGGAGE FLOOR 3RD SEAT 7 PASSENGERS(AS3) EUROPE/CANARY EQUIPMENT(EK4) EXC. SEAT BELT RR<A47>,LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97151-266-1	01	1	9505-		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. SEAT BELT RR<A47>,LUGGAGE COVER W/RAIL<6WG>, FLOOR COVER<6WX> DARK BROWN	8-97804-666-5	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. SEAT BELT RR<A47>,LUGGAGE COVER W/RAIL<6WG>, FLOOR COVER<6WX> DARK BROWN	8-97817-055-0	01	1	9306-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. SEAT BELT RR<A47>,LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97817-055-1	01	1	9309-9504		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG> DARK BROWN	8-97817-037-1	01	1	9309-9407		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK BROWN	8-97817-037-1	01	1	9408-9504		●
3	MAT; LUGGAGE FLOOR EUROPE/CANARY EQUIPMENT(EK4) EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97098-351-1	01	1	9505-		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK BROWN	8-97806-423-5	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK BROWN	8-97817-037-0	01	1	9306-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) FLOOR COVER<6WX> DARK GRAY	8-97806-433-2	01	1	9112-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) FLOOR COVER<6WX> DARK GRAY	8-97806-433-2	01	1	9408-9504		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY	8-97806-427-5	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY	8-97817-040-0	01	1	9306-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY	8-97810-275-2	01	1	9309-9504		●
3	MAT; LUGGAGE FLOOR LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3),EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY	8-97152-100-0	01	1	9505-		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> EXC. SEAT BELT RR<A47> DARK GRAY	8-97804-670-6	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> EXC. SEAT BELT RR<A47> DARK GRAY	8-97817-058-0	01	1	9306-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> EXC. SEAT BELT RR<A47> DARK GRAY	8-97810-281-2	01	1	9309-9504		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> EXC. LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK GRAY	8-97806-430-3	01	1	9112-9208		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97806-432-4	01	1	9112-9208		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> EXC. LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK GRAY	8-97806-430-5	01	1	9209-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> EXC. LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK GRAY	8-97817-052-0	01	1	9306-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97806-432-6	01	1	9209-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97817-054-0	01	1	9306-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97810-279-2	01	1	9309-9504		●
3	MAT; LUGGAGE FLOOR 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> EXC. EUROPE/CANARY EQUIPMENT(EK4),LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97152-102-0	01	1	9505-		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) SEAT BELT RR<A47> EXC. LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97817-052-1	01	1	9309-9504		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. SEAT BELT RR<A47>,LUGGAGE COVER W/RAIL<6WG>, FLOOR COVER<6WX> DARK GRAY	8-97804-668-5	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. SEAT BELT RR<A47>,LUGGAGE COVER W/RAIL<6WG>, FLOOR COVER<6WX> DARK GRAY	8-97817-056-0	01	1	9306-9308		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. SEAT BELT RR<A47>,LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97817-056-1	01	1	9309-9504		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97817-038-1	01	1	9309-9407		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK GRAY	8-97817-038-1	01	1	9408-9504		●
3	MAT; LUGGAGE FLOOR EXC. 3RD SEAT 7 PASSENGERS(AS3),EUROPE/CANARY EQUIPMENT(EK4),LUGGAGE COVER W/RAIL<6WG> DARK GRAY	8-97152-101-0	01	1	9505-		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK GRAY	8-97806-425-5	01	1	9112-9305		●
3	MAT; LUGGAGE FLOOR INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3),LUGGAGE COVER W/RAIL<6WG>,FLOOR COVER<6WX> DARK GRAY	8-97817-038-0	01	1	9306-9308		●
5	FASTENER	8-97809-026-1	02	1	9203-	●
18	LID; LUGGAGE SIDE POCKET INTERIOR COLOR BROWN(130) DARK BROWN	8-97804-350-2	01	1	9112-9307	●	●
18	LID; LUGGAGE SIDE POCKET INTERIOR COLOR BROWN(130) DARK BROWN	8-97817-188-0	01	1	9308-9504	●	●
18	LID; LUGGAGE SIDE POCKET DARK GRAY	8-97098-438-0	01	1	9505-	●	●
18	LID; LUGGAGE SIDE POCKET INTERIOR COLOR GRAY(153) DARK GRAY	8-97804-352-2	01	1	9112-9307	●	●
18	LID; LUGGAGE SIDE POCKET INTERIOR COLOR GRAY(153) DARK GRAY	8-97817-189-0	01	1	9308-9504	●	●
26	CLIP; TRIM COVER (A)	8-94313-458-0	AR	1	9112-	●
26	CLIP; TRIM COVER (E) H=16	8-94318-803-1	AR	1	9112-	●
26	CLIP; TRIM COVER (C) H=19.1	8-94385-553-0	AR	1	9112-	●
26	CLIP; TRIM COVER (D) H=17.7	8-94443-278-1	AR	1	9112-	●
26	CLIP; TRIM COVER (B) H=16.7	8-97022-017-0	AR	1	9112-	●
26	CLIP; TRIM COVER (G)	8-94313-458-0	AR	1	9112-		●
26	CLIP; TRIM COVER (K) H=16	8-94318-803-1	AR	1	9112-9207		●
26	CLIP; TRIM COVER (H)	8-94365-771-0	AR	1	9112-		●
26	CLIP; TRIM COVER (I) H=19.1	8-94385-553-0	AR	1	9112-		●
26	CLIP; TRIM COVER (J) H=17.7	8-94443-278-1	AR	1	9112-		●
26	CLIP; TRIM COVER (J) H=16.7	8-97022-017-0	AR	1	9112-		●
26	CLIP; TRIM COVER (L) H=15.3	8-97804-778-0	AR	1	9112-		●
26	CLIP; TRIM COVER (M) H=11.2	8-97807-381-0	AR	1	9112-		●
26	CLIP; TRIM COVER (F)	8-97808-609-0	AR	1	9112-		●
26	CLIP; TRIM COVER (K) H=16.7	8-97022-017-0	AR	1	9208-		●
27	CLIP; TRIM COVER	8-94388-826-0	02	1	9203-9607	●
27	CLIP; TRIM COVER	8-94388-826-0	01	1	9608-	●
27	CLIP; TRIM COVER	8-94388-826-0	01	1	9608-	●
29	NUT; SPIRE,TRIM COVER INTERIOR COLOR BROWN(130),INTERIOR COLOR GRAY(153)	8-94401-528-1	02	1	9203-9308	●
29	NUT; SPIRE,TRIM COVER	8-94401-528-1	02	1	9309-9607	●
29	NUT; SPIRE,TRIM COVER	8-94401-528-1	01	1	9608-	●
29	NUT; SPIRE,TRIM COVER	8-94401-528-1	01	1	9608-	●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97804-346-9	01	1	9112-9504	●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97804-343-9	01	1	9112-9504	●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97804-348-9	01	1	9112-9504	●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97804-345-7	01	1	9112-9308	●
58	COVER; TRIM,LUGGAGE SIDE (A) DARK GRAY	8-97098-422-9	01	1	9505-9505	●
58	COVER; TRIM,LUGGAGE SIDE (A) DARK GRAY	8-97154-477-0	01	1	9505-	●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97804-345-9	01	1	9309-9504	●
58	COVER; TRIM,LUGGAGE SIDE (A) DARK GRAY	8-97098-421-9	01	1	9505-9607	●
58	COVER; TRIM,LUGGAGE SIDE (A) DARK GRAY	8-97098-421-9	01	1	9608-	●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-023-6	01	1	9112-9504		●
58	COVER; TRIM,LUGGAGE SIDE (B) DARK GRAY	8-97098-361-6	01	1	9505-9607		●
58	COVER; TRIM,LUGGAGE SIDE (B) DARK GRAY	8-97098-361-6	01	1	9608-		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97804-336-6	01	1	9112-9208		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-019-6	01	1	9112-9208		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97804-336-8	01	1	9209-9308		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-019-6	01	1	9209-9308		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97804-336-9	01	1	9309-9410		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (A) DARK BROWN	8-97817-269-0	01	1	9411-9504		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) (B) DARK BROWN	8-97805-019-6	01	1	9309-9504		●
58	COVER; TRIM,LUGGAGE SIDE (B) DARK GRAY	8-97098-360-6	01	1	9505-9607		●
58	COVER; TRIM,LUGGAGE SIDE (B) DARK GRAY	8-97098-360-6	01	1	9608-		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) (A) DARK BROWN	8-97806-103-9	01	1	9112-9309		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) (A) DARK BROWN	8-97817-151-1	01	1	9310-9504		●
58	COVER; TRIM,LUGGAGE SIDE 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97151-335-2	01	1	9505-		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) DARK BROWN	8-97804-340-9	01	1	9112-9309		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) DARK BROWN	8-97817-149-1	01	1	9310-9504		●
58	COVER; TRIM,LUGGAGE SIDE EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97098-419-2	01	1	9505-		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-025-6	01	1	9112-9208		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97804-338-6	01	1	9112-9208		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-021-6	01	1	9112-9208		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-025-6	01	1	9209-9504		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97804-338-8	01	1	9209-9308		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-021-6	01	1	9209-9308		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97804-338-9	01	1	9309-9410		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (A) DARK GRAY	8-97817-270-0	01	1	9411-9504		●
58	COVER; TRIM,LUGGAGE SIDE (A) DARK GRAY	8-97151-934-0	01	1	9505-9607		●
58	COVER; TRIM,LUGGAGE SIDE (A) DARK GRAY	8-97151-934-0	01	1	9608-		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) (B) DARK GRAY	8-97805-021-6	01	1	9309-9504		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97806-105-9	01	1	9112-9309		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97817-152-1	01	1	9310-9504		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97804-342-9	01	1	9112-9309		●
58	COVER; TRIM,LUGGAGE SIDE INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY	8-97817-150-1	01	1	9310-9504		●
59	CAP; TRIM COVER INTERIOR COLOR BROWN(130) DARK BROWN	8-97805-797-2	04	1	9112-9504	●	●
59	CAP; TRIM COVER DARK GRAY	8-97098-423-2	04	1	9505-	●	●
59	CAP; TRIM COVER INTERIOR COLOR GRAY(153) DARK GRAY	8-97805-799-2	04	1	9112-9504	●	●
60	SCREW; LUGGAGE SIDE TRIM (A) M7X20	8-94242-874-0	04	1	9112-	●	●
60	SCREW; LUGGAGE SIDE TRIM (B) M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9112-		●
60	SCREW; LUGGAGE SIDE TRIM (C) M5X16	8-94295-854-0	02	1	9112-		●
73	BRACKET; TRIM COVER (A) UPPER	8-97807-707-1	02	1	9112-	●
73	BRACKET; TRIM COVER (B) LOWER	8-97807-708-1	02	1	9112-	●
77	SCREW; BRKT M6X14 W/PL WASHER	9-03900-614-0	01	1	9112-9504	●	●
123	SEAL; REAR (B)	8-97805-795-1	02	1	9112-	●
123	SEAL; REAR (A)	8-97805-794-2	01	1	9112-	●	●
123	SEAL; REAR (C)	8-97135-087-0	04	1	9508-9607	●	●
123	SEAL; REAR (C)	8-97135-087-0	02	1	9610-9610	●	●
123	SEAL; REAR (C)	8-97135-087-0	04	1	9611-	●	●
123	SEAL; REAR (B)	8-97805-793-2	02	1	9112-		●
144	BRACKET	8-97808-765-0	01	1	9112-	●
144	BRACKET	8-97807-690-0	01	1	9112-9201	●
144	BRACKET	8-97808-764-0	01	1	9202-	●
144	BRACKET	8-97807-629-0	01	1	9112-		●
144	BRACKET	8-97807-628-0	01	1	9112-		●
145	PAD; CUSHION,LUGGAGE SIDE (A)	8-97807-547-0	02	1	9112-9410	●
145	PAD; CUSHION,LUGGAGE SIDE (A)	8-97811-223-0	02	1	9411-9504	●
145	PAD; CUSHION,LUGGAGE SIDE (A)	8-97808-910-0	02	1	9505-9505	●
145	PAD; CUSHION,LUGGAGE SIDE (B)	8-97809-436-0	02	1	9204-9206	●
145	PAD; CUSHION,LUGGAGE SIDE (B)	8-97808-910-0	02	1	9207-9403	●
145	PAD; CUSHION,LUGGAGE SIDE (A)	8-97811-223-0	01	1	9505-9607	●
145	PAD; CUSHION,LUGGAGE SIDE (A)	8-97811-223-0	01	1	9608-	●
145	PAD; CUSHION,LUGGAGE SIDE (A)	8-97811-223-0	01	1	9608-	●
148	PAD; CUSHION,JACK & TOOL	8-97806-776-4	01	1	9112-9302	●	●
148	PAD; CUSHION,JACK & TOOL	8-97810-300-0	01	1	9303-9412	●	●
148	PAD; CUSHION,JACK & TOOL	8-97111-186-0	01	1	9501-	●	●
149	SCREW; BRKT M4X10 TAPPING CK-HEAD	0-70080-410-0	08	1	9112-	●
149	SCREW; BRKT M4X8 TAPPING	9-07076-408-0	02	1	9203-9607		●
149	SCREW; BRKT M4X8 TAPPING	9-07076-408-0	02	1	9608-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
