◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-86 - TRUNK OPENER AND FUEL LID ▶
6-86 — TRUNK OPENER AND FUEL LID (#35267) — 50 parça

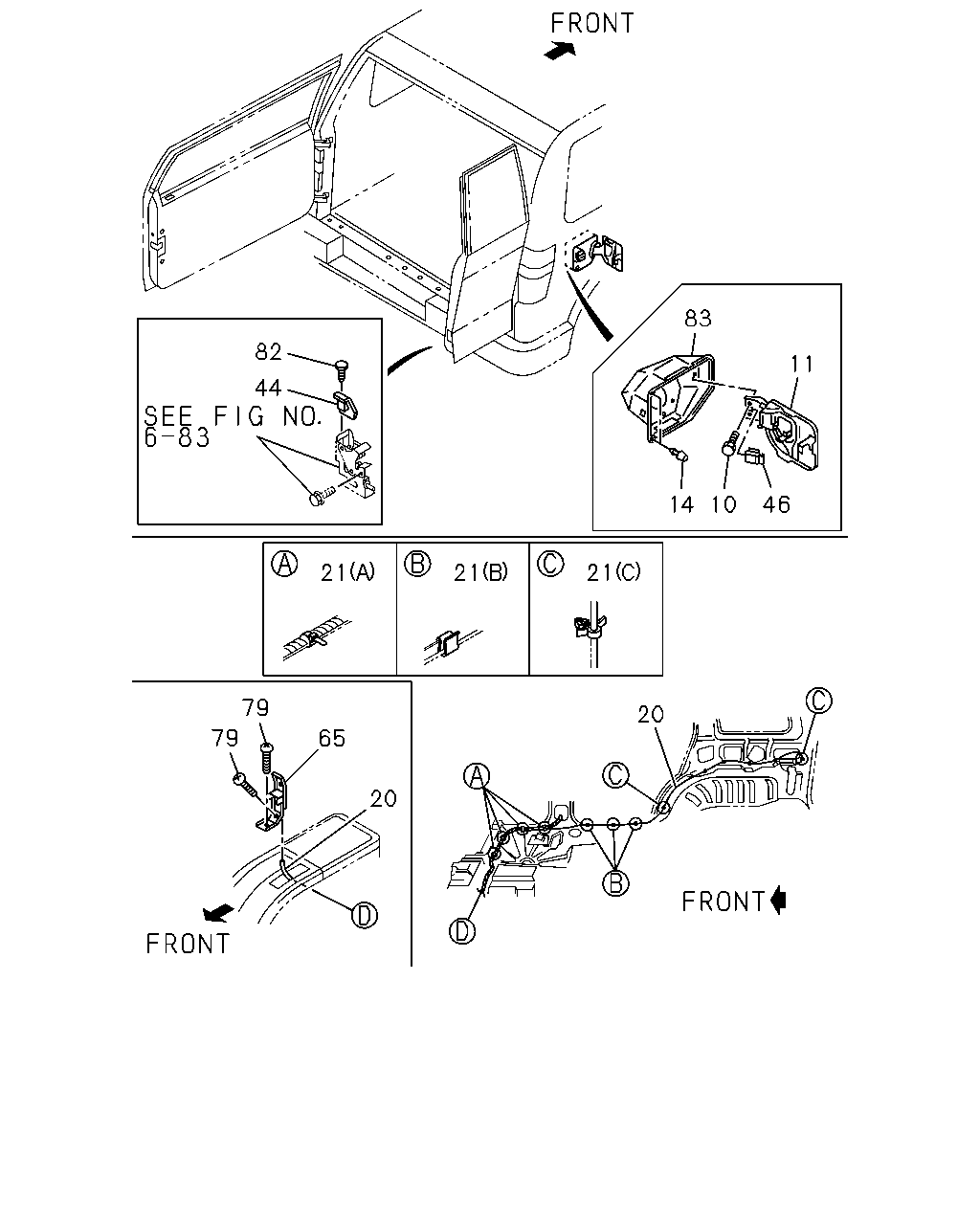

çizim 65490
83 82 11 44 10 46 14 21 21 21 79 79 20 65 20
BalonParca AdiParca NoAdetTipApplied Date A B
10 BOLT; FUEL FILLER LID
M6X18 		9-01960-618-0 02 1 9112-9204 ● ●
10 BOLT; FUEL FILLER LID
M6X18 W/LK&PL WASHER 		0-50140-618-0 02 1 9205- ● ●
11 LID; FUEL 8-94358-634-5 01 1 9112- ● ●
14 CUSHION; RUBBER,FUEL LID 8-94466-607-0 02 1 9112- ● ●
20 CABLE; TRUNK LID & FUEL FILLER 8-97803-061-2 01 1 9112-9504 ●
20 CABLE; TRUNK LID & FUEL FILLER 8-97811-377-0 01 1 9505- ●
20 CABLE; TRUNK LID & FUEL FILLER 8-97803-060-2 01 1 9112-9504 ●
20 CABLE; TRUNK LID & FUEL FILLER 8-97811-376-0 01 1 9505- ●
21 CLIP; CABLE,TAIL GATE
(C) ID=6 		8-94417-625-0 06 1 9112- ●
21 CLIP; CABLE,TAIL GATE
(A) L=140 		5-09707-031-0 04 1 9112-9404 ● ●
21 CLIP; CABLE,TAIL GATE
(A) L=140 		5-09707-031-0 03 1 9405- ● ●
21 CLIP; CABLE,TAIL GATE
(B) B=8.4 H=16 CR-PLATED 		8-94116-002-3 03 1 9112-9311 ●
21 CLIP; CABLE,TAIL GATE
(B) B=8.4 H=16 CR-PLATED 		8-94116-002-3 02 1 9312- ●
21 CLIP; CABLE,TAIL GATE
(C) ID=6 		8-94417-625-0 02 1 9112- ●
44 COVER; LK CYL 8-94358-459-2 01 1 9112-9706 ● ●
44 COVER; LK CYL 8-97163-766-0 01 1 9707- ● ●
46 SPRING; FUEL FILLER DOOR 8-94358-492-2 01 1 9112-9505 ● ●
46 SPRING; FUEL FILLER DOOR 8-97811-383-0 01 1 9506- ● ●
65 KNOB; FUEL FILLER DOOR
BLACK 		8-97817-143-2 01 1 9309- ● ●
65 KNOB; FUEL FILLER DOOR
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-186-2 01 1 9112-9308 ● ●
65 KNOB; FUEL FILLER DOOR
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-188-2 01 1 9112-9308 ● ●
79 SCREW; LEVER TO ROCKER PNL
M5X16 		8-94295-854-0 02 1 9112- ● ●
82 CLIP; COVER
BLACK 		8-94259-671-0 01 1 9112- ● ●
83 RECESS; FILLER NECK 8-94359-901-2 01 1 9112-9707 ● ●
83 RECESS; FILLER NECK 8-97164-304-0 01 1 9708- ● ●

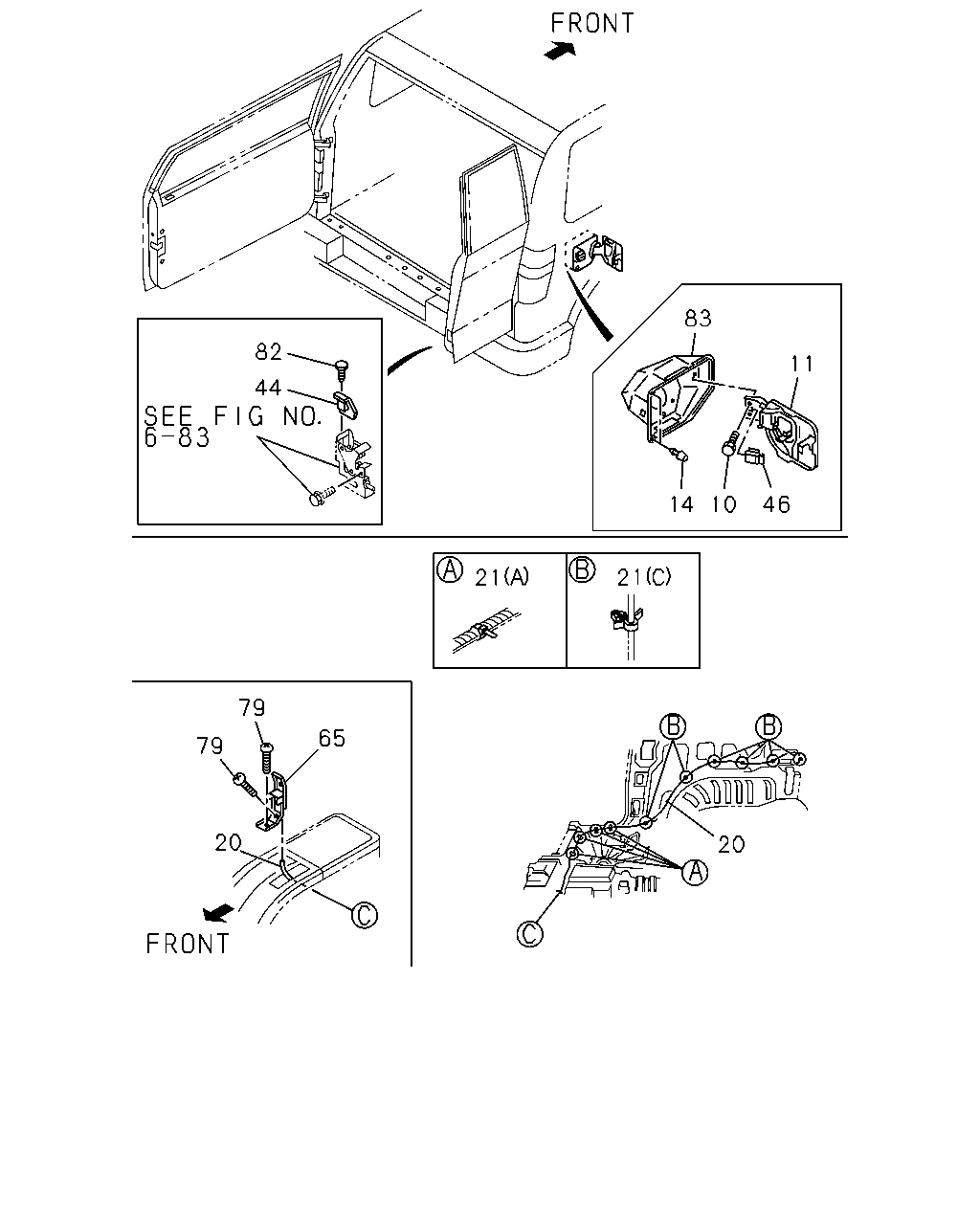

çizim 65876
83 82 11 44 10 46 14 21 21 79 65 79 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
10 BOLT; FUEL FILLER LID
M6X18 		9-01960-618-0 02 1 9112-9204 ● ●
10 BOLT; FUEL FILLER LID
M6X18 W/LK&PL WASHER 		0-50140-618-0 02 1 9205- ● ●
11 LID; FUEL 8-94358-634-5 01 1 9112- ● ●
14 CUSHION; RUBBER,FUEL LID 8-94466-607-0 02 1 9112- ● ●
20 CABLE; TRUNK LID & FUEL FILLER 8-97803-061-2 01 1 9112-9504 ●
20 CABLE; TRUNK LID & FUEL FILLER 8-97811-377-0 01 1 9505- ●
20 CABLE; TRUNK LID & FUEL FILLER 8-97803-060-2 01 1 9112-9504 ●
20 CABLE; TRUNK LID & FUEL FILLER 8-97811-376-0 01 1 9505- ●
21 CLIP; CABLE,TAIL GATE
(C) ID=6 		8-94417-625-0 06 1 9112- ●
21 CLIP; CABLE,TAIL GATE
(A) L=140 		5-09707-031-0 04 1 9112-9404 ● ●
21 CLIP; CABLE,TAIL GATE
(A) L=140 		5-09707-031-0 03 1 9405- ● ●
21 CLIP; CABLE,TAIL GATE
(B) B=8.4 H=16 CR-PLATED 		8-94116-002-3 03 1 9112-9311 ●
21 CLIP; CABLE,TAIL GATE
(B) B=8.4 H=16 CR-PLATED 		8-94116-002-3 02 1 9312- ●
21 CLIP; CABLE,TAIL GATE
(C) ID=6 		8-94417-625-0 02 1 9112- ●
44 COVER; LK CYL 8-94358-459-2 01 1 9112-9706 ● ●
44 COVER; LK CYL 8-97163-766-0 01 1 9707- ● ●
46 SPRING; FUEL FILLER DOOR 8-94358-492-2 01 1 9112-9505 ● ●
46 SPRING; FUEL FILLER DOOR 8-97811-383-0 01 1 9506- ● ●
65 KNOB; FUEL FILLER DOOR
BLACK 		8-97817-143-2 01 1 9309- ● ●
65 KNOB; FUEL FILLER DOOR
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-186-2 01 1 9112-9308 ● ●
65 KNOB; FUEL FILLER DOOR
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-188-2 01 1 9112-9308 ● ●
79 SCREW; LEVER TO ROCKER PNL
M5X16 		8-94295-854-0 02 1 9112- ● ●
82 CLIP; COVER
BLACK 		8-94259-671-0 01 1 9112- ● ●
83 RECESS; FILLER NECK 8-94359-901-2 01 1 9112-9707 ● ●
83 RECESS; FILLER NECK 8-97164-304-0 01 1 9708- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
