6-84 — BACK TRIM (#35266) — 38 parça

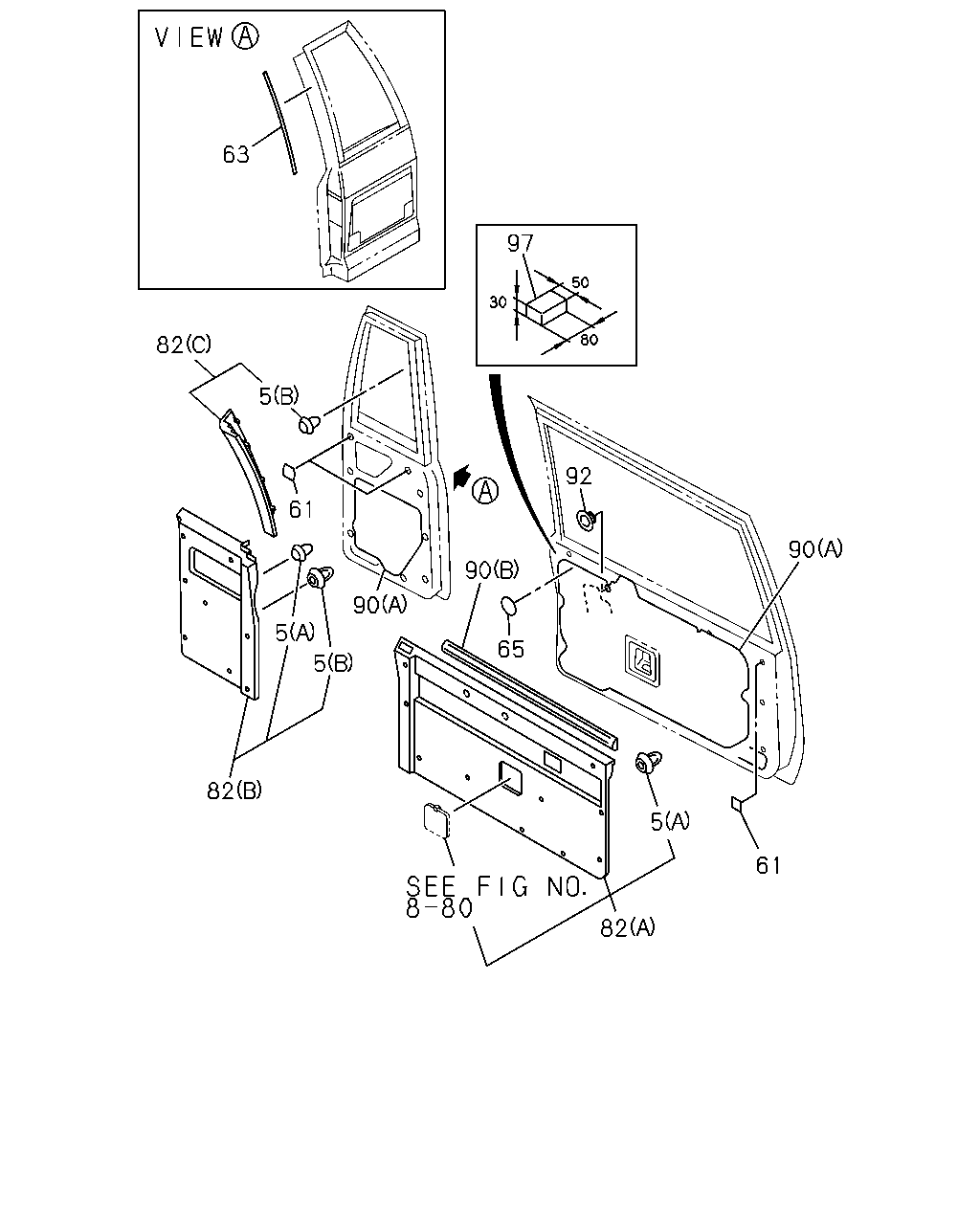

çizim 65488
63 97 82 5 92 61 90 90 90 5 5 65 82 5 61 82
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 CLIP; BACK DOOR TRIM
(A) H=16.7 		8-97022-017-0 18 1 9112-9504 ● ● ● ●
5 CLIP; BACK DOOR TRIM
(A) H=16.7 		8-97022-017-0 06 1 9505- ● ● ● ●
5 CLIP; BACK DOOR TRIM
(A) H=16.7 		8-97022-017-0 12 1 9505- ● ● ● ●
5 CLIP; BACK DOOR TRIM
(B) 		8-97804-705-0 06 1 9112-9308 ● ● ● ●
5 CLIP; BACK DOOR TRIM
(B) 		8-97804-705-0 03 1 9309-9504 ● ● ● ●
5 CLIP; BACK DOOR TRIM
(B) 		8-97804-705-0 06 1 9505- ● ● ● ●
61 SEAL; BACK DOOR,UPR 8-94296-870-0 03 1 9112-9602 ● ● ● ●
61 SEAL; BACK DOOR,UPR
OD=45 BLACK 		1-76798-017-0 03 1 9603- ● ● ● ●
63 SEAL; BACK DOOR,CENTER 8-97811-274-0 01 1 9502- ● ● ● ●
65 SEAL; BACK DOOR,LWR
OD=16 		8-94111-207-1 01 1 9112- ● ● ● ●
82 COVER; TRIM,BACK DOOR
INTERIOR COLOR BROWN(130) (C) DARK BROWN 		8-97804-687-1 01 1 9112-9504 ● ● ● ●
82 COVER; TRIM,BACK DOOR
(C) DARK GRAY 		8-97098-475-1 01 1 9505- ● ● ● ●
82 COVER; TRIM,BACK DOOR
INTERIOR COLOR BROWN(130) (A) DARK BROWN 		8-97804-218-9 01 1 9112-9504 ● ● ● ●
82 COVER; TRIM,BACK DOOR
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) (A) DARK GRAY 		8-97098-474-3 01 1 9505- ● ● ● ●
82 COVER; TRIM,BACK DOOR
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) DARK GRAY 		8-97098-474-3 01 1 9505- ● ● ● ●
82 COVER; TRIM,BACK DOOR
INTERIOR COLOR BROWN(130) (B) DARK BROWN 		8-97804-222-6 01 1 9112-9504 ● ● ● ●
82 COVER; TRIM,BACK DOOR
(B) DARK GRAY 		8-97098-473-6 01 1 9505- ● ● ● ●
82 COVER; TRIM,BACK DOOR
INTERIOR COLOR GRAY(153) (C) DARK GRAY 		8-97804-689-1 01 1 9112-9504 ● ● ● ●
82 COVER; TRIM,BACK DOOR
INTERIOR COLOR GRAY(153) (A) DARK GRAY 		8-97804-220-9 01 1 9112-9504 ● ● ● ●
82 COVER; TRIM,BACK DOOR
EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) DARK GRAY 		8-97151-353-9 01 1 9505- ● ● ● ●
82 COVER; TRIM,BACK DOOR
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EUROPE/CANARY EQUIPMENT(EK4) (A) DARK GRAY 		8-97151-353-9 01 1 9505- ● ● ● ●
82 COVER; TRIM,BACK DOOR
INTERIOR COLOR GRAY(153) (B) DARK GRAY 		8-97804-224-6 01 1 9112-9504 ● ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
(A) 		8-97804-702-1 01 1 9209- ● ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
(B) 		8-97811-164-0 01 1 9401- ● ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> (A) 		8-97804-703-5 01 1 9209-9504 ● ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
RR WIPER W/INTERMITTENT<6WJ> EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) 		8-97804-703-5 01 1 9505- ● ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EUROPE/CANARY EQUIPMENT(EK4) RR WIPER W/INTERMITTENT<6WJ> (A) 		8-97804-703-5 01 1 9505- ● ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
EXC. RR WIPER<C25>,RR WIPER W/INTERMITTENT<6WJ> (A) 		8-97804-704-4 01 1 9209-9504 ● ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
EXC. EUROPE/CANARY EQUIPMENT(EK4),RR WIPER W/INTERMITTENT<6WJ> (A) 		8-97804-704-4 01 1 9505- ● ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EUROPE/CANARY EQUIPMENT(EK4) EXC. RR WIPER W/INTERMITTENT<6WJ> (A) 		8-97804-704-4 01 1 9505- ● ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) RR WIPER W/INTERMITTENT<6WJ> (A) 		8-97809-612-3 01 1 9505- ● ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) RR WIPER W/INTERMITTENT<6WJ> EXC. 3RD SEAT 7 PASSENGERS(AS3) (A) 		8-97809-612-3 01 1 9505- ● ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) EXC. RR WIPER W/INTERMITTENT<6WJ> (A) 		8-97809-617-2 01 1 9505- ● ● ● ●
90 SHEET; WATER PROOF,BACK DOOR
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) EXC. 3RD SEAT 7 PASSENGERS(AS3),RR WIPER W/INTERMITTENT<6WJ> (A) 		8-97809-617-2 01 1 9505- ● ● ● ●
92 PROTECTOR; BACK DOOR EDGE
AUTO DOOR LOCK<AU4> 		8-94340-075-0 01 1 9112-9504 ● ● ● ●
92 PROTECTOR; BACK DOOR EDGE 8-94340-075-0 01 1 9505-9607 ● ● ● ●
92 PROTECTOR; BACK DOOR EDGE
AUTO DOOR LOCK<AU4> 		8-94340-075-0 01 1 9608- ● ● ● ●
97 CUSHION 8-97809-154-1 01 1 9304- ● ● ● ●
