6-76 — FLOOR EQUIPMENT AND SEALING (#35261) — 43 parça

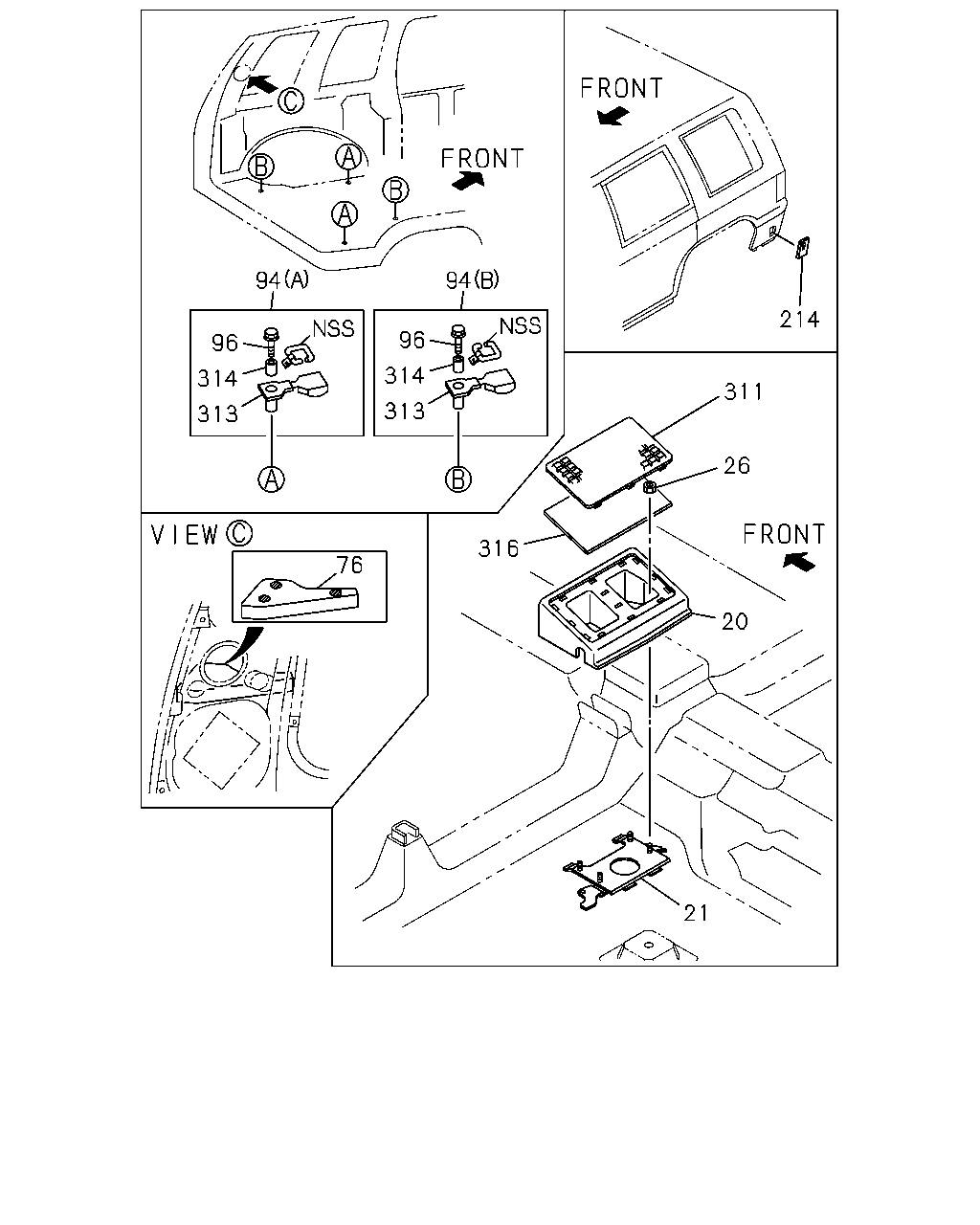

çizim 68748
94 94 214 96 96 314 314 311 313 313 26 316 76 20 21
BalonParca AdiParca NoAdetTipApplied Date A B
20 REST; FOOT
INTERIOR COLOR BROWN(130) RR FOOT REST<6WM> DARK BROWN 		8-97805-055-2 01 1 9112-9308 ●
20 REST; FOOT
RR FOOT REST<6WM> BLACK 		8-97817-142-2 01 1 9309-9406 ●
20 REST; FOOT
RR FOOT REST<6WM> BLACK 		8-97151-275-0 01 1 9407- ●
20 REST; FOOT
INTERIOR COLOR BROWN(130) RR FOOT REST<6WM> DARK BROWN 		8-97805-051-2 01 1 9112-9308 ●
20 REST; FOOT
RR FOOT REST<6WM> BLACK 		8-97817-141-2 01 1 9309-9406 ●
20 REST; FOOT
RR FOOT REST<6WM> BLACK 		8-97151-274-0 01 1 9407- ●
20 REST; FOOT
INTERIOR COLOR GRAY(153) RR FOOT REST<6WM> DARK GRAY 		8-97805-057-2 01 1 9112-9308 ●
20 REST; FOOT
INTERIOR COLOR GRAY(153) RR FOOT REST<6WM> DARK GRAY 		8-97805-053-2 01 1 9112-9308 ●
21 BRACKET; FOOT REST
ANTI LOCK BRAKE(JE5) RR FOOT REST<6WM> 		8-97113-166-0 01 1 9608- ●
21 BRACKET; FOOT REST
ANTI LOCK BRAKE(JE5) EXC. RR FOOT REST<6WM> 		8-97161-000-0 01 1 9608- ●
21 BRACKET; FOOT REST
RR FOOT REST<6WM> 		8-97806-904-4 01 1 9112-9504 ●
21 BRACKET; FOOT REST
RR FOOT REST<6WM> 		8-97111-183-0 01 1 9505- ●
21 BRACKET; FOOT REST
RR FOOT REST<6WM> 		8-97806-902-4 01 1 9112-9504 ●
21 BRACKET; FOOT REST
RR FOOT REST<6WM> 		8-97111-182-0 01 1 9505-9607 ●
21 BRACKET; FOOT REST
RR FOOT REST<6WM> EXC. ANTI LOCK BRAKE(JE5) 		8-97111-182-0 01 1 9608- ●
26 NUT; FLANGE
ANTI LOCK BRAKE(JE5) EXC. RR FOOT REST<6WM> M6 FLANGE 		0-91150-106-0 02 1 9608- ●
26 NUT; FLANGE
RR FOOT REST<6WM> M6 FLANGE 		0-91150-106-0 08 1 9112-9402 ●
26 NUT; FLANGE
RR FOOT REST<6WM> M6 FLANGE 		0-91150-106-0 04 1 9403-9607 ●
26 NUT; FLANGE
ANTI LOCK BRAKE(JE5) RR FOOT REST<6WM> M6 FLANGE 		0-91150-106-0 05 1 9608- ●
26 NUT; FLANGE
RR FOOT REST<6WM> EXC. ANTI LOCK BRAKE(JE5) M6 FLANGE 		0-91150-106-0 04 1 9608- ●
76 CUSHION; SUPPORT COVER
DUST PROTECTION PACKAGE<7HQ> 		8-97811-231-0 02 1 9410- ● ●
94 HOOK ASM; ROPE
INTERIOR COLOR BROWN(130) (A) DARK BROWN 		8-97805-140-3 02 1 9112-9312 ● ●
94 HOOK ASM; ROPE
INTERIOR COLOR BROWN(130) (A) DARK BROWN 		8-97817-223-0 02 1 9401-9504 ● ●
94 HOOK ASM; ROPE
(A) BLACK 		8-97151-775-0 02 1 9505- ● ●
94 HOOK ASM; ROPE
INTERIOR COLOR BROWN(130) (B) DARK BROWN 		8-97805-144-3 02 1 9112-9312 ● ●
94 HOOK ASM; ROPE
INTERIOR COLOR BROWN(130) (B) DARK BROWN 		8-97817-225-0 02 1 9401-9504 ● ●
94 HOOK ASM; ROPE
(B) BLACK 		8-97151-776-0 02 1 9505- ● ●
94 HOOK ASM; ROPE
INTERIOR COLOR GRAY(153) (A) DARK GRAY 		8-97805-142-3 02 1 9112-9312 ● ●
94 HOOK ASM; ROPE
INTERIOR COLOR GRAY(153) (A) DARK GRAY 		8-97817-224-0 02 1 9401-9504 ● ●
94 HOOK ASM; ROPE
INTERIOR COLOR GRAY(153) (B) DARK GRAY 		8-97805-146-3 02 1 9112-9312 ● ●
94 HOOK ASM; ROPE
INTERIOR COLOR GRAY(153) (B) DARK GRAY 		8-97817-226-0 02 1 9401-9504 ● ●
96 BOLT; ROPE HOOK FIX
L=500 		8-97807-967-0 04 1 9203-9503 ● ●
96 BOLT; ROPE HOOK FIX
M8X40 FLANGE 		0-28690-840-0 04 1 9504- ● ●
214 SEAL; HOLE COVER 8-97803-265-1 02 1 9112- ● ●
311 PAD; FOOT REST
RR FOOT REST<6WM> BLACK 		8-97807-585-3 02 1 9112- ●
313 COVER; ROPE HOOK
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-103-2 04 1 9112-9312 ● ●
313 COVER; ROPE HOOK
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-227-0 04 1 9401-9504 ● ●
313 COVER; ROPE HOOK
BLACK 		8-97151-777-0 04 1 9505- ● ●
313 COVER; ROPE HOOK
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-105-2 04 1 9112-9312 ● ●
313 COVER; ROPE HOOK
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-228-0 04 1 9401-9504 ● ●
314 COLLAR; ROPE HOOK 8-97803-657-0 04 1 9112- ● ●
316 INSULATOR; BRKT
ANTI LOCK BRAKE(JE5) EXC. RR FOOT REST<6WM> 		8-97808-527-0 01 1 9608- ●
316 INSULATOR; BRKT
RR FOOT REST<6WM> 		8-97808-527-0 02 1 9112- ●
