◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#35260) — 563 parça

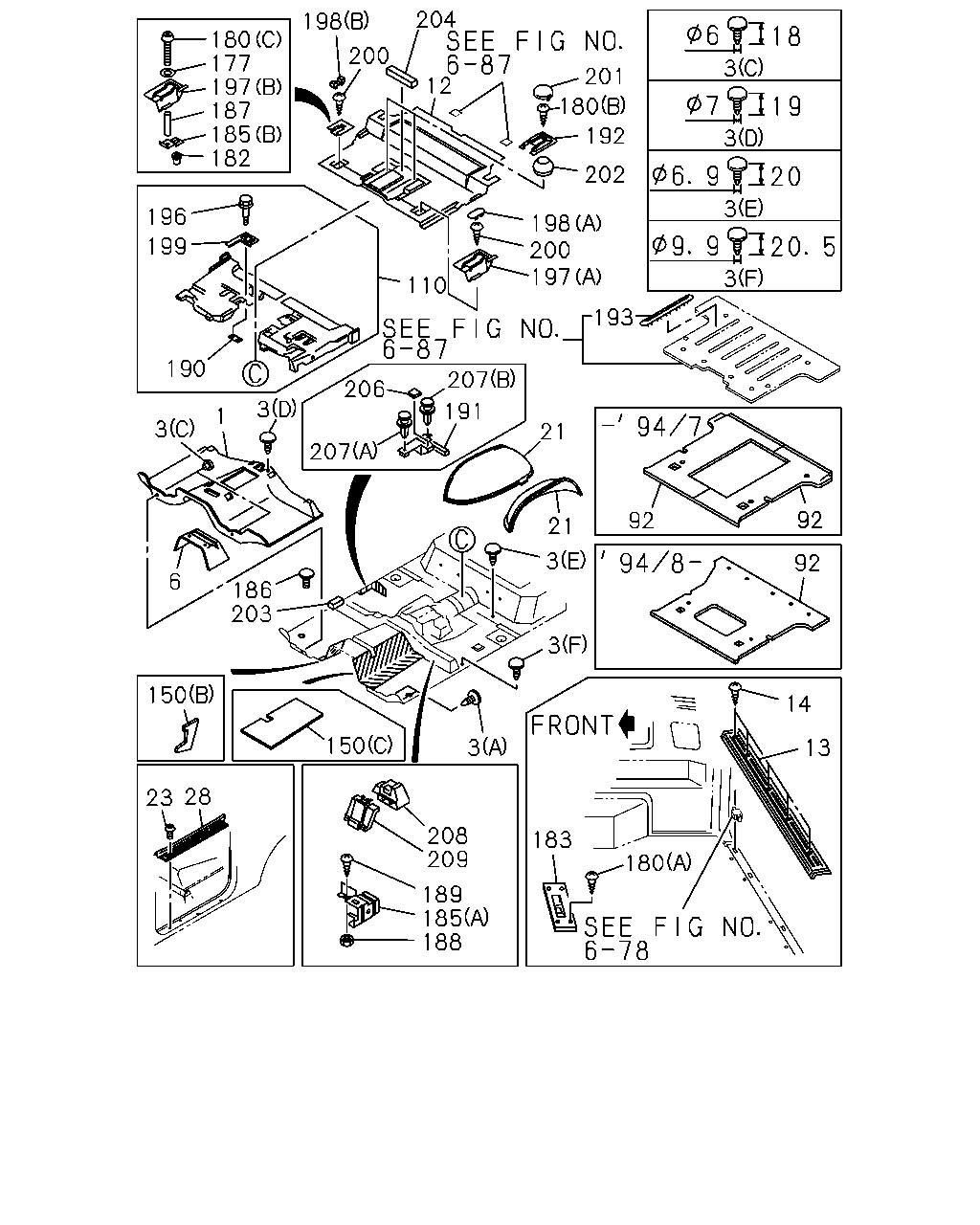

çizim 17546
198 204 12 3 3 3 3 180 177 197 187 185 182 201 180 192 200 202 196 199 198 200 197 110 193 207 191 190 3 206 1 3 21 207 92 92 21 3 92 6 186 203 3 150 14 150 3 13 208 209 183 180 189 185 188 23 28
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97807-986-8 01 1 9112-9201 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97809-023-2 01 1 9202-9305 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97809-023-3 01 1 9306-9308 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-936-8 01 1 9112-9201 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-022-2 01 1 9202-9305 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-022-3 01 1 9306-9308 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97809-978-1 01 1 9309-9504 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97152-070-0 01 1 9505-9607 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97154-914-0 01 1 9608- ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-979-1 01 1 9309-9504 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97098-309-1 01 1 9505-9607 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97154-908-0 01 1 9608- ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97807-985-8 01 1 9112-9201 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97809-021-2 01 1 9202-9305 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-932-8 01 1 9112-9201 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-020-2 01 1 9202-9305 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-926-9 01 1 9209-9303 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97810-140-0 01 1 9304-9305 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97810-140-1 01 1 9306-9308 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) A/T THM(RMQ) INTERIOR COLOR BROWN(130) EXC. FLOOR COVER<6WX> DARK BROWN 		8-97804-926-8 01 1 9112-9208 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) A/T THM(RMQ) INTERIOR COLOR GRAY(153) EXC. FLOOR COVER<6WX> DARK GRAY 		8-97804-928-9 01 1 9112-9303 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) A/T THM(RMQ) INTERIOR COLOR GRAY(153) EXC. FLOOR COVER<6WX> DARK GRAY 		8-97810-141-0 01 1 9304-9305 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. FLOOR COVER<6WX> DARK GRAY 		8-97810-141-1 01 1 9306-9308 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97810-140-1 01 1 9309-9407 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. FLOOR COVER<6WX> DARK BROWN 		8-97810-140-1 01 1 9408-9504 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97098-310-1 01 1 9505-9607 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97154-907-1 01 1 9608- ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97810-141-1 01 1 9309-9407 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. FLOOR COVER<6WX> DARK GRAY 		8-97810-141-1 01 1 9408-9504 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97152-067-0 01 1 9505-9607 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97154-913-1 01 1 9608- ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-922-9 01 1 9209-9303 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97810-136-0 01 1 9304-9305 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) EXC. FLOOR COVER<6WX> DARK BROWN 		8-97804-922-8 01 1 9112-9208 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) EXC. FLOOR COVER<6WX> DARK GRAY 		8-97804-924-9 01 1 9112-9303 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) EXC. FLOOR COVER<6WX> DARK GRAY 		8-97810-137-0 01 1 9304-9305 ● ● ● ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) (B) DARK BROWN 		8-97804-942-0 10 1 9112-9407 ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR BROWN(130) (B) DARK BROWN 		8-97804-942-0 10 1 9112-9407 ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) (E) DARK BROWN 		8-97805-801-0 02 1 9203-9308 ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR BROWN(130) (E) DARK BROWN 		8-97805-801-0 02 1 9203-9308 ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) (B) DARK BROWN 		8-97804-942-0 06 1 9408-9504 ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR BROWN(130) (B) DARK BROWN 		8-97804-942-0 06 1 9408-9504 ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) (B) DARK GRAY 		8-97098-324-0 06 1 9505- ● ● ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) (B) L=14 DARK GRAY 		8-97804-944-0 10 1 9112-9208 ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR GRAY(153) (B) L=14 DARK GRAY 		8-97804-944-0 10 1 9112-9208 ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 02 1 9203-9308 ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 02 1 9203-9308 ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) (B) L=14 DARK GRAY 		8-97804-944-0 10 1 9209-9407 ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR GRAY(153) (B) L=14 DARK GRAY 		8-97804-944-0 10 1 9209-9407 ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) (B) L=14 DARK GRAY 		8-97804-944-0 06 1 9408-9504 ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR GRAY(153) (B) L=14 DARK GRAY 		8-97804-944-0 06 1 9408-9504 ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) (C) ID=6 OD=16 L=18 		8-94178-705-0 05 1 9112-9208 ● ● ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) (E) BLACK 		8-97002-822-1 02 1 9202-9208 ● ● ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) (C) ID=6 OD=16 L=18 		8-94178-705-0 05 1 9209-9308 ● ● ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) (E) BLACK 		8-97002-822-1 02 1 9209-9303 ● ● ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) (C) ID=6 OD=16 L=18 		8-94178-705-0 05 1 9309- ● ● ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) (D) L=19 BLACK 		8-94363-776-0 02 1 9112-9201 ● ● ●
3 CLIP; CARPET FIX
(D) L=19 BLACK 		8-94363-776-0 04 1 9112-9308 ● ● ● ●
3 CLIP; CARPET FIX
(A) H=10.5 		8-94441-810-0 02 1 9209-9308 ● ● ● ●
3 CLIP; CARPET FIX
(A) H=10.5 		8-94441-810-0 02 1 9112-9208 ● ● ● ●
3 CLIP; CARPET FIX
(A) H=10.5 		8-94441-810-0 02 1 9309-9504 ● ● ● ●
3 CLIP; CARPET FIX
(A) H=10.5 		8-94441-810-0 02 1 9505- ● ● ● ●
3 CLIP; CARPET FIX
(D) L=19 BLACK 		8-94363-776-0 04 1 9309-9607 ● ● ● ●
3 CLIP; CARPET FIX
(D) L=19 BLACK 		8-94363-776-0 04 1 9608- ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) (C) ID=6 OD=16 L=18 		8-94178-705-0 04 1 9112- ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) (F) DARK BROWN 		8-97808-521-0 01 1 9112-9208 ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) (E) DARK BROWN 		8-97805-801-0 04 1 9202-9308 ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) (F) DARK BROWN 		8-97808-521-0 01 1 9209-9308 ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) (E) DARK BROWN 		8-97805-801-0 04 1 9309-9407 ● ● ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR BROWN(130) (E) DARK BROWN 		8-97805-801-0 02 1 9408-9504 ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) (F) DARK BROWN 		8-97808-521-0 01 1 9309-9504 ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) (E) DARK GRAY 		8-97098-324-0 02 1 9505-9607 ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) (E) DARK GRAY 		8-97098-324-0 02 1 9608- ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) (F) OD=26 DARK GRAY 		8-97808-522-0 01 1 9112-9208 ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 04 1 9202-9308 ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) (F) OD=26 DARK GRAY 		8-97808-522-0 01 1 9209-9308 ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 04 1 9309-9407 ● ● ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 02 1 9408-9504 ● ● ● ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 02 1 9505-9505 ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 02 1 9505-9505 ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) (E) DARK GRAY 		8-97098-326-0 02 1 9505- ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) (F) OD=26 DARK GRAY 		8-97808-522-0 01 1 9309-9504 ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) (F) DARK GRAY 		8-97098-343-0 01 1 9505-9607 ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) (F) DARK GRAY 		8-97098-343-0 01 1 9608- ● ● ● ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) FLOOR COVER<6WX> (B) L=14 DARK GRAY 		8-97804-944-0 04 1 9408-9504 ● ● ● ●
6 DEADENER; FLOOR GEAR BOX FRT 8-97802-100-5 01 1 9112- ● ● ● ●
12 CARPET; FLOOR,RR
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-950-9 01 1 9112-9209 ● ● ● ●
12 CARPET; FLOOR,RR
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97808-939-1 01 1 9210-9504 ● ● ● ●
12 CARPET; FLOOR,RR
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97152-086-0 01 1 9505- ● ● ● ●
12 CARPET; FLOOR,RR
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-952-9 01 1 9112-9209 ● ● ● ●
12 CARPET; FLOOR,RR
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97808-938-1 01 1 9210-9504 ● ● ● ●
12 CARPET; FLOOR,RR
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97152-073-0 01 1 9505-9607 ● ● ● ●
12 CARPET; FLOOR,RR
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97157-819-0 01 1 9608- ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4),RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOT REST<6WM> DARK GRAY 		8-97157-899-1 01 1 9608- ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) ANTI LOCK BRAKE(JE5) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. EUROPE/CANARY EQUIPMENT(EK4),RR FOOT REST<6WM> DARK GRAY 		8-97157-898-1 01 1 9608- ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. RR FOOT REST<6WM> DARK GRAY 		8-97157-900-1 01 1 9608- ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) EXC. RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOTREST<6WM> DARK GRAY 		8-97157-901-1 01 1 9608- ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) RR SEAT SPLIT BACK W/RECLINING<S3X> RR FOOT REST<6WM> EXC. FLOOR COVER<6WX> DARK BROWN 		8-97804-946-9 01 1 9112-9305 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) RR SEAT SPLIT BACK W/RECLINING<S3X> RR FOOT REST<6WM> EXC. FLOOR COVER<6WX> DARK BROWN 		8-97817-035-0 01 1 9306-9308 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) RR SEAT SPLIT BACK W/RECLINING<S3X> RR FOOT REST<6WM> DARK BROWN 		8-97817-035-0 01 1 9309-9504 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) RR SEAT SPLIT BACK W/RECLINING<S3X> RR FOOT REST<6WM> DARK GRAY 		8-97151-254-3 01 1 9505- ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. RR FOOT REST<6WM> DARK BROWN 		8-97817-031-0 01 1 9309-9504 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. RR FOOT REST<6WM> DARK GRAY 		8-97152-074-0 01 1 9505-9607 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. ANTI LOCK BRAKE(JE5),RR FOOT REST<6WM> DARK GRAY 		8-97152-074-1 01 1 9608- ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. RR FOOT REST<6WM>,FLOOR COVER<6WX> DARK BROWN 		8-97804-954-9 01 1 9112-9305 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. RR FOOT REST<6WM>,FLOOR COVER<6WX> DARK BROWN 		8-97817-031-0 01 1 9306-9308 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOTREST<6WM> DARK BROWN 		8-97817-033-0 01 1 9309-9407 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOTREST<6WM>,FLOOR COVER<6WX> DARK BROWN 		8-97817-033-0 01 1 9408-9504 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) EXC. RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOTREST<6WM> DARK GRAY 		8-97152-075-0 01 1 9505-9607 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5),RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOT REST<6WM> DARK GRAY 		8-97152-075-1 01 1 9608- ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOTREST<6WM>,FLOOR COVER<6WX> DARK BROWN 		8-97804-958-9 01 1 9112-9305 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOTREST<6WM>,FLOOR COVER<6WX> DARK BROWN 		8-97817-033-0 01 1 9306-9308 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) RR SEAT SPLIT BACK W/RECLINING<S3X> RR FOOT REST<6WM> EXC. FLOOR COVER<6WX> DARK GRAY 		8-97804-948-9 01 1 9112-9305 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) RR SEAT SPLIT BACK W/RECLINING<S3X> RR FOOT REST<6WM> EXC. FLOOR COVER<6WX> DARK GRAY 		8-97817-036-0 01 1 9306-9308 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) RR SEAT SPLIT BACK W/RECLINING<S3X> RR FOOT REST<6WM> DARK GRAY 		8-97817-036-0 01 1 9309-9504 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) RR SEAT SPLIT BACK W/RECLINING<S3X> RR FOOT REST<6WM> EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97152-082-2 01 1 9505- ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. RR FOOT REST<6WM> DARK GRAY 		8-97817-032-0 01 1 9309-9504 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. EUROPE/CANARY EQUIPMENT(EK4),RR FOOT REST<6WM> DARK GRAY 		8-97152-083-0 01 1 9505-9607 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5),RR FOOT REST<6WM> DARK GRAY 		8-97152-083-1 01 1 9608- ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. RR FOOT REST<6WM>,FLOOR COVER<6WX> DARK GRAY 		8-97804-956-9 01 1 9112-9305 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. RR FOOT REST<6WM>,FLOOR COVER<6WX> DARK GRAY 		8-97817-032-0 01 1 9306-9308 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOTREST<6WM> DARK GRAY 		8-97817-034-0 01 1 9309-9407 ● ● ● ●

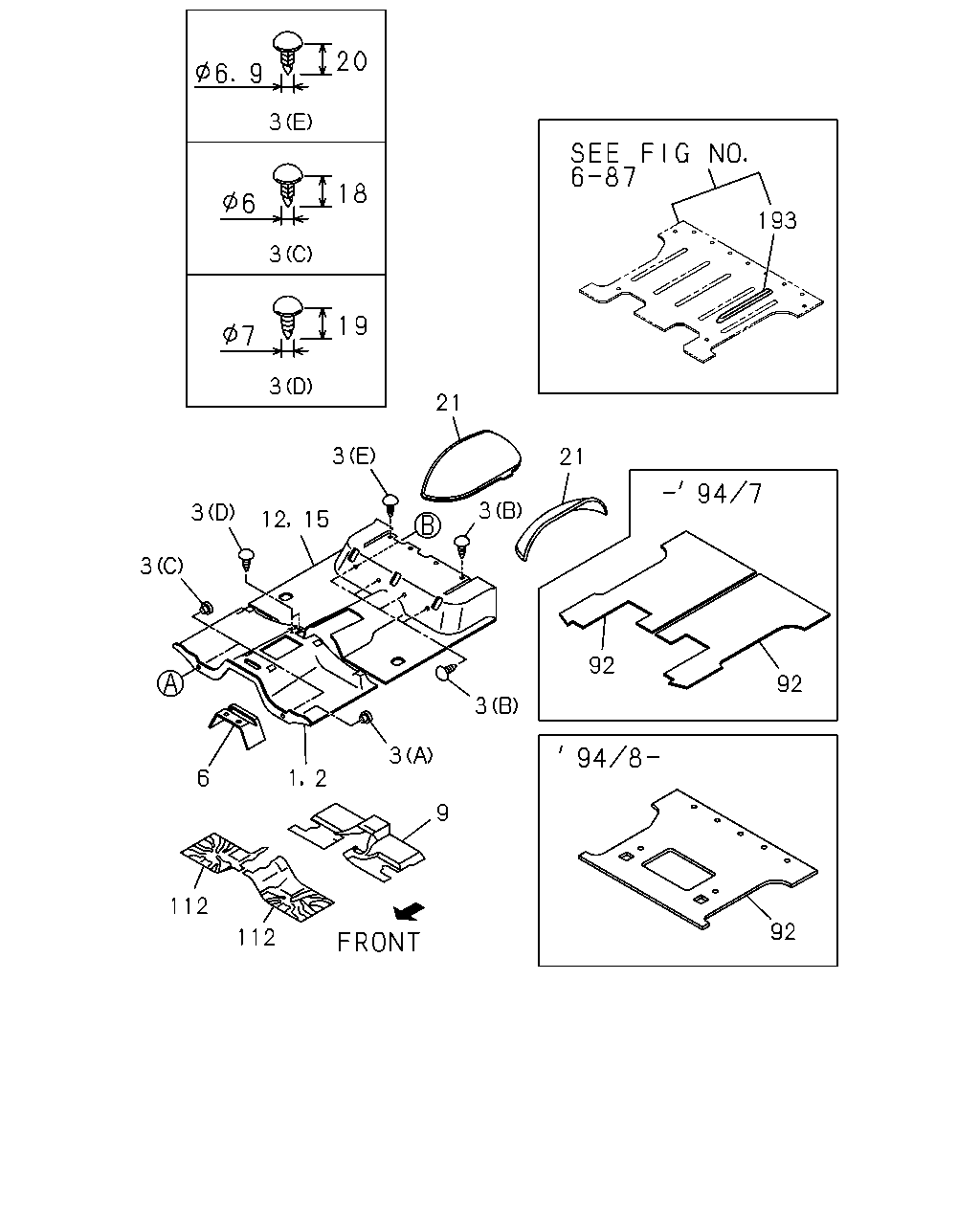

12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOTREST<6WM>,FLOOR COVER<6WX> DARK GRAY 		8-97817-034-0 01 1 9408-9504 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4),RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOT REST<6WM> DARK GRAY 		8-97152-084-0 01 1 9505-9607 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5),RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOT REST<6WM> DARK GRAY 		8-97152-084-1 01 1 9608- ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOTREST<6WM>,FLOOR COVER<6WX> DARK GRAY 		8-97804-960-9 01 1 9112-9305 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOTREST<6WM>,FLOOR COVER<6WX> DARK GRAY 		8-97817-034-0 01 1 9306-9308 ● ● ● ●

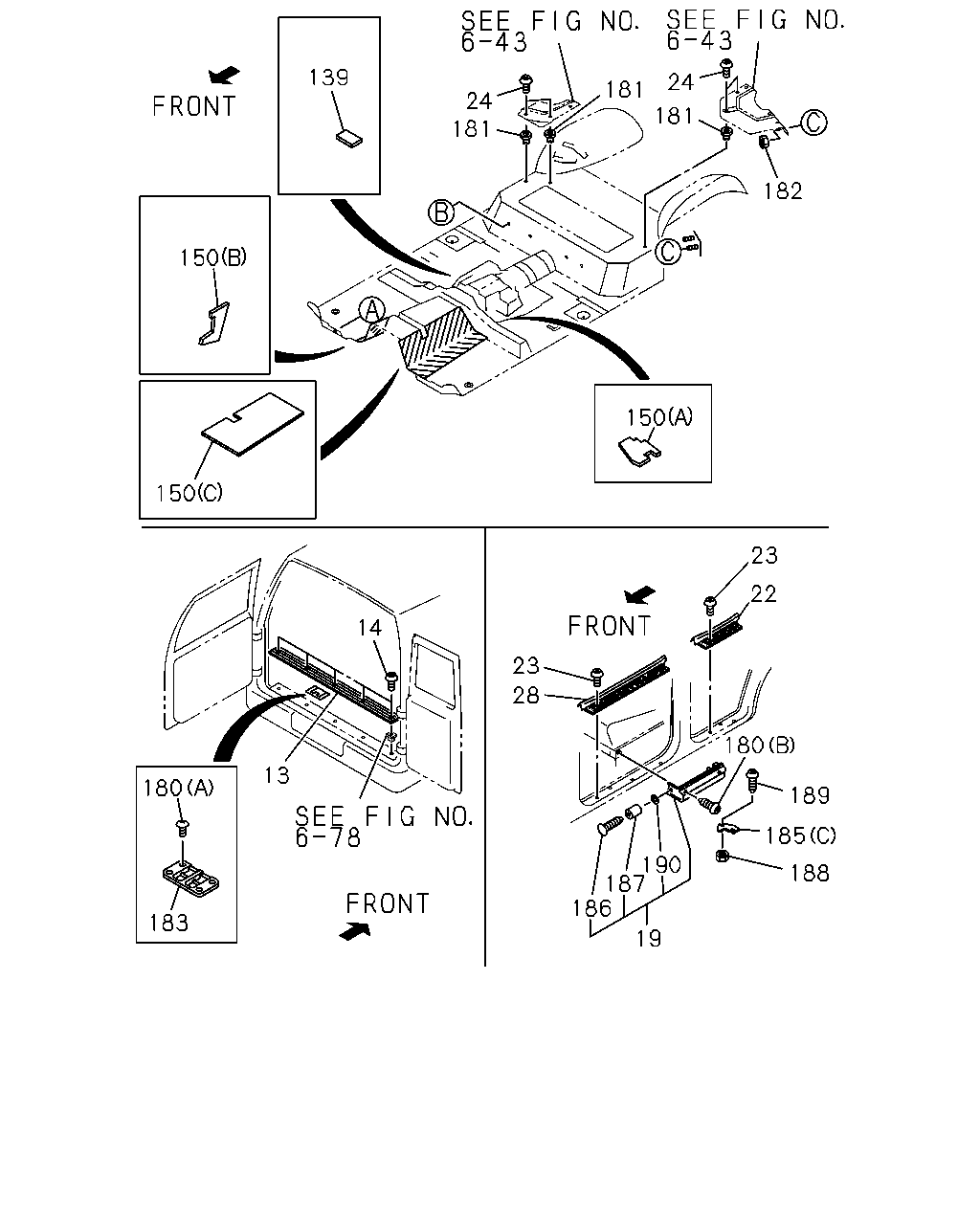

13 PLATE; RR FLOOR CARPET
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-002-2 01 1 9112-9504 ● ● ● ●
13 PLATE; RR FLOOR CARPET
DARK GRAY 		8-97098-365-2 01 1 9505- ● ● ● ●
13 PLATE; RR FLOOR CARPET
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-004-2 01 1 9112-9504 ● ● ● ●
14 SCREW; PLATE 8-97803-149-1 05 1 9112- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97807-376-3 01 1 9112-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-337-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97152-109-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97807-373-3 01 1 9112-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-335-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97152-108-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97807-378-3 01 1 9112-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-338-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97151-968-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97807-375-3 01 1 9112-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-336-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97151-967-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97806-438-5 01 1 9309-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97817-333-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97151-965-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97806-435-5 01 1 9309-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97817-331-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97151-964-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. FLOOR COVER<6WX> DARK BROWN 		8-97806-438-5 01 1 9112-9308 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97804-982-5 01 1 9309-9407 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK BROWN 		8-97804-982-5 01 1 9408-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK BROWN 		8-97817-329-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-963-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. FLOOR COVER<6WX> DARK BROWN 		8-97806-435-5 01 1 9112-9308 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97804-978-5 01 1 9309-9407 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK BROWN 		8-97804-978-5 01 1 9408-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK BROWN 		8-97817-327-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-962-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK BROWN 		8-97804-982-5 01 1 9112-9308 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97806-440-5 01 1 9309-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97817-334-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97152-107-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK BROWN 		8-97804-978-5 01 1 9112-9308 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97806-437-5 01 1 9309-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97817-332-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97152-106-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. FLOOR COVER<6WX> DARK GRAY 		8-97806-440-5 01 1 9112-9308 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97804-984-5 01 1 9309-9407 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK GRAY 		8-97804-984-5 01 1 9408-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK GRAY 		8-97817-330-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) EXC. 3RD SEAT 7 PASSENGERS(AS3),EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97152-105-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. FLOOR COVER<6WX> DARK GRAY 		8-97806-437-5 01 1 9112-9308 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97804-980-5 01 1 9309-9407 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK GRAY 		8-97804-980-5 01 1 9408-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK GRAY 		8-97817-328-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) EXC. 3RD SEAT 7 PASSENGERS(AS3),EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97152-104-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK GRAY 		8-97804-984-5 01 1 9112-9308 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK GRAY 		8-97804-980-5 01 1 9112-9308 ● ● ● ●
23 SCREW; SILL PLATE
4 DOOR LONG(UB***F) M5X16 		8-94384-690-0 16 1 9112- ● ● ●
23 SCREW; SILL PLATE
2 DOOR SHORT(UB***C) M5X16 		8-94384-690-0 10 1 9112- ● ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-990-5 01 1 9112-9504 ● ● ● ●
28 PLATE; SILL,FRT
DARK GRAY 		8-97098-357-5 01 1 9505- ● ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-986-5 01 1 9112-9504 ● ● ● ●
28 PLATE; SILL,FRT
DARK GRAY 		8-97098-356-5 01 1 9505- ● ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-992-5 01 1 9112-9504 ● ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-988-5 01 1 9112-9504 ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
4 DOOR LONG(UB***F) 		8-97803-019-6 01 1 9112-9407 ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) 		8-97811-272-0 01 1 9408- ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
4 DOOR LONG(UB***F) 		8-97803-018-6 01 1 9112-9407 ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
4 DOOR LONG(UB***F) EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-97811-265-0 01 1 9408- ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
2 DOOR SHORT(UB***C) 		8-97803-021-4 01 1 9112-9407 ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
2 DOOR SHORT(UB***C) 		8-97803-020-4 01 1 9112-9407 ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
2 DOOR SHORT(UB***C) 		8-97811-263-0 01 1 9408- ● ● ● ●
110 INSULATION; PAD,RR FLOOR,RR
2 DOOR SHORT(UB***C) 		8-97803-495-9 01 1 9112- ● ● ●
110 INSULATION; PAD,RR FLOOR,RR
2 DOOR SHORT(UB***C) 		8-97803-494-9 01 1 9112-9504 ● ● ●
110 INSULATION; PAD,RR FLOOR,RR
2 DOOR SHORT(UB***C) 		8-97125-397-0 01 1 9505-9607 ● ● ●
110 INSULATION; PAD,RR FLOOR,RR
2 DOOR SHORT(UB***C) EXC. ANTI LOCK BRAKE(JE5) 		8-97125-397-1 01 1 9608- ● ● ●
110 INSULATION; PAD,RR FLOOR,RR
2 DOOR SHORT(UB***C) ANTI LOCK BRAKE(JE5) 		8-97132-948-2 01 1 9608- ● ● ●
150 INSULATION; HEAT,FLOOR
6VD1 SOHC ENG(RLU) (C) 		8-97807-474-2 01 1 9112- ● ● ● ●
150 INSULATION; HEAT,FLOOR
6VD1 SOHC ENG(RLU) (B) 		8-97807-472-2 01 1 9112- ● ● ● ●
150 INSULATION; HEAT,FLOOR
4 DOOR LONG(UB***F) 6VD1 SOHC ENG(RLU) (A) 		8-97807-475-2 01 1 9309-9311 ● ● ● ●
150 INSULATION; HEAT,FLOOR
4 DOOR LONG(UB***F) 6VD1 SOHC ENG(RLU) EXC. RR FOOT REST<6WM> (A) 		8-97807-475-2 01 1 9312- ● ● ● ●
150 INSULATION; HEAT,FLOOR
4 DOOR LONG(UB***F) 6VD1 SOHC ENG(RLU) RR FOOT REST<6WM> (A) 		8-97807-916-1 01 1 9112-9308 ● ● ● ●
150 INSULATION; HEAT,FLOOR
4 DOOR LONG(UB***F) 6VD1 SOHC ENG(RLU) RR FOOT REST<6WM> (A) 		8-97807-916-1 01 1 9312- ● ● ● ●
150 INSULATION; HEAT,FLOOR
4 DOOR LONG(UB***F) 6VD1 SOHC ENG(RLU) EXC. RR FOOT REST<6WM> (A) 		8-97807-475-2 01 1 9112-9308 ● ● ● ●
177 WASHER; PL
2 DOOR SHORT(UB***C) ID=5.3 OD=12 		9-09160-605-0 02 1 9309- ● ● ● ●
180 SCREW; COVER
4 DOOR LONG(UB***F) (B) M5X16 TAPPING 		9-09829-323-1 06 1 9112- ● ● ●
180 SCREW; COVER
2 DOOR SHORT(UB***C) (A) M6X16 		8-94479-534-0 04 1 9112- ● ● ● ●
180 SCREW; COVER
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) (A) M6X16 		8-94479-534-0 04 1 9112- ● ● ● ●
180 SCREW; COVER
2 DOOR SHORT(UB***C) (B) M5X16 TAPPING 		9-09829-323-1 02 1 9112- ● ● ● ●
180 SCREW; COVER
2 DOOR SHORT(UB***C) (C) 		8-97808-810-0 02 1 9309- ● ● ● ●
182 NUT; COVER
4 DOOR LONG(UB***F) M6 W/DISHED WASHER 		8-97018-399-1 04 1 9112-9407 ● ● ●
182 NUT; COVER
4 DOOR LONG(UB***F) M6 W/DISHED WASHER 		8-94170-192-0 04 1 9408- ● ● ●
182 NUT; COVER
2 DOOR SHORT(UB***C) 		8-97809-447-0 01 1 9309- ● ● ● ●
183 COVER; SEAT STRIKER
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-453-0 01 1 9112-9504 ● ● ● ●
183 COVER; SEAT STRIKER
2 DOOR SHORT(UB***C) DARK GRAY 		8-97151-270-0 01 1 9505- ● ● ●
183 COVER; SEAT STRIKER
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-455-0 01 1 9112-9504 ● ● ● ●
183 COVER; SEAT STRIKER
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97806-456-1 01 1 9112-9504 ● ● ● ●
183 COVER; SEAT STRIKER
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97806-458-1 01 1 9112-9504 ● ● ● ●
183 COVER; SEAT STRIKER
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-271-1 01 1 9505- ● ● ● ●
185 BRACKET; COVER
2 DOOR SHORT(UB***C) (B) 		8-97807-926-0 01 1 9309-9607 ● ● ● ●
185 BRACKET; COVER
2 DOOR SHORT(UB***C) (B) 		8-97807-926-0 01 1 9608- ● ● ●
185 BRACKET; COVER
4 DOOR LONG(UB***F) EXC. RR FOOT REST<6WM> (C) 		8-97807-469-0 02 1 9112- ● ● ● ●
185 BRACKET; COVER
2 DOOR SHORT(UB***C) (A) 		8-97809-025-0 01 1 9202- ● ● ●
186 CLIP; COVER
2 DOOR SHORT(UB***C) BLACK 		8-97002-822-1 02 1 9203-9308 ● ● ● ●
186 CLIP; COVER
2 DOOR SHORT(UB***C) BLACK 		8-97000-169-0 02 1 9309- ● ● ● ●
186 CLIP; COVER
4 DOOR LONG(UB***F) 		8-97807-496-0 02 1 9203-9607 ● ● ● ●
186 CLIP; COVER
4 DOOR LONG(UB***F) 		8-97807-496-0 02 1 9608- ● ● ●
187 COLLER; COVER
2 DOOR SHORT(UB***C) 		8-97807-823-1 02 1 9309- ● ● ● ●
187 COLLER; COVER
4 DOOR LONG(UB***F) 		8-97807-479-0 02 1 9203-9406 ● ● ● ●
187 COLLER; COVER
4 DOOR LONG(UB***F) 		8-97811-203-0 02 1 9407-9607 ● ● ● ●
187 COLLER; COVER
4 DOOR LONG(UB***F) 		8-97811-203-0 02 1 9608- ● ● ●
188 NUT; BRKT
4 DOOR LONG(UB***F) 		5-09466-004-1 02 1 9202- ● ● ●
188 NUT; BRKT
2 DOOR SHORT(UB***C) 		5-09466-004-1 01 1 9202- ● ● ● ●
189 SCREW; BRKT
4 DOOR LONG(UB***F) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9112-9503 ● ● ●
189 SCREW; BRKT
4 DOOR LONG(UB***F) M5X12 TAPPING W/PL WASHER 		0-74110-512-0 02 1 9504- ● ● ●
189 SCREW; BRKT
2 DOOR SHORT(UB***C) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9202-9503 ● ● ● ●
189 SCREW; BRKT
2 DOOR SHORT(UB***C) M5X12 TAPPING W/PL WASHER 		0-74110-512-0 01 1 9504- ● ● ● ●
190 WASHER; COVER
4 DOOR LONG(UB***F) 		8-97804-914-0 02 1 9203-9406 ● ● ● ●
190 WASHER; COVER
2 DOOR SHORT(UB***C) 		8-97807-789-0 02 1 9112-9607 ● ● ●
190 WASHER; COVER
2 DOOR SHORT(UB***C) 		8-97807-789-0 01 1 9608- ● ● ●
191 COVER; HOLE,SPACER
2 DOOR SHORT(UB***C) 		8-97807-720-6 01 1 9112- ● ● ●
192 COVER; SEAT SLIDE
2 DOOR SHORT(UB***C) 		8-97807-722-4 02 1 9112- ● ● ● ●
193 RAIL; LUGGAGE FLOOR
2 DOOR SHORT(UB***C) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> L=500 		8-97804-657-0 06 1 9112-9308 ● ● ● ●
193 RAIL; LUGGAGE FLOOR
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> L=500 		8-97804-657-0 02 1 9112-9308 ● ● ● ●
193 RAIL; LUGGAGE FLOOR
2 DOOR SHORT(UB***C) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> L=500 		8-97804-657-0 04 1 9309- ● ● ● ●
193 RAIL; LUGGAGE FLOOR
4 DOOR LONG(UB***F) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) L=700 		8-97804-656-0 06 1 9112-9308 ● ● ● ●
193 RAIL; LUGGAGE FLOOR
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> L=700 		8-97804-656-0 04 1 9112-9308 ● ● ● ●
193 RAIL; LUGGAGE FLOOR
4 DOOR LONG(UB***F) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) L=700 		8-97804-656-0 04 1 9309-9504 ● ● ● ●
193 RAIL; LUGGAGE FLOOR
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> L=700 		8-97804-656-0 02 1 9309-9504 ● ● ● ●
193 RAIL; LUGGAGE FLOOR
4 DOOR LONG(UB***F) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) L=700 		8-97804-656-0 04 1 9505- ● ● ● ●
193 RAIL; LUGGAGE FLOOR
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> L=500 		8-97804-657-0 02 1 9309-9504 ● ● ● ●
196 BOLT; SRACER
2 DOOR SHORT(UB***C) 		8-97807-717-0 04 1 9112-9504 ● ● ●
196 BOLT; SRACER
2 DOOR SHORT(UB***C) -950528 		8-97807-717-0 03 1 9505-9607 ● ●
196 BOLT; SRACER
2 DOOR SHORT(UB***C) 950529- 		8-97807-717-0 02 1 9505-9607 ● ●
196 BOLT; SRACER
2 DOOR SHORT(UB***C) 		8-97807-717-0 01 1 9608- ● ●
197 COVER ASM; SEAT RAIL
2 DOOR SHORT(UB***C) (A) 		8-97807-764-3 01 1 9112- ● ● ● ●
197 COVER ASM; SEAT RAIL
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) (B) DARK BROWN 		8-97807-835-6 01 1 9112-9504 ● ● ● ●
197 COVER ASM; SEAT RAIL
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) DARK GRAY 		8-97152-096-0 01 1 9505- ● ● ● ●
197 COVER ASM; SEAT RAIL
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) (B) DARK GRAY 		8-97807-836-6 01 1 9112-9504 ● ● ● ●
197 COVER ASM; SEAT RAIL
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) (B) DARK GRAY 		8-97098-348-6 01 1 9505- ● ● ● ●
198 CAP; COVER,SEAT RAIL
2 DOOR SHORT(UB***C) (B) 		8-97807-925-2 01 1 9112- ● ● ● ●
198 CAP; COVER,SEAT RAIL
2 DOOR SHORT(UB***C) (A) 		8-97807-990-2 01 1 9112-9112 ● ● ●
198 CAP; COVER,SEAT RAIL
2 DOOR SHORT(UB***C) (A) 		8-97808-702-0 01 1 9201- ● ● ● ●
199 BRACKET; COVER,SEAT SLIDE
2 DOOR SHORT(UB***C) 		8-97807-788-2 01 1 9112- ● ● ●
199 BRACKET; COVER,SEAT SLIDE
2 DOOR SHORT(UB***C) 		8-97807-787-2 01 1 9112- ● ● ●
200 SCREW; COVER
2 DOOR SHORT(UB***C) M5X16 TAPPING 		9-09829-323-1 02 1 9112-9308 ● ● ● ●
200 SCREW; COVER
2 DOOR SHORT(UB***C) M5X16 TAPPING 		9-09829-323-1 03 1 9309- ● ● ● ●
201 COVER; HOLE,SEAT SLIDE
2 DOOR SHORT(UB***C) BLACK 		8-94364-001-2 02 1 9112- ● ● ● ●
202 COVER; BOLT,SEAT
2 DOOR SHORT(UB***C) 		8-97045-609-0 02 1 9112-9202 ● ● ● ●
203 INSULATION; SIDE SILL
2 DOOR SHORT(UB***C) 		8-97809-029-0 01 1 9112- ● ● ● ●
204 INSULATION; CENTER CONSOLE
2 DOOR SHORT(UB***C) 		8-97809-029-0 01 1 9112- ● ● ● ●
206 PAD; HOLE COVER
2 DOOR SHORT(UB***C) 		8-97809-470-0 01 1 9112-9206 ● ● ● ●
206 PAD; HOLE COVER
2 DOOR SHORT(UB***C) 		8-97808-911-0 01 1 9207- ● ● ● ●
207 CLIP; HARD BOARD
2 DOOR SHORT(UB***C) (A) OD=26 DARK GRAY 		8-97808-522-0 01 1 9202-9504 ● ● ● ●
207 CLIP; HARD BOARD
2 DOOR SHORT(UB***C) (A) DARK GRAY 		8-97098-343-0 01 1 9505-9607 ● ● ●
207 CLIP; HARD BOARD
2 DOOR SHORT(UB***C) (A) DARK GRAY 		8-97098-343-0 01 1 9608- ● ● ● ●
207 CLIP; HARD BOARD
2 DOOR SHORT(UB***C) (B) 20X30 		8-97809-049-0 01 1 9202- ● ● ● ●
208 COVER; SEAT SIDE
2 DOOR SHORT(UB***C) 		8-97809-033-0 01 1 9202-9308 ● ● ●
208 COVER; SEAT SIDE
2 DOOR SHORT(UB***C) 		8-97809-034-0 01 1 9202-9308 ● ● ●
209 COVER; BRKT,FRT SEAT
2 DOOR SHORT(UB***C) BLACK 		8-97817-080-1 01 1 9309- ● ● ● ●
209 COVER; BRKT,FRT SEAT
2 DOOR SHORT(UB***C) BLACK 		8-97817-081-1 01 1 9309- ● ● ● ●
çizim 68651
3 193 3 3 21 3 21 3 3 12 15 3 92 92 3 3 6 2 1 9 112 112 92
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97807-986-8 01 1 9112-9201 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97809-023-2 01 1 9202-9305 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97809-023-3 01 1 9306-9308 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-936-8 01 1 9112-9201 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) A/T THM(RMQ) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-022-2 01 1 9202-9305 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-022-3 01 1 9306-9308 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97809-978-1 01 1 9309-9504 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97152-070-0 01 1 9505-9607 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97154-914-0 01 1 9608- ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-979-1 01 1 9309-9504 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97098-309-1 01 1 9505-9607 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97154-908-0 01 1 9608- ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97807-985-8 01 1 9112-9201 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97809-021-2 01 1 9202-9305 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-932-8 01 1 9112-9201 ● ● ● ●
1 CARPET; FLOOR,FRT
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97809-020-2 01 1 9202-9305 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-926-9 01 1 9209-9303 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) A/T THM(RMQ) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97810-140-0 01 1 9304-9305 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97810-140-1 01 1 9306-9308 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) A/T THM(RMQ) INTERIOR COLOR BROWN(130) EXC. FLOOR COVER<6WX> DARK BROWN 		8-97804-926-8 01 1 9112-9208 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) A/T THM(RMQ) INTERIOR COLOR GRAY(153) EXC. FLOOR COVER<6WX> DARK GRAY 		8-97804-928-9 01 1 9112-9303 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) A/T THM(RMQ) INTERIOR COLOR GRAY(153) EXC. FLOOR COVER<6WX> DARK GRAY 		8-97810-141-0 01 1 9304-9305 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. FLOOR COVER<6WX> DARK GRAY 		8-97810-141-1 01 1 9306-9308 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97810-140-1 01 1 9309-9407 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. FLOOR COVER<6WX> DARK BROWN 		8-97810-140-1 01 1 9408-9504 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97098-310-1 01 1 9505-9607 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97154-907-1 01 1 9608- ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97810-141-1 01 1 9309-9407 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. FLOOR COVER<6WX> DARK GRAY 		8-97810-141-1 01 1 9408-9504 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97152-067-0 01 1 9505-9607 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97154-913-1 01 1 9608- ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-922-9 01 1 9209-9303 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97810-136-0 01 1 9304-9305 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) INTERIOR COLOR BROWN(130) EXC. FLOOR COVER<6WX> DARK BROWN 		8-97804-922-8 01 1 9112-9208 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) EXC. FLOOR COVER<6WX> DARK GRAY 		8-97804-924-9 01 1 9112-9303 ● ● ● ●
1 CARPET; FLOOR,FRT
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) EXC. FLOOR COVER<6WX> DARK GRAY 		8-97810-137-0 01 1 9304-9305 ● ● ● ●
2 MAT; FLOOR
4 DOOR LONG(UB***F) A/T THM(RMQ) INTERIOR COLOR GRAY(153) FLOOR COVER<6WX> DARK GRAY 		8-97806-365-5 01 1 9112-9308 ● ● ● ●
2 MAT; FLOOR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) FLOOR COVER<6WX> DARK GRAY 		8-97806-363-5 01 1 9408-9504 ● ● ● ●
2 MAT; FLOOR
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) INTERIOR COLOR GRAY(153) FLOOR COVER<6WX> DARK GRAY 		8-97806-363-5 01 1 9112-9308 ● ● ● ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) (B) DARK BROWN 		8-97804-942-0 10 1 9112-9407 ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR BROWN(130) (B) DARK BROWN 		8-97804-942-0 10 1 9112-9407 ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) (E) DARK BROWN 		8-97805-801-0 02 1 9203-9308 ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR BROWN(130) (E) DARK BROWN 		8-97805-801-0 02 1 9203-9308 ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) (B) DARK BROWN 		8-97804-942-0 06 1 9408-9504 ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR BROWN(130) (B) DARK BROWN 		8-97804-942-0 06 1 9408-9504 ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) (B) DARK GRAY 		8-97098-324-0 06 1 9505- ● ● ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) (B) L=14 DARK GRAY 		8-97804-944-0 10 1 9112-9208 ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR GRAY(153) (B) L=14 DARK GRAY 		8-97804-944-0 10 1 9112-9208 ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 02 1 9203-9308 ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 02 1 9203-9308 ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) (B) L=14 DARK GRAY 		8-97804-944-0 10 1 9209-9407 ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR GRAY(153) (B) L=14 DARK GRAY 		8-97804-944-0 10 1 9209-9407 ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) (B) L=14 DARK GRAY 		8-97804-944-0 06 1 9408-9504 ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR GRAY(153) (B) L=14 DARK GRAY 		8-97804-944-0 06 1 9408-9504 ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) (C) ID=6 OD=16 L=18 		8-94178-705-0 05 1 9112-9208 ● ● ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) (E) BLACK 		8-97002-822-1 02 1 9202-9208 ● ● ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) (C) ID=6 OD=16 L=18 		8-94178-705-0 05 1 9209-9308 ● ● ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) (E) BLACK 		8-97002-822-1 02 1 9209-9303 ● ● ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) (C) ID=6 OD=16 L=18 		8-94178-705-0 05 1 9309- ● ● ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) (D) L=19 BLACK 		8-94363-776-0 02 1 9112-9201 ● ● ●
3 CLIP; CARPET FIX
(D) L=19 BLACK 		8-94363-776-0 04 1 9112-9308 ● ● ● ●
3 CLIP; CARPET FIX
(A) H=10.5 		8-94441-810-0 02 1 9209-9308 ● ● ● ●
3 CLIP; CARPET FIX
(A) H=10.5 		8-94441-810-0 02 1 9112-9208 ● ● ● ●
3 CLIP; CARPET FIX
(A) H=10.5 		8-94441-810-0 02 1 9309-9504 ● ● ● ●
3 CLIP; CARPET FIX
(A) H=10.5 		8-94441-810-0 02 1 9505- ● ● ● ●
3 CLIP; CARPET FIX
(D) L=19 BLACK 		8-94363-776-0 04 1 9309-9607 ● ● ● ●
3 CLIP; CARPET FIX
(D) L=19 BLACK 		8-94363-776-0 04 1 9608- ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) (C) ID=6 OD=16 L=18 		8-94178-705-0 04 1 9112- ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) (F) DARK BROWN 		8-97808-521-0 01 1 9112-9208 ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) (E) DARK BROWN 		8-97805-801-0 04 1 9202-9308 ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) (F) DARK BROWN 		8-97808-521-0 01 1 9209-9308 ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) (E) DARK BROWN 		8-97805-801-0 04 1 9309-9407 ● ● ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR BROWN(130) (E) DARK BROWN 		8-97805-801-0 02 1 9408-9504 ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) (F) DARK BROWN 		8-97808-521-0 01 1 9309-9504 ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) (E) DARK GRAY 		8-97098-324-0 02 1 9505-9607 ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) (E) DARK GRAY 		8-97098-324-0 02 1 9608- ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) (F) OD=26 DARK GRAY 		8-97808-522-0 01 1 9112-9208 ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 04 1 9202-9308 ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) (F) OD=26 DARK GRAY 		8-97808-522-0 01 1 9209-9308 ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 04 1 9309-9407 ● ● ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 02 1 9408-9504 ● ● ● ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 02 1 9505-9505 ● ●
3 CLIP; CARPET FIX
INTERIOR COLOR GRAY(153) (E) DARK GRAY 		8-97805-803-0 02 1 9505-9505 ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) (E) DARK GRAY 		8-97098-326-0 02 1 9505- ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) (F) OD=26 DARK GRAY 		8-97808-522-0 01 1 9309-9504 ● ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) (F) DARK GRAY 		8-97098-343-0 01 1 9505-9607 ● ● ●
3 CLIP; CARPET FIX
2 DOOR SHORT(UB***C) (F) DARK GRAY 		8-97098-343-0 01 1 9608- ● ● ● ●
3 CLIP; CARPET FIX
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) FLOOR COVER<6WX> (B) L=14 DARK GRAY 		8-97804-944-0 04 1 9408-9504 ● ● ● ●
6 DEADENER; FLOOR GEAR BOX FRT 8-97802-100-5 01 1 9112- ● ● ● ●
9 INSULATION; PAD,RR FLOOR
4 DOOR LONG(UB***F) FLOOR COVER<6WX> 		8-97803-017-3 01 1 9112-9308 ● ● ● ●
9 INSULATION; PAD,RR FLOOR
4 DOOR LONG(UB***F) FLOOR COVER<6WX> 		8-97803-017-3 01 1 9309-9504 ● ● ● ●
12 CARPET; FLOOR,RR
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-950-9 01 1 9112-9209 ● ● ● ●
12 CARPET; FLOOR,RR
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97808-939-1 01 1 9210-9504 ● ● ● ●
12 CARPET; FLOOR,RR
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97152-086-0 01 1 9505- ● ● ● ●
12 CARPET; FLOOR,RR
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-952-9 01 1 9112-9209 ● ● ● ●
12 CARPET; FLOOR,RR
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97808-938-1 01 1 9210-9504 ● ● ● ●
12 CARPET; FLOOR,RR
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97152-073-0 01 1 9505-9607 ● ● ● ●
12 CARPET; FLOOR,RR
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97157-819-0 01 1 9608- ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) ANTI LOCK BRAKE(JE5) EXC. EUROPE/CANARY EQUIPMENT(EK4),RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOT REST<6WM> DARK GRAY 		8-97157-899-1 01 1 9608- ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) ANTI LOCK BRAKE(JE5) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. EUROPE/CANARY EQUIPMENT(EK4),RR FOOT REST<6WM> DARK GRAY 		8-97157-898-1 01 1 9608- ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. RR FOOT REST<6WM> DARK GRAY 		8-97157-900-1 01 1 9608- ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) ANTI LOCK BRAKE(JE5) EXC. RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOTREST<6WM> DARK GRAY 		8-97157-901-1 01 1 9608- ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) RR SEAT SPLIT BACK W/RECLINING<S3X> RR FOOT REST<6WM> EXC. FLOOR COVER<6WX> DARK BROWN 		8-97804-946-9 01 1 9112-9305 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) RR SEAT SPLIT BACK W/RECLINING<S3X> RR FOOT REST<6WM> EXC. FLOOR COVER<6WX> DARK BROWN 		8-97817-035-0 01 1 9306-9308 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) RR SEAT SPLIT BACK W/RECLINING<S3X> RR FOOT REST<6WM> DARK BROWN 		8-97817-035-0 01 1 9309-9504 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) RR SEAT SPLIT BACK W/RECLINING<S3X> RR FOOT REST<6WM> DARK GRAY 		8-97151-254-3 01 1 9505- ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. RR FOOT REST<6WM> DARK BROWN 		8-97817-031-0 01 1 9309-9504 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. RR FOOT REST<6WM> DARK GRAY 		8-97152-074-0 01 1 9505-9607 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. ANTI LOCK BRAKE(JE5),RR FOOT REST<6WM> DARK GRAY 		8-97152-074-1 01 1 9608- ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. RR FOOT REST<6WM>,FLOOR COVER<6WX> DARK BROWN 		8-97804-954-9 01 1 9112-9305 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. RR FOOT REST<6WM>,FLOOR COVER<6WX> DARK BROWN 		8-97817-031-0 01 1 9306-9308 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOTREST<6WM> DARK BROWN 		8-97817-033-0 01 1 9309-9407 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOTREST<6WM>,FLOOR COVER<6WX> DARK BROWN 		8-97817-033-0 01 1 9408-9504 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) EXC. RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOTREST<6WM> DARK GRAY 		8-97152-075-0 01 1 9505-9607 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE(JE5),RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOT REST<6WM> DARK GRAY 		8-97152-075-1 01 1 9608- ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOTREST<6WM>,FLOOR COVER<6WX> DARK BROWN 		8-97804-958-9 01 1 9112-9305 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOTREST<6WM>,FLOOR COVER<6WX> DARK BROWN 		8-97817-033-0 01 1 9306-9308 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) RR SEAT SPLIT BACK W/RECLINING<S3X> RR FOOT REST<6WM> EXC. FLOOR COVER<6WX> DARK GRAY 		8-97804-948-9 01 1 9112-9305 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) RR SEAT SPLIT BACK W/RECLINING<S3X> RR FOOT REST<6WM> EXC. FLOOR COVER<6WX> DARK GRAY 		8-97817-036-0 01 1 9306-9308 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) RR SEAT SPLIT BACK W/RECLINING<S3X> RR FOOT REST<6WM> DARK GRAY 		8-97817-036-0 01 1 9309-9504 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) RR SEAT SPLIT BACK W/RECLINING<S3X> RR FOOT REST<6WM> EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97152-082-2 01 1 9505- ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. RR FOOT REST<6WM> DARK GRAY 		8-97817-032-0 01 1 9309-9504 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. EUROPE/CANARY EQUIPMENT(EK4),RR FOOT REST<6WM> DARK GRAY 		8-97152-083-0 01 1 9505-9607 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5),RR FOOT REST<6WM> DARK GRAY 		8-97152-083-1 01 1 9608- ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. RR FOOT REST<6WM>,FLOOR COVER<6WX> DARK GRAY 		8-97804-956-9 01 1 9112-9305 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) RR SEAT SPLIT BACK W/RECLINING<S3X> EXC. RR FOOT REST<6WM>,FLOOR COVER<6WX> DARK GRAY 		8-97817-032-0 01 1 9306-9308 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOTREST<6WM> DARK GRAY 		8-97817-034-0 01 1 9309-9407 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOTREST<6WM>,FLOOR COVER<6WX> DARK GRAY 		8-97817-034-0 01 1 9408-9504 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4),RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOT REST<6WM> DARK GRAY 		8-97152-084-0 01 1 9505-9607 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) EXC. EUROPE/CANARY EQUIPMENT(EK4),ANTI LOCK BRAKE(JE5),RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOT REST<6WM> DARK GRAY 		8-97152-084-1 01 1 9608- ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOTREST<6WM>,FLOOR COVER<6WX> DARK GRAY 		8-97804-960-9 01 1 9112-9305 ● ● ● ●
12 CARPET; FLOOR,RR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. RR SEAT SPLIT BACK W/RECLINING<S3X>,RR FOOTREST<6WM>,FLOOR COVER<6WX> DARK GRAY 		8-97817-034-0 01 1 9306-9308 ● ● ● ●
15 MAT; FLOOR REAR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) FLOOR COVER<6WX> DARK GRAY 		8-97806-416-3 01 1 9112-9308 ● ● ● ●
15 MAT; FLOOR REAR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) FLOOR COVER<6WX> DARK GRAY 		8-97806-416-3 01 1 9408-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97807-376-3 01 1 9112-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-337-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97152-109-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97807-373-3 01 1 9112-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97817-335-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97152-108-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97807-378-3 01 1 9112-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-338-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97151-968-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97807-375-3 01 1 9112-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97817-336-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
2 DOOR SHORT(UB***C) EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97151-967-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97806-438-5 01 1 9309-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97817-333-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97151-965-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97806-435-5 01 1 9309-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97817-331-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97151-964-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. FLOOR COVER<6WX> DARK BROWN 		8-97806-438-5 01 1 9112-9308 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97804-982-5 01 1 9309-9407 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK BROWN 		8-97804-982-5 01 1 9408-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK BROWN 		8-97817-329-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-963-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) EXC. FLOOR COVER<6WX> DARK BROWN 		8-97806-435-5 01 1 9112-9308 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97804-978-5 01 1 9309-9407 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK BROWN 		8-97804-978-5 01 1 9408-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK BROWN 		8-97817-327-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-962-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK BROWN 		8-97804-982-5 01 1 9112-9308 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97806-440-5 01 1 9309-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97817-334-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97152-107-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK BROWN 		8-97804-978-5 01 1 9112-9308 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97806-437-5 01 1 9309-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97817-332-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) EXC. EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97152-106-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. FLOOR COVER<6WX> DARK GRAY 		8-97806-440-5 01 1 9112-9308 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97804-984-5 01 1 9309-9407 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK GRAY 		8-97804-984-5 01 1 9408-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK GRAY 		8-97817-330-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) EXC. 3RD SEAT 7 PASSENGERS(AS3),EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97152-105-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) EXC. FLOOR COVER<6WX> DARK GRAY 		8-97806-437-5 01 1 9112-9308 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97804-980-5 01 1 9309-9407 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK GRAY 		8-97804-980-5 01 1 9408-9409 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK GRAY 		8-97817-328-0 01 1 9410-9504 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) EXC. 3RD SEAT 7 PASSENGERS(AS3),EUROPE/CANARY EQUIPMENT(EK4) DARK GRAY 		8-97152-104-0 01 1 9505- ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK GRAY 		8-97804-984-5 01 1 9112-9308 ● ● ● ●
21 CARPET; RR WHEEL HOUSE
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) EXC. 3RD SEAT 7 PASSENGERS(AS3),FLOOR COVER<6WX> DARK GRAY 		8-97804-980-5 01 1 9112-9308 ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
4 DOOR LONG(UB***F) 		8-97803-019-6 01 1 9112-9407 ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) 		8-97811-272-0 01 1 9408- ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
4 DOOR LONG(UB***F) 		8-97803-018-6 01 1 9112-9407 ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
4 DOOR LONG(UB***F) EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-97811-265-0 01 1 9408- ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
2 DOOR SHORT(UB***C) 		8-97803-021-4 01 1 9112-9407 ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
2 DOOR SHORT(UB***C) 		8-97803-020-4 01 1 9112-9407 ● ● ● ●
92 INSULATION; PAD,LUGGAGE FLOOR
2 DOOR SHORT(UB***C) 		8-97811-263-0 01 1 9408- ● ● ● ●
112 INSULATION; PAD,FRT FLOOR
4 DOOR LONG(UB***F) FLOOR COVER<6WX> 		8-97803-015-2 01 1 9112-9308 ● ● ● ●
112 INSULATION; PAD,FRT FLOOR
4 DOOR LONG(UB***F) FLOOR COVER<6WX> 		8-97803-015-2 01 1 9408-9504 ● ● ● ●
112 INSULATION; PAD,FRT FLOOR
4 DOOR LONG(UB***F) A/T THM(RMQ) FLOOR COVER<6WX> 		8-97803-016-2 01 1 9112-9308 ● ● ● ●
112 INSULATION; PAD,FRT FLOOR
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) FLOOR COVER<6WX> 		8-97803-014-2 01 1 9112-9308 ● ● ● ●
112 INSULATION; PAD,FRT FLOOR
4 DOOR LONG(UB***F) FLOOR COVER<6WX> 		8-97803-014-2 01 1 9408-9504 ● ● ● ●
193 RAIL; LUGGAGE FLOOR
2 DOOR SHORT(UB***C) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> L=500 		8-97804-657-0 06 1 9112-9308 ● ● ● ●
193 RAIL; LUGGAGE FLOOR
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> L=500 		8-97804-657-0 02 1 9112-9308 ● ● ● ●
193 RAIL; LUGGAGE FLOOR
2 DOOR SHORT(UB***C) SEAT BELT RR<A47> LUGGAGE COVER W/RAIL<6WG> L=500 		8-97804-657-0 04 1 9309- ● ● ● ●
193 RAIL; LUGGAGE FLOOR
4 DOOR LONG(UB***F) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) L=700 		8-97804-656-0 06 1 9112-9308 ● ● ● ●
193 RAIL; LUGGAGE FLOOR
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> L=700 		8-97804-656-0 04 1 9112-9308 ● ● ● ●
193 RAIL; LUGGAGE FLOOR
4 DOOR LONG(UB***F) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) L=700 		8-97804-656-0 04 1 9309-9504 ● ● ● ●
193 RAIL; LUGGAGE FLOOR
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> L=700 		8-97804-656-0 02 1 9309-9504 ● ● ● ●
193 RAIL; LUGGAGE FLOOR
4 DOOR LONG(UB***F) LUGGAGE COVER W/RAIL<6WG> EXC. 3RD SEAT 7 PASSENGERS(AS3) L=700 		8-97804-656-0 04 1 9505- ● ● ● ●
193 RAIL; LUGGAGE FLOOR
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) LUGGAGE COVER W/RAIL<6WG> L=500 		8-97804-657-0 02 1 9309-9504 ● ● ● ●
çizim 68704
139 24 181 181 24 181 182 150 150 150 23 22 14 23 28 180 13 180 189 185 190 187 186 188 183 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
13 PLATE; RR FLOOR CARPET
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-002-2 01 1 9112-9504 ● ● ● ●
13 PLATE; RR FLOOR CARPET
DARK GRAY 		8-97098-365-2 01 1 9505- ● ● ● ●
13 PLATE; RR FLOOR CARPET
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-004-2 01 1 9112-9504 ● ● ● ●
14 SCREW; PLATE 8-97803-149-1 05 1 9112- ● ● ● ●
19 COVER; SEAT RISER
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-010-2 01 1 9112-9504 ● ●
19 COVER; SEAT RISER
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-010-2 01 1 9112-9504 ●
19 COVER; SEAT RISER
4 DOOR LONG(UB***F) DARK GRAY 		8-97098-367-2 01 1 9505- ● ● ●
19 COVER; SEAT RISER
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-006-2 01 1 9112-9504 ● ●
19 COVER; SEAT RISER
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97805-006-2 01 1 9112-9504 ●
19 COVER; SEAT RISER
4 DOOR LONG(UB***F) DARK GRAY 		8-97098-366-2 01 1 9505- ● ● ●
19 COVER; SEAT RISER
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-012-2 01 1 9112-9504 ● ●
19 COVER; SEAT RISER
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-012-2 01 1 9112-9504 ●
19 COVER; SEAT RISER
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-008-2 01 1 9112-9504 ● ●
19 COVER; SEAT RISER
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-008-2 01 1 9112-9504 ●
22 PLATE; SILL,RR
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-998-6 01 1 9112-9504 ● ●
22 PLATE; SILL,RR
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-998-6 01 1 9112-9504 ●
22 PLATE; SILL,RR
4 DOOR LONG(UB***F) DARK GRAY 		8-97098-359-6 01 1 9505- ● ● ●
22 PLATE; SILL,RR
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-994-6 01 1 9112-9504 ● ●
22 PLATE; SILL,RR
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-994-6 01 1 9112-9504 ●
22 PLATE; SILL,RR
4 DOOR LONG(UB***F) DARK GRAY 		8-97098-358-6 01 1 9505- ● ● ●
22 PLATE; SILL,RR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-000-6 01 1 9112-9504 ● ●
22 PLATE; SILL,RR
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97805-000-6 01 1 9112-9504 ●
22 PLATE; SILL,RR
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-996-6 01 1 9112-9504 ● ●
22 PLATE; SILL,RR
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-996-6 01 1 9112-9504 ●
23 SCREW; SILL PLATE
4 DOOR LONG(UB***F) M5X16 		8-94384-690-0 16 1 9112- ● ● ●
23 SCREW; SILL PLATE
2 DOOR SHORT(UB***C) M5X16 		8-94384-690-0 10 1 9112- ● ● ● ●
24 SCREW; HEEL BOARD COVER
4 DOOR LONG(UB***F) M5X16 TAPPING 		9-09829-323-1 04 1 9112- ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-990-5 01 1 9112-9504 ● ● ● ●
28 PLATE; SILL,FRT
DARK GRAY 		8-97098-357-5 01 1 9505- ● ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR BROWN(130) DARK BROWN 		8-97804-986-5 01 1 9112-9504 ● ● ● ●
28 PLATE; SILL,FRT
DARK GRAY 		8-97098-356-5 01 1 9505- ● ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-992-5 01 1 9112-9504 ● ● ● ●
28 PLATE; SILL,FRT
INTERIOR COLOR GRAY(153) DARK GRAY 		8-97804-988-5 01 1 9112-9504 ● ● ● ●
139 SEAL; FLOOR
LEATHER SEAT<6TB> 		8-97810-863-0 02 1 9309- ●
150 INSULATION; HEAT,FLOOR
6VD1 SOHC ENG(RLU) (C) 		8-97807-474-2 01 1 9112- ● ● ● ●
150 INSULATION; HEAT,FLOOR
6VD1 SOHC ENG(RLU) (B) 		8-97807-472-2 01 1 9112- ● ● ● ●
150 INSULATION; HEAT,FLOOR
4 DOOR LONG(UB***F) 6VD1 SOHC ENG(RLU) (A) 		8-97807-475-2 01 1 9309-9311 ● ● ● ●
150 INSULATION; HEAT,FLOOR
4 DOOR LONG(UB***F) 6VD1 SOHC ENG(RLU) EXC. RR FOOT REST<6WM> (A) 		8-97807-475-2 01 1 9312- ● ● ● ●
150 INSULATION; HEAT,FLOOR
4 DOOR LONG(UB***F) 6VD1 SOHC ENG(RLU) RR FOOT REST<6WM> (A) 		8-97807-916-1 01 1 9112-9308 ● ● ● ●
150 INSULATION; HEAT,FLOOR
4 DOOR LONG(UB***F) 6VD1 SOHC ENG(RLU) RR FOOT REST<6WM> (A) 		8-97807-916-1 01 1 9312- ● ● ● ●
150 INSULATION; HEAT,FLOOR
4 DOOR LONG(UB***F) 6VD1 SOHC ENG(RLU) EXC. RR FOOT REST<6WM> (A) 		8-97807-475-2 01 1 9112-9308 ● ● ● ●
180 SCREW; COVER
4 DOOR LONG(UB***F) (B) M5X16 TAPPING 		9-09829-323-1 06 1 9112- ● ● ●
180 SCREW; COVER
2 DOOR SHORT(UB***C) (A) M6X16 		8-94479-534-0 04 1 9112- ● ● ● ●
180 SCREW; COVER
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) (A) M6X16 		8-94479-534-0 04 1 9112- ● ● ● ●
180 SCREW; COVER
2 DOOR SHORT(UB***C) (B) M5X16 TAPPING 		9-09829-323-1 02 1 9112- ● ● ● ●
180 SCREW; COVER
2 DOOR SHORT(UB***C) (C) 		8-97808-810-0 02 1 9309- ● ● ● ●
181 GROMMET; SCREW,COVER
4 DOOR LONG(UB***F) 		8-94203-326-0 04 1 9112- ● ● ●
182 NUT; COVER
4 DOOR LONG(UB***F) M6 W/DISHED WASHER 		8-97018-399-1 04 1 9112-9407 ● ● ●
182 NUT; COVER
4 DOOR LONG(UB***F) M6 W/DISHED WASHER 		8-94170-192-0 04 1 9408- ● ● ●
182 NUT; COVER
2 DOOR SHORT(UB***C) 		8-97809-447-0 01 1 9309- ● ● ● ●
183 COVER; SEAT STRIKER
2 DOOR SHORT(UB***C) INTERIOR COLOR BROWN(130) DARK BROWN 		8-97806-453-0 01 1 9112-9504 ● ● ● ●
183 COVER; SEAT STRIKER
2 DOOR SHORT(UB***C) DARK GRAY 		8-97151-270-0 01 1 9505- ● ● ●
183 COVER; SEAT STRIKER
2 DOOR SHORT(UB***C) INTERIOR COLOR GRAY(153) DARK GRAY 		8-97806-455-0 01 1 9112-9504 ● ● ● ●
183 COVER; SEAT STRIKER
4 DOOR LONG(UB***F) INTERIOR COLOR BROWN(130) 3RD SEAT 7 PASSENGERS(AS3) DARK BROWN 		8-97806-456-1 01 1 9112-9504 ● ● ● ●
183 COVER; SEAT STRIKER
4 DOOR LONG(UB***F) INTERIOR COLOR GRAY(153) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97806-458-1 01 1 9112-9504 ● ● ● ●
183 COVER; SEAT STRIKER
4 DOOR LONG(UB***F) 3RD SEAT 7 PASSENGERS(AS3) DARK GRAY 		8-97151-271-1 01 1 9505- ● ● ● ●
185 BRACKET; COVER
2 DOOR SHORT(UB***C) (B) 		8-97807-926-0 01 1 9309-9607 ● ● ● ●
185 BRACKET; COVER
2 DOOR SHORT(UB***C) (B) 		8-97807-926-0 01 1 9608- ● ● ●
185 BRACKET; COVER
4 DOOR LONG(UB***F) EXC. RR FOOT REST<6WM> (C) 		8-97807-469-0 02 1 9112- ● ● ● ●
185 BRACKET; COVER
2 DOOR SHORT(UB***C) (A) 		8-97809-025-0 01 1 9202- ● ● ●
186 CLIP; COVER
2 DOOR SHORT(UB***C) BLACK 		8-97002-822-1 02 1 9203-9308 ● ● ● ●
186 CLIP; COVER
2 DOOR SHORT(UB***C) BLACK 		8-97000-169-0 02 1 9309- ● ● ● ●
186 CLIP; COVER
4 DOOR LONG(UB***F) 		8-97807-496-0 02 1 9203-9607 ● ● ● ●
186 CLIP; COVER
4 DOOR LONG(UB***F) 		8-97807-496-0 02 1 9608- ● ● ●
187 COLLER; COVER
2 DOOR SHORT(UB***C) 		8-97807-823-1 02 1 9309- ● ● ● ●
187 COLLER; COVER
4 DOOR LONG(UB***F) 		8-97807-479-0 02 1 9203-9406 ● ● ● ●
187 COLLER; COVER
4 DOOR LONG(UB***F) 		8-97811-203-0 02 1 9407-9607 ● ● ● ●
187 COLLER; COVER
4 DOOR LONG(UB***F) 		8-97811-203-0 02 1 9608- ● ● ●
188 NUT; BRKT
4 DOOR LONG(UB***F) 		5-09466-004-1 02 1 9202- ● ● ●
188 NUT; BRKT
2 DOOR SHORT(UB***C) 		5-09466-004-1 01 1 9202- ● ● ● ●
189 SCREW; BRKT
4 DOOR LONG(UB***F) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9112-9503 ● ● ●
189 SCREW; BRKT
4 DOOR LONG(UB***F) M5X12 TAPPING W/PL WASHER 		0-74110-512-0 02 1 9504- ● ● ●
189 SCREW; BRKT
2 DOOR SHORT(UB***C) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9202-9503 ● ● ● ●
189 SCREW; BRKT
2 DOOR SHORT(UB***C) M5X12 TAPPING W/PL WASHER 		0-74110-512-0 01 1 9504- ● ● ● ●
190 WASHER; COVER
4 DOOR LONG(UB***F) 		8-97804-914-0 02 1 9203-9406 ● ● ● ●
190 WASHER; COVER
2 DOOR SHORT(UB***C) 		8-97807-789-0 02 1 9112-9607 ● ● ●
190 WASHER; COVER
2 DOOR SHORT(UB***C) 		8-97807-789-0 01 1 9608- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
