Isuzu WW
▶
TRUCKS
▶
EXR
▶
10672 - EXR LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-60B - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60B — ENGINE ELECTRICAL CONTROL PARTS
(#3526) — 40 parça
Tümü
A - 10PD1 STD ENG
B - 12PD1 C ENG
◀

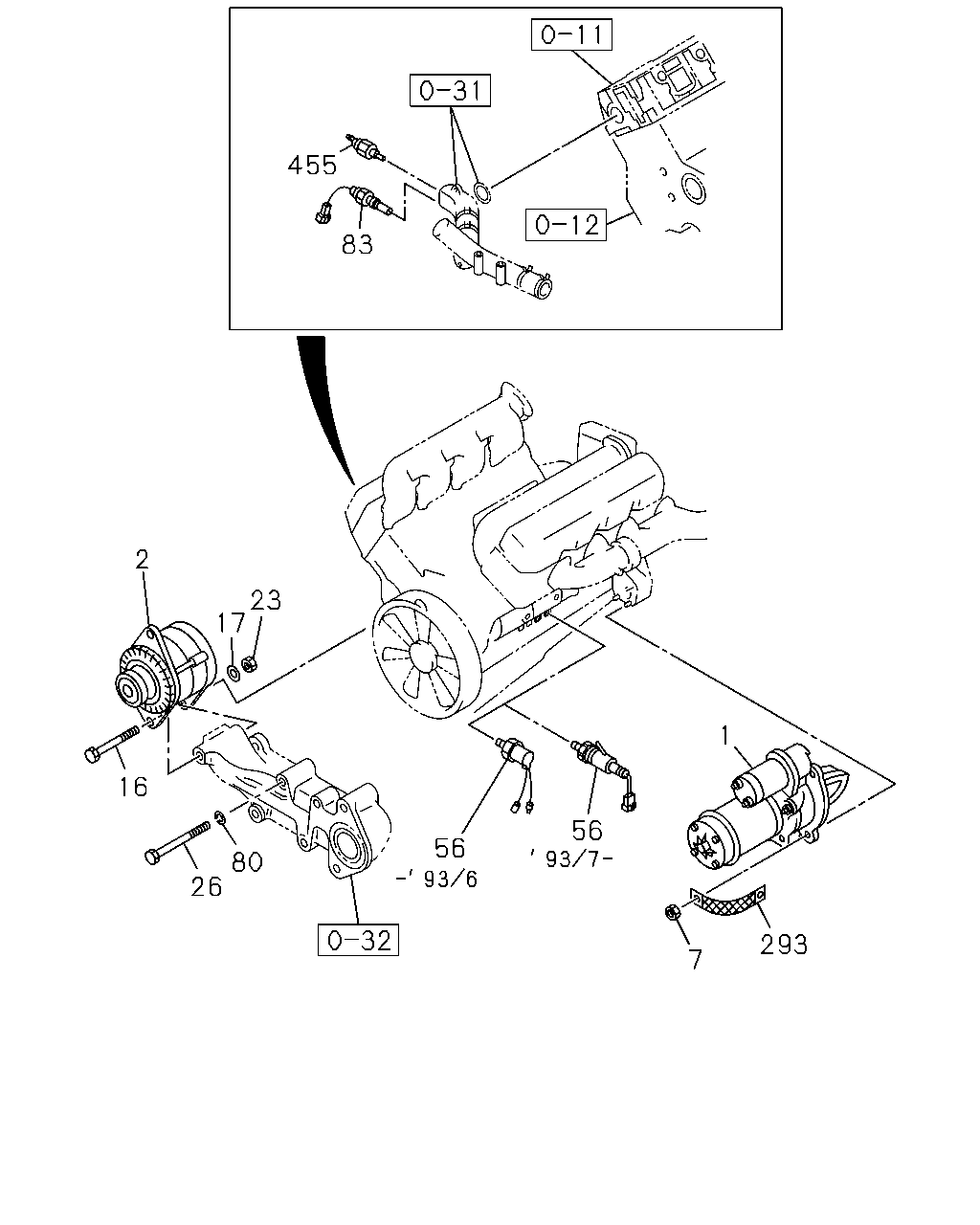

[060B] NO.1 (18 parça)
[060B] NO.2 (22 parça)
▶
455
83
2
23
17
1
16
56
56
80
26
293
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.4KW NIKKO
1-81100-275-1
01
1
9002-
●
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 11KW NIKKO
1-81100-276-1
01
1
9307-
●
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO
1-81200-420-2
01
1
9002-
●
●
7
NUT; STARTER
M14 FLANGE
0-91150-114-0
03
1
9002-
●
●
16
BOLT; GEN
M14X123
9-09801-204-1
01
1
9002-
●
●
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
9002-
●
●
23
NUT; GEN
M14 FLANGE
0-91150-114-0
01
1
9002-
●
●
26
BOLT; GEN BRKT
M10X70
9-01666-070-0
01
1
9002-
●
26
BOLT; GEN BRKT
M10X70
9-01666-070-0
03
1
9307-
●
56
SWITCH; OIL PRESSURE WARNING
1-82410-094-0
01
1
9002-9306
●
56
SWITCH; OIL PRESSURE WARNING
1-82410-138-0
01
1
9307-9502
●
●
56
SWITCH; OIL PRESSURE WARNING
1-82410-163-0
01
1
9503-
●
●
80
WASHER; LK,DUCT & BRKT
ID=10.2
9-09150-610-0
03
1
9002-
●
●
83
THERMOMETER UNIT
1-83161-019-1
01
1
9002-9306
●
83
THERMOMETER UNIT
1-83161-031-1
01
1
9307-
●
●
293
CABLE; STARTER EARTH
1-82650-026-0
01
1
9002-9012
●
293
CABLE; STARTER EARTH
1-82650-235-0
01
1
9101-
●
●
455
SWITCH; ENG OVER HEAT,WATER
1-82450-013-0
01
1
9002-
●
●
296
11
10
441
428
428
441
428
438
418
440
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
RELAY; STARTER
1-81171-060-0
01
1
9002-9103
●
10
RELAY; STARTER
NIKKO
1-81171-071-0
01
1
9104-
●
●
11
BOLT; RELAY STARTER
M8X20 W/LK WASHER
9-01900-820-0
02
1
9002-9204
●
11
BOLT; RELAY STARTER
M8X20 W/LK WASHER
0-50040-820-0
02
1
9205-9302
●
11
BOLT; RELAY STARTER
M8X20 FLANGE
0-28080-820-0
02
1
9303-
●
●
296
NUT; RELAY,STARTER
M8
9-09110-408-0
01
1
9307-
●
●
418
BOLT; CLIP
M8X18 FLANGE
0-28080-818-0
01
1
9307-
●
428
CLIP; HARNESS
(A) ID=27 L=24 H=23
1-09700-401-0
01
1
9002-
●
●
428
CLIP; HARNESS
(B) ID=27 L=32
1-09700-712-1
03
1
9002-9306
●
428
CLIP; HARNESS
(B) ID=27 L=32
1-09700-712-1
01
1
9307-
●
●
428
CLIP; HARNESS
(B) ID=28 L=45
1-09700-825-1
01
1
9307-
●
●
428
CLIP; HARNESS
(C) L=142
8-94232-619-0
02
1
9307-
●
●
438
CABLE; OIL FILTER SW
1-82657-042-0
01
1
9002-9306
●
438
CABLE; OIL FILTER SW
1-82657-062-1
01
1
9307-
●
438
CABLE; OIL FILTER SW
1-82657-063-1
01
1
9307-
●
440
BOLT; CAB GROMMET
M6X18 W/LK WASHER
9-01900-618-0
02
1
9002-9204
●
440
BOLT; CAB GROMMET
M6X18 W/LK WASHER
0-50040-618-0
02
1
9205-9302
●
440
BOLT; CAB GROMMET
M6X20 FLANGE
0-28080-620-0
02
1
9303-
●
●
441
BOLT; HARNESS TO FRAME
M6X22 FLANGE
0-28210-622-0
03
1
9002-9204
●
441
BOLT; HARNESS TO FRAME
M6X22 FLANGE
0-28280-622-0
03
1
9205-9309
●
●
441
BOLT; HARNESS TO FRAME
M6X22 FLANGE
0-28280-622-0
04
1
9310-
●
●
441
BOLT; HARNESS TO FRAME
M6X22 W/LK&PL WASHER
8-94122-770-0
01
1
9309-
●
●
