◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#35259) — 207 parça

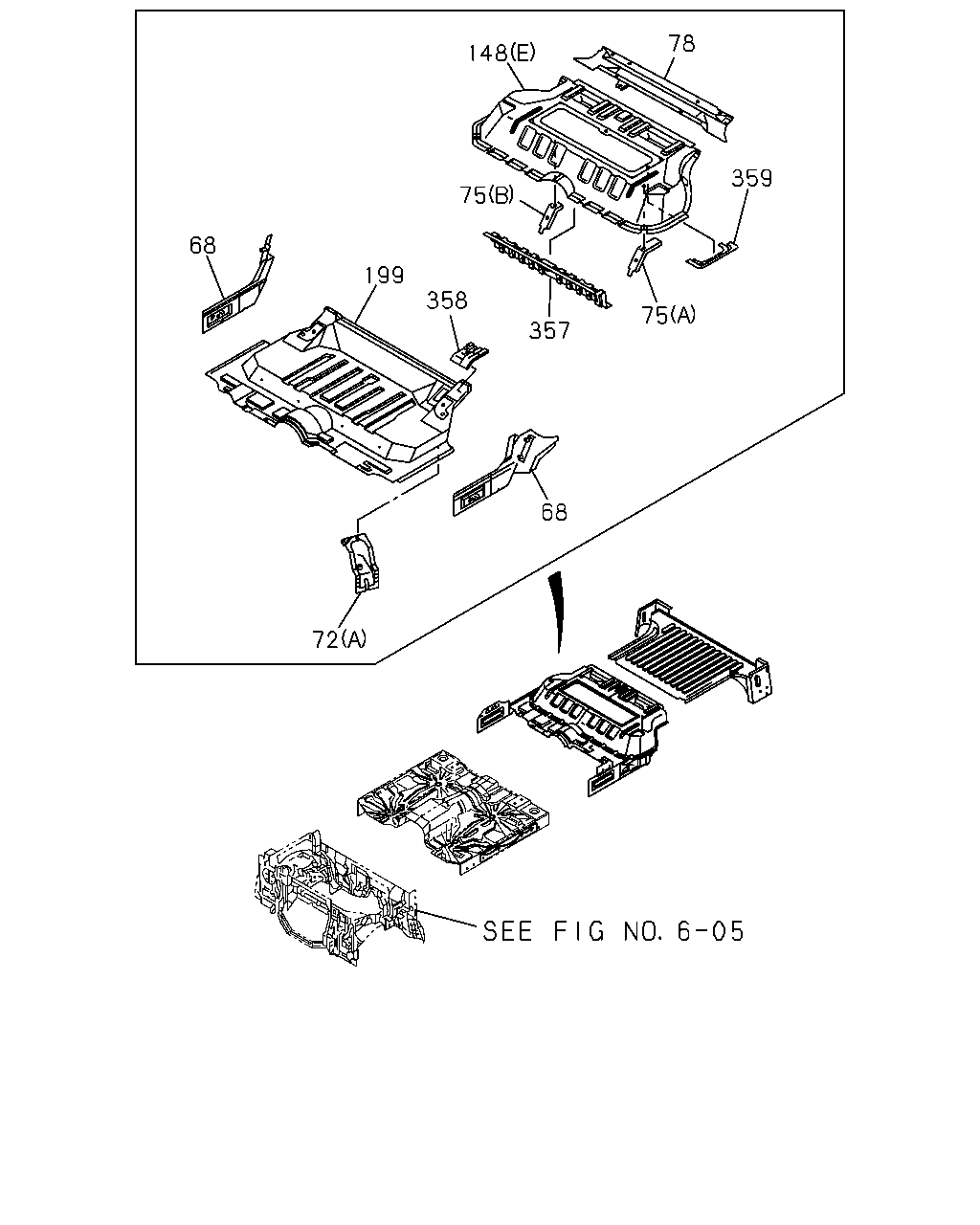

çizim 17044
78 148 359 75 68 199 358 75 357 68 72
BalonParca AdiParca NoAdetTipApplied Date A B
68 PANEL; ROCKER INNER,CENTER 8-94359-841-0 01 1 9112- ●
68 PANEL; ROCKER INNER,CENTER 8-94359-840-0 01 1 9112- ●
68 PANEL; ROCKER INNER,CENTER 8-97802-751-2 01 1 9112-9308 ●
68 PANEL; ROCKER INNER,CENTER 8-97802-751-2 01 1 9309- ●
68 PANEL; ROCKER INNER,CENTER 8-97802-750-2 01 1 9112-9308 ●
68 PANEL; ROCKER INNER,CENTER 8-97802-750-2 01 1 9309- ●
72 BRACKET; CAB MTG,RR
(B) 		8-97803-499-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(B) 		8-97803-498-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(A) 		8-94359-643-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(B) 		8-97803-497-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(A) 		8-94359-642-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(B) 		8-97803-496-0 01 1 9112- ●
75 REINFORCEMENT; RR SEAT BELT,CENTER
(A) 		8-94359-649-0 02 1 9112- ●
75 REINFORCEMENT; RR SEAT BELT,CENTER
(B) 		8-94359-653-1 02 1 9112- ●
78 BOLSTER ASM; RR FLOOR NO 2 8-97808-086-1 01 1 9112- ●
148 BRACKET; SEAT
(E) 		8-94359-658-7 01 1 9112- ●
148 BRACKET; SEAT
(C) 		8-97803-593-1 01 1 9112- ●
148 BRACKET; SEAT
(B) 		8-94359-659-1 01 1 9112- ●
148 BRACKET; SEAT
(D) 		8-97800-928-4 01 1 9112- ●
148 BRACKET; SEAT
(A) 		8-97802-746-0 02 1 9112-9311 ●
148 BRACKET; SEAT
(A) 		8-94435-642-0 02 1 9312- ●
148 BRACKET; SEAT
(E) 		8-94358-363-5 01 1 9112- ●
199 PANEL; RR FLOOR 8-94359-641-1 01 1 9112-9609 ●
199 PANEL; RR FLOOR 8-97164-296-0 01 1 9610- ●
357 REINFORCEMENT; LID HINGE 8-94359-656-3 01 1 9112- ●
358 BRACKET; RR FLOOR SIDE 8-97803-333-0 01 1 9112- ●
358 BRACKET; RR FLOOR SIDE 8-97803-332-0 01 1 9112- ●
359 REINFORCEMENT; HOLE SIDE 8-94359-657-0 02 1 9112- ●

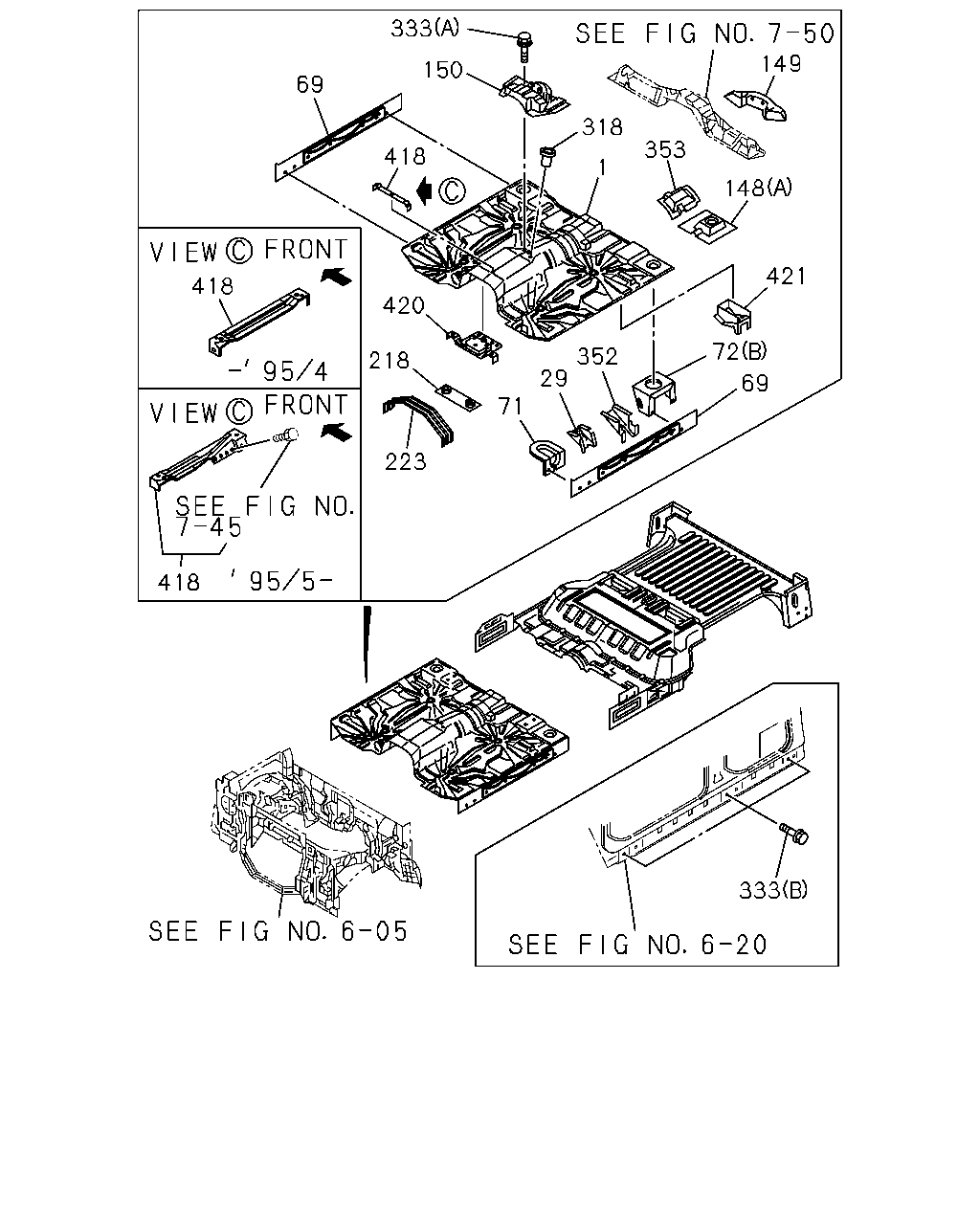

çizim 68622
333 149 150 69 318 353 418 1 148 418 421 420 72 69 352 29 218 71 223 418 333
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 8-94359-284-1 01 1 9112-9504 ●
1 PANEL; FLOOR 8-97121-265-2 01 1 9505-9508 ●
1 PANEL; FLOOR 8-97105-362-0 01 1 9509-9607 ●
1 PANEL; FLOOR 8-97121-265-2 01 1 9608- ●
1 PANEL; FLOOR 8-94359-283-0 01 1 9112-9504 ●
1 PANEL; FLOOR 8-97121-264-2 01 1 9505-9508 ●
1 PANEL; FLOOR 8-97105-361-0 01 1 9509-9607 ●
1 PANEL; FLOOR 8-97121-264-2 01 1 9608- ●
29 GUSSET 8-94359-305-0 02 1 9112- ● ●
69 PANEL; ROCKER INNER 8-94359-308-2 01 1 9112- ● ●
69 PANEL; ROCKER INNER 8-94359-307-2 01 1 9112- ● ●
71 BRACKET; CAB MTG,CENTER 8-94359-298-0 01 1 9112-9710 ● ●
71 BRACKET; CAB MTG,CENTER 8-97167-614-1 01 1 9711- ● ●
71 BRACKET; CAB MTG,CENTER 8-94359-297-0 01 1 9112-9710 ● ●
71 BRACKET; CAB MTG,CENTER 8-97167-613-1 01 1 9711- ● ●
72 BRACKET; CAB MTG,RR
(B) 		8-97803-499-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(B) 		8-97803-498-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(A) 		8-94359-643-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(B) 		8-97803-497-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(A) 		8-94359-642-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(B) 		8-97803-496-0 01 1 9112- ●
148 BRACKET; SEAT
(E) 		8-94359-658-7 01 1 9112- ●
148 BRACKET; SEAT
(C) 		8-97803-593-1 01 1 9112- ●
148 BRACKET; SEAT
(B) 		8-94359-659-1 01 1 9112- ●
148 BRACKET; SEAT
(D) 		8-97800-928-4 01 1 9112- ●
148 BRACKET; SEAT
(A) 		8-97802-746-0 02 1 9112-9311 ●
148 BRACKET; SEAT
(A) 		8-94435-642-0 02 1 9312- ●
148 BRACKET; SEAT
(E) 		8-94358-363-5 01 1 9112- ●
149 BRACKET; SEAT BELT ROD 8-94359-295-2 01 1 9112-9710 ● ●
149 BRACKET; SEAT BELT ROD 8-97164-319-0 01 1 9711- ● ●
150 BRACKET; SEAT BELT,ANCHOR 8-97801-765-2 01 1 9112- ●
150 BRACKET; SEAT BELT,ANCHOR 8-97801-400-2 01 1 9112- ●
218 PATCH; A/T CONT LEVER 8-97800-803-0 01 1 9112- ● ●
223 PATCH; CONSOLE BOX 8-97800-541-0 01 1 9112-9504 ● ●
223 PATCH; CONSOLE BOX 8-97119-019-0 01 1 9505-9508 ● ●
223 PATCH; CONSOLE BOX 8-97104-212-0 01 1 9509-9607 ● ●
223 PATCH; CONSOLE BOX 8-97109-933-0 01 1 9608- ● ●
318 NUT; COVER
-950528 		8-97808-115-0 02 1 9112-9505 ● ●
318 NUT; COVER
950529- M8 POP NUT 		8-94279-538-0 02 1 9505- ● ●
333 BOLT; BRKT
(B) M10X16 W/PL WASHER 		8-97807-818-0 04 1 9112-9201 ●
333 BOLT; BRKT
(B) M6X20 W/PL WASHER 		8-97808-622-0 04 1 9202- ●
333 BOLT; BRKT
(A) M10X25 		8-94126-841-0 02 1 9112- ● ●
333 BOLT; BRKT
(B) M10X16 W/PL WASHER 		8-97807-818-0 06 1 9112-9201 ●
333 BOLT; BRKT
(B) M6X20 W/PL WASHER 		8-97808-622-0 06 1 9202- ●
352 GUSSET; FRT SEAT 8-94359-306-1 02 1 9112-9607 ● ●
353 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 9112- ● ●
418 BRACKET; CONSOLE 8-97801-457-0 01 1 9112-9504 ● ●
418 BRACKET; CONSOLE 8-97103-466-4 01 1 9505-9607 ● ●
420 BRACKET; SENSOR,SIR 8-97109-931-1 01 1 9608- ● ●
421 GUSSET; CAB STOPPER 8-97121-305-2 02 1 9608- ● ●

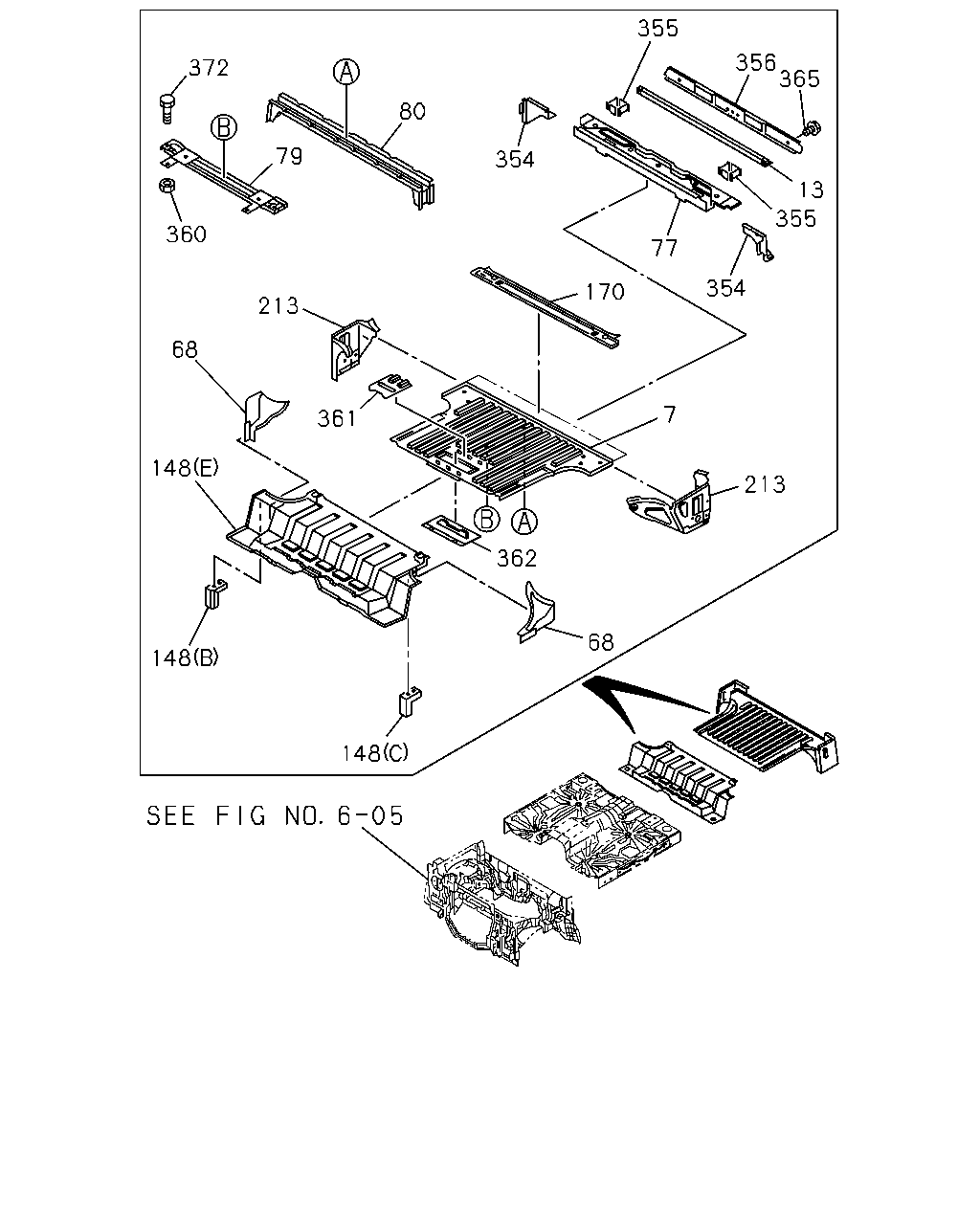

çizim 68652
355 356 365 372 80 79 354 13 355 360 77 170 354 213 68 7 361 148 213 362 68 148 148
BalonParca AdiParca NoAdetTipApplied Date A B
7 PANEL; RR FLOOR,RR 8-94359-667-3 01 1 9112-9208 ●
7 PANEL; RR FLOOR,RR 8-97809-434-1 01 1 9209- ●
7 PANEL; RR FLOOR,RR
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-176-3 01 1 9112-9208 ●
7 PANEL; RR FLOOR,RR
3RD SEAT 7 PASSENGERS(AS3) 		8-97809-433-1 01 1 9209- ●
7 PANEL; RR FLOOR,RR
EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-94359-666-3 01 1 9112-9208 ●
7 PANEL; RR FLOOR,RR
EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-97809-432-1 01 1 9209- ●
13 PANEL; FAIRING RR 8-94358-823-5 01 1 9112- ● ●
68 PANEL; ROCKER INNER,CENTER 8-94359-841-0 01 1 9112- ●
68 PANEL; ROCKER INNER,CENTER 8-94359-840-0 01 1 9112- ●
68 PANEL; ROCKER INNER,CENTER 8-97802-751-2 01 1 9112-9308 ●
68 PANEL; ROCKER INNER,CENTER 8-97802-751-2 01 1 9309- ●
68 PANEL; ROCKER INNER,CENTER 8-97802-750-2 01 1 9112-9308 ●
68 PANEL; ROCKER INNER,CENTER 8-97802-750-2 01 1 9309- ●
77 BOLSTER ASM; END 8-94358-746-4 01 1 9112-9412 ● ●
77 BOLSTER ASM; END 8-97127-025-0 01 1 9501- ● ●
79 BOLSTER ASM; RR FLOOR NO 3 8-97802-168-1 01 1 9112-9208 ● ●
79 BOLSTER ASM; RR FLOOR NO 3
-920906 		8-97809-361-0 01 1 9209-9209 ● ●
79 BOLSTER ASM; RR FLOOR NO 3
920907- 		8-97802-168-3 01 1 9209-9308 ● ●
79 BOLSTER ASM; RR FLOOR NO 3 8-97802-168-3 01 1 9309- ● ●
80 BOLSTER ASM; RR FLOOR NO.4 8-97802-182-1 01 1 9112- ● ●
148 BRACKET; SEAT
(E) 		8-94359-658-7 01 1 9112- ●
148 BRACKET; SEAT
(C) 		8-97803-593-1 01 1 9112- ●
148 BRACKET; SEAT
(B) 		8-94359-659-1 01 1 9112- ●
148 BRACKET; SEAT
(D) 		8-97800-928-4 01 1 9112- ●
148 BRACKET; SEAT
(A) 		8-97802-746-0 02 1 9112-9311 ●
148 BRACKET; SEAT
(A) 		8-94435-642-0 02 1 9312- ●
148 BRACKET; SEAT
(E) 		8-94358-363-5 01 1 9112- ●
170 EXTENSION; RR FLOOR 8-94358-828-1 01 1 9112- ● ●
213 PANEL; RR FLOOR SIDE 8-94359-280-2 01 1 9112-9305 ● ●
213 PANEL; RR FLOOR SIDE 8-97810-391-0 01 1 9306- ● ●
213 PANEL; RR FLOOR SIDE 8-94359-279-2 01 1 9112- ● ●
354 EXTENSION; END BOLSTER 8-94359-682-3 01 1 9112- ● ●
354 EXTENSION; END BOLSTER 8-94359-681-3 01 1 9112- ● ●
355 BRACKET; END BOLSTER 8-94359-683-0 02 1 9112- ● ●
356 CLOSING; END BOLSTER 8-97803-733-1 01 1 9112- ● ●
360 NUT; BRKT
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-94334-769-0 02 1 9209- ● ●
361 RECESS; RR SEAT LOCK 8-94359-679-1 01 1 9112- ●
361 RECESS; RR SEAT LOCK
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-177-1 01 1 9112- ●
362 REINFORCEMENT; RR SEAT LOCK 8-94359-677-3 01 1 9112- ●
362 REINFORCEMENT; RR SEAT LOCK
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-178-1 01 1 9112- ●
365 BOLT; RR FAIRING
M10X16 W/PL WASHER 		8-97807-818-0 02 1 9112-9201 ● ●
365 BOLT; RR FAIRING
M6X20 W/PL WASHER 		8-97808-622-0 02 1 9202- ● ●
372 BOLT; PATCH
EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X20 W/PL WASHER 		8-97808-622-0 02 1 9209- ● ●

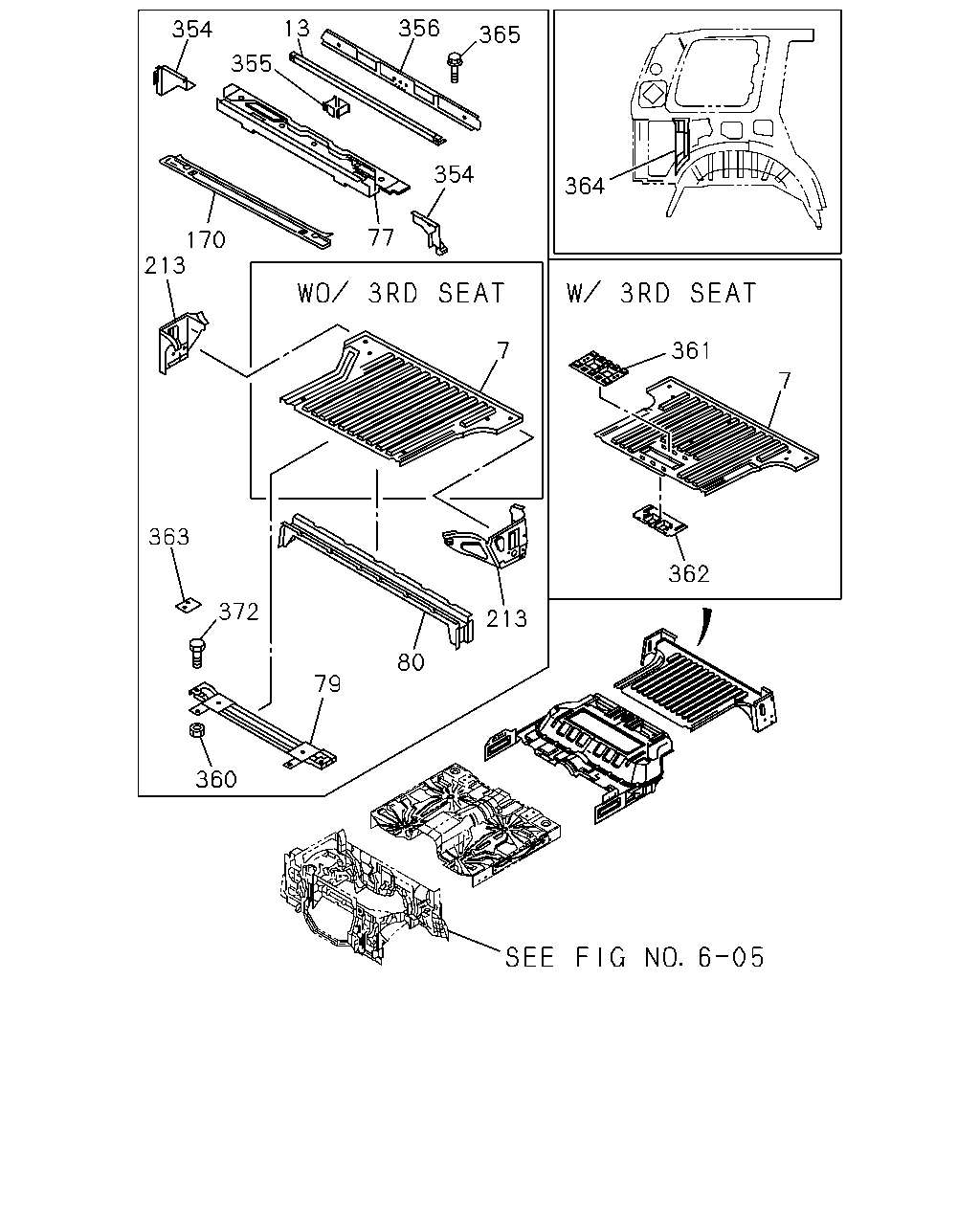

çizim 68653
13 356 354 365 355 364 354 77 170 213 7 361 7 363 362 372 213 80 79 360
BalonParca AdiParca NoAdetTipApplied Date A B
7 PANEL; RR FLOOR,RR 8-94359-667-3 01 1 9112-9208 ●
7 PANEL; RR FLOOR,RR 8-97809-434-1 01 1 9209- ●
7 PANEL; RR FLOOR,RR
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-176-3 01 1 9112-9208 ●
7 PANEL; RR FLOOR,RR
3RD SEAT 7 PASSENGERS(AS3) 		8-97809-433-1 01 1 9209- ●
7 PANEL; RR FLOOR,RR
EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-94359-666-3 01 1 9112-9208 ●
7 PANEL; RR FLOOR,RR
EXC. 3RD SEAT 7 PASSENGERS(AS3) 		8-97809-432-1 01 1 9209- ●
13 PANEL; FAIRING RR 8-94358-823-5 01 1 9112- ● ●
77 BOLSTER ASM; END 8-94358-746-4 01 1 9112-9412 ● ●
77 BOLSTER ASM; END 8-97127-025-0 01 1 9501- ● ●
79 BOLSTER ASM; RR FLOOR NO 3 8-97802-168-1 01 1 9112-9208 ● ●
79 BOLSTER ASM; RR FLOOR NO 3
-920906 		8-97809-361-0 01 1 9209-9209 ● ●
79 BOLSTER ASM; RR FLOOR NO 3
920907- 		8-97802-168-3 01 1 9209-9308 ● ●
79 BOLSTER ASM; RR FLOOR NO 3 8-97802-168-3 01 1 9309- ● ●
80 BOLSTER ASM; RR FLOOR NO.4 8-97802-182-1 01 1 9112- ● ●
170 EXTENSION; RR FLOOR 8-94358-828-1 01 1 9112- ● ●
213 PANEL; RR FLOOR SIDE 8-94359-280-2 01 1 9112-9305 ● ●
213 PANEL; RR FLOOR SIDE 8-97810-391-0 01 1 9306- ● ●
213 PANEL; RR FLOOR SIDE 8-94359-279-2 01 1 9112- ● ●
354 EXTENSION; END BOLSTER 8-94359-682-3 01 1 9112- ● ●
354 EXTENSION; END BOLSTER 8-94359-681-3 01 1 9112- ● ●
355 BRACKET; END BOLSTER 8-94359-683-0 02 1 9112- ● ●
356 CLOSING; END BOLSTER 8-97803-733-1 01 1 9112- ● ●
360 NUT; BRKT
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-94334-769-0 02 1 9209- ● ●
361 RECESS; RR SEAT LOCK 8-94359-679-1 01 1 9112- ●
361 RECESS; RR SEAT LOCK
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-177-1 01 1 9112- ●
362 REINFORCEMENT; RR SEAT LOCK 8-94359-677-3 01 1 9112- ●
362 REINFORCEMENT; RR SEAT LOCK
3RD SEAT 7 PASSENGERS(AS3) 		8-97802-178-1 01 1 9112- ●
363 PATCH; TETHER ANCHOR 8-97803-596-1 01 1 9112- ●
364 BRACKET; 3RD SEAT
3RD SEAT 7 PASSENGERS(AS3) 		8-97803-404-2 01 1 9112- ●
365 BOLT; RR FAIRING
M10X16 W/PL WASHER 		8-97807-818-0 02 1 9112-9201 ● ●
365 BOLT; RR FAIRING
M6X20 W/PL WASHER 		8-97808-622-0 02 1 9202- ● ●
372 BOLT; PATCH
EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X20 W/PL WASHER 		8-97808-622-0 02 1 9209- ● ●

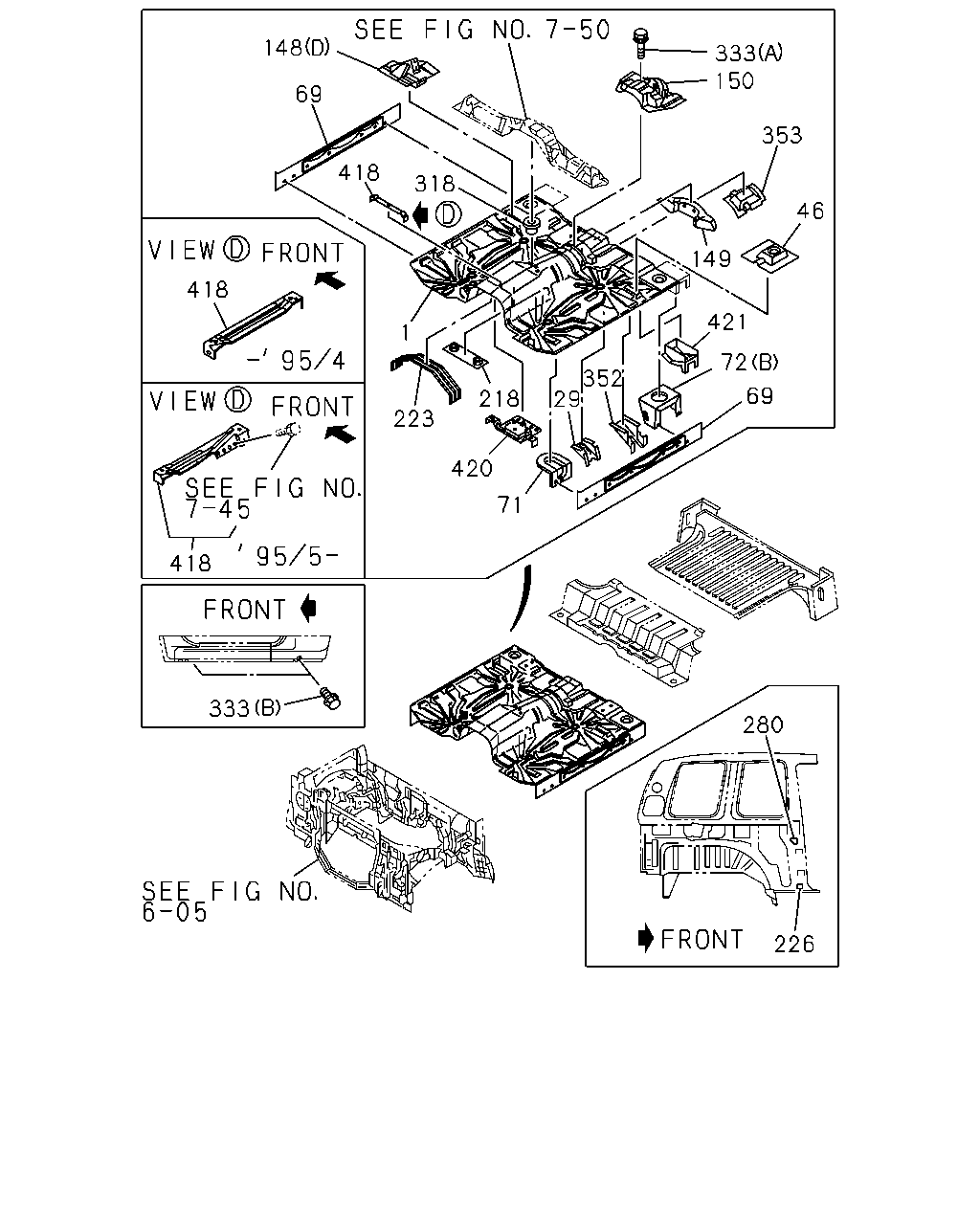

çizim 68725
148 333 150 69 353 418 318 46 149 418 421 1 72 69 352 29 218 223 420 71 418 333 280 226
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 8-94359-284-1 01 1 9112-9504 ●
1 PANEL; FLOOR 8-97121-265-2 01 1 9505-9508 ●
1 PANEL; FLOOR 8-97105-362-0 01 1 9509-9607 ●
1 PANEL; FLOOR 8-97121-265-2 01 1 9608- ●
1 PANEL; FLOOR 8-94359-283-0 01 1 9112-9504 ●
1 PANEL; FLOOR 8-97121-264-2 01 1 9505-9508 ●
1 PANEL; FLOOR 8-97105-361-0 01 1 9509-9607 ●
1 PANEL; FLOOR 8-97121-264-2 01 1 9608- ●
29 GUSSET 8-94359-305-0 02 1 9112- ● ●
46 BRACKET; FRT SEAT,RR OUTER 8-94435-642-0 01 1 9608- ●
69 PANEL; ROCKER INNER 8-94359-308-2 01 1 9112- ● ●
69 PANEL; ROCKER INNER 8-94359-307-2 01 1 9112- ● ●
71 BRACKET; CAB MTG,CENTER 8-94359-298-0 01 1 9112-9710 ● ●
71 BRACKET; CAB MTG,CENTER 8-97167-614-1 01 1 9711- ● ●
71 BRACKET; CAB MTG,CENTER 8-94359-297-0 01 1 9112-9710 ● ●
71 BRACKET; CAB MTG,CENTER 8-97167-613-1 01 1 9711- ● ●
72 BRACKET; CAB MTG,RR
(B) 		8-97803-499-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(B) 		8-97803-498-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(A) 		8-94359-643-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(B) 		8-97803-497-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(A) 		8-94359-642-0 01 1 9112- ●
72 BRACKET; CAB MTG,RR
(B) 		8-97803-496-0 01 1 9112- ●
148 BRACKET; SEAT
(E) 		8-94359-658-7 01 1 9112- ●
148 BRACKET; SEAT
(C) 		8-97803-593-1 01 1 9112- ●
148 BRACKET; SEAT
(B) 		8-94359-659-1 01 1 9112- ●
148 BRACKET; SEAT
(D) 		8-97800-928-4 01 1 9112- ●
148 BRACKET; SEAT
(A) 		8-97802-746-0 02 1 9112-9311 ●
148 BRACKET; SEAT
(A) 		8-94435-642-0 02 1 9312- ●
148 BRACKET; SEAT
(E) 		8-94358-363-5 01 1 9112- ●
149 BRACKET; SEAT BELT ROD 8-94359-295-2 01 1 9112-9710 ● ●
149 BRACKET; SEAT BELT ROD 8-97164-319-0 01 1 9711- ● ●
150 BRACKET; SEAT BELT,ANCHOR 8-97801-765-2 01 1 9112- ●
150 BRACKET; SEAT BELT,ANCHOR 8-97801-400-2 01 1 9112- ●
218 PATCH; A/T CONT LEVER 8-97800-803-0 01 1 9112- ● ●
223 PATCH; CONSOLE BOX 8-97800-541-0 01 1 9112-9504 ● ●
223 PATCH; CONSOLE BOX 8-97119-019-0 01 1 9505-9508 ● ●
223 PATCH; CONSOLE BOX 8-97104-212-0 01 1 9509-9607 ● ●
223 PATCH; CONSOLE BOX 8-97109-933-0 01 1 9608- ● ●
226 PATCH; SEAT BELT,LWR 8-97801-964-1 02 1 9112- ●
280 PATCH; SEAT BELT 8-97803-584-1 01 1 9112- ●
280 PATCH; SEAT BELT 8-97803-583-1 01 1 9112- ●
318 NUT; COVER
-950528 		8-97808-115-0 02 1 9112-9505 ● ●
318 NUT; COVER
950529- M8 POP NUT 		8-94279-538-0 02 1 9505- ● ●
333 BOLT; BRKT
(B) M10X16 W/PL WASHER 		8-97807-818-0 04 1 9112-9201 ●
333 BOLT; BRKT
(B) M6X20 W/PL WASHER 		8-97808-622-0 04 1 9202- ●
333 BOLT; BRKT
(A) M10X25 		8-94126-841-0 02 1 9112- ● ●
333 BOLT; BRKT
(B) M10X16 W/PL WASHER 		8-97807-818-0 06 1 9112-9201 ●
333 BOLT; BRKT
(B) M6X20 W/PL WASHER 		8-97808-622-0 06 1 9202- ●
352 GUSSET; FRT SEAT 8-94359-306-1 02 1 9112-9607 ● ●
353 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 9112- ● ●
418 BRACKET; CONSOLE 8-97801-457-0 01 1 9112-9504 ● ●
418 BRACKET; CONSOLE 8-97103-466-4 01 1 9505-9607 ● ●
420 BRACKET; SENSOR,SIR 8-97109-931-1 01 1 9608- ● ●
421 GUSSET; CAB STOPPER 8-97121-305-2 02 1 9608- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
